From cylinder head to backhoe boom, this Ford 6500, 7500 service manual PDF (OEM ID 40650020) walks the engine, fuel, electrical, transmission, rear axle and brakes, steering, and loader-backhoe hydraulic systems end to end across 490 pages. Hydraulic schematics map the loader and backhoe circuits for each tractor, and the pressure checks and adjustments that keep those circuits honest fill much of the back half of the book. Wiring diagrams trace your lights, instruments, and starting system, while exploded views break rear axle assemblies like the planetary gears and differential lock down fastener by fastener. When the converter housing goes back on the transmission case, run the 5/8 in. bolts to 150-165 lbs. ft.; the alternator pulley nut takes 35-50 lbs. ft. A backhoe that drifts under load will not diagnose itself. Bookmarked and text-searchable, this PDF jumps you straight to the section you came for.
What's Inside This Ford 6500, 7500 Manual
| System | Pages | Key Topics |
|---|---|---|

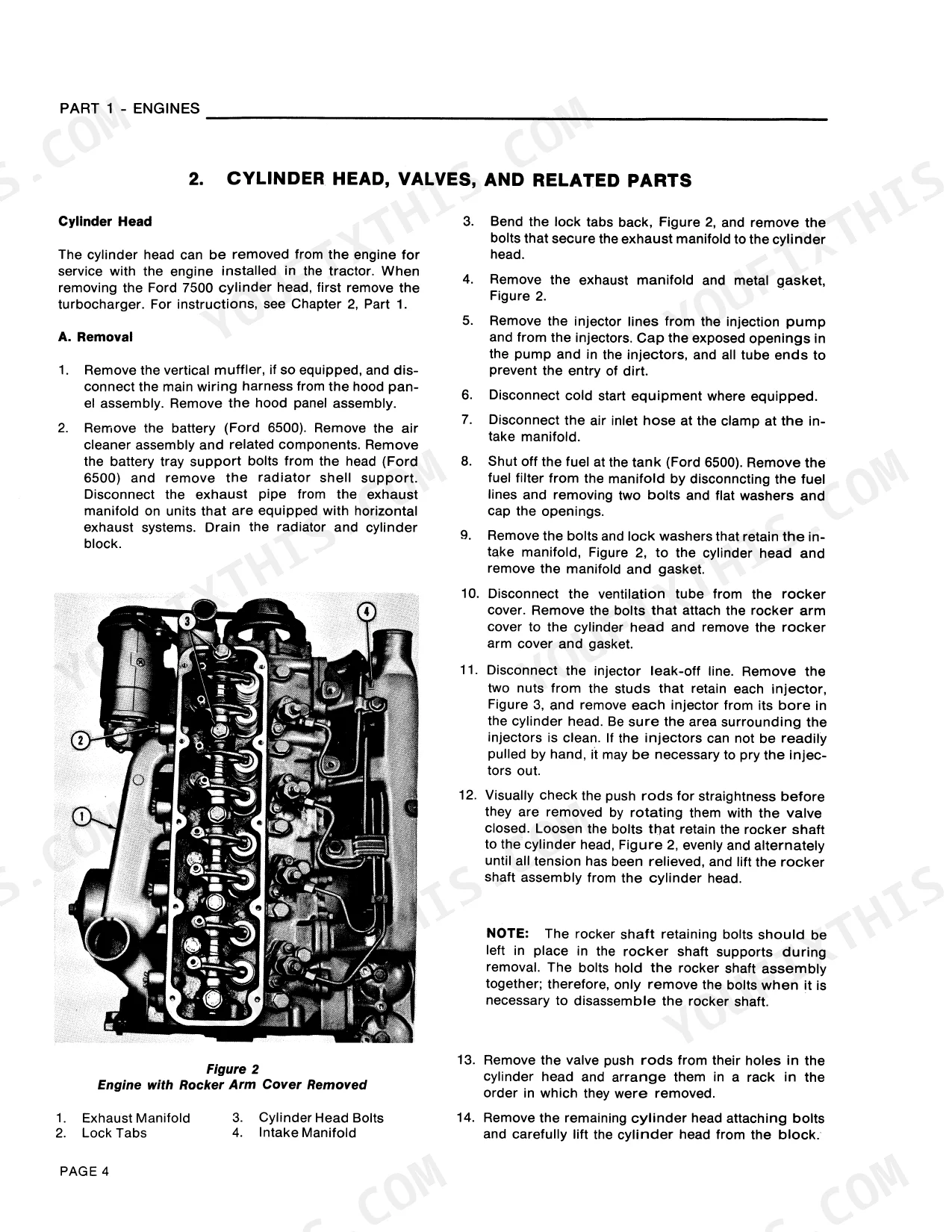

| Engines | 3-74 | Engines and Lubricating System (Description and Operation, Cylinder Head, Valves, And Related Parts, Engine Front Cover and Timing Gears, Oil Pan Sump and Oil Pump, Connecting Rods, Bearings, Pistons, Rings, And Cylinder Block, Balancer, Main Bearings, Flywheel, And Crankshaft, Camshaft) |
| Fuel System | 75-98 | Diesel Fuel System Ford 6500 and 7500 |
| Electrical System | 99-158 | Wiring Lights and Instruments, Starting System |
| Transmission | 159-196 | Servicing the Transmission |
| Rear Axle and Brakes | 197-222 | Rear Axle Shaft Assembly, Planetary Gear Assembly, Disc Brake Assembly, Differential and Differential Lock Assembly, Parking Brake Assembly, Drive Pinion Assembly |
| Steering and Front Axle | 223-258 | Steering |
| Ford 6500 and 7500 Components Removal | 259-282 | Engine Removal and Installation, Specifications and Special Tools |
| Ford 6500 Loader-Backhoe and Hydraulics | 283-384 | Description and Operation, Adjustments and Pressure Checks |
| Ford 7500 Loader-Backhoe and Hydraulics | 385-490 | Description and Operation, Adjustments and Pressure Checks |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Generator Drive End Plate Assembly Securing Nut | 25 lbs. ft. (3.46 kg-m) | p. 381 |
| Alternator Pulley Nut | 35-50 lbs. ft. (4.84-6.92 kg-m) | p. 114 |
| Spool eyelet end torque | 5-8 lbs. ft. (.69-1.1 kgm) | p. 382 |
| Spool end torque | 5-8 lbs. ft. (.69-1.1 kgm) | p. 382 |
| Check valve torque | 35 lbs. ft. (4.8 kgm) | p. 114 |
| Drive shaft torque check | 5-10 lbs. ft. (.69-1.3 kgm) | p. 348 |
| Body bearing protrusion | .220-.230 inches | p. 350 |
| Backhoe Bucket Cylinder Gland | 350 ± 25 lbs. ft. (48.4 ± 3.5 kgm) | p. 381 |
| Backhoe Bucket Cylinder Packing Nut | 200 ± 25 lbs. ft. (27.6 ± 3.5 kgm) | p. 381 |
| Engine Idle Speed | 600-700 rpm | p. 65 |
| Engine Rated Speed | 2100 rpm | p. 65 |
Ford 6500, 7500 Common Problems This Manual Covers
Loader and backhoe weak or sticky when cold, work normally after warm-up
Drain the reservoir and refill with clean oil; milky fluid means water is freezing in the spool bores overnight. Pull the sticky spool, polish off varnish with crocus cloth, and fit new seals. On the 6500, torque the spool eyelet end to 5-8 lbs. ft. (.69-1.1 kgm), page 382.
Manual Section: Ford 6500 Loader-Backhoe and Hydraulics p. 382Engine hard to start, runs rough at idle, and lacks power under full load

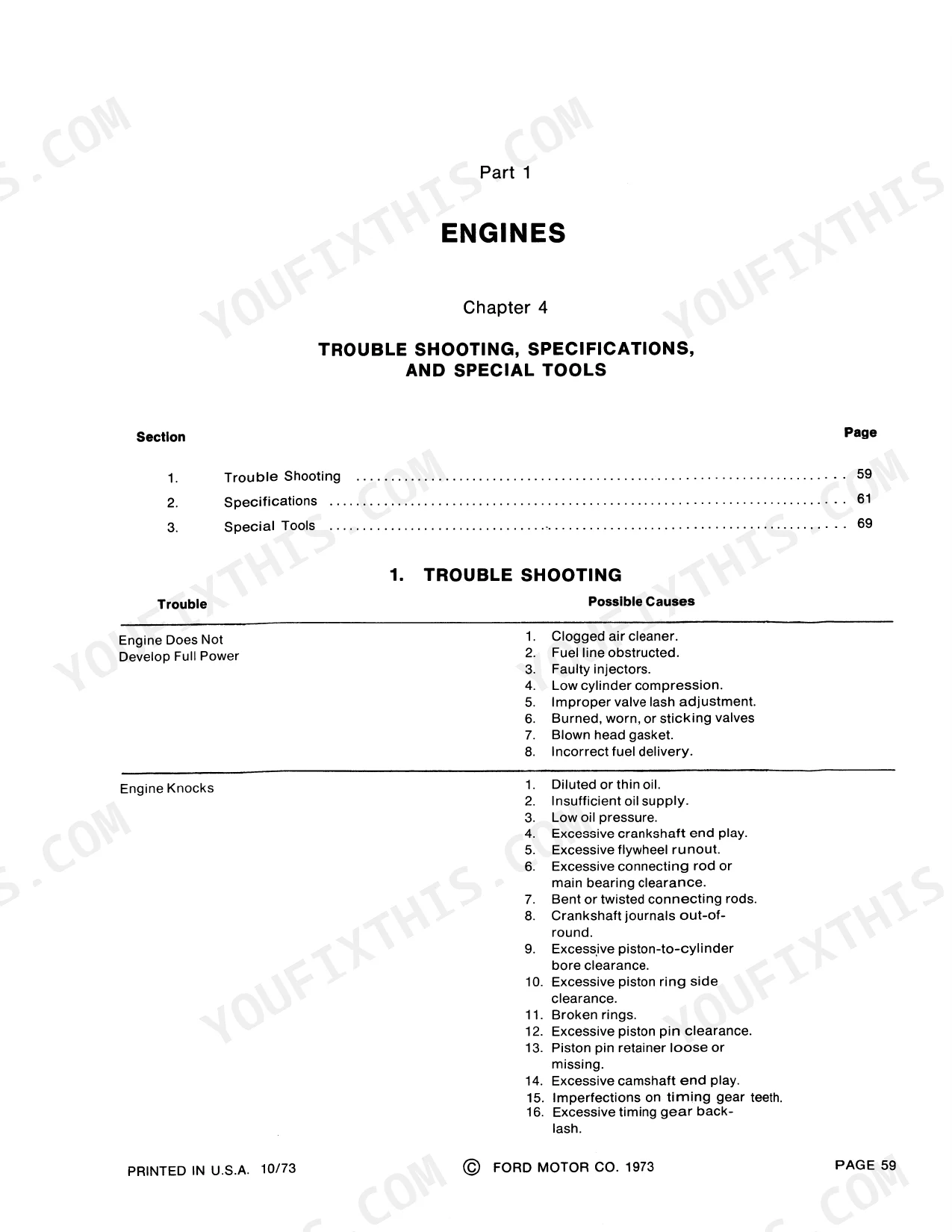

Check that fuel reaches the injection pump and bleed the filters and lines, following the fuel system section starting on page 75. Verify governed speeds against page 65: 2100 rpm rated and 600-700 rpm low idle. If speeds are correct but power is still down, work the low power chart.
Manual Section: Engine TroubleshootingLoader boom or backhoe bucket drops as soon as the control lever is released
Cap the lines at the drooping cylinder with the load raised: if the rod still creeps, replace the piston seals; if it holds, the valve section is bypassing internally. On the 6500, torque loader lift cylinder gland nuts to 200-225 lbs. ft. (27.6-31.5 kgm) during reassembly, page 382; 7500 values start on page 385.
Manual Section: Ford 6500 Loader-Backhoe and Hydraulics p. 382Frequently Asked Questions
What is the torque specification for the front axle attaching bolts on the Ford 6500 and 7500?
The torque specification for the front axle attaching bolts is 57-74 lbs. ft. (7.86-10.21 kgm). p. 257
How do you fix ford 6500 backhoe no hydraulics after hose burst and refill, pump won't build pressure?
Fill the reservoir and crack the pump pressure line to bleed air, then crank until oil runs solid. If the pump still won't prime, pull it and bench check the drive shaft: it should turn freely at no more than 5-10 lbs. ft. (.69-1.3 kgm), per the pump procedure on page 348. Replace scored gear plates before reinstalling. p. 348
How do you fix tractor will not move forward or reverse and all hydraulic functions are dead?
Pull the converter housing inspection cover and turn the engine over by hand: if the flywheel spins but the pump drive gears don't, the drive ring or coupling has stripped. Split the housing per the transmission section, then torque the replacement transmission and equipment pump drive gear cap screws to 49-54 lbs. ft. (6.78-7.47 kgm), page 172. p. 172
How do you fix loader boom or backhoe bucket drops as soon as the control lever is released?
Cap the lines at the drooping cylinder with the load raised: if the rod still creeps, replace the piston seals; if it holds, the valve section is bypassing internally. On the 6500, torque loader lift cylinder gland nuts to 200-225 lbs. ft. (27.6-31.5 kgm) during reassembly, page 382; 7500 values start on page 385. p. 382
Is this Ford 6500 Service Manual a digital download?
One searchable PDF covering 490 pages, delivered instantly. No disc, no shipping, no waiting on the post.
Does this Ford 6500 manual allow printing?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
Are electrical wiring diagrams included in this Ford 6500 Service Manual?
Yes. You'll find full electrical schematics with wire routing diagrams, connector identification, and circuit descriptions. See page 102 for an example.
