Hunting part numbers for a 1975-1981 Ford 3600? This 696-page Ford 3600 parts manual PDF is the complete factory parts catalog for the 3 cylinder agricultural tractor, gasoline and diesel alike. Inside: exploded views of every assembly, from the front axle and steering gear to the 6 and 8 speed transmissions, hydraulic lift, and PTO. You get full electrical system diagrams with OEM part numbers for alternators, starters, lamps, and rear plus fender, seat, and cab hardware down to the last gasket. Metric to inch conversion charts sort out mixed-era bolts too. Confirm the 650 PSI power steering pump and reservoir assembly, or match the 77 A.H., 510 CCA battery before you order. No more squinting at corroded castings hoping the number is right. Bookmarked and text-searchable; type the part name, jump to the exploded view, order once.
What's Inside This Ford 3600 Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Fuel System | Distributor Drive & Governor Assembly, Diesel, W/Rotor Injection Pump, Gasoline, Single Fuel Filter, Dual Fuel Filter Assembly, Air Cleaner, Oil Bath Type, Nhna, Air Cleaner Assembly, Dry Type, Foot Accelerator Controls, Fuel Injection Pump, Rotor, Fuel Injector Assembly - Diesel, Carburetor Assembly, Holley, Zenith, Fuel Pump Assembly, Electric Fuel Pump, Fuel Filter Kit, Accessory, All Tractors | |
| Cooling System | Transmission Oil Cooling System, Radiator & Related Parts, Water Pump & Related Parts | |

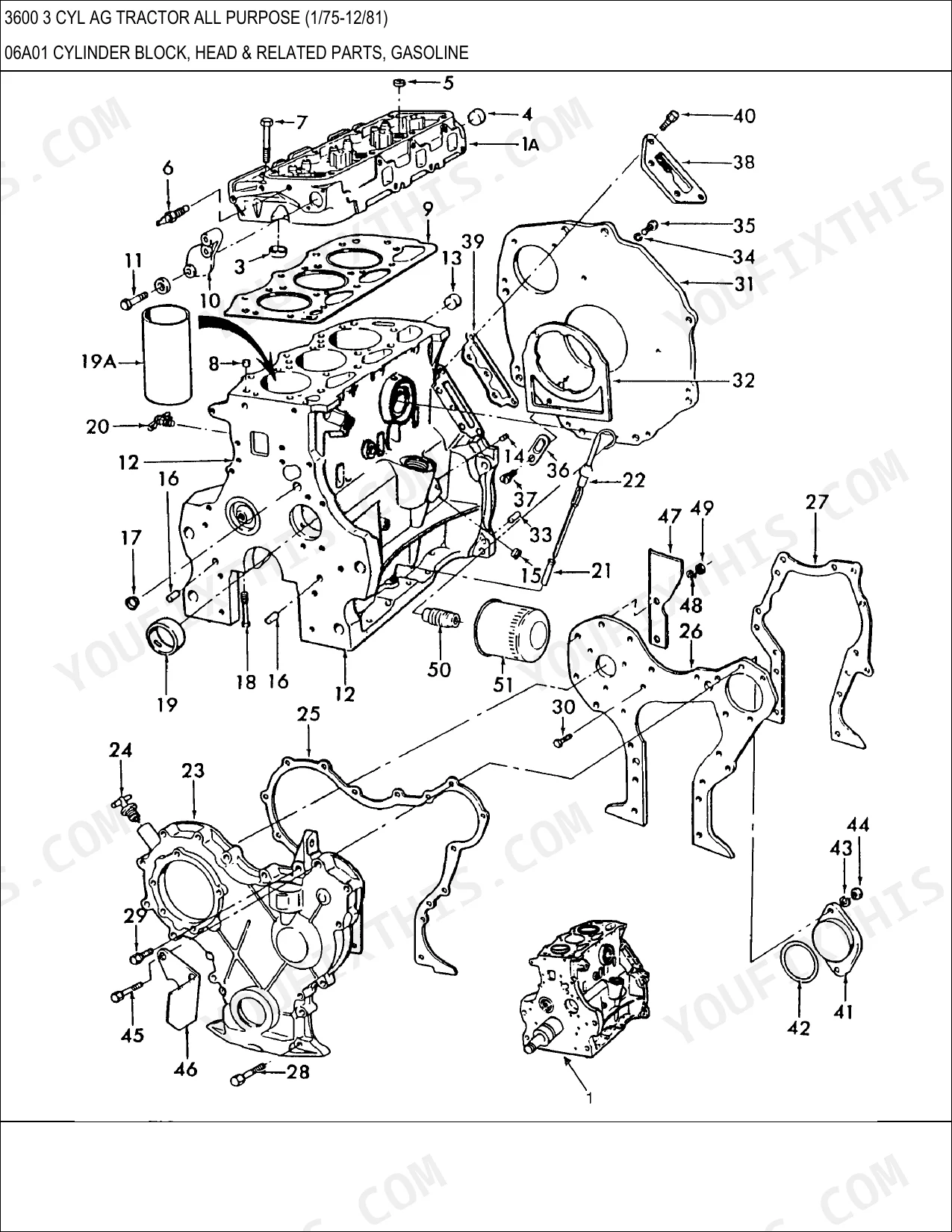

| Engine | Cylinder Block, Head & Related Parts, Gasoline, Cylinder, Diesel, Crankshaft, Flywheel & Related Parts, Cylinder Engine, Camshaft, Rocker Arm, Valves & Related Parts, Pistons & Connecting Rods, Oil Pump & Pan, Engine Gasket Kits, 3-Cylinder Gasoline & Diesel, Hydraulic Pump Assemblies, Engine Mounted, Piston Type | |

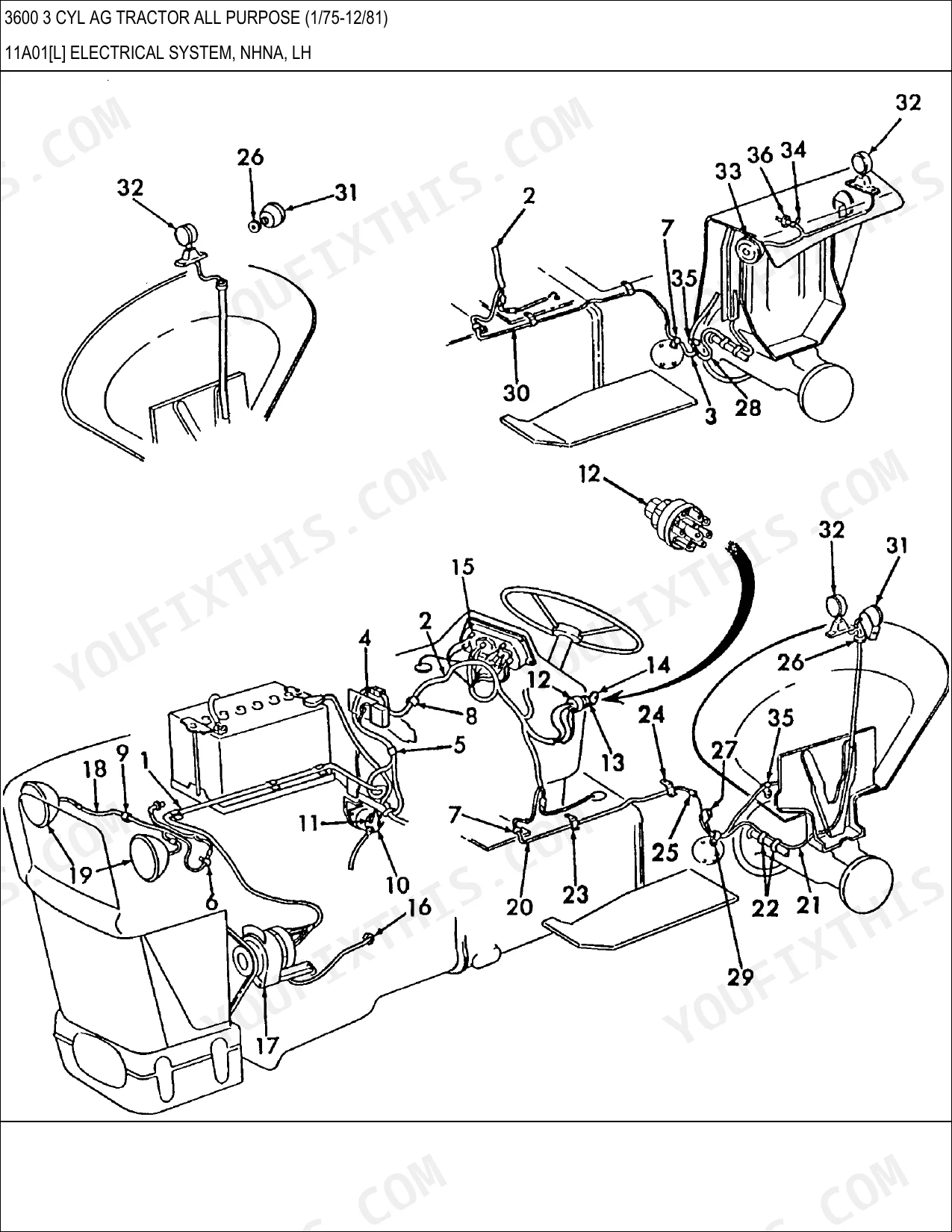

| Electrical System | Headlamp Assembly, Nhna, Front Mounted, Head & Utility Lamps, Fender or Cab Mounted, Front Mounted Nh-E, W/Cab, Front Mounted Ece, Nh-E, Side Mounted Headlamps, Duplo, Rear Wiring, W/Flat Top Fenders, W/Stop Lamps & Flashers, W/Wide Fenders & Ece Lights, Italy, Rear Lamps, L/Cab, Flasher Lamps & Turn Signal, Stop & Flasher, W/Flat Fenders, Nh-E & Nhna Imports, Parking Lamps, Side & Flasher, Lamp Assembly, Parking | |

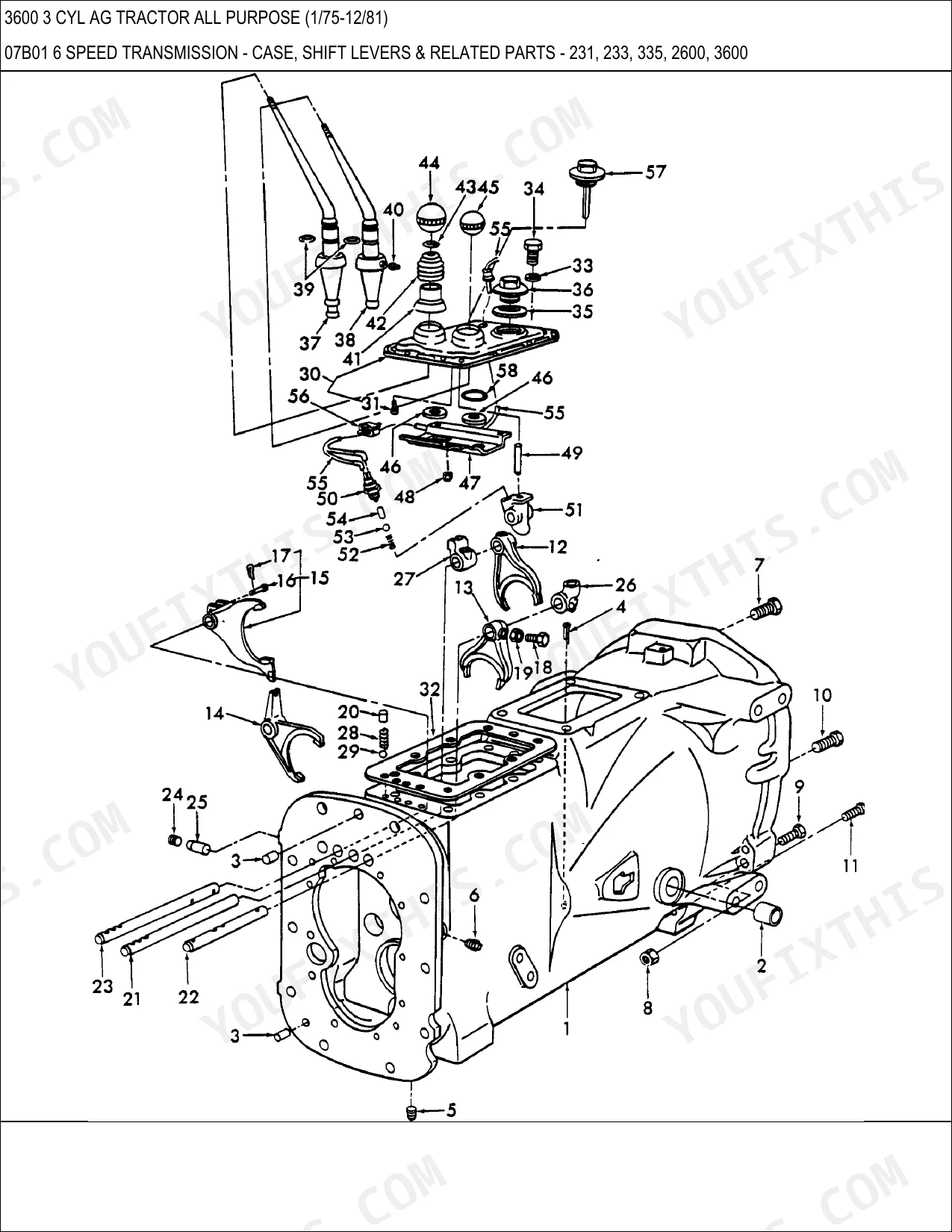

| Clutch & Transmission | Transmission Handbrake, Transmission Shaft, FWD, Nh-E, Transfer Box, W/Wet Clutch, Hand Lever, Speed Transmission - Case, Shift Levers & Related Parts, Speed Transmission - Gears & Related Parts, Dual Range 8 Speed Transmission - Gears & Related Parts, 6x4 Manual Reversing Trans. - Case, Shift Lever & Related Parts, Manual Reversing Transmission - Gears & Related Parts, Power Take-Off Assembly, 6 & 8 Speed & Manual Reversing Transmission, Clutch Controls, W/Cab, Single Clutch Assembly, 11", 6 & 8 Speed Trans, Clutch Assembly, Double, Reduction Gear Box Assembly, Cylinder | |
| PTO | Power Take-Off Assembly & Rear Axle Oil Level Indicator, W/Cab, Nh-E, PTO Guard Kit & Assembly, Accessory, PTO Gear Housing & Pulley, W/Guard | |
| Rear Axle, Differential & Brakes | Rear Wheels, Standard, Power Adjustable, Rear Wheel Weights, 24", Accessory, Manual Adjust, Brakes & Brake Controls, Brake Linkage & Pedals, W/Cab, Handbrake, Handbrake Lever & Cable, Hydraulic Trailer Brakes, Handbrake Attaching Parts, Germany, Rear Axle, Differential & Related Parts, Differential Lock Linkage | |

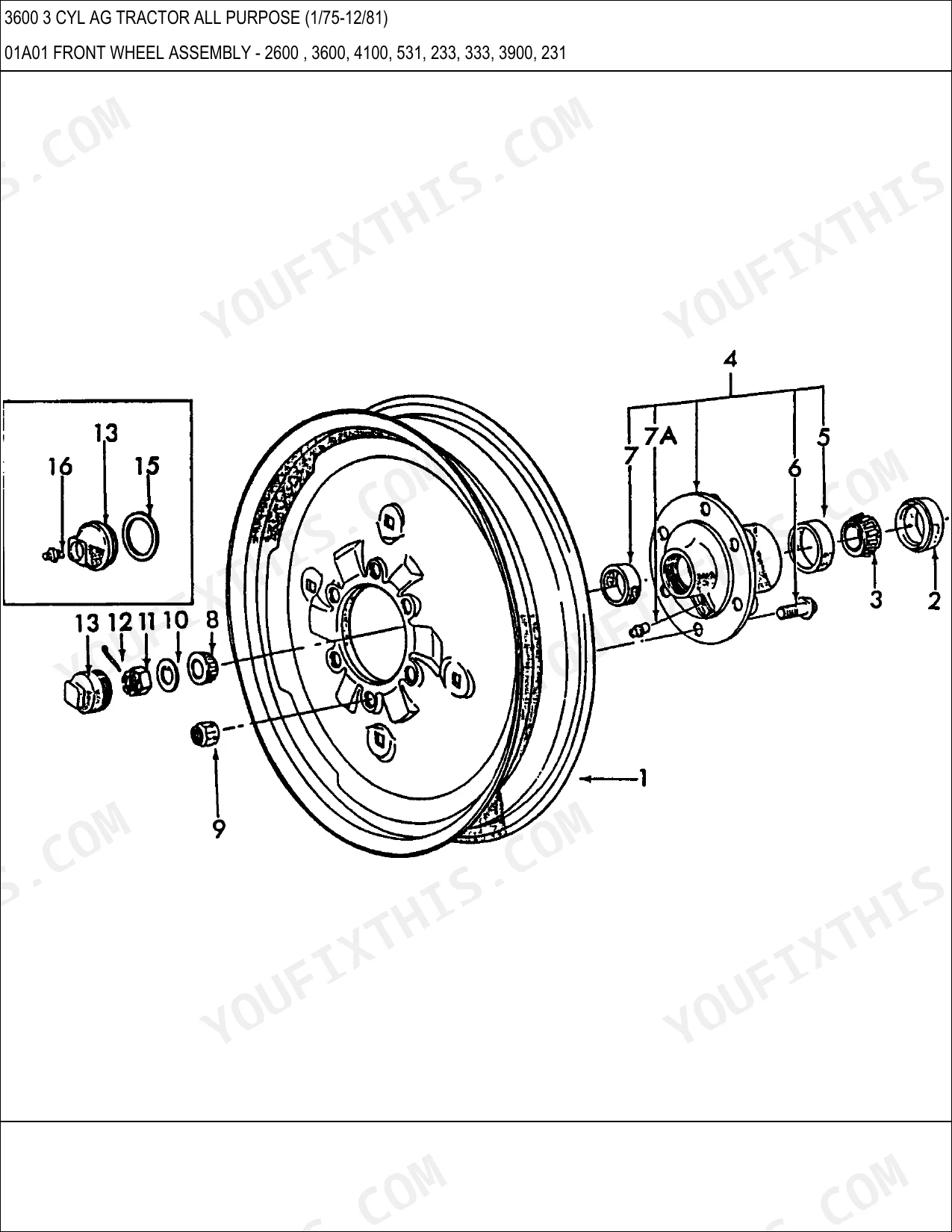

| Front Axle & Steering | Front Wheel Assembly, Front Wheel Weights, Accessory, Front Wheels, Front Wheel Drive, Front Axle, Steering & Related Parts, Manual Steering, Power Steering, Manual & Power, W/Cab, Steering Gear Assembly, Manual, Power Steering Gear L/Cab, Steering Gear Assy, Power Steering Gear Assembly, Steering Pump & Reservoir, Power, Steering Cylinder Assy. & Related Parts, FWD, Nh-E, Steering Arms | |

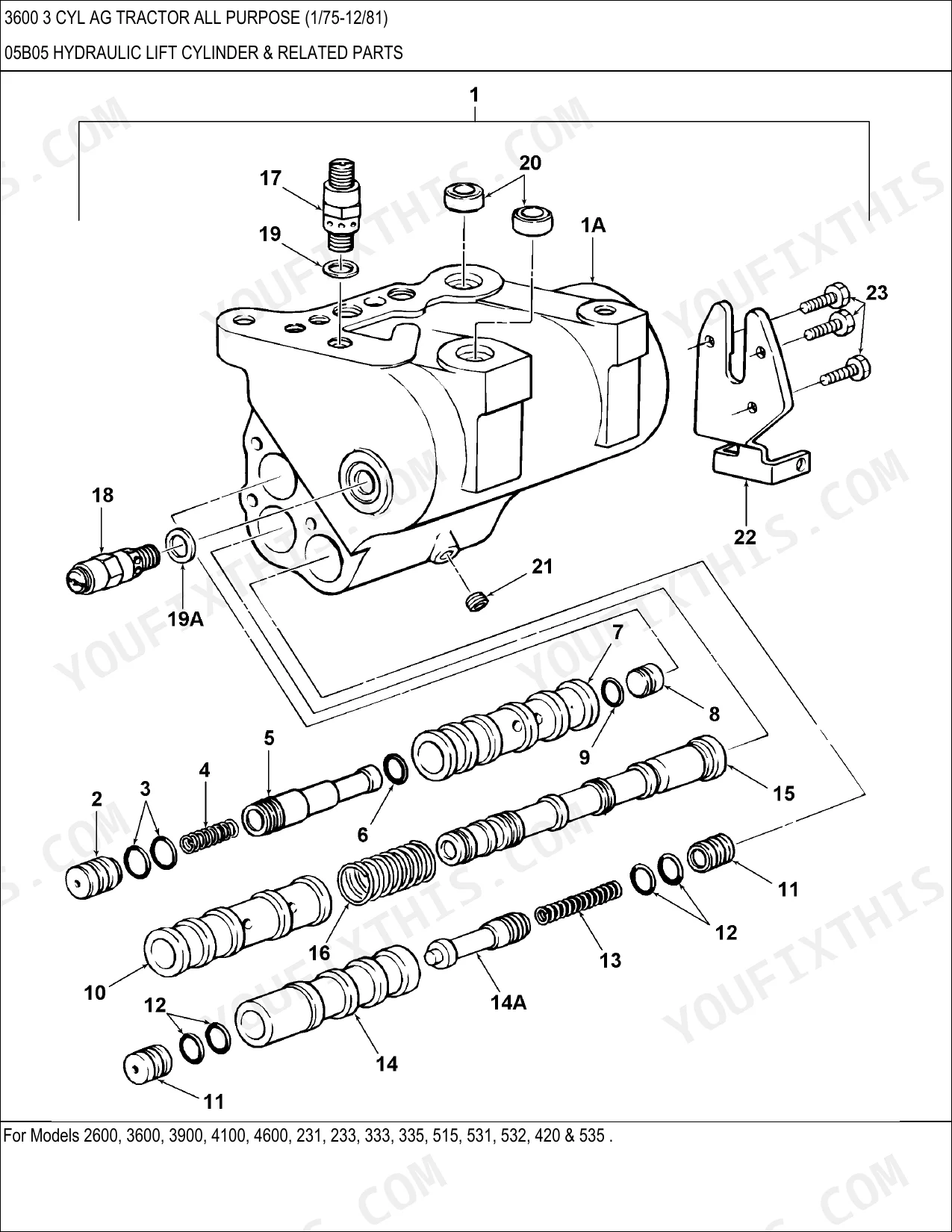

| Hydraulics & 3-Point Hitch | Hydraulic Lift Cover & Related Parts, Hydraulics, Lift Quadrant, W/Cab, Hydraulic Lift Shaft & Related Parts, Hydraulic Lift Cylinder & Related Parts, Flow Control Valve Assemblies, Hydraulic Lift Linkage, Swinging Drawbar, Hanger & Related Parts, Drawbar Stays, Accessory, Remote Control Valve O-Ring Kit, Selector Valve, Selector Valve Assembly, Remote Control Valves, Single & Double Spool, Remote Control Valve Handles, Remote Cylinder Coupling Kits, Double Acting, Automatic Pick-Up Hitch & Swinging Drawbar Kits, Nh-E, Manifold & Exhaust System, Diesel, Cylinder Engine | |
| Body & Operator Station | Engine Block Kit, Stepped Stud, Foot Throttle Controls, W/Cab, Diesel, Instrument Panel, Nhna, Deluxe Seat Assembly, Super Comfort Seat Assembly, Steel Pan Seat & Related Parts, Seat, Reversible, Custom Deluxe Seat Assembly, Crown Fenders, Platform, Tool Box & Related Parts, Flat Top Fenders, Rear Mud Fenders & Related Parts, Round Roof Safety Frame, Germany, Engine Hood, Grille & Related Parts, Front Fenders, Nh-E, Seat Belt for 2-Post ROPS | |
| Decals & Accessories | Front End Wafer Weights, Accessory, Front Bumper, Weights & Mount Kits, Stabilizer Kit | |
| Other Components | Drive Shafts, FWD, Nh-E, Differential Box, Reduction Gears, Front Support, Front Transfer Housing, Internal Parts of Pinion, Reduction Box, Transfer Box, W/Collar Gear, Center Housing & Related Parts, Pipe & Coupling Kits, Single & Double Acting, Quick Attach Hitch - Series 796, Nhna, Manifold & Exhaust System, Gasoline, Engine Overhaul Kits, Diesel, Throttle Controls & Related Parts, Diesel Cold Start, Electrical System, LH |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Pump & Reservoir Assy. Pressure | 650 PSI | p. 69 |
| Gasket, .006/.008 (.1524/.2032mm) Thick | .1524/.2032mm | p. 113 |
| Gasket, .011/.013 (.2794/.3302mm) Thick | .2794/.3302mm | p. 113 |
| Battery Capacity | 77 A.H. | p. 408 |
| Battery Cold Cranking Amps | 510CCA | p. 410 |
Ford 3600 Common Problems This Manual Covers
Ford 3600 hydraulic pump won't build pressure, need correct pump assembly and seal kit part numbers
Test system pressure before ordering anything; the pump and reservoir assembly is rated at 650 PSI, listed on page 69. If the pump is down on that spec, match your casting numbers against the hydraulic exploded view to pull the correct pump assembly and seal kit numbers for your serial range.
Manual Section: Hydraulic Lift SystemThree lift housing gasket thicknesses listed, unsure which part number fits the center housing joint
Measure your clearance before ordering. Page 113 lists three housing-to-center-housing gaskets: C5NN4885C at .006/.008 in (.1524/.2032mm), C5NN4885D at .011/.013 in (.2794/.3302mm), and C5NN4885E at .015/.017 in (.381/.4318mm). Stack thicknesses to match the gap, and note all three apply to tractors built after 01/01/1975.
Manual Section: Hydraulic Lift System p. 113Battery dead and original spec tag unreadable, don't know which replacement group to order
Check the printed spec instead of guessing off the old core. The parts list on page 408 calls for a 77 A.H. battery, and page 410 confirms the 510CCA cold cranking rating. Verify post orientation and cable reach against your old battery before buying, then clean both cable ends before installing.
Manual Section: Starting Motor p. 408Alternator wiring harness connectors melted, can't read part numbers on burnt terminals
Check the wiring diagram and trace each circuit by wire color to identify the burnt connectors before cutting anything out. Cross-reference the parts number list for replacement terminals and harness sections. Confirm the battery still meets the 510CCA rating on page 410, since a weak battery overworks the charging circuit.
Manual Section: AlternatorFrequently Asked Questions
What are the replacement specifications for brake shoes?
The brake shoe and lining assembly for the Ford 3600 is part number F2NN2218AA. There are 4 required for the system. p. 28
What is the part number for the engine oil filter for the 6600C model?
The engine oil filter for the 6600C model is part number 86546617, which is a spin-on 1-quart filter. p. 171
What is the part number for the radiator cap for the Ford 3600?
The standard radiator cap for the Ford 3600 is part number 76896, rated at 7 lbs. A 13 lbs. tropical version is also available under part number E5TH8100AA. p. 260
What is the part number for the main drive shaft for the 6-speed transmission?
The main drive shaft for the 6-speed transmission is part number C9NN7017C. p. 214
How will I receive this Ford 3600 Parts Manual?
A 696-page Parts Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Is this Ford 3600 Parts Manual printable?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
