When the diesel in your LGT finally needs the head off or an injector out, this Ford LGT 14D, LGT 16D service manual PDF (OEM 40001420) answers with 288 pages of factory procedure covering both garden tractors, engine to mower deck. Wiring for the glow plugs, fuel stop solenoid, and charging circuit fills the electrical chapter, and the hydrostatic drive section carries the pump and control linkage from teardown through specifications. Exploded views of the steering, front axle, and hydraulic lift show you how the relief valve and lift cylinder come apart and go back together. Swap the final fuel filter every 200 hours, and torque injector line fittings to 18-22 lbs. ft. on reassembly. A rebuild stalls fast when one number is missing. Bookmarked and text-searchable, this PDF finds it in seconds and puts your tractor back on the grass this season.
What's Inside This Ford LGT 14D, LGT 16D Manual
| System | Pages | Key Topics |
|---|---|---|
| Service Manual | 1 | - |
| Production Date Codes and Serial Numbers | 3-4 | Tractor Identification Plate, Mower Identification Plate, Unit Production Code |
| Safety Precautions | 5-8 | Personal Considerations, Equipment Considerations, General Considerations, Operational Considerations, Mower Safety Precautions |
| Service Techniques | 9-12 | Service Safety, Hoses and Tubes |
| Engine | 13-76 | Description and Operation |
| Fuel System | 77-104 | Diesel Fuel System, Injectors, Trouble Shooting and Specifications |
| Electrical System | 105-154 | Wiring, Switches, Glow Plugs, Fuel Stop Solenoid, Electric Fuel Pump and Instrumentation, Battery, Starting System, Charging System |
| Hydrostatic Drive System | 155-186 | Hydrostatic Drive, Hydrostatic Drive Control Linkage, Specifications |
| Transaxle and Brake | 187-210 | Specifications |
| Steering and Front Axle | 211-246 | Manual Steering and Front Axle, Power Steering and Front Axle |
| Implement Drive | 247-254 | Mid-Mount |
| Hydraulic Lift | 255-270 | Description and Operation, Control Valve Assembly, Lift Cylinder, Relief Valve Pressure Setting |
| Wheels and Tires | 271-274 | Front Tire Specifications, Rear Tire Specifications, Rear Wheel Tread Width Setting |
| Mowers | 275-288 | 44 and 48 Inch Mower |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Connecting Rod Caps Torque | 15-19 lbs. ft. (20.6-25.5 Nm) | p. 74 |
| Main Bearing Holders Torque | 14-18 lbs. ft. (19.6-24.5 Nm) | p. 74 |
| Pre-filter replacement interval | 600 hour | p. 83 |
| Final fuel filter replacement interval | 200 hour | p. 83 |
| Injector line fitting torque | 18-22 lbs. ft. (24-29 Nm) | p. 84 |
| Injector opening pressure | 1700 psi (117 bar) | p. 95 |
| Pivot Pin to Bore Clearance (New) | 0.0004-0.003 in. (0.01-0.08 mm) | p. 219 |
| Pivot Pin to Bore Clearance (Wear limit) | 0.020 in. (0.5 mm) | p. 219 |
| Upper spring length | 4.0 in. (102 mm) | p. 252 |
| Belt guide installation distance | 1.56 in. (40 mm) | p. 253 |
| Front tire inflation | 14 psi (0.97 bar) | p. 273 |
| Rear tire inflation | 10 psi (0.69 bar) | p. 273 |
Ford LGT 14D, LGT 16D Common Problems This Manual Covers
Ford LGT 14D diesel cranks but will not start after sitting over winter

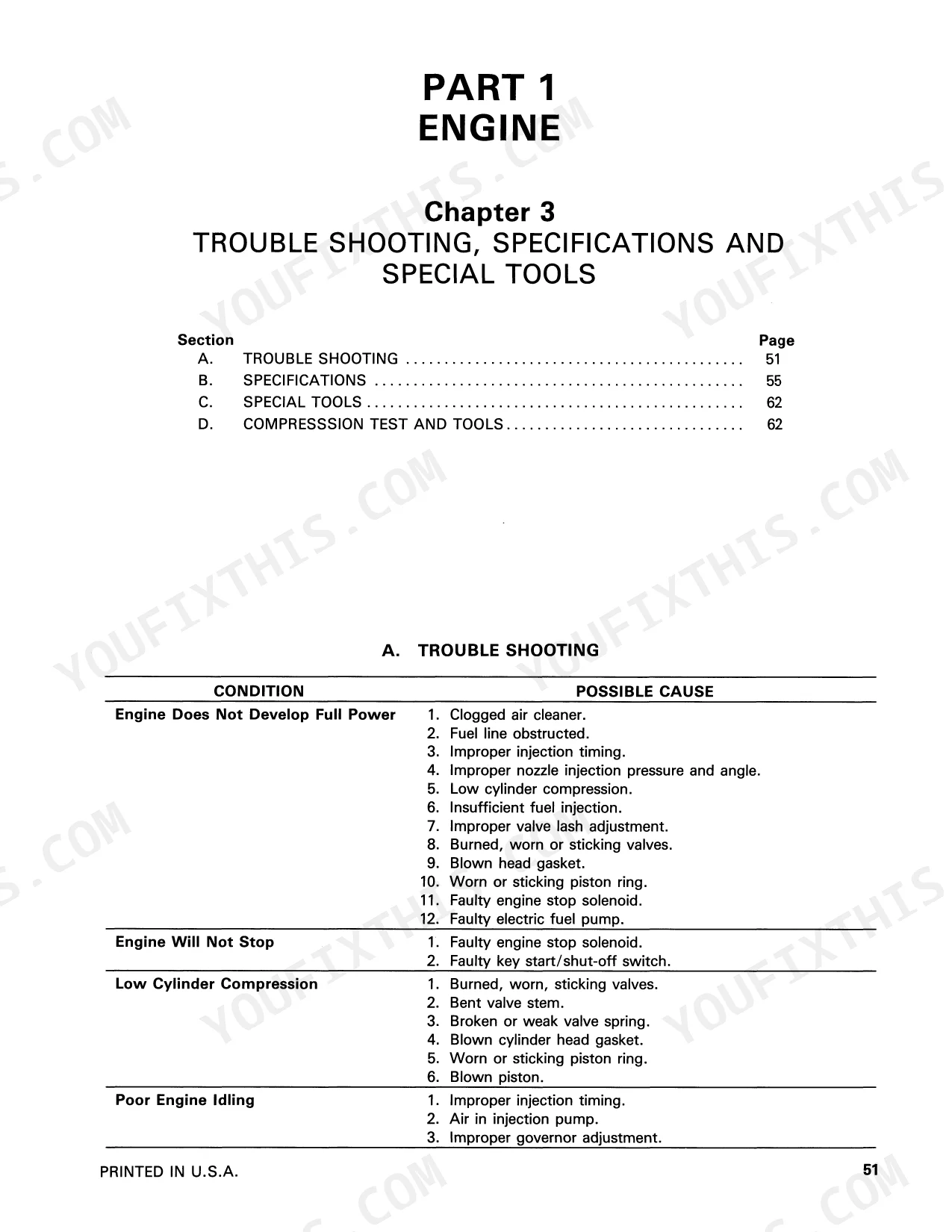

Check the no-start chart and verify glow plug preheat before blaming compression. Crack one injector line and crank; no fuel means testing the electric pump, which should deliver 2.8 psi. If fuel is good, run a compression test and compare against the 426 psi standard on page 67.
Manual Section: Engine TroubleshootingFront PTO keeps throwing drive belts when the mower deck is raised or lowered
Verify the PTO shaft telescopes freely before condemning another belt. Clean and grease the sliding splines so the shaft can change length as the deck moves. Then set belt tension by the upper spring length, 4.0 in. (102 mm) on page 252, and position the belt guides at 1.56 in. (40 mm).
Manual Section: Implement Drive p. 252Fuel sprays from injector lines or leaks at the filter after startup
Inspect every fitting and line before restarting the engine. After bleeding air from the system, torque the injector line nuts to 18-22 lbs. ft. (24-29 Nm) as shown on page 84. Replace the final fuel filter if it is cracked or past its 200 hour interval, and pop test any suspect nozzle at 1700 psi.

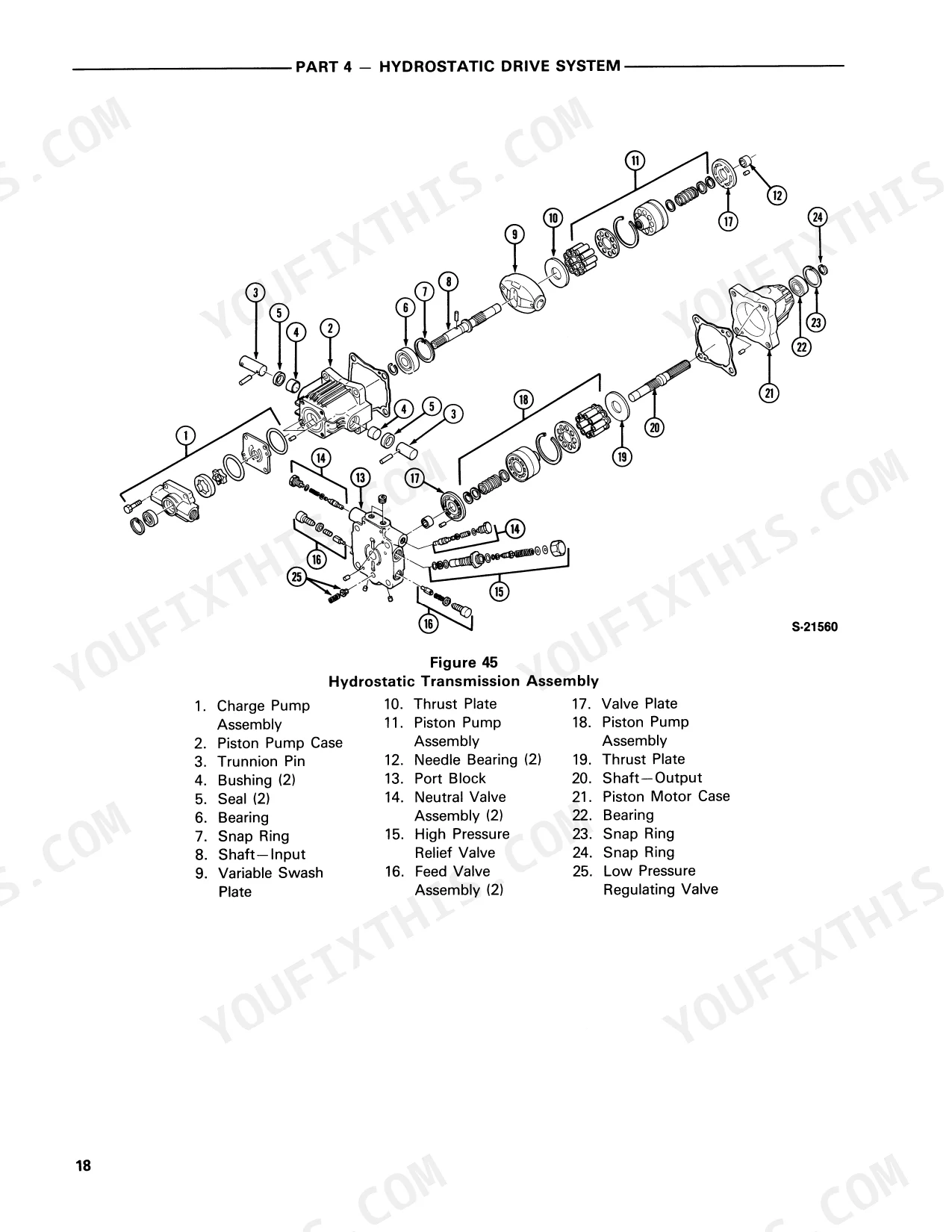

Manual Section: Fuel System p. 84Tractor creeps in neutral or loses ground speed when climbing a slight grade
Check hydrostatic oil level and condition first; low or milky oil explains most weak drive complaints. Adjust the control linkage so the tractor holds still in neutral. If drive still fades under load, test relief pressure against the 2773-3200 psi spec on page 176, then follow the troubleshooting chart on page 175.
Manual Section: Hydrostatic Drive System Troubleshooting p. 175Front wheels shimmy and the steering wanders, axle clunks when crossing ruts
Check front tire pressure before tearing anything down; the fronts run 14 psi. Then measure pivot pin to bore clearance and replace the pin or bushings past the 0.020 in. (0.5 mm) wear limit on page 219. Measure fore and aft axle clearance too; the new spec is 0-0.012 in. per page 221.
Manual Section: Steering and Front Axle p. 219Frequently Asked Questions
How do I bleed the fuel system on a Ford LGT 14D?
To bleed the fuel system, first ensure there is adequate fuel in the tank. Open the bleed screws at the top of the final fuel filter, turn the key to the ON position to operate the electric fuel pump until air bubbles are forced out, then tighten the screws. Finally, open the bleed screw at the injection pump to let remaining bubbles escape, then tighten it. p. 84
What is the head bolt torque specification for the Ford LGT 14D and 16D engine?
The head bolts must be tightened in stages in the specified sequence to a torque of 25-28 lbs. ft. (33-38 Nm). p. 30
What is the correct valve lash clearance for the Ford LGT 14D and 16D engine?
The valve tappet clearance should be set to 0.008 in. (0.2 mm) when the engine is cold. p. 31
What is the recommended belt tension for the PTO drive belt on the Ford LGT 14D/16D?
The PTO belt tension should be adjusted so that the tension spring length is 102 mm (4.0 inches) when the PTO clutch lever is engaged. p. 253
What is the pressure relief valve setting for the hydraulic lift system on the Ford LGT 14D, LGT 16D?
The hydraulic lift pressure relief valve is adjustable and should be set to 425-500 psi (24-34 bar), matching the book's printed conversion. p. 259
What do I get after purchasing this Ford LGT 14D manual?
All 288 pages arrive as one searchable PDF at checkout. Read it at the desk, then take the phone out to the machine.
Is this Ford LGT 14D manual print-friendly?
Yes. The PDF is DRM-free, so printing works from any reader and any printer.
