Looking for a Ford 3910 parts manual PDF you can trust? This 699-page parts catalog identifies every component on the 1983-1990 three-cylinder agricultural tractor, gas and diesel builds alike. You get exploded views for each assembly: engine blocks, crankshafts, and injection pumps; hydraulic lift covers and remote valves; 8-speed synchronized and non-synchronized transmissions; FWD front axles; plus full cab, low-profile cab, and electrical sections. Every figure keys each part to its factory number, so cross-referencing a seal or gear housing takes minutes, not a phone call to the dealer. Even hose lengths are exact: the 52-inch radiator hose lists at 1320.8 mm, the cut-to-length line at 2464 mm. Your tractor is forty years old; guessing at part numbers gets expensive. Bookmarked with a full text layer, this PDF opens on any device. Find the figure, match the number, order once.
What's Inside This Ford 3910 Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Fuel System | Distributor Drive and Governor Assembly, Gasoline, Diesel, Fuel Filter, Single, Dual, Fuel Injection Pump, Fuel Injector Assembly, Carburetor Assembly, Fuel Pump Assembly, Gas, Diesel Fuel Primer Assembly Kit, Air Cleaner Assembly, Oil Bath, Throttle and Foot Accelerator Controls, Fuel Sedimenter and Filter Assembly, Primer Assembly, Fuel | |
| Cooling System | Transmission Oil Cooling System, L/Cab, W/Cab, Radiators and Related Parts, Water Pump and Related Parts | |

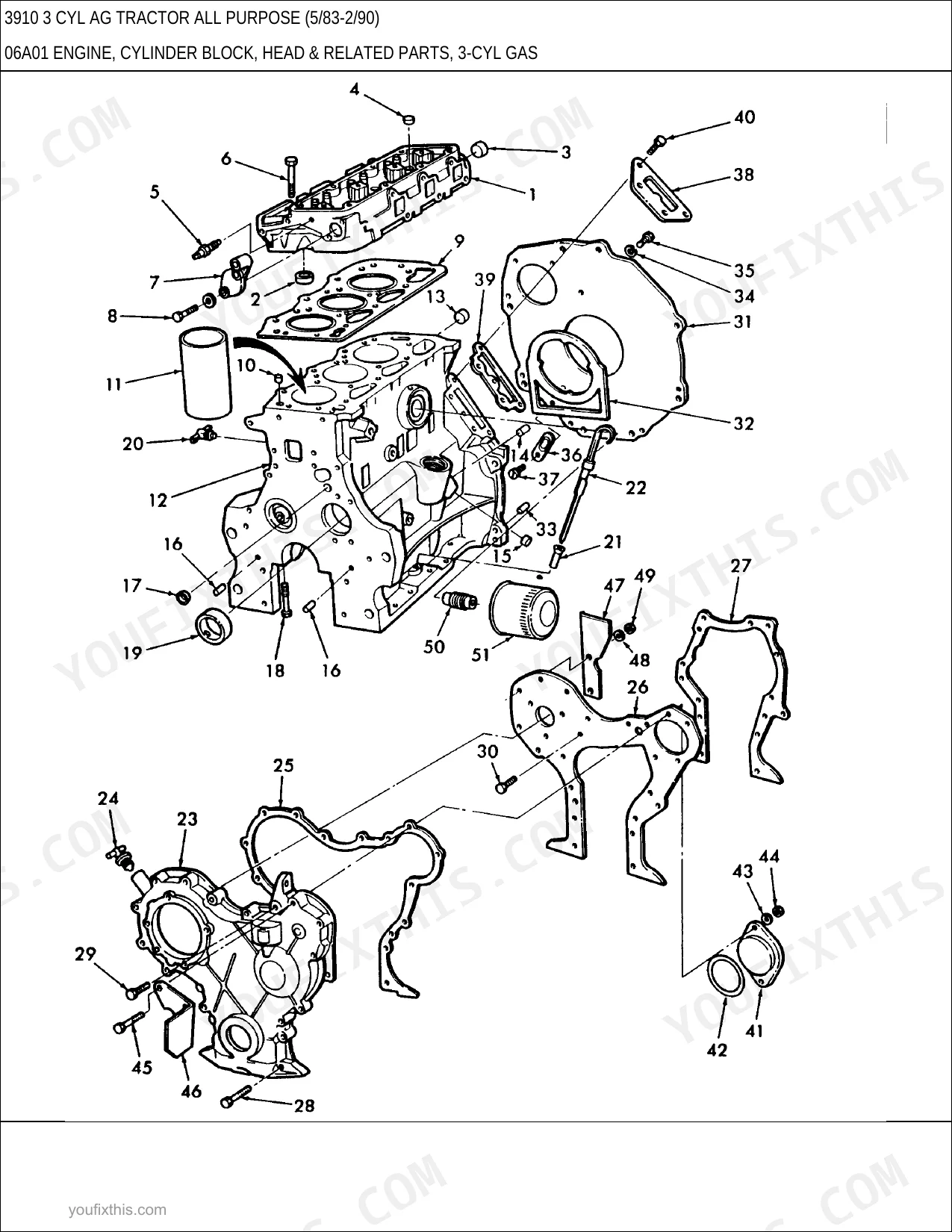

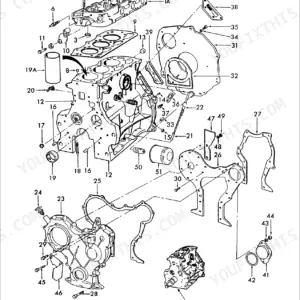

| Engine | Cylinder Block, Head and Related Parts, 3-Cyl Gas, 3-Cyl Diesel, Crankshaft, Flywheel and Related Parts, Cyl Engine, Camshaft, Rocker Arm, Valves and Related Parts, Oil Pump and Oil Pan, Pistons and Connecting Rods, Gasoline, Diesel, Engine Gasket Kits | |
| Electrical System | Headlamp Assembly, U.S, Head and Utility Lamps, Inset Headlamp Assembly, Side Mounted Headlamps, Headlamp, Side Mounted, Insert Headlamp Assembly, Rear Wiring, Rear Lamps, Flasher Lamps and Turn Signal, Round Lens, Square Lens, Lamp Assembly, Stop, Rear and Turn Signal, Emergency Warning, Rear Lamps - Stop and Flasher, Parking Lamps, Side and Flasher, Lamps, Front and Side, Stop and Flasher W/Turn Indicator W/Cab, Stop and Flasher W/Turn Indicator | |

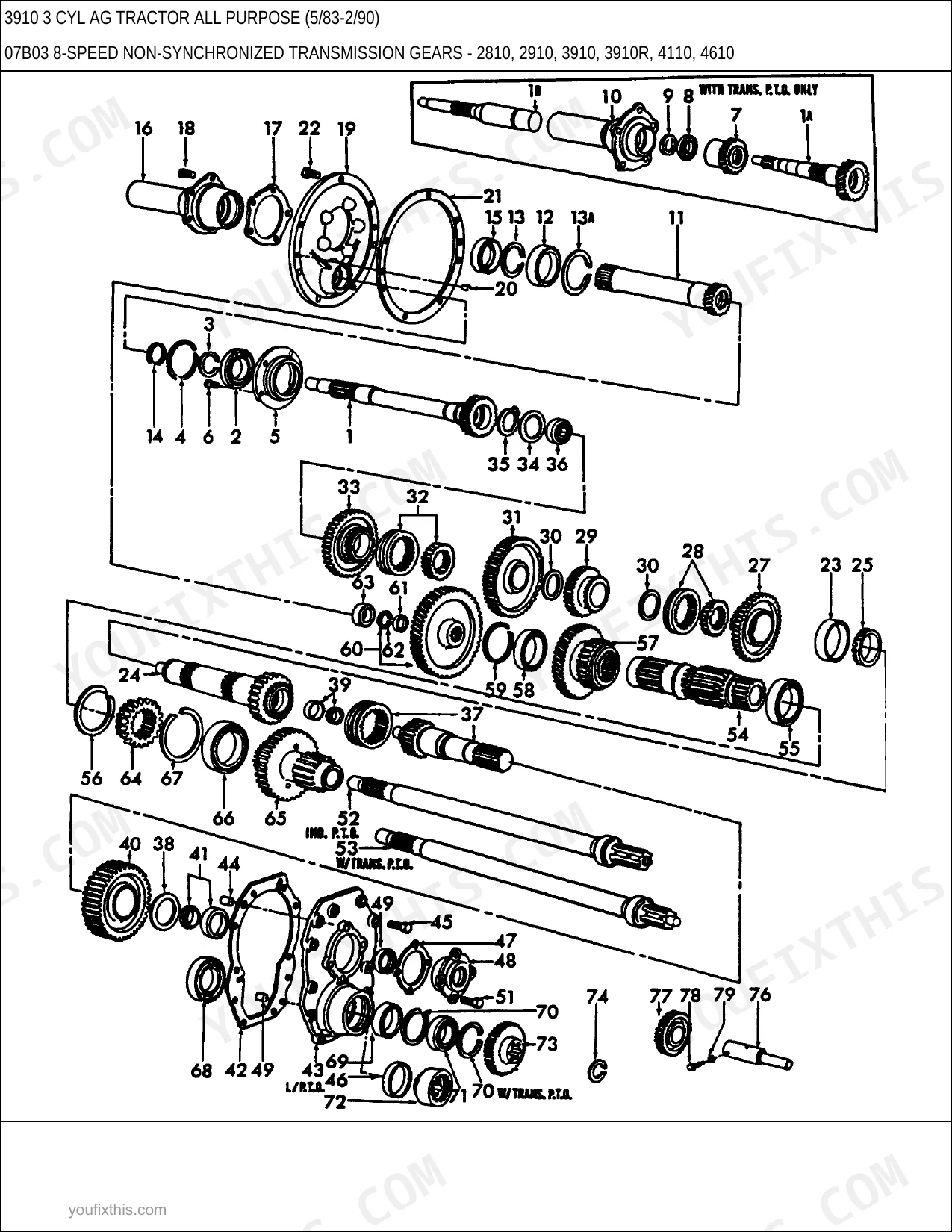

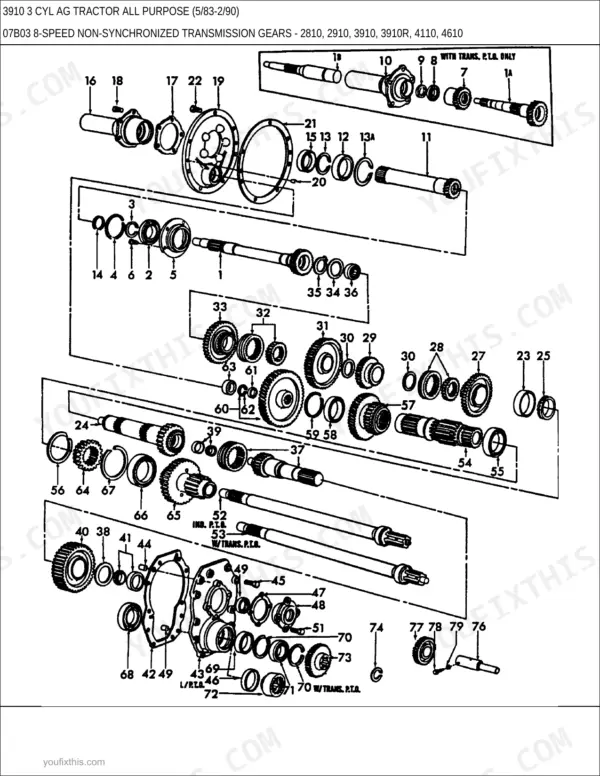

| Clutch & Transmission | Transmission Handbrake, Transmission Shaft, Speed Transmission Case and Shift Levers, Speed Non-Synchronized Transmission Gears, Speed Synchronized Transmission Case, Synchronized Trans. Case, Speed Synchronized Transmission Gears, Column Mounted Gear Shift, Live Transmission Power Take Off Assy., W/Double Clutch, Ipto Clutch Linkage, Clutch Controls, L/Cab, W/Cab, Inch Single Clutch Assembly, Inch Clutch Assembly, Creeper Gear Kit, Reduction Gear Box Assembly | |
| PTO | Rear Axle Related Parts, W/FWD, W/IPTO, Independent Power Take-Off Assembly, Ground Speed PTO Related Parts, PTO Guard Kit, PTO Guard, PTO Gear Housing and Pulley W/Guard, Accessory | |
| Rear Axle, Differential & Brakes | Standard Rear Wheels, Inch Rear Wheel Weights, Manual, Inch Manual Adjust Rear Wheel Weights, Accessory, Inch Rear Wheel Weights for Power Adjustable Wheels, Manual Adjust Rear Wheel Weights with Square Discs 28 Inch - 38 Inch, Brakes and Brake Controls, Brake Linkage and Pedals W/Cab, Handbrake, Handbrake Lever and Cable W/Cab, Hydraulic Trailer Brakes W/Cab, Brakes, Rear Axle, Differential and Related Parts, Differential Lock Linkage | |

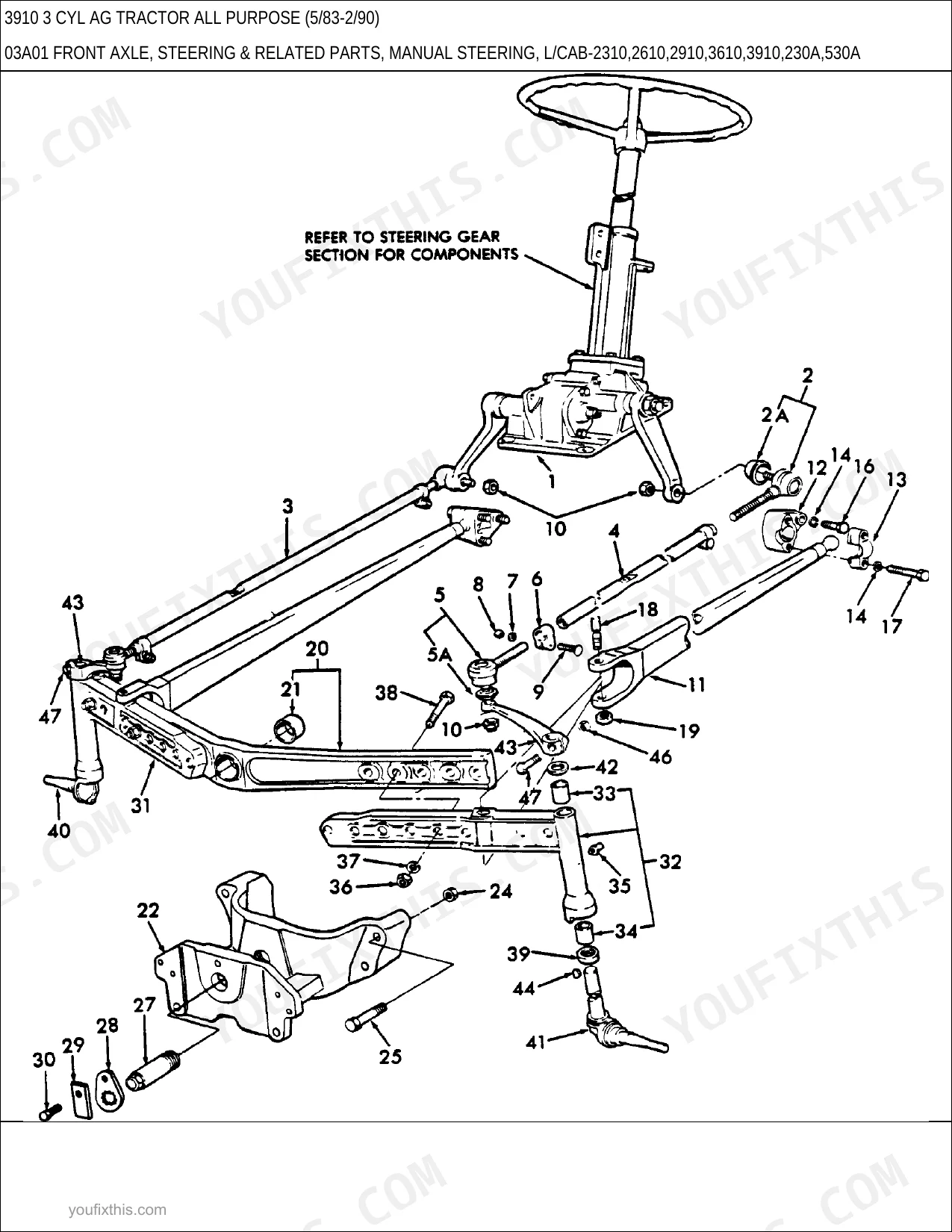

| Front Axle & Steering | Front Wheel Assembly, FWD, Front Wheel Weights, Accessory, Front Axle, Steering and Related Parts, Manual Steering, Power Steering, Manual and Power, W/LP Cab, Steering Gear Assembly, Manual, W/Cab, Steering Gear, Power, L/Cab, Manual W/L Cab, Power W/L Cab, Power Steering Pump and Reservoir, Power Steering Cylinder Assembly and Related Parts, Swivel Housings and Steering Arms | |

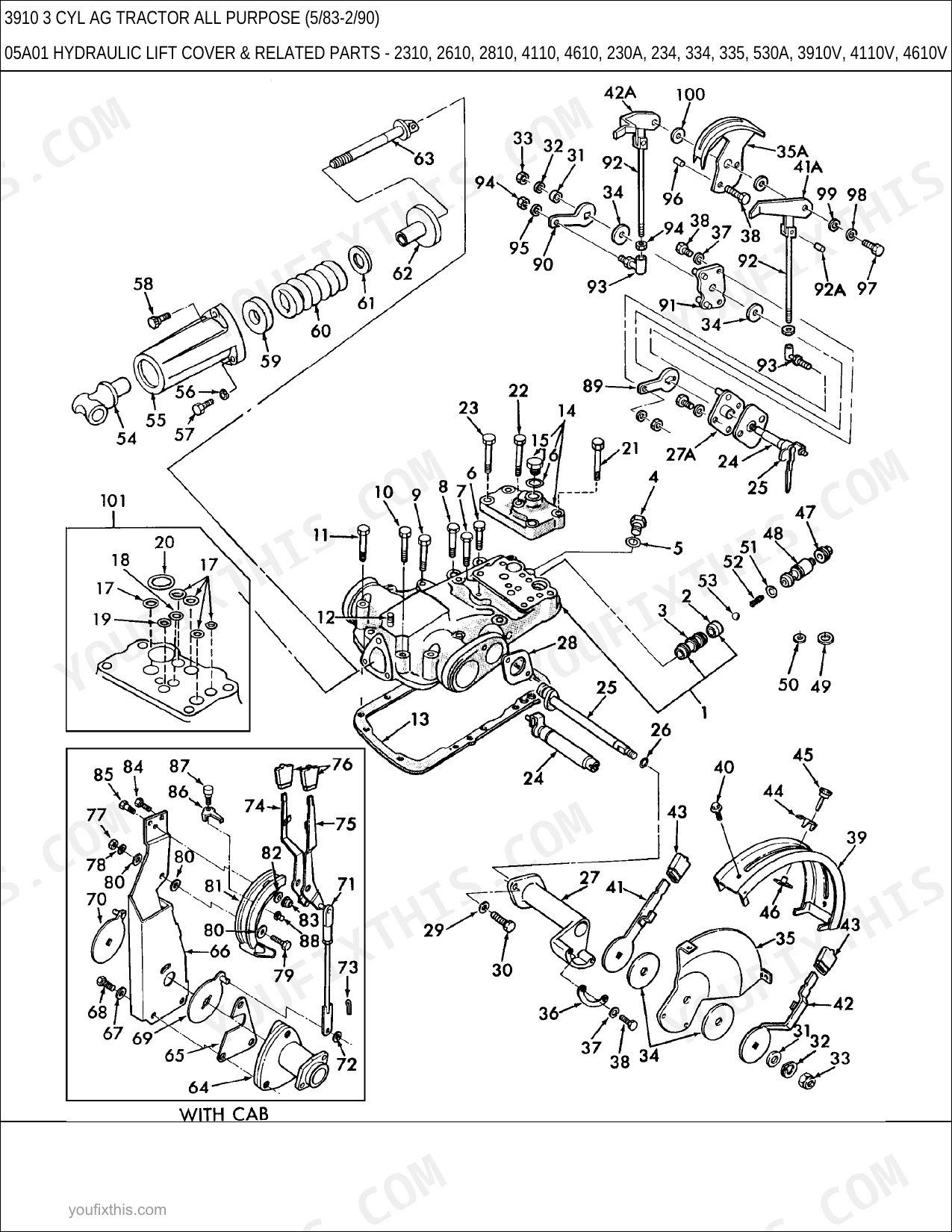

| Hydraulics & 3-Point Hitch | Hydraulic Lift Cover and Related Parts, Hydraulic Lift Shaft and Related Parts, Hydraulic Lift Cylinder and Related Parts, Flow Control Valve Assemblies, Hydraulic Lift Linkage, Swinging Drawbar, Hanger and Related Parts, Drawbar Stays, Accessory, Selector Valve, Selector Valve Assembly, W/Cab, Hydraulic Remote Control Valves, Remote Control Valve Handles W/Cab, Double Acting Remote Cylinder Coupling Kits, Deluxe Remote Control Valve and Coupler, Remote Control Unload Valve Assembly, Deluxe Remote Control Valve, Automatic Pick-Up Hitch W/Swinging Drawbar | |

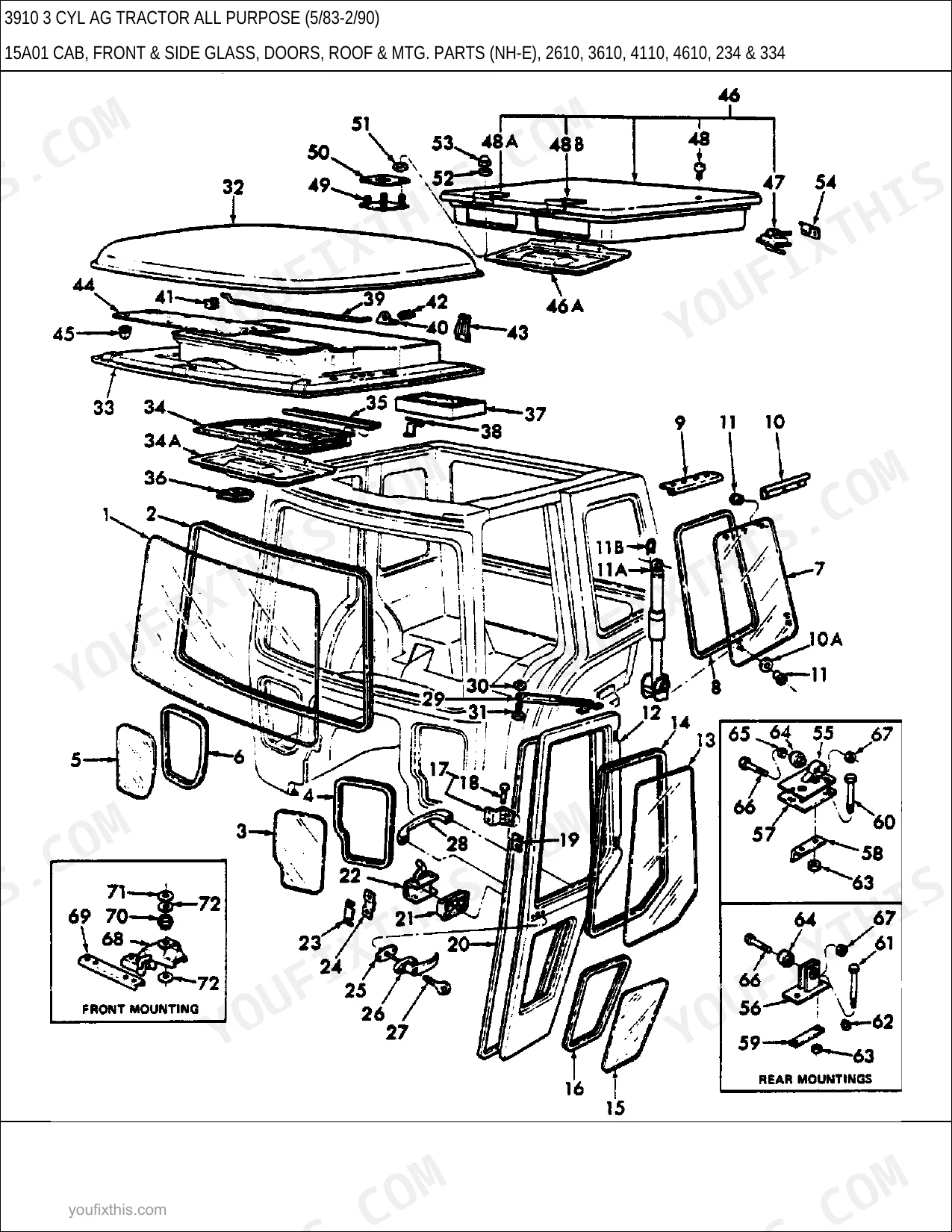

| Body & Operator Station | Kit, Stepped Stud Engine Block, Foot Throttle Controls L/Cab, Foot Throttle Controls W/Cab, Trailer Sockets, W/LP Cab, Super Comfort Seat Assembly, Custom Deluxe Seat Assembly, Crown Fenders, Platform and Tool Box, Flat Top Fenders, Rear Mud Fenders W/Cab, Engine Hood and Grille, Round Roof Safety Frame, H Pattern Covers and Seals, W/Cab, L/Cab, W/FWD, L/FWD, Front Fenders, Cab, Front and Side Glass, Doors, Roof and Mtg. Parts | |
| Decals & Accessories | Front End Wafer Weights, Accessory, W/FWD, Front Bumper, External Lift Check Chain, Stabilizer Kit, Dealer Installed Accessory Kits, Identification Decals, Instruction Decals, Kit, Instruction and Safety Decals, Safety Decals | |
| Other Components | Power Adjustable Wheels, Front End Wafer Weights, Waterproof Drive Shaft, Axle Housing, Ring Gear and Pinion Assembly, Drive Shafts, Reduction Gears, Front Support, Front Transfer Housing, Internal Parts of Pinion, Transfer Case, Center Housing and Related Parts, Stabilizer Assembly, Single and Double Acting Pipe and Coupling Kits, Automatic Pick-Up Hitch, Coupling Kit |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Hose, 52", 1320.8mm | 1320.8mm | p. 595 |
| Hose, Cut to Length, 97" (2464mm) | 2464mm | p. 597 |
Ford 3910 Common Problems This Manual Covers
Ford 3910 loader hydraulic leak, need part numbers for replacement pressure tube and hoses
Check the hydraulic parts diagram covering the lift cover, linkage, and assist ram. Note the commonly replaced upper pressure tube, part number C5NNB853A. Measure your old hose before ordering; hoses are cataloged by size and length, such as 5/8 inch x 1250mm listed on page 632. Confirm numbers against the parts number list.
Manual Section: Hydraulic Lift Cover & Related PartsPTO shaft rear seal and transmission bearing part numbers hard to identify from exploded views
Check the drivetrain parts diagram for the 8-speed non-synchronized gear, shaft, and bearing breakdown. Match your assembly to the exploded view, then measure the shaft diameter in millimeters and convert it with the metric-to-inches tables on page 698. Verify the final part number in the parts number list.
Manual Section: Transmission GearsRadiator hose collapsed, unsure which length and part number fits this tractor
Measure your old radiator hose end to end before ordering; the catalog lists hoses by exact length, including a 52 inch (1320.8mm) hose on page 595 and a cut-to-length 97 inch (2464mm) hose on page 597. Match the length to your exploded view reference, then confirm the part number.
Manual Section: Radiators & Related Parts p. 595Diesel fuel filter part number lookup confusing, several filter elements listed for different serial ranges
Check the fuel system exploded views for the injection pump, lines, and filter assembly, then verify your serial number range before ordering. Use the figure search feature on page 1 to jump to the filter figure, cross-check the number in the parts number list, and measure the old element height in millimeters if two options remain.
Manual Section: Fuel System (Diesel)Frequently Asked Questions
What are the replacement specifications for oil filters?
The replacement oil filter for the 3-cylinder engine is part number 86546614. This filter is used for both NHNA and NH-E models. p. 230
What are the replacement specifications for fuel filters?
For the single fuel filter assembly, the replacement element is available as part of kit number 83937061. For the dual fuel filter assembly, the replacement element is also included in kit number 83937061. p. 336
What is the torque specification for the cylinder head bolts on the 3-cylinder engine?
The cylinder head bolts for the 3-cylinder engine are specified as 9/16"-12 x 4.45, with a quantity of 8 bolts required. p. 223
What is the part number for the 128 A.H. battery tray assembly?
The battery tray assembly for the 128 A.H. battery is part number E4NN10723AA. p. 459
What is the specification for the front wheel hub bolt?

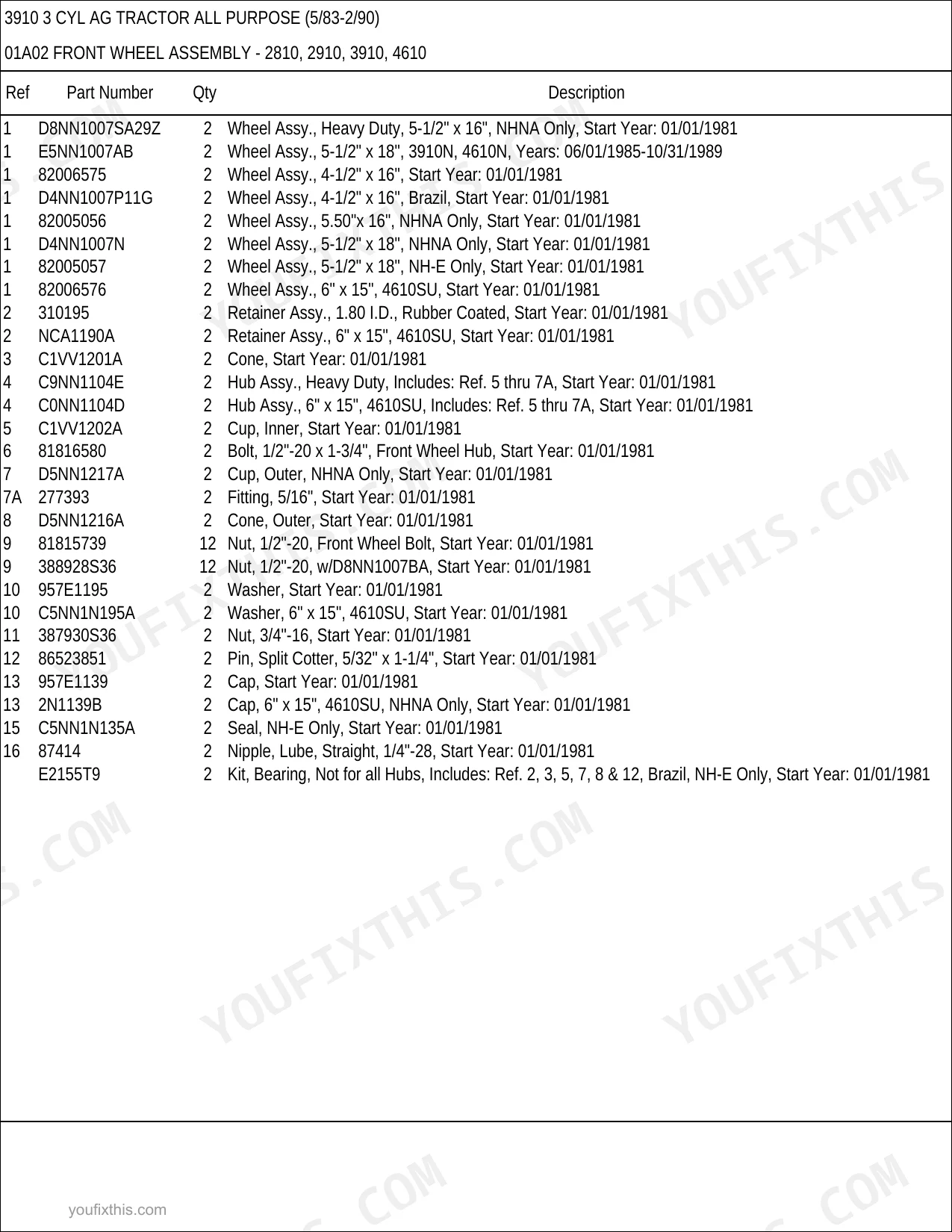

The front wheel hub bolt is part number 81816580, with a size of 1/2"-20 x 1-3/4". p. 9
How quickly can I access this Ford 3910 manual after buying?
This is a 699-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print this Ford 3910 manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
