A hydraulic lift that sags under the plow, or a double clutch that drags halfway through planting, will park a Ford 1910 or 2110 until somebody finds the factory numbers. This Ford 1910, 2110 service manual PDF, OEM ID 40191020, puts the complete 430-page factory shop reference for both tractor models on your bench. Wiring diagrams lay out the glow plug, starting, and charging circuits, while hydraulic schematics trace the lift circuit from pump to three-point hitch. Troubleshooting and specification tables back up every major system: engine, fuel injection, both gear transmissions, PTO, rear axle and brakes, and manual or power steering. Torque the cylinder head bolts to 65-69 ft. lbs. and reject a starter armature past 0.004 in. of runout. One missing figure stalls a job the weather scheduled. Bookmarked and searchable by keyword, this PDF opens to the section you need in two clicks; grab it before the next breakdown costs you a field day.
What's Inside This Ford 1910, 2110 Manual
| System | Pages | Key Topics |
|---|---|---|
| Production Date Codes and Serial Numbers | 3 | Tractor Identification Plate, Production Identification Number, Production Model Code, Production Unit Date Code, Engine Serial Number |
| Safety Precautions | 4-7 | Personal Considerations, Equipment Considerations, Hand Tools, General Considerations, Operational Considerations |
| Service Techniques | 8 | Service Safety, Hoses and Tubes |

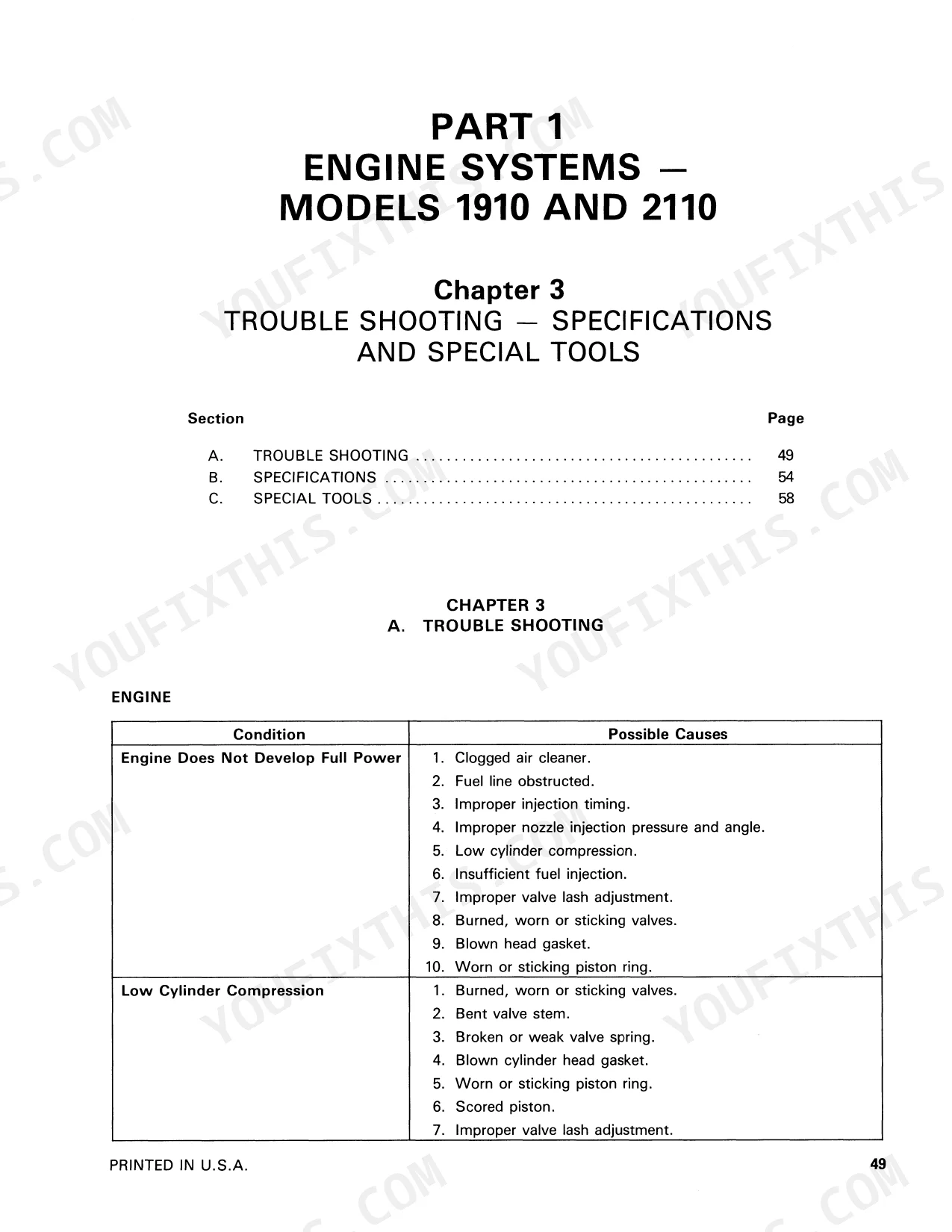

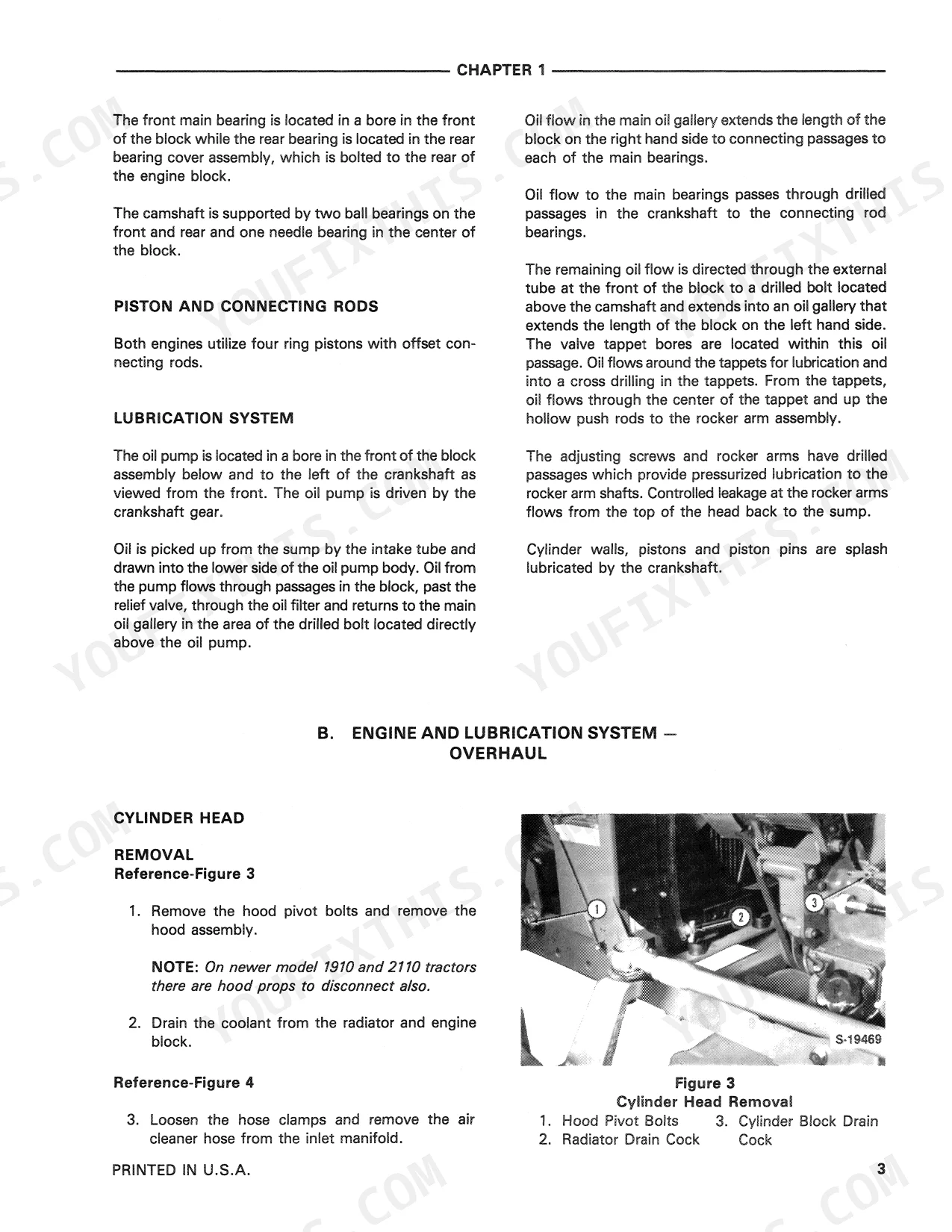

| Engine Systems Models 1910 and 2110 | 9-72 | Engine and Lubrication System, Cooling System, Trouble Shooting Specifications and Special Tools |
| Fuel System | 73-92 | Diesel Fuel System, Injectors, Trouble Shooting Specifications and Special Tools |
| Electrical Systems | 93-168 | Wiring Switches Glow Plugs and Instrumentation, Battery, Starting System, Charging System, Trouble Shooting and Specifications |
| Clutch | 169-182 | Double Clutch, Servicing Clutch Related Components, Trouble Shooting and Specifications |
| Transmission Systems | 183-220 | Non-Synchromesh Gear Transmission, Synchromesh Gear Transmission, Trouble Shooting and Specifications |
| Power Take-Off System | 221-232 | Dual Clutch, PTO Drive, PTO Countershaft, PTO Output Shaft, PTO Shift Lever Assembly |
| Differential Rear Axle and Brakes | 233-256 | Differential Assembly, Differential Lock, Rear Axle, Brakes, Final Drive, Front Wheel Drive Gears, Creeper Gears |
| Hydraulic System | 257-302 | Hydraulic System Circuits, Hydraulic Pump and Filter, Trouble Shooting Pressure Testing Specifications and Special Tools |
| Steering Systems | 303-340 | Manual Steering System, Power Steering System, Trouble Shooting Specifications and Special Tools |
| Front Axle and Related Parts | 341-372 | Front Axle and Related Parts Two Wheel Drive, Front Axle and Related Parts Four Wheel Drive, Trouble Shooting and Specifications |
| Wheels and Tires | 373-382 | Tread Setting, Weight Limitations, Lug Bolt Torque, Tire Inflation |
| Separating the Tractor | 383-430 | Front Axle, Engine, Transmission, Rear Axle, Differential Center Housing, Hydraulic System, Steering Gear |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Compressed air pressure | 100 psi (6.9 bar) | p. 4 |
| Cylinder Head Bolts | 65-69 Ft. lbs. (88-93 Nm) | p. 71 |
| Rocker Arm Support Nut | 20-29 Ft. lbs. (27-39 Nm) | p. 71 |
| Armature Shaft, Max. Runout | 0.004 in. (0.1 mm) | p. 69 |
| Commutator Diameter, Min. | 1.5 in. (40 mm) | p. 168 |
| Hydraulic filter replacement interval | 300 hours | p. 299 |
| Relief valve pressure | 2135 ± 70 psi | p. 303 |
| Head bolt torque | 65-69 lbs. ft. | p. 22 |
| Rocker post stud nut torque | 20-29 lbs. ft. | p. 22 |
| Valve lash clearance | 0.012 in. | p. 22 |
| Injection nozzle opening pressure | 1700 psi | p. 83 |
| Battery capacity | 100 Amps. | p. 168 |
Ford 1910, 2110 Common Problems This Manual Covers
Ford 1910 and 2110 three-point hitch weak, lifts slowly, leaks down overnight after shutdown
Check hydraulic fluid level and condition first; milky or dark oil means a full fluid change. Replace the spin-on suction filter on top of the hydraulic pump, due every 300 hours per page 299. If the hitch still bleeds down, pressure test against the 2135 psi relief valve spec and inspect the lift cylinder piston seal for bypass.
Manual Section: Hydraulic System Troubleshooting p. 299Hydraulics quit intermittently or implement rises too slow, trouble comes back after a filter change
Test pump output before throwing parts at it: the pump should deliver 8.6 GPM, with full pressure testing specs on page 302. Verify the relief valve holds 2135 psi under load. Drain and refill with clean fluid if you find contamination, since one dirty batch keeps plugging new filters. Inspect suction fittings for air leaks that make the pump cavitate.
Manual Section: Hydraulic System p. 302Clutch slips pulling under load, tractor bogs in the field, hard to get into gear
Measure clutch pedal free play first: standard is 0.80-1.2 in. (20-30 mm), and anything past the 1.57 in. maximum needs linkage adjustment before you blame the clutch. If free play is right and it still slips, plan on splitting the tractor; check disc thickness against the 0.268 in. wear limit on page 182 before reusing the old disc.
Manual Section: Clutch p. 182No ignition power, dead gauges, starter will not crank even with a good battery
Check ground circuit connections and battery cable ends before condemning the key switch; corrosion kills more starts on these tractors than failed parts do. Verify the battery meets the 100 amp capacity spec, then trace the harness with the wiring diagram. Test switch and glow plug continuity with a meter at each connector.
Manual Section: Electrical Systems p. 168Engine hard to start on cold mornings, runs rough then stalls, black smoke under load
Verify fuel is reaching the injection pump, drain any water from the filter bowl, and bleed the lines at each fitting. Test each injector for a clean spray pattern at the 1700 psi opening pressure listed on page 83. Check glow plug continuity before cold-weather planting mornings; one dead plug on a small diesel shows up fast.
Manual Section: Diesel Fuel System Troubleshooting p. 83Frequently Asked Questions
What are the torque specifications for the Ford 1910 cylinder head bolts?
The cylinder head bolts for the Ford 1910 tractor should be tightened to a torque of 65-69 lbs. ft. (88-93 Nm). p. 22
What is the recommended hydraulic oil filter replacement interval for a Ford 1910, 2110 tractor?
The hydraulic oil filter is a spin-on type filter located at the front of the engine. It should be replaced after the first 50 hours of operation and every 300 hours thereafter. p. 260
What is the correct valve lash clearance for the Ford 1910 and 2110 engines?
The valve lash clearance for both the intake and exhaust valves on the Ford 1910 and 2110 engines is 0.012 inches (0.3 mm). p. 22
What is the specified torque for the Ford 1910 and 2110 crankshaft pulley bolt?
The crankshaft pulley bolt for the Ford 1910 and 2110 engines should be tightened to a torque of 36-43 lbs.-ft. (49-59 Nm). p. 28
What is the correct fan belt deflection for the Ford 1910 and 2110 engines?
The fan and alternator drive belt should have a deflection of 0.2 inches (5 mm) when 2.2 lbs. (1 kg) of force is applied midway between the pulleys. p. 61
Will this Ford 1910 Service Manual download right away?
Immediate download of the complete 430-page searchable Service Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Can I print a copy of this Ford 1910 Service Manual for the shop?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
