Every repair on your David Brown tractor gets easier when you open this 92-page David Brown 770 Shop Manual PDF, covering the complete 770, 780, 880, 990, 1200, 3800, and 4600 lineup. Inside, you get detailed hydraulic schematics mapping out the Implematic and Selectamatic systems, plus clear wiring diagrams to trace electrical faults fast. You also receive complete troubleshooting charts, exploded views of the transmission, and pages of factory torque tables. Adjust the single disc clutch pedal free play to exactly 1/2 to 3/4-inch, and verify the cold intake valve tappet gap is set at 0.010 inch before firing the engine. Quit guessing at adjustment clearances. Download this bookmarked file straight to your tablet, jump instantly to the right section, and get your tractor back in the dirt.
What's Inside This David Brown Case David Brown 770, 780, 880, 990, 1200, 3800, 4600 Manual
| System | Pages | Key Topics |
|---|---|---|
| Front Axle | 5-6 | Front Wheel Bearings, Spindles, Spindle Bushings, Tie-Rods & Toe-In, Axle Center Member |
| Steering Gear | 7-8 | Remove and Reinstall, Overhaul, Ball Nut Peg Preload, Cross Shaft Bushings |
| Power Steering | 9-12 | Fluid and Bleeding, System Operating Pressure, R&R Pump, Overhaul Pump, Steering Cylinder |
| Engine | 13-23 | R&R Engine Assembly, R&R Cylinder Head, Valve Gap Adjustment, Valves, Guides and Seats, Crankshaft Oil Seals |
| Diesel Fuel System | 24-31 | Troubleshooting, Fuel Filters, Bleeding Fuel System, Fuel Injection Pump, Injector Nozzles |
| Cooling System | 33 | Radiator, Thermostat, Water Pump, Overhaul Pump |
| Electrical System | 34 | Spark Plugs, Ignition Distributor and Timing, Generator and Voltage Regulator, Starter |

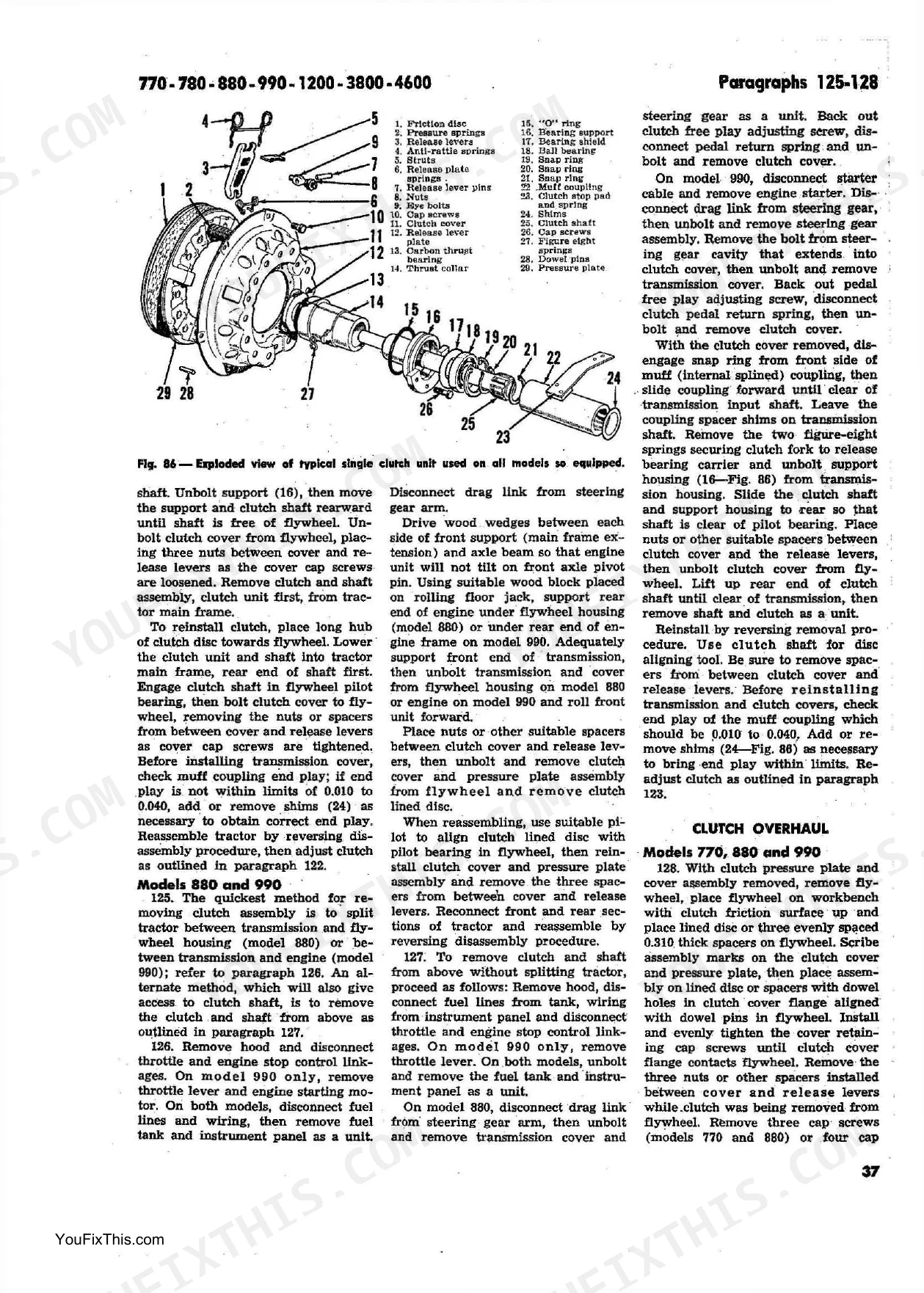

| Single Disc Clutch | 35-36 | Adjustment, R&R Clutch, Overhaul Clutch, Clutch Spring Specifications |
| Dual "Livedrive" Clutch | 37-42 | Adjustment, R&R Clutch, Overhaul Clutch, Transmission Clutch Springs, PTO Clutch Springs |
| Transmission | 44-52 | Lubrication, Shift Levers, Rails & Forks, R&R Transmission Cover, Overhaul Transmission |
| Main Drive Bevel Gears and Differential | 53-54 | R&R Differential Assembly, Adjust Pinion Mesh Position, Adjust Differential Carrier Bearings, Bevel Gear Backlash |
| Final Drive | 56-59 | Lubrication and Breather, R&R Final Drive Assemblies, Wheel Axle Shaft, Axle Gear, Bearings & Seals, Spur Pinion Shaft |
| Brakes | 60-61 | Adjustment, R&R Brake Shoes, R&R or Renew Brake Drums, Brake Linkage |
| Power Take-Off | 62-64 | R&R Power Take-Off Assembly, Output Shaft Oil Seal, Overhaul PTO Assembly |
| Hydraulic System (Implematic & Selectamatic) | 65-92 | Operating Principles, Fluid Control Valves, System Checks and Adjustments, R&R and Overhaul Pump, Ram Cylinder |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Model 770 | ||
| Clutch pedal free play (single disc) | ½ to ¾-inch | p. 35 |
| Models 780 and 3800 | ||
| Clutch pedal free play (dual disc) | ¾ to 1 inch | p. 37 |
| All Models | ||
| Ether starting plug usage condition | For use in temperatures below 0° F. | p. 26 |
| Engine Low Idle RPM | 650-700 RPM | p. 3 |
| Crankshaft Main Journal Diameter | 2.499-2.4995 inches | p. 3 |
| Main Bearings Running Clearance | 0.002-0.004 inch | p. 3 |
| 770 (Late), 780, 880 (Late), 990 (Late), 1200, 3800, 4600 | ||
| Valve Tappet Gap, Cold, Intake | 0.010 inch | p. 31 |
| 770, 780, 880, 990 (Early), 1200 (Early) | ||
| Transmission Capacity (Includes Differential & Hydraulic System) | 24 Quarts | p. 4 |
| all diesel models | ||
| Cylinder Head Retaining Nuts/Cap Screws Torque (Final) | 90 Ft.-Lbs. | p. 14 |
| all models | ||
| Fuel Injection Pump Opening Pressure | 2575 psi | p. 30 |
David Brown Case David Brown 770, 780, 880, 990, 1200, 3800, 4600 Common Problems This Manual Covers
David Brown 770 fuel pump stuck in advanced timing position, engine cranks but refuses to start
Do not screw the manual retard nut back in immediately after a failed start attempt. Wait 15 to 20 seconds for pressure to fall inside the fuel pump before resetting the nut. Check the diesel fuel system troubleshooting chart on page 24 for other fuel delivery faults if the engine still won't fire.
Manual Section: Diesel Fuel System p. 24Engine loses power or stalls repeatedly in sub-zero temperatures during cold morning starts
Pull the ether plug felt pad from the inlet manifold and saturate it with starting fluid before cranking. Page 26 confirms the ether plug is intended for use in temperatures below 0°F, so skip it on milder mornings or you risk a hydraulic lock in a warm cylinder. Reseat the pad snugly and recheck for a clean burn on the next attempt.
Manual Section: Diesel Fuel System p. 26Clutch slips under load or loses grip when pulling heavy implements even with pedal adjusted
Confirm pedal free play is correct before condemning the clutch itself, then pull the cover and test the transmission clutch springs. Springs should compress to 125 lbs at 2.60 inches per page 39; any spring reading below that spec has lost clamping force and will slip under load. Replace weak springs as a full matched set, not individually.
Manual Section: Dual "Livedrive" Clutch p. 39Engine hard to start or misfires with excessive black smoke and rough idle
Work through the diesel fuel system troubleshooting chart on page 24 to isolate fuel delivery, misfire, or governor faults one at a time. Confirm low idle is set to 650-700 RPM per the clearance specifications on page 3; an idle set too low mimics fuel starvation and hides the real fault. Bleed the entire system before reinstalling any injector.

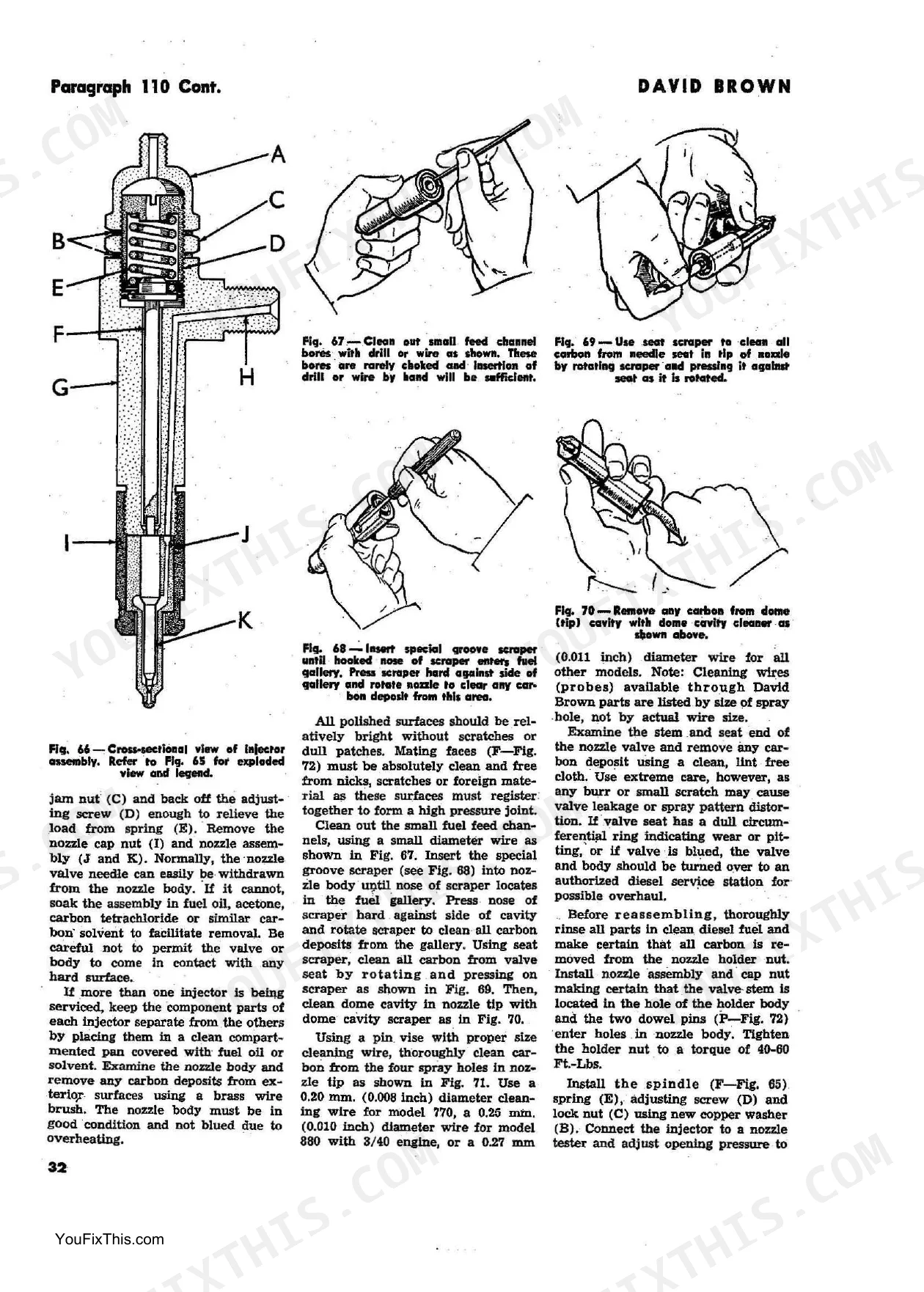

Manual Section: Diesel Fuel System p. 24Fuel injector nozzles leak back, spray pattern is ragged and pump won't hold steady pressure

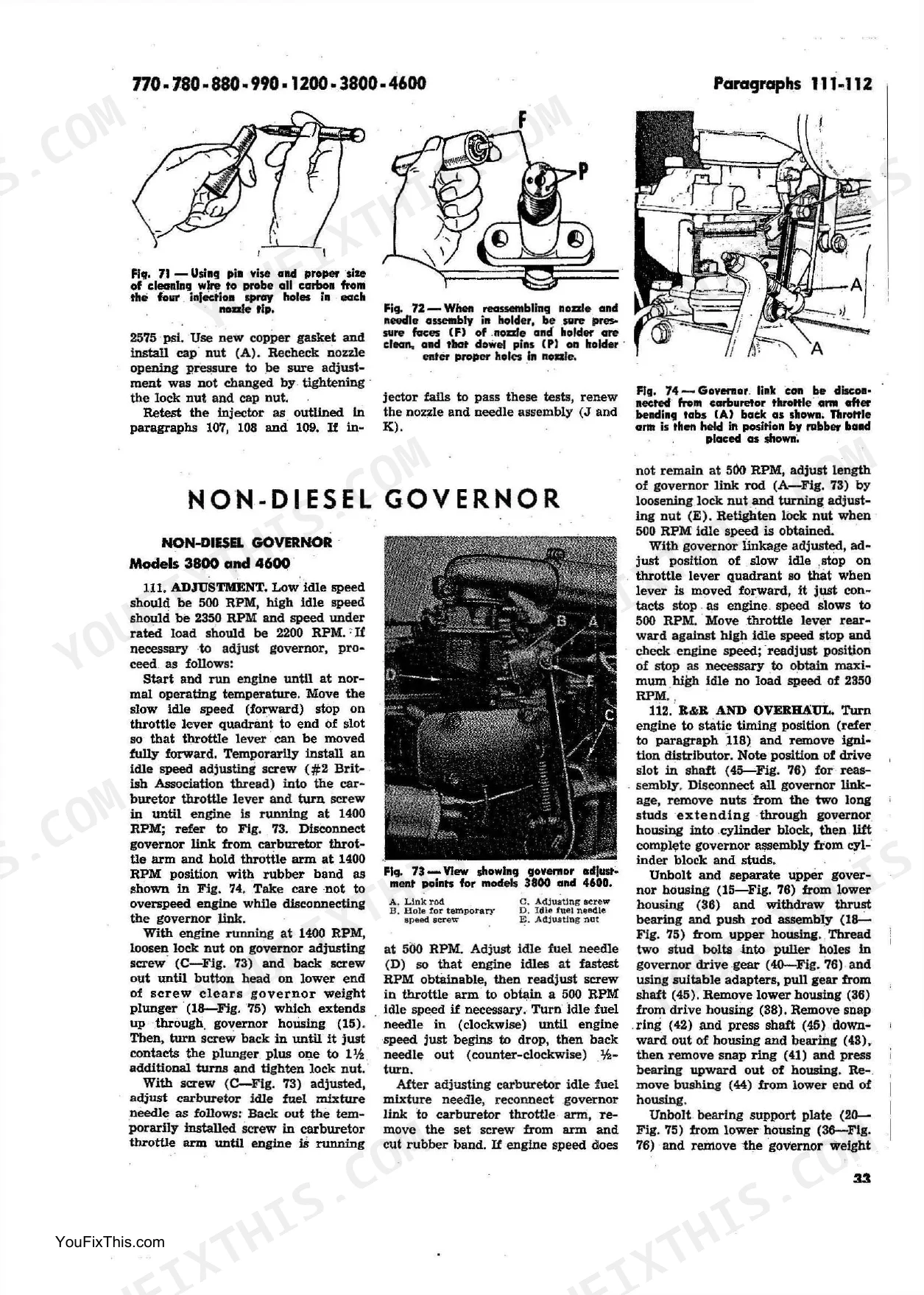

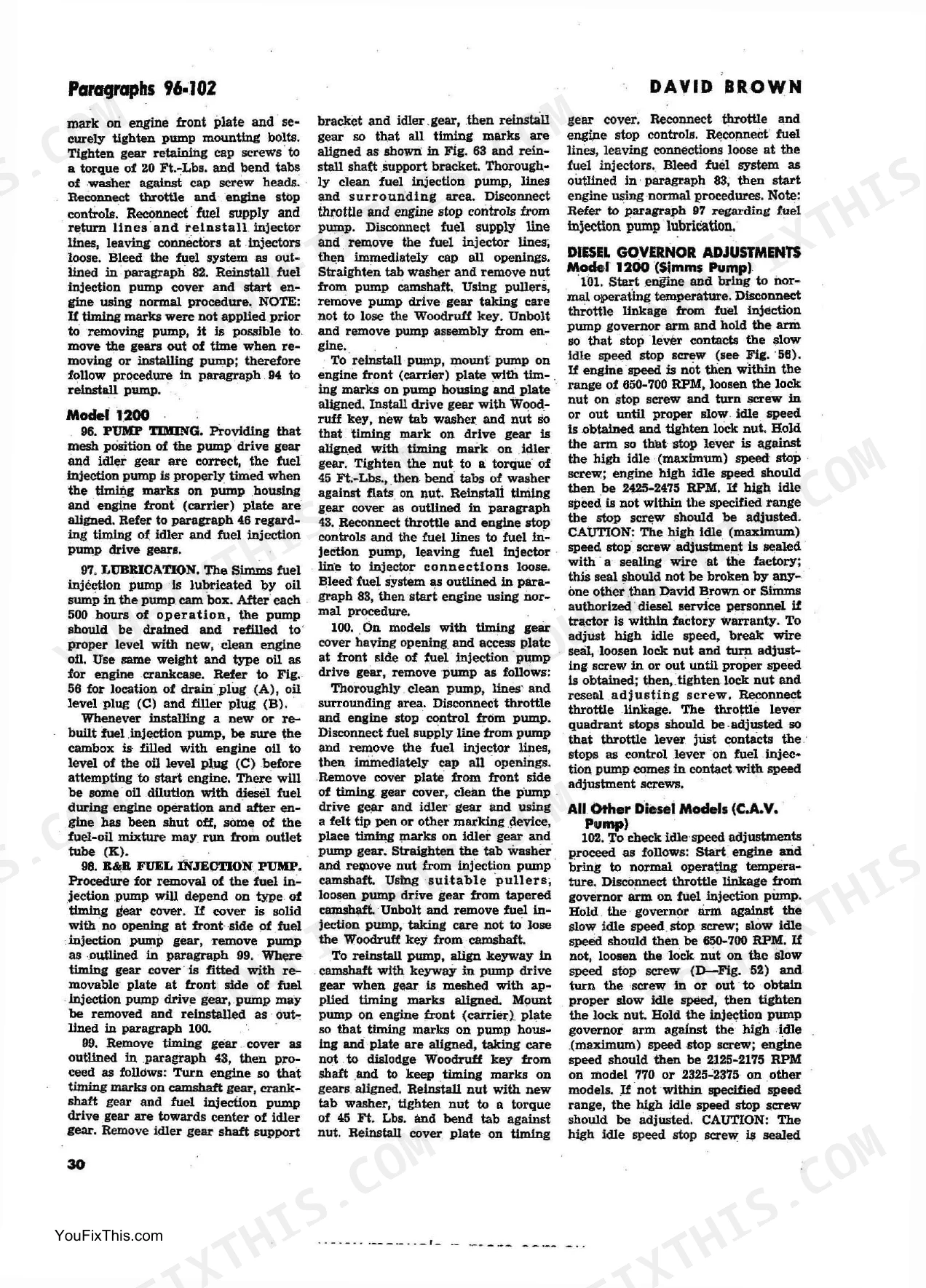

Pull the suspect nozzle and run it on the pop tester before touching the injection pump. Nozzles should open at 2575 psi per page 30; one that opens early or dribbles at the seat needs reseating or replacement. Check spray pattern and leak back rate against the injector diagnostics on page 30 before condemning the pump itself.
Manual Section: Diesel Fuel System p. 30Hydraulic lift raises slowly or won't hold an implement once it's up in the raised position
Start with the hydraulic system troubleshooting section beginning on page 65 to separate Implematic faults from Selectamatic faults, since the two systems test differently. Check fluid level and control valve linkage adjustment first; a lift that raises slowly but holds fine once up usually points to a restricted supply line rather than a worn pump.
Manual Section: Hydraulic System (Implematic & Selectamatic) p. 65Frequently Asked Questions

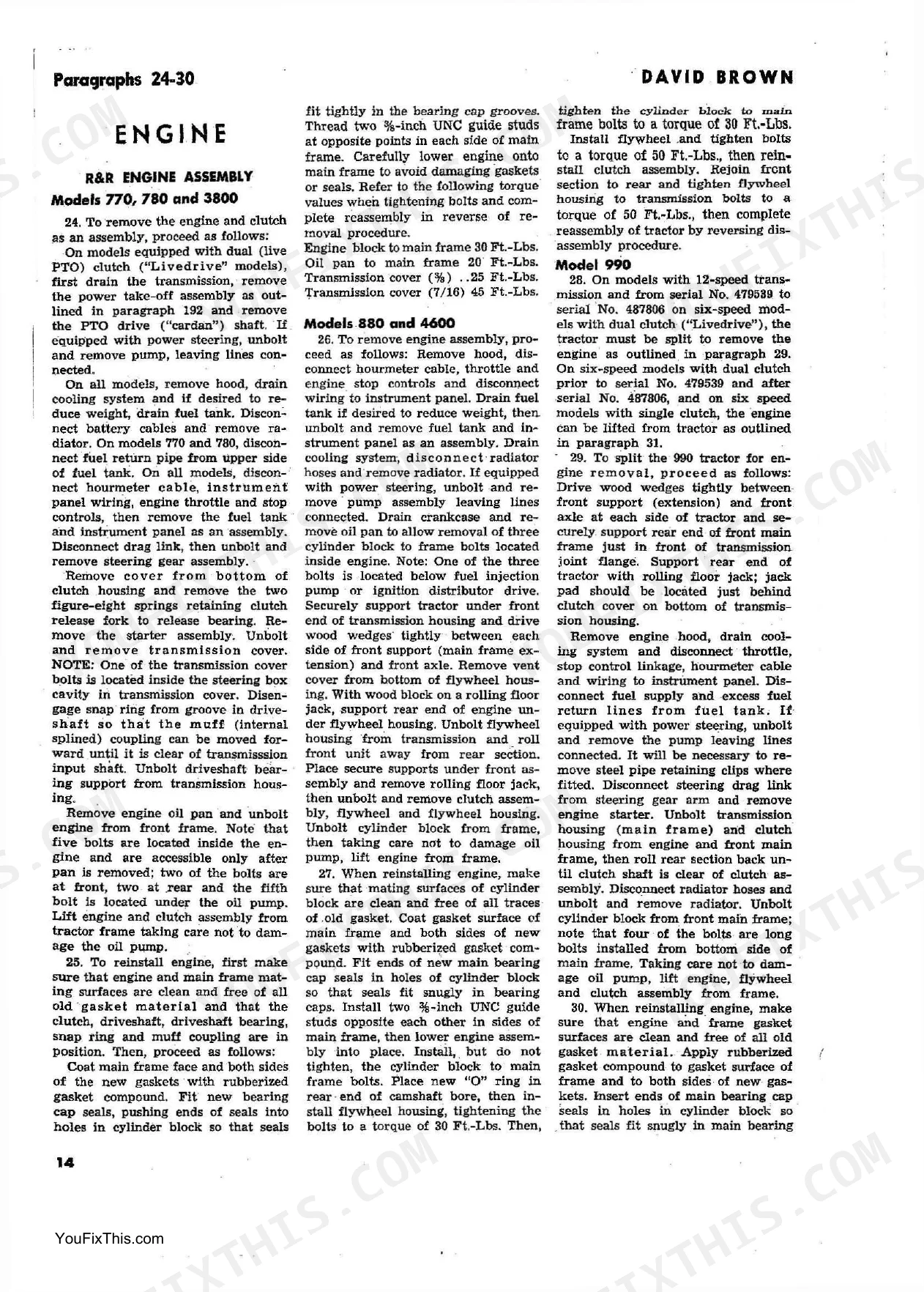

What are the torque specs for the engine head bolts on David Brown 770 and 780?
For David Brown 770 and 780 diesel models, the engine head bolts should be tightened in three stages: first to 30 Ft.-Lbs., then re-tightened to 60 Ft.-Lbs., and finally to 90 Ft.-Lbs. This procedure should be followed after installing push rods and rocker arms assembly and adjusting valve clearance. p. 14
What are the replacement specifications for Clutch assembly?
For David Brown 770, 880, and 990 models, clutch spring specifications vary by model: Model 770 springs should exert 155 Lbs. pressure at 1.69 inches, Model 880 springs 110 Lbs. at 1.69 inches, and Model 990 springs 140 Lbs. at 1.69 inches. The separator plate thickness for Model 990 is 0.760-0.765, and for other models, it is 0.700-0.705. p. 37
What is the specified torque for the engine oil pan bolts on David Brown 770, 780, and 3800 models?
For David Brown 770, 780, and 3800 models, the engine oil pan bolts should be tightened to a torque of 20 Ft.-Lbs. This is done after the engine block to main frame bolts are tightened to 30 Ft.-Lbs. p. 13
What is the acceptable crankshaft end play for David Brown 990 and 1200 models?
For David Brown 990 and 1200 models, the crankshaft end play should be maintained between 0.002-0.010. This clearance is controlled by thrust washers at the center main journal. p. 22
Is this David Brown 770 & variants Shop Manual a digital download?
Immediate download of the complete 92-page searchable Shop Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Can I print this David Brown 770 & variants manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Does this David Brown 770 & variants Shop Manual have electrical diagrams?
Yes. You'll find full electrical schematics with wire routing diagrams, connector identification, and circuit descriptions.
