Need the factory book for your Case/international 5120, 5130, or 5140? This 134-page Shop Manual walks the whole tractor, front axle through parking brake, without padding the pages with fluff. Inside you get full R&R and overhaul procedures for the powershift transmission and synchromesh range unit, a troubleshooting section for the hydraulic control valve, and calibration steps for the digital instrument cluster. You also get complete axle, differential, and final drive teardown coverage for both 2WD and 4WD setups. Torque the tie rod end nut to 230 N.m on 4WD models, and set steering knuckle end play at 0.1 mm before you button the front axle back up. No more flipping through a stack of loose printouts trying to find the right page. This one's bookmarked by system, so you jump straight to the section you need and get back under the tractor.
What's Inside This Case IH 5120 / 5130 / 5140 Manual

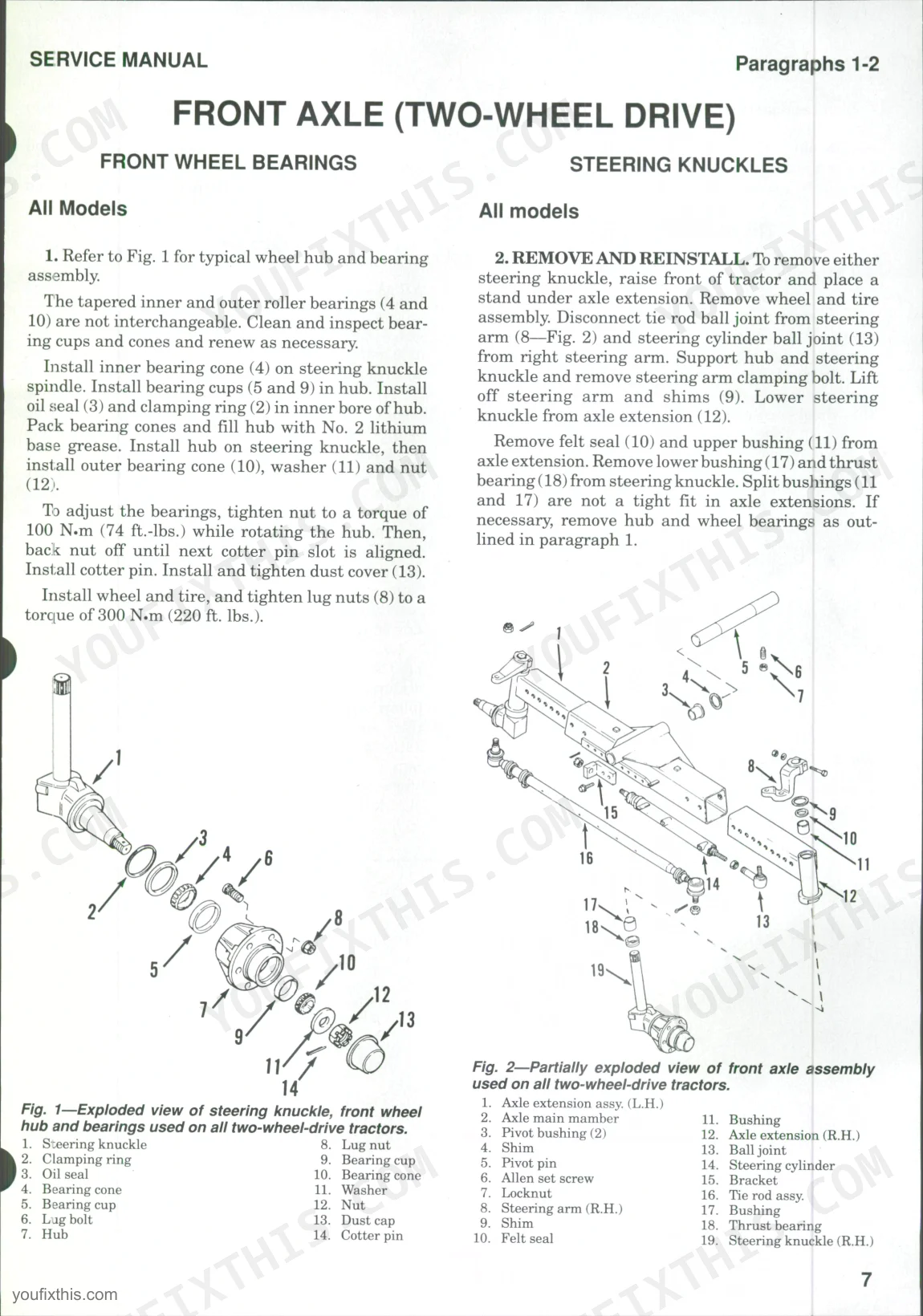

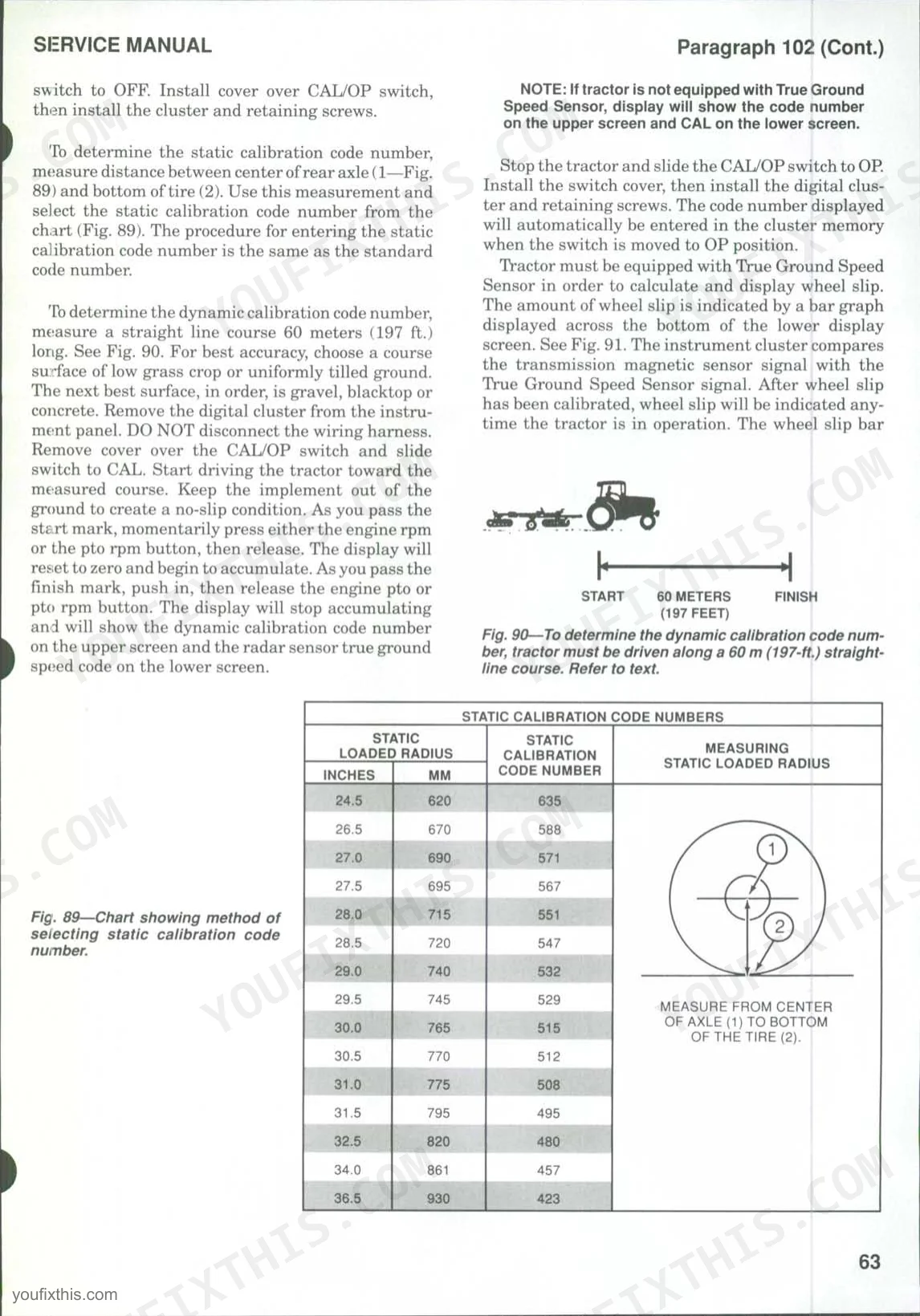

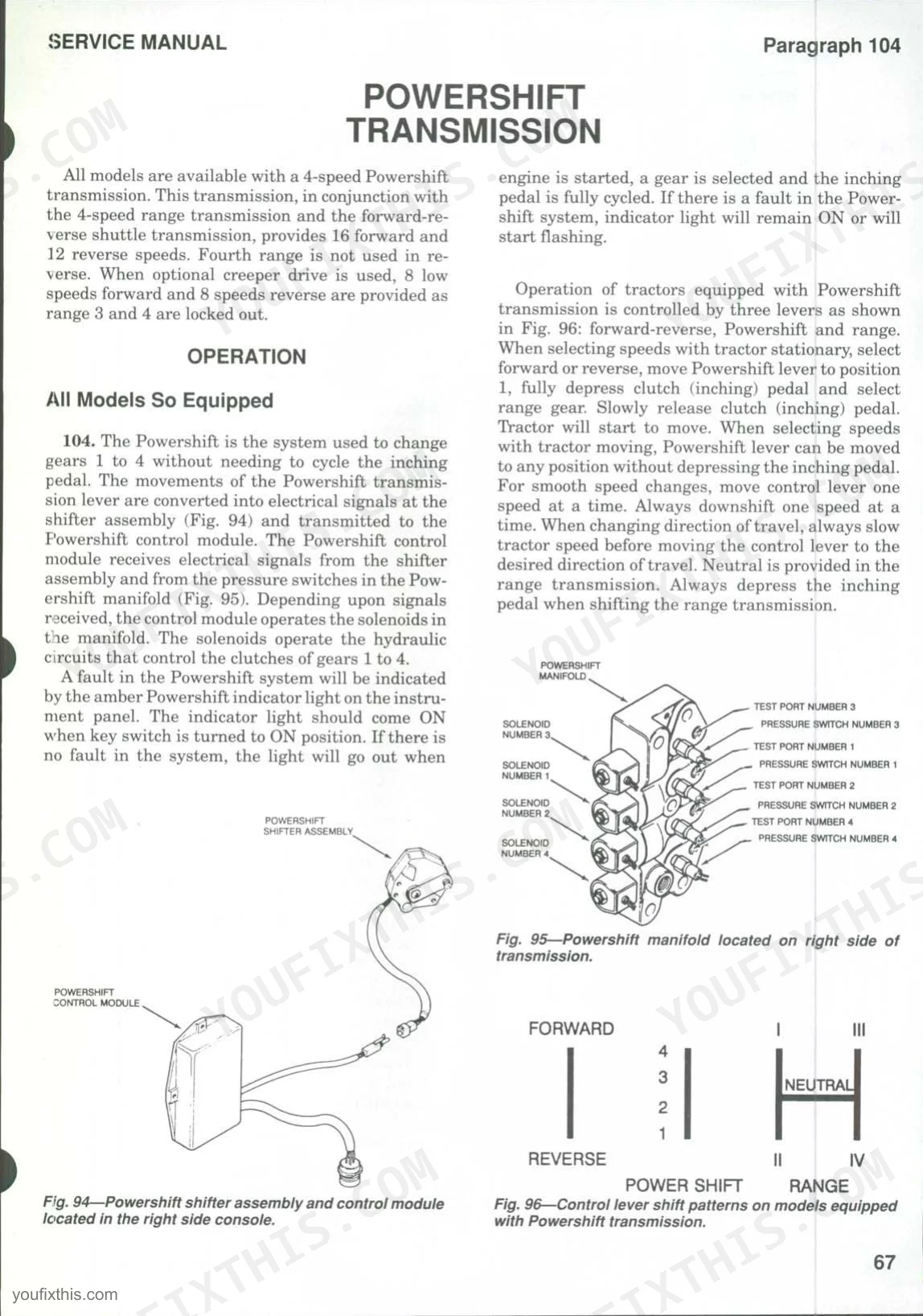

| System | Pages | Key Topics |
|---|---|---|
| Identification & Specifications | 1-6 | Tractor/engine/transmission/axle Serial Number Locations, Condensed Service Data (Bore, Stroke, Displacement, Compression Ratio), Fluid Capacities, Dual Dimensions (metric/US Measurement Note) |
| Front Axle & Front-Wheel-Drive System | 7-18 | Front Wheel Bearings, Steering Knuckles, Tie Rod & Toe-In, Axle Main Member & Pivot Pin (2WD), Front Drive Axle R&R, Wheel Hub & Planetary, Pivot Housing & Axle Shaft, Differential & Bevel Gears, Front Drive Clutch (MFD) |
| Power Steering System | 19-24 | Troubleshooting, Steering Operating Pressure, Operational Tests, Control Unit (Valve), Steering Hand Pump, Hydraulic Supply Pump, Steering Cylinder |
| Engine | 25-40 | Cylinder Head, Valves & Seats, Valve Guides & Springs, Rocker Arms, Cam Followers, Timing Gear Cover & Gears, Camshaft & Bearings, Connecting Rods & Piston Units, Pistons & Rings, Piston Pins & Bushings, Cylinder Block & Sleeves, Crankshaft & Main Bearings, Crankshaft Seals, Oil Spray Nozzles, Flywheel, Balancer, Oil Pan, Oil Pump, Oil Pressure Regulator, Oil Cooler |
| Diesel Fuel System | 41-47 | Fuel Filters & Lift Pump, Injection Pump, Injector Nozzles |
| Turbocharger, Aftercooler & Air Cleaner | 48-51 | Turbocharger R&R, Aftercooler Service, Air Cleaner Service |
| Cooling System | 52-53 | Belt Tensioner, Fan, Radiator, Thermostat, Water Pump |
| Electrical System | 54-64 | Batteries, Charging System Testing, Alternator, Starting Motor, Protective Circuits, Wiring, Lights, Instrument Cluster, Programming Digital Instrument Cluster |
| Torque Limiter Clutch & Powershift Transmission | 65-73 | Torque Limiter Clutch R&R, Powershift Operation, Troubleshooting, Control Valve, Powershift Manifold, Powershift Unit, Hydraulic Oil Temperature Sensor |
| Synchromesh, Range & Shuttle Transmission | 74-93 | Synchromesh Transmission Operation & R&R, Range Transmission Operation, Forward-Reverse Shuttle Valve, Inching Pedal & Transmission Linkage Adjustment, R&R and Overhaul |
| Drive Shaft, Differential, Final Drives & Brakes | 94-106 | Drive Shaft (w/o Creeper), Creeper Transmission R&R, Differential & Main Drive Bevel Gears, Differential Lock, Final Drives, Axle Shaft, Brake Adjustment, Brake Assemblies, Bleed Brakes, Brake Master Cylinders, Parking Brake |
| Hydraulic System (Pumps) | 107-114 | Hydraulic Pumps, Hydraulic Pump Drive Gear, PTO Front Drive Shaft |
| Hydraulic Lift System | 115-126 | Troubleshooting, Adjustments, Rockshaft & Lift Cylinder, Position Control Sensing Valve, Front Three-Point Hitch, Rear Hitch Operation, Remote Control Valves |
| Rear Power Take-Off & Cab/Seat | 127-134 | PTO Housing, PTO Clutch, PTO Control Valve, PTO Gears & Shafts, PTO Neutral Start Switch, Linkage Adjustment, Cab and Seat R&R |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| 4WD models | ||
| Tie rod end nut torque (to steering arm) | 230 N.m (170 ft.-lbs.) | p. 11 |
| 2WD models | ||
| Steering knuckle end play | 0.1 mm (0.004 in.) | p. 8 |
| Steering arm clamping bolt torque | 280 N.m (206 ft.-lbs.) | p. 8 |
| Wheel bearing adjusting nut torque | 100 N.m (74 ft.-lbs.) | p. 7 |
| Wheel lug nuts torque | 300 N.m (220 ft.-lbs.) | p. 7 |
| Axle main member pivot pin end play | 0.1-0.3 mm (0.004-0.012 in.) | p. 9 |
| Allen set screw and locknut torque (for pivot pin) | 150 N.m (110 ft.-lbs.) | p. 8 |
| All Models | ||
| Toe-in adjustment shims | Not used for toe-in adjustment; toe-in is adjusted by rotating components. | p. 106 |

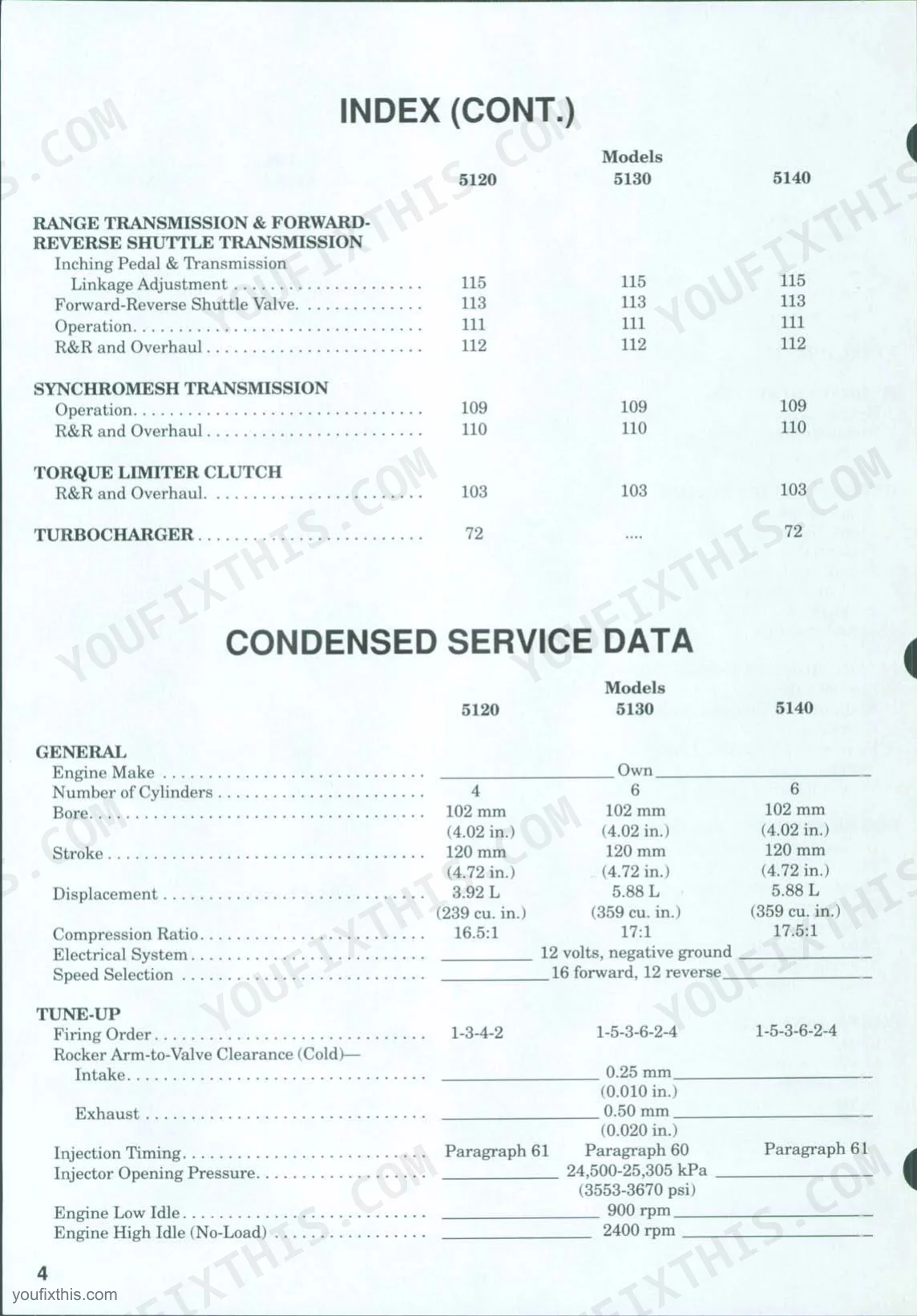

| Engine Low Idle | 900 rpm | p. 4 |
| Engine High Idle (No-Load) | 2400 rpm | p. 4 |
| Injector Opening Pressure | 24,500-25,305 kPa | p. 4 |
| Rocker Arm-to-Valve Clearance (Cold), Intake | 0.25 mm | p. 4 |
Case IH 5120 / 5130 / 5140 Common Problems This Manual Covers
Case IH 5120/5130/5140 front wheel drive axle binds or fails to engage smoothly under load
Inspect the axle main member pivot pin for excessive play. On 4WD models the upper and bottom pivot pin cap screws torque to 137 N.m (100 ft.-lbs.) per page 11. Check tie rod ends for wear and torque the tie rod end nut to 230 N.m (170 ft.-lbs.) at the steering arm. Verify the front drive clutch engages fully before suspecting the differential.
Manual Section: Axle Main Member, Steering Knuckles, Tie Rod & Toe-In, Wheel Bearings p. 11Steering knuckle has excessive play or steering feels loose after minor loads
Measure steering knuckle end play with a dial indicator. On 2WD models replace the bushings if play exceeds 0.1 mm (0.004 in.), as specified on page 8. Torque the steering arm clamping bolt to 280 N.m (206 ft.-lbs.). Inspect the tie rod ends for looseness and replace any worn ball joints before returning the tractor to service.
Manual Section: Axle Main Member, Steering Knuckles, Tie Rod & Toe-In, Wheel Bearings p. 8Front wheel bearing overheats or seizes completely after short periods of operation
Remove the hub cap and check for missing seals or contaminated grease. Repack the bearing and torque the wheel bearing adjusting nut to 100 N.m (74 ft.-lbs.) on 2WD models per page 7. Torque the wheel lug nuts to 300 N.m (220 ft.-lbs.) and spin the wheel by hand to confirm smooth rotation with no drag or heat.
Manual Section: Axle Main Member, Steering Knuckles, Tie Rod & Toe-In, Wheel Bearings p. 7Axle main member pivot pin shears or fails during heavy two-wheel drive loads
Check axle main member pivot pin end play with a feeler gauge. On 2WD models it should measure between 0.1 and 0.3 mm (0.004-0.012 in.), as listed on page 9. Torque the Allen set screw and locknut to 150 N.m (110 ft.-lbs.) per page 8. Replace the pin if scoring or fatigue cracking is visible before reassembling the axle.
Manual Section: Axle Main Member, Steering Knuckles, Tie Rod & Toe-In, Wheel Bearings p. 9Steering feels lumpy, steers slowly, or won't steer manually at low engine speed

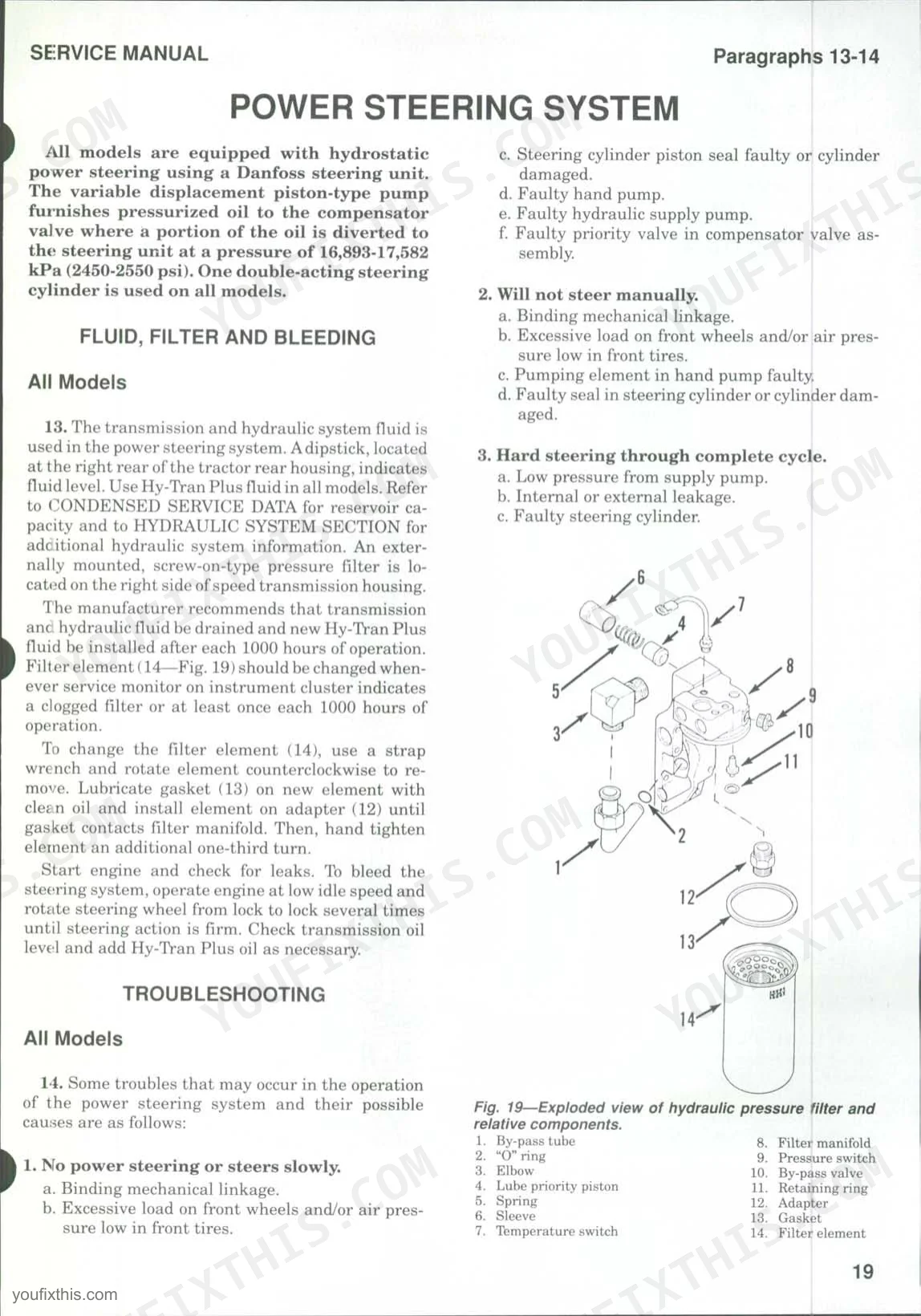

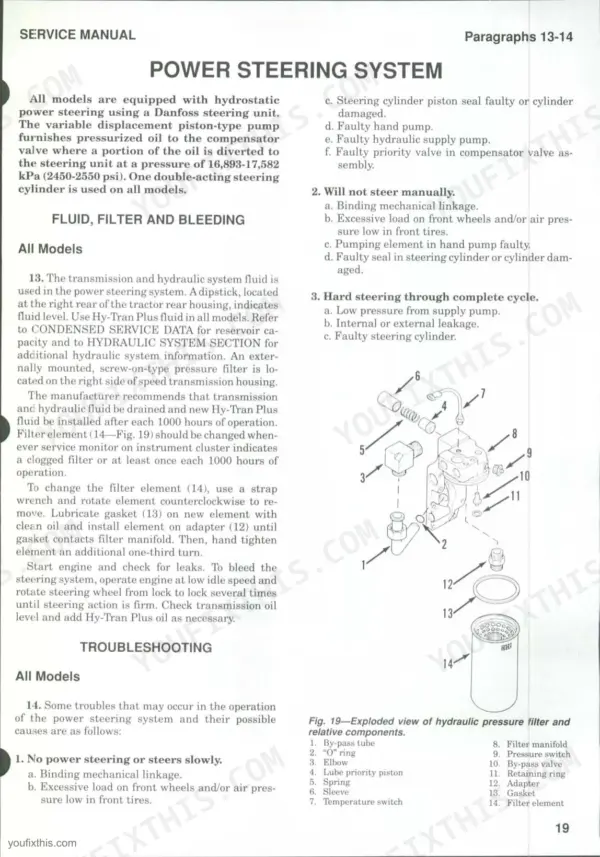

Check the power steering troubleshooting chart on page 19 for no power steering, slow steering, or lumpy steering conditions. Verify engine low idle holds at 900 rpm; a low idle drops pump output and produces sluggish steering response. Inspect the steering cylinder for internal leakage and test relief valve pressure before condemning the pump.

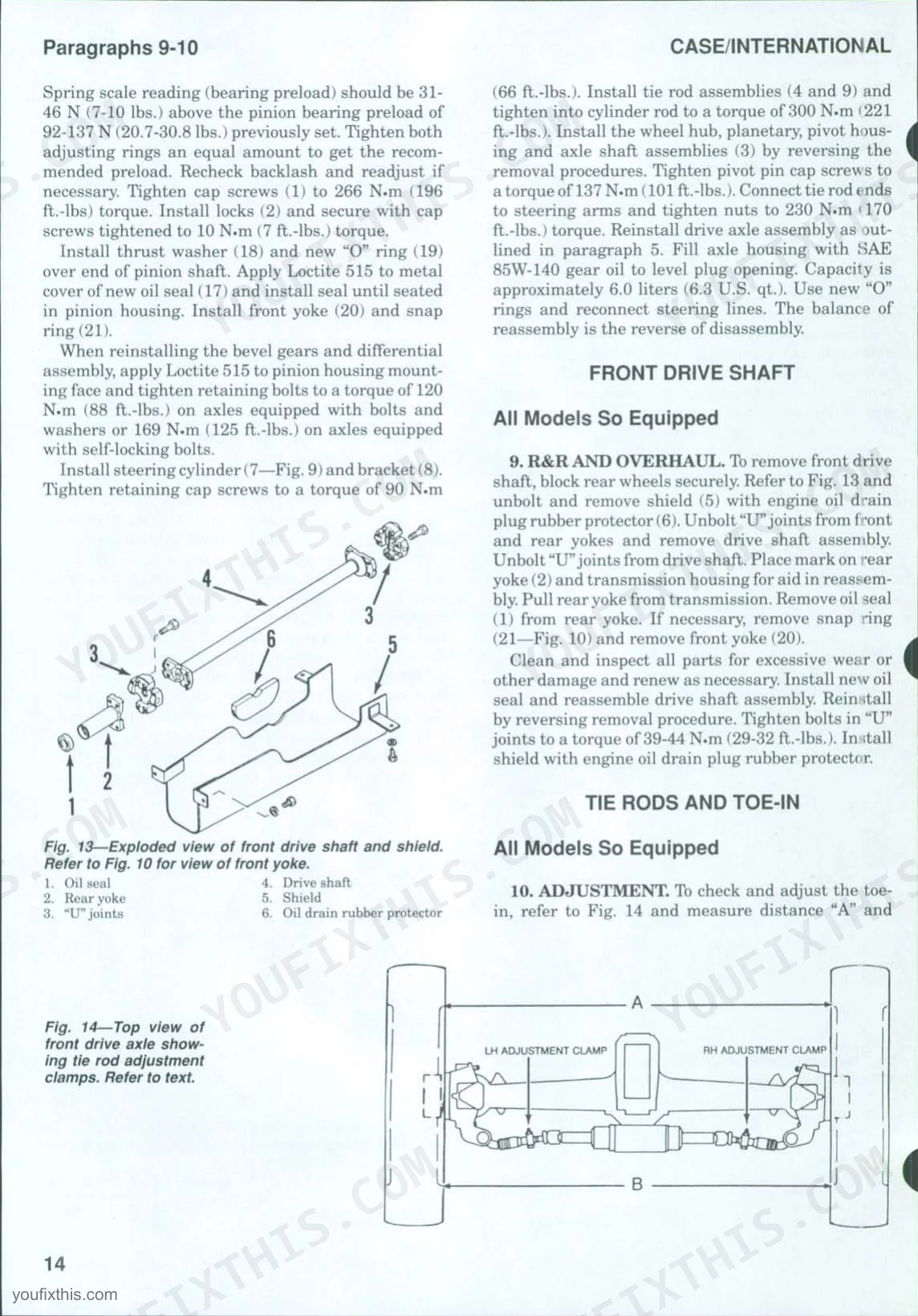

Manual Section: Power Steering System Troubleshooting p. 19Tires wear unevenly and toe-in appears out of adjustment on the front axle
Measure toe-in at hub height with a trammel gauge and compare front and rear readings. These axles adjust toe-in by rotating the tie rod components rather than by shims, as noted on page 106. Loosen the tie rod clamps, rotate to correct toe-in, then torque the tie rod end nut to 230 N.m (170 ft.-lbs.) at the steering arm on 4WD models.
Manual Section: Axle Main Member, Steering Knuckles, Tie Rod & Toe-In, Wheel Bearings p. 106Frequently Asked Questions
What are the torque specs for engine head bolts on Case IH 5130?
For Case IH 5130 models, the engine head bolts should be tightened in four steps following the sequence in Fig. 30. The first step is 41 N.m (30 ft.-lbs.), the second is 90 N.m (66 ft.-lbs.), the third is 120 N.m (88 ft.-lbs.) for all bolts except numbers 4, 5, 12, 13, 20, and 21, and the final step is an additional 90° for all head bolts. p. 26
What are the torque specs for wheel lug nuts on Case IH Maxxum 5120?
For two-wheel drive tractors, tighten front wheel lug nuts to 300 N.m (220 ft. lbs.). For four-wheel drive tractors, tighten front wheel lug nuts to 185-220 N.m (137-162 ft.-lbs.). For rear wheels on flanged rear axles, tighten wheel nuts to 434-475 N.m (320-350 ft.-lbs.). For rowcrop axles, tighten wheel hub bolts in four stages, with the final stage at 300 N.m (220 ft.-lbs.). p. 7
What are the cold valve tappet gap adjustments for intake and exhaust valves on Case IH 5120, 5130, and 5140 models?
For all models, the cold valve tappet gap for intake valves should be 0.25 mm (0.010 in.) and for exhaust valves should be 0.50 mm (0.020 in.). These clearances should be adjusted with the engine cold. p. 4
What is the engine oil capacity with filter for Case IH 5120, 5130, and 5140 models?
The crankcase oil capacity with filter for Model 5120 is 10.4 L (10.9 U.S. Qt.). For Models 5130 and 5140, the capacity is 15 L (15.8 U.S. Qt.). p. 5
What is the specified injection opening pressure for Case IH 5120, 5130, and 5140 models?
The specified injection opening pressure for all models is 24,500-25,305 kPa (3553-3670 psi). This pressure should be checked using special test equipment. p. 4
How will I receive this Case/international 5120, 5130, 5140 Shop Manual?
This is a 134-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print this Case/international 5120, 5130, 5140 manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
