Part of the Case Repair Manuals.
This 134-page Case/international 5120, 5130, 5140 Shop Manual walks you through every system on these tractors, from front axle and Powershift transmission down to the hydraulic lift and PTO. Open it up and you get full teardown procedures for the engine, both drive axles, power steering, and the range transmission, plus a troubleshooting section for the powershift and hydraulic lift circuits. Page after page of torque tables backs up every bolt you'll turn, and clearance specs cover the crankshaft and main bearings too. Set the front wheel bearing nut to 100 N.m and torque the tie rod end to 230 N.m before you button up the steering. No more flipping through three different tractor manuals hoping one matches your serial number. It's bookmarked by section, so you jump straight from cover to index to the exact procedure without scrolling past pages you don't need.
What's Inside This Case/international 5120, 5130, 5140 Manual

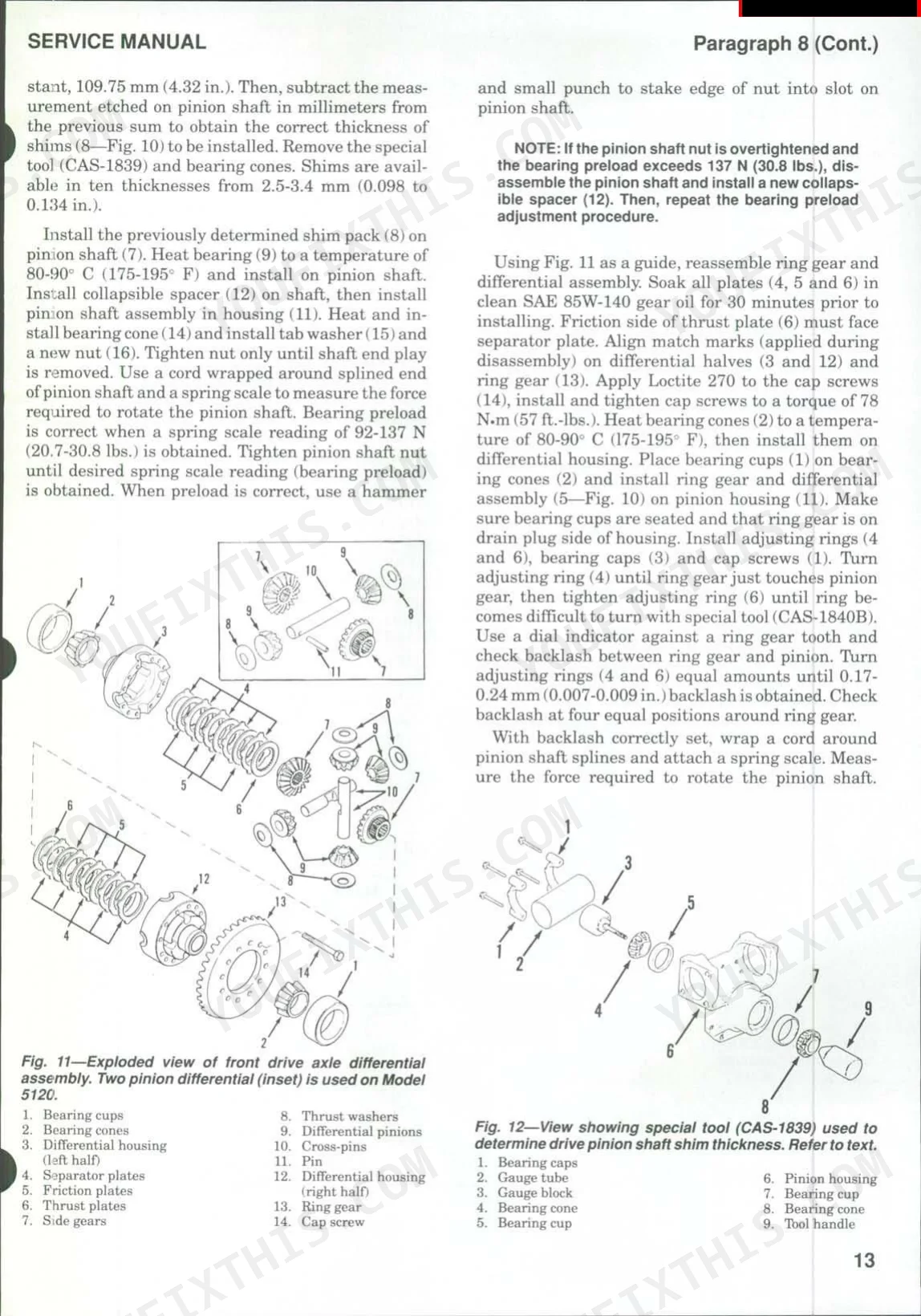

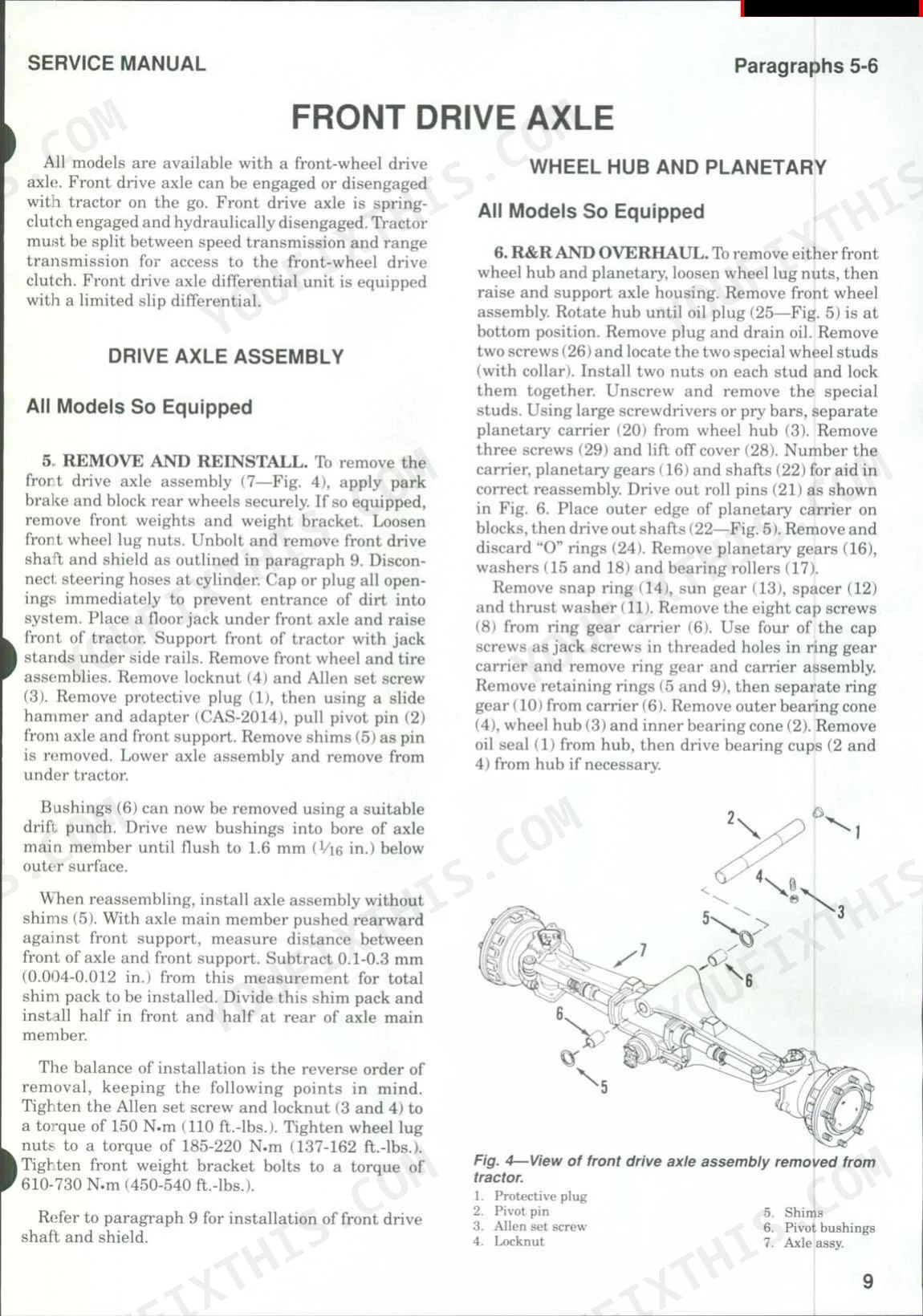

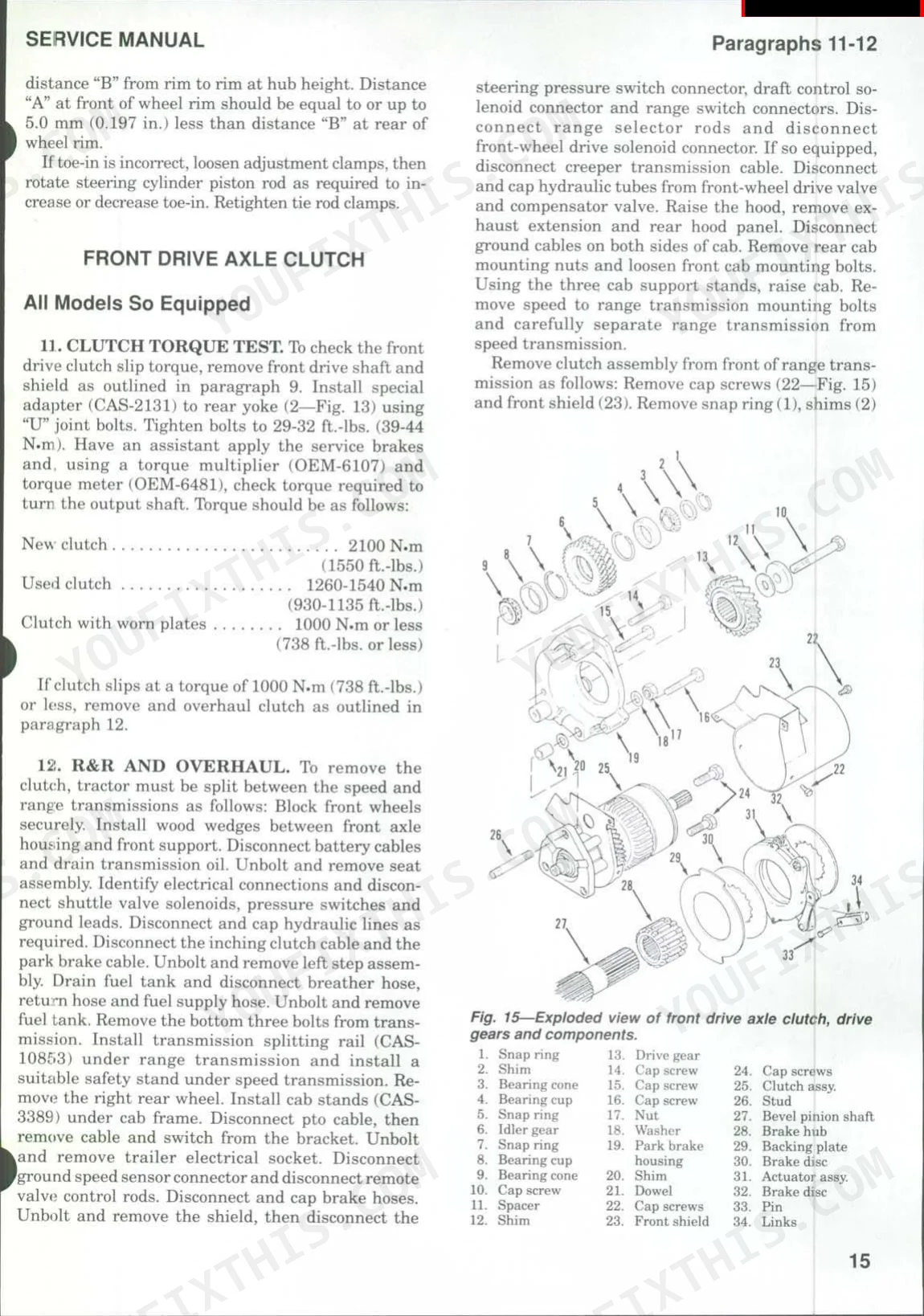

| System | Pages | Key Topics |
|---|---|---|
| Clutch & Transmission | Torque Limiter Clutch, Powershift Transmission, Synchromesh Transmission, Range Transmission | |
| Fuel System | Fuel Filters | |
| Cooling System | Aftercooler | |
| Engine | Front Wheel Bearings | |
| Front Axle & Steering | Front Drive Axle | |
| Other Components | Batteries |

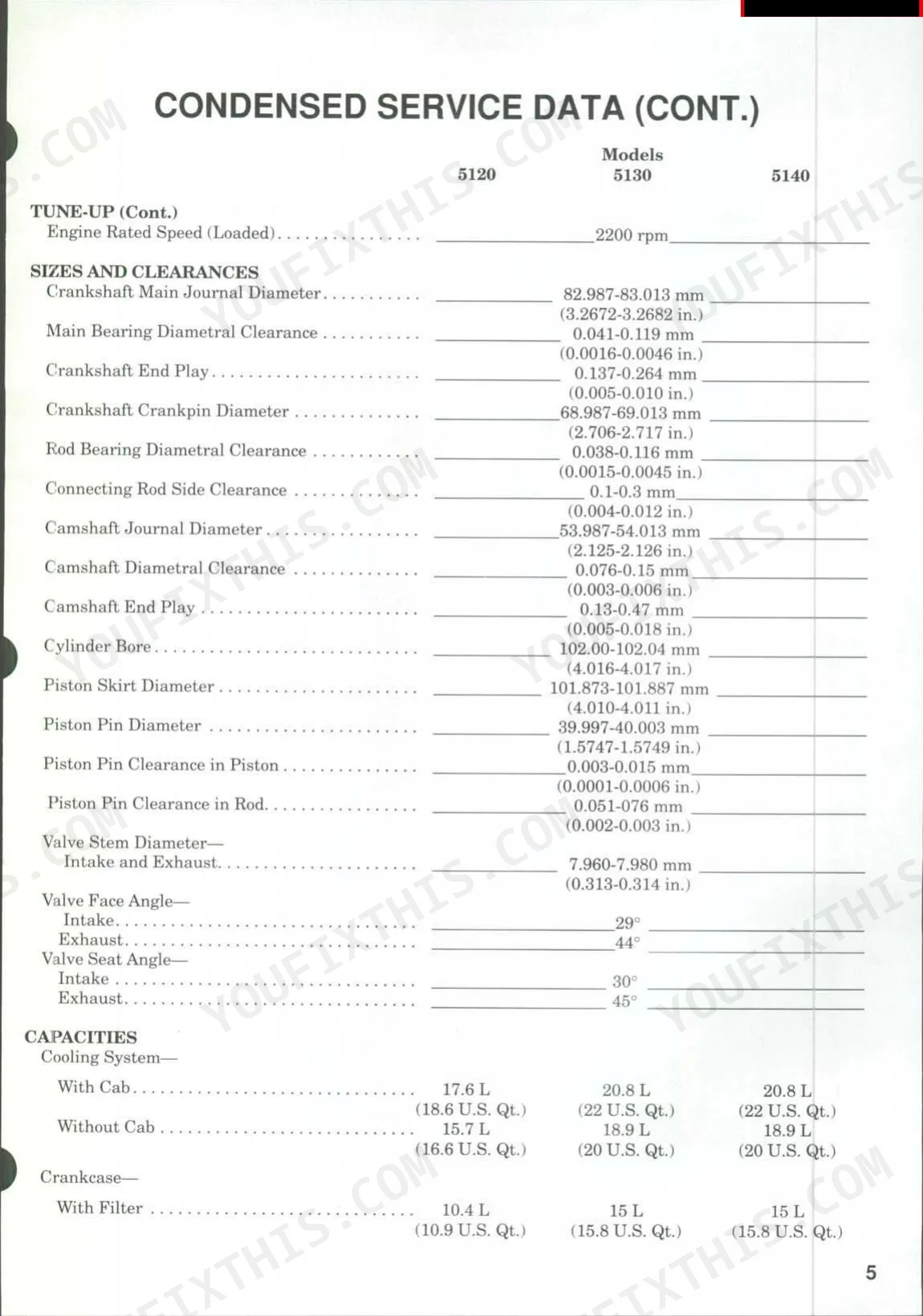

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Front wheel bearing nut torque | 100 N.m (74 ft.-lbs.) | p. 7 |
| Tie rod end nut torque (to steering arm) | 230 N.m (170 ft.-lbs.) | p. 11 |
| Main pump low standby pressure | 2760-4140 kPa (400-600 psi) | p. 108 |
| Engine Rated Speed (Loaded) | 2200 rpm | p. 5 |
| Crankshaft Main Journal Diameter | 82.987-83.013 mm | p. 5 |
| Connecting Rod Side Clearance | 0.1-0.3 mm | p. 9 |
| 5120 | ||
| Cooling System - With Cab | 17.6 L | p. 5 |
| Crankcase - With Filter | 10.4 L | p. 5 |
| Fuel Tank (Std.) | 135 L | p. 107 |
| 5130, 5140 | ||
| Crankcase - With Filter | 15 L | p. 5 |
| Transmission/Hydraulic System | 76 L | p. 1 |
Case/international 5120, 5130, 5140 Common Problems This Manual Covers
Case IH 5130 three-point hitch won't lift or hold load, seems dead electrically
Pull the right-side fuse panel cover and check Fuse 17 first, this is the most common failure point for hitch control power. If Fuse 17 tests good, check Fuse 19 for the auxiliary hydraulic circuit next. Refer to the hydraulic lift troubleshooting chart on page 116 before chasing the lift cylinder itself.
Manual Section: Hydraulic Lift System - Troubleshooting p. 116Complete loss of hydraulic power to all implements, pump seems dead
Verify main pump low standby pressure at the test port before tearing into the pump. Spec is 2760 to 4140 kPa (400 to 600 psi) on page 108. If standby pressure reads below that range, remove the pump inlet screen and check for collapse or debris, then inspect the pump shaft seal for leakage before condemning the pump body.
Manual Section: Hydraulic Lift System - Troubleshooting p. 108Front wheel bearing wear requiring frequent replacement on two-wheel drive models
Remove the wheel and hub assembly per the steering knuckle procedure on page 7. Inspect races for pitting or bluing from overheating, and repack with fresh grease if the bearing surface still looks serviceable. Torque the spindle nut to 100 N.m (74 ft.-lbs.) on reassembly, then recheck for end play before rolling the tractor.
Manual Section: Front Axle (Two-Wheel Drive) - Steering Knuckles p. 7Tie rod ends worn or loose, tractor wanders or toe-in drifts out of spec
Check both tie rod ends for play with the wheels loaded on the ground, not jacked up. Replace any end with detectable movement, then torque the new tie rod end nut to the steering arm at 230 N.m (170 ft.-lbs.) on page 11. Reset toe-in to spec afterward since a tie rod swap always changes the adjustment.
Manual Section: 07-08 p. 11No power steering or steering goes hard and lumpy intermittently

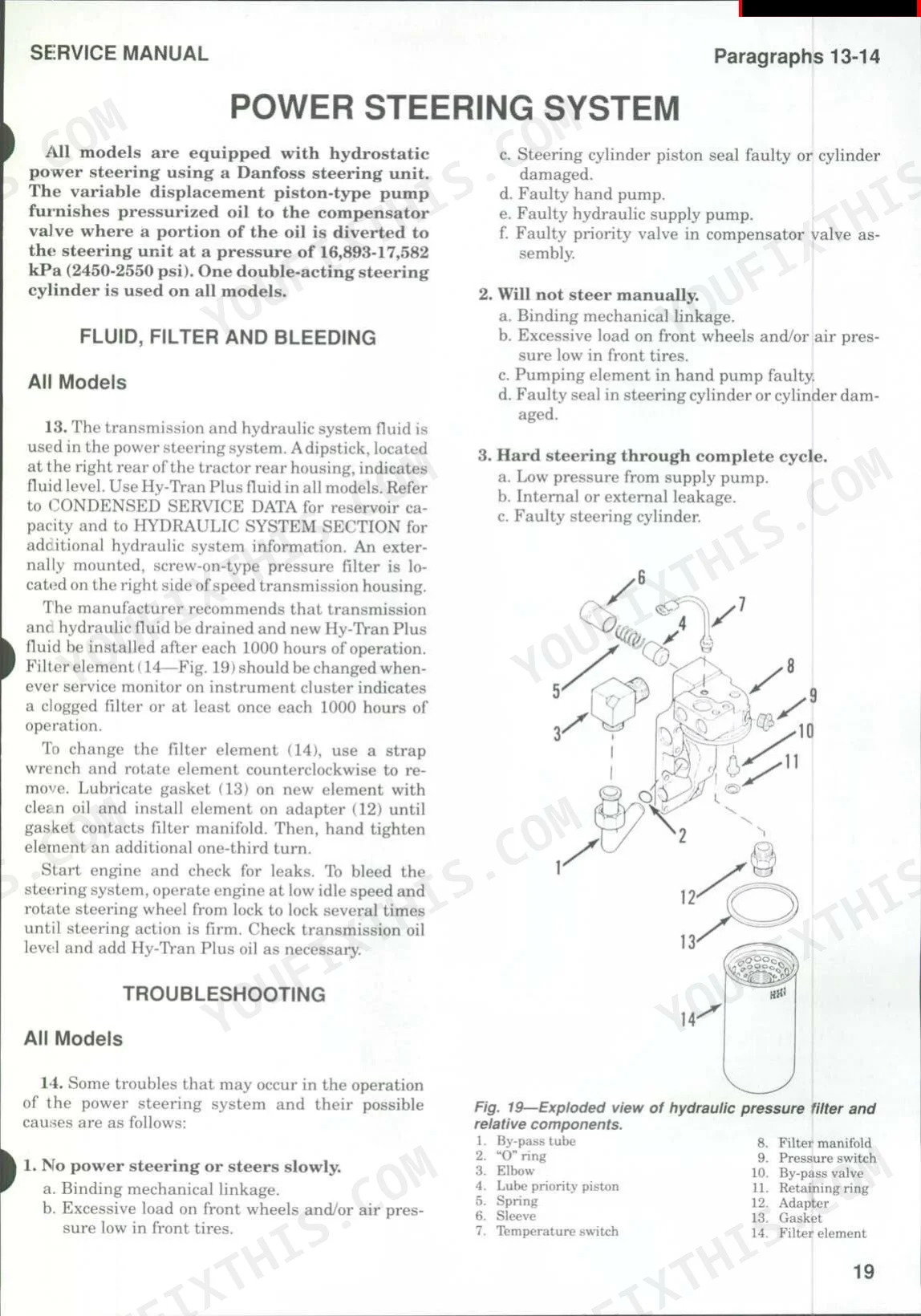

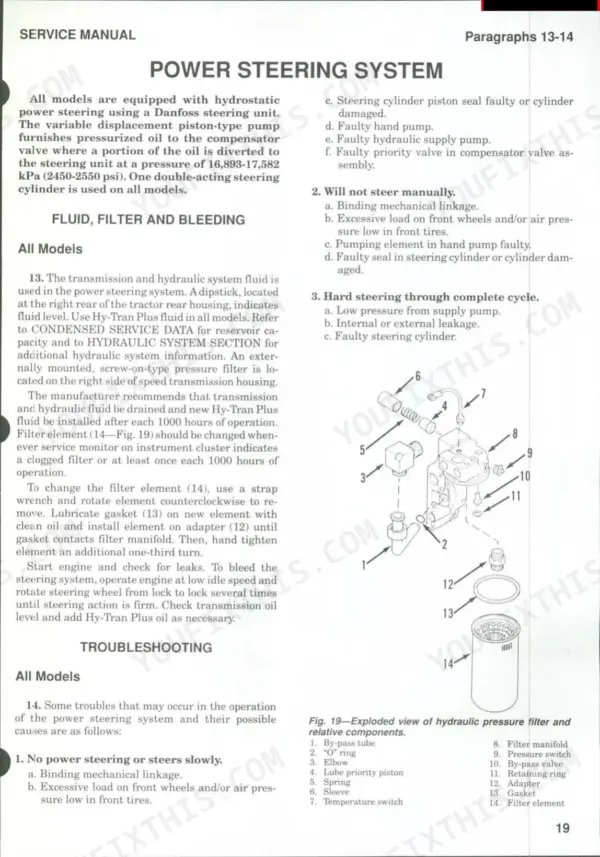

Start with the power steering troubleshooting sequence on page 19, it separates no-assist conditions from momentary hard-steering faults. Check fluid level and look for air in the system first since aerated fluid causes the lumpy feel. If assist is completely absent, move to the steering pump relief valve and confirm it isn't stuck open before replacing any components.
Manual Section: Power Steering System - Troubleshooting p. 19Powershift transmission won't shift or shifts erratically between gears

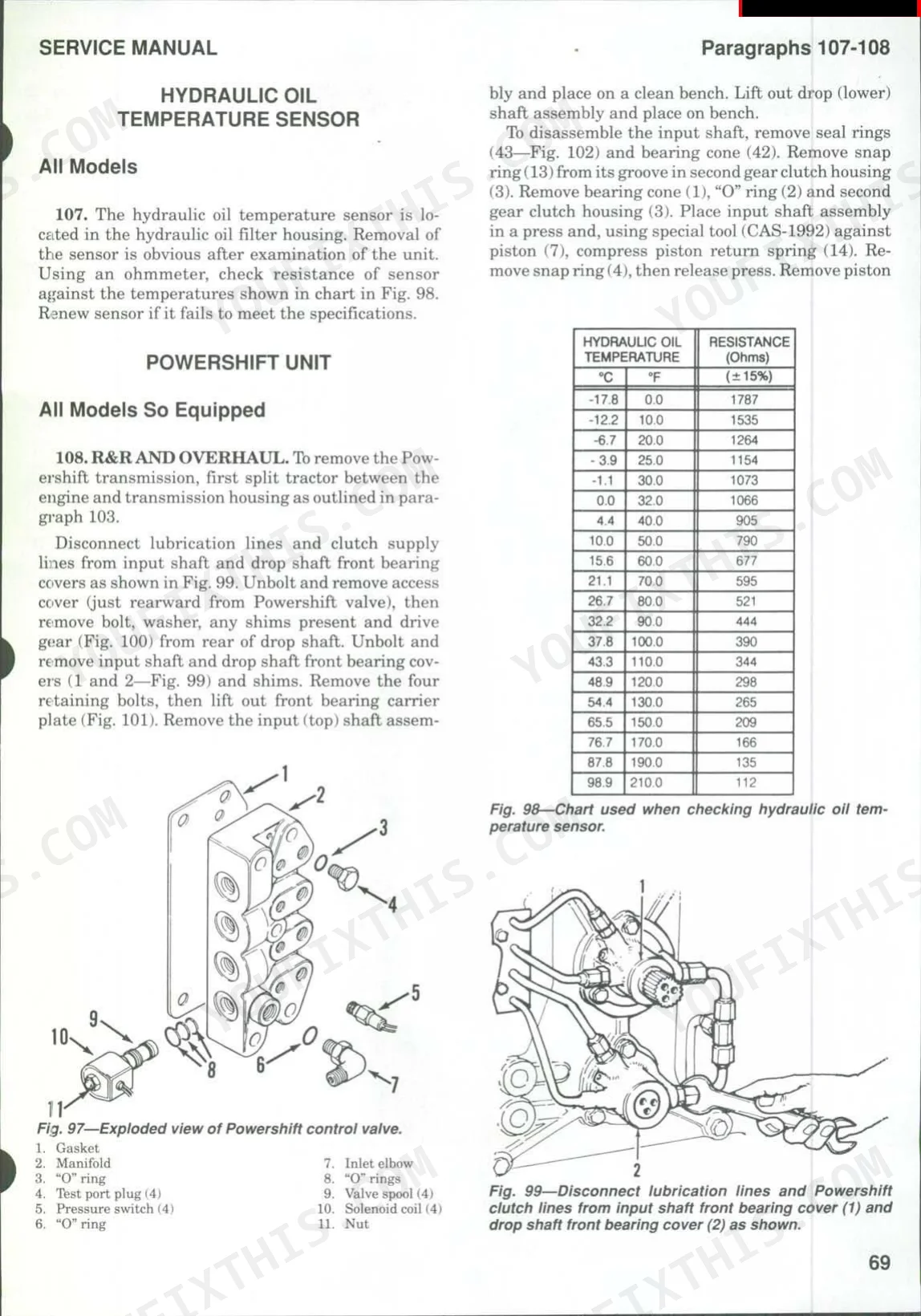

Work through the powershift troubleshooting section starting on page 68, it splits electrical faults from hydraulic ones so you're not guessing. Pull the diagnostic test values on page 69 and compare clutch pack pressures against spec before pulling the transmission apart. Check wiring connectors at the powershift manifold for corrosion first, that's a quicker fix than a solenoid swap.
Manual Section: Powershift Transmission - Troubleshooting p. 68Frequently Asked Questions
What is the torque specification for flywheel bolts on a Case IH 5130 engine?
The flywheel retaining cap screws on a Case IH 5130 engine should be tightened to a torque of 137 N.m (101 ft.-lbs.). This specification is applicable to all models. p. 35
How do I enable the three-point hydraulics on a Case IH 5120?
To enable the hitch system, move the hitch command switch to the center (neutral) position, then to the working or full raise (transport) position after the engine is started. This procedure must be followed each time the engine is started to keep the hitch enabled. p. 115
What is the engine oil capacity with filter for Case IH Models 5130 and 5140?
The engine oil capacity with filter for Case IH Models 5130 and 5140 is 15 L (15.8 U.S. Qt.). p. 5

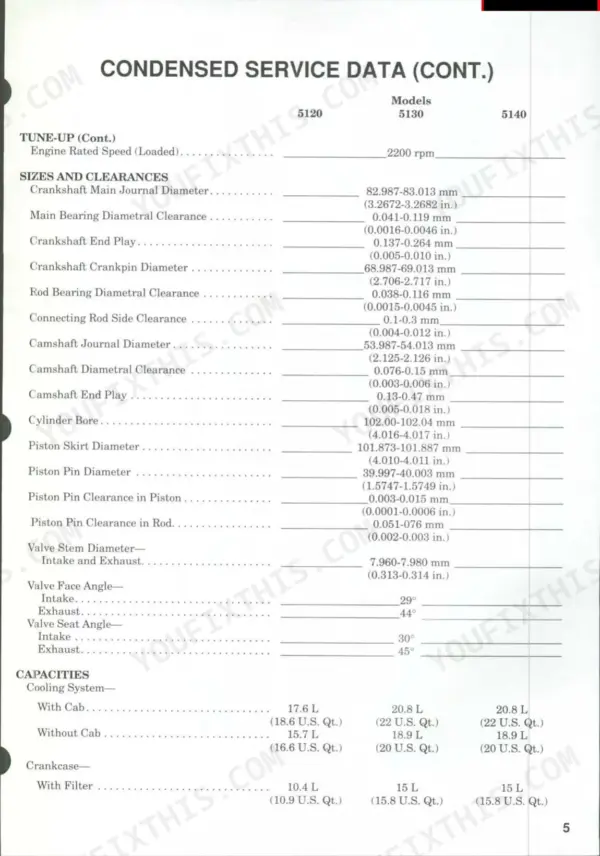

What is the cooling system capacity with cab for Case IH Model 5120?
The cooling system capacity with cab for Case IH Model 5120 is 17.6 L (18.6 U.S. Qt.). p. 5

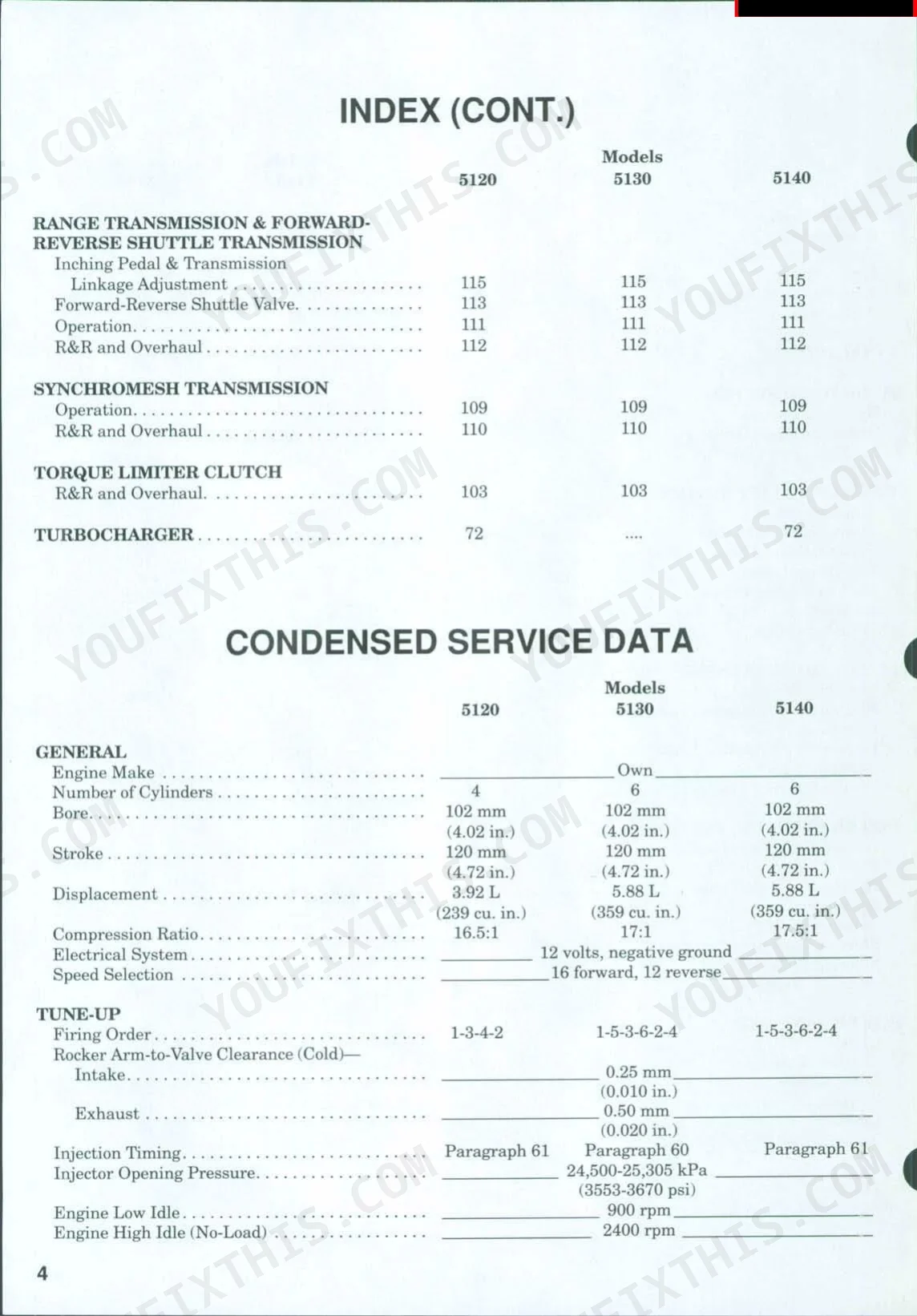

What is the cold intake valve tappet gap for all Case IH Models 5120, 5130 & 5140?
The cold intake valve tappet gap for all Case IH Models 5120, 5130 & 5140 is 0.25 mm (0.010 in.). p. 4
How will I receive this Case/international 5120, 5130, 5140 Shop Manual?
This is a 134-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print this Case/international 5120, 5130, 5140 manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
