Need the factory operating guide for your Case 5140? This 299-page Maxxum Tractor Operator Manual (OEM #Don 9-27315) covers the 5120, 5130, 5140, and 5150 from daily pre-start checks through full field operation. Inside: a complete safety section on ROPS, PTO protocols, and implement operation, plus full walkthroughs of both the standard and digital instrument clusters. You get step-by-step procedures for cold-weather starts, transmission operation, differential lock, three-point hitch setup, remote hydraulics, and PTO engagement, with maintenance intervals, grease point schedules, and fluid capacities throughout. Top your 5130, 5140, or 5150 engine with 15 litres of oil after a filter change and fill the transmission and hydraulic system to 75-80 litres. Your machine won't wait while you dig through forum threads. Keyword-searchable with section bookmarks, it opens on any device so you can pull up the right procedure before you climb back into the seat.
What's Inside This Case IH Maxxum 5120–5150 Operator Manual

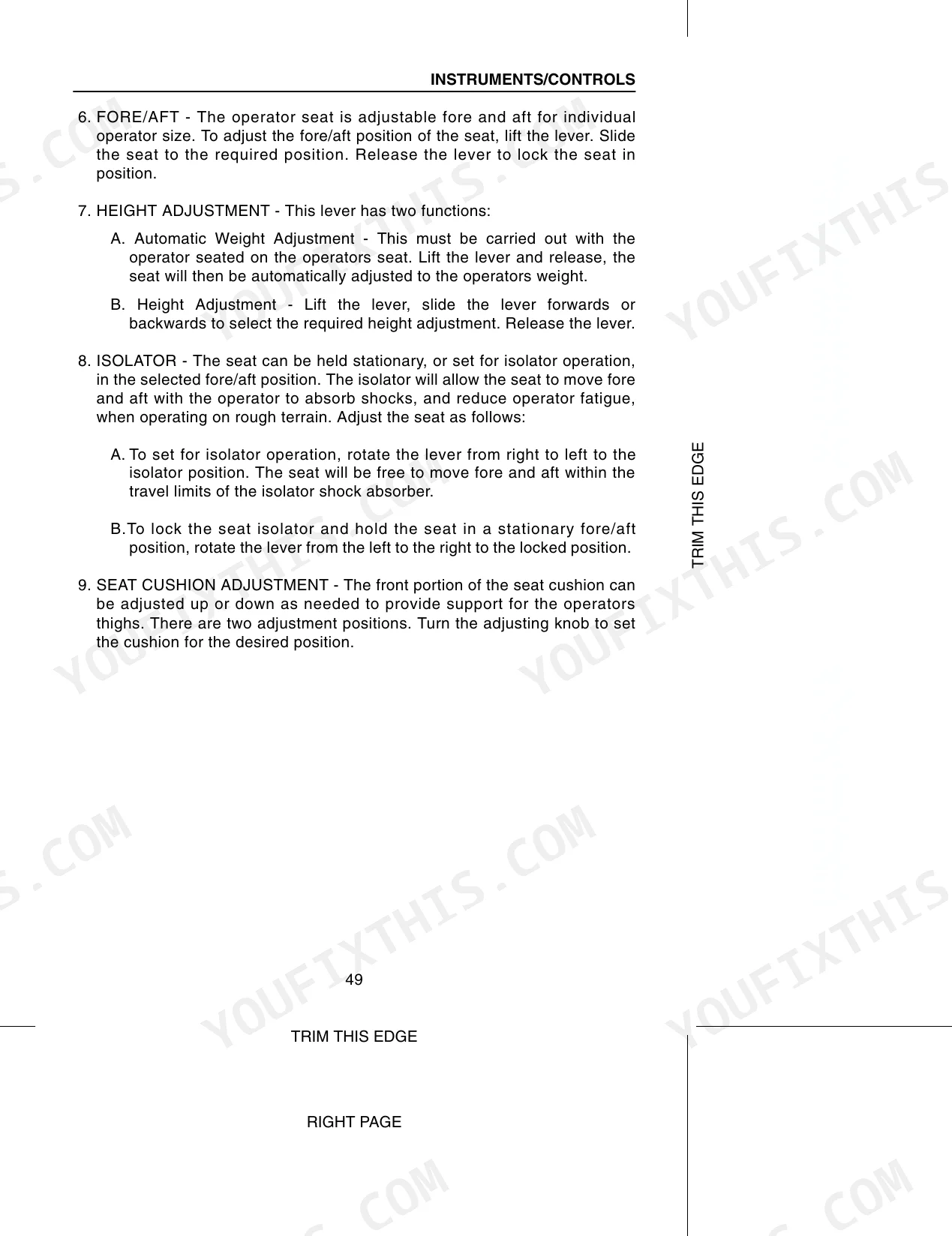

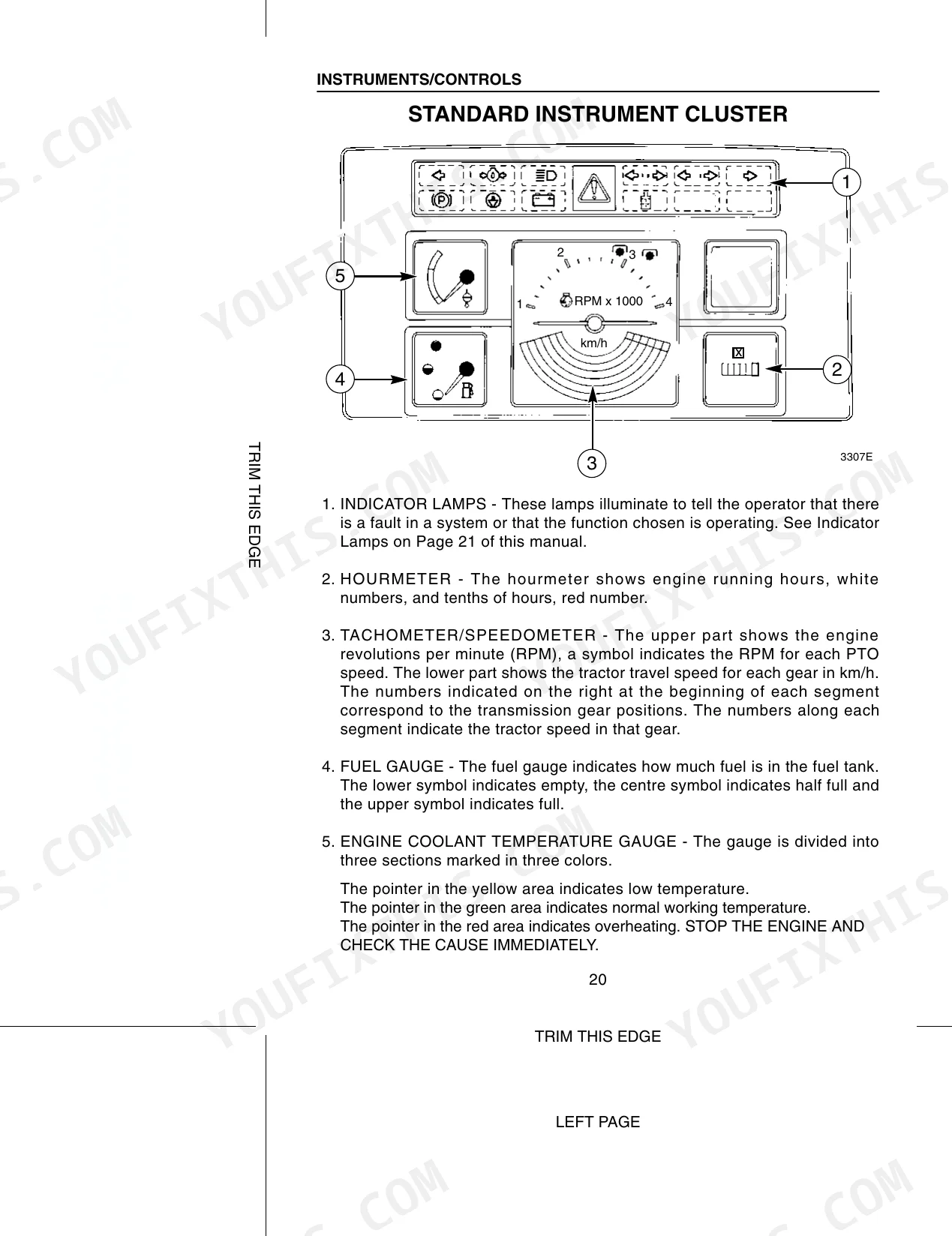

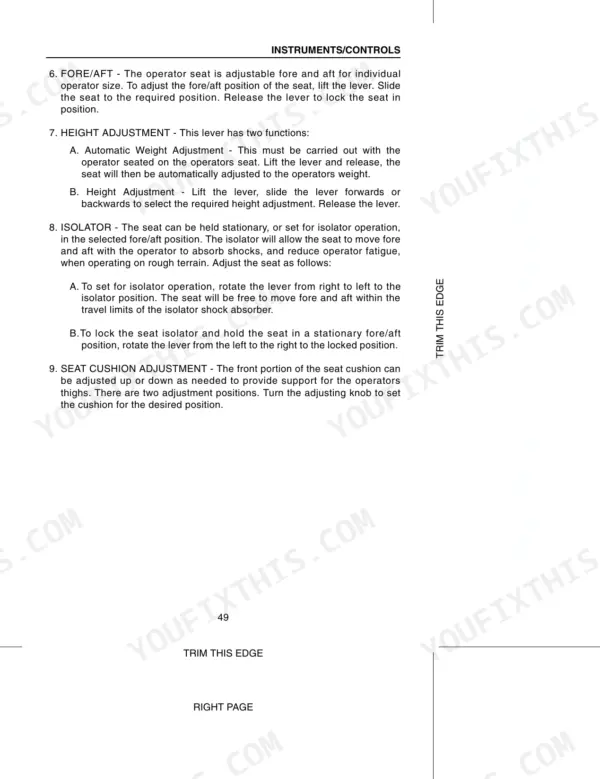

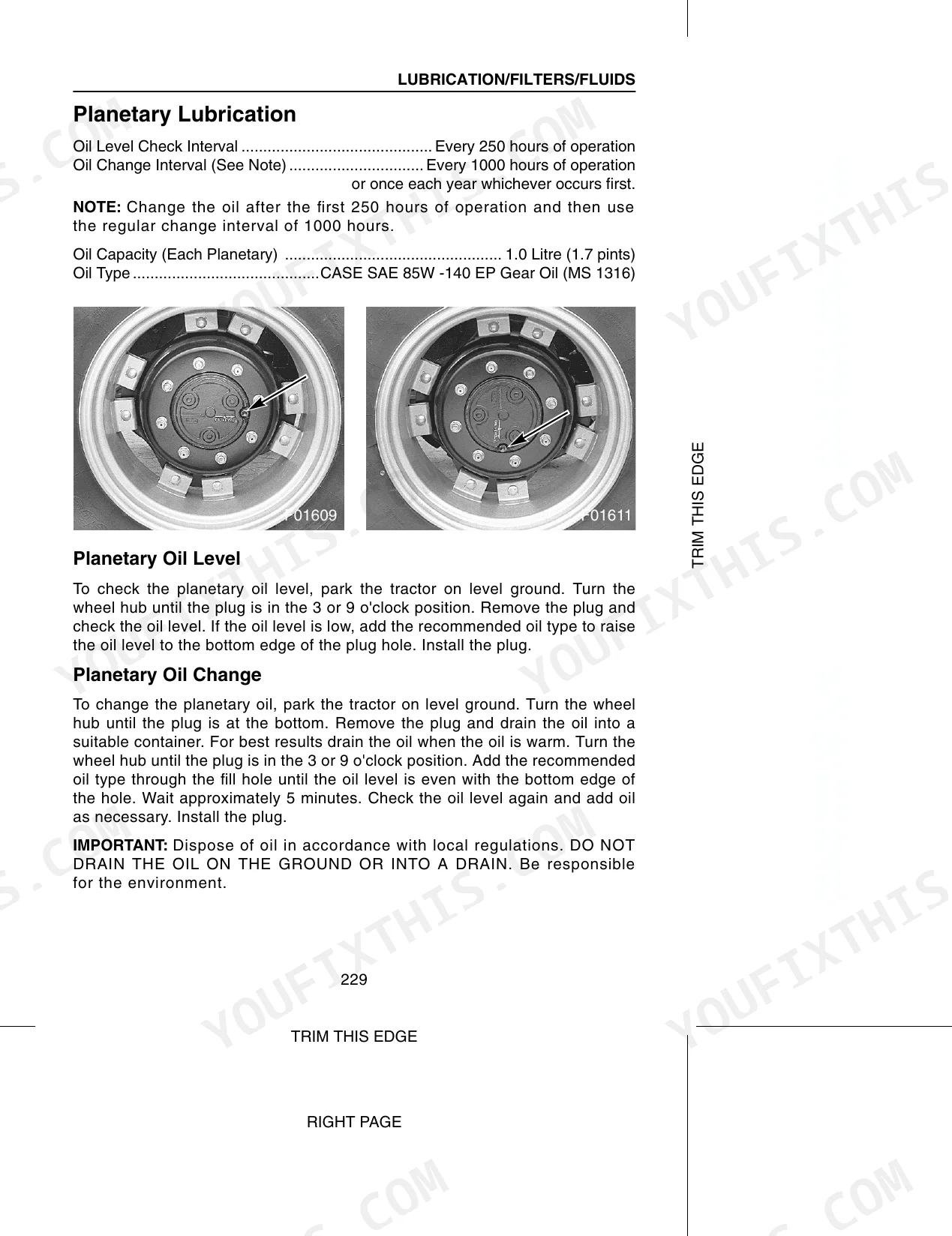

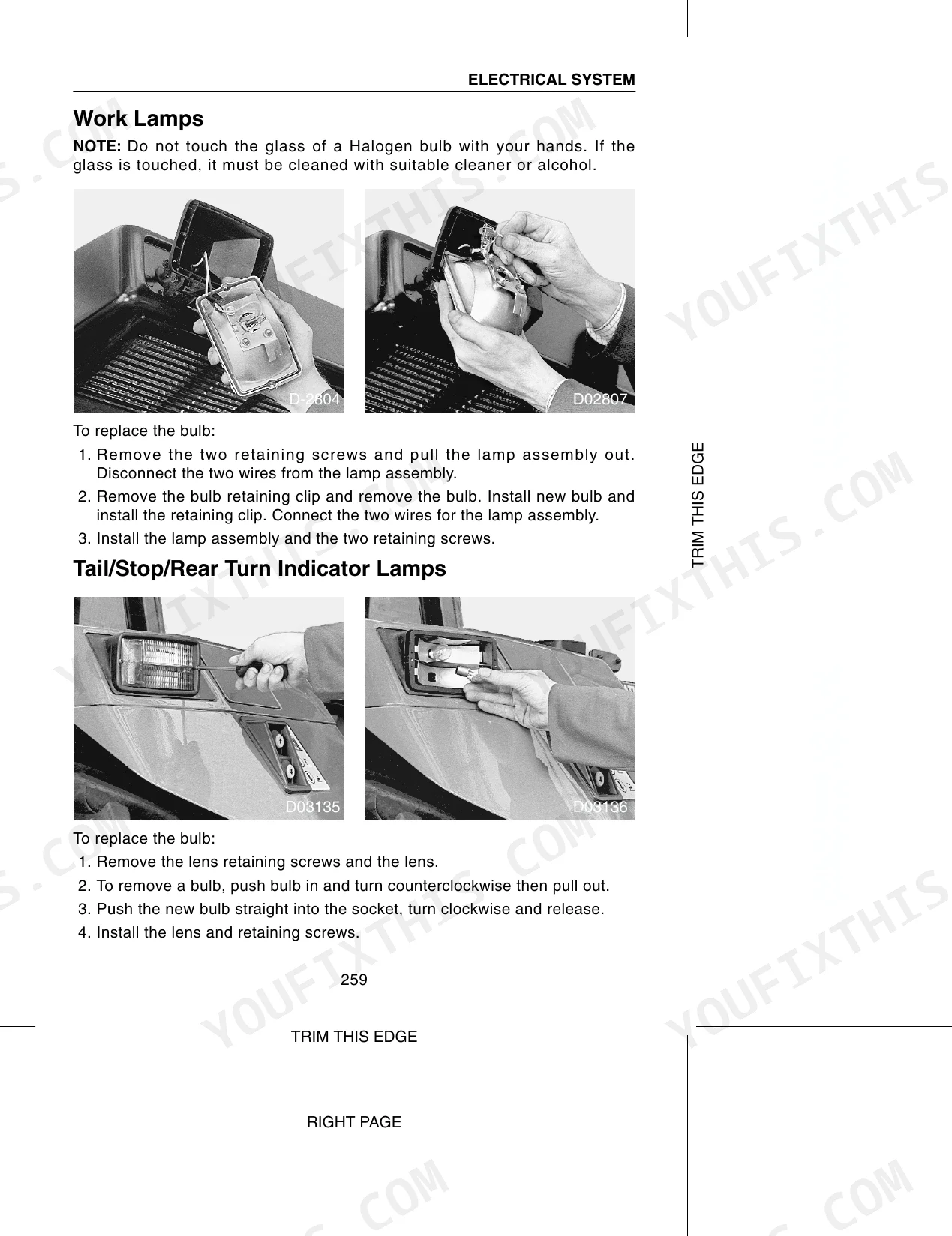

| System | Pages | Key Topics |
|---|---|---|
| To the Owner | 8-10 | Intended Use, Unauthorized Modifications, Operators Manual Storage, Dealer Assistance, Declaration of Conformity |
| Identification Numbers/Machine Components | 11-14 | Machine Components |
| Safety/Decals | 15-26 | Safety Rules, Intended Use, Transporting Passengers, Operation, Leaving the Tractor, Implements, PTO Operation, Service |
| Instruments/Controls | 27-57 | Standard Instrument Cluster, Digital Instrument Cluster, Operating Controls, Operators Seat |
| Operating Instructions | 58-109 | Before Starting the Engine, Run in Procedure, Service Indicator Lamps and Gauges, Seat Belt, Normal Starting Procedure, Stopping the Engine, Parking the Tractor |
| Field Operation | 110-160 | Drawbar Preparation, Quick Adjust, Height Adjustable, Clevis Type Trailer Hitches, Three Point Hitch System Preparation, Rear Hitch Operation, Hitch Operating Tips |
| Tires/Wheels/Spacing/Ballast | 161-200 | Tire and Wheel Equipment, Tire and Wheel Service, MFD Front Wheel Tread Positions, Rear Wheel Tread Positions, Dual Rear Wheel Tread Positions, MFD Axle Adjustments |
| Lubrication/Filters/Fluids | 201-242 | Hourmeter, Hood and Side Panels, Tool Box, Grease Points, Capacities, Engine Lubrication, Fuel System, Cooling System |
| Maintenance/Adjustments | 243-254 | Cooling System, Operators Cab, Auto Hitch Release Cable Adjustment, Auto Hitch Lift Rod Adjustment, Hitch Bolts |
| Electrical System | 255-270 | General Specifications, Batteries, Fuses and Relays, Bulb and Lamp Replacement, Alternator Charging System, Accessory Connectors |
| Machine Storage | 271-272 | Lubrication and Cleaning, Engine and Fuel System Maintenance, Cooling System Management, Battery Care, Tire and Support, Control and Safety Checks |
| Specifications | 273-291 | Diesel Engine, Travel Speeds, Approximate Measurements and Weights, Noise Levels, Case Technical Manuals |
Quick Reference Specifications

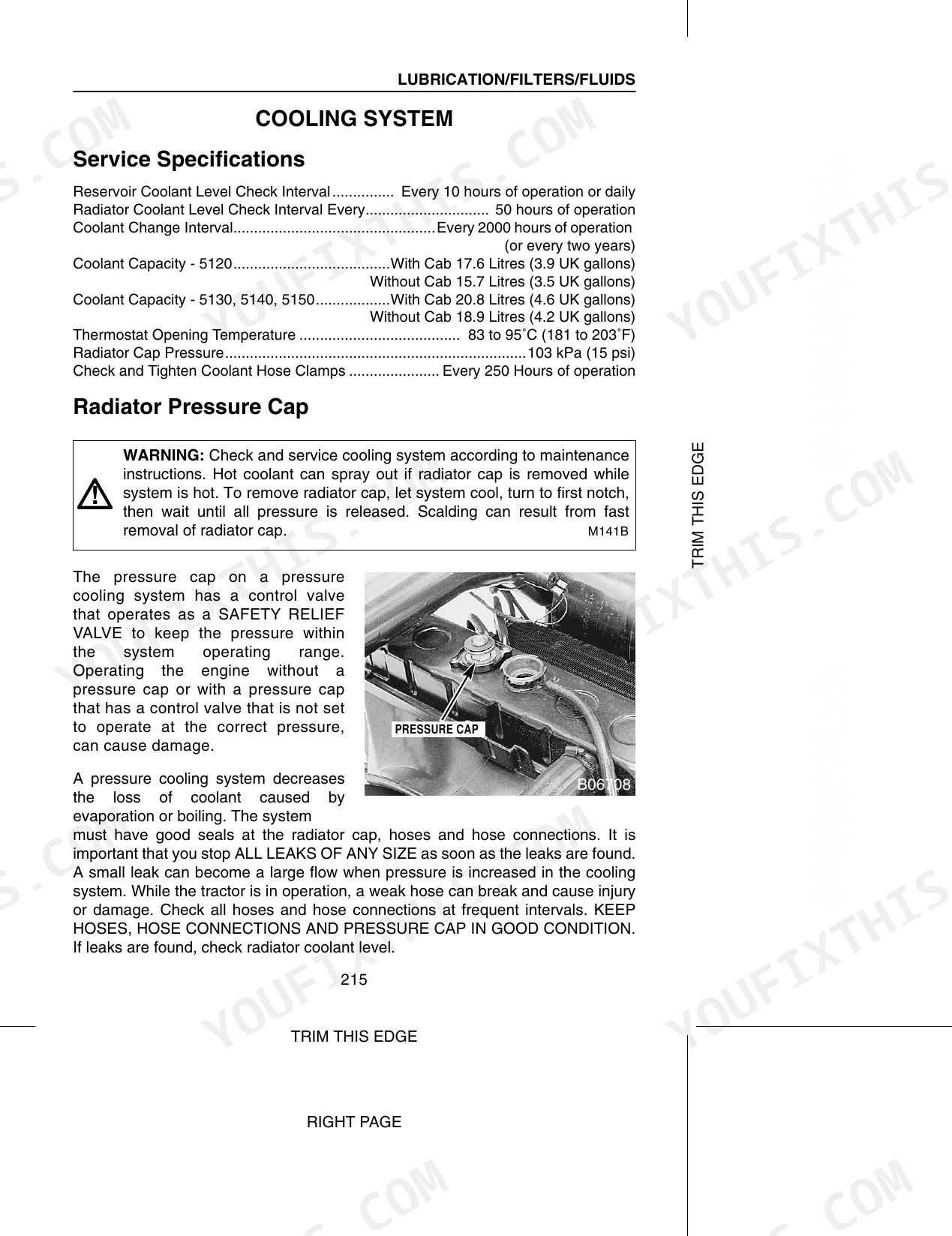

| Specification | Value | Page |
|---|---|---|
| 5120 | ||
| Engine Oil Capacity (with filter change) | 10.4 Litres (2.3 UK gallons) | p. 209 |
| 5130, 5140, 5150 | ||
| Engine Oil Capacity (with filter change) | 15 Litres (3.3 UK gallons) | p. 209 |
| All Models | ||
| Transmission/Hydraulic System Approximate Refill Capacity | 75 to 80 Litres (16.5 to 17.6 UK gallons) | p. 209 |
| MFD Axle Differential Capacity | 6.5 Litres (1.5 UK gallons) | p. 209 |
| Radiator Cap Pressure | 103 kPa (15 psi) | p. 273 |
| Engine Oil Pressure (at 2200 rpm) | 296 to 372 kPa (43 to 54 psi) | p. 274 |
| Remote Hydraulic System Pump Capacity (at 2200 Engine rpm) | 65 Litre/min (14.3 UK GPM) | p. 277 |
| Rear PTO Output Shaft Torque (540 rpm) | 2500 Nm (1844 lb ft) | p. 277 |
| 5120, 5130, 5140 | ||
| Noise Level (at operator's ear) | 79 dB (A) | p. 291 |
| 5150 | ||
| Noise Level (at operator's ear) | 75 dB (A) | p. 291 |
Case IH Maxxum 5120–5150 Common Problems This Manual Covers
Case Maxxum hydraulic warning light on dashboard, tractor losing power or stops moving p. 58
Check the transmission/hydraulic system fluid level immediately. The combined system holds 75 to 80 Litres (16.5 to 17.6 UK gallons) — if low, top up with the correct fluid before running further. Review service indicator lamps on page 58 to confirm which warning is active. Inspect hydraulic lines and connections visually for leaks. If fluid level is correct and the light stays on, shut down and consult your dealer before operating.
Manual Section: Operating InstructionsEngine oil pressure warning lamp stays on after startup, gauge reading low p. 58
Shut the engine down within 30 seconds. Check oil level on the dipstick and top up if below the MIN mark. Normal engine oil pressure at 2200 rpm should read 296 to 372 kPa (43 to 54 psi) — anything below that range at operating temperature is abnormal. Review the service indicator lamps section starting on page 58. If oil level is correct and the lamp persists after a cold restart, do not continue operating.
Manual Section: Operating InstructionsPTO engagement causes unusual noise or vibration, implement not receiving full power p. 110
Disengage PTO immediately. Verify the PTO control is fully engaged and set to the correct speed for your implement. Check that the implement driveline is properly connected and the shield is in place per safety rules on page 15. Confirm engine speed is at the correct operating rpm before engaging. If noise continues after reconnecting, inspect the driveline coupling for damage and check lubrication points per the schedule on page 201.
Manual Section: Field OperationEngine won't start or cranks slowly in cold weather, battery appears weak p. 255
Check battery electrolyte level and terminal connections for corrosion — clean terminals with a wire brush if white or green deposits are present. Battery maintenance procedures are on page 255. Verify the battery is fully charged; a discharged battery in cold conditions will crank too slowly to fire the engine. If the battery tests good, use the cold-start aid per the normal starting procedure on page 58, and confirm fuel system has no air by checking the fuel system section on page 201.
Manual Section: Electrical SystemAir filter restriction indicator lit on dash, engine running rough or losing power p. 222
Stop operating in dusty conditions and service the air filter. Remove and clean or replace the primary element following the procedure on page 222. Do not clean the secondary (safety) element with compressed air — replace it if contaminated. Reinstall the primary element and reset the restriction indicator. Inspect the air intake ducting for cracks or loose clamps that could allow unfiltered air into the engine.
Manual Section: Lubrication/Filters/FluidsRear three-point hitch won't lock in transport position or implement drops unexpectedly p. 243
Check the auto hitch release cable adjustment on page 243. The cable must hold firm tension so the latch engages fully at the transport stop. Verify lift rods are adjusted to the correct length so the hitch reaches the lock point without binding. Test the operator presence switch function to confirm the seat safety system is not interfering with hitch control. If the hitch still drops, inspect the latch mechanism for wear before the next field pass.
Manual Section: Maintenance/AdjustmentsFrequently Asked Questions
How to reset Case IH Maxxum 5120 error codes
To reset the transmission control module and clear fault codes, turn off the engine. This action will cause any stored fault codes to be lost from the module.
How to reset transmission oil pressure light on Case IH 5150
If the CHECK POWER SHIFT INDICATOR lamp illuminates, indicating a fault in the Power Shift transmission, you should put the range lever in neutral, push the clutch pedal fully down, select RANGE, and then slowly release the clutch pedal to start the tractor moving. This procedure is for a fault lamp, not specifically an oil pressure light.
How to reset Case IH 5130 transmission
The transmission control module can be reset by turning off the engine. This action will clear any fault codes from the control module, as it does not have a diagnostic code memory.
How do you fix case Maxxum hydraulic warning light on dashboard, tractor losing power or stops moving?
Check the transmission/hydraulic system fluid level immediately. The combined system holds 75 to 80 Litres (16.5 to 17.6 UK gallons) — if low, top up with the correct fluid before running further. Review service indicator lamps on page 58 to confirm which warning is active. Inspect hydraulic lines and connections visually for leaks. If fluid level is correct and the light stays on, shut down and consult your dealer before operating.
What do I get after purchasing this Case 5120 & variants manual?
Immediate download of the complete 299-page searchable Operator Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Can I print specific sections of this Case 5120 & variants Operator Manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
