This 261-page Case IH 5130-5140 Operator Manual (OEM #9-13742) walks you through the 5130 Tractor, 5140 Tractor, and 5140 High Clearance Tractor from cold start to shutdown, covering every dashboard light and side console switch you'll touch in the cab. You get the full safety and ROPS section up front, a digital instrument cluster breakdown with every gauge and warning icon explained, and step-by-step starting and transmission procedures for normal and field operation. Open to the lubrication and maintenance charts and you'll find fluid capacities, service intervals, and tire inflation tables laid out by wheel position and ballast load. Set intake rocker arm-to-valve clearance at 0.020 inch (0.50 mm) and exhaust at 0.010 inch (0.25 mm), and check Fuse 17 at 15 amps if your horn or flasher quits. A dashboard light shouldn't leave you guessing in the field. Bookmarked by section, so you can jump straight to PTO operation or ballast specs without paging through all 261 pages.
What's Inside This Case IH 5130 / 5140 Operator Manual

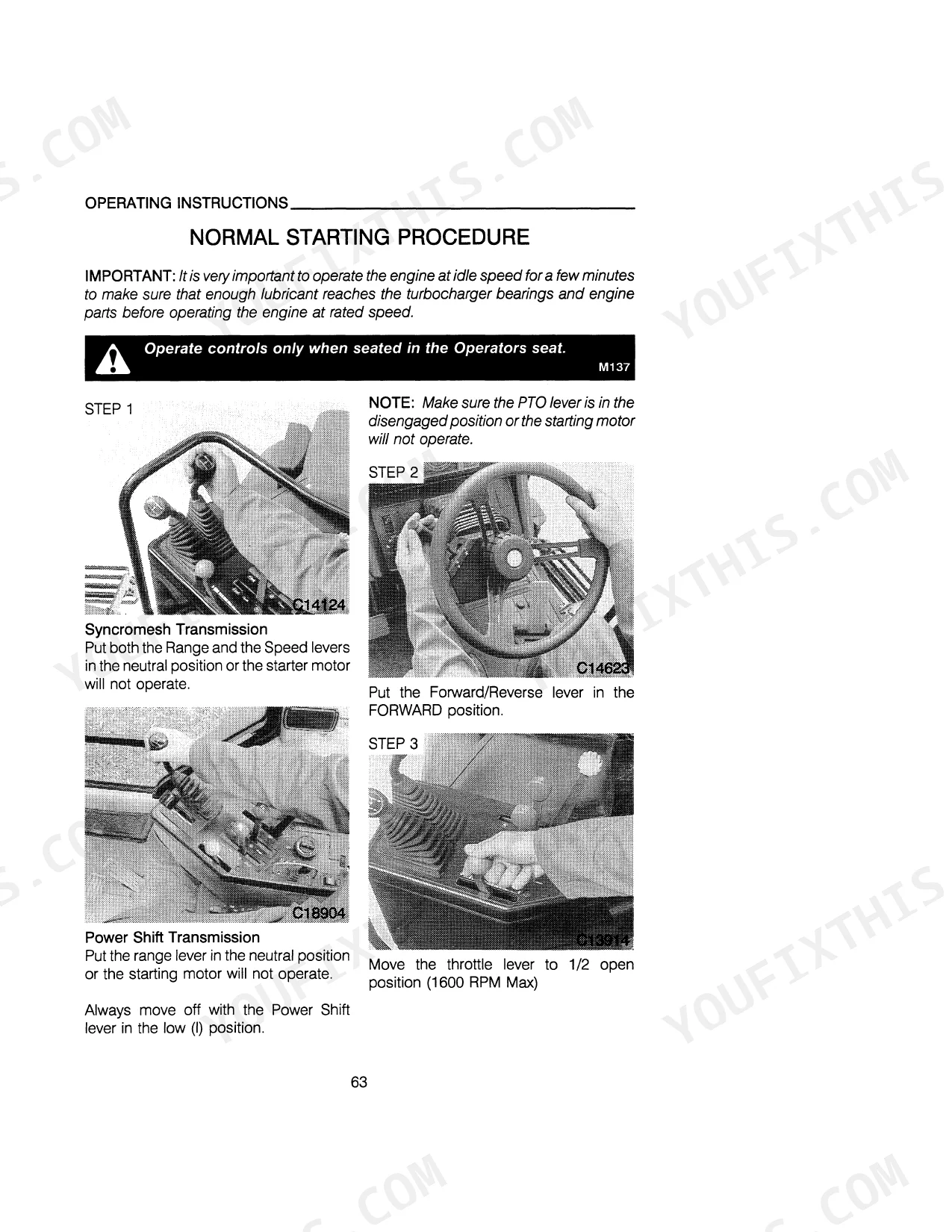

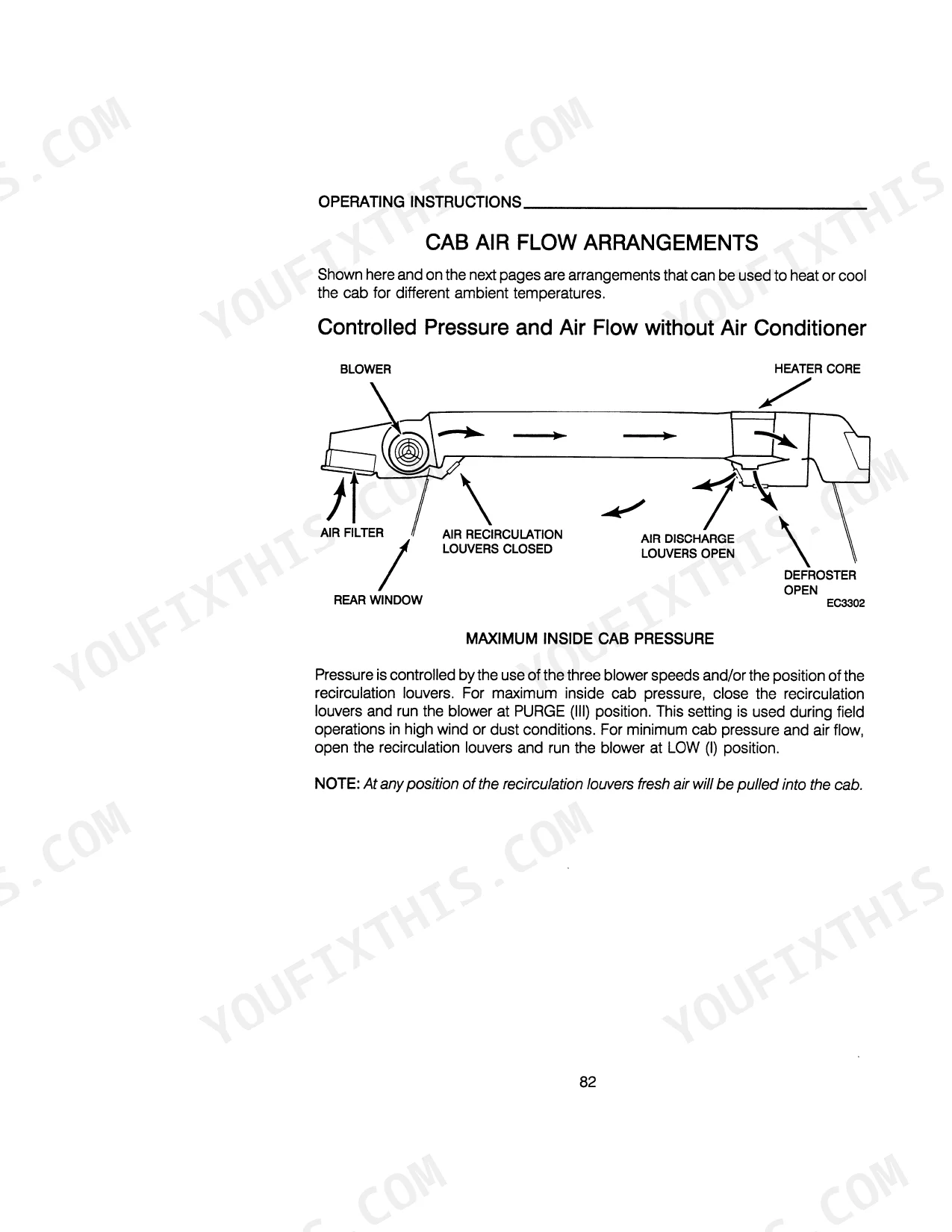

| System | Pages | Key Topics |
|---|---|---|
| Safety/Decals | 9-17 | Safety, Safety Rules, Decals, Roll Over Protective Structure (ROPS Label, Tractor Roll Over) |
| Specifications | 18-34 | Engine, Air Intake System, Cooling System, Fuel System, General Machine, Travel Speeds |
| Instruments/Controls | 35-60 | Digital Instrument Cluster, Instrument Panel and Foot Pedals, Side Console, Cab Headliner Controls, Rear View Mirrors, Operators Seat |
| Operating Instructions | 61-98 | Before Starting Engine, Normal Starting Procedure, Operating the Transmission, Differential Lock, Power Take Off, Operating Safety |
| Field Operation | 99-144 | Drawbar Preparation, Foldable ROPS Operation, Front Hitch, Rear Hitch Preparation, Remote Hydraulics, Digital Instrument Cluster Programming |
| Tires/Wheels/Spacing/Ballast | 145-189 | Axle Adjustment, Front Wheel Tread Positions, Rear Wheel Tread Positions, Tire and Rim Equipment, Tire Inflation Procedure, Tractor Ballast |
| Lubrication/Maintenance Charts | 190-193 | Engine Hour Meter, Lubrication Maintenance Charts, System Lubrication Analysis Program |
| Lubrication/Filters/Fluids | 194-229 | Air Induction System, Cooling System, Fuel System, Engine Lubrication, Front Axle MFD Lubrication, Transmission Lubrication |
| Maintenance/Adjustments | 230-243 | Compressor Belt Check, Cooling System, Operators Cab, Operators Seat, The Brake System, Valve Tappet Adjustment |
| Electrical System | 244-258 | Alternator Charging Circuit, Batteries, Fuses and Relays, Lamps, Specifications |
| Storage | 259-261 | Storage Preparation, Removing From Storage |
Quick Reference Specifications

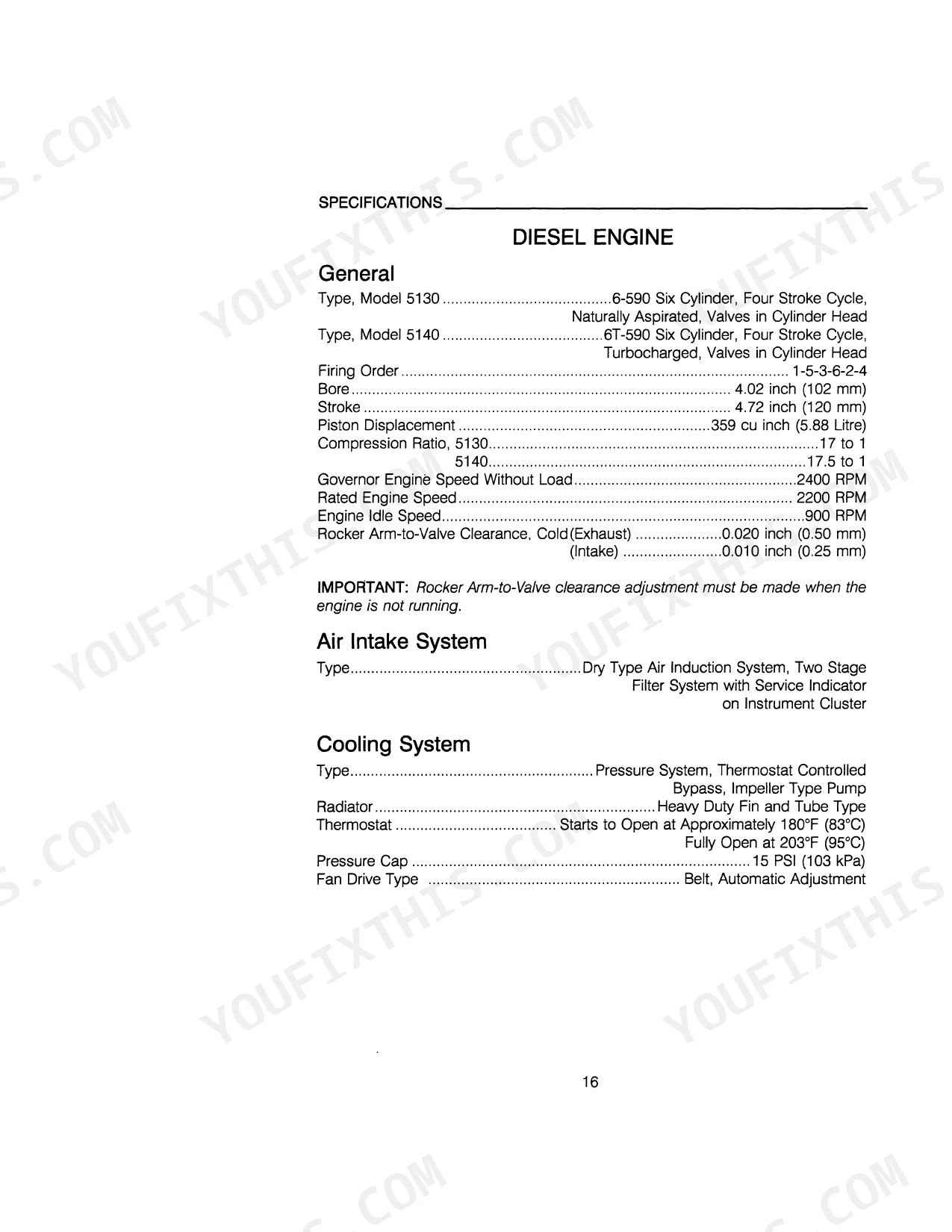

| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Fuse 17 (Horn, Flasher) | 15 Amp | p. 249 |
| Engine Rocker Arm-to-Valve Clearance (Intake) | 0.020 inch (0.50 mm) | p. 19 |
| Engine Rocker Arm-to-Valve Clearance (Exhaust) | 0.010 inch (0.25 mm) | p. 19 |
| Radiator Cap Pressure | 15 PSI (103 kPa) | p. 19 |
| Maximum Permitted Tractor Operating Weight | 16,000 LB (7 258 kg) | p. 34 |
| Engine Oil Pan Capacity (with filter change) | 15.8 US Quarts (14.3 Litres) | p. 197 |
| Transmission/Hydraulic System Capacity | 20 US Gallons (76 Litres) | p. 197 |
| Battery System Voltage | 12 Volt | p. 245 |
| 5130 Tractor | ||
| Fuel Injection Pump Static Timing | 10 Degrees Cam Angle Before Top Center of No. 1 Cylinder | p. 19 |
| 5140 Tractor | ||
| Fuel Injection Pump Static Timing | 1.5 ± 0.15 mm Pump Plunger Lift, with Engine No. 1 Cylinder (0°C) Top Center | p. 19 |
| MFD Tractor | ||
| MFD Axle - Differential Capacity | 7 US Quarts (6.5 Litres) | p. 197 |
Case IH 5130 / 5140 Common Problems This Manual Covers

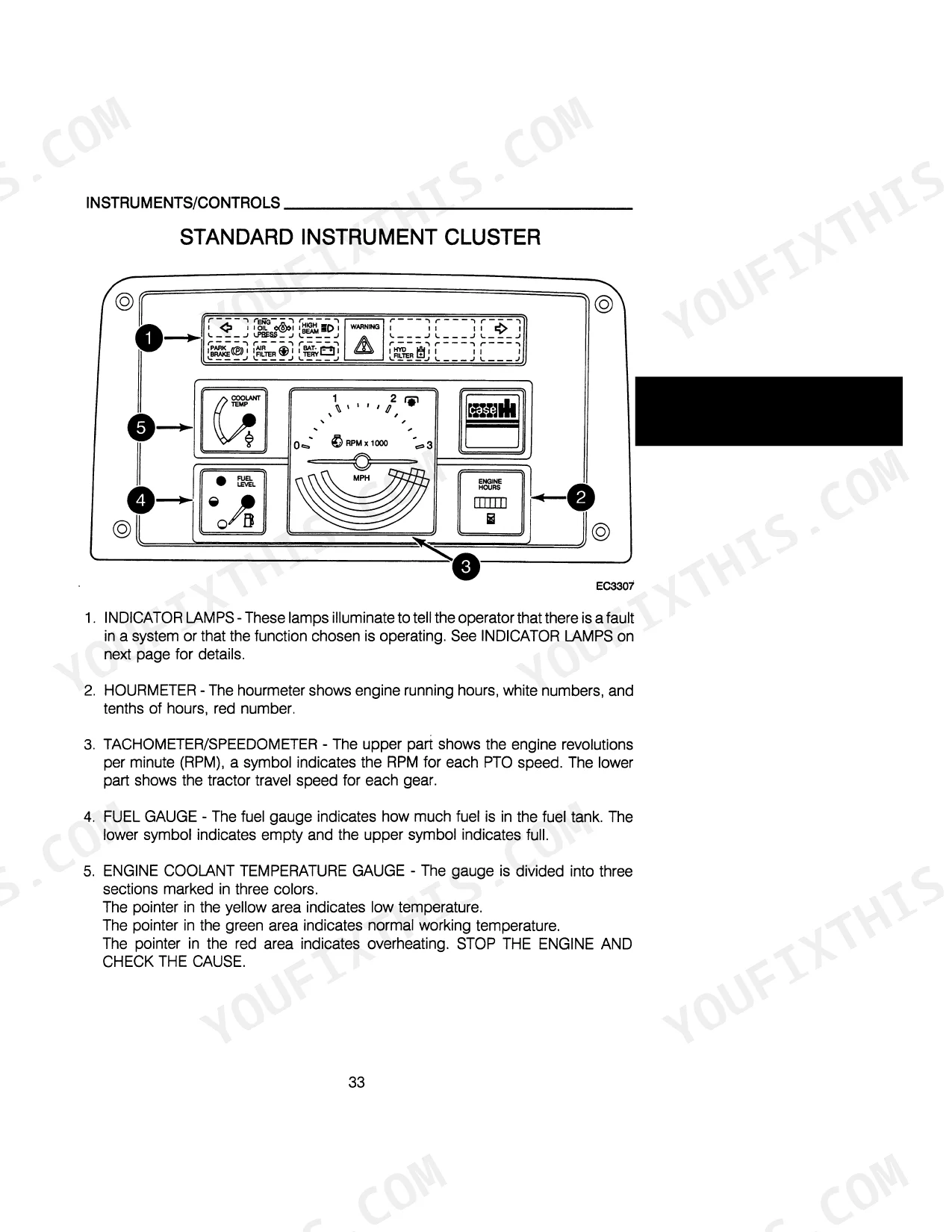

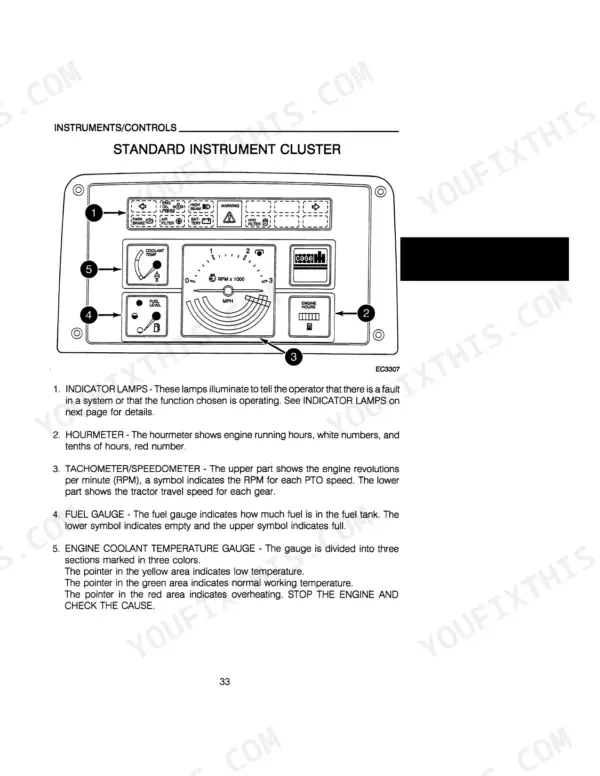

Case IH 5140 dashboard warning light stays on after normal startup procedure p. 35
Check the digital instrument cluster indicator chart starting on page 35. Confirm the engine has reached operating temperature and oil pressure is registering normally. If the light persists, shut the engine down and inspect wiring connectors at the cluster before resuming field work.
Manual Section: Instruments/Controls3-point hitch won't lift or stays stuck in the down position p. 244
Pull the right-side fuse panel cover and check fuse 17, rated at 15 Amp for horn and flasher circuits, along with fuse 19 for blown elements. Replace any blown fuse with the correct amperage rating before testing hitch operation again. Review fuse and relay locations in the Electrical System section beginning page 244.
Manual Section: Electrical SystemTransmission feels like it hesitates or won't shift cleanly between gears p. 61
Verify the transmission/hydraulic system fluid is filled to the correct level; the system holds 20 US Gallons (76 Litres) total capacity. Check fluid condition for contamination and confirm the operator is following the proper shifting sequence described in the Operating the Transmission section starting page 61.
Manual Section: Operating InstructionsEngine seems to lose power or hesitate under load during field work p. 191

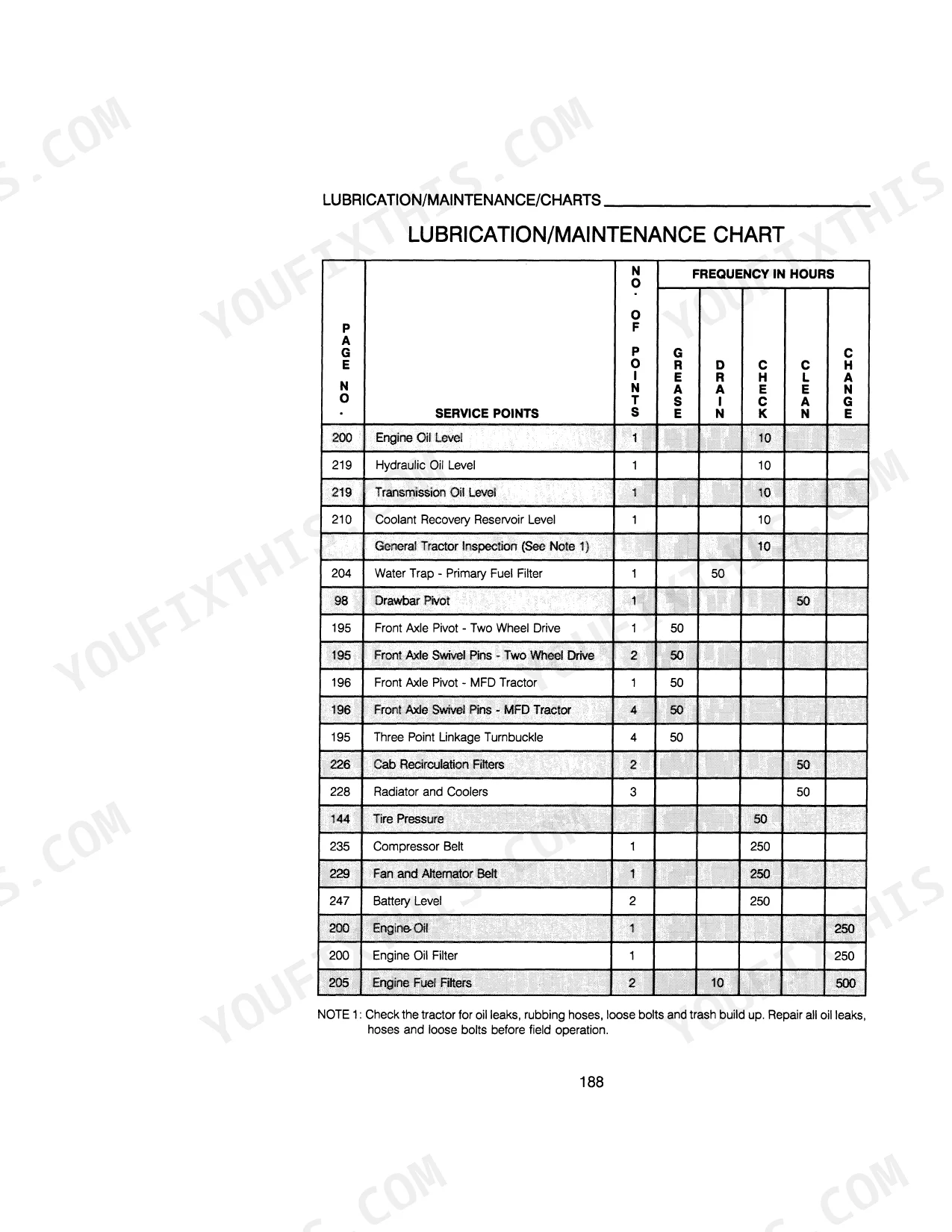

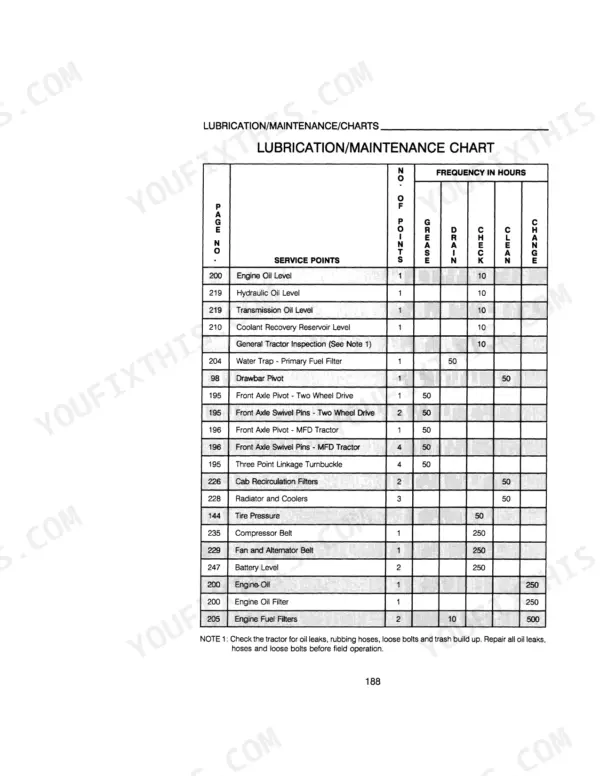

Check the maintenance interval chart on page 191 to confirm air and fuel filter service is current. Inspect the air filter element for clogging per the service guidance beginning page 219, and verify fuel filters have been changed at the recommended interval rather than left past due.
Manual Section: Lubrication/Maintenance ChartsBattery keeps dying or tractor is hard to start in cold weather p. 245
Confirm the system is the correct 12 Volt, negative ground configuration as specified on page 245. Check terminal connections for corrosion and verify battery charge before each cold start. Review proper battery removal and reinstallation steps if terminals need cleaning or a battery needs swapping.
Manual Section: Electrical SystemOperator manual doesn't clearly show which fluids and capacities to check daily p. 194
Use the Lubrication/Maintenance Charts beginning page 190 as the starting reference, then cross-check exact capacities in the Lubrication/Filters/Fluids section starting page 194. Engine oil pan holds 15.8 US Quarts (14.3 Litres) with a filter change; confirm dipstick level matches before any extended run.
Manual Section: Lubrication/Filters/FluidsFrequently Asked Questions
What are the recommended service intervals?
Service intervals vary by component. For example, the Engine Oil Level should be checked every 10 hours, the Hydraulic Oil Level every 10 hours, and the Transmission Oil Level every 10 hours. The Water Trap - Primary Fuel Filter should be serviced every 50 hours, and the Radiator and Coolers should be cleaned every 50 hours. Engine Oil Filter replacement is every 250 hours, and Transmission/Hydraulic Oil Filter replacement is every 1000 hours.
