Pull up the Case IH Puma 125, Puma 140, and Puma 155 operator manual PDF and you're looking at 398 pages of factory-direct guidance (OEM #87717969) for the full Multicontroller Tractor lineup. Inside: a complete layout of every cab control and the Integrated Control Unit, the Powershift Transmission explained panel by panel, and a full Headland Management Control walkthrough so you're not guessing at the sequence mid-field. You also get a detailed fault-code section covering the engine, transmission, hydraulics, three-point hitch, and brakes, plus a Lubrication and Maintenance table built around the every-10-hours schedule Case IH requires. Top off the engine with 15.0 litres (filter included) and the cooling system with 25 litres before you key in; the radiator cap releases at 1.0 bar. No more staring at a dash warning light and hoping for the best. Bookmarked by section and searchable by keyword; pull it up on your tablet, find the code, and get back to work.
What's Inside This Case IH PUMA 125, PUMA 140, PUMA 155 Operator Manual
| System | Pages | Key Topics |
|---|---|---|

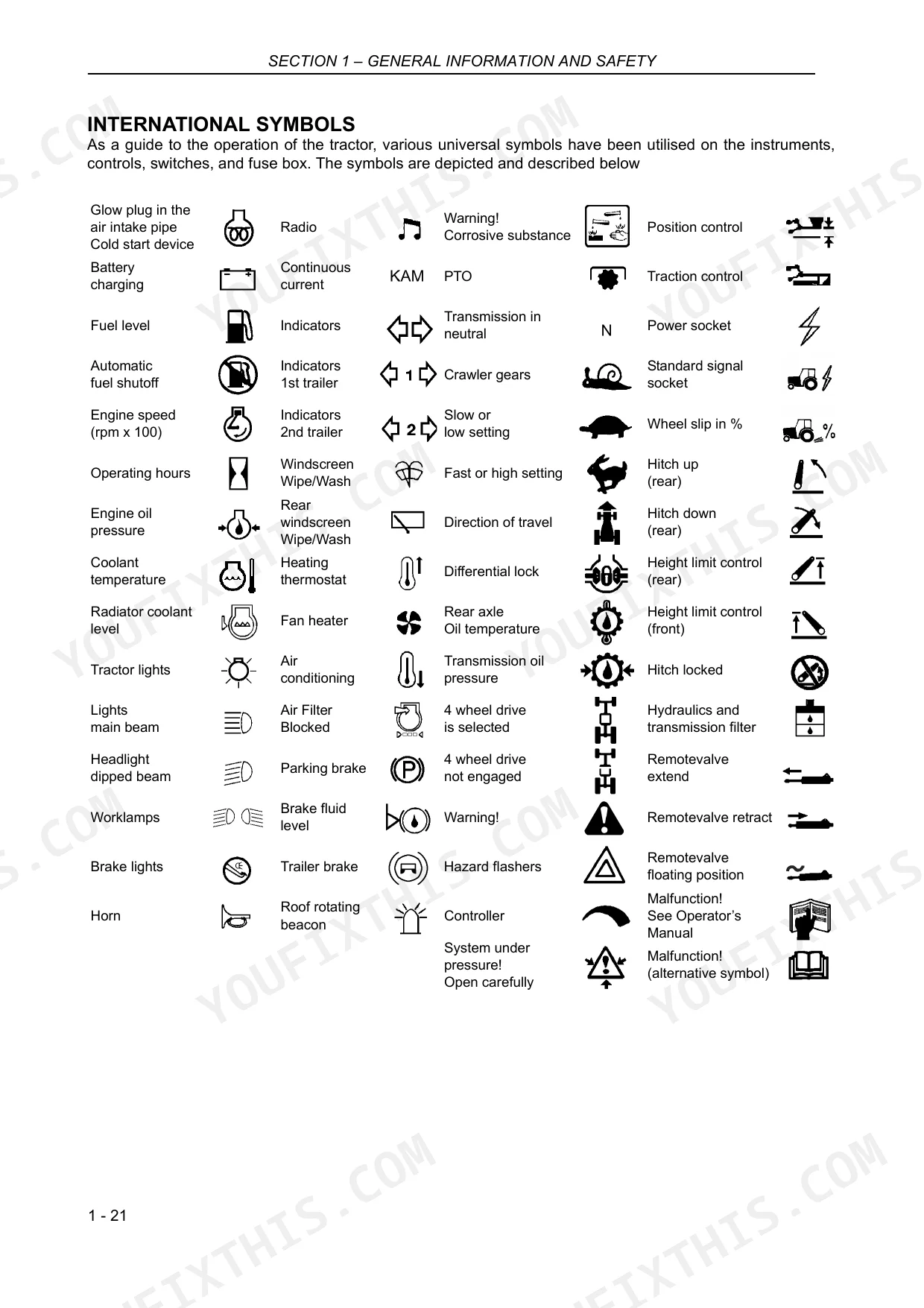

| General Information and Safety | 7-28 | To the Owner, Product Identification, Ecology and the Environment, Safety Information, Safety Decals, International Symbols, Airborne Noise Emission |

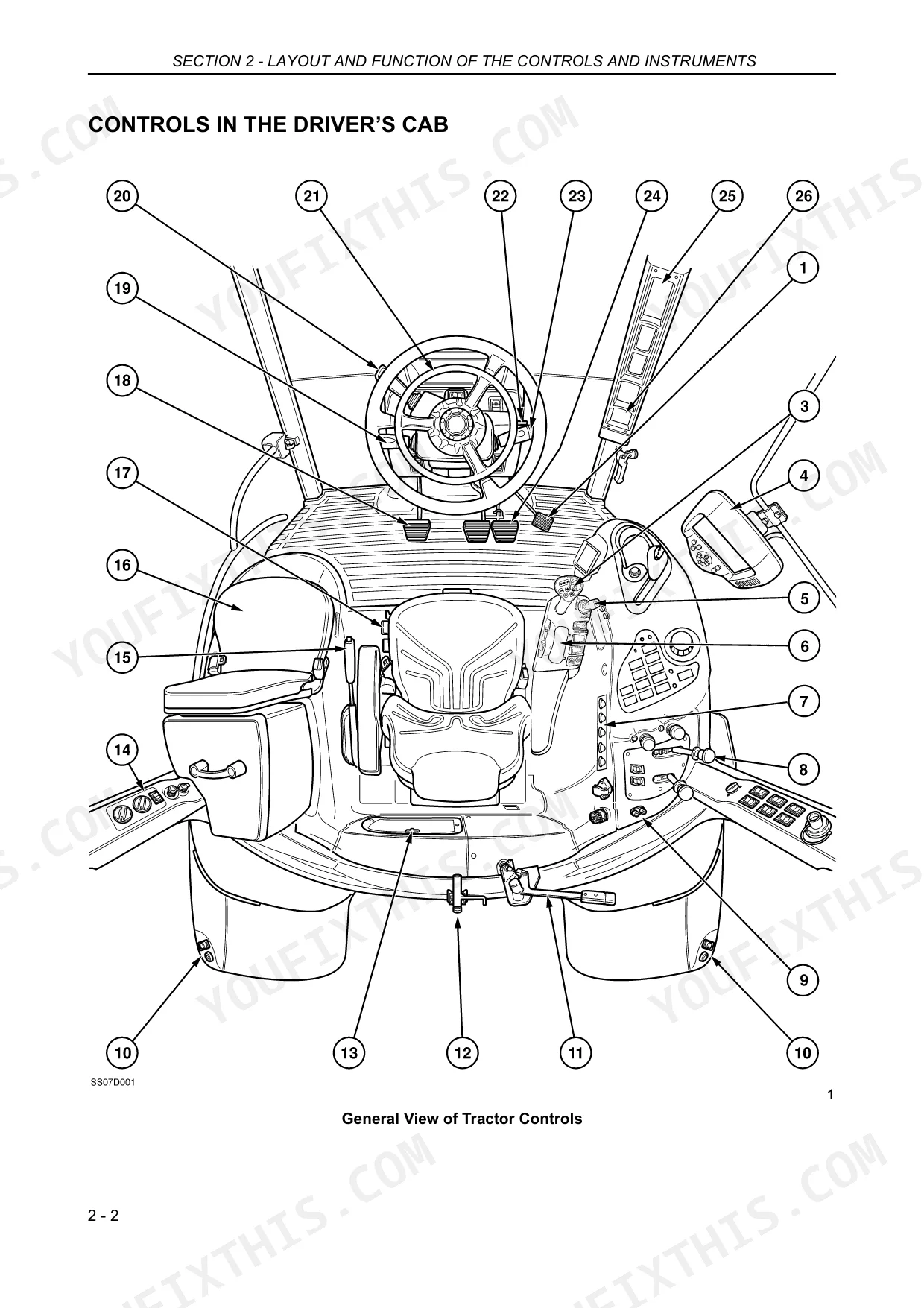

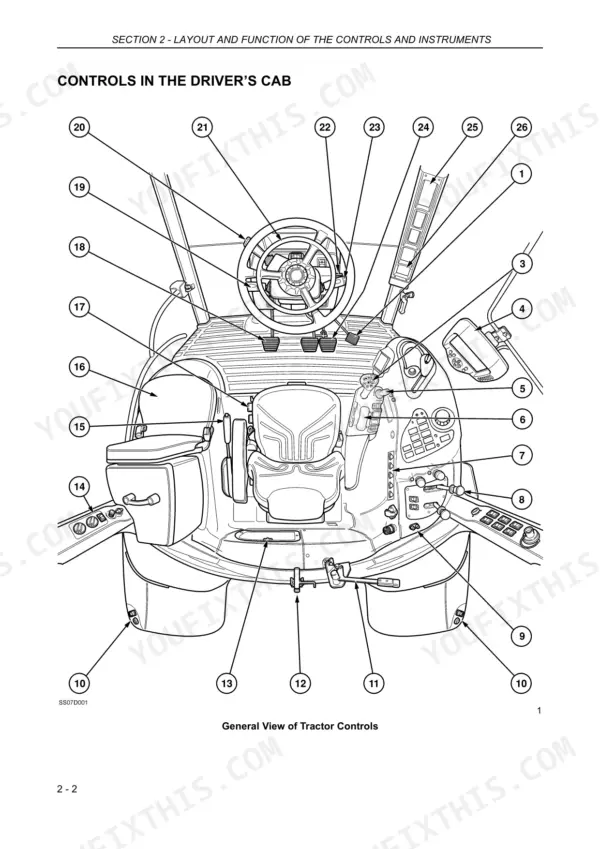

| Layout and Function of the Controls and Instruments | 29-132 | Switch Panels, Cab, Electrical Power Panel, Air Suspension Seat, Parking Brake, Throttle and Foot Pedals, Control Elements on the Steering Column, Integrated Control Unit (Icu) |

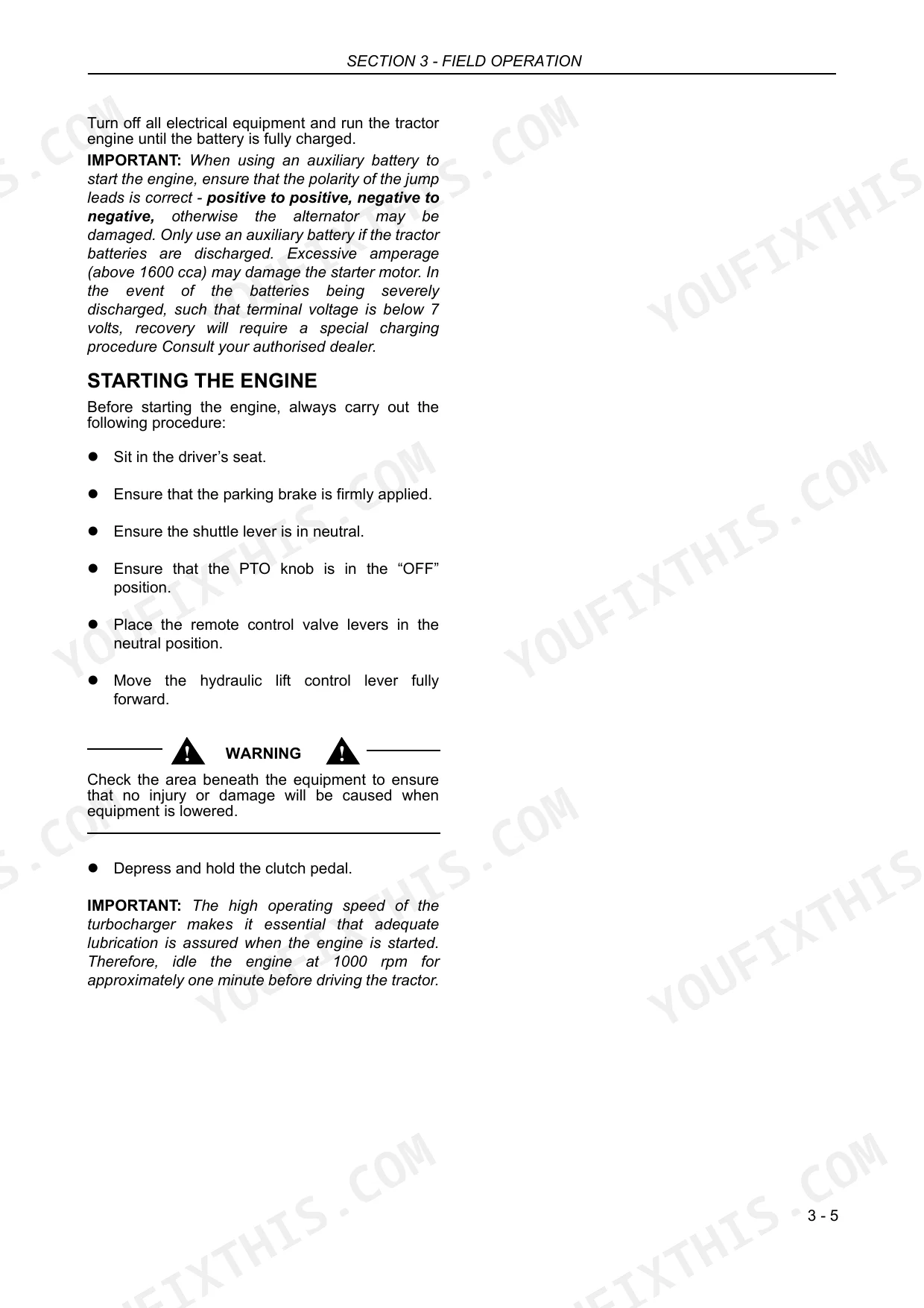

| Working with the Tractor | 133-278 | Important Notes, Connecting Jump Leads to the Battery, Starting the Engine, Stopping the Engine, Power Management (Pm), Constant Engine Speed, Headland Management Control (Hmc) |
| Lubrication and Maintenance | 279-354 | General Notes, Protective Guards, Lubricants and Coolants, Lubrication and Maintenance Table, When the Warning Symbol Appears, Every 10 Hours of Operation or Daily |
| Fault Finding | 355-366 | Introduction, Fault Codes and Symbols, Engine, Transmission, Hydraulics, Three-Point Hitch, Brakes, Electrical System |
| Accessories | 367-374 | Afs 200 Monitor, Engine Coolant Immersion Heater, Transmission Oil Heater, Rotating Beacon, Auxiliary Headlights, Battery Isolator Switch |
| Specifications | 375-390 | General Dimensions All Models, Vehicle Weights, Capacities, Engine, Cooling System, Maximum Operating Angle, Hydraulic System, Remote Control Valves |
| First Service Sheets | 391-394 | Engine Oil Level, Tyre Pressures, Radiator Coolant Level, Hydraulic System Checks, Transmission Clutch Calibration, Parking Brake Adjustment |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Rear PTO switch + Rear PTO lamp + HPL + SCM + Ground speed PTO fuse rating | 10 Amps | p. 348 |
| Front PTO fuse rating | 15 Amps | p. 349 |
| Engine Oil Capacity (including filter) | 15.0 litres (3.96 U.S gals.) | p. 312 |
| Cooling System Capacity | 25 Litres (6.6 U.S. gal.) | p. 329 |
| Radiator Pressure Cap | 1.0 bar (14.5 lbf.in2) | p. 382 |
| Front Disc to Hub Nuts Torque | 210 Nm (155 lbf. ft.) | p. 305 |
| Rear Disc to Hub Nuts Torque (Flanged axle) | 260 Nm (190 lbf. ft.) | p. 305 |
| Engine Displacement | 6728 cm3 | p. 381 |
| Engine Rated Speed | 2200 e.r.p.m. | p. 381 |
| Valve Tappet Clearance (cold) Intake | 0.25 mm | p. 381 |
| Hydraulic System Maximum Pressure | 210 +/-5 bar (3045+/-72 lbf.in2) | p. 384 |
| Rear P.T.O power at Rated Engine Speed | 78 Kw (104.5 Hp) | p. 383 |
Case IH PUMA 125, PUMA 140, PUMA 155 Common Problems This Manual Covers
Case IH Puma 125, 140, 155 rear PTO not starting or engaging when switch is activated p. 348
Inspect the 10 Amp rear PTO fuse located near the hydraulic levers. Check page 348 for the exact fuse box layout. Replace the fuse if blown. Verify the PTO sensor is clean and free of debris. Avoid spraying brake cleaner directly on the sensor during daily maintenance.
Manual Section: Fault FindingRemote control valves slow to respond and hydraulic oil overheating during heavy field operation p. 384
Check the hydraulic oil level and verify the maximum system pressure reaches 210 +/-5 bar (3045+/-72 lbf.in2) as detailed on page 384. Inspect the remote valves for dirt buildup. Clean the quick couplers thoroughly and ensure proper implement attachment before resuming work.
Manual Section: Hydraulics TroubleshootingEngine temperature indicator flashing red and coolant boiling over during continuous operation p. 382
Stop the tractor immediately and let the engine cool down. Test the radiator pressure cap to ensure it holds 1.0 bar (14.5 lbf.in2) as specified on page 382. Inspect the coolant reservoir level and fill the 25 Litres (6.6 U.S. gal.) system capacity if it is low.
Manual Section: Engine TroubleshootingStrange knocking noise from the front axle when turning or driving on hard surfaces p. 305
Inspect the front wheels for loose hardware before operating. Torque the front disc to hub nuts to exactly 210 Nm (155 lbf. ft.) using the maintenance guidelines on page 305. Check your daily tire pressures and verify front axle hub integrity before returning the machine to service.
Manual Section: Lubrication and MaintenanceFrequently Asked Questions

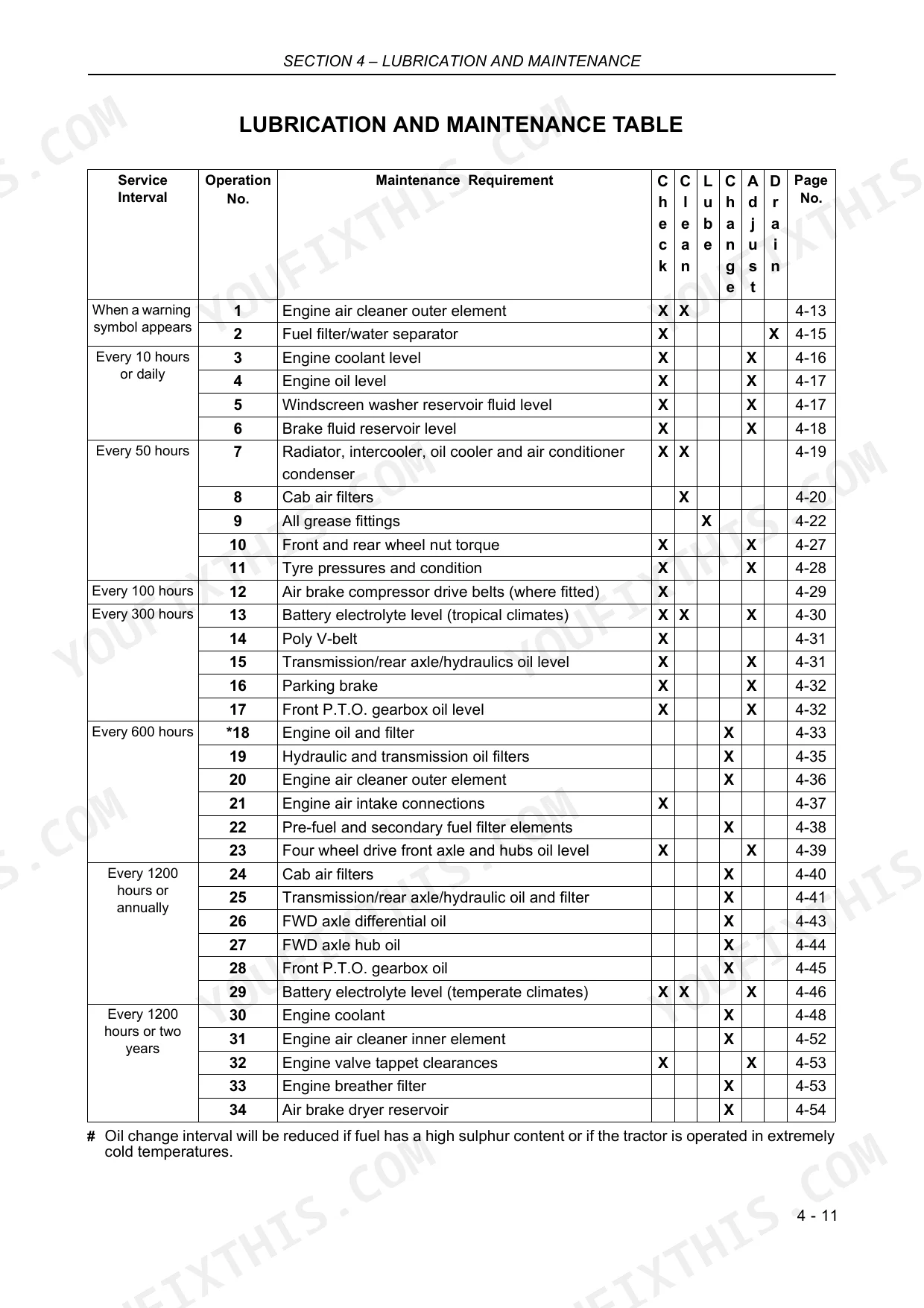

What are the recommended service intervals?
The manual provides a comprehensive lubrication and maintenance table outlining various service intervals. For instance, daily or every 10 hours, checks include engine oil level and coolant level. More extensive checks, such as changing hydraulic oil filters, are recommended every 50 operating hours, and engine oil and filter changes are due every 600 operating hours.
What fluids and capacities does this machine require?
The tractor requires specific fluids and capacities for optimal operation. For example, the fuel tank capacity for all models is 300 litres. The engine (including filter) requires 15 litres of oil, and the cooling system needs 25 litres of coolant. The transmission/rear axle/hydraulics for PUMA 125 and 140 Full Powershift models require 75 litres of oil.

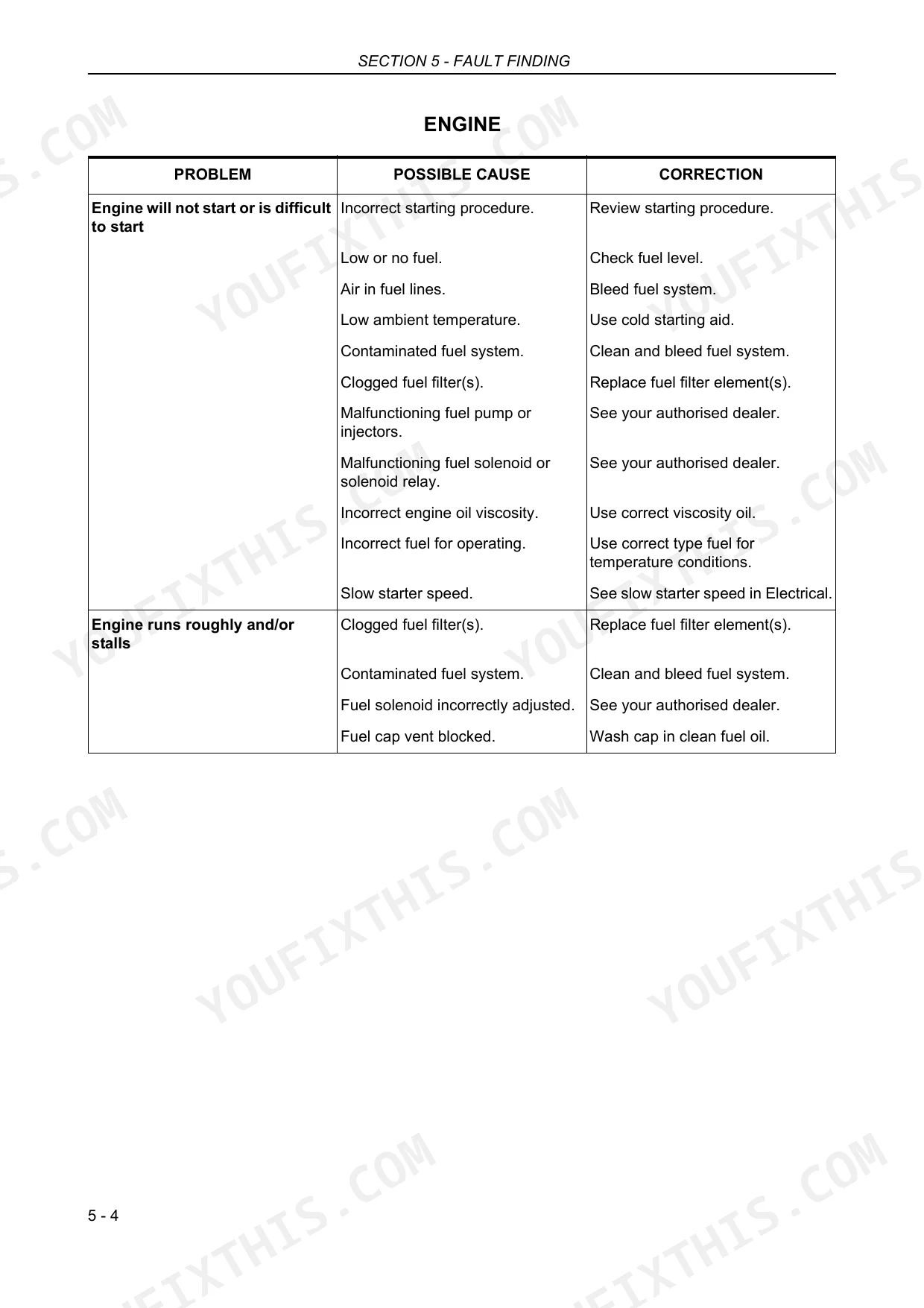

How to troubleshoot engine won't start?
If the engine will not start or is difficult to start, common causes include incorrect starting procedure, low or no fuel, air in fuel lines, or low ambient temperature. The recommended corrections are to review the starting procedure, check fuel level, bleed the fuel system, or use a cold starting aid. For issues like malfunctioning fuel pump or injectors, consult your authorised dealer.
What are the hydraulic system specifications?
The hydraulic system features a variable displacement hydraulic pump with Electronic Hitch Control (EHC). It operates at a maximum system pressure of 210 +/-5 bar (3045+/-72 lbf.in2) at a rated engine speed of 2100 e.r.p.m. The maximum flow through one valve at rated engine speed is 95+/-5 l/min (25+/-1.3 US gal/min).
What torque specifications are listed?
The manual lists minimum hardware tightening torques for both inch and metric hardware. For example, a 1/4 inch nominal size unplated bolt requires 55 ft-lb (6.2 Nm) of torque, while a plated 1/4 inch bolt requires 72 ft-lb (8.1 Nm). For metric hardware, an M4 unplated bolt requires 15 ft-lb (1.7 Nm).
How quickly can I access this manual after buying?
You get a 398-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Am I able to print pages from this manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
