This 116-page Case IH DX25, DX29, DX33 Operator Manual covers your Tractor from the key switch to the delivery report, with the DX33 getting the same page-for-page treatment as the rest of the family. Inside you get the wire-harness color/circuit legend page, a complete maintenance chart broken down by service interval, and step-by-step instrument panel and PTO operation procedures. Set your hydraulic oil filter interval at first 50 hours, then every 300 hours, and swap the diesel fuel filter at 50 hours initially, then every 200 operating hours after. No more guessing whether that squeal is the fan belt or flipping through three forums for your fuel filter interval. Bookmarked by section so you jump straight from Safety to Lubrication to Specifications without scrolling, and it opens fine on a phone propped on the fender while you work.
What's Inside This Case IH DX25, DX29, DX33 Tractors Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety | 9-18 | Precautionary Statements, The Tractor, Servicing the Tractor, Operating the PTO, Diesel Fuel, Safety Frame (ROPS) |
| General Information | 19-22 | Product Identification Plate, Federal Emissions Warranty, California Emission Control Warranty Statement, International Symbols, Minimum Hardware Tightening Torques |

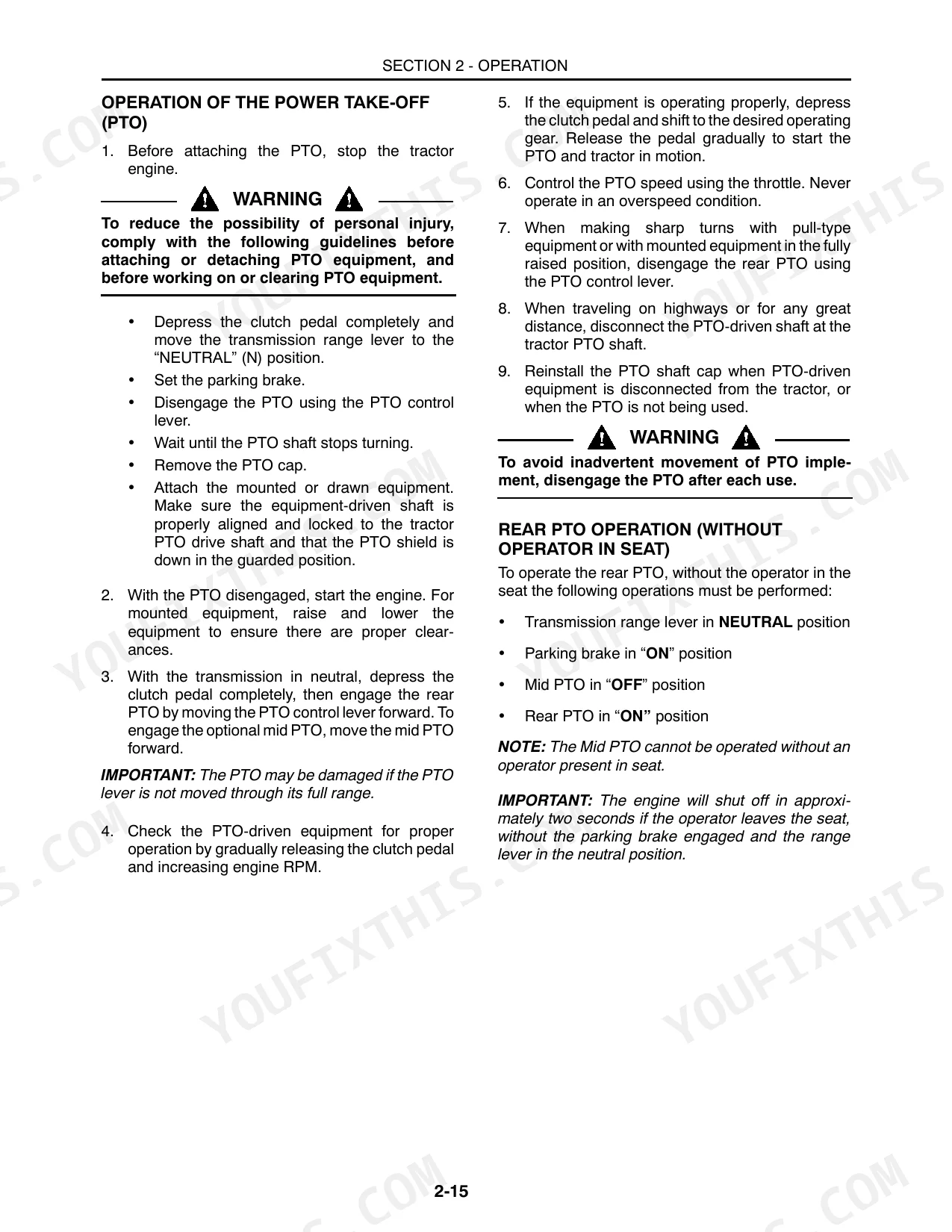

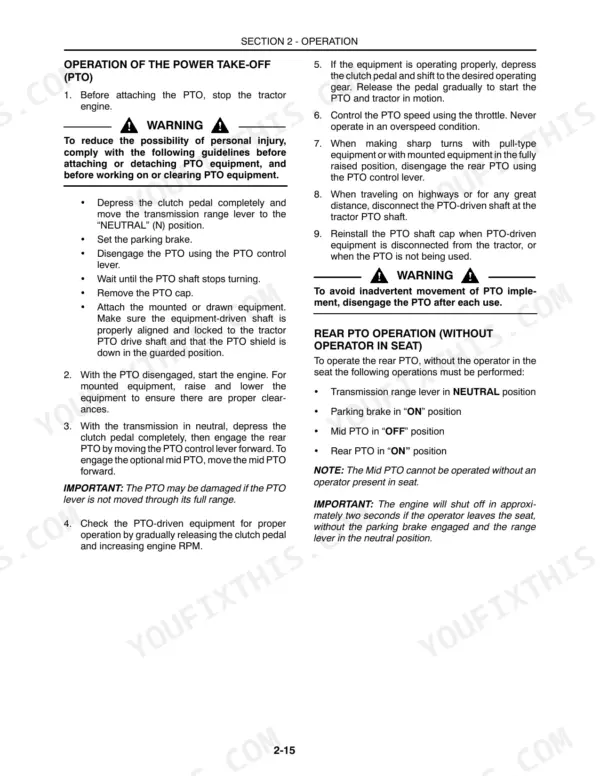

| Operation | 23-50 | Instrument Panel, Key Switch, Starting the Engine, Brake Controls, Hydrostatic Transmission Model, Operation of the Power Take-Off (PTO) |

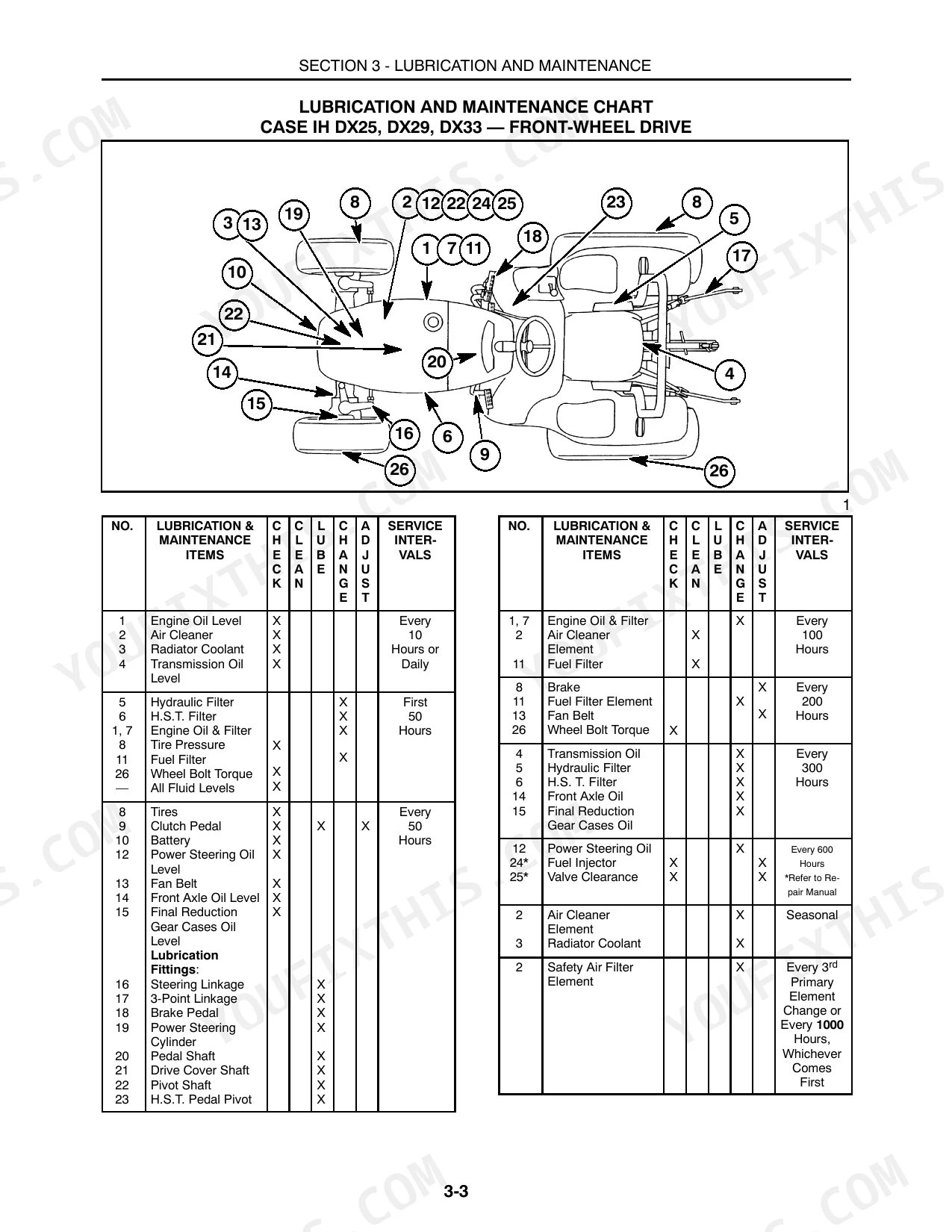

| General Lubrication and Maintenance | 51-53 | Lubrication Importance, Recommended Lubricants, Maintenance Chart, Service Intervals |
| Fuel and Engine System Maintenance | 54-61 | Diesel Fuel Types, Fuel Usage Safety, Refueling the Tractor, Fuel Filter, Bleeding Fuel System, Engine Oil Level, Air Cleaner Elements |
| Hydraulic, Steering, and Cooling Systems | 62-68 | Transmission Oil Level, Power Steering Oil Level, Hydraulic System Oil Filter, Cooling System, Draining and Flushing Coolant, Thermostat, Fan Belt Tension |
| ROPS, Battery, and Electrical Components | 69-75 | ROPS Inspection, Battery Maintenance, Alternator, Fuse Block, Head Lamp, Taillight, Flasher Warning Light |
| Wheels, Brakes, Clutch, and Axles | 76-82 | Tire Pressure, Wheel Bolt Torque, Front Wheel Toe-In, Brake Adjustment, Clutch Pedal Adjustment, Front Axle Differential, Front Axle Pivot |
| Tractor Storage and Paint | 83-84 | Tractor Storage Procedures, Battery Storage, Tire Inflation for Storage, Touch-Up Paint |
| Electrical Schematics | 85-97 | Circuit Description, Actuators, Contact Configurations, Color Abbreviations, Charging System, Starting System, Safety Start System, Instruments |
| Specifications | 99-108 | Engine, Capacities, Cooling System, Electrical System, Fuel System, Hydraulic Lift System |
| Delivery Report | 111-116 | Inoperative Service Checks, Safety Items Checks, Operative Service Checks |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Starter motor type | Solenoid Pre-Engaged Reduction | p. 100 |
| Steering wheel tilt mechanism torque | Do not overtighten | p. 25 |
| Hydraulic system oil filter replacement interval | First 50 hours, then every 300 hours | p. 65 |
| Diesel fuel filter replacement interval | First 50 hours, then every 200 operating hours | p. 58 |
| Air cleaner primary element cleaning interval | Every 100 hours of service | p. 61 |
| Air cleaner inner safety element replacement interval | Every third primary element change or after every 1000 hours, whichever comes first | p. 62 |
| Fuel Tank Capacity | 27.6 liters | p. 99 |
| Engine Oil Capacity (With Filter) | 4.0 liters | p. 99 |
| Cooling System Capacity | 4.0 liters | p. 99 |
| Rear Axle & Transmission (Includes Hydraulics) Capacity | 33.3 liters | p. 99 |
| Power Steering Capacity | 1.6 liters | p. 99 |
| Radiator Cap Pressure | 0.9 bar | p. 100 |
Case IH DX25, DX29, DX33 Tractors Common Problems This Manual Covers
Case IH DX33 hydrostatic transmission oil leaking near the base after several hours of operation p. 62
Check the Hydraulic, Steering, and Cooling Systems section starting page 62. Verify the transmission/hydraulic reservoir is filled to the correct level; total rear axle and transmission capacity is 33.3 liters per the specifications on page 99. Inspect fittings and hose connections near the leak for looseness or damage, and tighten or replace as needed before returning to service.
Manual Section: Hydraulic, Steering, and Cooling SystemsSteering wheel tilt lever feels loose, wobbles, or clunks during operation on rough ground p. 26
Check the Operator Controls Layout on page 26 to confirm the tilt lever is fully engaged in the locked position. Inspect the tilt mechanism per page 25; the specification calls for not overtightening the adjustment, so snug the lever by hand rather than forcing it. If looseness continues, have a dealer inspect the tilt strut assembly.
Manual Section: OperationEngine hard to start when already warmed up, cranks slowly but won't fire p. 58
Check for air in the fuel system per the bleeding procedure on page 58. Inspect the fuel filter element; replace it if service is overdue, since Case IH calls for replacement after the first 50 hours and then every 200 operating hours. Also test battery voltage under load, since insufficient charge is a common cause of slow, warm-engine cranking.
Manual Section: Fuel and Engine System MaintenanceFuse blows repeatedly and cruise control or throttle lever stops responding during operation p. 69
Check the ROPS, Battery, and Electrical Components section beginning page 69, which covers the fuse block. Locate the blown fuse and replace it with one of the same amperage rating; do not substitute a higher-rated fuse. If the fuse blows again immediately, inspect the throttle lever and cruise control wiring for a pinched or chafed harness before operating the tractor.
Manual Section: ROPS, Battery, and Electrical ComponentsStarter motor cranks slowly or fails to turn over in cold weather p. 69
Check battery terminals in the ROPS, Battery, and Electrical Components section (page 69) for corrosion or loose cable connections. The DX-series starter is a solenoid pre-engaged reduction type per the specifications on page 100; confirm battery voltage is fully charged before attempting to start in cold weather to avoid excessive drain on the starter.

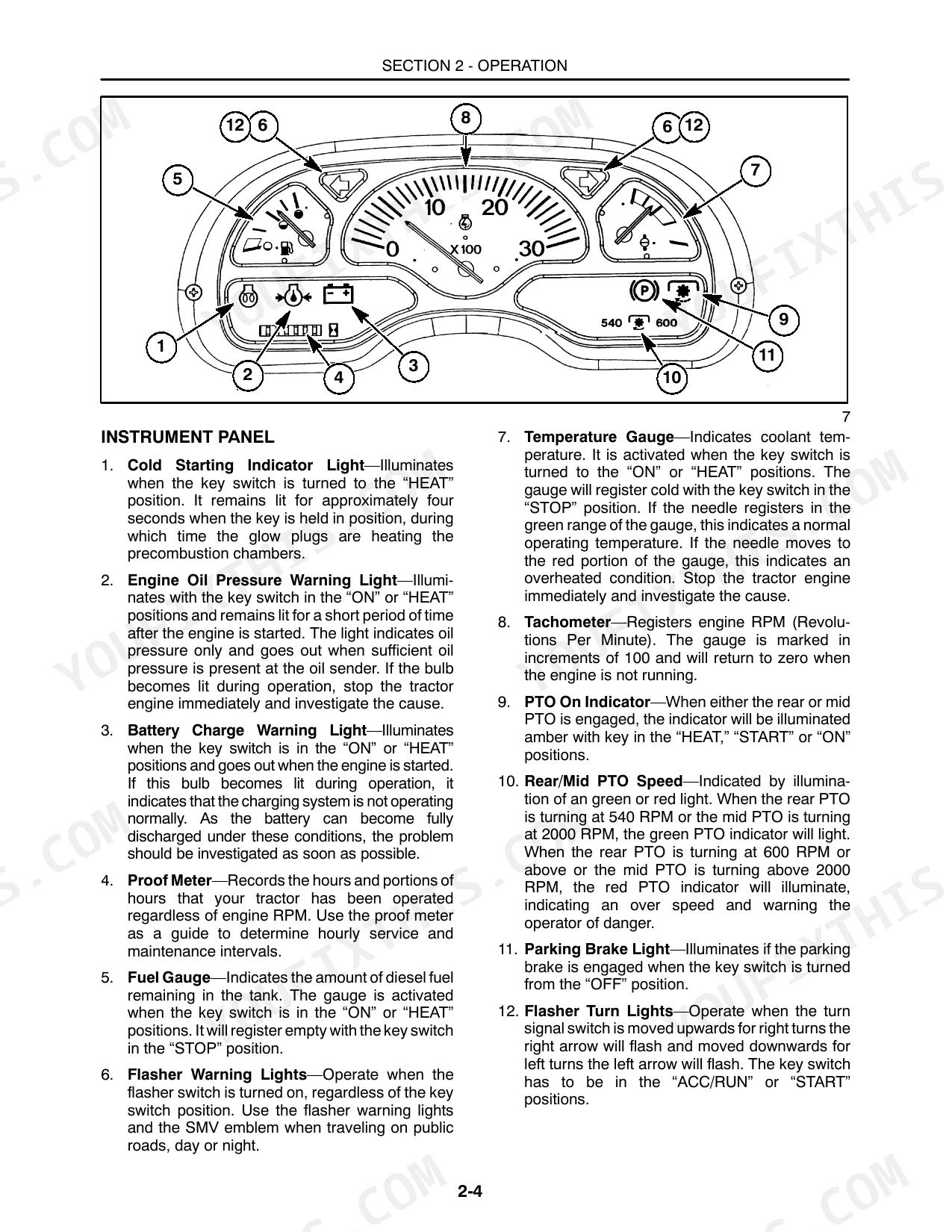

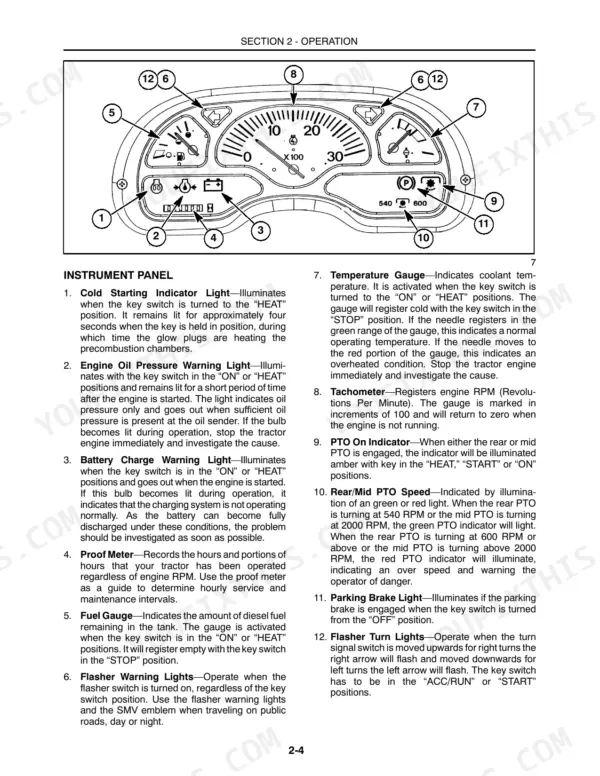

Manual Section: ROPS, Battery, and Electrical ComponentsWarning light on dashboard stays lit after startup, engine oil level unclear p. 23

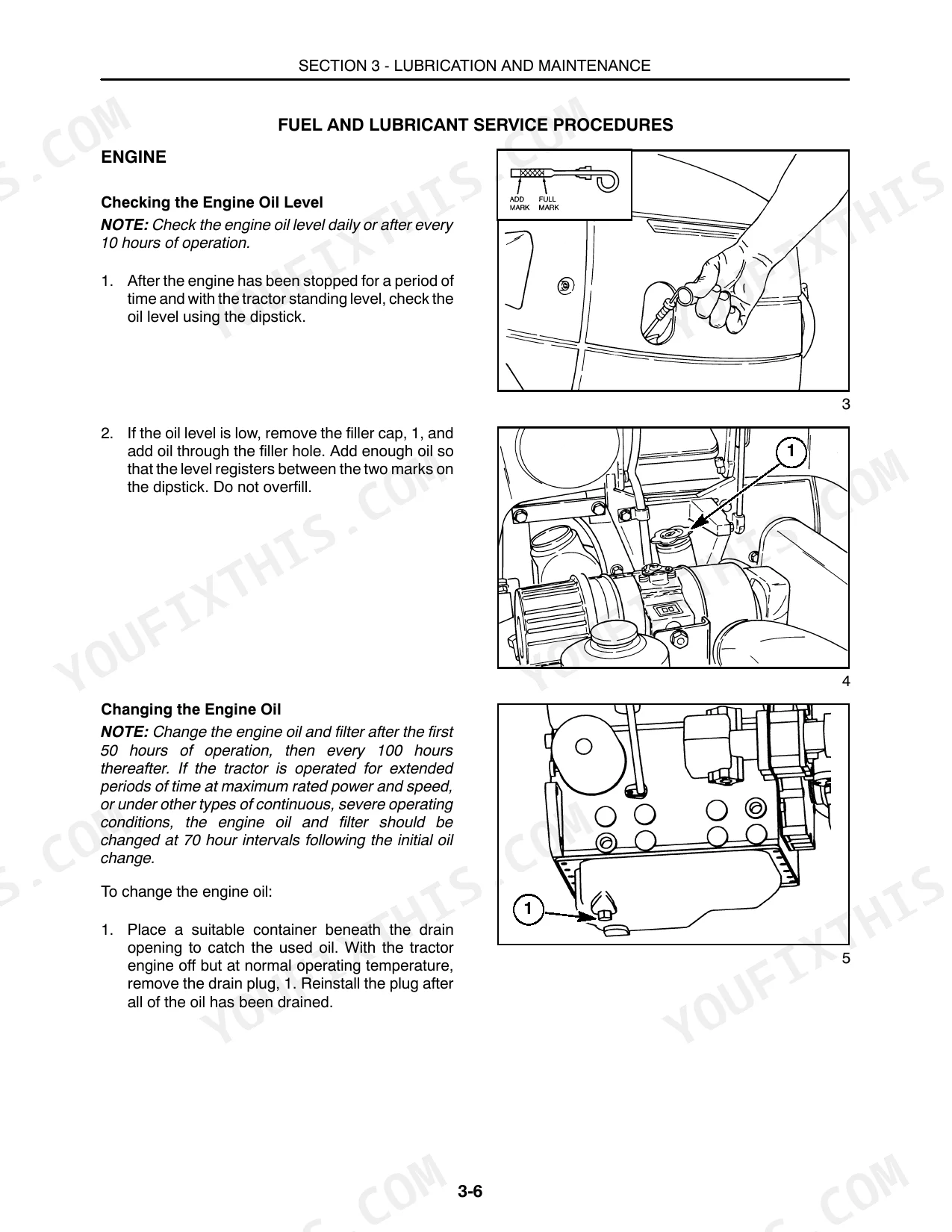

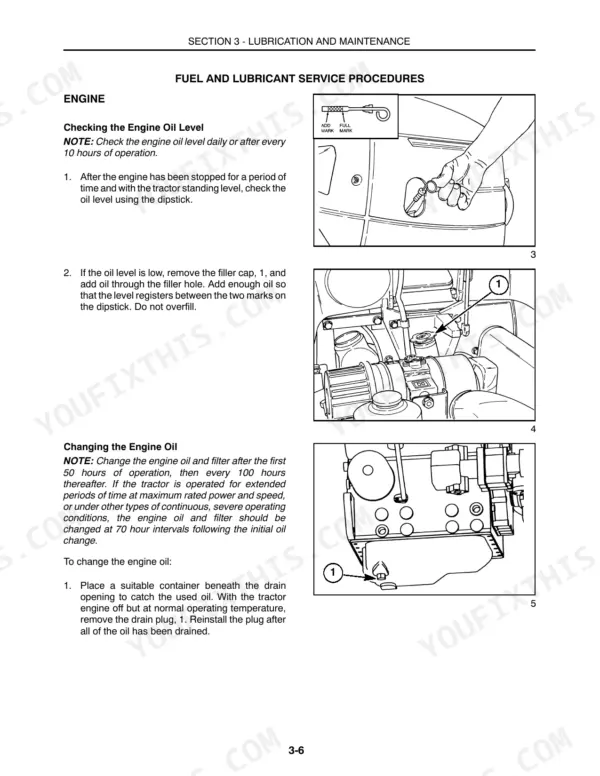

Check the instrument panel section starting page 23 to identify which indicator is illuminated. Verify engine oil level on the dipstick; total capacity with filter is 4.0 liters per page 99. Top off with the recommended oil grade if low, then restart to confirm the light clears.
Manual Section: OperationFrequently Asked Questions
What is the engine oil capacity for the Case IH DX25, DX29, and DX33 tractors?
The engine oil capacity for all models (DX25, DX29, DX33) with the filter is 4.0 liters (4.2 U.S. qts.). This information is found in the specifications section of the manual.
What is the specified torque for the front wheel bolts on Case IH DX25, DX29, and DX33 tractors?
The front wheel bolts should be tightened to 122 N⋅m (90 ft. lbs.). This torque applies to both 2WD and FWD axles and should be checked any time the wheel assembly is removed or the bolts are loosened.
What is the recommended free travel for the clutch pedal on Case IH DX25, DX29, and DX33 tractors?
The clutch pedal free travel should be maintained at 19 - 30 mm (3/4 - 1-3/16″). This should be checked after every 50 hours of operation to ensure proper adjustment.
How do you check the fan belt tension on Case IH DX25, DX29, and DX33 tractors?
To check fan belt tension, apply 9 - 11 kg (20 - 25 lbs.) of thumb pressure midway between the belt pulleys. A correctly tightened belt will deflect 10 - 15 mm (7/16 - 9/16″). This check should be performed after every 200 hours of operation.
What do I get after purchasing this Case IH DX25–DX33 Series manual?
Instant PDF download. You get the full 116-page searchable Operator Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Is this Case IH DX25–DX33 Series Operator Manual printable?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
Does this Case IH DX25–DX33 Series Operator Manual have electrical diagrams?

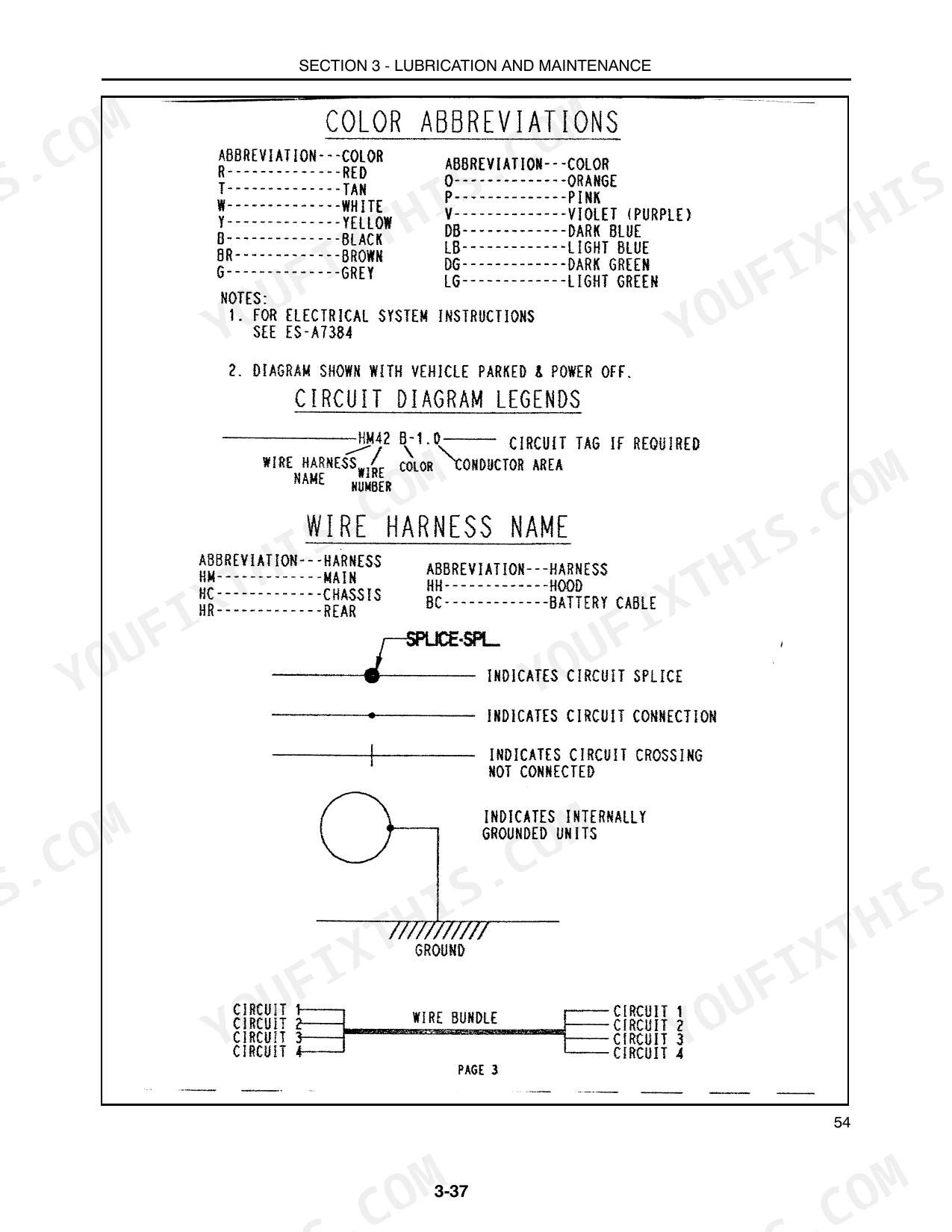

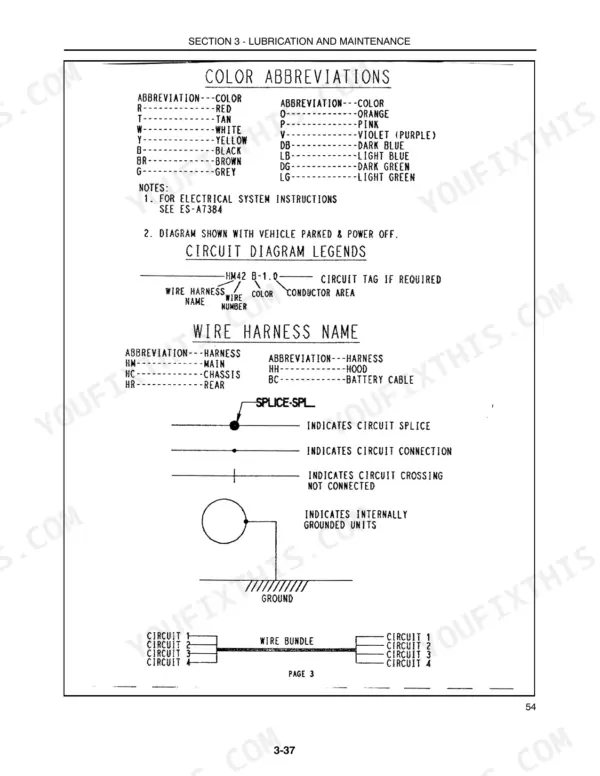

No dedicated wiring schematic; this manual includes the wire-color/circuit-legend page (harness naming, splice/ground symbols) for reference; full circuit diagrams are published separately by Case IH.
