All 98 pages of this Case IH DX25, DX29, DX33 Operator Manual (OEM #86617542) cover one job: keeping your compact tractor running right, from the instrument panel and hydrostatic transmission controls down to ROPS safety procedures. Inside you get a full lubrication and maintenance chart, engine oil and cooling system service steps, daily pre-operation checks, and a specifications breakdown organized by variant. The hydraulic pump delivers 7.1 U.S. gpm (27 lpm) on the DX25 and 7.6 gpm (29 lpm) on the DX29/DX33; keep the HST transmission filled to 7.5 gal. (28.4 L) before every season. No more digging through generic forums for a fluid spec that may not match your machine. Download now, jump to any section with bookmarks, and walk it right out to the tractor.
What's Inside This Case IH DX25, DX29, DX33 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety | 6-12 | - |
| General Information | 13-16 | Product Identification Plate, Minimum Hardware Tightening Torques, Inch Hardware and Locknuts, Metric Hardware and Locknuts, International Symbols, Hardware Torque Charts |

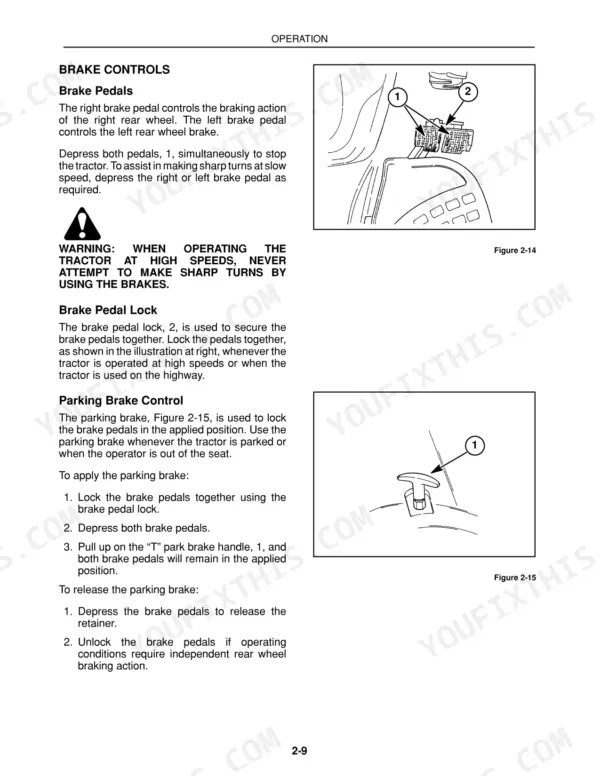

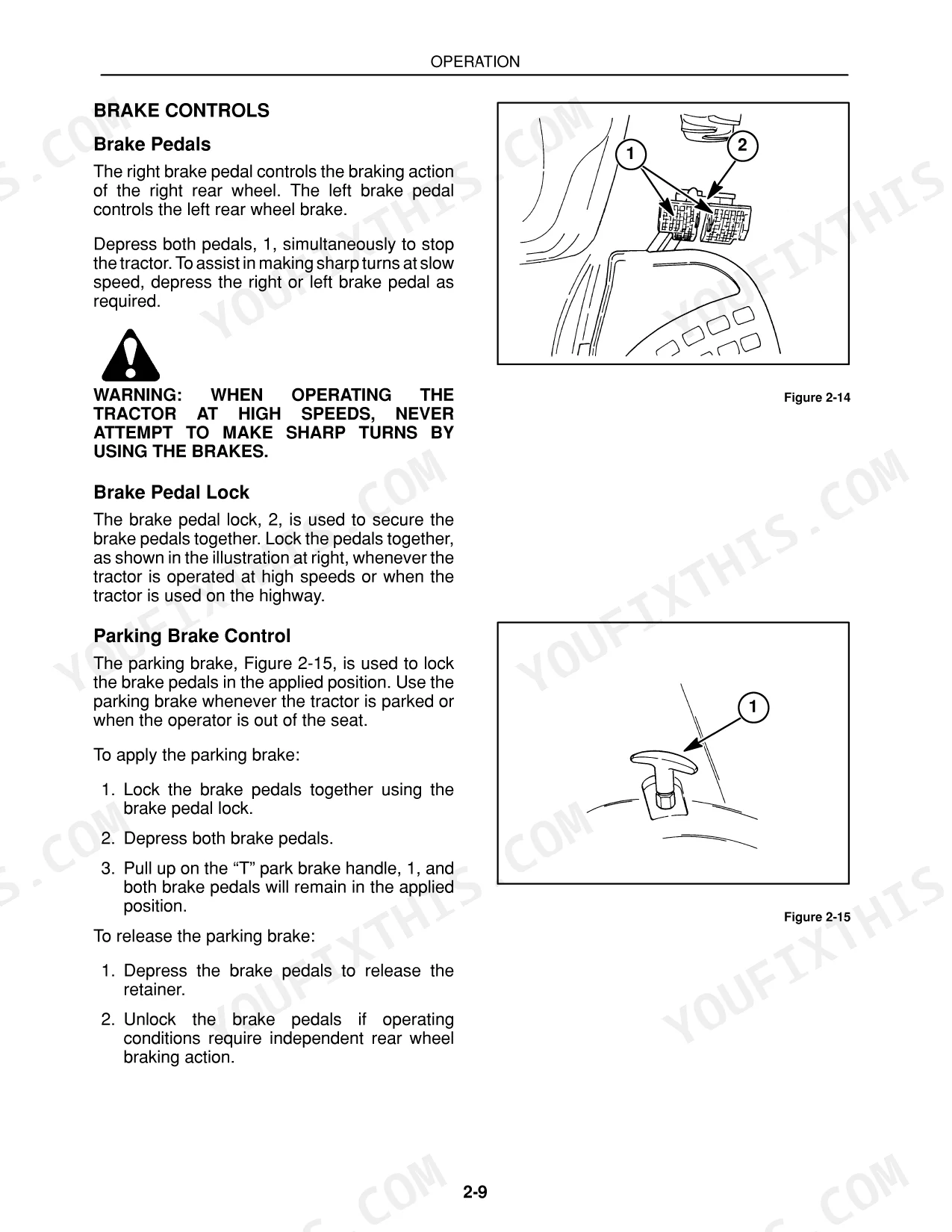

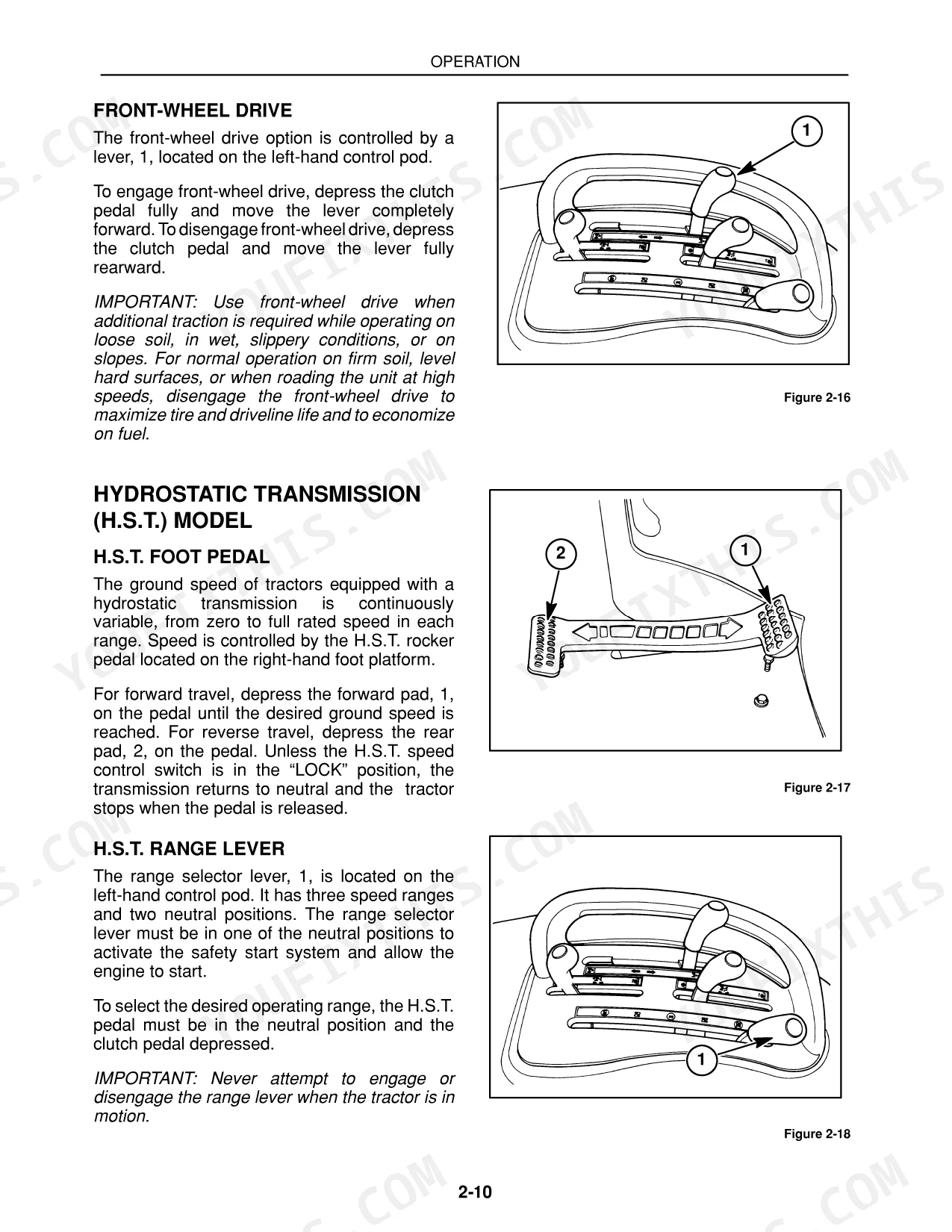

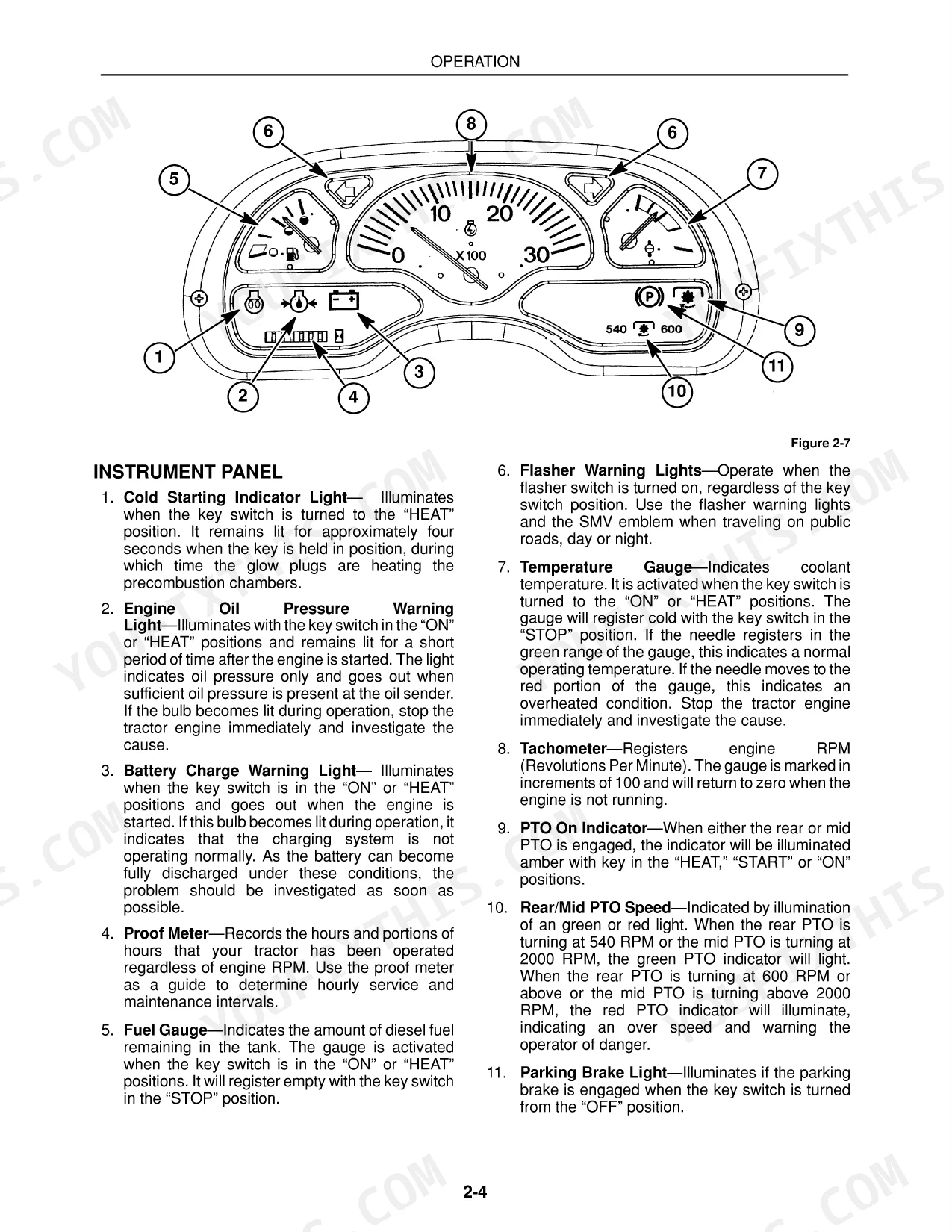

| Operation | 17-44 | Controls and Instruments, Adjusting the Tractor Seat, Steering Wheel, Instrument Panel, Key Switch, Brake Controls, Front-Wheel Drive, Hydrostatic Transmission |

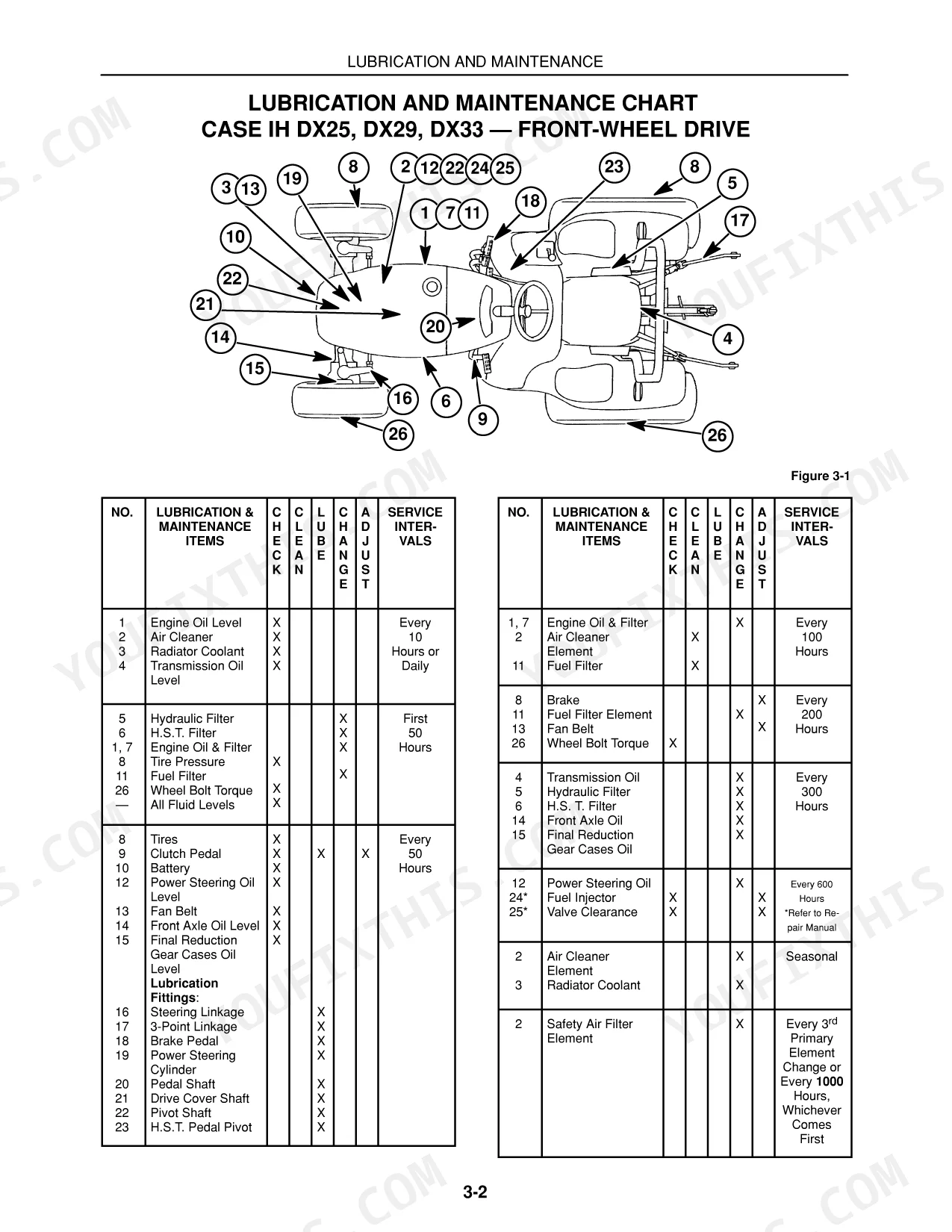

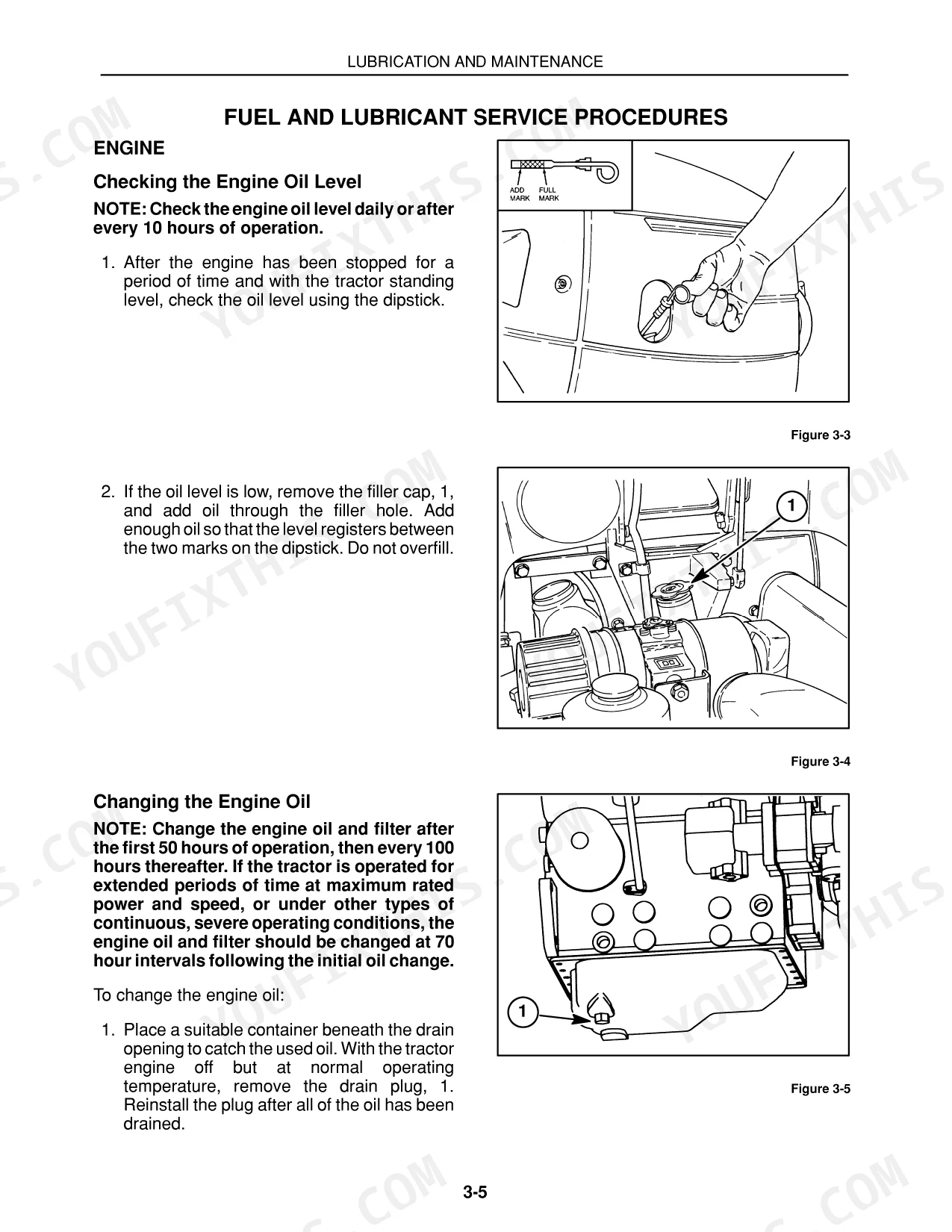

| Lubrication and Maintenance | 45-80 | Recommended Lubricants, Lubrication and Maintenance Chart, Engine Oil, Fuel Filter, Air Cleaner, Cooling System |
| Specifications | 81-90 | Engine, Capacities, Cooling System, Electrical System, Fuel System, General Dimensions |
| Predelivery Service | 93-98 | Inoperative Service Checks, Operative Service Checks, Safety Items Checks, Tractor Model No., Tractor Serial No., Warranty Explained |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Starting Motor Type | Solenoid Pre-Engaged Reduction | p. 82 |
| Front Wheel Toe-In | 0 mm-5 mm (0"-13/64") | p. 83 |
| Battery Voltage | 12-volt | p. 82 |
| Battery Cold Cranking Ability | 420 amps at 0°F (-18°C) | p. 64 |
| Engine Oil Capacity (With Filter) | 4.0 liters | p. 81 |
| Fuel Tank Capacity | 27.6 liters | p. 81 |
| Rear Axle & Transmission (Includes Hydraulics) Capacity | 33.3 liters | p. 81 |
| Front Wheel Bolt Torque (Disc-to-Hub) | 122 N-m | p. 86 |
| Rear Wheel Bolt Torque (Disc-to-Rim & Disc-to-Axle) | 169 N-m | p. 86 |
| ROPS to Rear Axle Bolt Torque | 54 N-m | p. 86 |
| DX25 | ||
| Hydraulic Pump Capacity | 7.1 U.S. gpm (27 lpm) | p. 83 |
| DX29, DX33 | ||
| Hydraulic Pump Capacity | 7.6 U.S. gpm (29 lpm) | p. 83 |
Case IH DX25, DX29, DX33 Common Problems This Manual Covers
Case IH DX25 hydrostat transmission leaking fluid from the rear axle housing and losing forward drive power p. 56
Inspect the transmission housing for visible leaks. Drain the fluid and refill the H.S.T. transmission to the proper capacity of 7.5 gal. (28.4 L) as noted on page 56. Check the dipstick to ensure the fluid level rests between the minimum and maximum indicator lines.
Manual Section: Lubrication and MaintenanceTractor turns over slowly or clicks rapidly when trying to start the engine in cold weather p. 64
Test the battery voltage with a multimeter. Review page 64 to confirm the battery meets the minimum cold cranking ability of 420 amps at 0°F (-18°C). Clean the battery terminals with a wire brush and verify the electrolyte liquid sits exactly 1/4" (6.35 mm) above the plates.
Manual Section: Lubrication and MaintenanceLoud squealing noise coming from the front of the engine when operating at high RPMs p. 61
Inspect the fan belt for cracks or glazing. Apply 20-25 lbs. (9-11 kg) of thumb pressure midway between the pulleys. Adjust the tensioner bracket on page 61 until you achieve a fan belt deflection of 10 mm-15 mm. Tighten the mounting bolts securely.
Manual Section: Fan Belt Diagnosis and AdjustmentDifficulty shifting gears and tractor creeps forward when the clutch pedal is fully depressed p. 83
Measure the pedal movement before resistance is felt. Adjust the linkage rod on page 83 to set the clutch pedal free travel between 19 mm-30 mm (3/4"-1-3/16"). Verify the locknut is tight and test the tractor in a clear area to confirm the creeping has stopped.
Manual Section: Clutch Pedal AdjustmentFrequently Asked Questions
What are the replacement specifications for Starter motor?
The replacement specification for the starter motor on Case IH DX25, DX29, and DX33 tractors is a Solenoid Pre-Engaged Reduction type. This information is found under the Electrical System specifications.
What are the replacement specifications for Hydrostat (transmission/hydraulic pump)?
The hydraulic pump type for the hydrostatic transmission models (DX25, DX29, DX33) is an Open Center Gear pump. The pump capacity is 7.1 U.S. gpm (27 lpm) for the DX25 model and 7.6 U.S. gpm (29 lpm) for the DX29 and DX33 models.
How do you fix case IH DX25 hydrostat transmission leaking fluid from the rear axle housing and losing forward drive power?
Inspect the transmission housing for visible leaks. Drain the fluid and refill the H.S.T. transmission to the proper capacity of 7.5 gal. (28.4 L) as noted on page 56. Check the dipstick to ensure the fluid level rests between the minimum and maximum indicator lines.
How do you fix tractor turns over slowly or clicks rapidly when trying to start the engine in cold weather?
Test the battery voltage with a multimeter. Review page 64 to confirm the battery meets the minimum cold cranking ability of 420 amps at 0°F (-18°C). Clean the battery terminals with a wire brush and verify the electrolyte liquid sits exactly 1/4" (6.35 mm) above the plates.
Is this Case IH DX25, DX29, DX33 Operator Manual a digital download?
Immediate download of the complete 98-page searchable Operator Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Am I able to print pages from this manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
