All 122 pages of this Case IH DX29, DX33 Operator Manual zero in on one thing: knowing how to run, maintain, and safely operate your compact tractor before something goes sideways. Inside, you get complete wiring diagrams, hydraulic schematics, and a packed lubrication and maintenance section covering air cleaner service, cooling system upkeep, fuel filter intervals, and wheel bolt torque specs. The operations chapter walks you through HST foot pedal use, differential lock engagement, front-wheel drive activation, and every brake, clutch, and seat adjustment your DX29 or DX33 needs in the field. Your DX29 puts out 21.6 kW (29 hp) from a 1.33 L engine; set your 12-volt battery to 420 CCA and keep electrolyte 6.35 mm above the plates. No more hunting for service intervals in forum threads. Pull it up on your phone or tablet, bookmark your section, and get back to work.
What's Inside This Case IH DX29, DX33, DX33 Tractors Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety | 8-17 | Precautionary Statements, Rollover Protective Structure (ROPS), Safety Decals, Driving the Tractor, Operation of the Power Take-Off (PTO), Possible Damage to the ROPS |
| General Information | 18-21 | General Dimensions, Improvements, Minimum Hardware Tightening Torques, Instruction Decals, Federal Emissions Warranty |

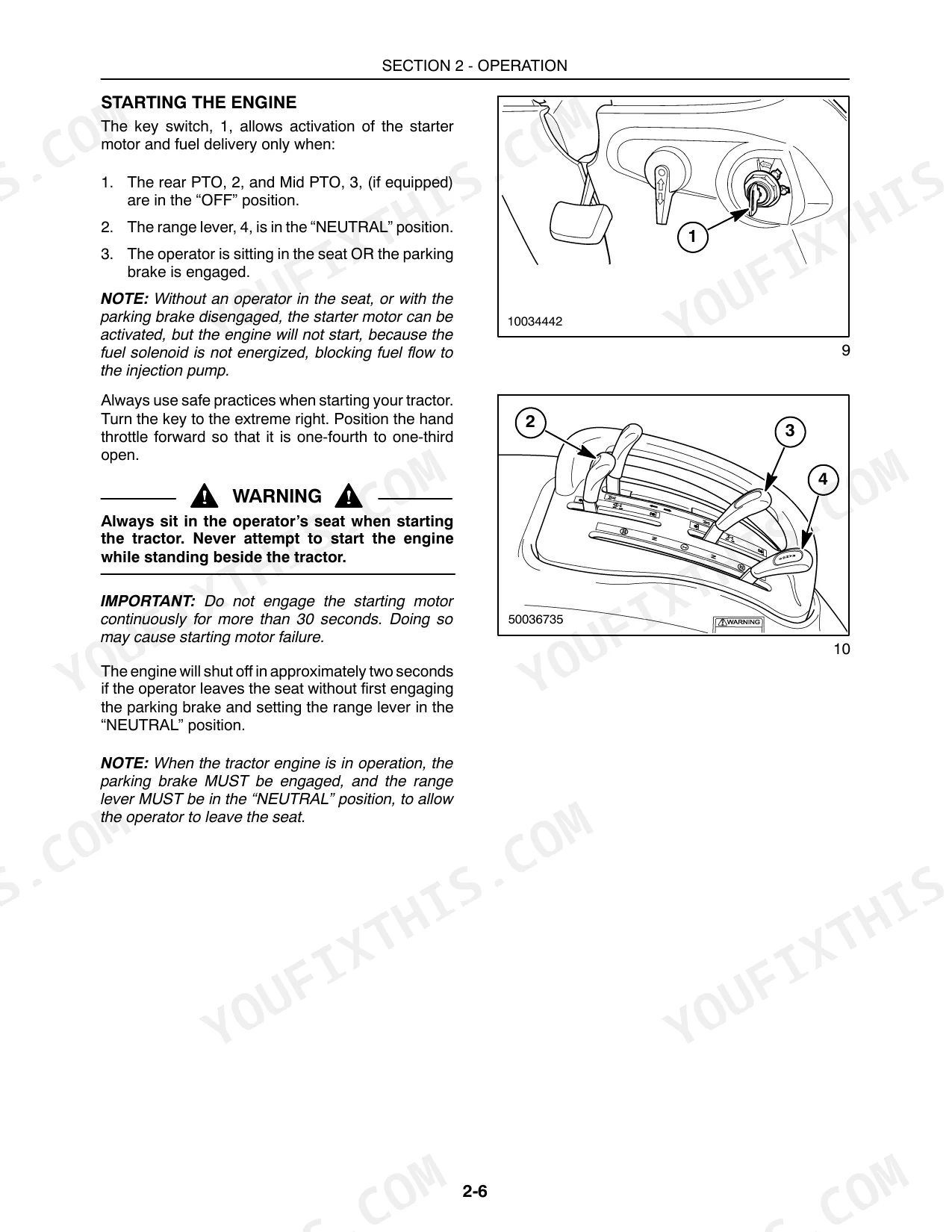

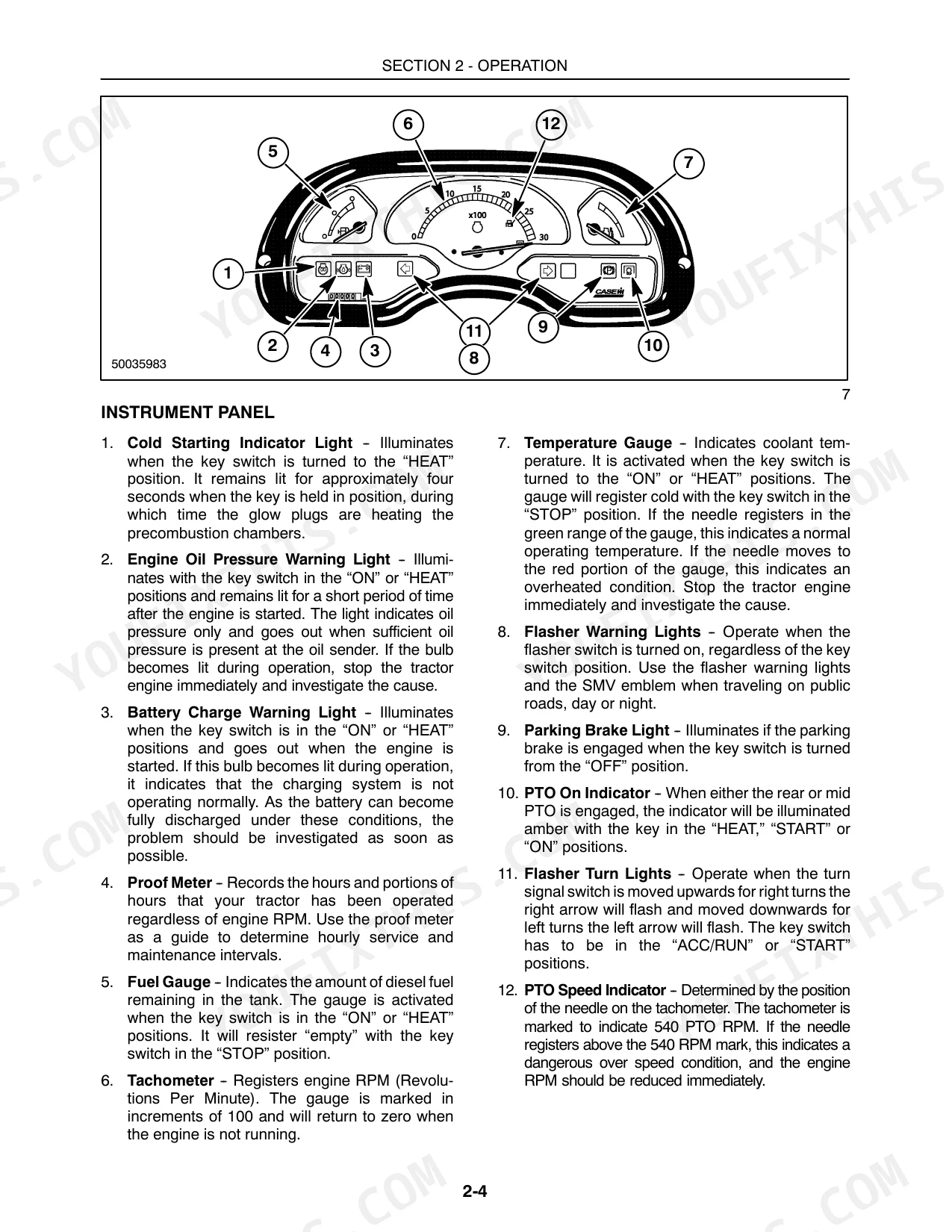

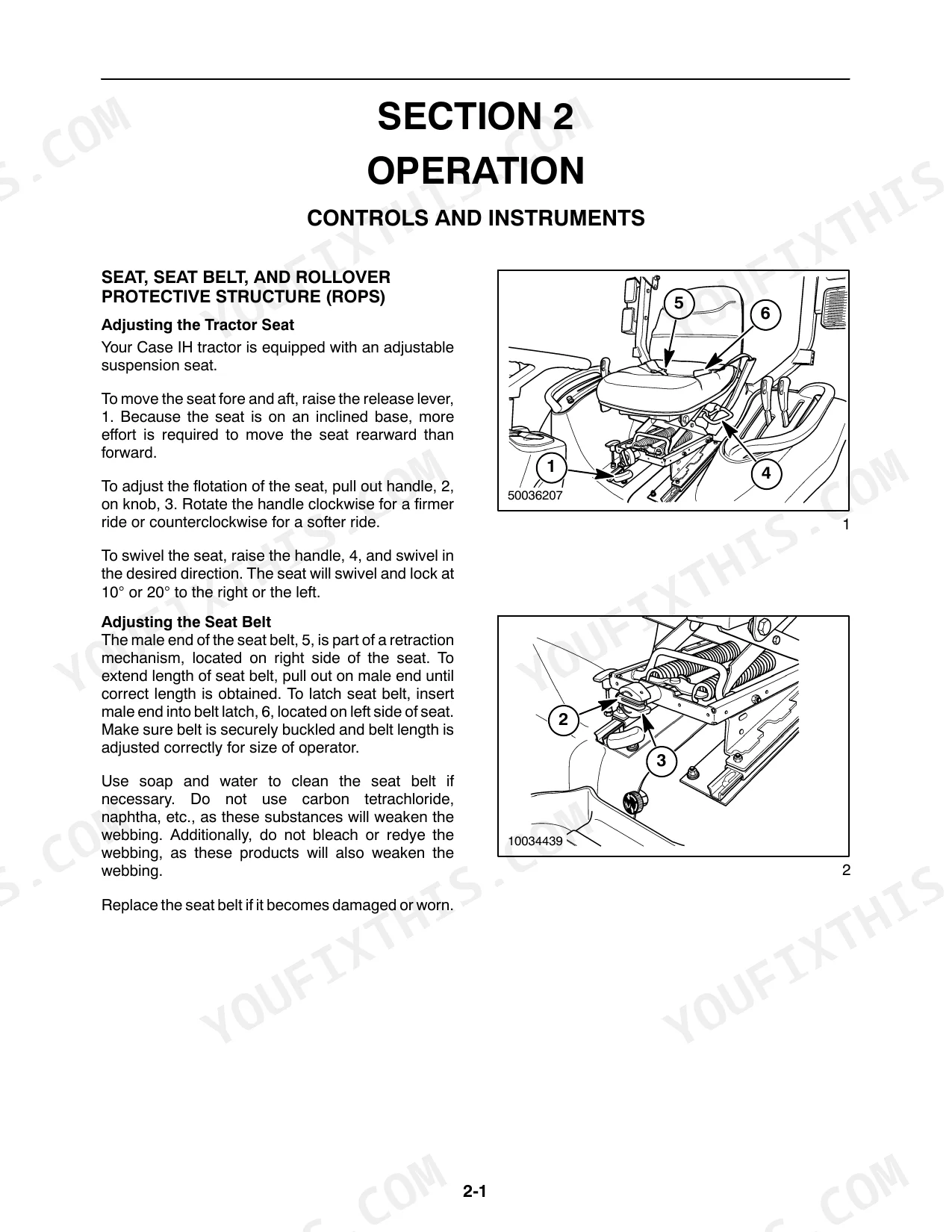

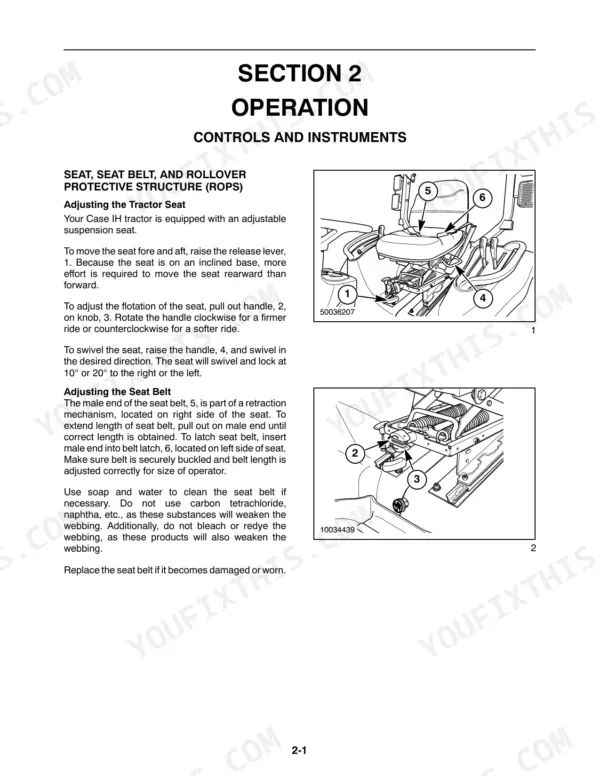

| Operation | 22-55 | Adjusting the Tractor Seat, Brake Controls, Clutch Pedal, Differential Lock, Front-Wheel Drive, H.S.T. Foot Pedal |

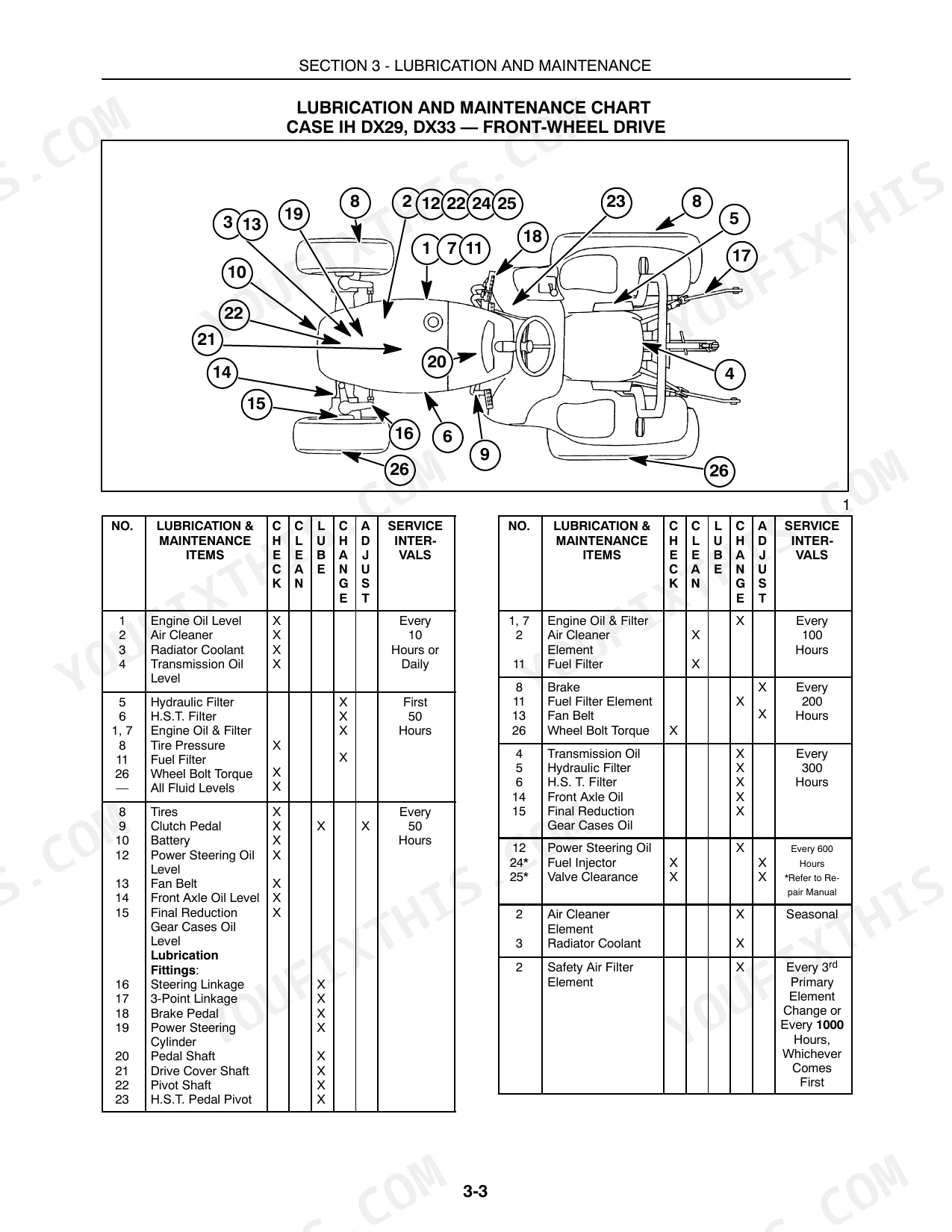

| Lubrication Schedules and Fluid Service | 56-70 | Recommended Lubricants, Lubrication and Maintenance Chart, Lubrication Fittings, Diesel Fuel, Engine Oil and Filter, Fuel Filter, Air Cleaner, Hydraulic System Oil, Power Steering |
| General Maintenance: Cooling, Electrical and Drive Components | 71-89 | Cooling System, Fan Belt, Battery, Alternator, Fuse Block, Head Lamp, Tires, Wheel Bolt Torque, Brake Adjustment, Front-Wheel Drive, Tractor Storage |

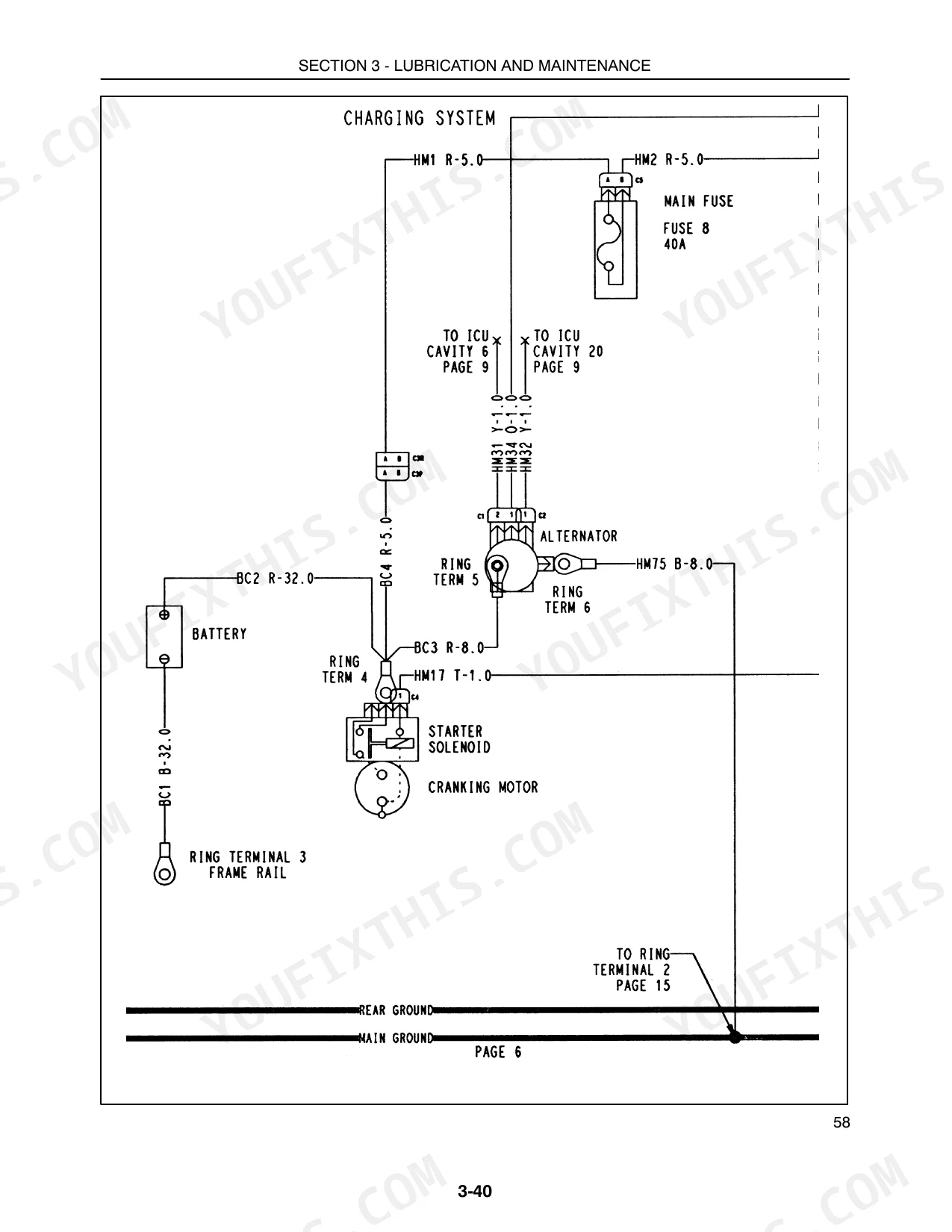

| Wiring Diagrams | 90-105 | Electrical Schematic Index, Connector and Fuse Tables, Charging System, Starting System, Safety Start System, Instruments, Main Lights, Hazard Switch, Auxiliary Lights, Cruise Control |
| Specifications | 106-115 | Engine, Capacities, Cooling System, Electrical System, Fuel System, General Dimensions |
| Delivery Report | 118-122 | Inoperative Service Checks, Safety Items Checks, Operative Service Checks |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Battery Voltage | 12-volt | p. 107 |
| Battery Cold Cranking Amps (CCA) | 420 cca | p. 107 |
| Engine Crankcase Capacity (With Filter) | 4.0 liters (4.2 U.S. qts.) | p. 106 |
| Fuel Tank Capacity | 27.6 liters (7.3 U.S. gals.) | p. 106 |
| Radiator Cap Pressure | 0.9 bar (13 PSI) | p. 107 |
| Front Wheel Torque | 122 N⋅m (90 ft. lbs.) | p. 111 |
| Rear Wheel Torque | 169 N⋅m (125 ft. lbs.) | p. 111 |
| Clutch Pedal Free-Travel | 19 mm-30 mm (3/4″-1-3/16″) | p. 108 |
| DX29 | ||
| Engine Gross Horsepower | 21.6 kw (29) | p. 106 |
| Engine Displacement | 1.33 L (81.2 cu. in.) | p. 106 |
| DX33 | ||
| Engine Gross Horsepower | 24.6 kw (33) | p. 106 |
| Engine Displacement | 1.50 L (91.3 cu. in.) | p. 106 |
Case IH DX29, DX33, DX33 Tractors Common Problems This Manual Covers
Case IH DX29 engine won't start and starter clicks rapidly when turning the key. p. 76
Inspect the battery electrolyte level and verify it is 6.35 mm (1/4") above the plates as shown on page 76. Test the battery to ensure it meets the 450 amps at -18°C (0°F) cold cranking requirement. Clean the terminals and tighten the starter switch connections.
Manual Section: Lubrication and MaintenanceEngine dies under heavy load or stumbles badly after running completely out of fuel. p. 106
Fill the tank to the 27.6 liters (7.3 U.S. gals.) capacity specified on page 106. Locate the bleeder screw on the injection pump. Open the screw and manually pump the primer until solid fuel flows without air bubbles, then tighten the screw securely.
Manual Section: SpecificationsTractor hesitates when shifting gears or PTO fails to engage smoothly under heavy load. p. 108
Measure the clutch pedal free-travel at the top of the pedal stroke. Adjust the linkage on page 108 until you achieve 19 mm-30 mm (3/4"-1-3/16") of free-travel. Tighten the jam nut securely and test the pedal engagement before operating the PTO.
Manual Section: SpecificationsTemperature warning light flashes continuously on the instrument panel during extended summer field operation. p. 107
Check the warning lights on page 25. Let the engine cool completely. Test the radiator cap to verify it holds exactly 0.9 bar (13 PSI) as specified on page 107. Replace the cap if it fails the pressure test and inspect the coolant level.
Manual Section: SpecificationsPopping noise from the front axle during tight turns on hard pavement or concrete. p. 111
Inspect all wheel hardware for damage or elongation. Torque the front wheel bolts to 122 N⋅m (90 ft. lbs.) using a calibrated torque wrench as detailed on page 111. Check the front axle fluid level and add gear oil if necessary.
Manual Section: SpecificationsFrequently Asked Questions
What are the replacement specifications for Starter switch?
The replacement specification for the Starter Switch is identified by Part Number 86400175. This information is found on an instruction decal within the manual, indicating the specific part to use for replacement.
What are the replacement specifications for Battery?
The battery replacement specifications for the tractor are a BCI group 51, 12-volt battery with a minimum cold cranking ability of 450 amps at -18°C (0°F). The electrical system specifications also confirm a 12-volt battery with negative ground and 420 cca.
How do you fix case IH DX29 engine won't start and starter clicks rapidly when turning the key?
Inspect the battery electrolyte level and verify it is 6.35 mm (1/4") above the plates as shown on page 76. Test the battery to ensure it meets the 450 amps at -18°C (0°F) cold cranking requirement. Clean the terminals and tighten the starter switch connections.
How do you fix engine dies under heavy load or stumbles badly after running completely out of fuel?
Fill the tank to the 27.6 liters (7.3 U.S. gals.) capacity specified on page 106. Locate the bleeder screw on the injection pump. Open the screw and manually pump the primer until solid fuel flows without air bubbles, then tighten the screw securely.
What format is this manual in?
A 122-page Operator Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Are there any print restrictions on this Case IH DX29, DX33, DX33 Tractors?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Are there wiring harness diagrams in this Case IH DX29, DX33, DX33 Tractors?
Included. The Case IH DX29, DX33, DX33 Tractors Operator Manual provides a wiring diagram for the electrical system.
