Looking for the exact factory maintenance schedule for your tractor? This 98-page Case IH D25, D29, D33 operator manual pdf (OEM #86617541) is also referenced for the DX25, DX29, and DX33 variants. You get a massive lubrication and maintenance chart, detailed instrument panel breakdowns, and step-by-step chassis adjustment procedures. Open to the operations section to master your engine, drivetrain, and PTO controls, or review the factory hardware torque tables to keep bolts tight. Adjust your clutch pedal free travel to exactly 19-30 mm, and remember to swap that hydraulic system oil filter after the first 50 hours before moving to the standard 300-hour interval. A ruined machine from skipped maintenance costs serious cash. Grab this bookmarked download, pull it up on your phone in the shed, and get back to work.
What's Inside This Case IH D25, D29, D33 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety | 6-12 | Personal Safety, Machine Safety, Operating the Tractor, Driving the Tractor, Operating the PTO, Safety Frame (ROPS) |
| General Information | 13-16 | Product Identification Plate, Minimum Hardware Tightening Torques, Inch Hardware and Locknuts, Metric Hardware and Locknuts, International Symbols |

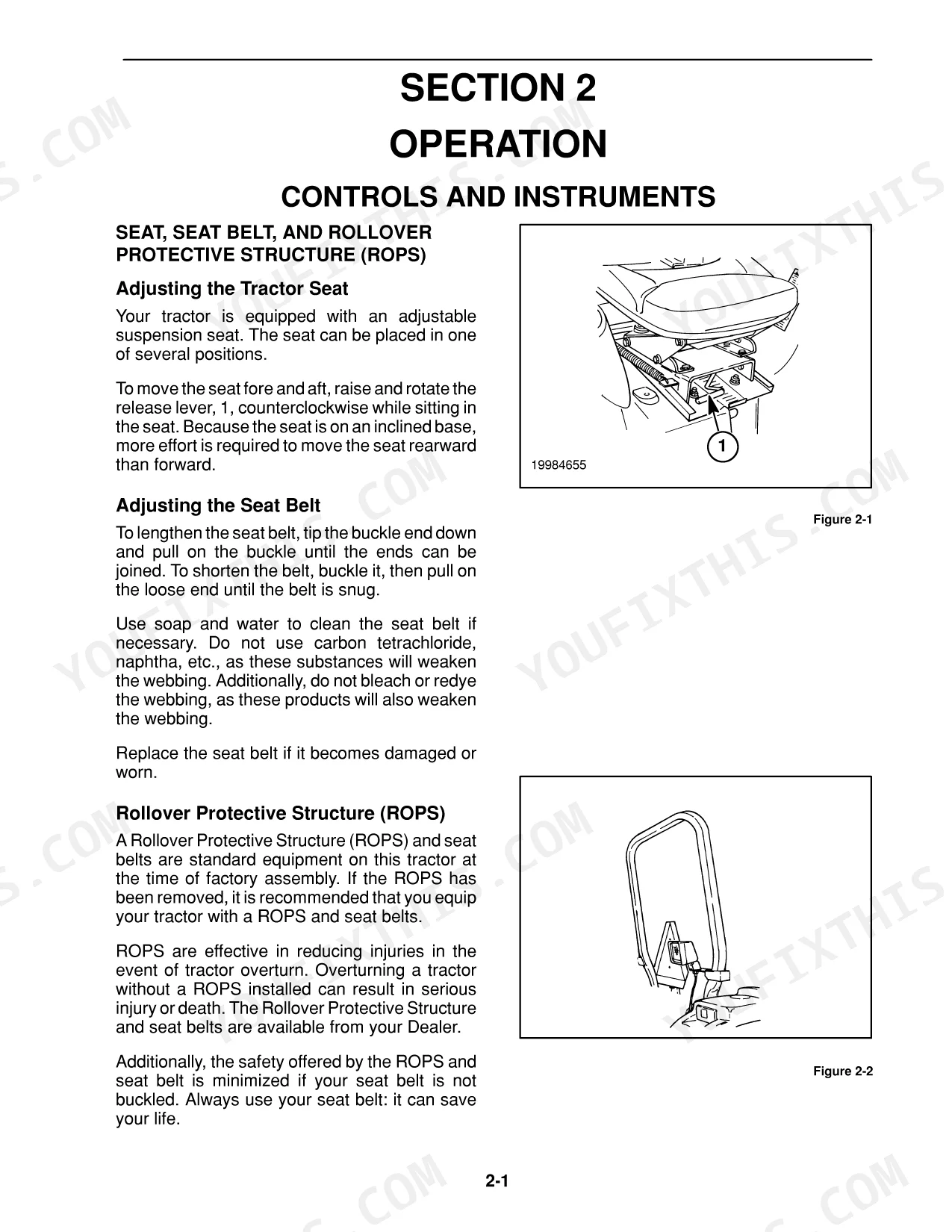

| Operation | 17-44 | Seat, Instrument Panel, Engine Controls, Drivetrain Controls, PTO Controls, Hydraulic System |

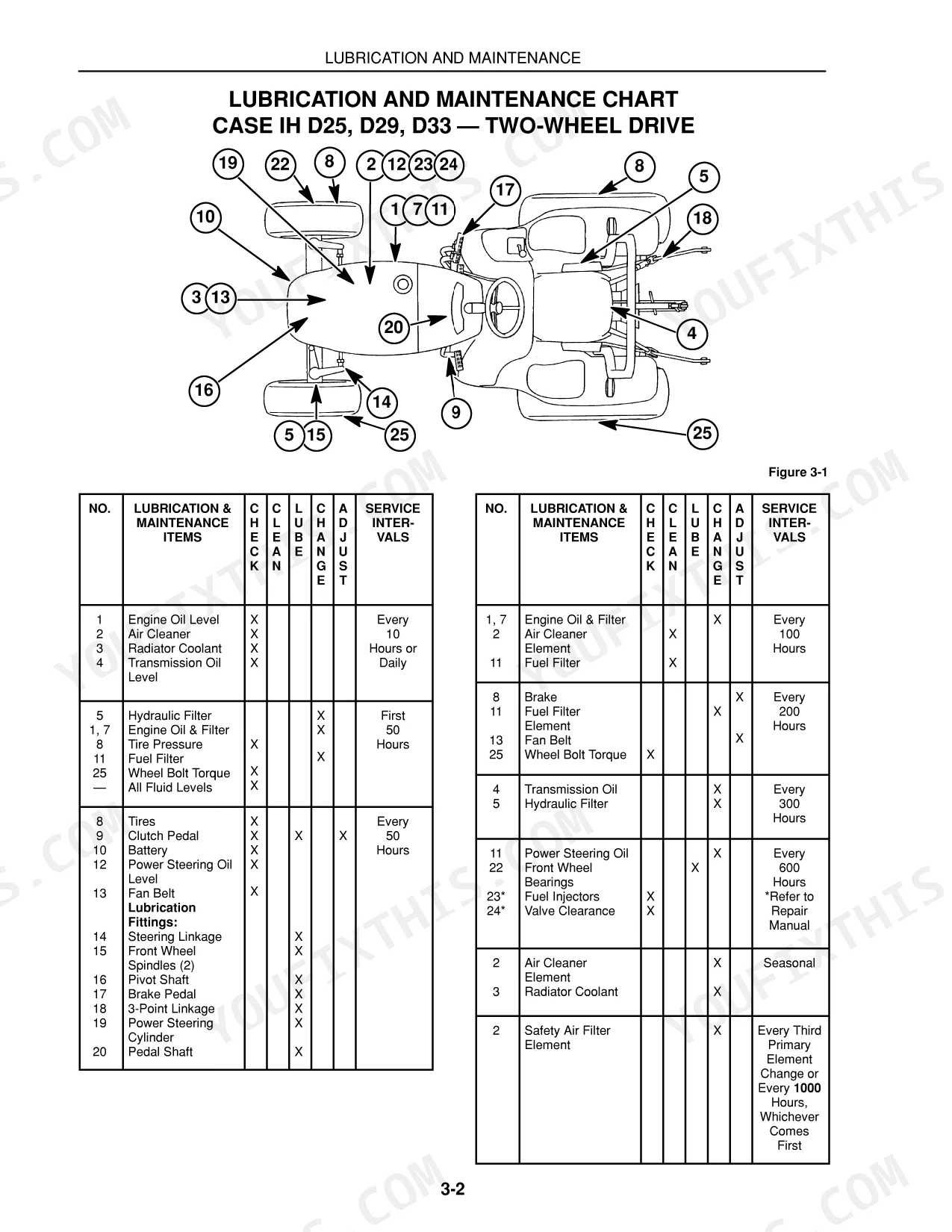

| Lubrication and Maintenance | 45-80 | Lubrication and Maintenance Chart, Engine Maintenance, Fuel System Maintenance, Drivetrain Maintenance, Electrical System, Chassis Adjustments |

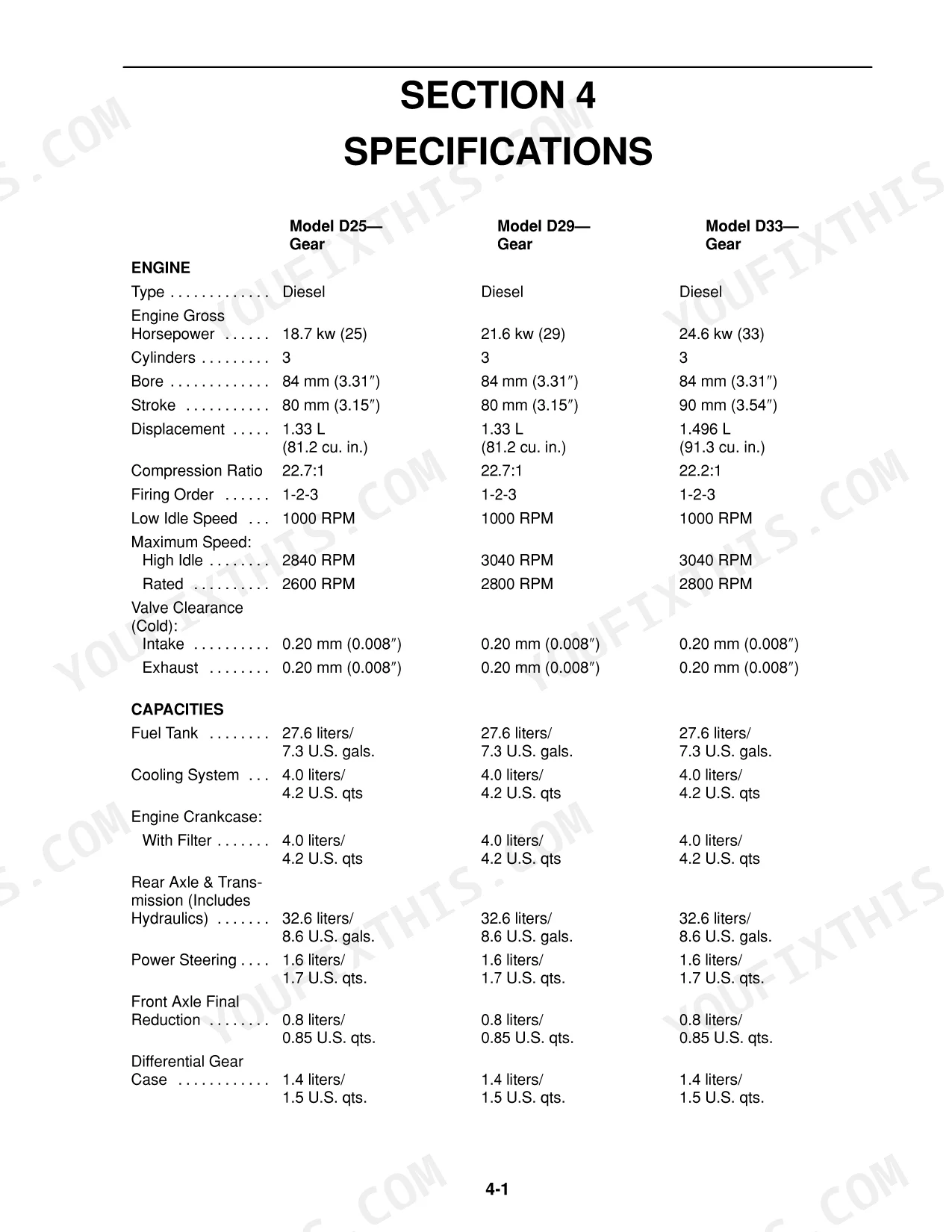

| Specifications | 81-90 | Engine, Capacities, Driv |
| Pre-Delivery Service | 93-98 | - |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Hydraulic system oil filter replacement interval | first 50 hours, then every 300 hours thereafter | p. 59 |
| Diesel fuel filter change interval | first 50 hours, then every 200 operating hours thereafter | p. 52 |
| Battery type | BCI group 45, 12-volt | p. 65 |
| Battery cold cranking ability | 420 amps at 0°F (-18°C) | p. 65 |
| Clutch pedal free travel | 19 mm-30 mm (3/4"-1-3/16") | p. 74 |
| Radiator cap pressure | 0.9 bar (13 PSI) | p. 82 |
| Engine Gross Horsepower | D25: 18.7 kw (25) HP, D29: 21.6 kw (29) HP, D33: 24.6 kw (33) HP | p. 81 |
| Fuel Tank Capacity | 27.6 liters (7.3 U.S. gals.) | p. 81 |
| Engine Crankcase with Filter Capacity | 4.0 liters (4.2 U.S. qts) | p. 81 |
| Rear Axle & Transmission (Includes Hydraulics) Capacity | 32.6 liters (8.6 U.S. gals.) | p. 81 |
| Hydraulic System Relief Valve Setting | 145 bar (2133 PSI) | p. 83 |
| Front Wheel Bolt Torque | 122 N-m (90 ft. lbs.) | p. 86 |
Case IH D25, D29, D33 Common Problems This Manual Covers
Case IH D-Series tractor starter clicks but engine will not crank p. 22
Check the Dead Battery / Jump Start Procedure on page 22 first if the battery is suspect. The tractor uses a BCI group 45, 12-volt battery rated for 420 amps cold cranking at 0°F (-18°C); test it against that spec. Inspect the starter solenoid connections for corrosion, and check terminals for a loose or loose cable clamp.

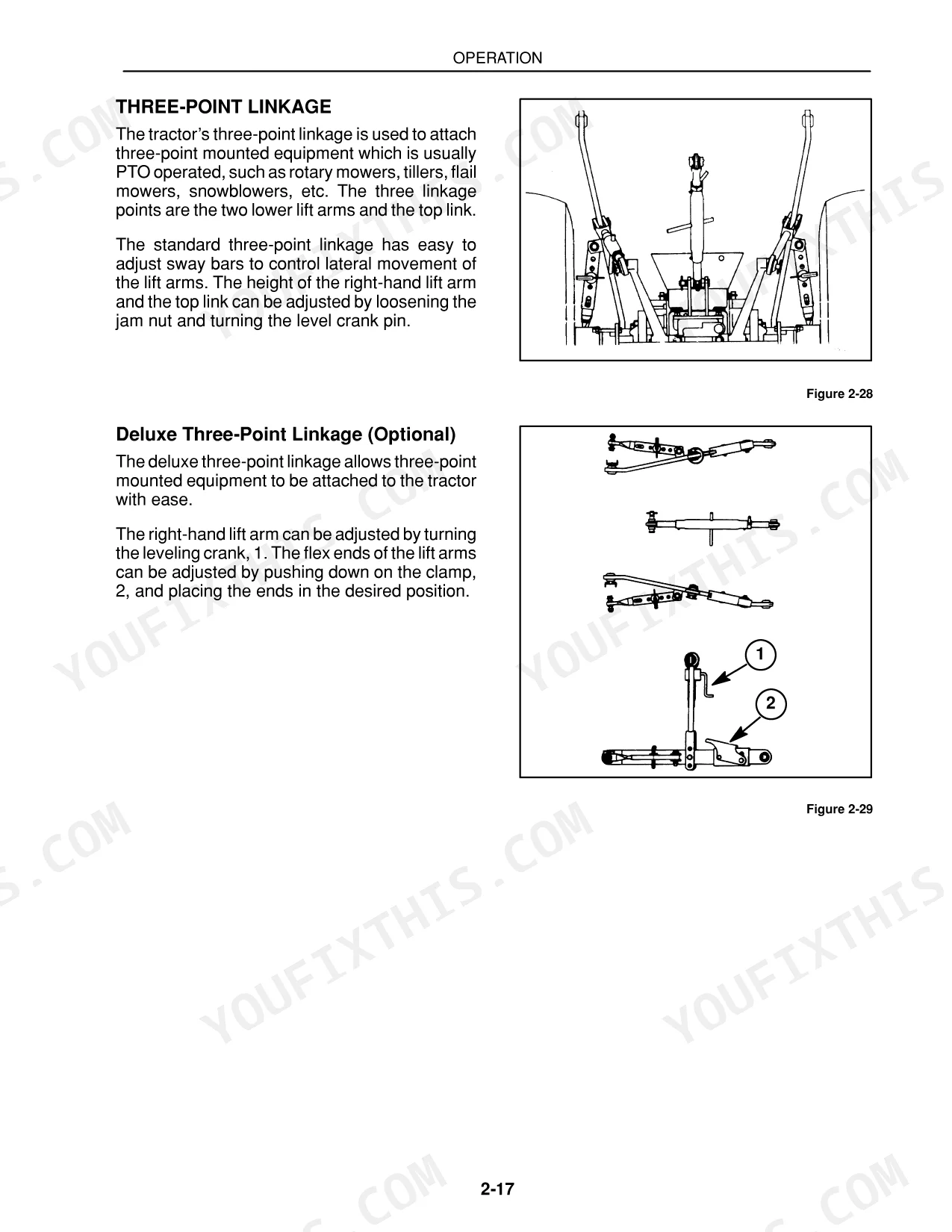

Manual Section: Battery Charging System Malfunction DiagnosisThree-point hitch fails to lift or moves very slowly p. 35
Check that the transport lock knob has not been accidentally turned in, blocking hydraulic flow, and verify the hydraulic line is fully plugged in at its coupler. Review the Hydraulic Lift System Position Control Adjustment on page 35 and adjust the position control rod. Confirm system relief valve pressure meets 145 bar (2133 PSI) if the lift stays sluggish.
Manual Section: Hydraulic Lift System Position Control AdjustmentEngine overheating with excessive exhaust smoke during operation p. 82
Inspect the radiator for blocked airflow and confirm the radiator cap holds 0.9 bar (13 PSI); replace it if it fails to seal. Check fan belt deflection on page 82, which should read 10 mm-15 mm (7/16"-9/16") under thumb pressure; a loose belt starves the fan and pump. Also check the inner safety element for clogging if smoke is black.

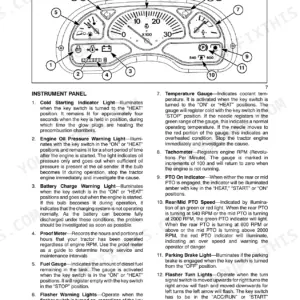

Manual Section: Engine Overheating DiagnosisBattery charge warning light stays illuminated after startup p. 19

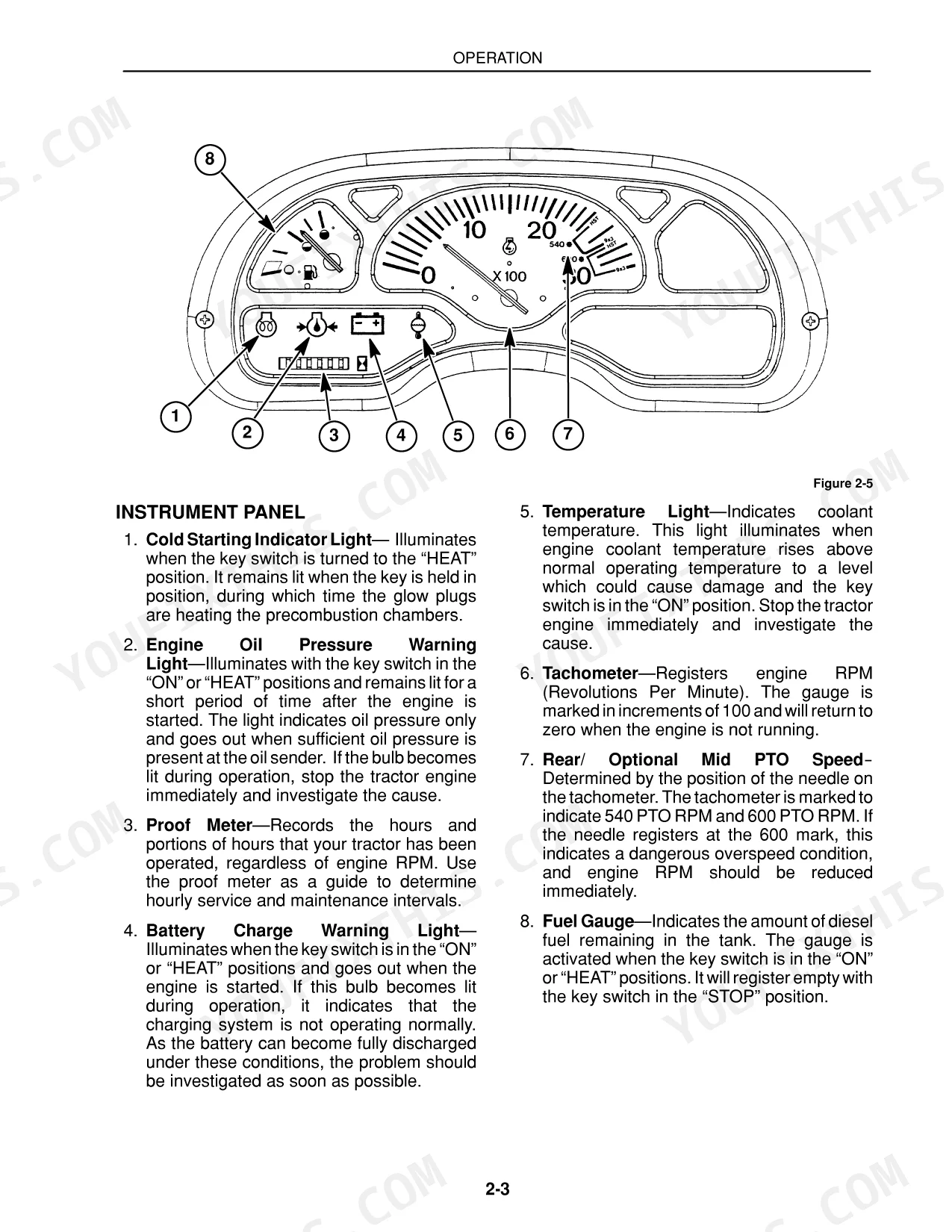

Check the Operator Controls Layout on page 19 for the indicator's meaning, then verify the alternator drive belt tension is correct. Confirm belt deflection reads 10 mm-15 mm (7/16"-9/16") under thumb pressure, per page 82. Inspect battery terminals for corrosion; the tractor's BCI group 45 battery should hold 420 amps cold cranking at 0°F (-18°C).
Manual Section: Battery Charging System Malfunction DiagnosisTransmission slipping or delayed gear engagement during work p. 74
Check clutch pedal free travel on page 74; it should measure 19 mm-30 mm (3/4"-1-3/16"), and adjust if it falls outside that range. Verify the rear axle and transmission fluid, which includes the hydraulics, is filled to its 32.6 liter (8.6 U.S. gal.) capacity. Low fluid or excessive pedal free play both delay engagement under load.
Manual Section: Clutch Pedal AdjustmentLoss of engine power with visible black exhaust smoke p. 56
Check the Air Cleaner Clogged diagnosis on page 56 and pull the inner safety element to inspect for clogging or damage. Confirm the diesel fuel filter has not exceeded its 200 hour service interval after the initial 50 hour change. A restricted air cleaner or overdue fuel filter both starve combustion and darken exhaust.
Manual Section: Air Cleaner Clogged / Loss of Engine Power DiagnosisFrequently Asked Questions
What are the replacement specifications for the hydraulic system oil filter?
The hydraulic system oil filter should be replaced after the first 50 hours of operation, and then every 300 hours thereafter. When installing a new filter, coat the gasket with clean oil, screw it until the gasket contacts the mating surface, and then tighten it by hand approximately three-quarters of a turn.
What are the replacement specifications for the diesel fuel filter?
The diesel fuel filter should be changed after the first 50 hours of operation, and then following every 200 operating hours thereafter. The procedure involves closing the shutoff valve, removing the sediment bowl, discarding the old element, and installing a new element.
What is the recommended engine oil change interval and type?
The engine oil and filter should be changed after the first 50 hours of operation, then every 100 hours thereafter. For continuous, severe operating conditions, the interval is every 70 hours. Tractors are originally shipped with 10W-30 oil, but other recommended oils include SAE 30W, SAE 15W-40, and SAE 5W-30 depending on ambient temperature.
What is the recommended oil change interval and type for the transmission, rear axle, and hydraulic system?
The transmission, rear axle, and hydraulic system oil should be changed after every 300 hours of operation. This system uses Hy-Tran Ultra hydraulic oil, and for a 9x3 transmission, the capacity is 9.3 gallons (35.2 L).
What is the specified fan belt tension?
The fan belt tension should be checked after every 200 hours of operation. When 20-25 lbs. (9-11 kg) of thumb pressure is applied midway between the belt pulleys, a correctly tightened belt will deflect 7/16"-9/16" (10 mm-15 mm).
How quickly can I access this Case IH D25 & variants manual after buying?
You get a 98-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print this Case IH D25 & variants manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
