All 122 pages of this Case IH DX31, DX34 Operator Manual focus on one thing: running and maintaining your compact tractor the way Case IH intended. Inside, you get the full Operation section covering seat and ROPS adjustment, instrument panel indicators, throttle and brake controls, and transmission use, plus a Lubrication and Maintenance section that walks through every service point: diesel fuel system, air cleaner, rear axle and hydraulic system, cooling system, and battery. Wiring diagrams are included for electrical circuit reference. Replace your fuel filter at 50 hours, then every 200 hours after that. Torque injector line fittings to 24–29 N·m, check fan belt deflection at 10–15 mm under 9–11 kg of pressure, and confirm your hydraulic pump is flowing 27 lpm before you leave the yard. Your machine is down. Get the right numbers, not guesswork. Bookmarked and searchable — jump to any section on any device.
What's Inside This Case IH DX31, DX34, DX34 Tractors Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety | 8-17 | - |
| General Information | 18-21 | Improvements, Federal Emissions Warranty, California Emission Control Warranty Statement, Ecology and the Environment, Universal Symbols, Minimum Hardware Tightening Torques |

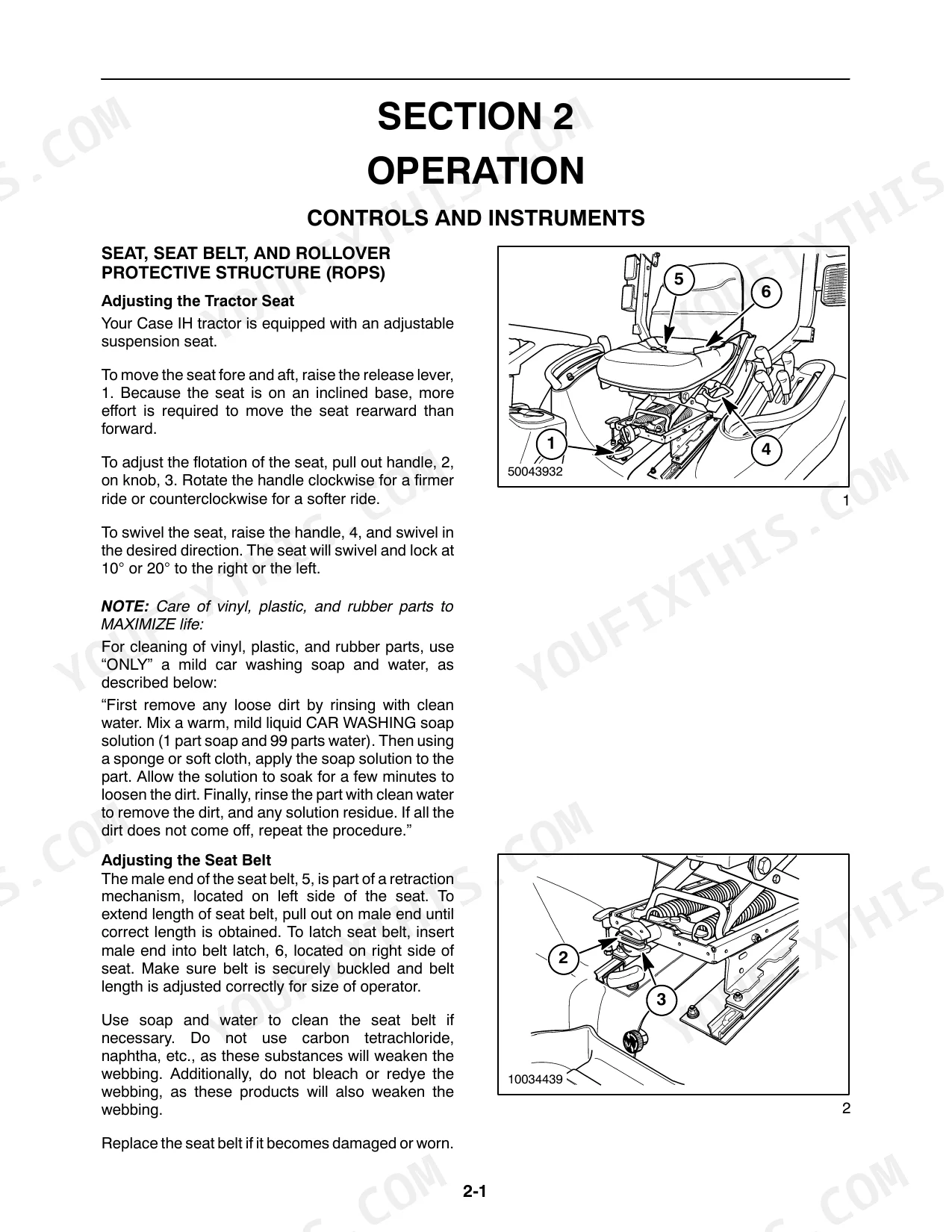

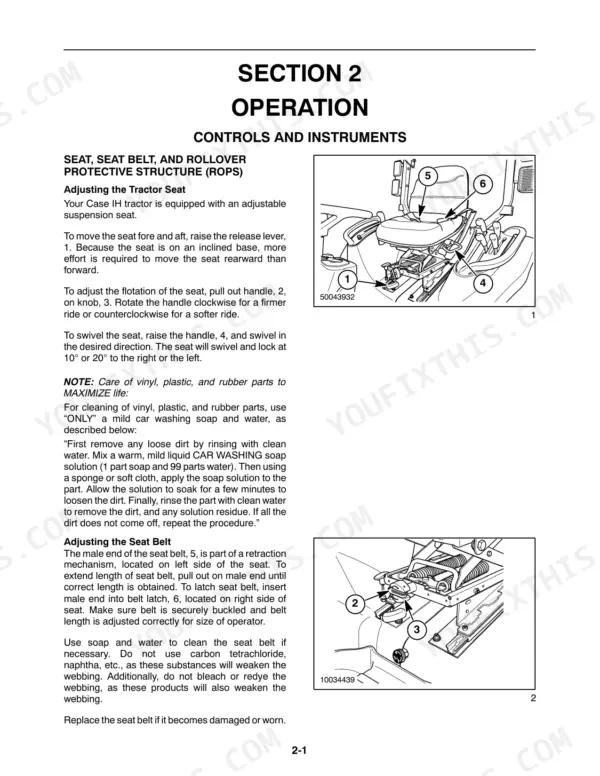

| Operation | 22-57 | Seat, Seat Belt, And Rollover Protective Structure (ROPS), Steering Wheel, Instrument Panel, Throttle Controls, Brake Controls, Transmission |

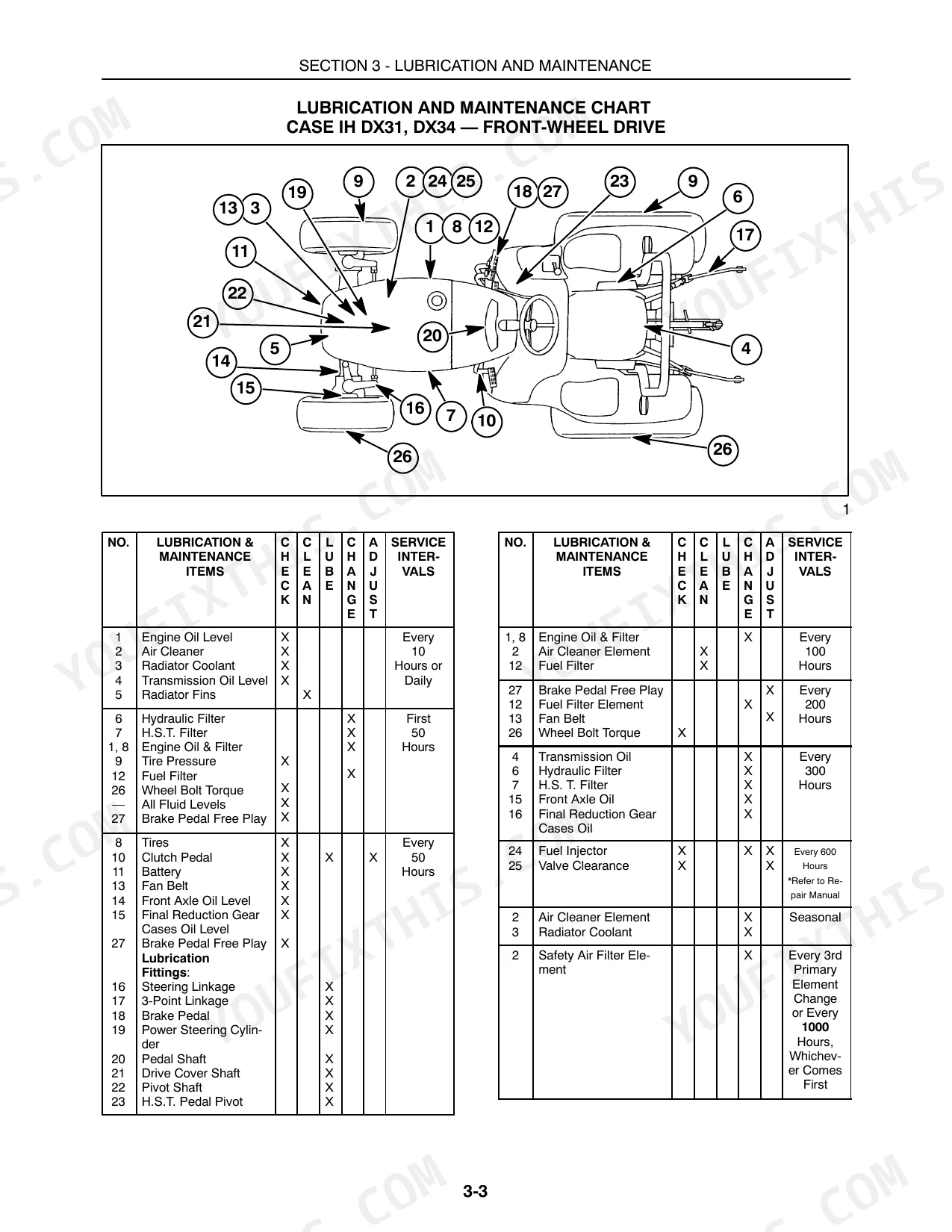

| Lubrication and Maintenance | 58-105 | Lubrication Fittings, Diesel Fuel, Air Cleaner, Transmission, Rear Axle and Hydraulic System, Cooling System, Battery |
| Specifications | 106-115 | Engine, Capacities, Cooling System, Electrical System, Fuel System, Clutch |
| Delivery Report | 118-122 | - |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Injector line fittings torque | 24 -- 29 N·m (18 -- 22 ft-lb) | p. 67 |
| Alternator capacity | 12-volt, Heavy Duty, 40 amps | p. 107 |
| Fan belt deflection (with 9-11 kg pressure) | 10 -- 15 mm (7/16 -- 9/16 in) | p. 74 |
| Hydraulic pump capacity | 27 lpm (7.2 U.S. gpm) | p. 108 |
| Fuel filter replacement interval | After the first 50 hours of operation, then following every 200 operating hours thereafter. | p. 65 |
| Hydraulic system oil filter replacement interval | After the first 50 hours of operation, and then following every 300 hours of operation thereafter. | p. 71 |
| Hydraulic system relief valve setting | 147 bar (2133 PSI) | p. 108 |
| all (HST models) | ||
| Optional cold weather H.S.T. filter part number | #SBA340500980 | p. 71 |
| DX31 | ||
| Engine Gross Horsepower | 23.1 kw (31 hp) | p. 106 |
| Engine Displacement | 1.50 L (91.3 cu. in.) | p. 106 |
| DX34 | ||
| Engine Gross Horsepower | 26.1 kw (35 hp) | p. 106 |
| Engine Displacement | 1.65 L (101.1 cu. in.) | p. 106 |
Case IH DX31, DX34, DX34 Tractors Common Problems This Manual Covers
Case IH DX31/DX34 three-point hitch won't raise or lifts very slowly with a loaded implement p. 71
Check the raise/lower rate control knob under the seat. It can be turned fully closed, locking the hitch. If the knob is open and the hitch still lifts slowly, replace the hydraulic filter on page 71: first change is due after 50 hours, then every 300 hours of operation. Verify hydraulic fluid level at the sight glass.
Manual Section: Rear Axle and Hydraulic SystemEngine won't start or turns over slowly in cold weather, clicking from the starter p. 107
Check battery terminals for corrosion and tighten all connections. Verify safety interlocks are active: clutch pedal depressed and seat occupied before the starter will engage. The tractor runs a 12-volt system with a 40-amp alternator (page 107). If the battery won't hold charge after a cleaning, have it load-tested before operating again.
Manual Section: Electrical SystemDashboard battery charge warning light stays on after startup, headlights dimming while running p. 74
Inspect the fan belt for cracking, glazing, or fraying. Test belt deflection by pressing firmly with 9-11 kg of force midway between pulleys: correct deflection is 10-15 mm (7/16-9/16 in.), per page 74. A loose or broken belt prevents the 40-amp alternator from charging the battery. Adjust or replace the belt and recheck the warning light.

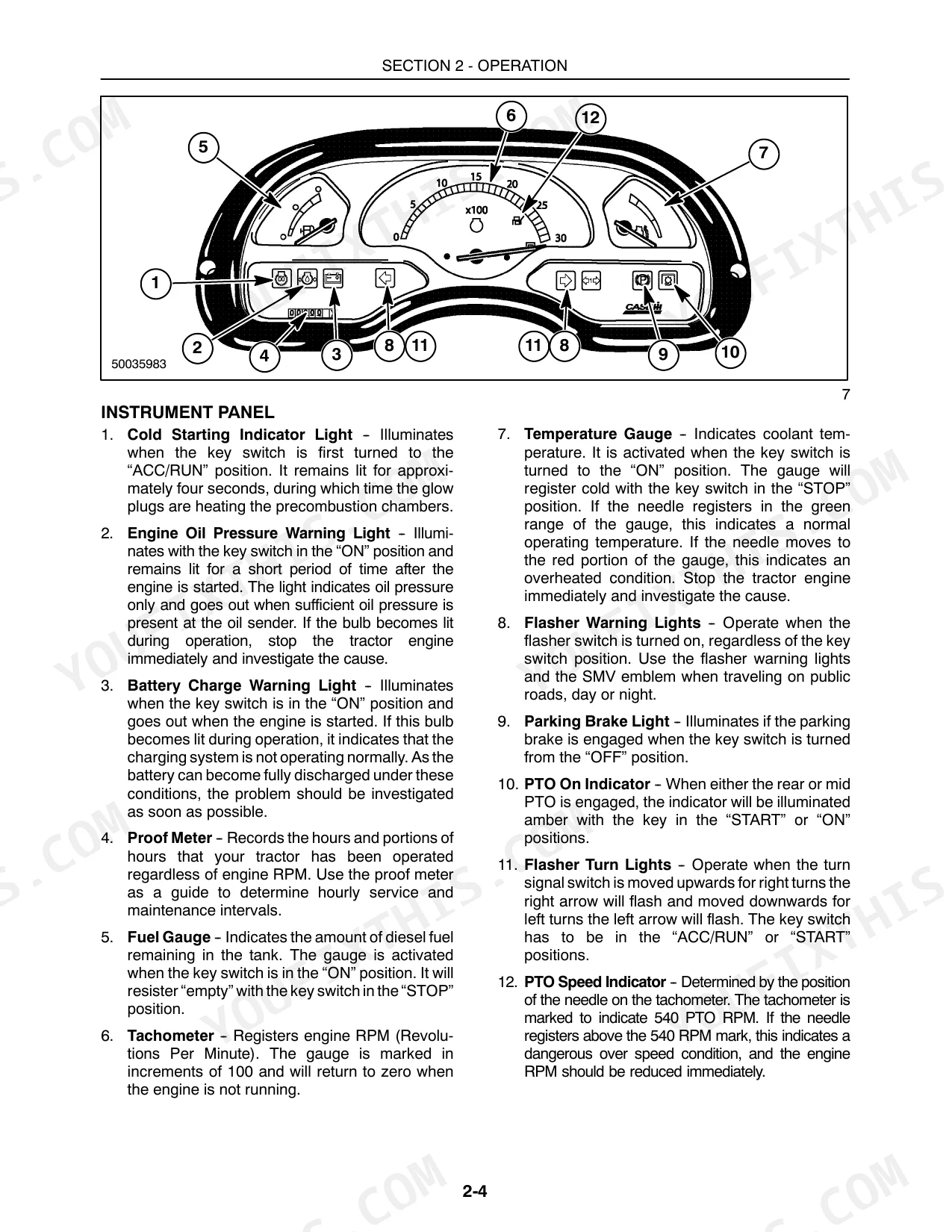

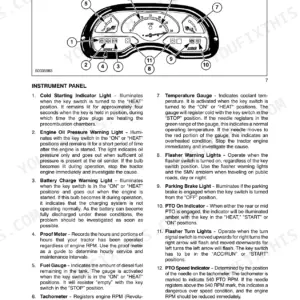

Manual Section: Fan Belt Inspection and AdjustmentWarning light on instrument panel lit at idle, engine oil pressure or temperature indicator active p. 25

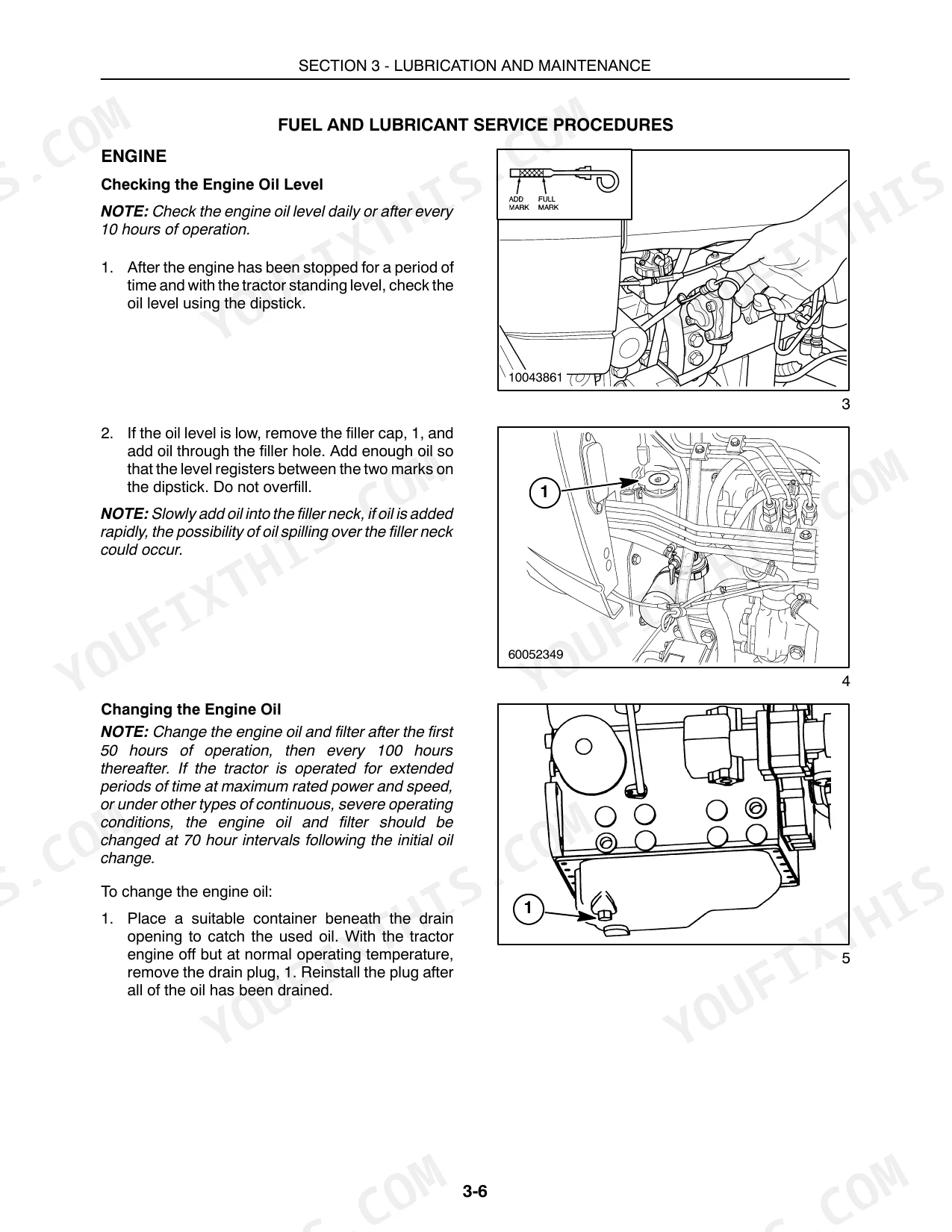

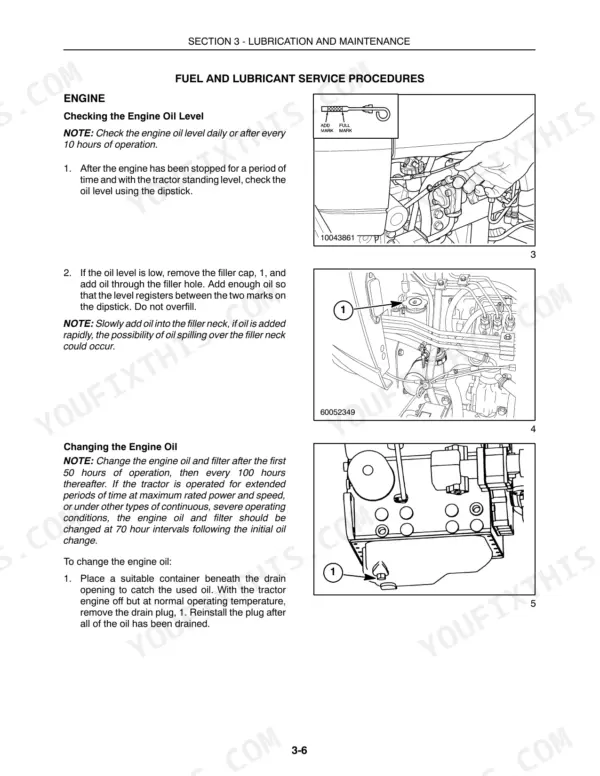

Stop the engine immediately. Check the warning light meaning on page 25 to identify the specific system affected. Verify engine oil level on the dipstick: total crankcase capacity with filter is 4.5 liters (4.8 U.S. qts.). Check coolant level at the reservoir. Do not restart until the oil level and coolant are confirmed correct and the cause is identified.
Manual Section: Instrument Panel Warning LightsFuel system air lock after running tank dry, engine cranks but won't fire p. 60
Fill the tank immediately (capacity: 27.6 liters / 7.3 U.S. gals.), then bleed the fuel system using the hand primer pump: work the primer until bubble-free fuel flows from the bleed screw, then retighten. Check the maintenance schedule on page 60 and replace the fuel filter if you are past the first 50 hours or every 200 operating hours thereafter.
Manual Section: Diesel FuelFrequently Asked Questions
What are the replacement specifications for Alternator?
The alternator specifications for both Model DX31 and DX34 are 12-volt, Heavy Duty, 40 amps. It operates with negative ground and has a 420 cca battery. The starting motor is Solenoid Pre-Engaged Reduction.
What are the replacement specifications for Hydraulic pump?
The hydraulic lift system for both Model DX31 and DX34 uses an Open Center type with a Gear pump. The pump capacity is 27 lpm (7.2 U.S. gpm), and the system relief valve setting is 147 bar (2133 PSI).
How do you fix case IH DX31/DX34 three-point hitch won't raise or lifts very slowly with a loaded implement?
Check the raise/lower rate control knob under the seat. It can be turned fully closed, locking the hitch. If the knob is open and the hitch still lifts slowly, replace the hydraulic filter on page 71: first change is due after 50 hours, then every 300 hours of operation. Verify hydraulic fluid level at the sight glass.
How do you fix engine won't start or turns over slowly in cold weather, clicking from the starter?
Check battery terminals for corrosion and tighten all connections. Verify safety interlocks are active: clutch pedal depressed and seat occupied before the starter will engage. The tractor runs a 12-volt system with a 40-amp alternator (page 107). If the battery won't hold charge after a cleaning, have it load-tested before operating again.
How will I receive this Case IH DX31, DX34, DX34 Tractors Operator Manual?
You get a 122-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Am I able to print pages from this manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.

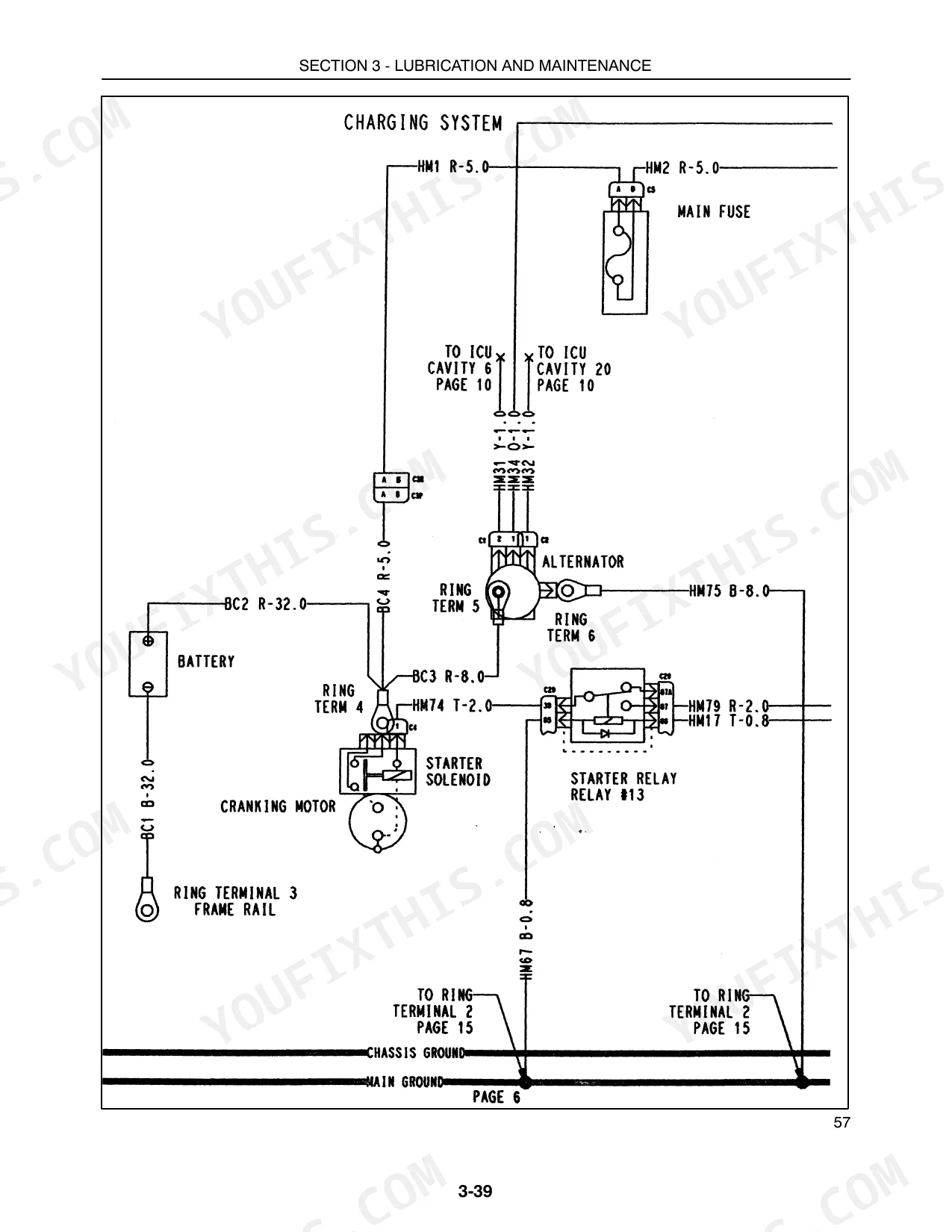

Does this manual have electrical diagrams?
Yes, this Case IH DX31, DX34, DX34 Tractors Operator Manual includes a wiring diagram for the electrical system.
