Here's the Case 585 Operator Manual PDF (OEM #9-11263): 182 pages built for the 585 Tractor and its Orchard and Vineyard variant, from first day of operation to long-term upkeep. You get a thorough safety section covering pre-start checks, field operation rules, and service hazards, plus a full instrument panel walkthrough explaining every warning lamp and dashboard control in plain language. Lubrication tables spell out the right oil grade for the engine and transmission hydraulic system, and the preventive maintenance chapter maps every service point, from 10-hour daily checks to 2-year intervals. When the clutch pedal lifts less than 1 inch (25.4 mm), your manual tells you exactly how to adjust the linkage and get back in the seat. Every hour your tractor sits idle costs you. Open on any device, jump straight to the section you need with full bookmarks, and get the job done.
What's Inside This Case IH 585 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| To the Owner | 2 | - |
| Serial Numbers | 3-4 | Tractor Model Number, Product Identification Number, Engine Serial Number, Transmission Serial Number, MFD Axle Serial Number, Cab Serial Number |
| Safety | 7-12 | - |
| Hand Signals | 13-14 | Start the Engine, Stop the Engine, Move Out, Come to Me, Raise Equipment, Decrease Speed |

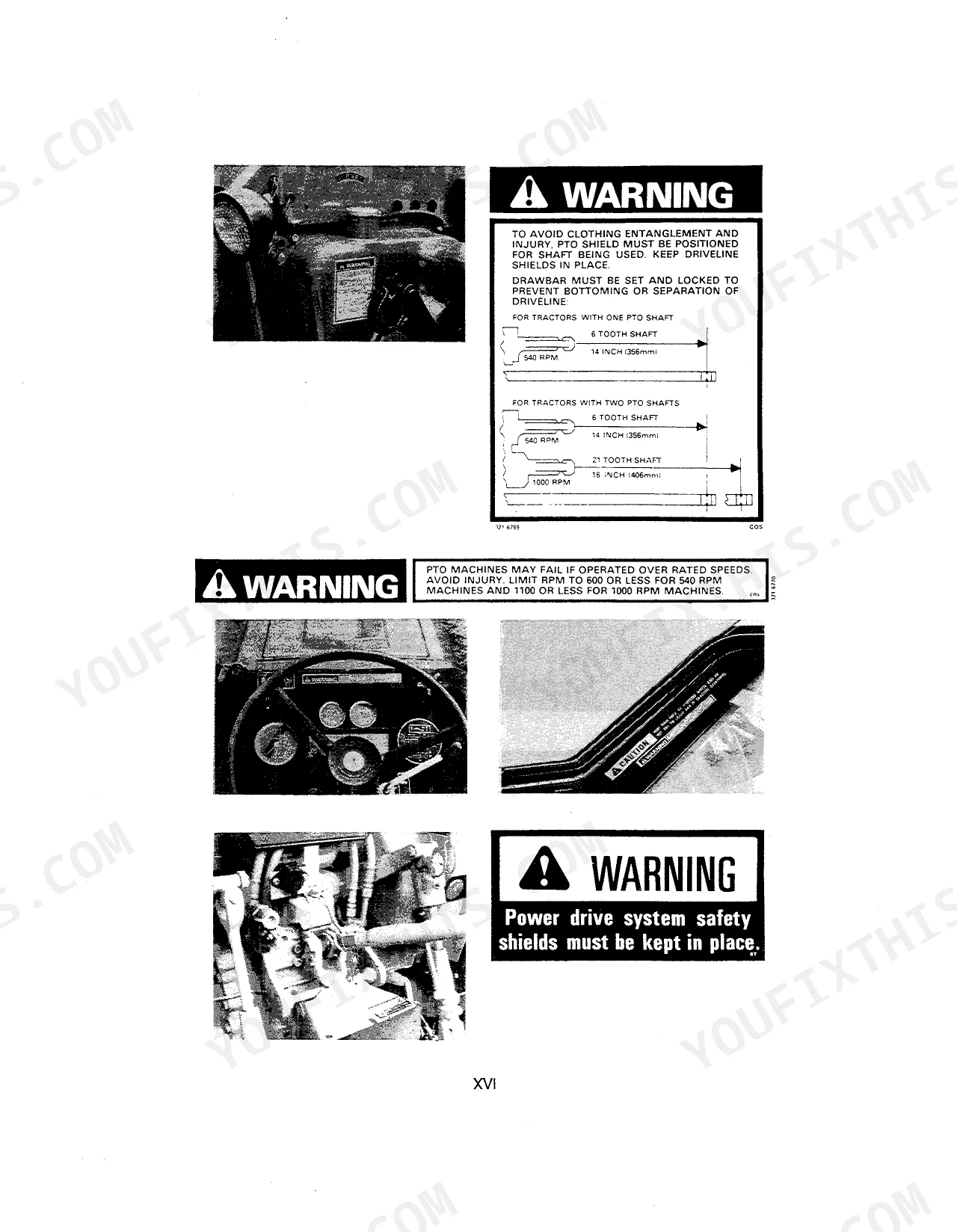

| Decals | 15-17 | Engine Start Warning, Booster Battery Connection, PTO Shield, Hydraulic System Pressure, Rim Bolt Torque, Overhead Power Lines |
| Specifications | 18-42 | Diesel Engine Specifications, Fuel System, Electrical System, Transmission, Brakes, Power Takeoff |
| Operating Controls | 43-64 | Instrument Panel, Warning Lamps, Engine Stop Control, Transmission Speed Lever, Differential Lock Pedal, Remote Hydraulic Control |

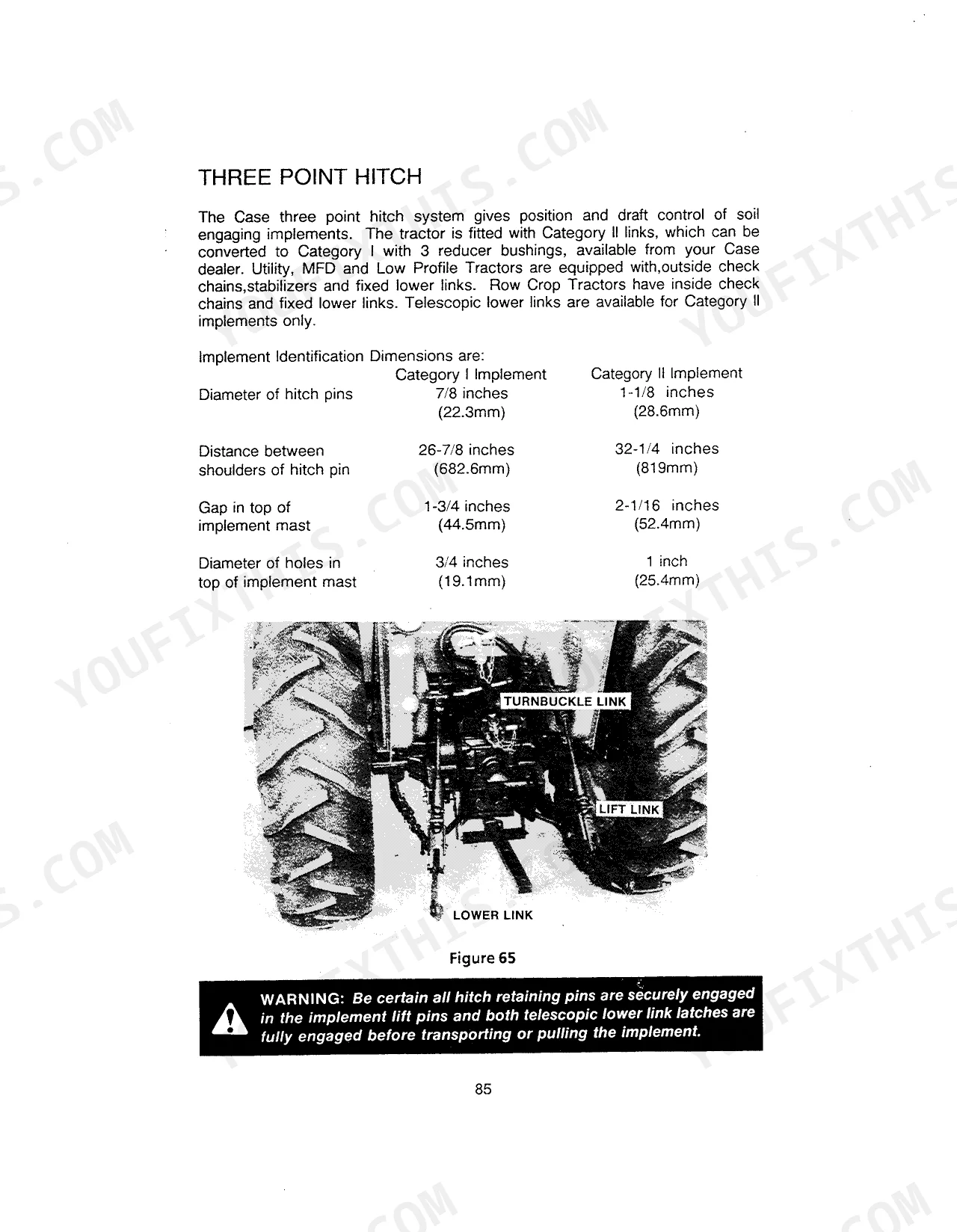

| Operating Instructions | 65-112 | Run-In Procedure, Before Starting Engine, Normal Starting Procedure, Driving the Tractor, Stopping the Tractor, Hitch System Control |

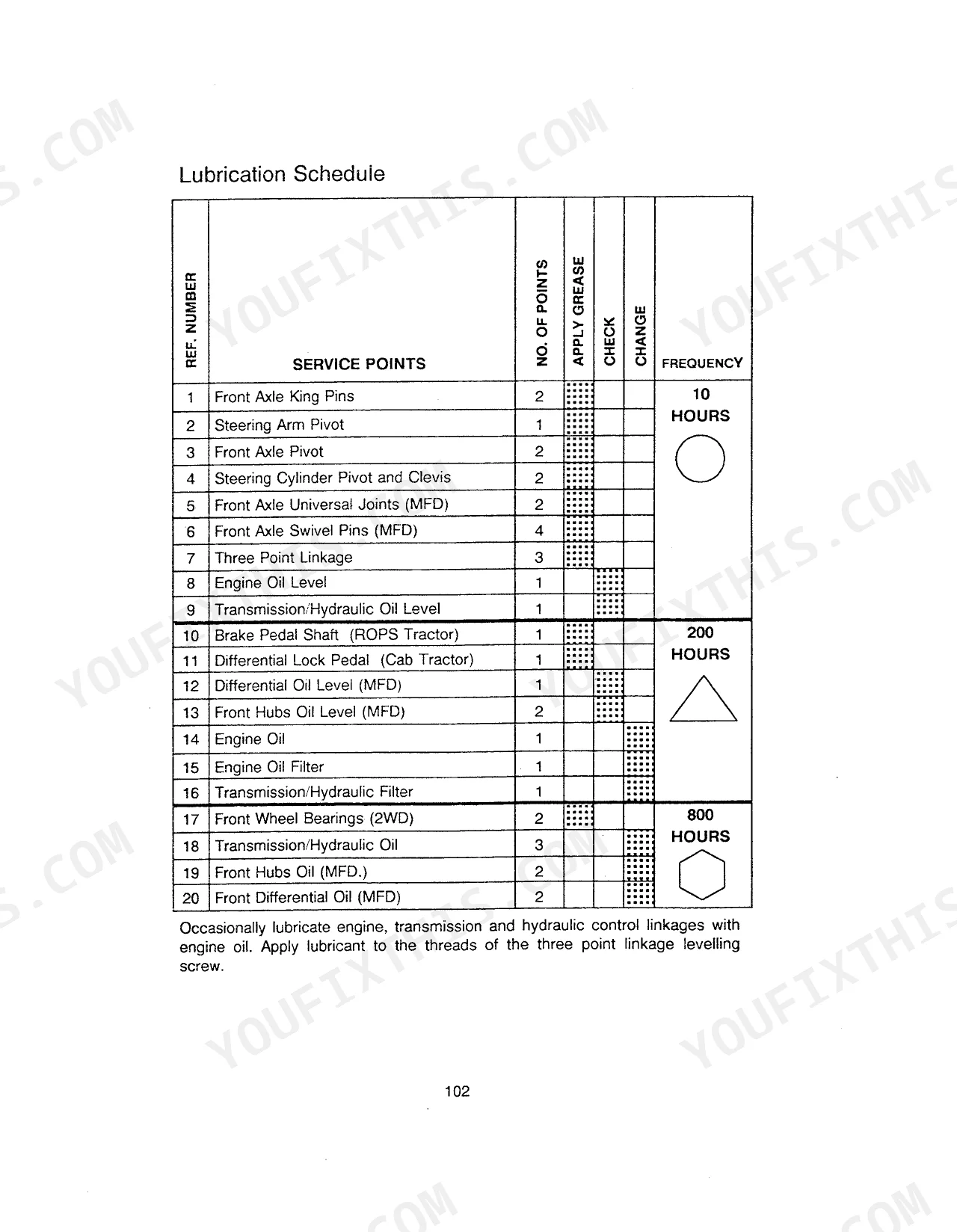

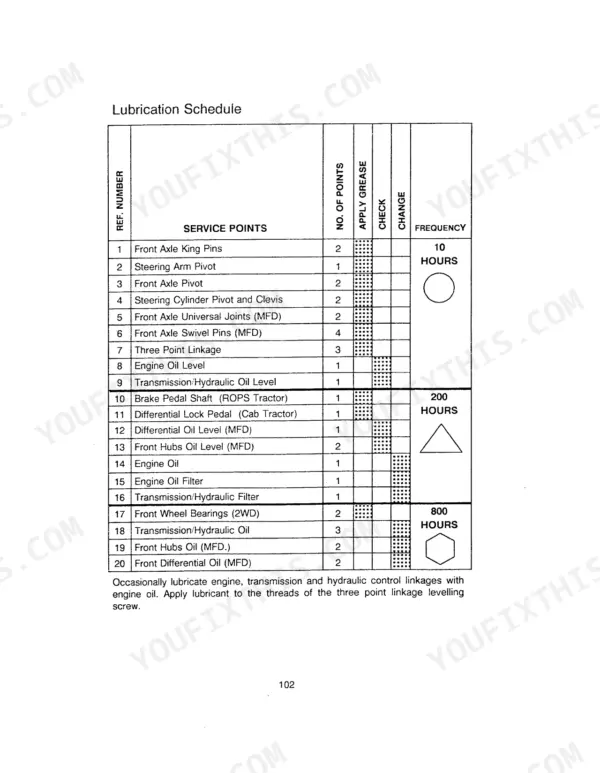

| Lubrication | 113-130 | Hourmeter, Engine Oil Selection, Transmission and Hydraulic System Fluid, Grease Points, Lubrication Schedule, Engine Oil Change |
| Preventive Maintenance | 131-176 | Hood, Front Grille and Side Covers, Removing the Hood, First Service, Routine Servicing Schedule, Routine Service Every 10 Hours, Routine Service Every 2 Years |
| Orchard and Vineyard Tractor | 177-179 | Specifications, Approximate Dimensions, Travel Speeds |
| Notes | 180-182 | - |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Clutch pedal lift (minimum before adjustment) | 1 inch (25.4 mm) | p. 142 |
Case IH 585 Common Problems This Manual Covers
Case 585 tractor won't start or cranks slowly in cold weather p. 113
Check battery electrolyte level and clean any corrosion from terminals; see pages 117-118 for battery maintenance procedure. Verify fuel shutoff is fully open and fuel filter is not clogged. Confirm glow plug or cold-start aid is activated before cranking. If engine cranks but won't fire, check fuel system for air using the bleed procedure in the Fuel System section.
Manual Section: LubricationBrakes feel firm after bleeding but go soft again after tractor sits a few days p. 131
Check brake fluid reservoir level before each use; any drop indicates internal leakage. Inspect master cylinder area and wheel ends for fluid seepage. Adjust pedal height using the procedure on pages 138-139 to verify travel is within spec. If brakes continue bleeding off, have seals inspected by a qualified technician before next operation.
Manual Section: Preventive MaintenanceHydraulic oil running hot, bucket lifting slowly or steering feels heavy p. 119
Check hydraulic oil level at the sight glass before startup. Inspect the hydraulic oil cooler mounted in front of the radiator for mud, chaff, or debris packed against the core; blow it out with compressed air from the engine side. Verify radiator fins are also clear. Check transmission and hydraulic system fluid per the service schedule on page 119 and confirm the correct fluid type is in use.
Manual Section: LubricationClutch slips under load, engine revs up but tractor doesn't move p. 142
Test clutch free travel by lifting the clutch pedal with your hand. If pedal movement is less than 1 inch (25.4 mm) before resistance, the linkage needs adjustment; refer to the clutch adjustment procedure in Preventive Maintenance. Do not continue heavy field work with a slipping clutch. Check page 142 spec and adjust linkage to restore full free play before returning to operation.
Manual Section: Preventive MaintenanceCoolant loss or overheating, antifreeze smell after engine warms up p. 131
Check coolant level in radiator when engine is cold; never open the cap on a hot engine. Drain and flush the cooling system every two years using the procedure on pages 134-136. Refill with the antifreeze type and mixture specified in that section. Inspect hose clamps and radiator cap seal for deterioration. Persistent coolant loss on D239 engines warrants inspection by a mechanic before the next operating day.
Manual Section: Preventive MaintenanceEngine oil pressure warning lamp stays on at idle or flickers during operation p. 43
Stop the engine immediately if the oil pressure lamp stays lit while running. Check oil level on the dipstick; refill to the full mark if low, using oil grade specified in the Lubrication section. Review the warning lamp descriptions on pages 43-64 to confirm which indicator is active. Change engine oil and filter if the interval on page 119 is overdue, then recheck pressure at idle before resuming work.
Manual Section: Operating ControlsFrequently Asked Questions
What are the torque specs for Case 585 rear axle bolts?
For the rear wheels, the rim bolts should be torqued to 110 to 160 lb ft (149 to 217 Nm), and the hub nuts to 205 to 220 lb ft (278 to 298 Nm). Additionally, the ROPS mounting bolts to the rear axle carrier have specific torque steps: A - 75 to 85 lb ft (101 to 115 Nm), B - 150 lb ft (203 Nm), and C - 175 to 200 lb ft (237 to 271 Nm). Recheck torque to 175 to 200 lb ft (237 to 271 Nm) if necessary.
How do you fix case 585 tractor won't start or cranks slowly in cold weather?
Check battery electrolyte level and clean any corrosion from terminals; see pages 117-118 for battery maintenance procedure. Verify fuel shutoff is fully open and fuel filter is not clogged. Confirm glow plug or cold-start aid is activated before cranking. If engine cranks but won't fire, check fuel system for air using the bleed procedure in the Fuel System section.
How do you fix brakes feel firm after bleeding but go soft again after tractor sits a few days?
Check brake fluid reservoir level before each use; any drop indicates internal leakage. Inspect master cylinder area and wheel ends for fluid seepage. Adjust pedal height using the procedure on pages 138-139 to verify travel is within spec. If brakes continue bleeding off, have seals inspected by a qualified technician before next operation.
How do you fix hydraulic oil running hot, bucket lifting slowly or steering feels heavy?
Check hydraulic oil level at the sight glass before startup. Inspect the hydraulic oil cooler mounted in front of the radiator for mud, chaff, or debris packed against the core; blow it out with compressed air from the engine side. Verify radiator fins are also clear. Check transmission and hydraulic system fluid per the service schedule on page 119 and confirm the correct fluid type is in use.
Is this Case 585 Operator Manual a digital download?
You get a 182-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print this Case 585 manual?
The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
