Part of the Case IH Operator Manuals.
Need the exact dashboard layouts and maintenance intervals for your machine? This 257-page Case IH Farmall 75C Operator Manual PDF (OEM #84131301) breaks down every control, fluid capacity, and daily routine for the Farmall 65C, 75C, 85C, and 95C tractors. Inside, you get complete operating procedures covering everything from the electronically controlled MFD to the three-point linkage. Open to the maintenance section for a full schedule of service intervals, detailed fuse and relay diagrams, and troubleshooting charts designed to keep you out of the repair bay. Swap out the primary fuel filter every 500 to 600 hours, and remember to limit your low-temperature starting attempts to 15 seconds when the grid heater kicks on at -10 °C. A blinking warning light shouldn't stall your workday. Download this bookmarked file, pull it up on your phone right in the cab, and get back to the field.
What's Inside This Case IH Farmall 65–95 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Farmall 65C, Farmall 75C, Farmall 85C, Farmall 95C Tractors Operator's Manual | 1 | Farmall 65C, Farmall 75C, Farmall 85C, Farmall 95C Tractors |
| To the Owner | 1 | Model, Product Identification Number, Safety Alert Symbol, Protective Shielding, Improvements |
| Improvements | 2 | - |
| Federal Emissions Warranty | 6 | Warranty Period, Emission Control System Parts, Electronic Control Unit, Fuel Injection Pump, Turbocharger, Exhaust Manifold |
| California Emission Control Warranty Statement | 7-9 | Warranty Rights and Obligations, Manufacturer's Warranty Coverage, Owner's Warranty Responsibilities, Electronic Control Unit, Charge Air Cooler, Warranty Limitations |

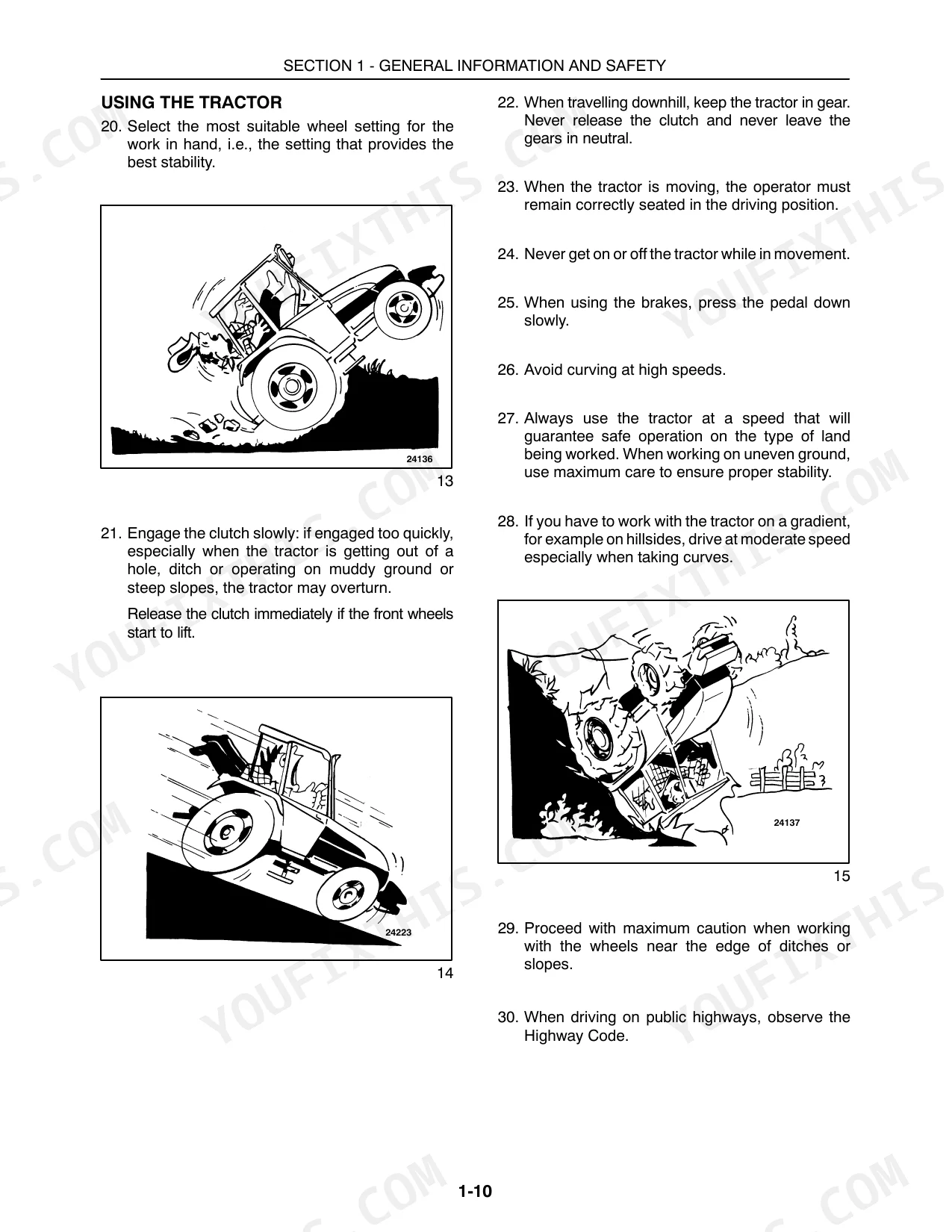

| General Information and Safety | 10-35 | Tractor Identification Plates, Important Ecological Considerations, Precautionary Statements, Working Safely, Safety Covers and Guards, Fold-Down Roll Bar, Safety Decals |

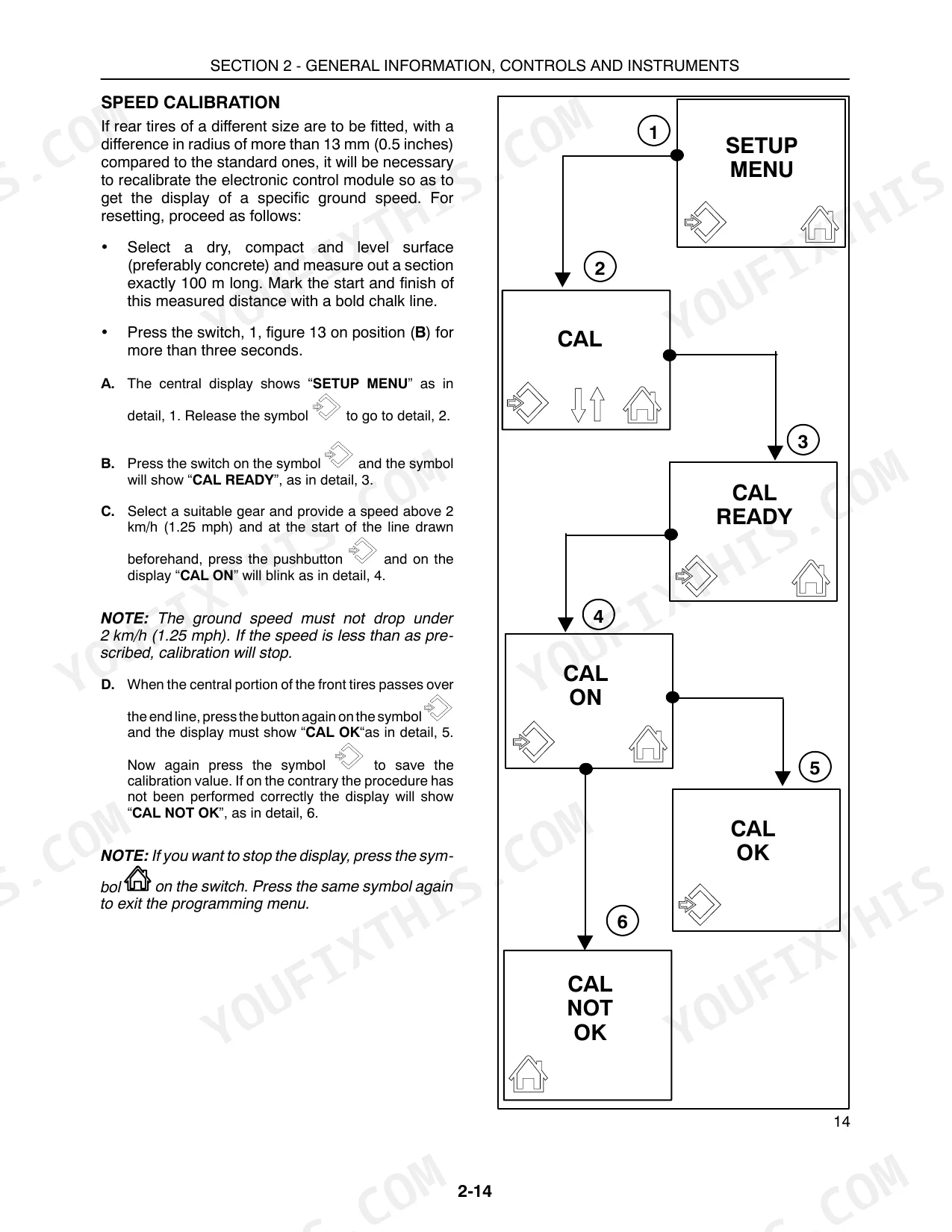

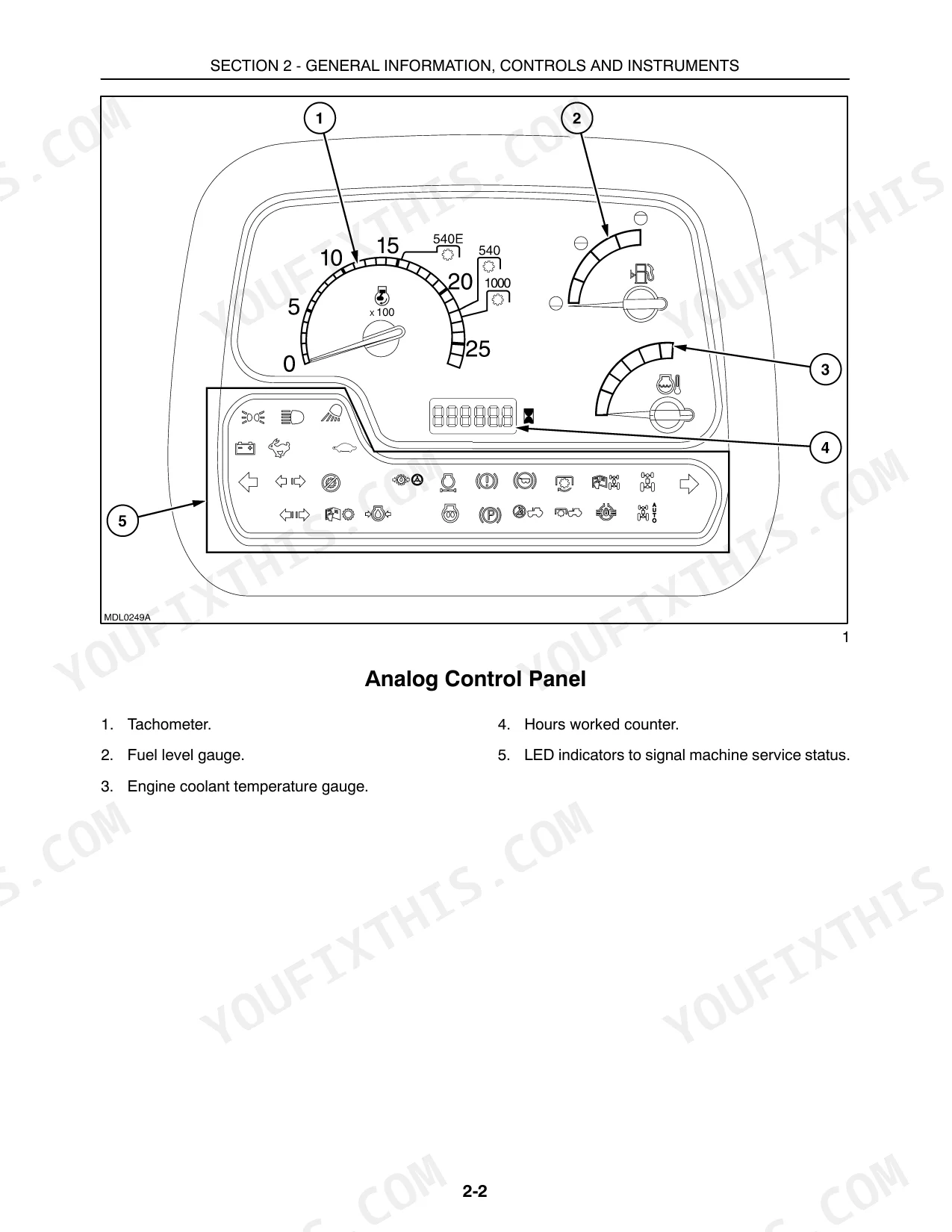

| General Information, Controls and Instruments | 36-95 | Introduction, Analog Control Panel, Analog Panel Indicators, Operation Indicator Light Panel, Operating Controls, Seat Adjustment, Steering Wheel Adjustment, Cab |
| Field Operation | 96-149 | Starting and Stopping, Brakes, Mechanical MFD, Electronically Controlled MFD, Differential Lock, Lim-Slip Front Differential Lock |
| Lubrication and Maintenance | 150-223 | Tractor Refuelling, Access for Inspection and Maintenance, Lubrication and Maintenance Table, Flexible Maintenance |

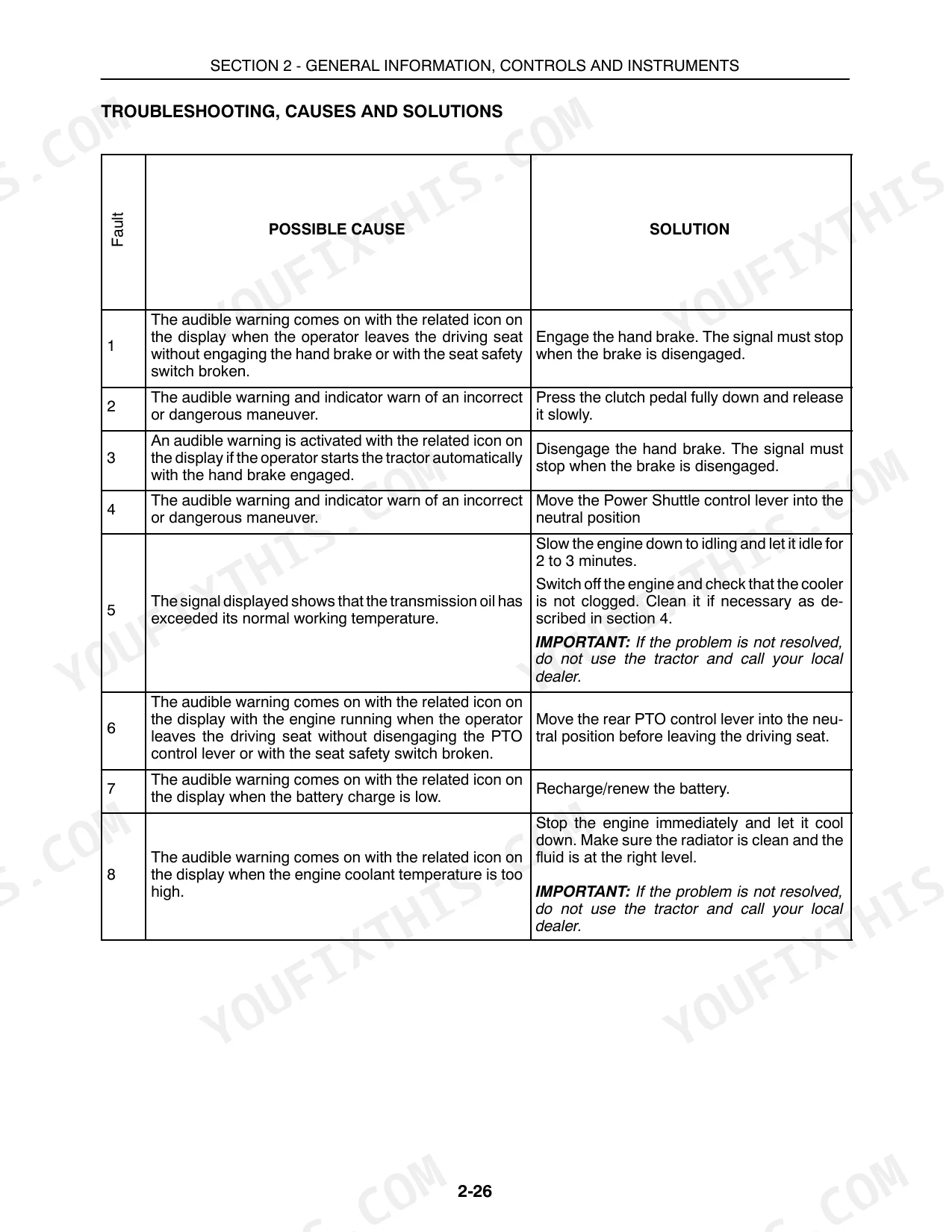

| Troubleshooting | 224-231 | Engine, Electrical System, Hydraulic System, Hydraulic Lift, Three Point Linkage, Brakes, Cab |
| Prolonged Tractor Inactivity | 232-233 | Engine Oil, External Air Filter Cartridge, Engine Cooling System, Water / Fleetguard Compleat Fluid, Battery, Operating Cylinder Rods, Fuel Tank, Diesel Fuel |
| Accessories | 234-237 | Towing Equipment, Joystick Control |

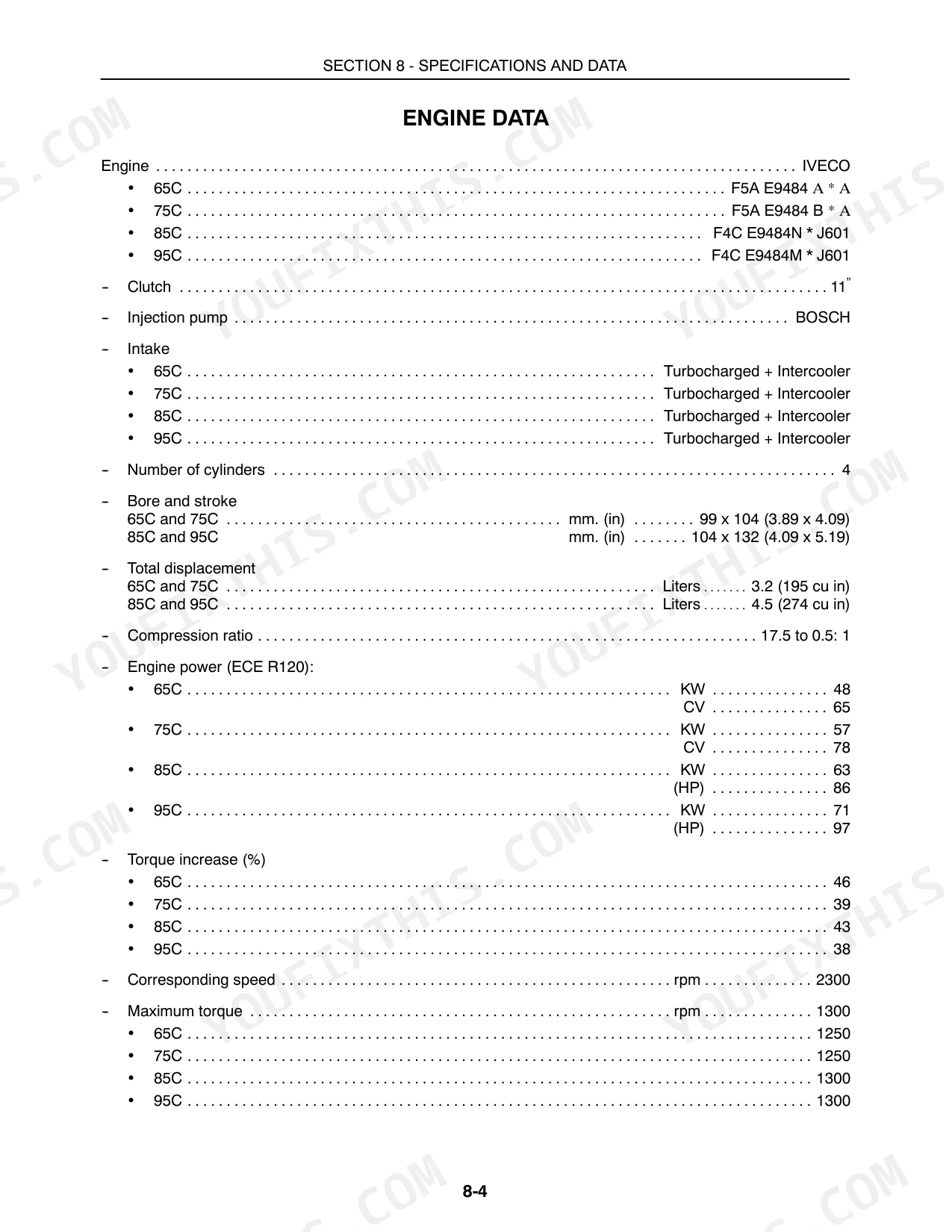

| Specifications and Data | 238-247 | Engine Data |
| First 50 - Hour Service | 248-251 | Inspections and/or Operations to Be Carried Out, Index |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Fuel filter replacement interval | Every 500/600 Hours of Work | p. 179 |
| Fuel filter tightening torque (after replacement) | by hand by 3/4 of a turn | p. 180 |
| Grid heater activation temperature | -10 °C (14 °F) | p. 97 |
| Maximum duration for a single starting attempt (low temperature) | 15 seconds | p. 97 |
| Federal Emissions Warranty Period | 5 years or 3,000 hours | p. 6 |
| Engine Sump Oil Level (between MIN and MAX marks) | 3 liters (0.79 US gal) | p. 168 |
| Engine Number of Cylinders | 4 | p. 241 |
| Farmall 65C, Farmall 75C | ||
| Fuel Tank Capacity | 75 liters (19.8 US gal.) | p. 152 |
| Farmall 85C, Farmall 95C | ||
| Fuel Tank Capacity | 88 liters (23.2 US gal.) | p. 152 |
| models without cab | ||
| Cooling System Capacity (less cab) | 14.0 L (3.69 gal) | p. 221 |
| 2WD models | ||
| 2WD Front Wheel Hub Nut Torque | 115 N⋅m (85 ft-lbs) | p. 163 |
| MFD models | ||
| MFD Front Axle Hub Disk Nuts Torque | 255 Nm (188 ft-lbs) | p. 163 |
Case IH Farmall 65–95 Common Problems This Manual Covers
Case IH Farmall 65C engine won't start or shuts down immediately below -5°C p. 97
Check the grid heater activation spec on page 97; it engages automatically at -10°C (14°F) to preheat intake air. Limit each starting attempt to 15 seconds, or 30 seconds if the engine fires but stalls, and wait at least one minute between attempts before trying again.
Manual Section: Field OperationDifficult to unclip the electric sensor wire when replacing primary fuel filter water separator p. 179
Depress the wire clip release tab fully before pulling the connector straight off the sensor; twisting it can snap the tab. Replace the primary fuel filter with water separator every 500/600 hours of work as scheduled on page 179, and tighten the new filter by hand three-quarters of a turn only.
Manual Section: Lubrication and MaintenancePriming bulb needs hundreds of pump strokes to clear air after fuel filter change p. 180
After fitting a new filter, tighten it by hand three-quarters of a turn as specified on page 180, then bleed the system in the correct order. Open the bleed screw, work the priming bulb until fuel runs free of bubbles, close the screw, and repeat at the next bleed point before cranking the engine.
Manual Section: Lubrication and MaintenanceWarning light flashes on the instrument panel during operation with unclear meaning to operator
Check the indicator meaning table to match the light's color and pattern to its cause, ranging from operator presence to parking brake status. Confirm the seat switch is engaged and the parking brake is fully set; if the light points to charging voltage, verify the battery voltage against the 12V electrical system rating.
Manual Section: General Information, Controls and InstrumentsDigital instrument panel displays an unfamiliar fault code shortly after startup
Look up the code on the digital instrument fault code list, which covers sensors for engine speed, coolant temperature, fuel level, and transmission speed among others. Note the exact code shown, cycle the key off for at least one minute, then restart; if the code returns, check the referenced sensor's wiring connector.
Manual Section: General Information, Controls and InstrumentsFrequently Asked Questions
What does error code 12 on a Case IH Farmall 85C mean and how do I clear it?
Error code 12, listed as a "U CODE" for Electrohydraulic Transmissions on page 219, indicates an issue with the "Engine cut-out electromagnet." The manual states that if any trouble occurs, the control unit saves the fault and keeps it in memory until normal operation is restored. For such issues, it is necessary to contact the CASE IH service network for resolution.
How do I reset the engine overheating warning on a Case IH Farmall 95C?
To address an engine overheating warning, indicated by the engine coolant temperature gauge entering the red area, you should first slow the engine to idling speed without stopping it. If the warning light persists, the cooling system needs to be checked. Make sure the radiator is clean and the fluid is at the right level; if the problem is not resolved, do not use the tractor and call your local dealer.
How do you fix case IH Farmall 65C engine won't start or shuts down immediately below -5°C?
Check the grid heater activation spec on page 97; it engages automatically at -10°C (14°F) to preheat intake air. Limit each starting attempt to 15 seconds, or 30 seconds if the engine fires but stalls, and wait at least one minute between attempts before trying again.
How do you fix difficult to unclip the electric sensor wire when replacing primary fuel filter water separator?
Depress the wire clip release tab fully before pulling the connector straight off the sensor; twisting it can snap the tab. Replace the primary fuel filter with water separator every 500/600 hours of work as scheduled on page 179, and tighten the new filter by hand three-quarters of a turn only.
How will I receive this Case IH Farmall 65C & variants Operator Manual?
You get a 257-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Are there any print restrictions on this Case IH Farmall 65C & variants manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
