What's Inside This Case IH MAXXFARM35 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| General Notices for Safety | 6-23 | Before Using the Tractor |
| Instruction for Safe Operation | 24-30 | Name of Each Part, Boarding and Exiting the Tractor (Driver's Seat, Seat Adjustment, Tilt Steering Wheel, Seat Belt), Safety Device |

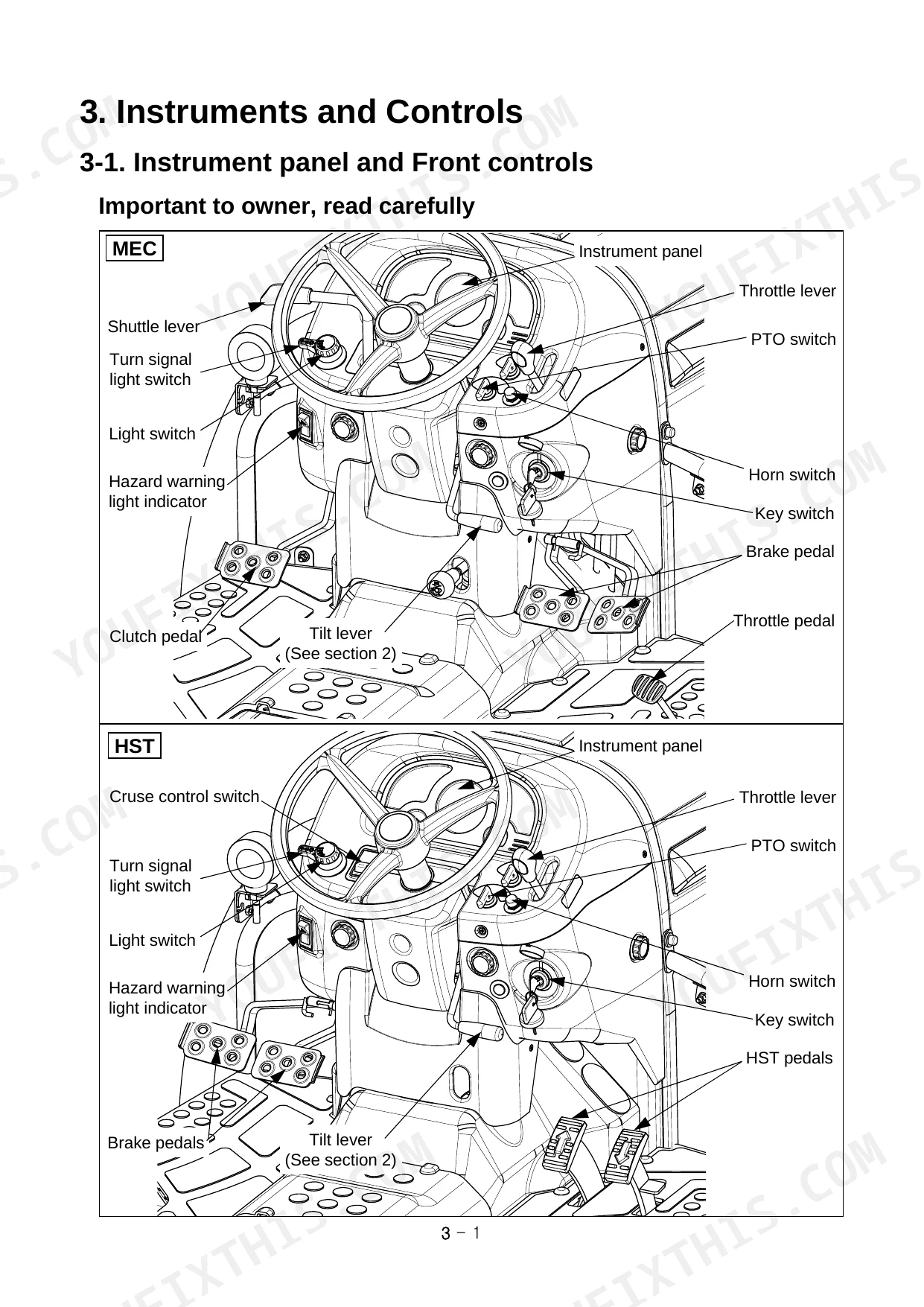

| Instruments and Controls | 31-52 | Instrument Panel, Key Switch, PTO Switch, Brake Pedals, Differential Lock Pedal, Hydraulic Lift Control |

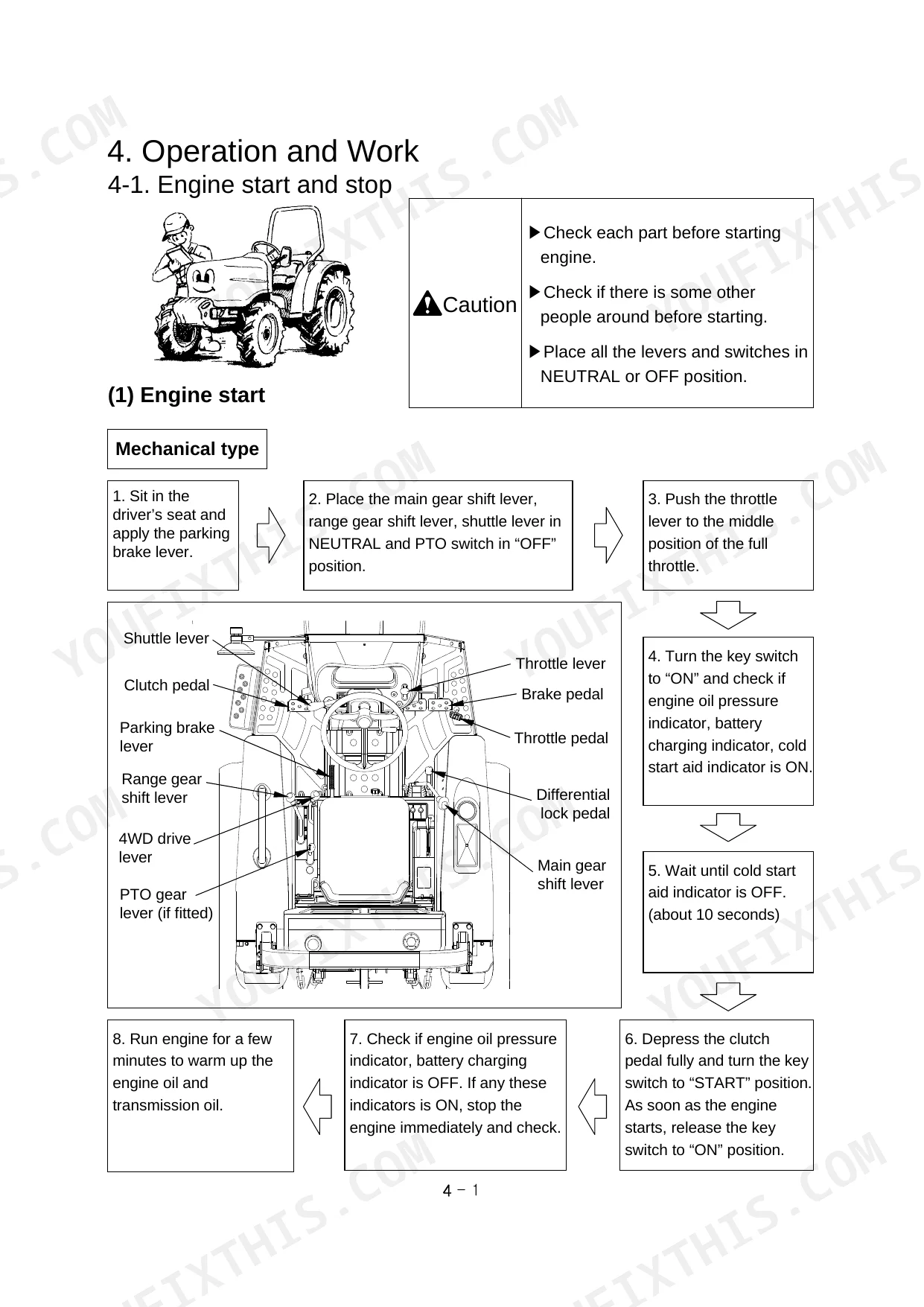

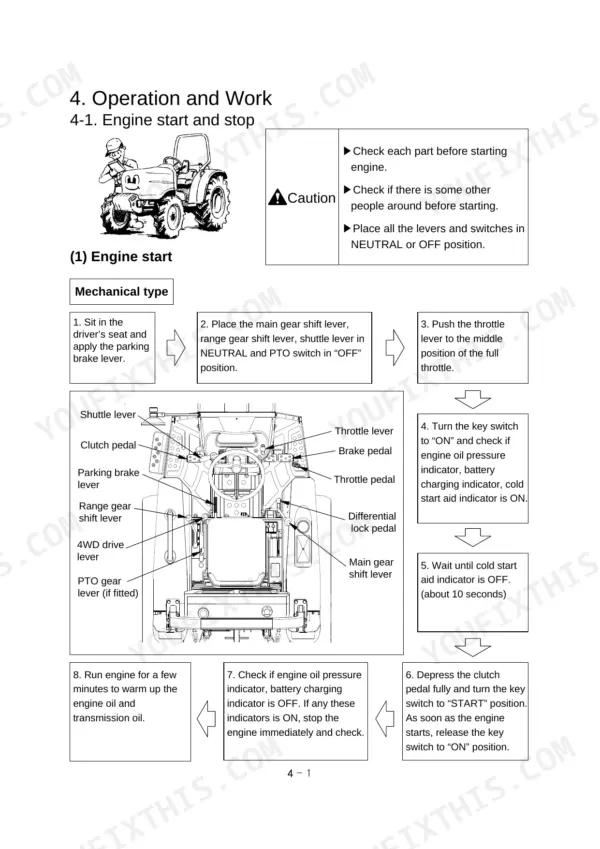

| Operation and Work | 53-78 | Engine Start and Stop, How to Drive and How to Stop, Attaching Implement, Power Take-Off (PTO) Shaft, Adjusting Wheel Tracks, Driving Speed |
| Lubrication and Maintenance | 79-114 | Maintenance Table, Lubricants and Capacity, Engine Oil, Air Cleaner, Replacing Hydraulic Oil Filter, Troubleshooting |
| Dimension and Specification | 115-121 | Weight, Engine, Transmission, Hydraulic Lift, Steering System, Tire |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Fuse capacity for Engine stop, Alternator | 10A | p. 103 |
| Engine Oil Capacity | 4.5 L (1.2 U.S.gals.) | p. 83 |
| Transmission Oil Capacity | 30 L (7.9 U.S.gals.) | p. 83 |
| Front Axle Oil Capacity | 5.5 L (1.5 U.S.gals.) | p. 83 |
| Engine Valve Clearance | 0.25mm (0.0098 inch) | p. 101 |
| Nozzle Injection Pressure | 13.7 MPa (1991psi) | p. 101 |
| Clutch Pedal Play | 20~30mm (0.79~1.18 in.) | p. 90 |
| Brake Pedal Play | 50~60mm (1.97~2.36 in.) | p. 92 |
| Engine Oil Drain Plug Torque | 40±5 N.m (29.5±5 lbs-ft) | p. 95 |
| Main Fuse Capacity | 50A | p. 104 |
| Hydraulic Lift System Pressure | 16.7MPa (2422psi) | p. 117 |
| Engine Rated Power | 28.3kW | p. 116 |
Case IH MAXXFARM35 Common Problems This Manual Covers
Case IH MAXXFARM35 warning light flashing on dashboard right after startup p. 31
Check the operator controls layout on page 31 to identify which indicator is lit. Verify battery connections are tight and confirm the main fuse rated at 50A on page 104 hasn't blown. If the light stays on, inspect the wiring at the corresponding sensor connector for corrosion or looseness.
Manual Section: Instruments and ControlsEngine won't start or cranks slowly in cold morning conditions p. 109
Check the troubleshooting procedures on page 109 for no-start conditions. Verify fuel level and battery charge, and confirm engine oil is filled to 4.5 L (1.2 U.S. gals.) as listed on page 83. Inspect glow plug operation and check the 10A fuse for the engine stop circuit on page 103.
Manual Section: Lubrication and MaintenanceHydraulic lift arms move slower than normal during fieldwork p. 109

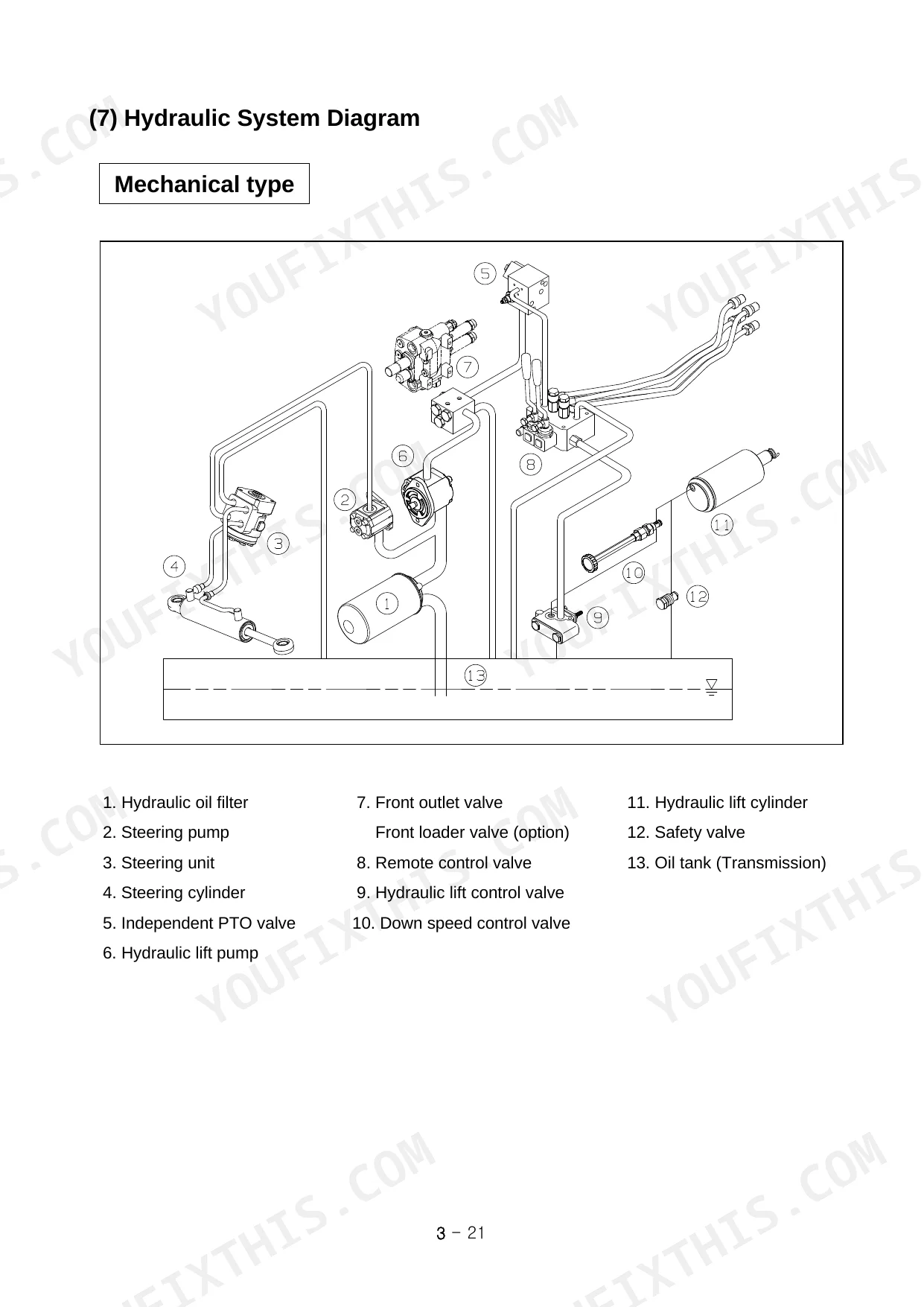

Check the troubleshooting procedures on page 109 for lift linkage movement issues. Verify hydraulic oil level and confirm system pressure reaches 16.7 MPa (2422 psi) as specified on page 117. Inspect the oil filter for clogging and follow the fluid change interval on the maintenance schedule, page 81.
Manual Section: Lubrication and MaintenanceBrake pedal feels spongy with excessive free play before engagement p. 92
Measure brake pedal free play with a ruler; correct travel is 50~60mm (1.97~2.36 in.) as specified on page 92. If play falls outside that range, adjust the brake linkage rod accordingly. Check brake fluid level and bleed the lines if the pedal still feels soft after adjustment.
Manual Section: Lubrication and MaintenanceBattery keeps draining overnight even when tractor is parked p. 118
Check the battery capacity rating of 80AH listed on page 118 and test terminal voltage with a multimeter. Inspect cable connections for looseness or corrosion, and verify the main fuse rated at 50A on page 104 is intact. Disconnect any aftermarket accessories that may draw current with the key off.
Manual Section: Dimension and SpecificationClutch pedal engages too high or too low compared to normal p. 90
Measure clutch pedal free play; it should read 20~30mm (0.79~1.18 in.) as specified on page 90. If play is outside this range, turn the clutch linkage adjusting nut until correct. Check the maintenance schedule on page 81 for inspection intervals and confirm the linkage isn't stretched or worn.
Manual Section: Lubrication and MaintenanceFrequently Asked Questions
What are the recommended service intervals?

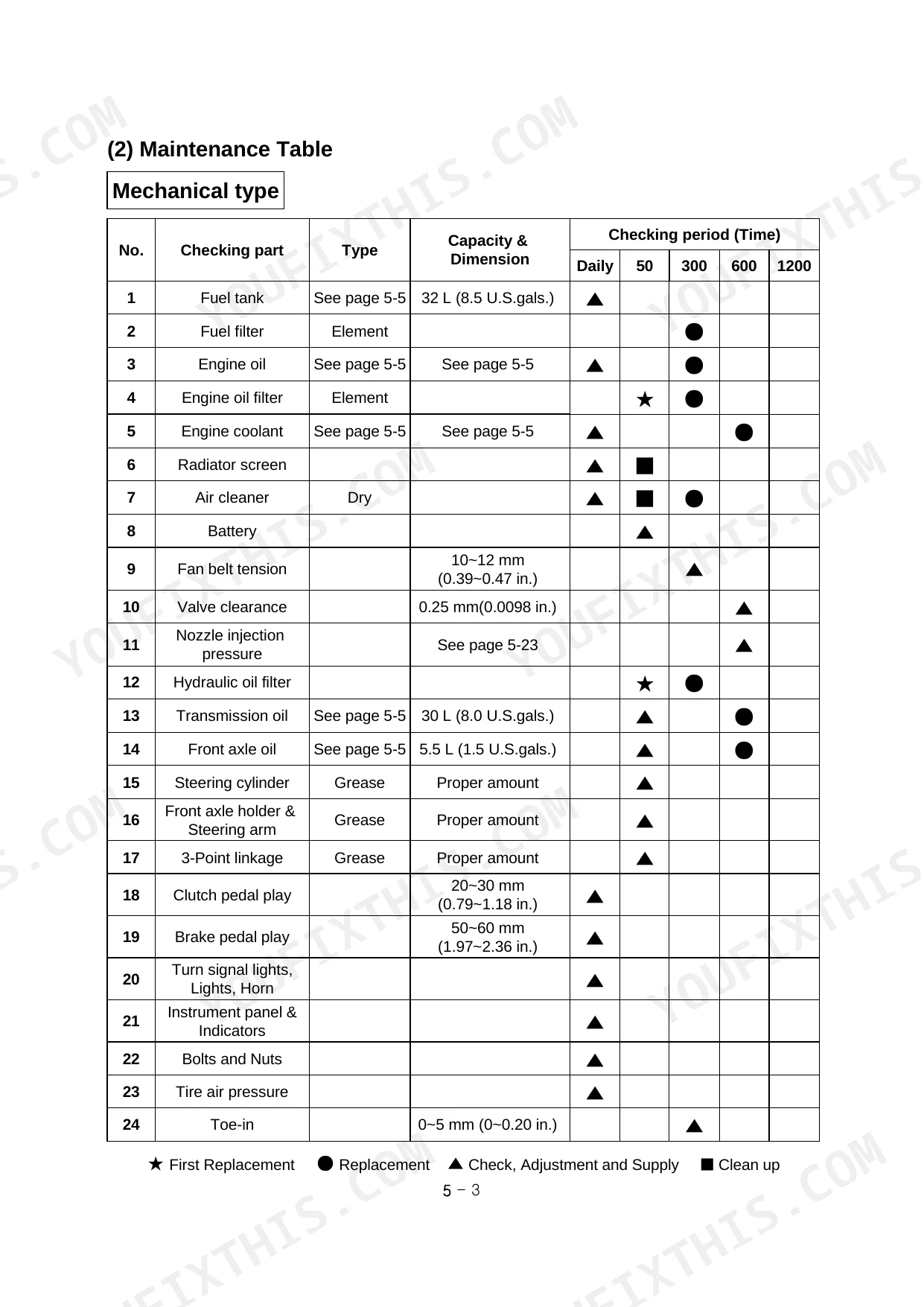

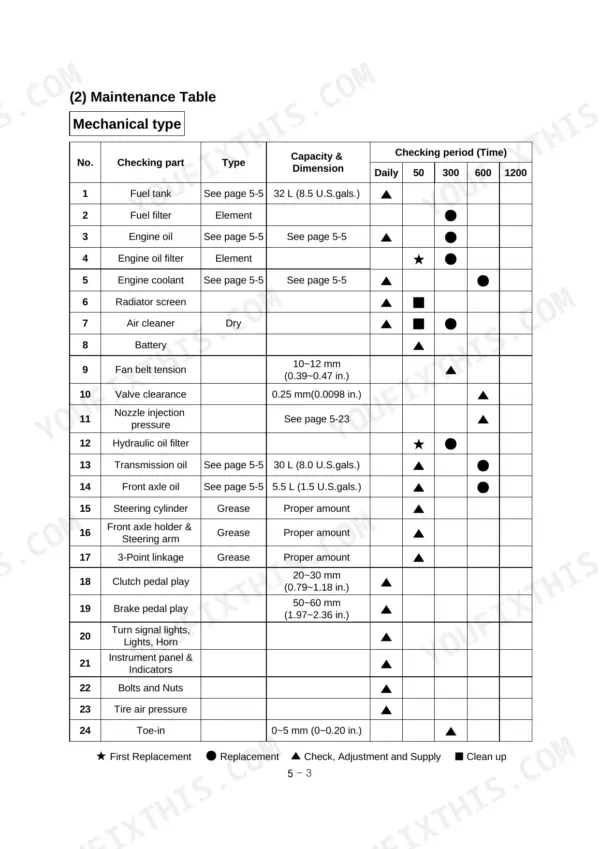

The manual provides a detailed maintenance table outlining recommended service intervals for various parts of the tractor. These intervals include daily checks, and checks every 50, 300, 600, and 1200 hours of operation. For example, engine oil replacement is recommended at 300 hours, while checking the fuel tank is a daily task.
What fluids and capacities does this machine require?
The tractor requires specific fluids with defined capacities. The engine coolant (radiator) capacity is 4.9 L (1.3 U.S. gals.) using Soft water (50%) + Anti-freeze (50%). The fuel tank capacity is 32 L (8.5 U.S. gals.) for Low Sulfuric Diesel Fuel. The engine oil (crankcase) capacity is 4.5 L (1.2 U.S. gals.), transmission oil is 30 L (7.9 U.S. gals.), and front axle oil is 5.5 L (1.5 U.S. gals.).
How to troubleshoot engine won't start?

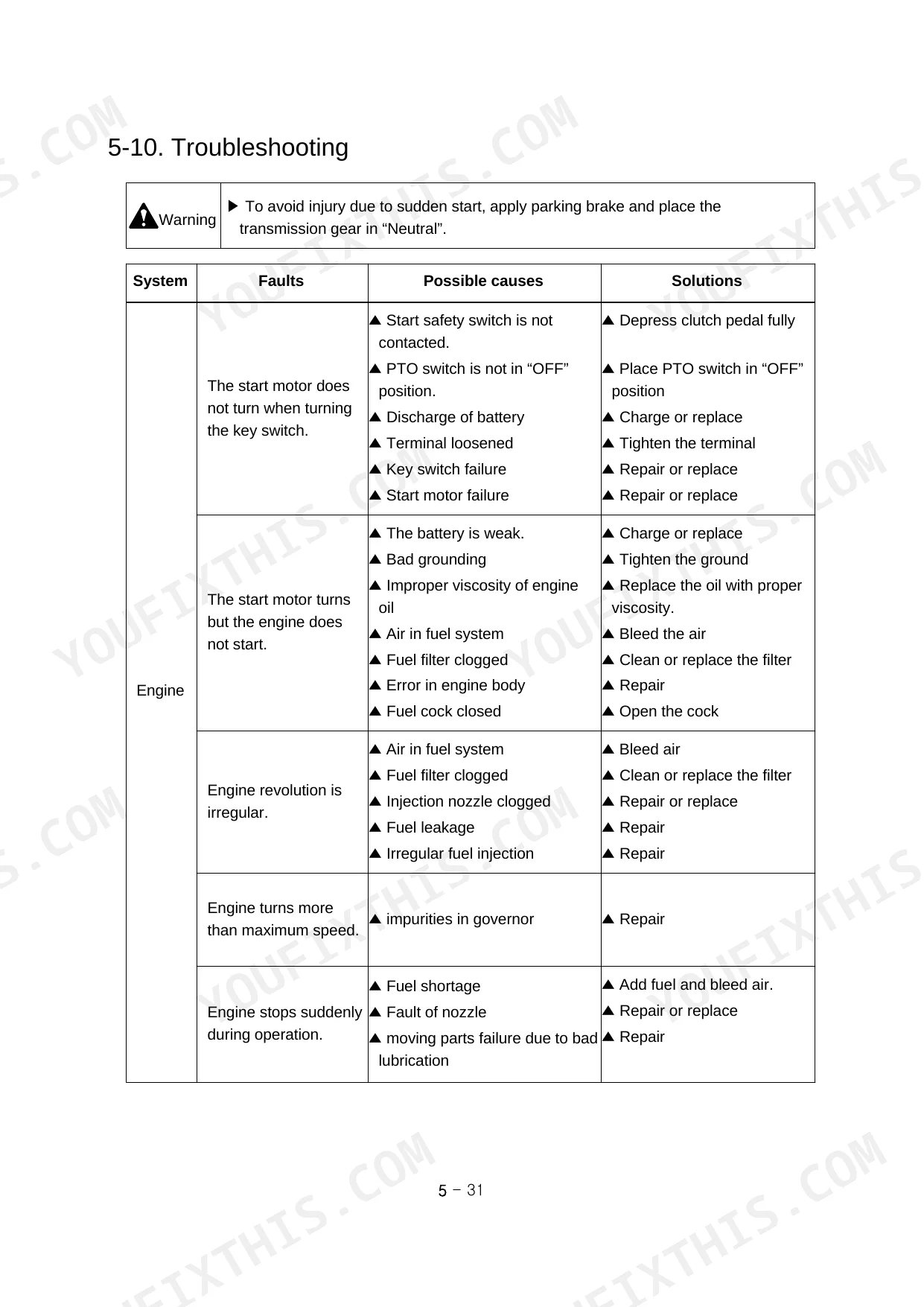

If the engine won't start, troubleshoot based on whether the start motor turns. If the start motor does not turn, possible causes include the start safety switch not being contacted, the PTO switch not in "OFF" position, a discharged battery, loose terminals, or key switch/start motor failure. Solutions involve depressing the clutch pedal fully, placing the PTO switch in "OFF", charging/replacing the battery, tightening terminals, or repairing components. If the start motor turns but the engine doesn't start, check for a weak battery, bad grounding, improper engine oil viscosity, air in the fuel system, clogged fuel filter, engine body error, or a closed fuel cock. Solutions include charging/replacing the battery, tightening ground, replacing oil, bleeding air, cleaning/replacing the fuel filter, repairing, or opening the fuel cock.
What are the valve clearance specifications?
The engine valve clearance specification is 0.25 mm (0.0098 inch). If the gap is too large, it can increase noise, and if too small, it may reduce engine power. It is recommended to ask an authorized dealer to check and adjust the valve clearance.
What torque specifications are listed?
The manual specifies a tightening torque for the engine oil drain plugs. The recommended torque is 40±5 N.m (29.5±5 lbs-ft). Other parts like exhaust manifold bolts, safety cab/frame mounting bolts, front end weight clamp bolts, and wheel bolts/nuts are listed for checking their torque, but no specific values are provided for them.
What do I get after purchasing this Case IH MAXXFARM35 manual?
Instant PDF download. You get the full 121-page searchable Operator Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
