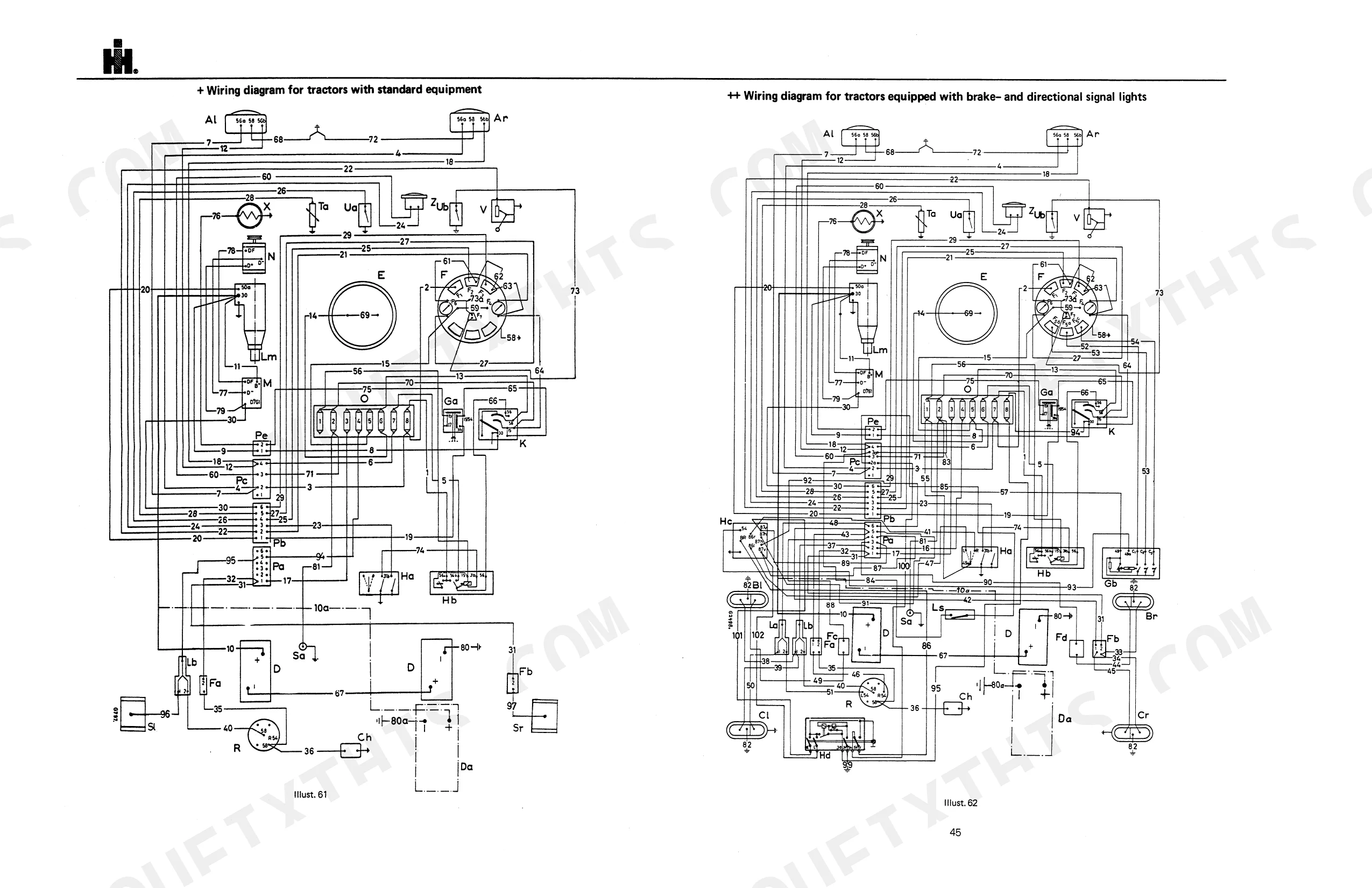

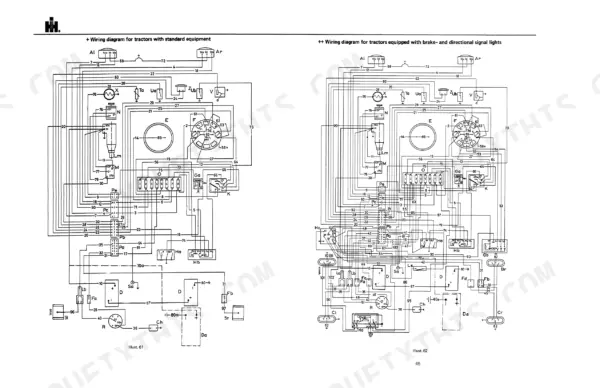

Sitting on the seat of your Case IH 624, 724, or 824 and not sure what that warning lamp means? This 58-page Operator Manual (OEM #1090316R1) decodes every instrument, control, and daily service check for all three diesel tractors. Inside: the full instruments and controls section, a wiring diagram with circuit key, the engine service chart with maintenance intervals, lubrication guide, PTO and three-point hitch operation, and a troubleshooting section diagnosing mechanical problems and probable causes. Set intake valve clearance at .010 in. on a warm engine, then check fan belt depression at 3/4 to 1 inch midway between the generator and crankshaft. Every hour your tractor sits idle costs money. Bookmarked by section so you jump straight to the answer; pull it up on tablet or phone right in the field.
What's Inside This Case IH 624/724/824 Operator Manual
| System | Pages | Key Topics |
|---|---|---|

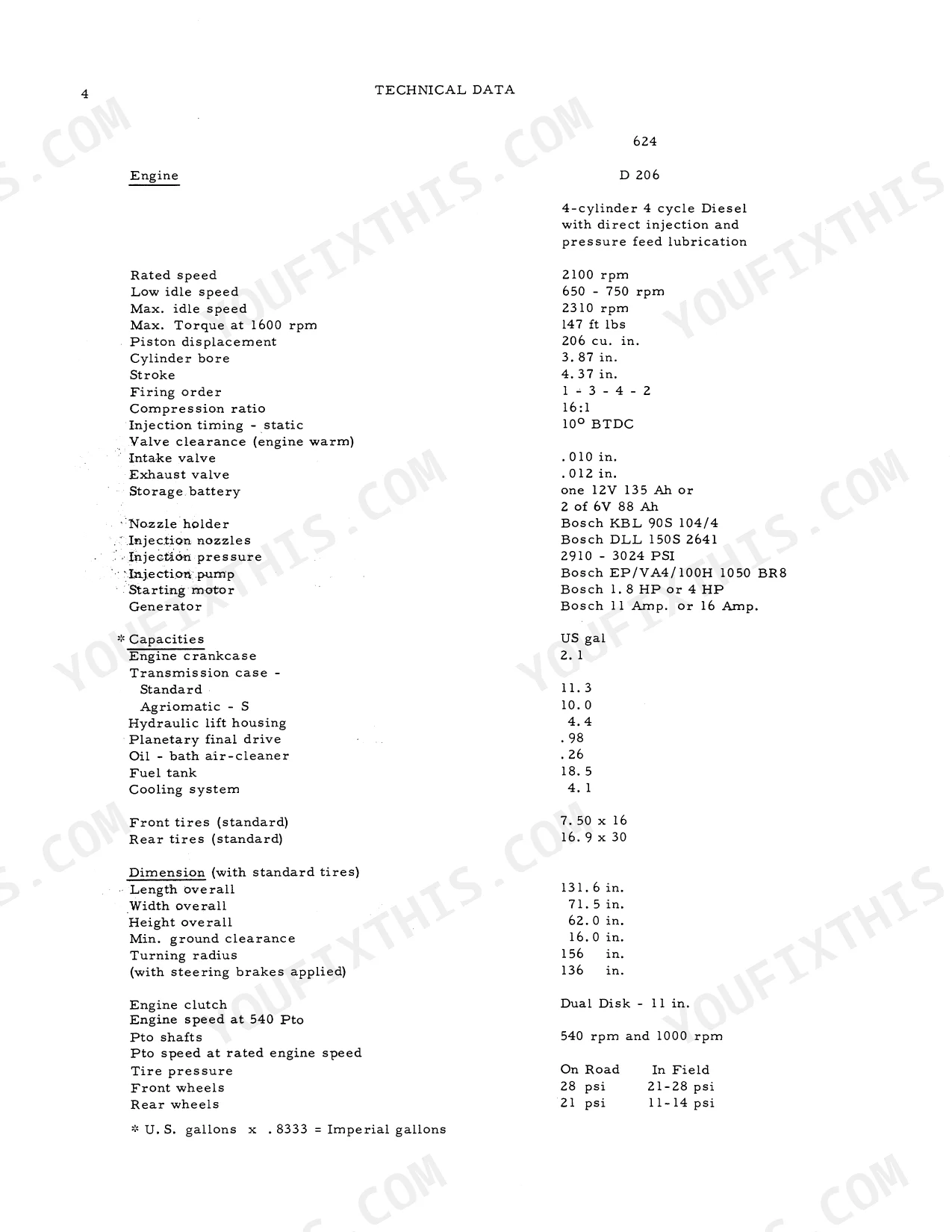

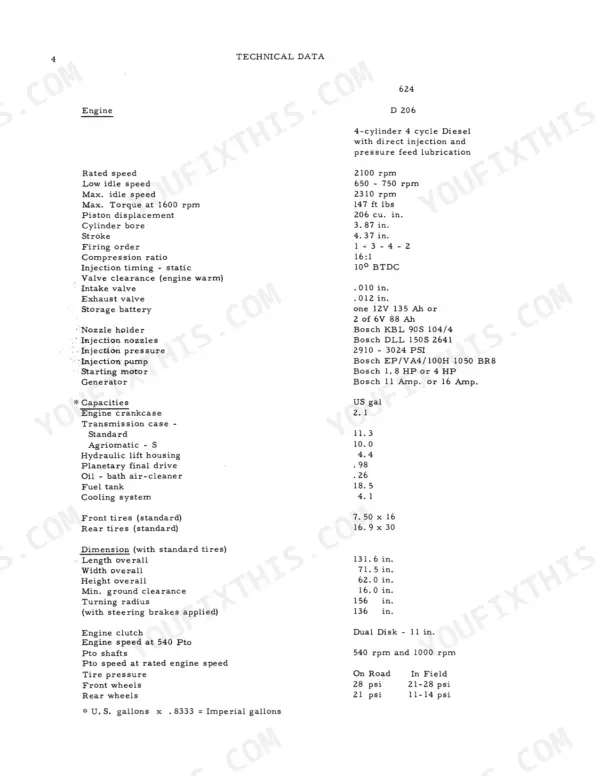

| Technical Data | 6-9 | Engine, Capacities, Dimension, Engine Clutch, PTO Shafts, Tire Pressure |

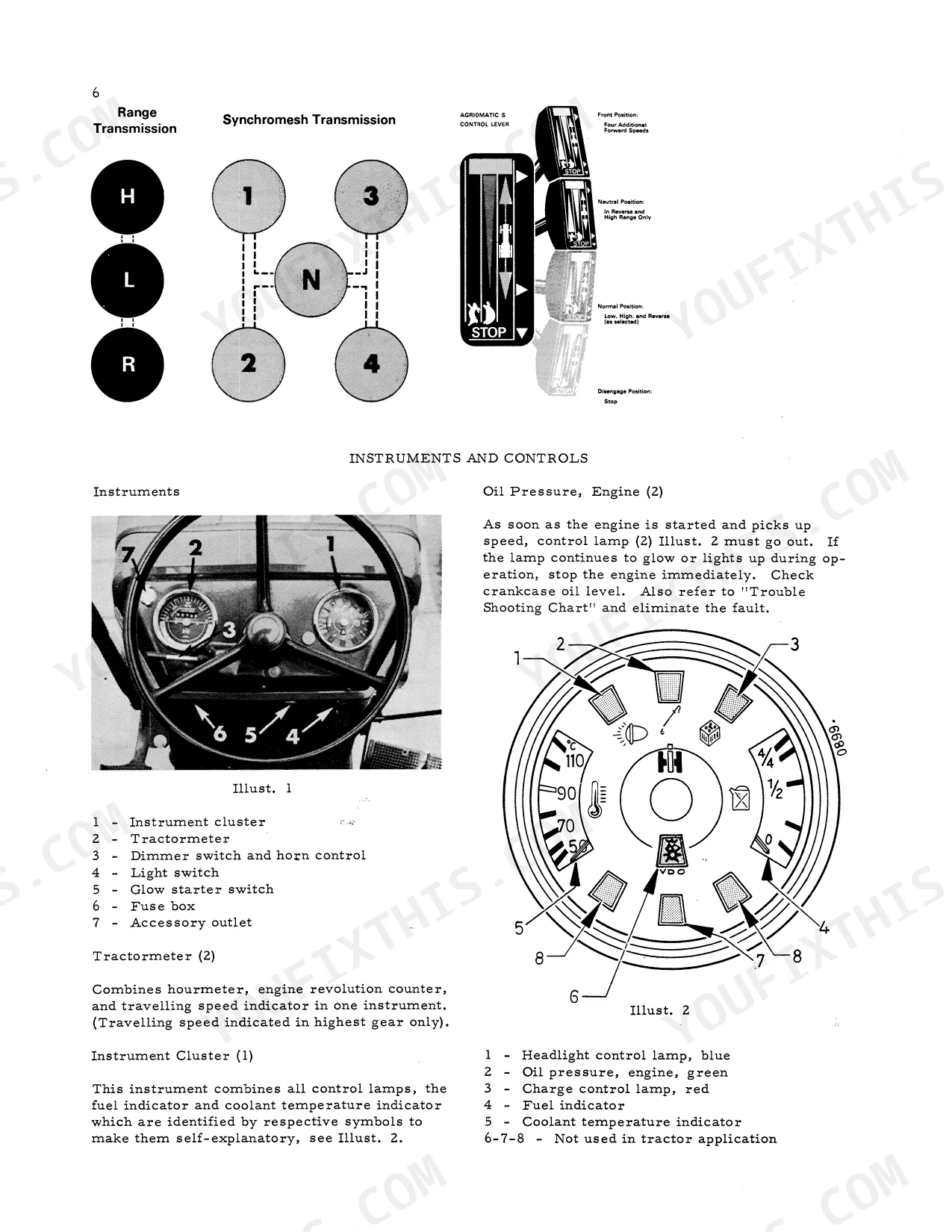

| Instruments and Controls | 10-12 | Oil Pressure, Engine, Instrument Cluster, Tractormeter, Light Switch, Gear Shifting |
| Operating the Tractor | 13-17 | Running-In Period, Preparing for Each Day's Work, Starting the Engine, Engine Speed Control, Operator's Seat, Towing the Tractor |
| General Instructions and Precautions | 18 | - |
| Safety Rules | 19 | - |

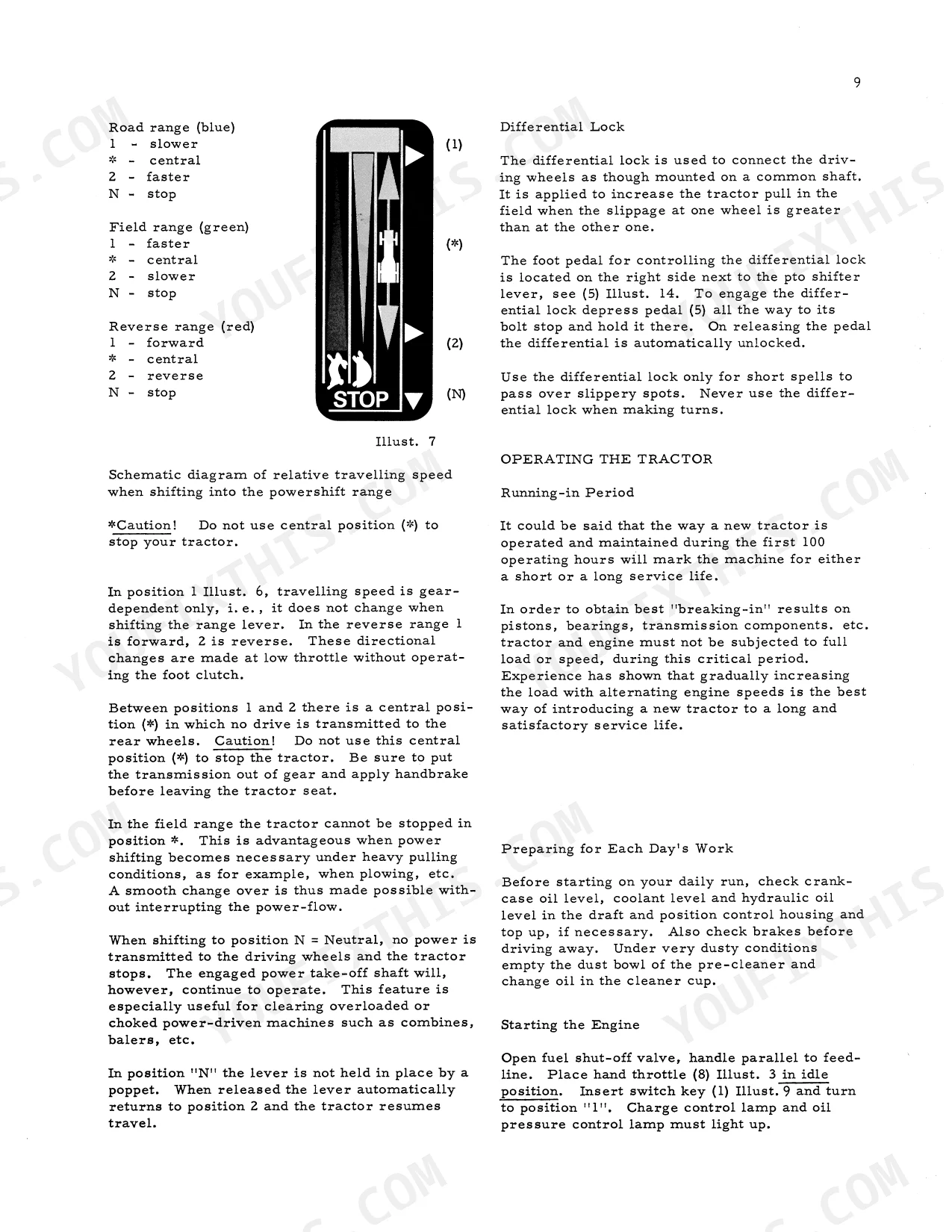

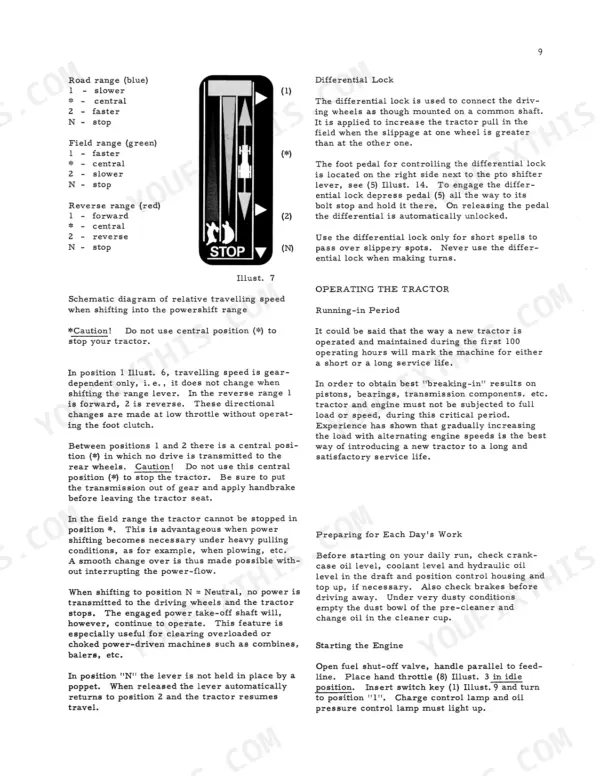

| Power Take-Off, Hydraulics and Hitches | 20-22 | Power Take-Off, Independent PTO, PTO Clutch Hand Lever, Three-Point Suspension Hitch, Draft and Position Control, Block-Mounted Control Valves |
| Operating | 23-26 | Tillage Implements (Draft Control), Position Control, Lowering Speed, Float Position, Hitching Plows |

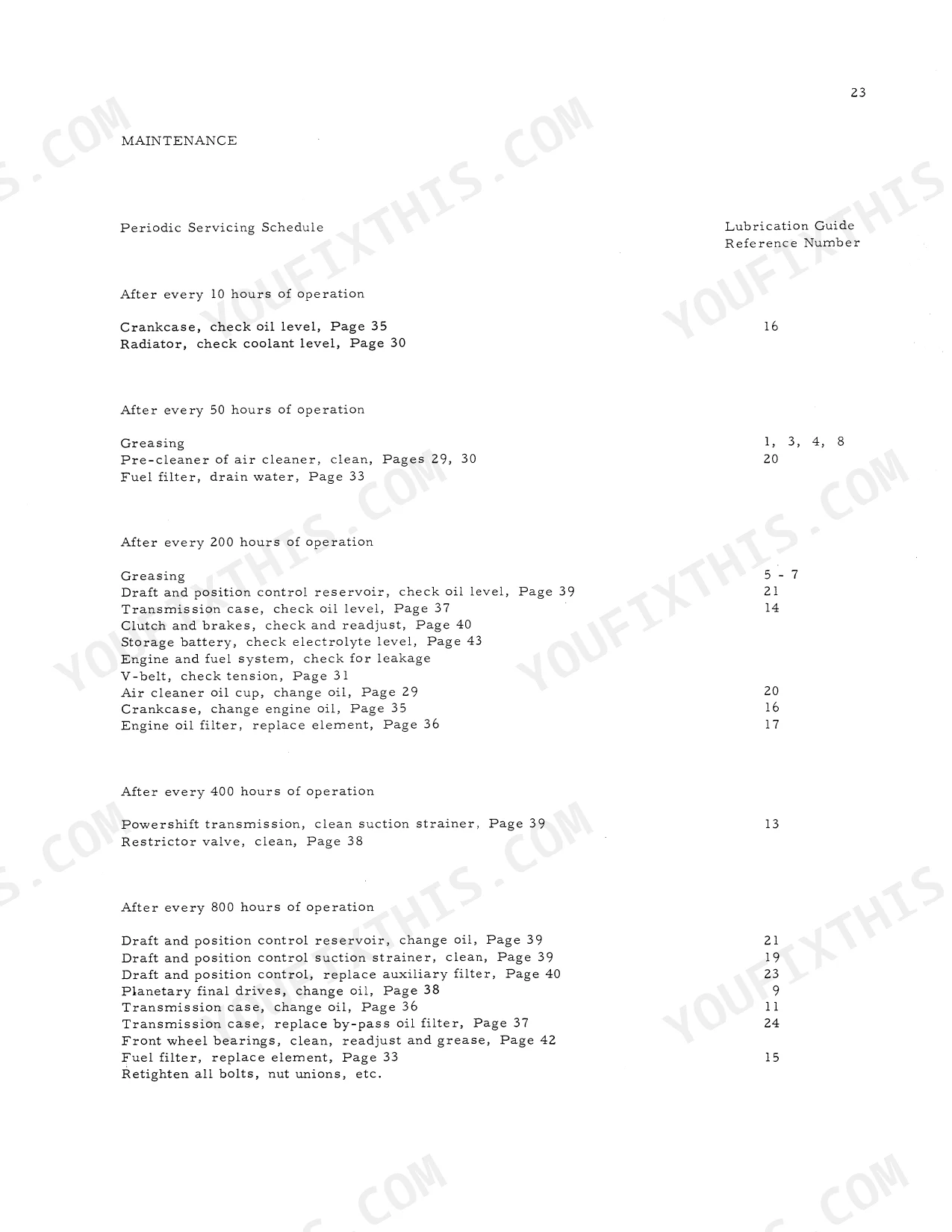

| Maintenance | 27 | Lubrication System, Fuel System, Cooling System, Air Intake System, Electrical System, Valve Mechanism |
| Lubrication Guide | 28 | Crankcase Oil Level, Greasing, Transmission Case Oil Level, Planetary Final Drives Oil, Front Wheel Bearings, Engine Oil Types |
| Engine Service Chart | 29-35 | Oil Level, Fuel Filter Element, Coolant Level, Injection Nozzles, Valve Clearance, Belt Tension |
| Fuel System | 36-51 | Fuel Quality, Fuel Tank Condensation, Fuel Filters, Injection Pump, Injection Nozzles, Fuel Injection Pipes |
| Storing and Housing Your Tractor | 52 | Fuel Mixture, Engine Oil, Cooling System, Batteries, Tires, Drive Belts |
| Mechanical Problems and Their Probable Cause | 53-58 | Coolant Supply, Fuel Filter, Injection Pump Timing, Injection Nozzles, Valve Clearance, Oil Pressure Control Lamp |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Fan belt tension (depression) | 3/4 - 1 inch | p. 35 |
| Engine Rated Speed | 2100 rpm | p. 6 |
| Low Idle Speed | 650 - 750 rpm | p. 6 |
| Compression Ratio | 16:1 | p. 6 |
| Intake Valve Clearance (engine warm) | .010 in. | p. 6 |
| Exhaust Valve Clearance (engine warm) | .012 in. | p. 6 |
| Injection Pressure | 2910 - 3024 PSI | p. 6 |
| Front Wheels Tire Pressure (On Road) | 28 psi | p. 6 |
| Rear Wheels Tire Pressure (On Road) | 21 psi | p. 6 |
Case IH 624/724/824 Common Problems This Manual Covers
Case IH 624, 724, or 824 tractor completely dead, no lights, won't crank after key turn p. 53
Check battery terminals for corrosion and verify both cable connections are tight. Inspect the main fuse, then turn the ignition key and listen for starter engagement. The probable cause checklist on page 53 covers no-start conditions with step-by-step checks. After the engine starts, confirm it idles smoothly at 650-750 rpm before attempting any load.
Manual Section: Electrical System ChecksOil pressure warning lamp glows or lights up during normal engine operation p. 10
Check the instrument cluster lamp meanings on page 10 before assuming a fault. Then verify crankcase oil level on the dipstick; oil must sit between the MIN and MAX marks, as detailed on page 28. If the level is correct and the lamp stays on after idle stabilizes at 650-750 rpm, stop the engine and inspect for leaks.
Manual Section: Instruments and ControlsCooling system freezes after overnight temperature drops to 32°F (0°C) or below p. 52
Check coolant concentration before the first frost. The storage section on page 52 covers antifreeze requirements and the correct fill procedure. If the antifreeze ratio is unknown, drain and refill the cooling system. Verify coolant level against the capacity spec on page 6, and test the mixture with a hydrometer before temperatures fall to 32°F (0°C).
Manual Section: Storing and Housing Your TractorClutch slipping and brake linings wearing out unusually fast between service intervals p. 18
Check foot position every time you mount the tractor. Resting a foot on the clutch or brake applies constant partial pressure to the linings. Review the operating precautions on page 18. Keep both feet clear of the pedals between gear changes and stops. At low idle (650-750 rpm) the clutch should engage and release without slipping or dragging.
Manual Section: General Instructions and PrecautionsFan belt slipping or squealing after extended running hours in the field p. 35
Inspect belt condition and tension midway between the generator and crankshaft pulleys. Press down with your thumb; correct tension allows 3/4 to 1 inch of deflection, as specified on page 35. A loose belt causes the generator to undercharge; an overtightened belt accelerates bearing wear. Check belt tension at the start of every work day.
Manual Section: Engine Service ChartFrequently Asked Questions
How do you fix tractor completely dead, no lights, won't crank after key turn?
Check battery terminals for corrosion and verify both cable connections are tight. Inspect the main fuse, then turn the ignition key and listen for starter engagement. The probable cause checklist on page 53 covers no-start conditions with step-by-step checks. After the engine starts, confirm it idles smoothly at 650-750 rpm before attempting any load.
How do you fix oil pressure warning lamp glows or lights up during normal engine operation?
Check the instrument cluster lamp meanings on page 10 before assuming a fault. Then verify crankcase oil level on the dipstick; oil must sit between the MIN and MAX marks, as detailed on page 28. If the level is correct and the lamp stays on after idle stabilizes at 650-750 rpm, stop the engine and inspect for leaks.
How do you prepare the tractor for winter storage?
Check coolant concentration before the first frost. The storage section on page 52 covers antifreeze requirements and the correct fill procedure.
