Need the factory operator's reference for your Case IH Farmall 75C? This 382-page manual (OEM #48071352) covers the complete Farmall C-series: 75C, 85C, 95C, 105C, and 115C tractors. Inside, you get full controls walkthroughs for every switch, lever, and display on the platform, plus step-by-step procedures for transmission operation, 4WD engagement, differential lock, rear and front PTO, and auxiliary control valves. The maintenance section maps every scheduled service from daily 10-hour checks through 100-hour intervals, and the troubleshooting chapter covers fault codes and symptom-based diagnostics with dealer escalation guidance. Fuel filters are due every 600 hours; lift oil filters every 300. No more guessing what a warning light means. Search by keyword, tap a bookmark, and get the answer before the engine cools.
What's Inside This Case IH Farmall 75C–115C Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 11-34 | Note to the Owner, Intended Use, Electro-Magnetic Compatibility, Manual Scope and Required Training Level, Metric and Imperial Units Abbreviations, Identification Plates |
| Safety Information | 35-74 | Safety Rules and Signal Word Definitions, Safety Rules - General Information, Safety Rules – Maintenance, Safety Rules - Wheels and Tires, Safety Rules – Explosions and Fires |

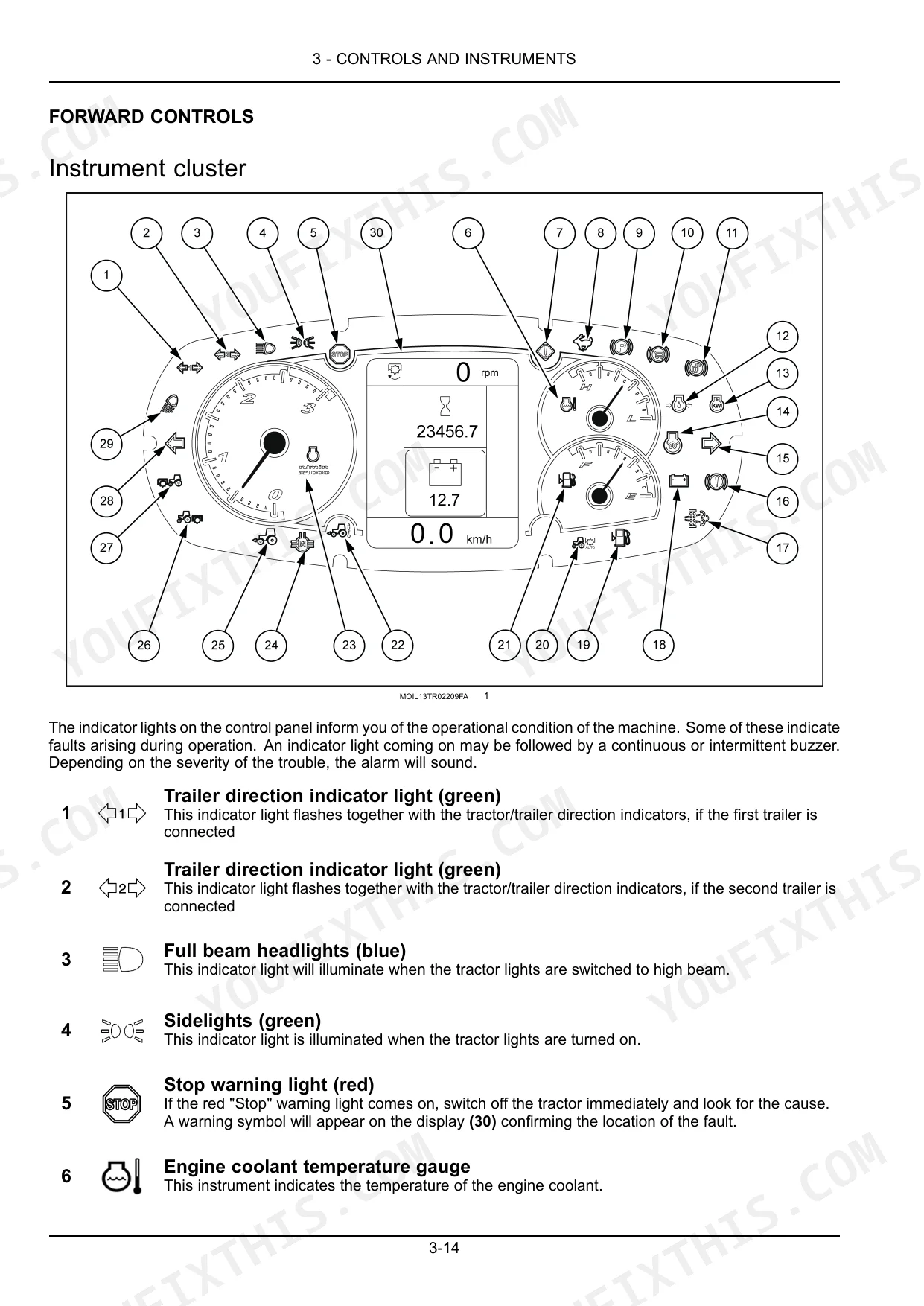

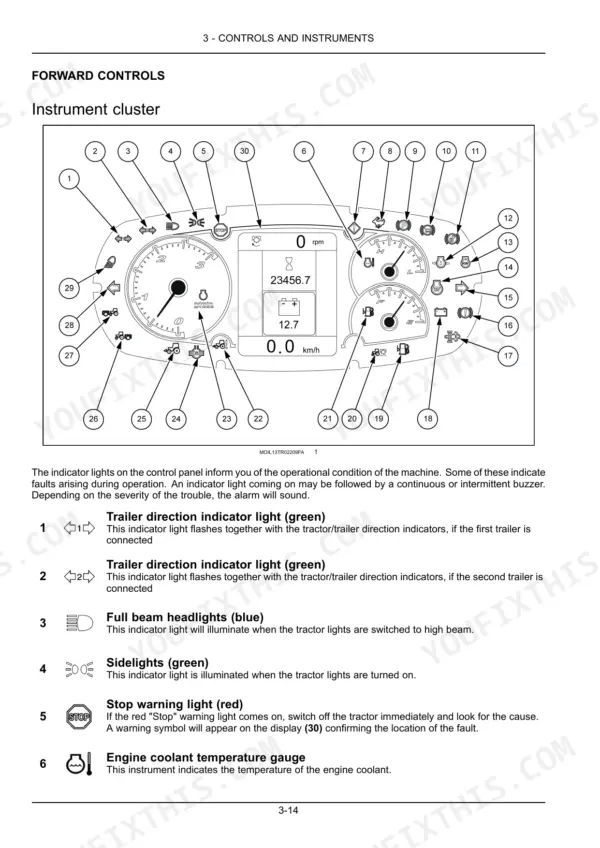

| Controls and Instruments | 75-134 | Access to Operator's Platform, Operator's Seat, Passenger's Seat, Forward Controls, Left-Hand Side Controls, Right-Hand Side Controls |
| Operating Instructions | 135-144 | Commissioning the Unit, Starting the Unit, Stopping the Unit, Moving the Unit |
| Transport Operations | 145-146 | Road Transport, Recovery Transport |

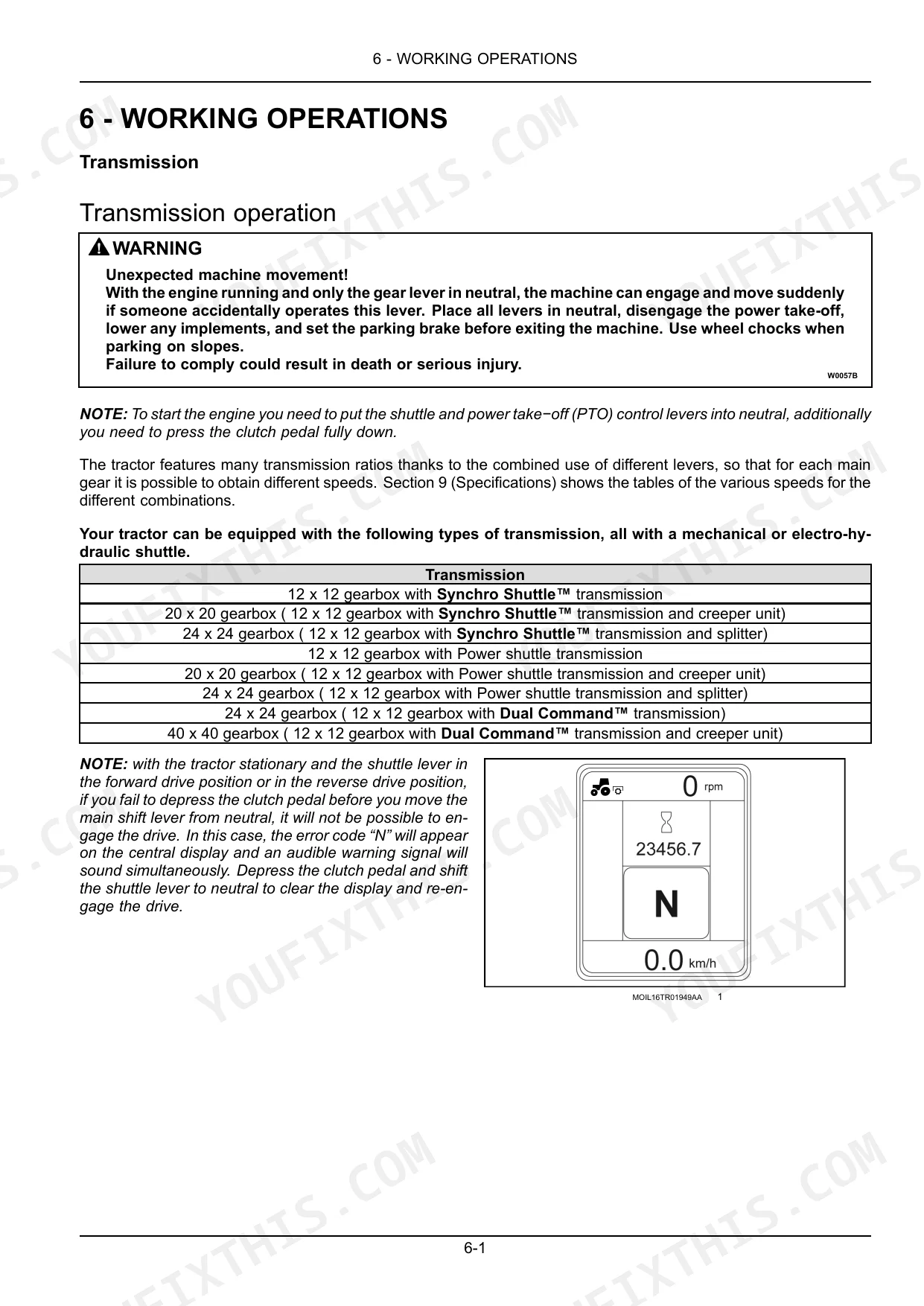

| Working Operations | 147-238 | Transmission, Four Wheel Drive (4WD), Differential Lock, Auxiliary Control Valves, Rear Power Take-Off (PTO), Front Power Take-Off (PTO) |

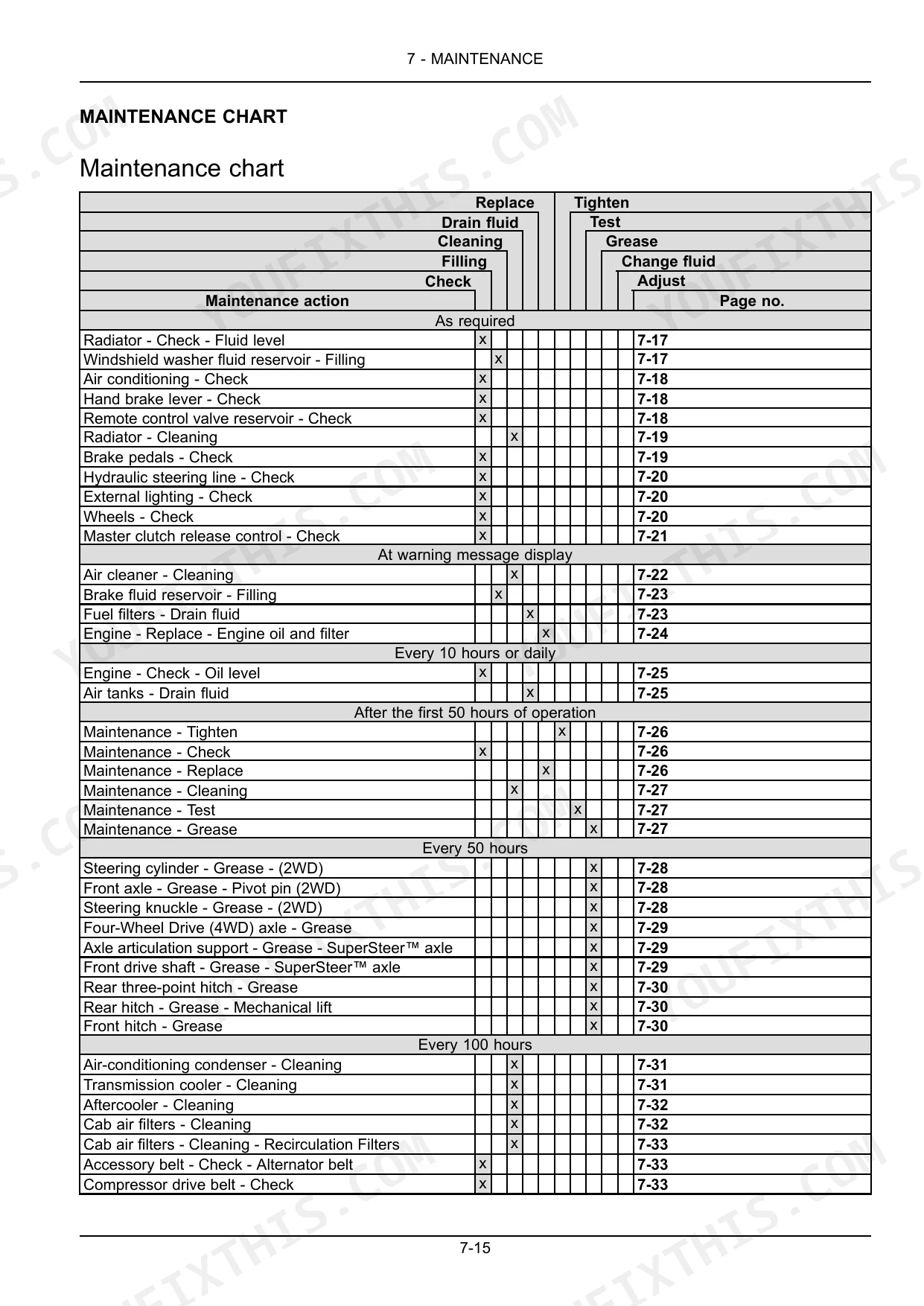

| Maintenance | 239-316 | General Information, Maintenance Chart, Every 10 Hours or Daily, Every 50 Hours, Every 100 Hours, Electrical System |
| Troubleshooting | 317-330 | Fault Code Resolution, ALARM(S), SYMPTOM(S) |

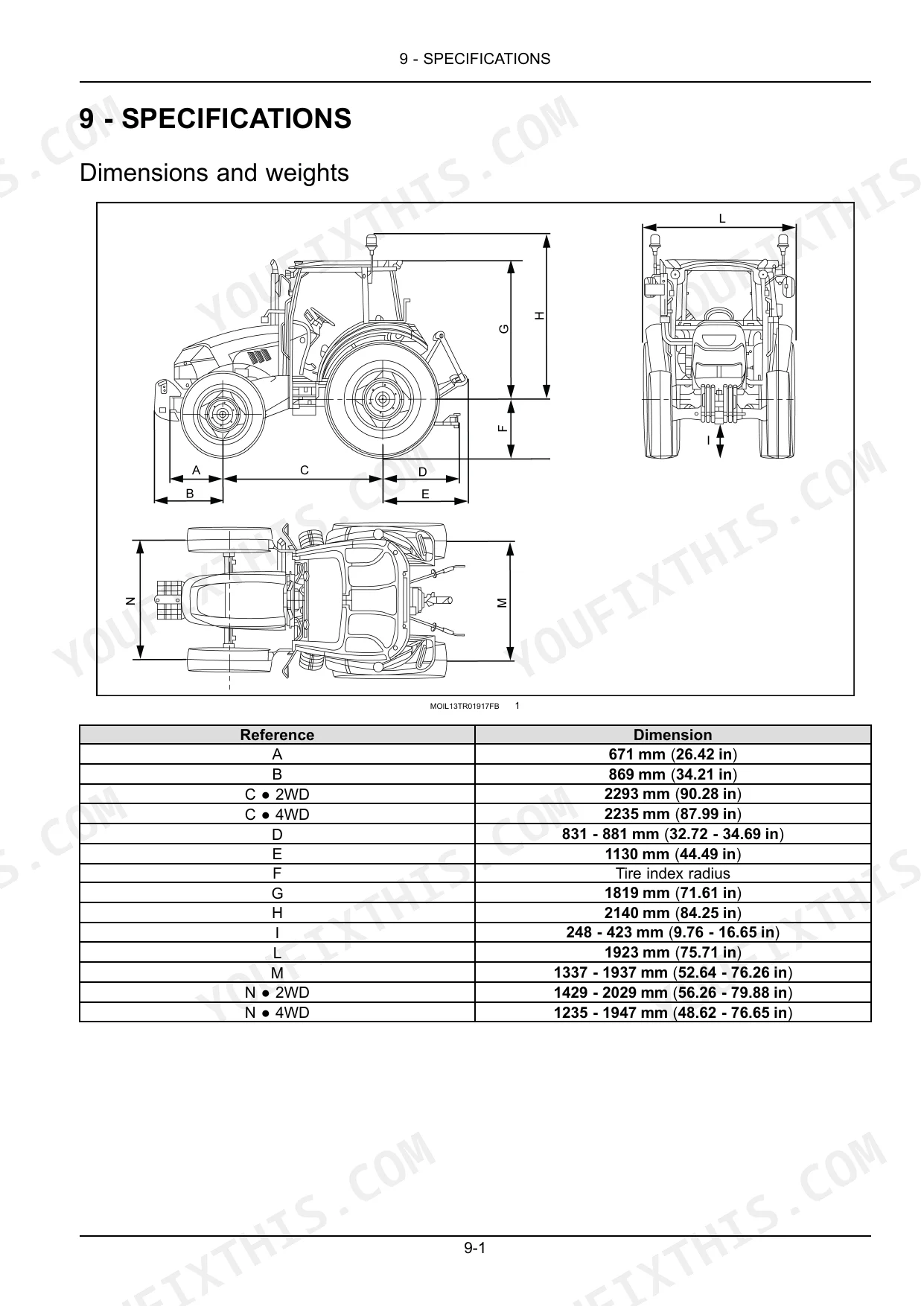

| Specifications | 331-360 | Dimensions and Weights, Maximum Permitted Loads on Front and Rear Axle, Speed Table for 12 X 12 Gearbox, Consumables, Capacities, Technical Data |
| Accessories | 361-376 | Radio, Single Piece Ballast, Joystick Operation, Coolant Immersion Heater (Where Fitted) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Hydraulic system failure correction | Call your Dealer | p. 320 |
| Fuel filters replacement interval | Every 600 hours | p. 254 |
| Fuel filter tightening instruction | Tighten by hand by 3/4 of a turn or by a maximum of one full turn | p. 278 |
| Lift oil filters replacement interval | Every 300 hours | p. 254 |
| Lift oil filters tightening instruction | Tighten until the seal contacts the mounting surface. Then tighten another 3/4 of a turn by hand. | p. 273 |
| Air cleaner cleaning pressure | less than 5 bar (72.5 psi) | p. 261 |
| Air cleaner replacement interval | Every 1200 hours or annually | p. 254 |
| Coolant thermostat correction | Check thermostat | p. 318 |
| Fuel injection nozzles service | Have your dealer service the injectors | p. 318 |
| High-pressure circuit pump capacity | 19.00 cm³ (1.16 in³) | p. 358 |
| High-pressure circuit pump flow at rated engine speed and pressure | 47.50 l/min (12.55 US gpm) | p. 358 |
| Clutch diameter | 305 mm (12 in) | p. 357 |
Case IH Farmall 75C–115C Common Problems This Manual Covers

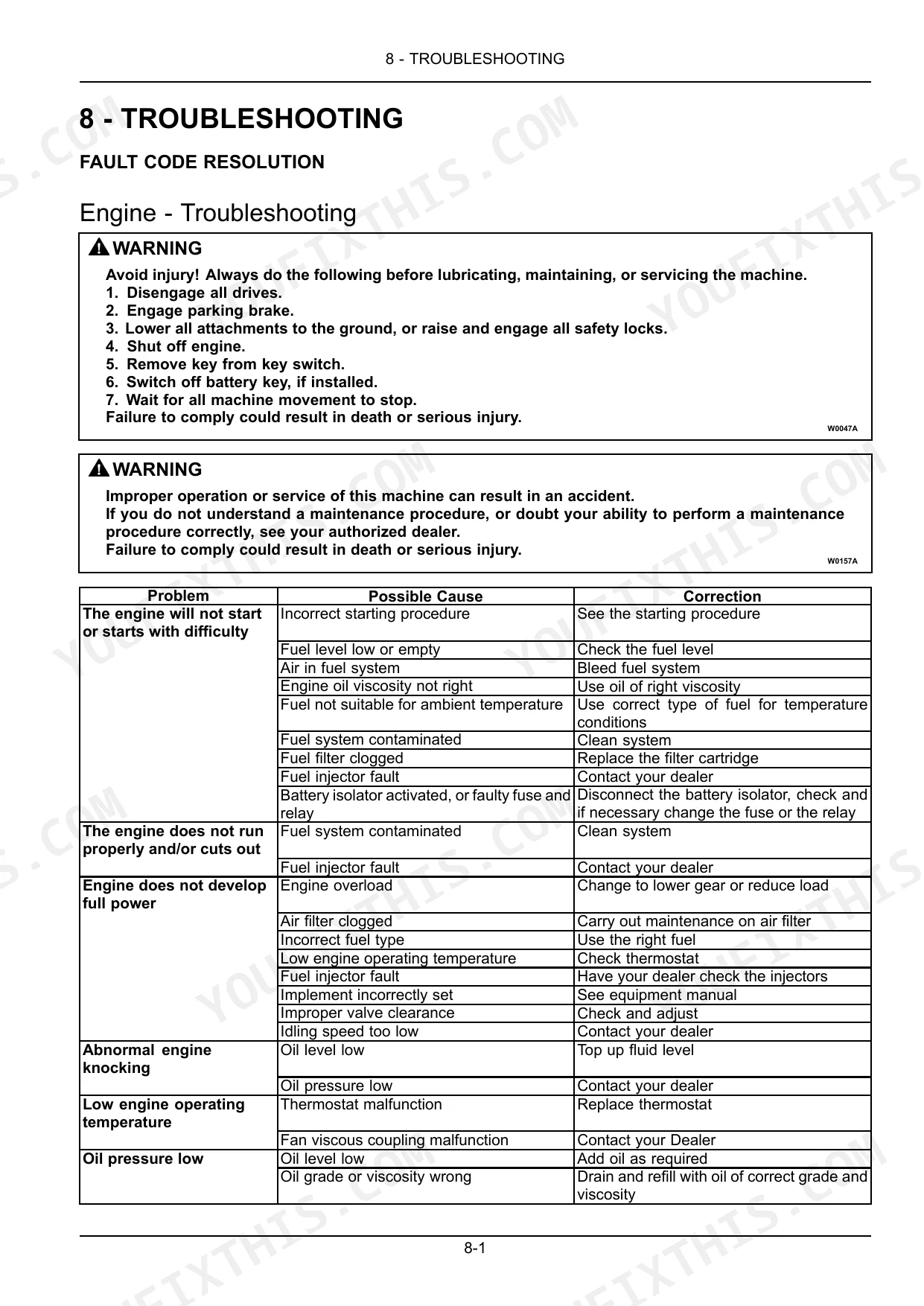

Case IH Farmall tractor won't start or stalls immediately after startup under load p. 317
Check the troubleshooting chart on page 317. Verify the fuel tank has adequate fuel — capacity is 115.00 L (25.30 UK gal). Inspect the fuel filter; replacement is due every 600 hours per the maintenance schedule on page 254. If the filter is within interval, check for air in the fuel line and confirm the fuel shutoff valve is fully open before attempting a restart.
Manual Section: Engine - TroubleshootingHydraulic system loses lifting power after one or two hours of field work p. 320
Check the hydraulic system troubleshooting guide on page 320. Verify the lift oil filter service date — it must be replaced every 300 hours. Inspect hydraulic fluid level and look for signs of contamination or foaming in the reservoir. If fluid level and filter condition are both acceptable and the system still underperforms, contact your dealer; the manual directs dealer involvement for hydraulic system faults.
Manual Section: Hydraulic systems - TroubleshootingEngine coolant temperature warning light on, temperature climbing during summer field operations p. 317
Stop work immediately and let the engine idle to cool. Check coolant level at the reservoir — do not open the cap on a hot engine. Inspect the radiator exterior for clogged fins from crop debris; clear blockage with compressed air directed from the clean side outward. If the temperature warning persists after coolant level is confirmed correct, review the engine troubleshooting steps on page 317 and check the thermostat as indicated on page 318.
Manual Section: Engine - TroubleshootingWarning lights or error codes appearing on the display after startup p. 325
Note the exact code displayed, then cross-reference it on page 329, which maps error code ranges to fault areas. For E01 (fuel system pressure low), check fuel filter service interval on page 254. For E03 (coolant temperature high), inspect coolant level and radiator condition. For E10 (transmission control fault), avoid shifting under load and consult your dealer. Codes outside your correction ability are flagged for dealer service in the display warnings overview on pages 325-328.
Manual Section: Display warnings overviewRear three-point hitch linkage not raising or lowering implement smoothly p. 321
Check the rear hitch troubleshooting procedure on page 321. Verify the hitch control lever is in the correct position and the draft/position control setting is appropriate for the implement weight. Inspect the lift oil filter service record — filter replacement is required every 300 hours; when installing a new filter, tighten until the seal contacts the mounting surface, then add 3/4 of a turn by hand, as specified on page 273. If a fault code signal appears on the display, record it and reference page 329.
Manual Section: Rear three-point hitch - TroubleshootingAir filter warning active, engine losing power during dusty field conditions p. 261
Inspect the air cleaner indicator; if it signals restriction, service the primary filter element. Clean with compressed air held at less than 5 bar (72.5 psi) directed from inside out, per page 261. Replace the air cleaner element every 1200 hours or annually per the maintenance schedule on page 254, whichever comes first. Never run the tractor with the air cleaner housing open or the element missing, even briefly.
Manual Section: MaintenanceFrequently Asked Questions
How to reset power shuttle on Case IH Farmall 75C after clutch failure?
The manual describes a "Clutch calibration - Power shuttle transmission" procedure on page 7-71, which calibrates all clutches and determines the current required for engagement pressure. This procedure effectively resets the clutch parameters. If an error occurs during automatic calibration, you can press switch (2) on symbol (D) or (C) to cancel the error. For specific clutch failures, the manual advises remedying the trouble before calibration.
How to interpret error codes for engine performance on Case IH Farmall 75C?
To interpret error codes for engine performance, refer to the 'Error code identification' table on page 8-13. Engine-related faults are typically indicated by four- or five-digit error codes in the range of 3001 to 4000, accompanied by a warning signal and a symbol on the central display. For resolution, contact your authorized CASE IH dealer, providing the displayed error code.
Why does hydraulic system fail on Case IH Farmall 75C and how to reset?
The hydraulic system can fail due to various reasons such as low oil level, clogged hydraulic filter, or a hydraulic system fault. The manual provides troubleshooting steps on page 8-4, including topping up oil, replacing filters, or contacting your dealer. There is no general 'reset' procedure for the hydraulic system after a failure; instead, specific corrections are listed for each possible cause.
What are the replacement specifications for Fuel filter?
The manual describes the procedure for replacing fuel filters on page 7-40, which involves draining the filters, cleaning the seat, lightly oiling the seal of the new filter, and tightening it by hand by 3/4 of a turn. However, specific replacement specifications such as a part number or detailed filter type are not provided in the consumables or maintenance sections.
What are the replacement specifications for Hydraulic filter?
The manual outlines the procedure for replacing lift oil filters (hydraulic circuit) on page 7-35, which includes positioning a container, loosening the filter, applying oil to the new filter's seal, and tightening it. Similarly, the transmission oil filter replacement is described. However, specific replacement specifications like part numbers or detailed filter types for hydraulic filters are not listed in the consumables or maintenance sections.
How quickly can I access this manual after?
This is a 382-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Are there any print restrictions on this manual?
The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
