If you've been hunting for the Case 235 Operator Manual PDF, this 164-page factory document covers every operating procedure, daily check, and maintenance interval for the 235 compact tractor. Inside: a detailed controls walkthrough covering every lever, pedal, and dash indicator, plus a full safety section with pre-start and operation rules built around the ROPS-equipped cab. You also get complete lubrication charts, fluid capacities, tire and wheel specs, and step-by-step cold-weather starting procedures for the diesel. The radiator cap holds to 12.8 PSI (88.2 kPa) and the engine takes 3.70 U.S. quarts of oil with filter. Exact Case numbers, not forum estimates. Your machine won't tell you what's wrong; this manual will. Bookmarked and searchable: jump to any section in seconds on your tablet or laptop.
What's Inside This Case IH 235 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| To the Owner of a Case Tractor | 1 | - |
| Serial Number | 2 | Tractor Model Number, Product Identification Number, Engine Serial Number, ROPS Serial Number |
| Safety | 5-11 | - |
| Hand Signals | 12-14 | Start the Engine, Stop the Engine, Move Out, Come to Me, Raise Equipment, Lower Equipment |
| Diesel Engine Specifications | 15-16 | General Specifications, Crankshaft, Piston and Rod, Main Bearings, Engine Lubrication System, Fuel System |
| General Tractor Specifications | 17-19 | Air Intake System, Cooling System, Electrical System, Transmission, Hydraulic System, Power Takeoff |
| Travel Speeds - Gear Drive | 20 | Transmission Gear, Range Shift, Rear Tire Size |
| Travel Speeds- Hydrostatic Drive | 21 | Travelling Direction, Range Shift, Rear Tire Size |

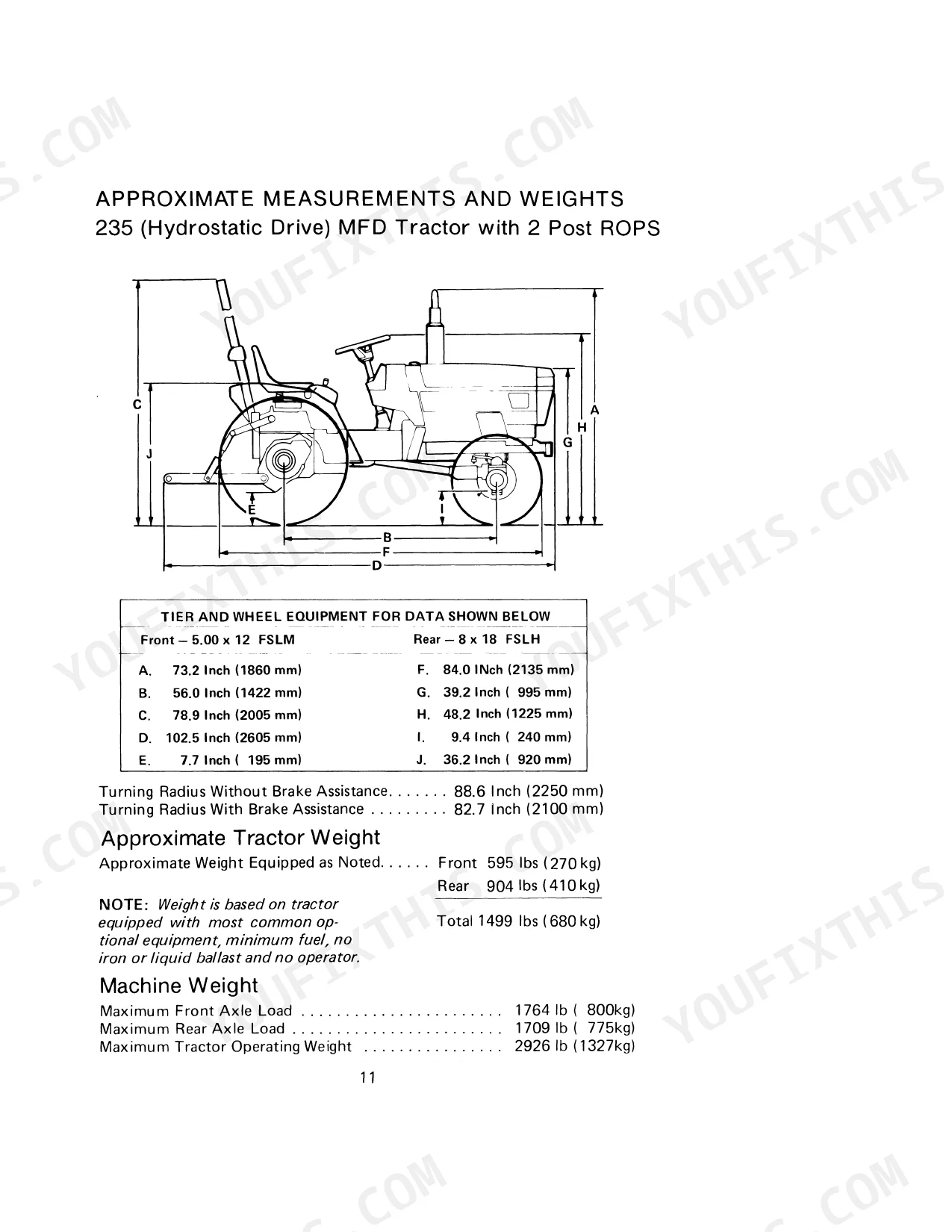

| Approximate Measurements and Weights | 22-25 | Tire and Wheel Equipment Data, Turning Radius, Approximate Tractor Weight, Machine Weight |
| Tire and Wheel Specification | 26-28 | Tire Size, Tire Rating, Tread Type, Rim Size, Max. Load Capacity, Inflation Pressure |
| Tire Size Combinations - MFD | 29 | Front Size, Front Tread, Rear Size, Rear Tread, Recommended Combinations |
| Front Wheel Tread Positions | 30 | 2 Wheel Drive, Mechanical Front Drive (MFD), Tire Size, Front Wheel Tread Widths |
| Rear Wheel Tread Positions | 31-32 | Wheel Treads with Wheels Reversed, Rear Wheel Tread a, Rear Wheel Tread B, Wheel Treads with Extension Spacers Installed, Tread Width C, Tread Width D |
| Wheel Mounting Torques | 33 | Front Wheel Disc to Axle Hub Bolts, Rear Wheel Disc to Axle Hub Bolts, Rear Axle Hub Stud Bolts, Jam Nuts on Rear Axle Hub Stud Bolts |
| Diesel Fuel Specifications | 34-35 | A.P.I. Gravity, Flash Point, Pour Point, Viscosity, Cetane Number, Sulfur |
| Instruments and Indicators | 36-38 | Tachometer, Hourmeter, Fuel Gauge, Engine Glow Plug Indicator, Turn Signal Indicators, Charge Indicator |
| Operating Controls | 39-59 | Starter Key Switch, Engine Speed Control Lever, Throttle Pedal, Brake Pedals, Clutch Pedal, Gear Shift Lever |
| Operating Instructions | 60 | Starter Key Switch, Engine Speed Control Lever, Brake Pedals, Differential Lock Pedal, Gear Shift Lever, PTO Control Lever |
| Towing and How to Transport Tractor | 61 | Drawbar, Safety Chains, Brake Pedals, Gear Shift Lever, Speed Ratio Control Lever, Park Brake Lever |
| Before Starting the Engine | 62 | Lubrication Fittings, Engine Oil Level, Transmission Oil, Fuel Tank, Fan Belt, Coolant Level |
| Normal Starting Procedure | 63-66 | Fuel Shut-Off Valve, Gear Shift Lever, PTO Control Lever, Engine Speed Control Lever, Range Shift Lever, Clutch Pedal |
| Stopping the Engine | 67 | Engine Speed Control Lever, PTO Control Lever, Range Shift Lever, Key Switch, Emergency Engine Stop Control |
| Cold Temperature Operation | 68-70 | Battery, Engine Oil, Transmission Hydraulic Fluid, Cooling System, Fuel Filter Cup, Coolant Heater |
| Seat Belt | 71 | Seat Belt Adjustment, Metal Eye, Buckle |
| Roll Over Protective Structure (ROPS) | 72-81 | Foldable ROPS Frame, Normal Operating Position, Low Clearance Positions, Folding the ROPS, Securing the ROPS in the Upright Position, ROPS Label |
| Gear Drive Transmission | 82 | Transmission Operation, Gear Shift Lever, Range Shift Lever, Clutch Pedal |
| Hydrostatic Drive Transmission | 83 | Transmission Operation, Speed Ratio Control Lever, Range Shift Lever, Clutch Pedal |
| Mechanical Front Drive (MFD) (If Equipped) | 84 | MFD Control Lever, Range Shift Lever, Clutch Pedal |
| Differential Lock | 85 | Differential Lock Pedal, Clutch Pedal |
| Power Takeoff (PTO) | 86-87 | Rear PTO, Mid PTO, PTO Control Lever, Clutch Pedal, Rear PTO Shaft, Mid PTO Shaft |
| Power Takeoff Guards | 88 | - |
| PTO Operating Safety | 89-90 | PTO, Drawbar, Implement Hitch, Implement Driveline, PTO Shaft, 3 Point Hitch |
| Connecting Implement to Drawbar | 91 | Drawbar, Hardened Steel Hitch Pin, Lock Pin, Lower Links, PTO Shaft |
| Safety Chain | 92 | Safety Rules, Decals, Before Starting, Operation, Service |
| Hitch System Adjustments | 94-95 | Lift Links and Turnbuckles, Upper Link, Stabilizer Chain |

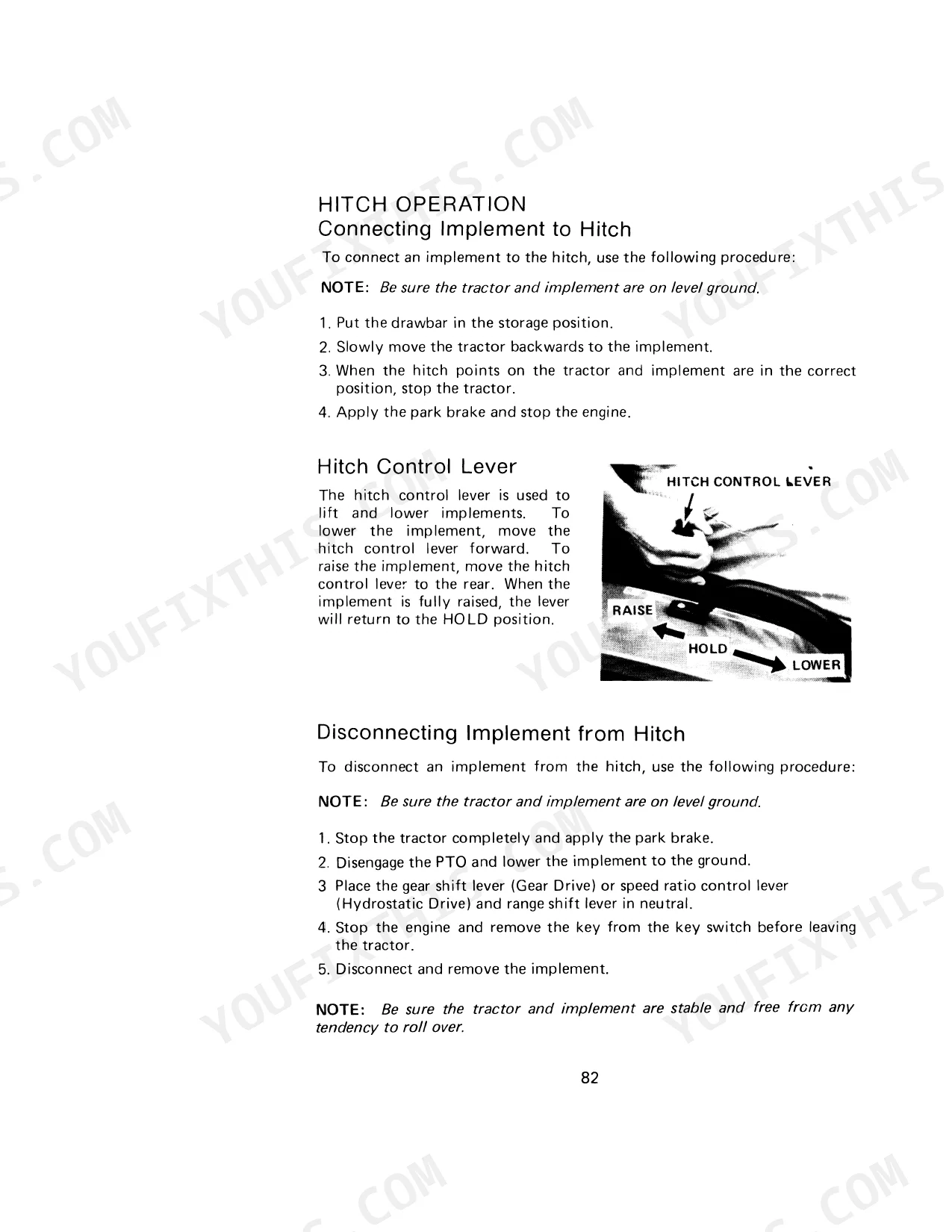

| Hitch Operation | 96-97 | Connecting Implement to Hitch, Hitch Control Lever, Disconnecting Implement From Hitch, Hitch Lowering Speed Adjustment |
| Remote Hydraulic Control Valve (If Equipped) | 98 | - |

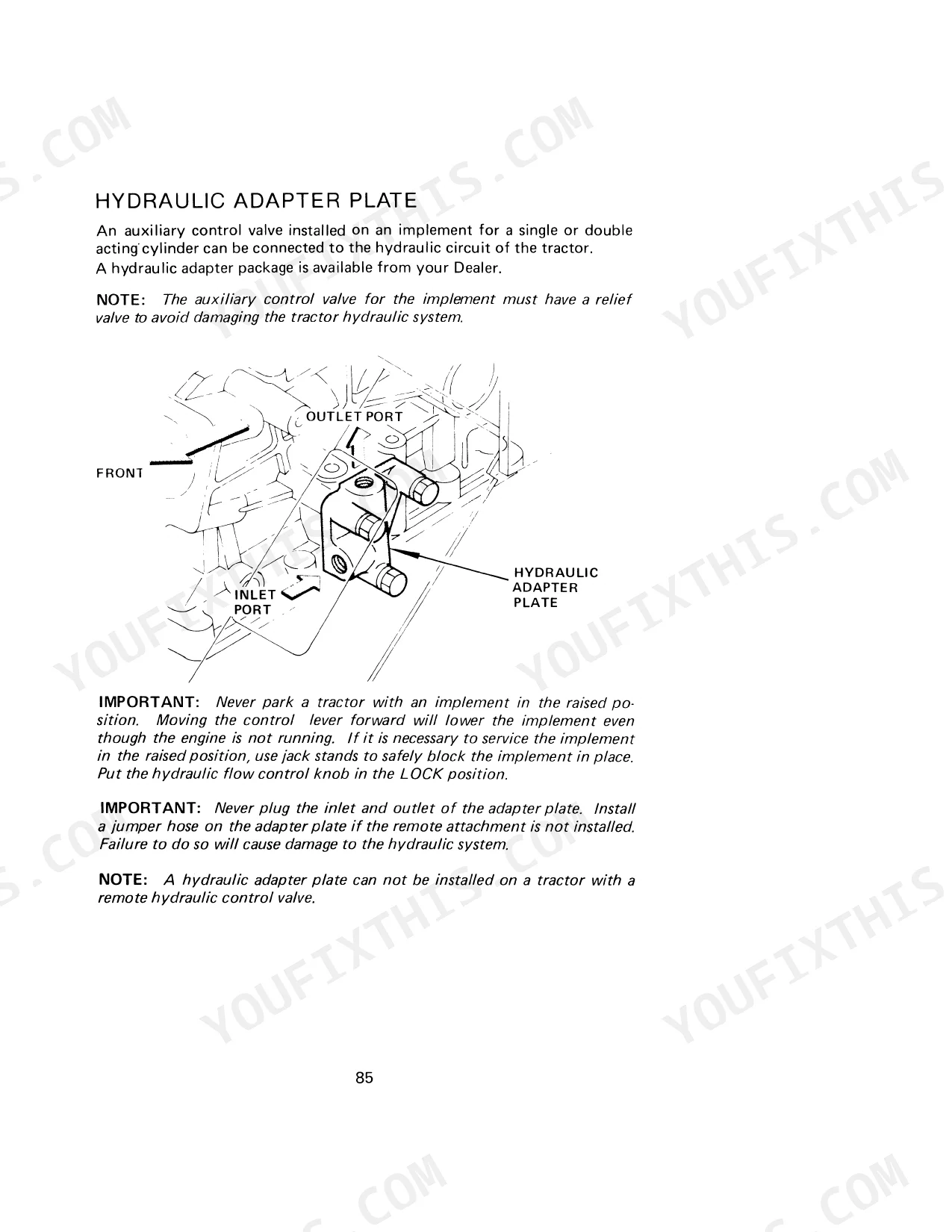

| Hydraulic Adapter Plate | 99 | - |
| Adding Fluid After Connecting Cylinders and Hoses | 100 | - |
| Front Wheel Adjustment | 101-103 | - |
| Rear Wheel Adjustment | 104-105 | - |
| Tractor Ballast | 106-109 | Front End Weights, Rear Wheel Weights, Tire Liquid Weight |
| Lubrication and Preventive Maintenance | 110 | Service Point, Approximate Capacities, Ambient Air Temperature Ranges, Lubrication Chart Notes, Service After First 50 Hours of Operation |
| Lubrication | 111-114 | Engine Hourmeter, Service Point, Approximate Capacities, Ambient Air Temperature Ranges, Lubrication Chart Notes, Service After First 50 Hours of Operation |
| Hood | 115 | - |
| Engine Lubrication | 116-119 | Service Specifications, Oil Level, Oil Change, Oil Selection, Oil Viscosity, Oil Filter |
| Transmission & Hydraulic Lubrication | 120-123 | Service Specifications, Transmission Oil Level, Transmission Oil Change, Hydraulic System Check, Hydraulic Filter Screen, Hydraulic Fluid Filter |
| Front Wheel Bearing Lubrication (2WD) | 124-125 | Service Specifications, Service Interval, Grease Type |
| Front Axle Lubrication (Mdf) | 126-127 | Service Specifications, Oil Change Interval, Oil Capacity, Oil Type, Front Axle Oil Level, Front Axle Oil Change |
| Tire and Rim Service | 128-129 | Service Specification, Tire Pressure Check Interval, Tire Inflation Procedure, Tire and Rim Repair, Tire Installation |
| Cooling System | 130-137 | Capacity of System, Thermostat, Radiator Cap, Coolant Solutions, Grille Screens, Fan Belt |
| Fuel System | 138-141 | Fuel Filter Cup, Fuel Filter Element, Fuel Shut-Off Valve, Air Vent Screw, Fuel Injection Pump, Nozzle |
| Air Induction System | 142-144 | Dust Container, Filter Element, Air Cleaner, Outlet Hose, Inlet Hose, Hoses |
| Clutch Pedal Adjustment | 145 | Free Pedal Movement, Jam Nut, Clevis Pin, Clutch Rod, Cotter Pin, Yoke |
| Neutral Start Switch | 146-147 | Range Shift Lever, PTO Control Lever, Switch Terminals, Lock Nut, Switch Rod, Lever Boss Knob |
| Electrical System | 148-155 | Head Lamps, Turn Signal Lamps, Flasher Lamps, Rear Red Lamp, Fuses, Fusible Link |
| Battery | 156-158 | Battery Terminals, Positive Cable, Negative Cable, Battery Cables, Battery Bracket, Specific Gravity of Electrolyte |
| ROPS Equipment | 159-160 | ROPS Mounting Bolts, Seat Belt Mounting Bolts, Hinge Components, Seat Belt, Buckles |
| Storing the Tractor | 161 | Tire Protection, Engine Oil Drain, Fuel Tank Fill, Cooling System Maintenance, Battery removal/storage, Clutch Assembly |
| Removing From Storage | 162 | Fuel System Drain, Coolant Level Check, Battery Check, Hydrostatic Drive Starting Procedure, Engine Start |
| Case Technical Manuals | 163-164 | - |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Maximum Horsepower | 18HP at 2700 RPM | p. 15 |
| Valve Clearance (Intake and Exhaust) | 0.010 inch (0.25mm) | p. 15 |
| Engine Oil Capacity (with filter) | 3.70 U.S. Quarts (3.5 Litres) | p. 16 |
| Fuel Tank Capacity | 4.75 U.S. Gallons (18 Litres) | p. 16 |
| Radiator Cap Pressure | 12.8 PSI (88.2 kPa) | p. 17 |
| Cooling System Capacity | 6.34 U.S. Quarts (6 Litres) | p. 17 |
| ROPS Mounting Bolts Torque | 33 to 40 LB FT (44 to 54 Nm) | p. 159 |
Case IH 235 Common Problems This Manual Covers
Case 235 tractor hydro diesel engine fails to engage or start due to bad ground connection. p. 156
Inspect the battery cables and terminals on page 156. Clean the negative cable and verify a tight ground connection to the chassis. Check the fuel level and fill the tank with up to 4.75 U.S. Gallons (18 Litres) of diesel before attempting the normal starting procedure.
Manual Section: BatteryRange lever gets stuck and switching from neutral to low or high range is extremely difficult. p. 146
Check the neutral start switch and range shift lever adjustments on page 146. Clean the switch terminals and adjust the lock nut to ensure proper linkage travel. Test the tractor operation under load up to the maximum 18HP at 2700 RPM to confirm the transmission shifts smoothly.
Manual Section: Neutral Start SwitchRoll over protective structure rattles loosely during operation or hinge components show excessive vibration. p. 159
Inspect the foldable ROPS frame and hinge components on page 159. Verify the seat belt mounting bolts are tight. Torque all ROPS mounting bolts to 33 to 40 LB FT (44 to 54 Nm) and secure the frame in the upright position before operating the tractor.
Manual Section: ROPS EquipmentEngine runs hot and coolant boils over the radiator cap during heavy mechanical front drive operation. p. 130
Inspect the fan belt tension and check the grille screens for debris. Verify the pressure cap holds exactly 12.8 PSI (88.2 kPa) before replacing it. Flush the system and refill with 6.34 U.S. Quarts (6 Litres) of fresh coolant solution as shown on page 130.
Manual Section: Cooling SystemFrequently Asked Questions
How to reset oil pressure warning Case 235?
The manual does not describe a specific reset procedure for the oil pressure warning. If the engine oil pressure indicator comes on, you should shut off the engine immediately and check for the cause. If the indicator stays on after starting the engine, stop the engine and investigate the problem.
How do you fix case 235 tractor hydro diesel engine fails to engage or start due to bad ground connection?
Inspect the battery cables and terminals on page 156. Clean the negative cable and verify a tight ground connection to the chassis. Check the fuel level and fill the tank with up to 4.75 U.S. Gallons (18 Litres) of diesel before attempting the normal starting procedure.
How do you fix range lever gets stuck and switching from neutral to low or high range is extremely difficult?
Check the neutral start switch and range shift lever adjustments on page 146. Clean the switch terminals and adjust the lock nut to ensure proper linkage travel. Test the tractor operation under load up to the maximum 18HP at 2700 RPM to confirm the transmission shifts smoothly.
How do you fix roll over protective structure rattles loosely during operation or hinge components show excessive vibration?
Inspect the foldable ROPS frame and hinge components on page 159. Verify the seat belt mounting bolts are tight. Torque all ROPS mounting bolts to 33 to 40 LB FT (44 to 54 Nm) and secure the frame in the upright position before operating the tractor.
What format is this Case 235 manual in?
You get a 164-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Are there any print restrictions on this Case 235 manual?
The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
