Part of the Case IH Operator Manuals.
All 141 pages of this Case IH Operator Manual (OEM #9-13270) cover the 2120V, 2120E, 2130V, 2130E, 2140V, 2140E, and 2150E tractor lineup, from first cold-start to scheduled maintenance. Inside: a full safety section with operating rules and pre-start checklists, a controls reference that maps every warning light and gauge on the instrument panel, and a complete service interval schedule organized by hourmeter reading. Travel speed charts cover all three transmission options, 8+8, 12+12, and 12+12 Super Creeper, with tire pressure limits, maximum load ratings, and tread width adjustment positions for 2WD and 4WD models. Keep your hydraulic system below the 180 bar maximum and fill your 60-litre fuel tank before you roll. No more staring at a warning light wondering whether to keep moving or shut it down. Bookmarked for fast navigation: open any section on your tablet, walk to the tractor, and get the right answer on the first try.
What's Inside This Case IH 2120-2150 V/E Series Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| To the Owner | 3-4 | |

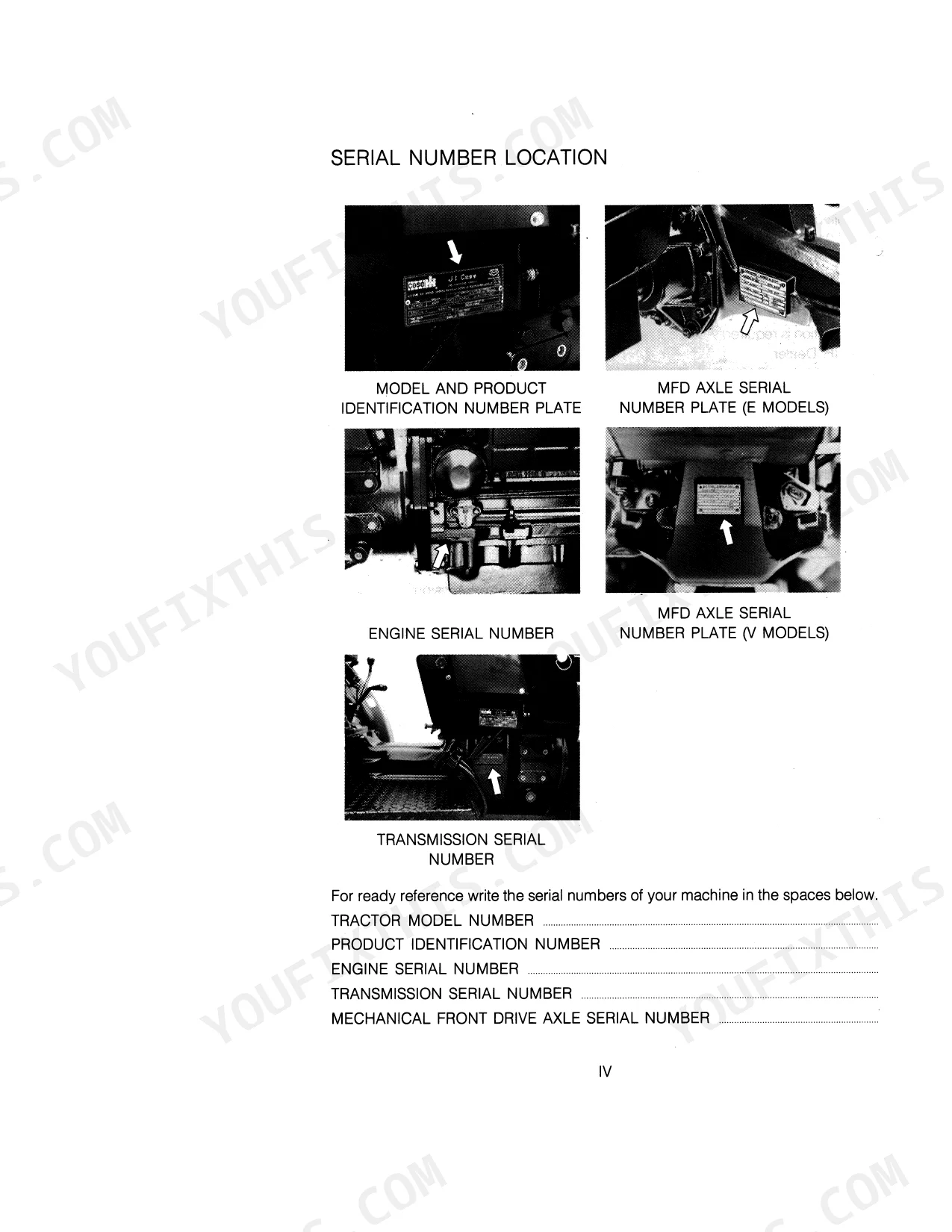

| Serial Numbers | 5-6 | Locations |
| Safety | 9-15 | |
| Hand Signals | 16-17 | Start the Engine, Stop the Engine, Move Out, Move Toward Me - Follow Me, Raise Equipment, Lower Equipment |
| Conversion Factors | 18 | Length (Distance), Volume (Capacity), Mass (Weight), Force, Pressure, Torque (Moment of Force) |
| General Specifications | 19-26 | Specifications |

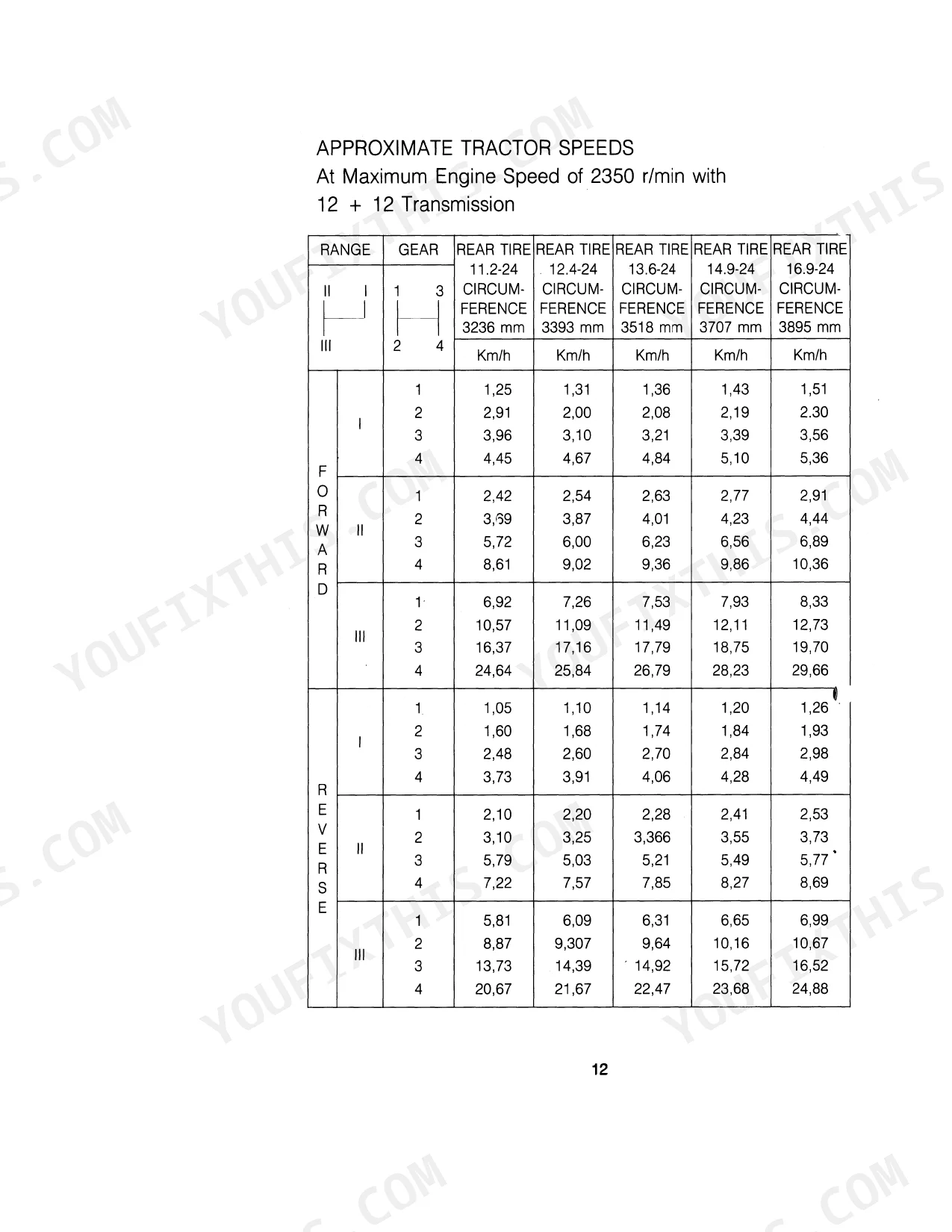

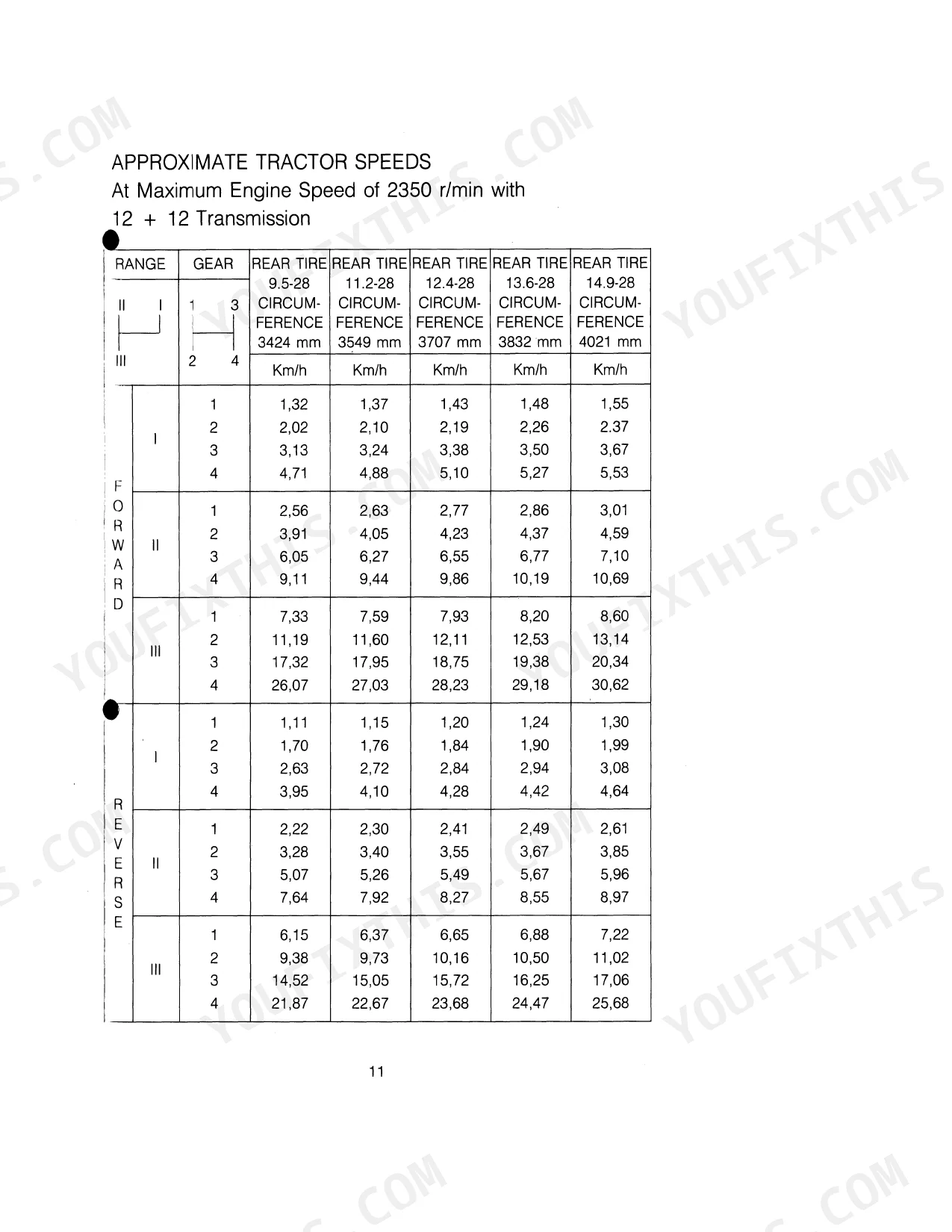

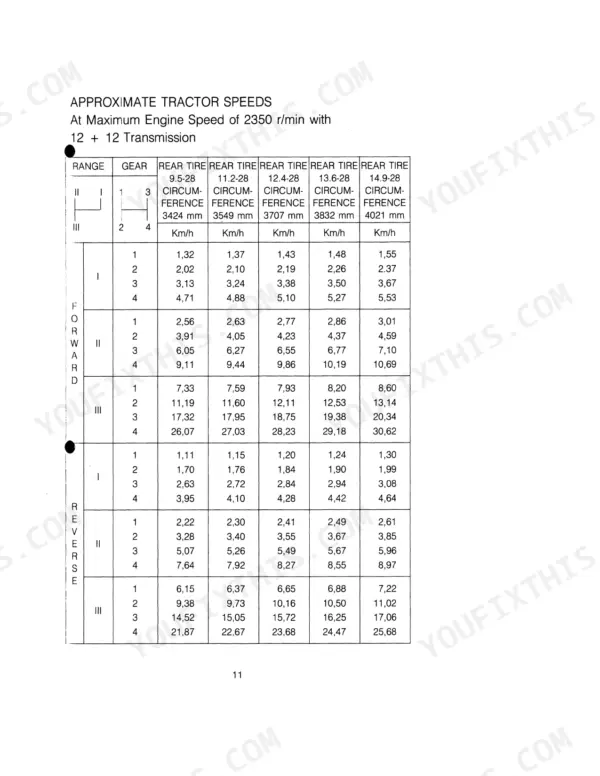

| Travel Speed | 27-32 | 8 + 8 Transmission, 12 + 12 Transmission, 12 + 12 Super Creeper Transmission |
| Approximate Measurements | 33-36 | Front Tire Fitted, Rear Tire Fitted, Width, Wheel Base, Height at ROPS, Height at Bonnet |

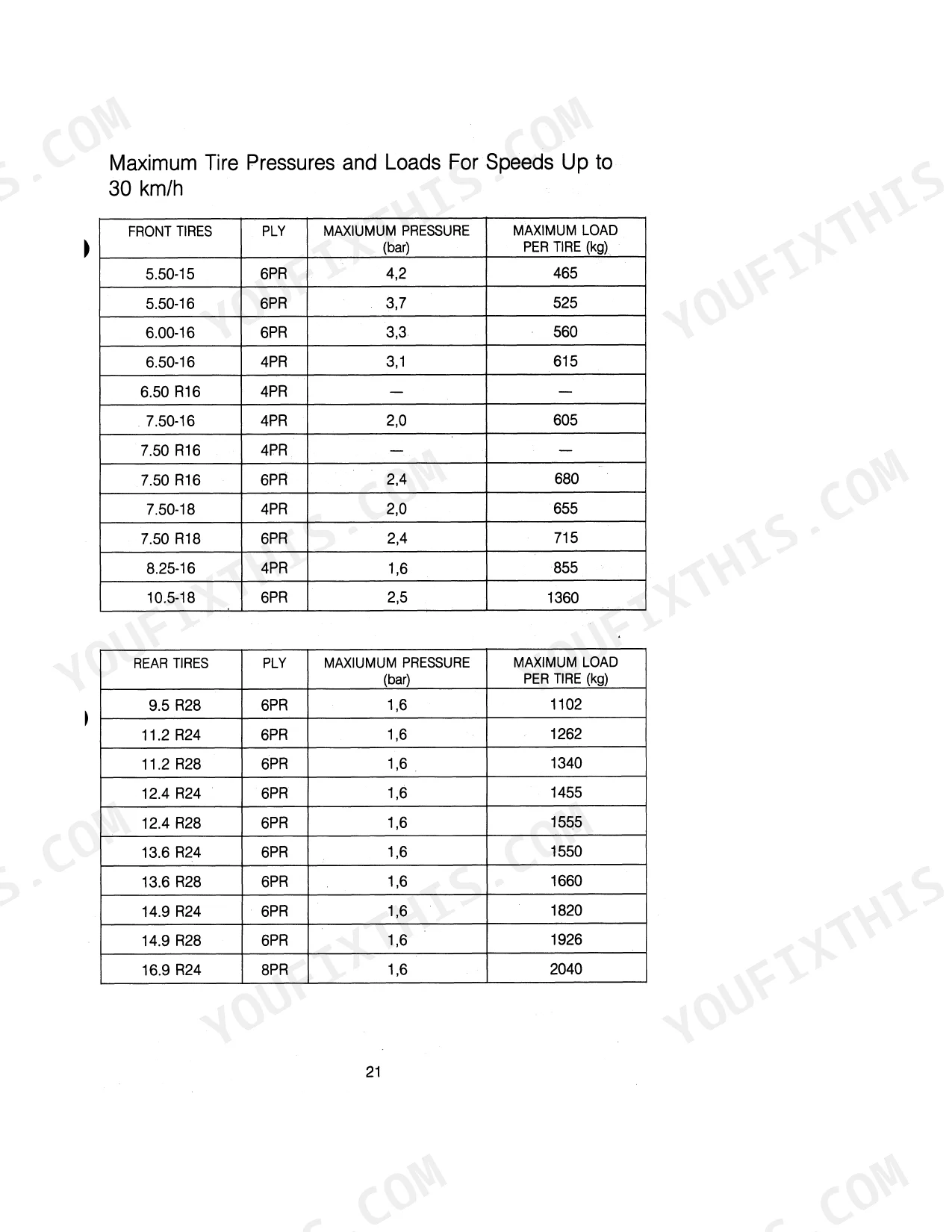

| Tire and Wheel Equipment | 37-42 | Standard Tire and Wheel Combinations, Optional Tire and Wheel Combinations, Maximum Tire Pressures, Maximum Loads, Tire Markings, Speed Chart |
| Front Tread Widths (2WD) | 43-44 | Tread Width Range, Extra Widths Range, Adjusting Front Wheel Tread Positions |
| Front Tread Widths (4WD) | 45 | Rim Positions, Tire Size, Tread Width, Vineyard Models, Narrow Models |
| Rear Tread Widths | 46-47 | Tires, Wheels, Rim Positions, Tread Widths, Vineyard Models, Narrow Models |
| Operation | 48-95 | Instruments and Controls, Warning Lights and Gauges, Hazard Switch, Direction Turn Switch, Horn Button, Head Lamp Dipper Switch, Engine Stop Control, Seat |
| Lubrication and Preventive Maintenance | 96-119 | Hourmeter, Lubricants, Grease Points, Lubrication Chart, Engine Oil, Transmission Oil |
| Servicing Schedule | 120 | Engine Crankcase Breather, Fuel Filter, Air Filter Elements, Clutch Pedal Travel, Tire Pressures, Brake Pedal Travel |
| Service Interval | 121-130 | Air Cleaner, Fan Belt Tension, Engine Oil Cooling Radiator, Clutch Pedal, Fuel Filter, Valve Clearances |
| Maintenance | 131-141 | Front Wheel Alignment, Tie Rod Lock Nut, Head Lamps, Directional Lamps, Fuses, Instrument Panel Lamps |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Fuel Tank Capacity | 60 litre | p. 19 |
| Hydraulic System Maximum Pressure | 180 bar | p. 20 |
| Battery Rating | 12 Volt, 100 Ah | p. 19 |
