Pull up the Case IH 1470 operator manual pdf you've been hunting: this 102-page Case IH factory document (OEM #9-2073) puts every operating procedure, safety warning, and maintenance schedule for the 1470 Tractor in one authoritative reference. Inside you get a complete pre-starting checklist, cold weather starting procedures, detailed PTO engagement steps, and a troubleshooting section to diagnose problems before they park your machine. Lubrication intervals, fluid capacities for every system, operator cab controls, and a full run-in procedure are all organized in factory sequence. Set foot clutch pedal free travel between 3/4 and 1-1/4 inch (19.1 to 31.8mm); your PTO clutch hand lever should require 60 to 80 lbs. of pull to engage with a decisive snap. Your machine is down. Bookmarked sections let you jump straight to the right procedure; search any spec by keyword and you're back in the seat.
What's Inside This Case IH 1470, 1470 Tractor Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Serial Number | 5 | Tractor Serial Number, Engine Serial Number, Transmission Serial Number, Front Axle Serial Number, Rear Axle Serial Number |

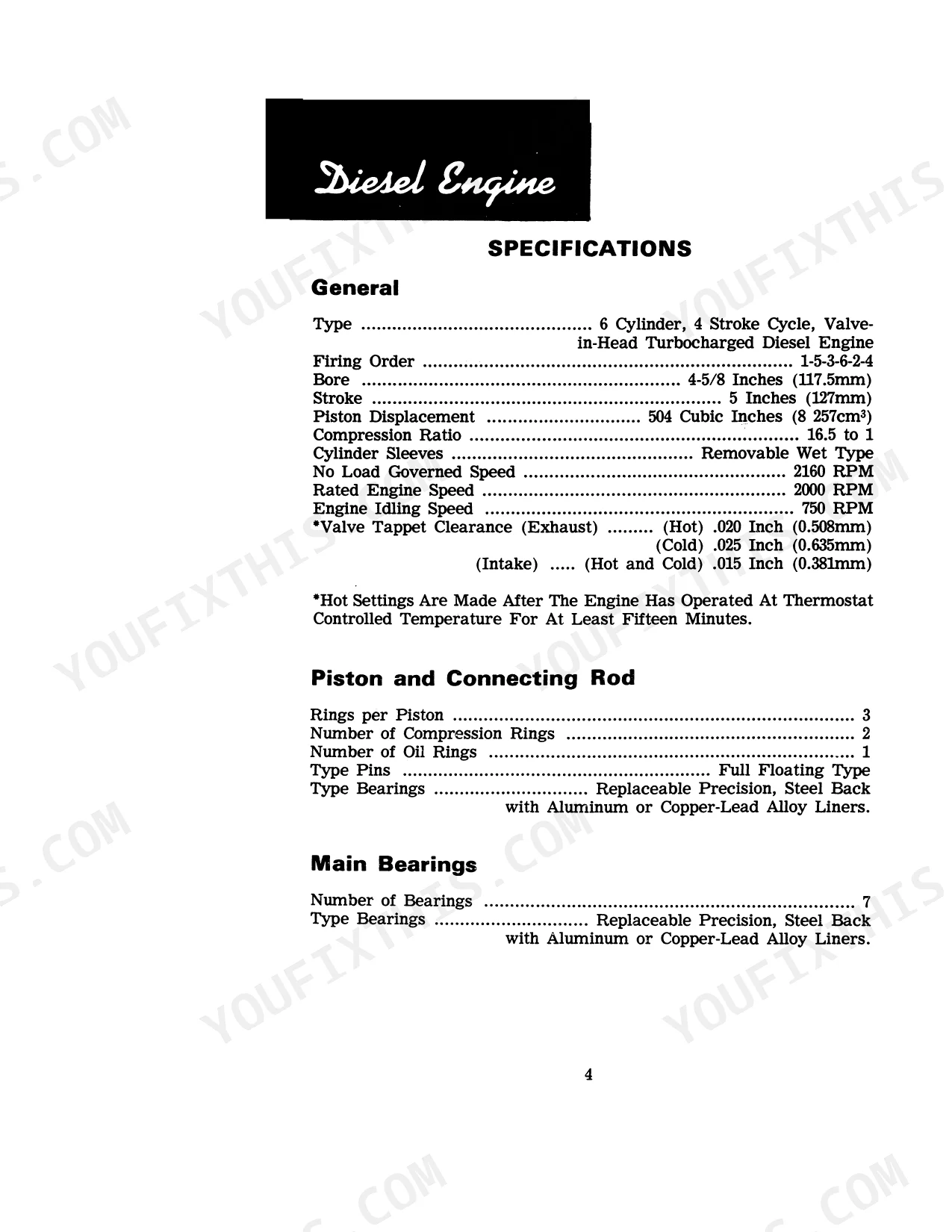

| Diesel Engine Specifications | 6-7 | General, Piston and Connecting Rod, Main Bearings |
| General Specifications | 8-12 | Cooling System, Electrical System, Parking Brake, Hydraulic Brakes, Transmission, Power Steering |
| Fuel Specifications | 13-14 | A.P.I. Gravity, Pour Point, Distillation, Flash Point, Kinematic Viscosity, Centane No. |

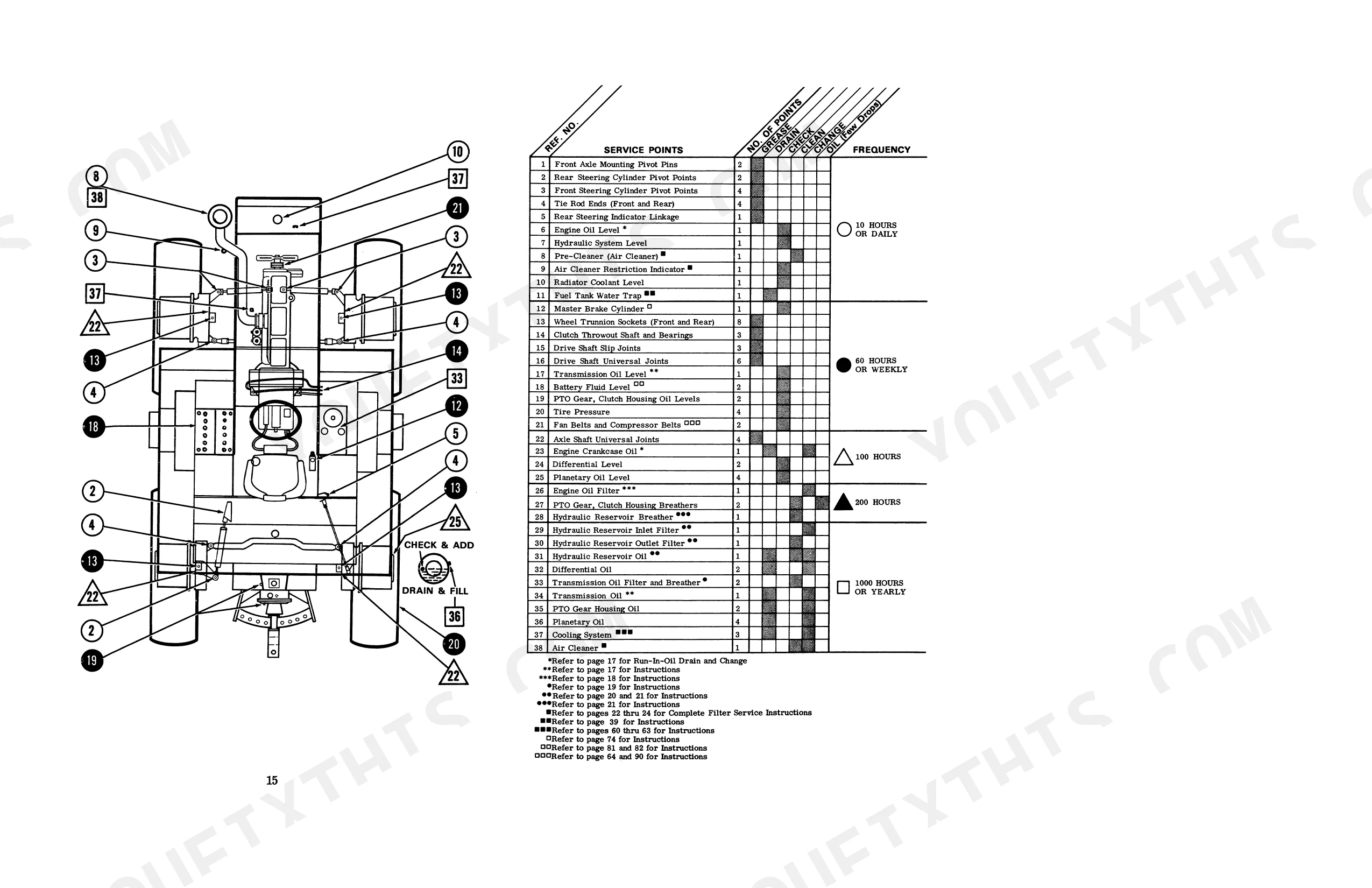

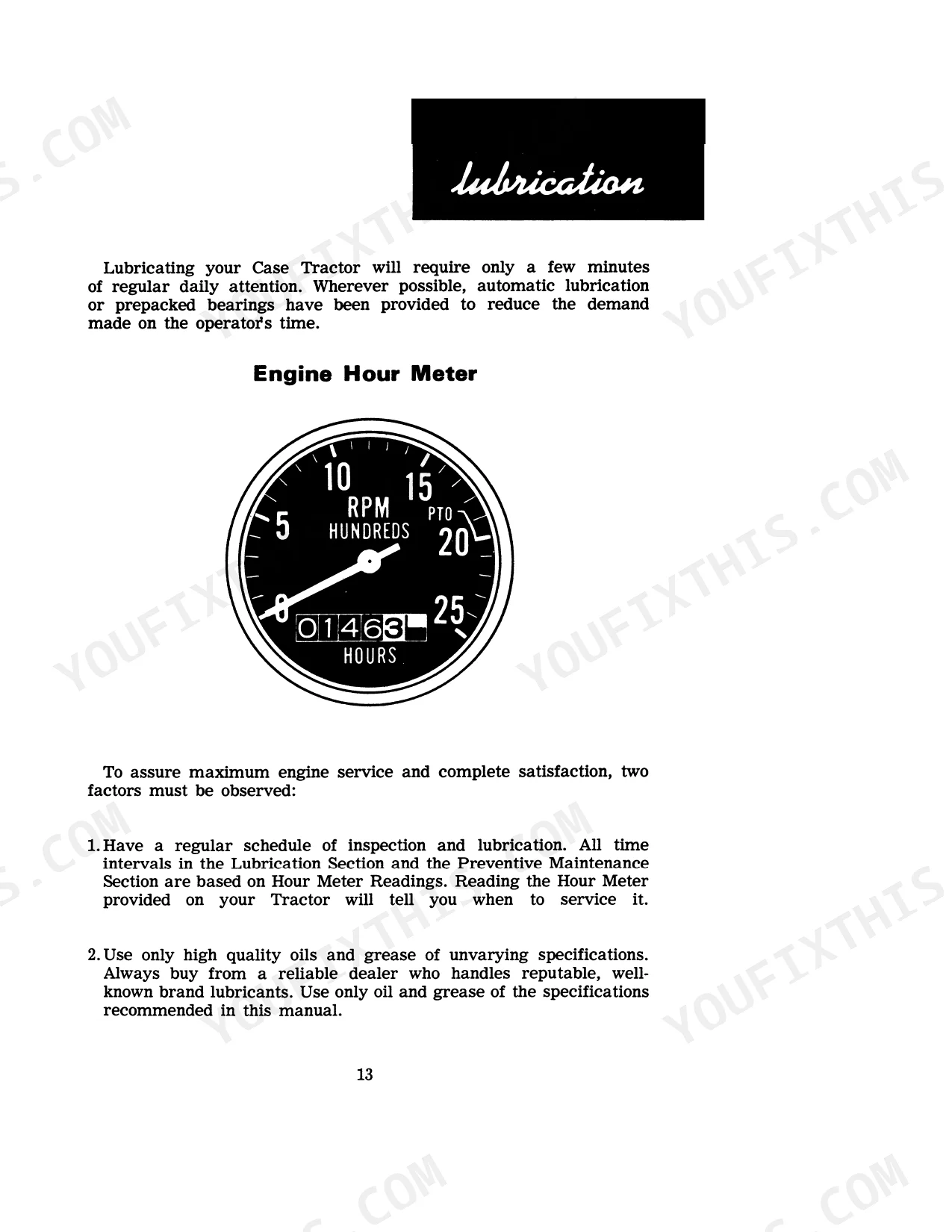

| Lubrication | 15-26 | Recommendations and Capacities, Engine Lubrication, Engine Crankcase Oil Change, Transmission Oil Filter, Hydraulic Reservoir and Filter, Air Cleaner |

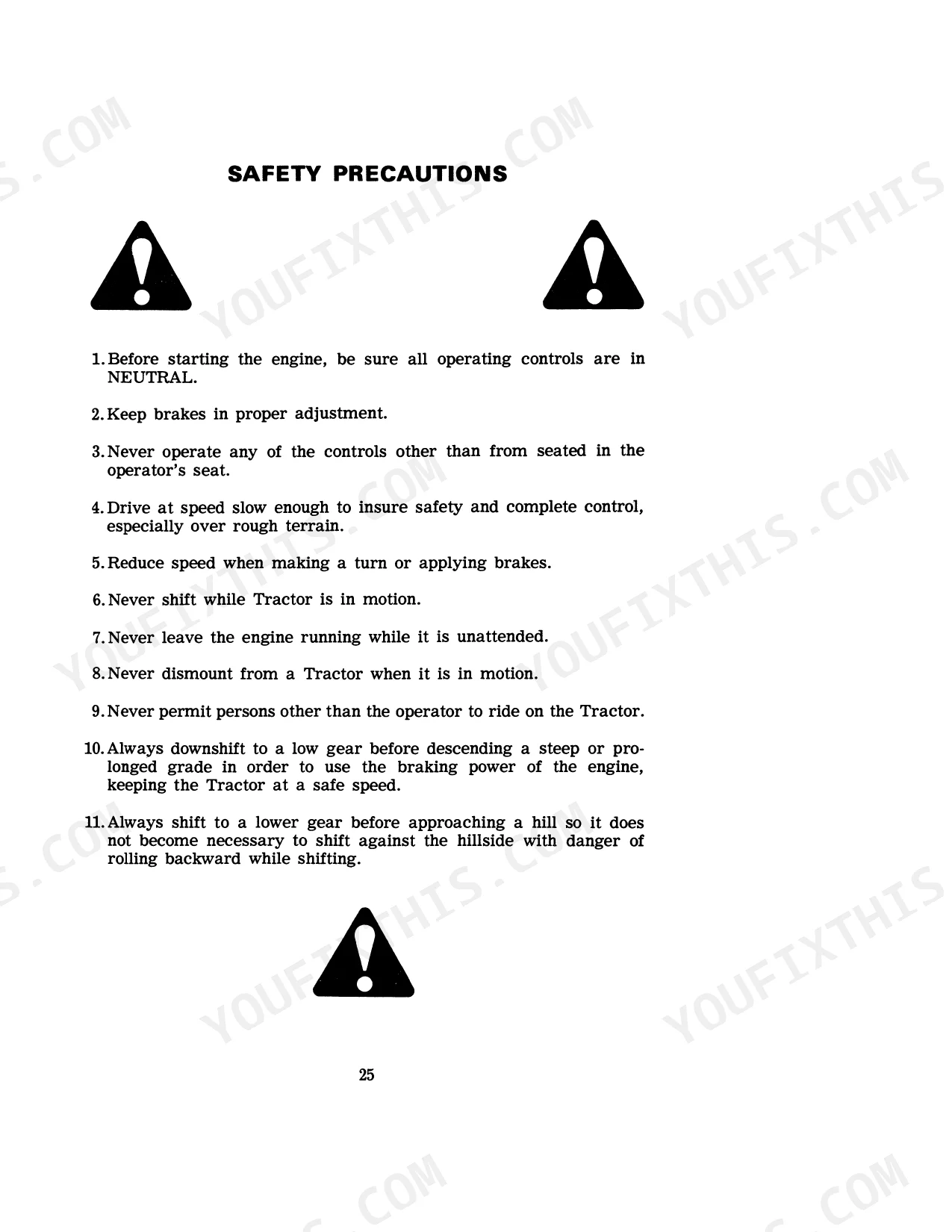

| Safety Precautions | 27-29 | - |

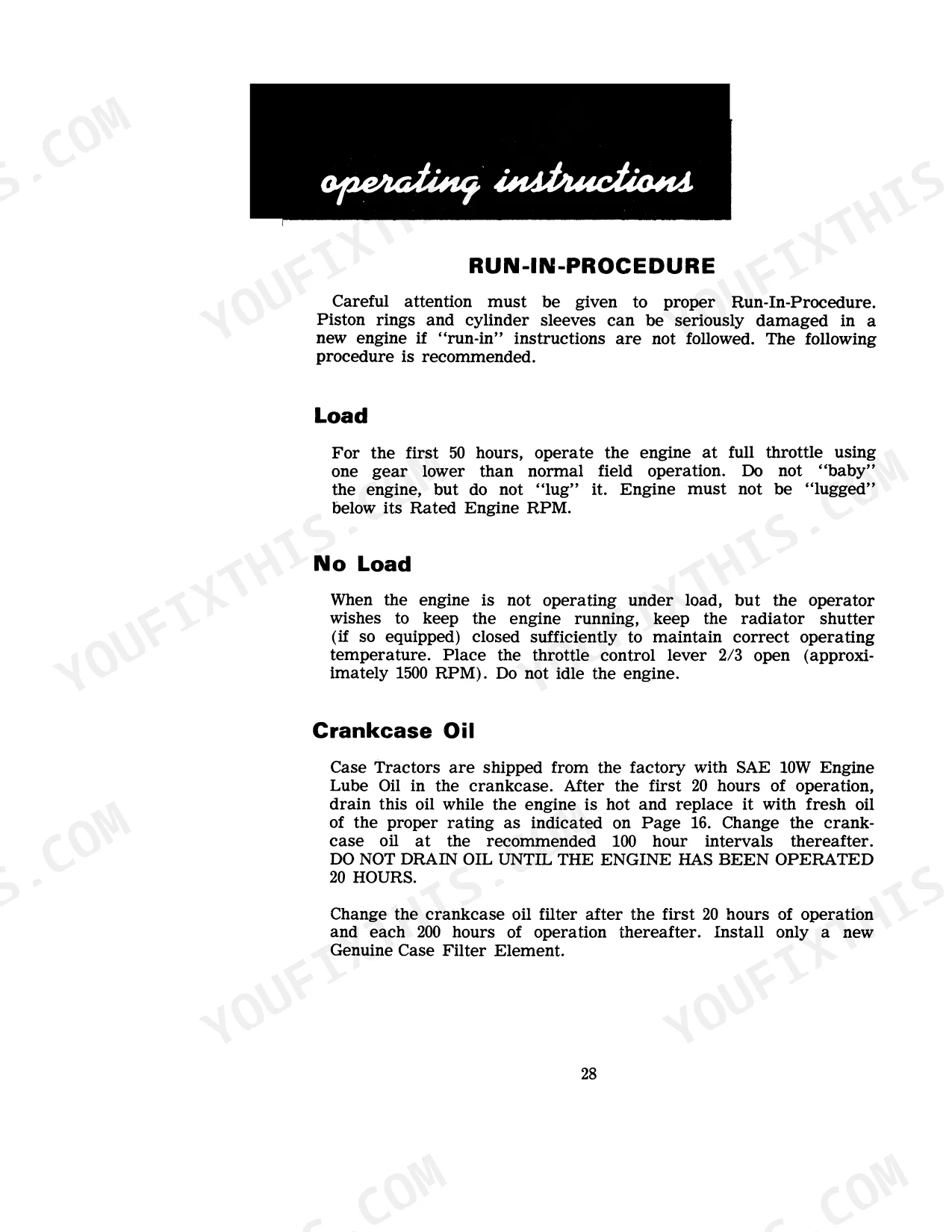

| Operating Instructions | 30-60 | Run-In-Procedure, Pre-Starting Check List, Operating Controls and Instruments, Starting Procedure, Cold Weather Operation, Power Take-Off |
| Preventive Maintenance | 61-85 | Cooling System, Diesel Fuel System, Servicing Fuel Filters, Foot Clutch Adjustment, Hydraulic Caliper Disc Brakes, Storage Battery |
| Operator's Cab | 86-92 | Operating Controls, Preventive Maintenance, Air Filters, Heater Coolant Valve, Compressor Belt Adjustment, Compressor Belt Replacement |
| After Delivery Checkup | 97-102 | Traction Clutch, PTO Operation, Hydraulic System, Fuel Injection Pump Timing, Cooling System, Transmission-Hydraulic System |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Foot clutch pedal free travel | 3/4 to 1-1/4 inch (19.1 to 31.8mm) | p. 70 |
| PTO clutch hand lever pull (after adjustment) | 60 to 80 lbs. (27.2 to 36.3 kg) | p. 71 |
| Engine Piston Displacement | 504 Cubic Inches (8 267cm³) | p. 6 |
| Rated Engine Speed | 2000 RPM | p. 6 |
| Engine Oil Pressure | 45 to 55 PSI (3.2 to 3.9 kg/cm²) | p. 7 |
| Engine Oil Capacity (With Filter, S.N. 2503651 and above) | 17 U.S. Quarts (16.1 liters) | p. 7 |
| Fuel Tank Capacity | 100 U.S. Gallons (378.5 liters) | p. 7 |
| Cooling System Capacity | 40 U.S. Quarts (37.9 liters) | p. 8 |
| Cooling System Pressure Cap | 7 PSI (0.492 kg/cm²) | p. 8 |
| Power Steering Relief Valve Pressure | 1350 to 1450 PSI (94.9 to 101.3 kg/cm²) | p. 9 |
| PTO Shaft Speed (at 2000 Engine RPM) | 1000 RPM | p. 9 |
| Minimum Turning Radius | 16 ft. 8 in. (5 080mm) | p. 11 |
Case IH 1470, 1470 Tractor Common Problems This Manual Covers
Case IH 1470 engine oil pressure warning during operation, gauge reading below normal p. 7
Check the oil level on the dipstick before running the engine again. Normal operating pressure is 45 to 55 PSI (3.2 to 3.9 kg/cm²) at rated engine speed. Verify the crankcase holds the correct capacity for your serial number range: 17 U.S. Quarts (16.1 liters) with filter for S.N. 2503651 and above. If level is correct, inspect the oil pressure gauge sender connection for corrosion or loose wiring before operating further.
Manual Section: Diesel Engine SpecificationsEngine overheating indicator, coolant temperature climbing into red zone p. 61
Shut down immediately and let the engine cool before opening the radiator. Verify coolant level is full when cold; system capacity is 40 U.S. Quarts (37.9 liters). Check that the pressure cap seals correctly at 7 PSI (0.492 kg/cm²) and shows no cracking on the rubber gasket. Inspect the radiator fins for debris plugging airflow. Review the cooling system maintenance schedule on page 15 for service intervals and fluid specifications.
Manual Section: Preventive MaintenanceTransmission making noise or jumping out of gear under load during field work p. 15
Stop and inspect the gear shift linkage for looseness or worn pins before continuing. Check the transmission fluid level using the sight glass or dipstick per the lubrication schedule on page 15. Verify you are not lugging the engine below the rated 2000 RPM range, which puts excessive shock load on gear engagement. Review the transmission oil filter service procedure on page 19 and confirm the filter was replaced at the correct interval.
Manual Section: LubricationFoot clutch pedal feels soft or tractor creeps forward with pedal fully depressed p. 70
Measure the clutch pedal free travel before adjusting anything else. Correct free travel is 3/4 to 1-1/4 inch (19.1 to 31.8mm); less than 3/4 inch means the clutch is not fully releasing. Turn the adjusting screw counter-clockwise to restore free travel to the correct range per the procedure on page 70. If the pedal still feels spongy after adjustment, check hydraulic brake fluid level as the systems share fluid routing.
Manual Section: Preventive MaintenancePTO will not engage or slips under implement load, lever feels loose p. 71
Verify the PTO hand lever engages with a firm snap and requires 60 to 80 lbs. (27.2 to 36.3 kg) pull at the top of the lever. In the fully disengaged position, the lever should sit approximately 1/4 inch (6.4mm) away from the operator's console. If pull force is below 60 lbs. or the snap is absent, adjust the PTO clutch ring clockwise per the procedure on page 71. Confirm engine is at 2000 RPM to achieve the rated 1000 RPM PTO shaft speed before engaging a loaded implement.
Manual Section: Preventive MaintenanceAir filter restriction light on or engine losing power in dusty field conditions p. 17
Service the air cleaner element immediately when the restriction indicator triggers. Remove the pre-cleaner bowl and dump accumulated dust, then inspect the primary element for tears or collapsed pleats per the service steps starting on page 22. Do not blow compressed air from the outside in; always clean from inside out at low pressure. Check the cab air filter at page 87 as well, since cab pressurization draws from the same dusty environment and a clogged cab filter can signal the main system is overloaded.
