Need the factory operating guide for your Case IH Puma 130, 145, 160 CVX? This 502-page Operator Manual (OEM #84479483) walks you through everything from the integrated control panel and electronic park brake to CVT transmission operation, rear PTO, hydraulic remote valves, and a complete maintenance schedule with 10-, 50-, and 100-hour service intervals. Inside: fluid capacity tables, a fault code section, and step-by-step procedures for starting in cold temperatures, boosting the battery, and resetting hydraulic pressure. Fill the engine to 15 L at each oil change; the transmission and rear axle take 65 L on the Puma 130 CVX or 68 L on the 145 and 160 CVX. Every hour your tractor sits costs money. Bookmarked by section: search any spec by keyword or jump straight to the procedure you need.
What's Inside This Case IH Puma 130-160 CVX Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 11-36 | Ce Declaration of Conformity, Metric and Imperial Units Abbreviations, To the Owner, Product Identification, Engine Identification, Driveline Identification, Cab Identification |
| Safety Information | 37-68 | Safety Precautions, Before Driving the Tractor, Driving the Tractor, Operating the Tractor, Servicing the Tractor, Safety Decals |

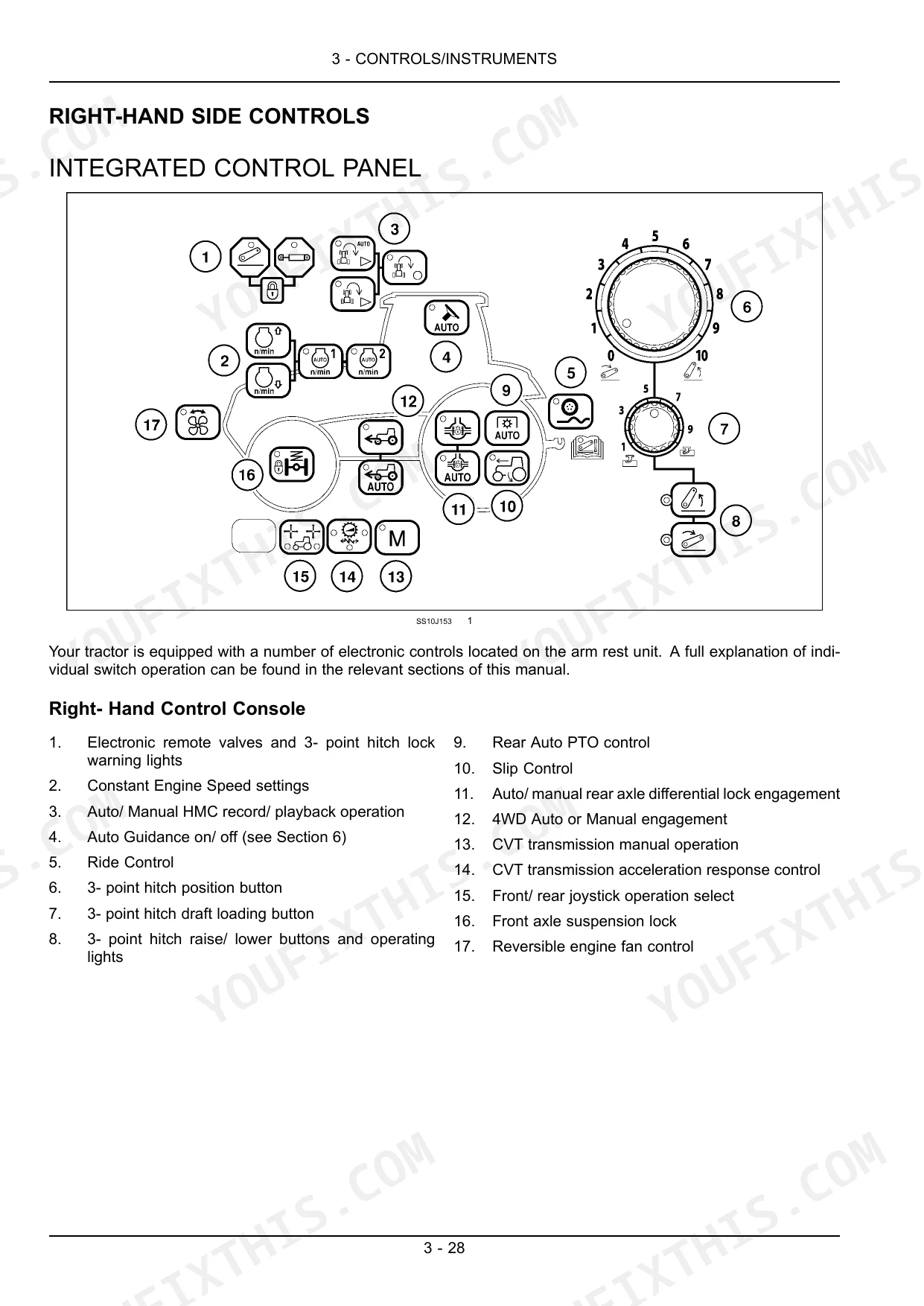

| Controls/Instruments | 69-156 | Cab Air Filters, Electronic Park Brake, Integrated Control Panel, Hydraulic Master Switch, Automatic Temperature Control (Atc), Instrument Cluster |

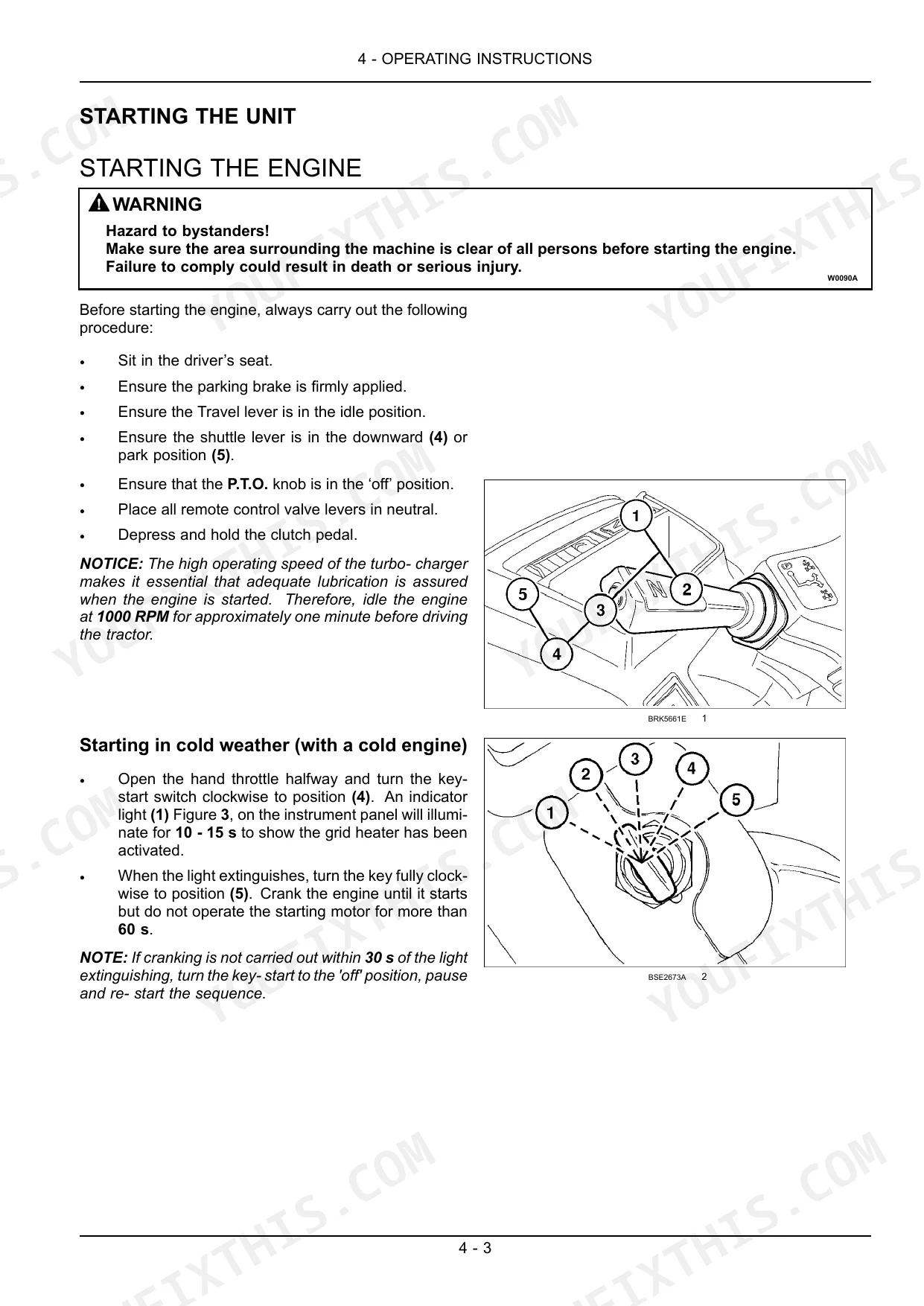

| Operating Instructions | 157-168 | Tractor Refuelling, Starting the Engine, Boosting the Battery, Automatic Engine Shutdown, Operating in Cold Temperatures, Reversible Engine Fan |
| Transport Operations | 169-170 | Carrying the Tractor on a Transporter, Secure the High Visibility Roof Panel, Towing the Tractor |

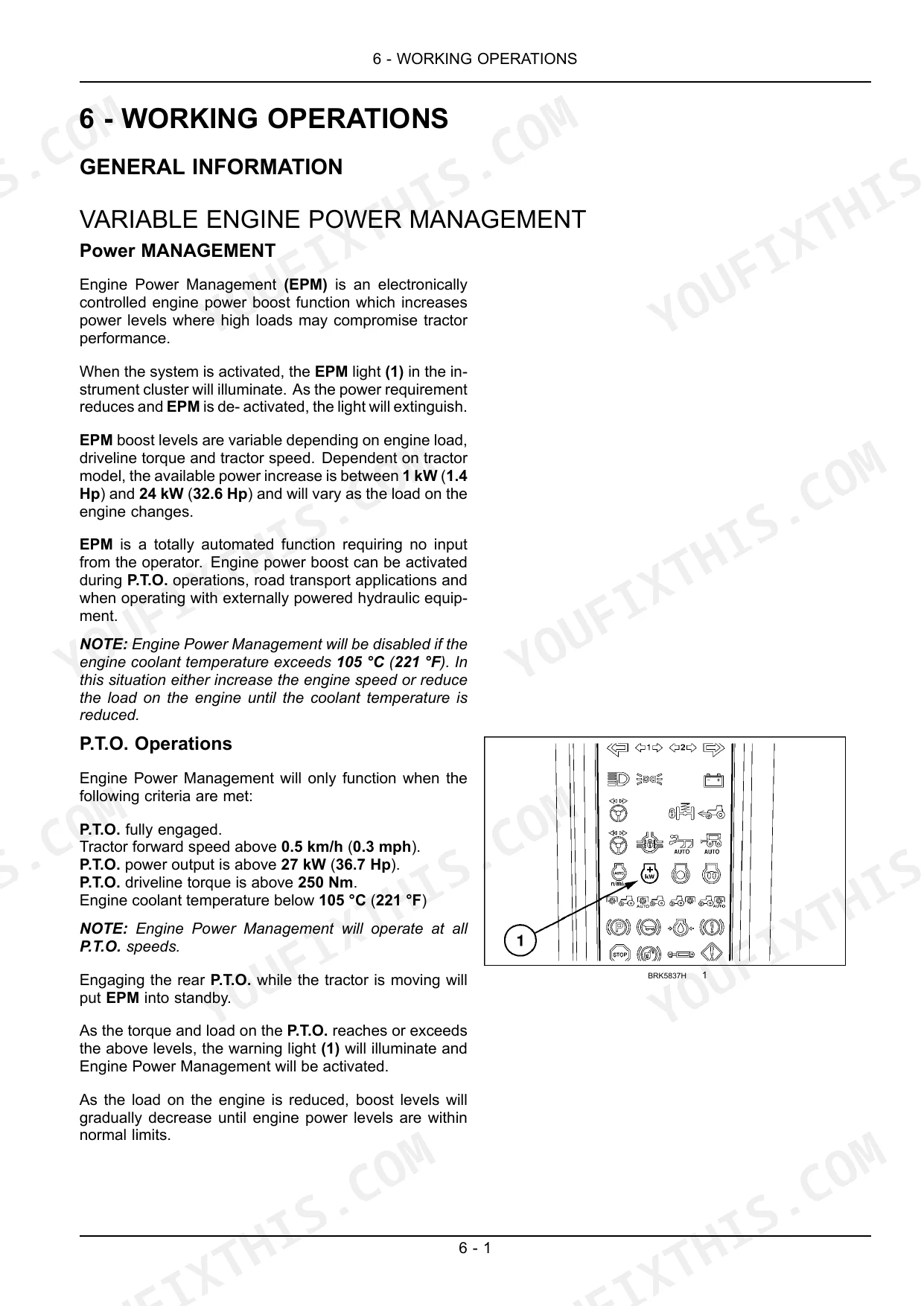

| Working Operations | 171-368 | Variable Engine Power Management, Transmission, Rear Power Take-Off, Front Hitch, Hydraulic Remote Control Valves, Wheel Track Adjustment |
| Maintenance | 369-454 | General Information, Maintenance Chart, When the Warning Lamp Lights, Every 10 Hours or Each Day, Every 50 Hours, Every 100 Hours |

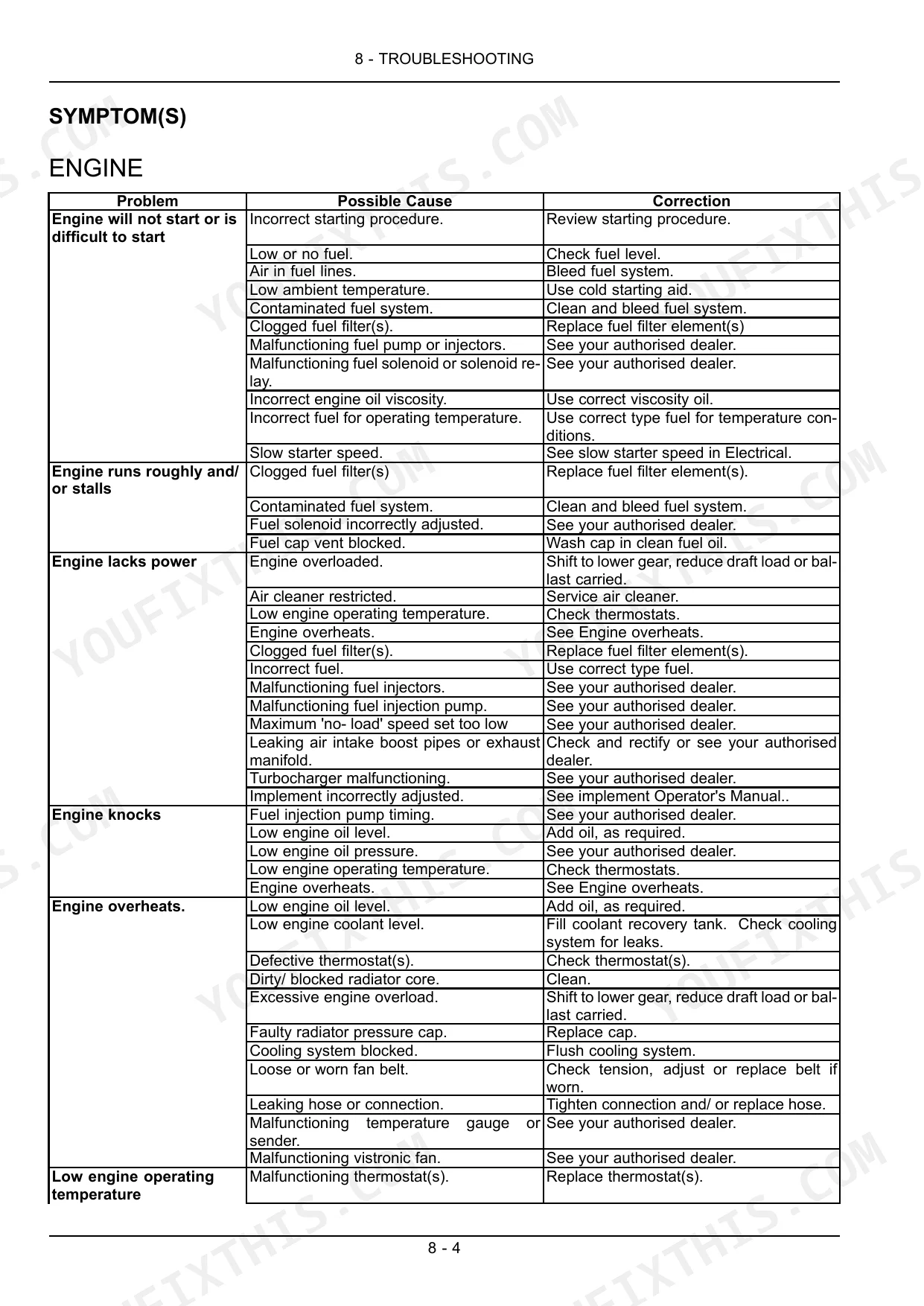

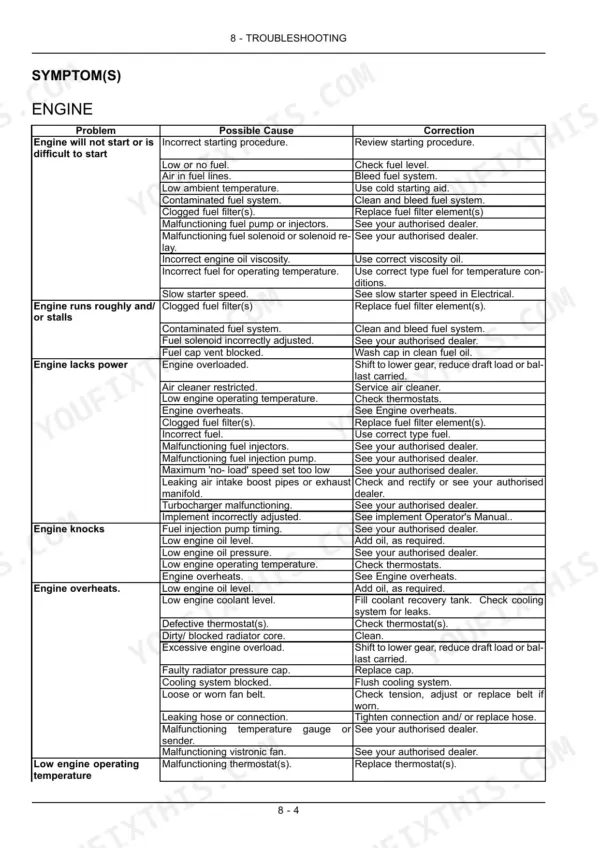

| Troubleshooting | 455-462 | Fault Code Resolution, Alarm(s), Symptom(s), Engine, Transmission, Hydraulics |

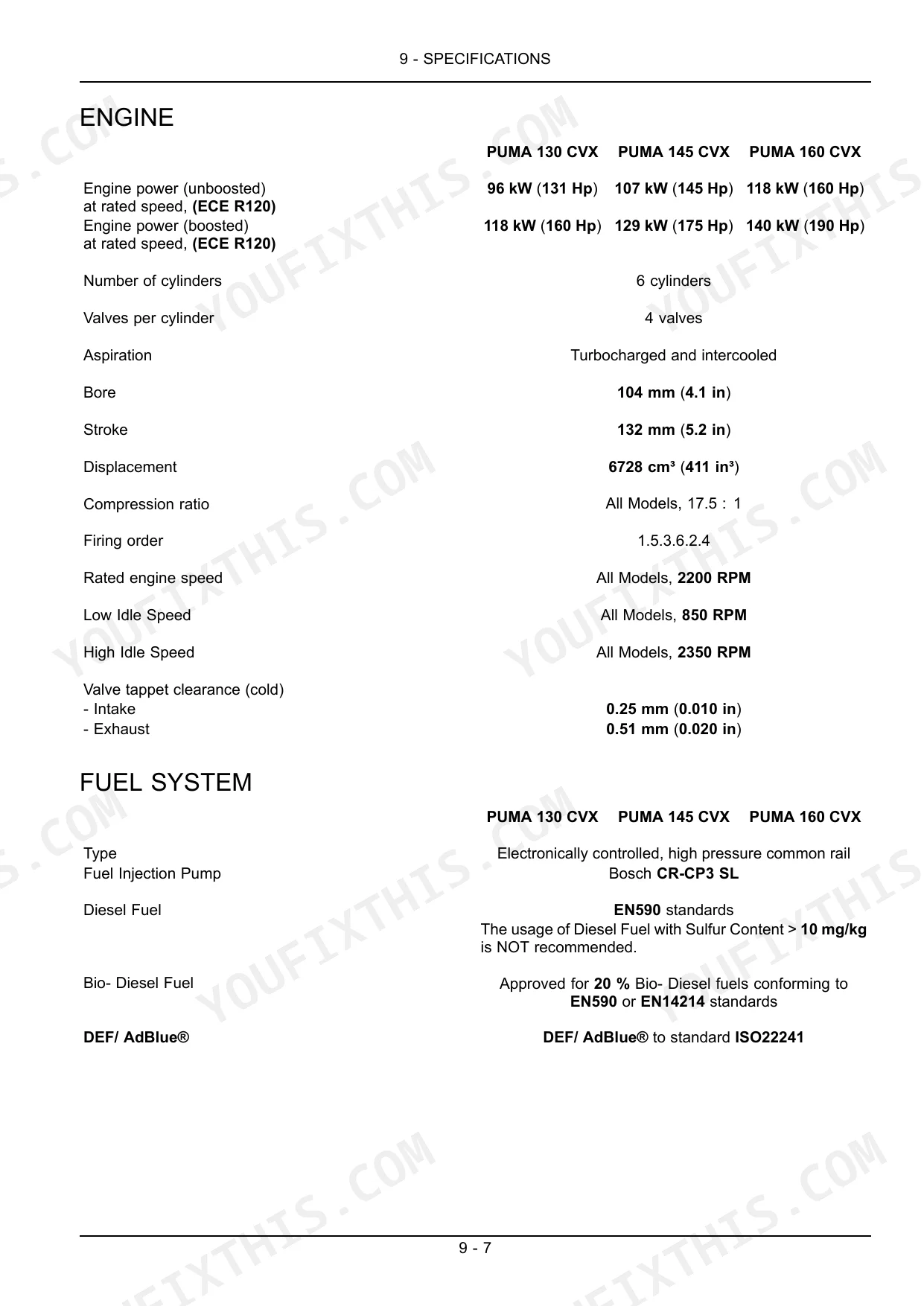

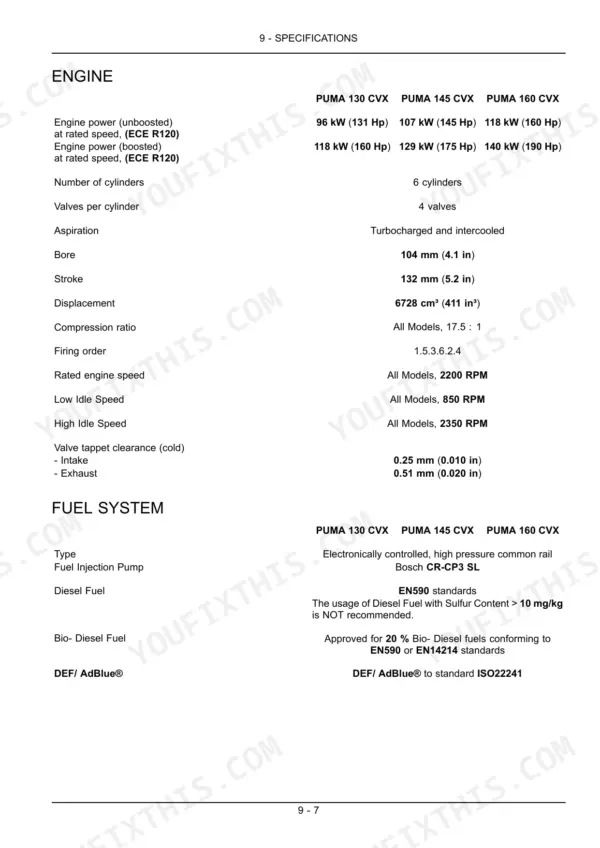

| Specifications | 463-480 | General Dimensions, Capacities, Engine, Transmission, Hydraulic System, Minimum Hardware Tightening Torques |
| Accessories | 481-486 | Auxiliary Headlights, External Rear View Mirrors, Front- End Loader Fixation Points, Radio, Rotating Beacon |
| Forms and Declarations | 487-490 | Service Record 1st 50 Hour, Dealer Copy, Owner Copy |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Hydraulic system pressure reset procedure | Start engine, move control levers fully forward to 'float' position, then stop engine. | p. 291 |
| CVT transmission reset procedure after hydraulic flow failure | Consult your authorised dealer for recalibration. | p. 457 |
| Engine Oil Capacity (including filter) | 15 l (3.96 US gal) | p. 379 |
| Transmission / Rear Axle / Hydraulics Capacity | PUMA 130 CVX: 65 l (17.2 US gal); PUMA 145 CVX, PUMA 160 CVX: 68 l (18.0 US gal) | p. 379 |
| 4WD Front Axle - Differential Capacity | 9 l (2.38 US gal) | p. 379 |
| Front P.T.O. Capacity | 0.5 l (0.13 US gal) | p. 379 |
| Engine Oil and Filter Change Interval | 600 hours | p. 380 |
| DEF/AdBlue® Main Filter Change Interval | 3600 hours or every 2 years | p. 431 |
| Hydraulic System Maximum Pressure | 210 bar +/- 5 (3045 psi +/- 72) | p. 472 |
| Rear P.T.O. power at Rated Engine Speed | PUMA 130 CVX: 78 kW (106 Hp); PUMA 145 CVX: 89 kW (121 Hp); PUMA 160 CVX: 99 kW (135 Hp) | p. 471 |
| Front Wheel Disc to Hub Nuts Torque | 210 Nm (155 lb ft) | p. 400 |
| Rear Wheel Disc to Hub Nuts Torque (Flanged axle) | 260 Nm (192 lb ft) | p. 400 |
Case IH Puma 130-160 CVX Common Problems This Manual Covers
Case IH Puma CVX tractor lugs down and loses ground speed when switched to manual transmission mode
Switch to CVT automatic mode; in manual mode, the engine and transmission no longer share load data, so you must manage throttle manually. Verify transmission fluid level: PUMA 130 CVX capacity is 65 l (17.2 US gal); PUMA 145/160 CVX is 68 l (18.0 US gal) (page 379). Review fault codes on page 456 for active transmission alerts.
Manual Section: Transmission Symptom(s) TroubleshootingSuspected hydraulic leak somewhere on tractor, can't pinpoint exact location by sight p. 37
Inspect suspect areas using a piece of cardboard or stiff paper held near the hose, never your bare hand. High-pressure hydraulic fluid can inject through skin; system maximum pressure reaches 210 bar (3045 psi) (page 472). Hold the cardboard at each fitting and look for oil staining. Review safety precautions on page 37 before starting any inspection.
Manual Section: Safety InformationAlarm light or fault code appears on instrument cluster display during operation p. 456
Identify the code on the fault code reference chart on page 456, which lists the area of fault and recommended action for each alarm. For hydraulic pressure faults, verify oil level is at the MAX sight glass mark; normal system maximum is 210 bar +/- 5 (3045 psi +/- 72) (page 472). Contact your dealer if the code persists.
Manual Section: Alarm(s) Fault Codes and SymbolsDEF/AdBlue warning light on, SCR system fault, engine power reduced or restart blocked p. 431
Check DEF/AdBlue fluid level first, then inspect for quality faults: stained or cloudy fluid requires a drain and refill with certified product. Review fault type on the instrument display; fluid level, quality, and technical faults each follow a different resolution path. Schedule the DEF/AdBlue main filter replacement at 3600 hours or every 2 years (page 431).
Manual Section: MaintenanceThree-point hitch status light flashing and hitch not raising implement to full height
Check that the hydraulic master switch is ON (page 69) and verify oil sits between MIN and MAX marks on the sight glass. System capacity is 65 l (17.2 US gal) on the PUMA 130 CVX or 68 l (18.0 US gal) on the 145/160 CVX (page 379). If flashing continues, review the Three Point Hitch Symptom(s) Troubleshooting section.
Manual Section: Three Point Hitch Symptom(s) TroubleshootingFrequently Asked Questions
How to reset error code on Case IH Puma 130 CVX after starter fluid use?
The manual warns against using starter fluid (ether or other flammable starting aids) due to explosion hazards on page 4-4. For general error codes, you can access stored error codes from the pop-up menu and touch 'Erase all' to clear the memory, as described on page 3-76. However, there is no specific procedure for resetting an error code after starter fluid use, as its use is prohibited.
What error codes indicate transmission failure on Case IH Puma 145 CVX?
Error codes indicating transmission failure on the Case IH Puma 145 CVX will start with the figure '2 _ _ _'. These codes, along with a malfunction symbol, will appear in the transmission display to indicate a faulty circuit or sensor. For specific fault details, consult your authorized dealer.
How to reset transmission control module on Case IH Puma 160 CVX?
If transmission shifts become low or jerky, indicating a need for re-calibration, or if an error code related to transmission malfunction appears, the manual advises to "Recalibrate the transmission or see your authorised dealer." There is no user-accessible procedure for resetting the transmission control module directly.
How to reset hydraulic system pressure on Case IH Puma 145 CVX
To relieve hydraulic system pressure, first start the engine. Then, move the remote control levers fully forward to the 'float' position. After this, stop the engine. This procedure ensures that pressure in the circuit is relieved before disconnecting hydraulic hoses.
How to reset error code on Case IH Puma 130 CVX
To clear stored error codes, access the 'Fault Archive' from the pop-up menu on the colour display and touch 'Erase all'. For non-active warnings, these can be cleared from the display by depressing the reset key (2) on the keypad, though they may reappear at intervals between 10 min and 60 min depending on severity.
What format is this manual in?
You get a 502-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print this manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
