Pull up the Case IH 385 operator manual PDF you've been looking for: all 126 pages of this factory guide (OEM #1258519C7) cover the 385, 484, 584, 684, 784, 884, and Hydro 84 tractors from engine break-in through long-term storage prep. Inside you get a full preventive maintenance schedule with service intervals, fluid capacities for the engine crankcase, transmission, hydraulic system, and front axle, plus tire inflation tables with load ratings by size for both front and rear. Your three-point hitch controls, PTO lever, and differential lock come with step-by-step procedures written for the operator seat, not the repair bench. Set hydraulic system working pressure to 175 kg/cm² and torque the transmission filter retaining bolt to 16 to 22 N·m before locking it down. No more chasing numbers through a stack of binders. Bookmarked by chapter so you can land on the maintenance guide or tire chart in seconds; download now and get moving.
What's Inside This Case IH 385–Hydro-84 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| To the Owner | 3-4 | - |
| Serial Numbers | 9 | Tractor Serial Number, Engine Serial Number, Skidded Unit Serial Number, PTO Installation Code, Drive Train Code, Bevel Gear Ratio |
| Work Safely - Follow These Rules | 10-13 | Servicing, Starting, During Operation, Transporting, Ballast, Product Graphics |
| Energy Conservation - Follow These Recommendations | 14 | - |
| Inch-Metric Hardware | 15 | Bolt Classification, Identification Chart, Metric Series, Approximate Inch Series |

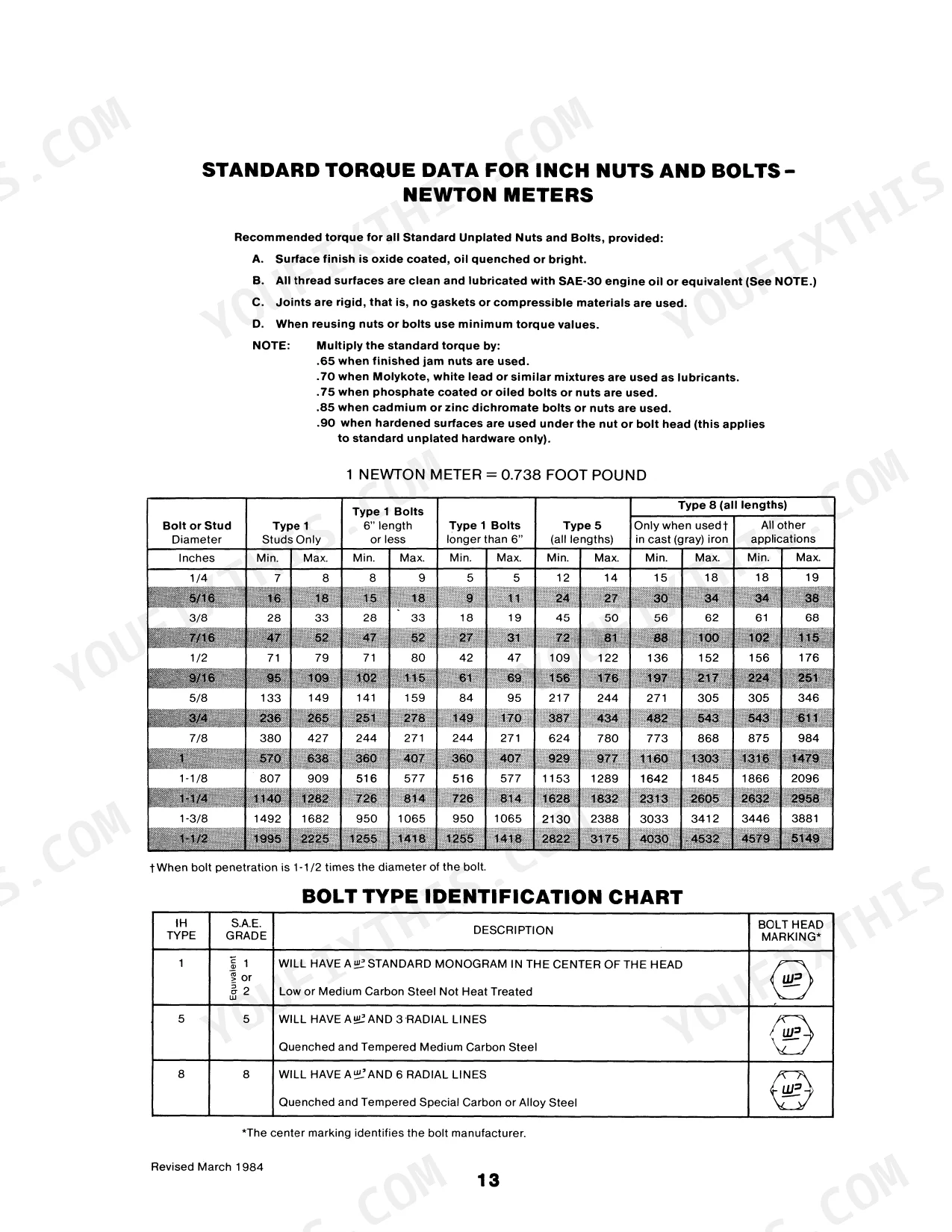

| Standard Torque Data | 16-20 | Foot Pounds, Newton Meters, Bolt or Stud Diameter, Bolt Type Identification Chart, Metric Nuts and Bolts, Hydraulic Tubes and Fittings |

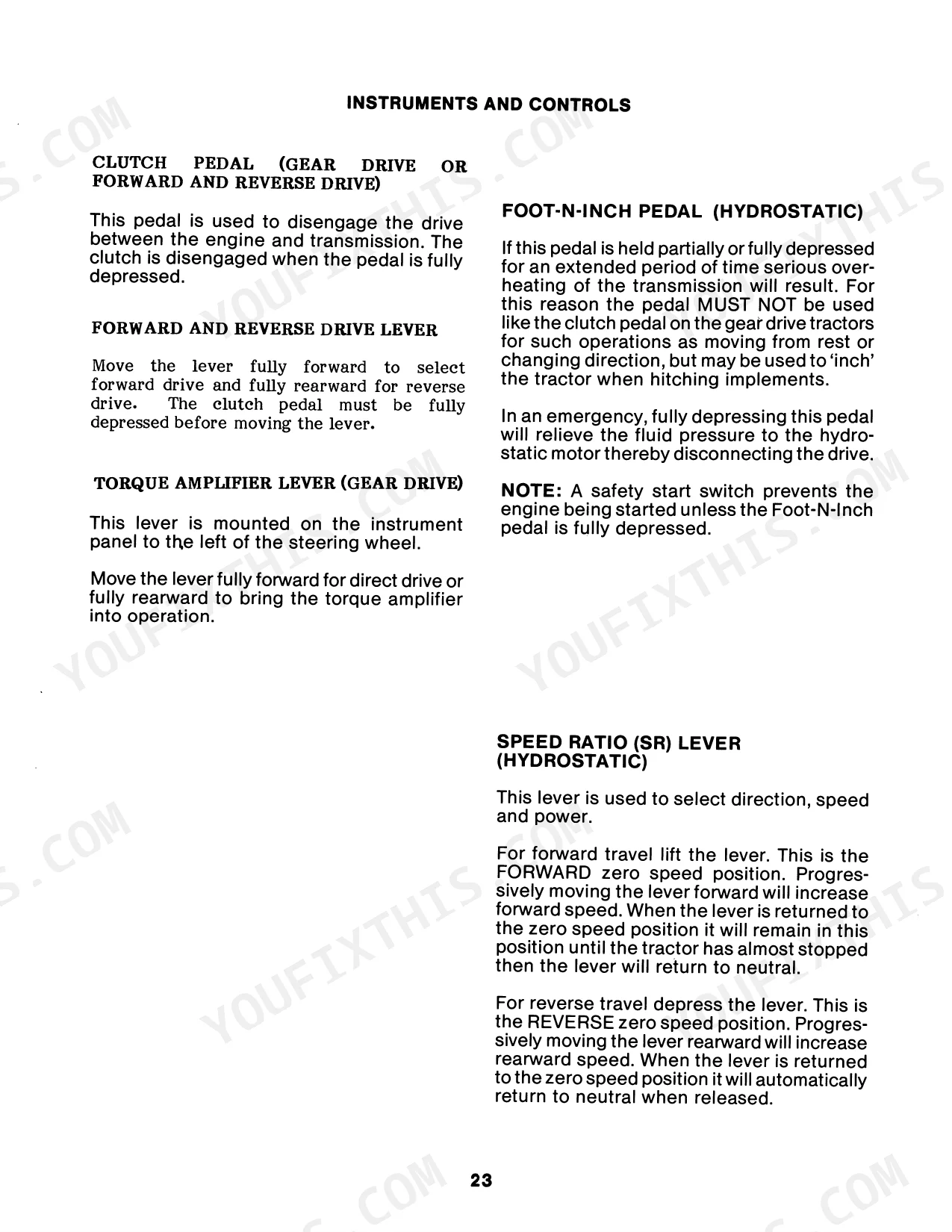

| Instruments and Controls | 21-28 | Warning Light Panel, Tachometer, Fuel Gauge, Brake Pedals, Differential Lock Pedal, PTO Lever |
| Before Operating the Tractor | 29 | Lubrication, Air Cleaning System, Tires, Engine Cooling System, Fuel System, Operator's Seat Adjustment |
| Engine Break-In Procedure | 30 | Period, Lever Position, Load |
| Operating the Tractor | 31-48 | Starting the Engine, Driving the Tractor, Hydrostatic Drive, Power Take-Off, Clutch Adjustment, Foot-N-Inch Valve Adjustment |
| Engine and Fuel System | 49-53 | Engine Oil, Changing the Filter, Diesel Fuel Storage, Fuel Tank, Fuel Filters, Ether Start Fluid Container |
| Cooling System | 54-56 | General, Rust Protection, Adding Coolant, Draining the System, Flushing the System, Fan Belt Tension |
| Air Cleaning System | 57-58 | General, Servicing the Air Cleaner, Hood Access Panel, Air Cleaner & End Cap, Safety Element Removal, Main Element Removal |
| Electrical System | 59-63 | Electrolyte Level, Cleaning and Servicing the Battery, Booster Batteries and Charging, Alternator, Lighting, Fuses |
| Hydraulic Controls for Three-Point Hitch | 64-69 | Position Control Lever, Adjustable Stop, Drop Response, Draft Control Lever, Auxiliary Valves, Neutral and Float Lockout |
| Three-Point Hitch | 70-73 | Lift Links, Lower Links, Check Chains, Stabilizers, Coupling the Equipment, Swinging Drawbar |
| Four Wheel Drive Attachment (Current Tractors) | 74-75 | Control Lever, Transfer Box, Front Wheel Drive, Front Axle Static Loading, Field Operation and Road Travel, Operating with Front End Loader |
| Front Wheels | 76-82 | Narrow Box Front Axle, Deep Box Front Axle, Adjusting Tread Widths, Front Wheel Tread, Front Wheel Alignment |
| Rear Wheels | 83-84 | Utility Tractors, Row Crop Tractors, Rim Bolt Torque, Hub Nut Torque, Hub Clamp Bolt Torque, Hub Bolt Torques |

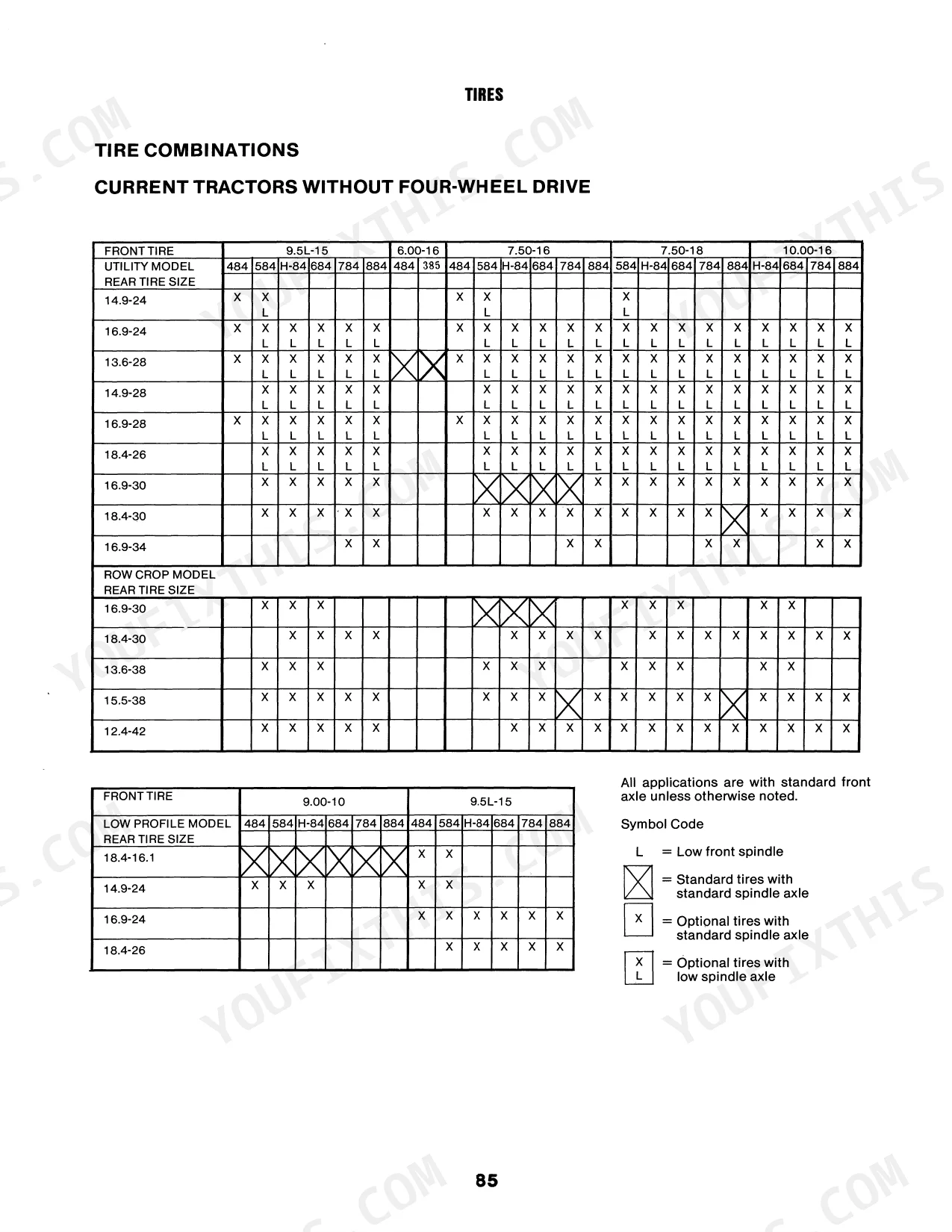

| Tires | 85-89 | Inflation, Front Tire Loads and Inflation Pressures, Rear Tire Loads and Inflation Pressures, Max. Front Tire Loads and Inflation Pressures with Front Loader |
| Ballasting the Tractor | 90 | Loss of Drawbar Pull, Excessive Weight, Percent Slip, Front End Weights, Rear Wheel Weights |
| Cold Weather Precautions | 91 | Fuel System, Lubrication, Cooling System |
| Storing the Tractor | 92 | Fuel System Preparation, Cooling System Preparation, Lubrication System Preparation, Battery Maintenance, Clutch Pedal Operation |
| Preventive Maintenance Guide | 93 | Engine, Cooling System, Fuel System, Transmission, Air Cleaner, Hydraulic System |
| Extra Equipment and Accessories | 94 | Front and Rear Tires, Wheel Weights, Front End Weights, Auxiliary Hydraulic Valves, 3-Point Hitch Stabilizers, ROPS Canopy |

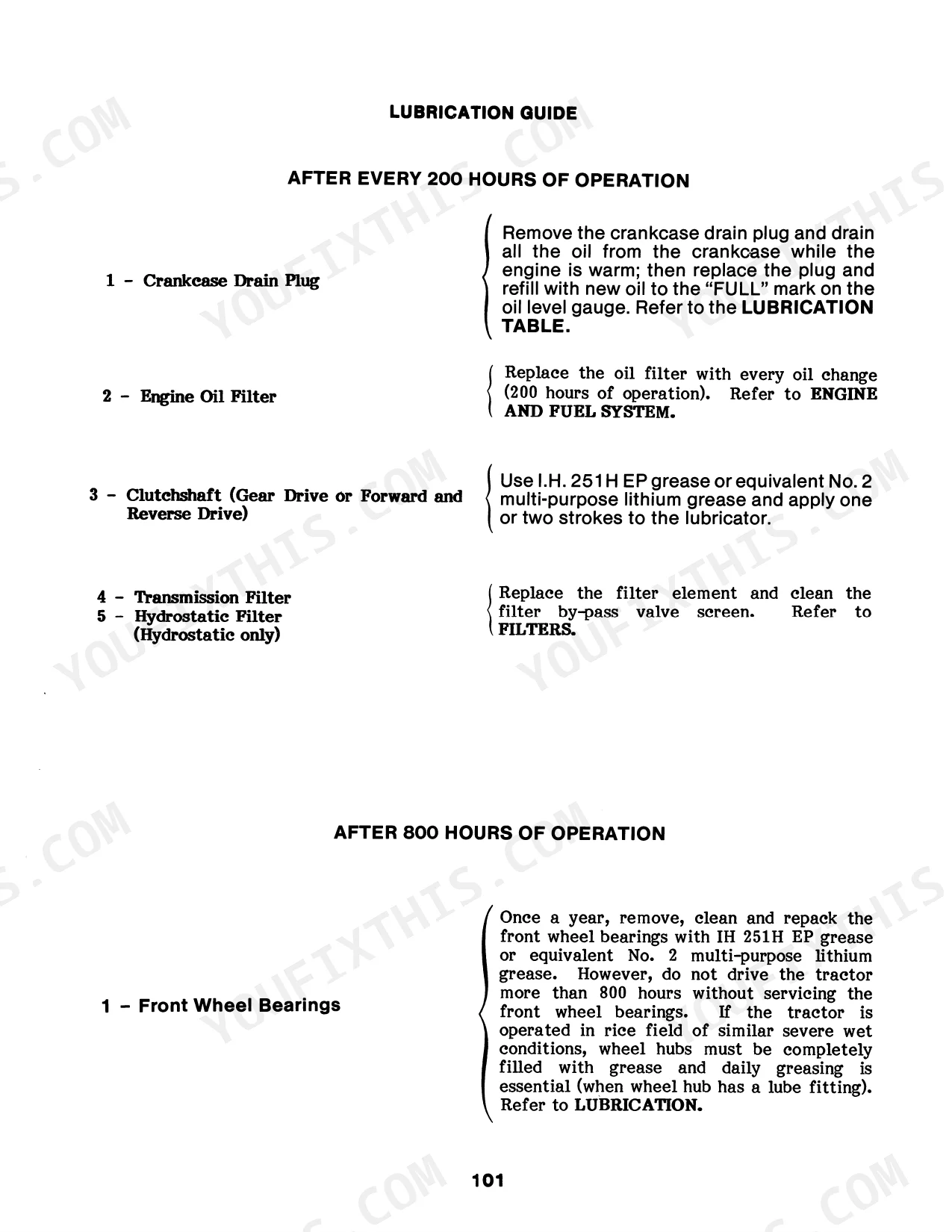

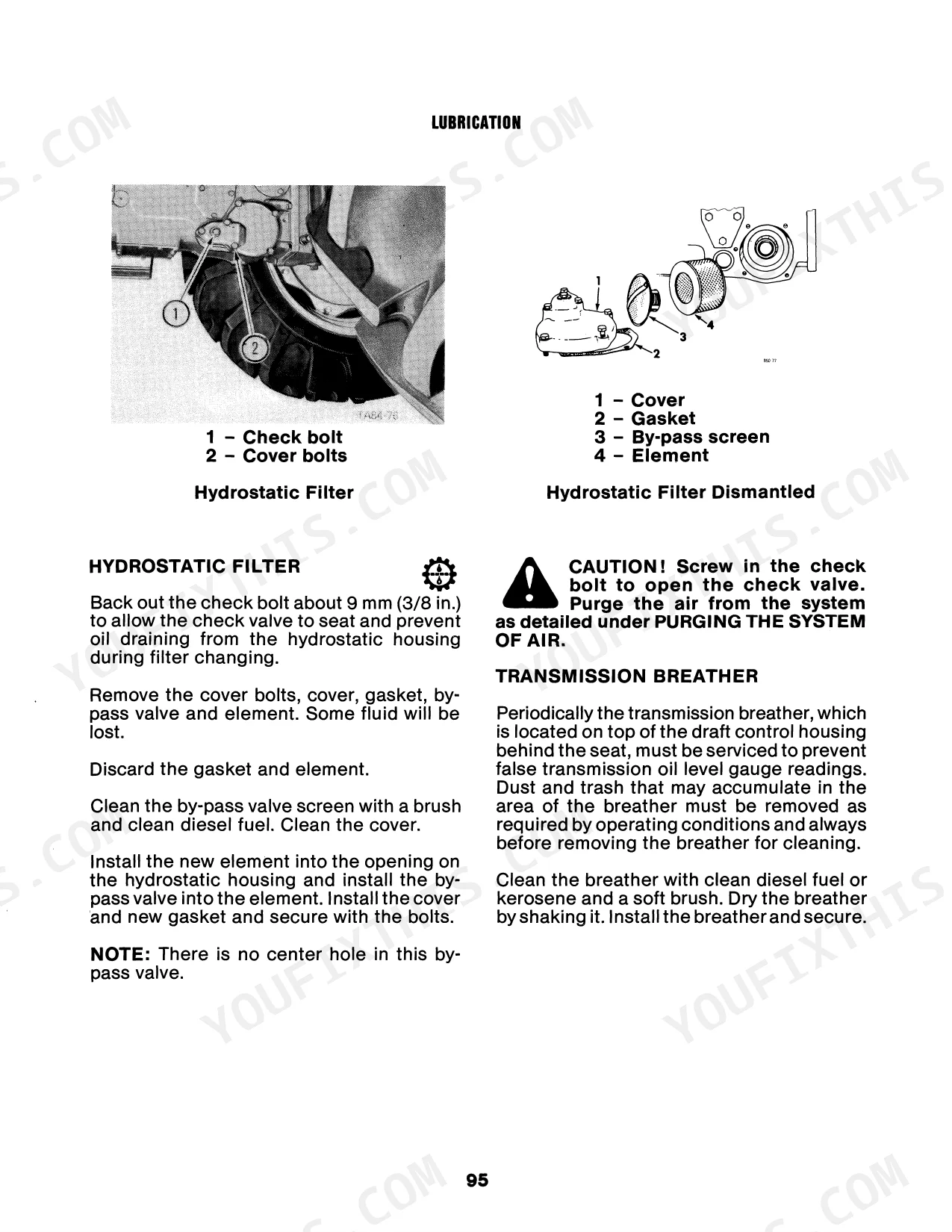

| Lubrication | 95-101 | Engine Oil, Transmission and Hydraulics, Lubrication Fitting Grease, Transmission Fluid Level, Filters, Front Axle Fluid |
| Lubrication Table | 102 | Engine Crankcase, Transmission, Gear Drive, Hydrostatic, Four-Wheel Drive, Lubrication Fittings |
| Lubrication Guide | 103-108 | Steering Arm Pivot, Engine Filler Bayonet Type Oil Level Gauge, Transmission Dipstick, Transmission Filter, Crankcase Drain Plug, Front Wheel Bearings |
| Specifications | 109-122 | General, Hydraulic System, Electrical System, Clutch (Gear Drive Machines), Footbrakes, Engine |
| Metric (Si) Measurement | 123-126 | Area, Force, Length, Mass, Power, Pressure |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| 584, 784, 884 (Rockford Clutch) | ||
| Rockford Clutch - Maximum release bearing travel (dimension D) | 12.5 mm (1/2-inch) | p. 42 |
| Rockford Clutch - Basic pedal setting travel | 12.0 mm (15/32-inch) | p. 42 |
| All Models | ||
| Transmission filter retaining bolt torque | 16 to 22 N·m (12 to 16 lbf-ft) | p. 94 |
| Hydraulic System Working Pressure | 175 kg/cm² | p. 105 |
| Rear Frame Drain Plug Torque | 6.2 to 6.9 kgm | p. 105 |
| all (Early Tractors) | ||
| Clutch Pedal Free Travel (Early Tractors) | 44.5 mm | p. 39 |
Case IH 385–Hydro-84 Common Problems This Manual Covers
Case IH 584 clutch slips under heavy load and pedal feels loose during operation p. 42
Inspect the clutch linkage assembly. Measure the maximum release bearing travel dimension D as shown on page 42. Adjust the bracket until travel is exactly 12.5 mm (1/2-inch). Tighten the mounting bolts and test pedal operation before returning the tractor to service.
Manual Section: Operating the TractorHydrostatic transmission hesitates after cold start and warning light flashes on the dashboard p. 94
Replace the hydraulic filter assembly. Install the new filter onto the multiple control valve and ensure the case is correctly seated on the O-ring. Torque the retaining bolt to 16 to 22 N·m (12 to 16 lbf-ft) as specified on page 94. Verify fluid levels.
Manual Section: Extra Equipment and AccessoriesThree-point hitch fails to lift heavy implements and hydraulic pump whines at high idle p. 105
Check the fluid level on the transmission dipstick. Verify the hydraulic system working pressure reaches 175 kg/cm² (2500 lb/in²) at operating temperature. Refer to the technical specifications on page 105. If pressure is low, inspect the rear frame drain plug torque before adding fluid.
Manual Section: Lubrication GuideFrequently Asked Questions
What are the replacement specifications for the fuel injection pump on Case IH 385-884 tractors?
The manual provides replacement specifications for the fuel injection pump and related components, which vary by tractor model. For example, the 385 tractor uses a Bosch injection pump with a static timing of 10° BTDC, injection nozzle type DLLA 105S 716, and nozzle holder type KBEL 84S 4/13. Other models like the 484, 584, 684, 784, 884, and Hydro 84 also use Bosch pumps but may have different static timing (e.g., 14° or 16° BTDC) and different nozzle types (e.g., DLLA 150S690 or DLLA 150S716).
How do you set up the three-point hitch and draft control on Case IH 385-884 tractors?
Use the Position Control Lever to set the implement working depth (pp. 64-69). For tillage work, engage Draft Control to automatically maintain consistent depth under varying soil resistance. The Adjustable Stop lets you return the hitch to the same position repeatedly. Use Drop Response to control how fast the implement lowers; adjust Auxiliary Valves for remote hydraulic cylinders. On Hydro 84, the PTO and three-point hitch operate independently of ground speed.
How do you service the engine oil and transmission fluid on Case IH 385-884 tractors?
Check engine oil level daily with the dipstick before starting (p. 95). Use the viscosity grade specified in the Lubrication Table (p. 102) for your operating temperature. The transmission and hydraulic system share fluid — check the transmission dipstick and service the transmission filter at the intervals in the Lubrication Guide (pp. 103-108). Also check front axle fluid level and lubrication fittings at each service interval. Drain and refill engine oil at the hours listed in the Preventive Maintenance Guide (p. 93).
How does the hydrostatic drive work on the Case IH Hydro 84 tractor?
For the Hydro 84 hydrostatic drive models, set the hydrostatic control lever to the neutral position before starting (pp. 31-48). Move the lever forward for forward travel and rearward for reverse — speed varies proportionally with lever position. The Foot-N-Inch Valve allows inching the tractor slowly for precise implement placement. Clutch Adjustment and Foot-N-Inch Valve Adjustment procedures are detailed on the same pages to ensure smooth hydrostatic response.
