Need the factory operator guide for your Case IH Puma 165? This 477-page manual (OEM #84239782) covers the Puma 165, 180, 195, and 210 tractors, from instrument console operation to long-term storage. Inside: a complete controls section covering the Full Powershift Transmission, Electronic Hitch Control, and front and rear PTO, plus a field operations chapter on hydraulic remote valves, drawbar setups, ballasting, and tyre adjustment. You get a maintenance chart spanning every service interval from the 10-hour daily check through the 1,200-hour/24-month tasks, plus a fault-finding section that maps engine, transmission, hydraulic, 3-point hitch, brake, and electrical symptoms. Fill the engine to 15.0 litres (filter included), top the transmission and rear axle hydraulic system to 82.0 litres, and change the fuel filter at 600 hours. Your Puma is sitting idle and every hour counts. Bookmarked by chapter and searchable by keyword; download it, pull it up on any device, and get back to work.
What's Inside This Case IH PUMA 165, PUMA 180, PUMA 195, PUMA 210 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information and Safety | 8-31 | To the Owner, Product Identification, Ecology and the Environment, Safety Precautions, Safety Decals, International Symbols, Airborne Noise Emission |

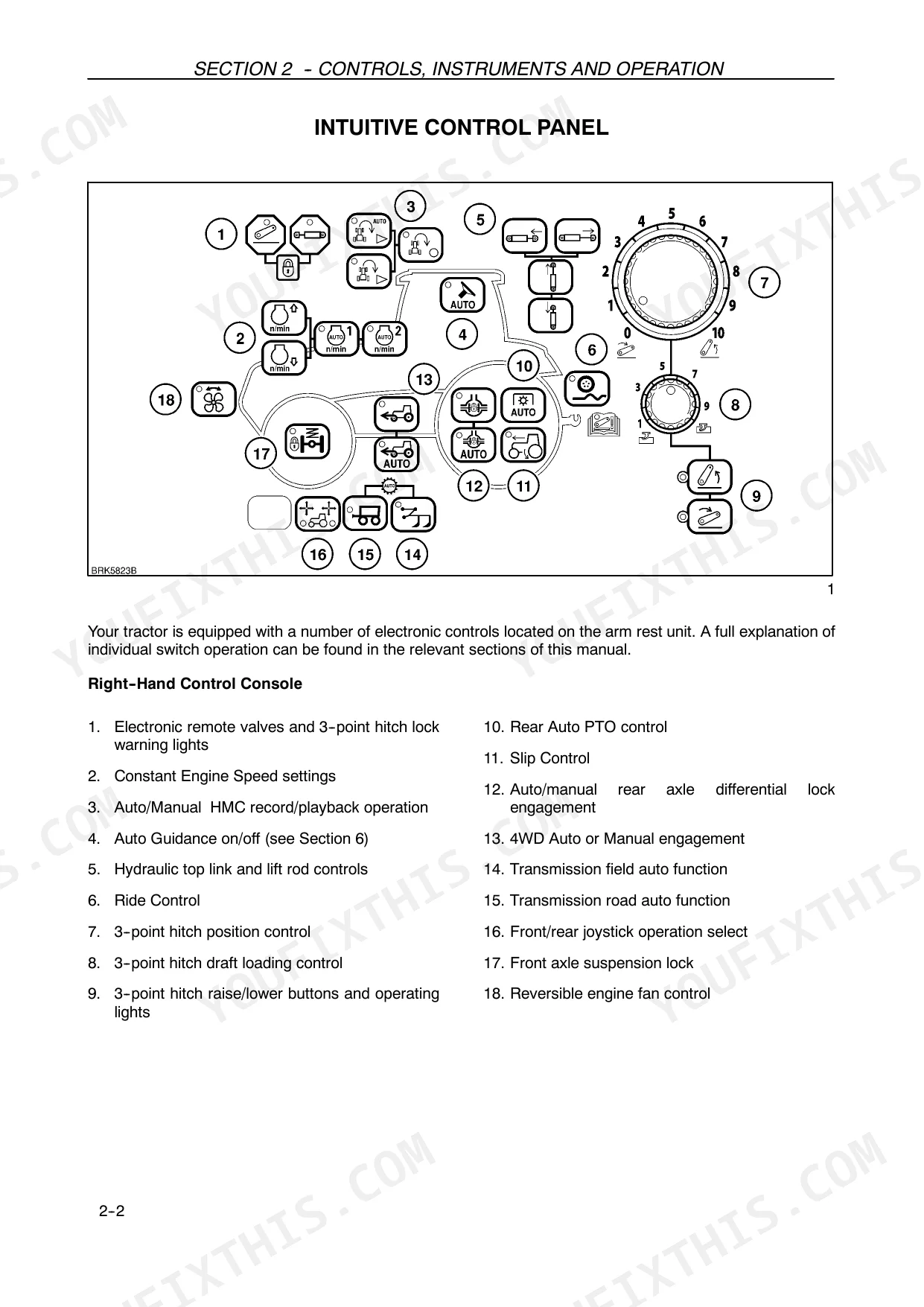

| Controls, Instruments and Operation | 32-147 | Cab, Electrical Power Sockets, Seats, Instrument Console, Analogue/Digital Instruments, Brake Controls and Operation, Full Powershift Transmission |

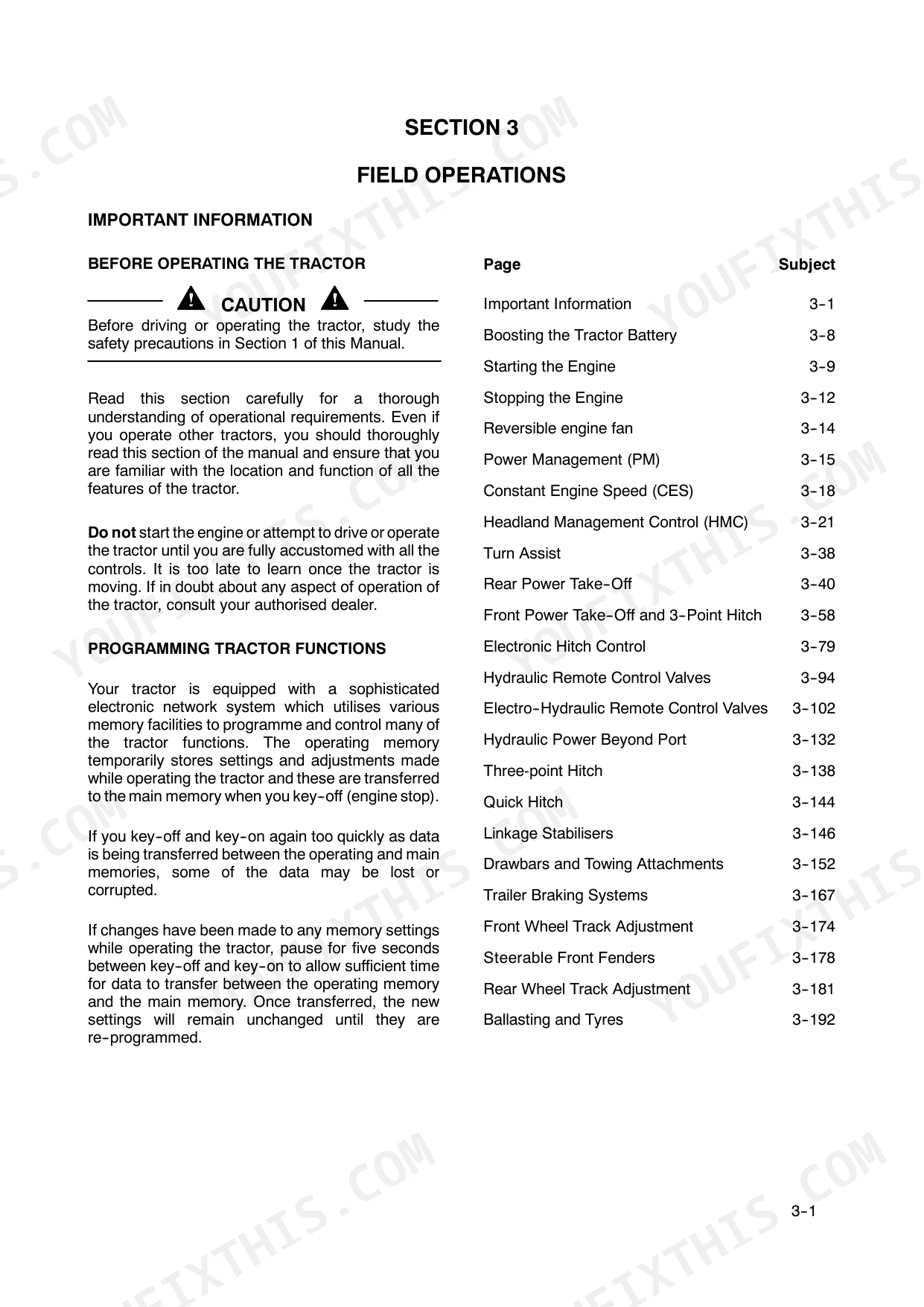

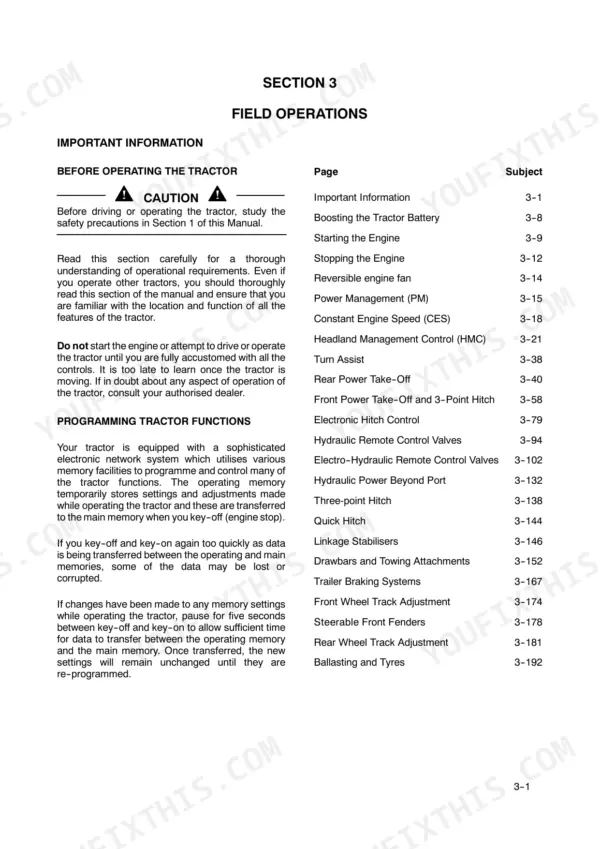

| Field Operations | 148-347 | Important Information, Boosting the Tractor Battery, Starting the Engine, Stopping the Engine, Reversible Engine Fan, Power Management, Constant Engine Speed |

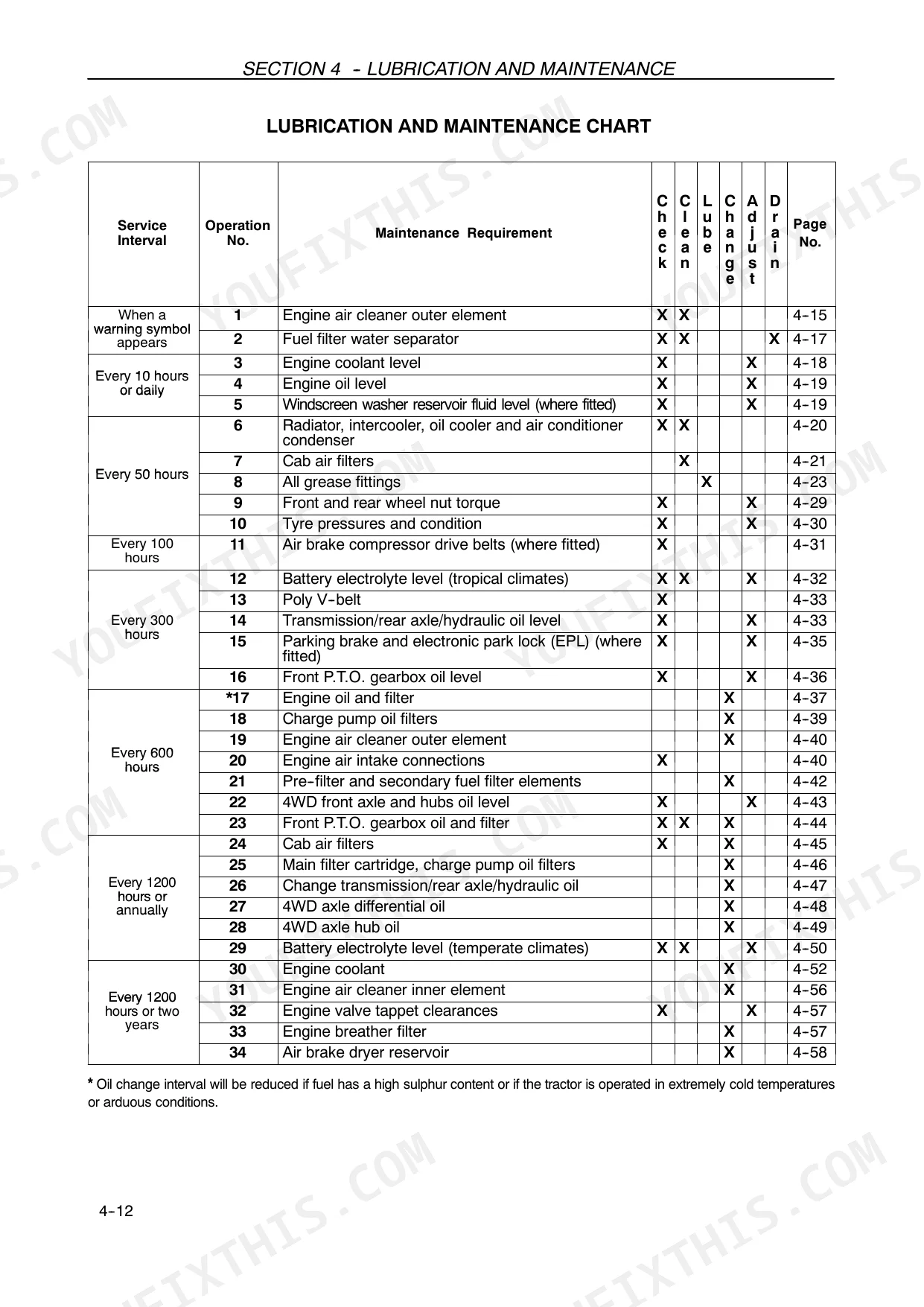

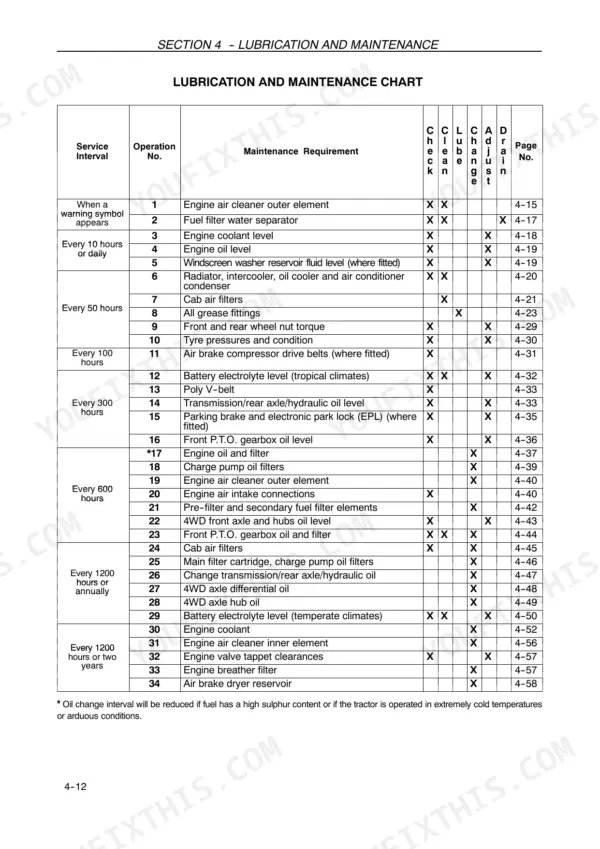

| Lubrication and Maintenance | 348-429 | Guard Removal, Lubrication and Maintenance Chart, Servicing: When Warning Lights Illuminate, 10-Hour/Daily Service, 50-Hour Service, 100-Hour Service, 300-Hour Service |

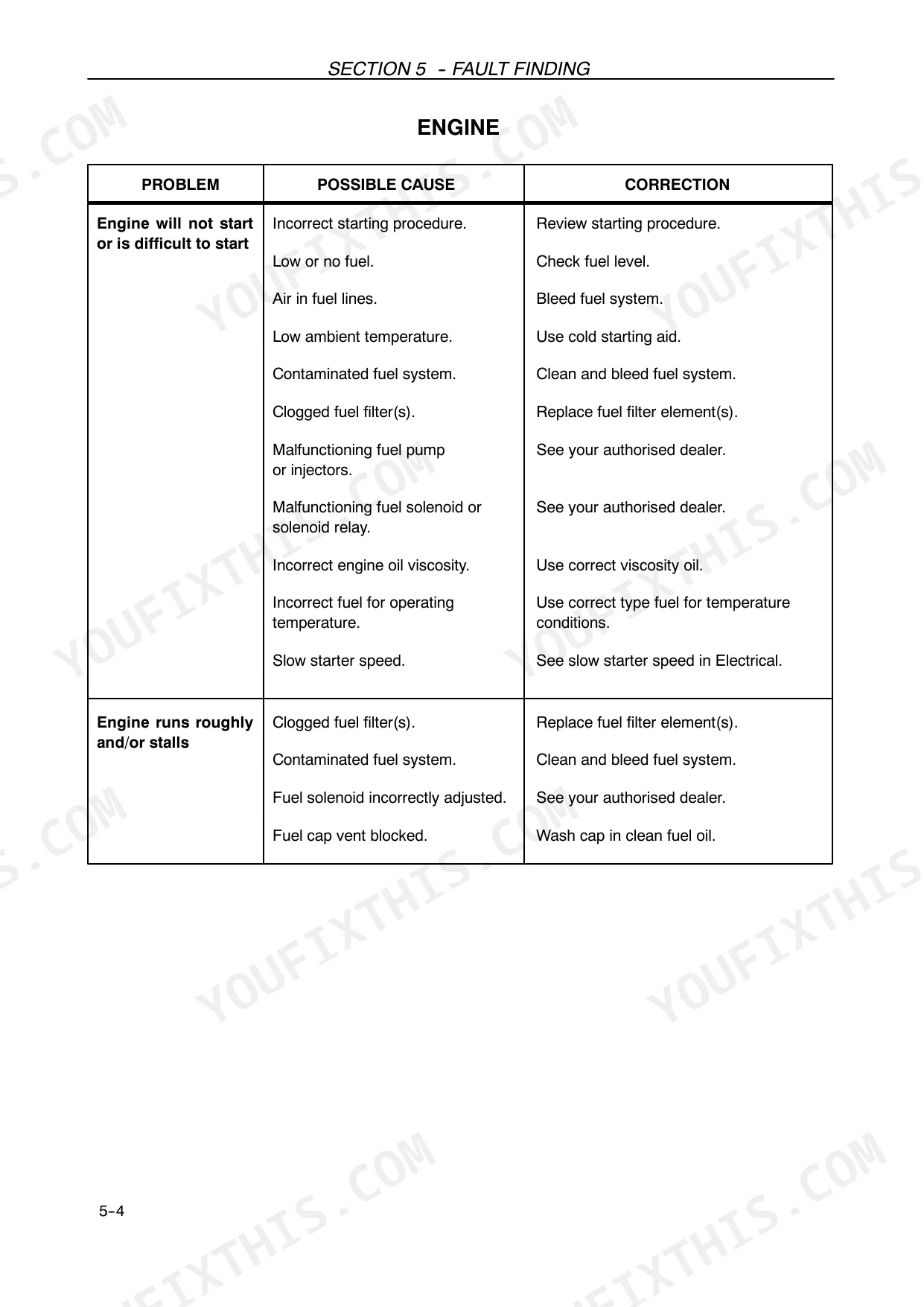

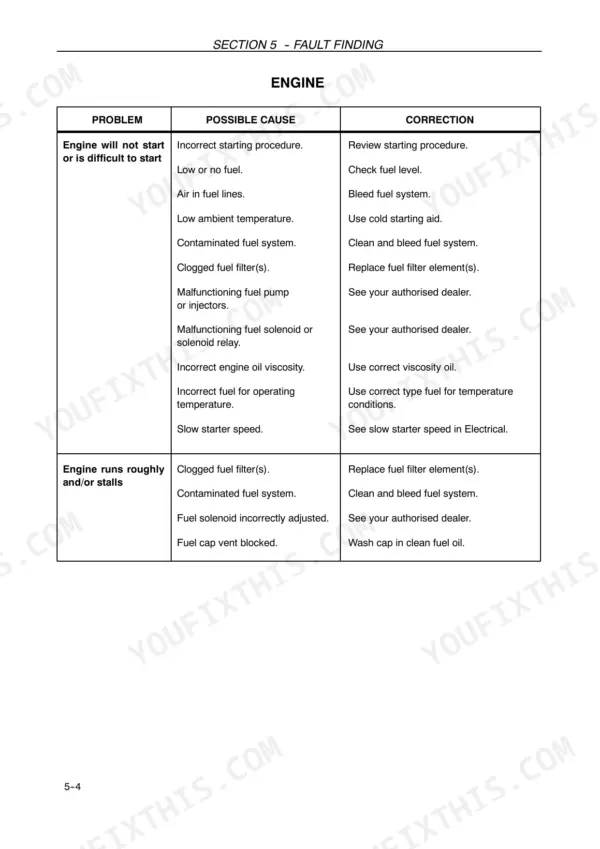

| Fault Finding | 430-441 | Introduction, Engine, Transmission, Hydraulics, 3-Point Hitch, Brakes, Cab, Electrical |
| Accessories | 442-447 | Colour Display Monitor, ISO-Bus Socket, Auto Guidance, Rotating Beacon, Auxiliary Headlights, Battery Isolator Switch |

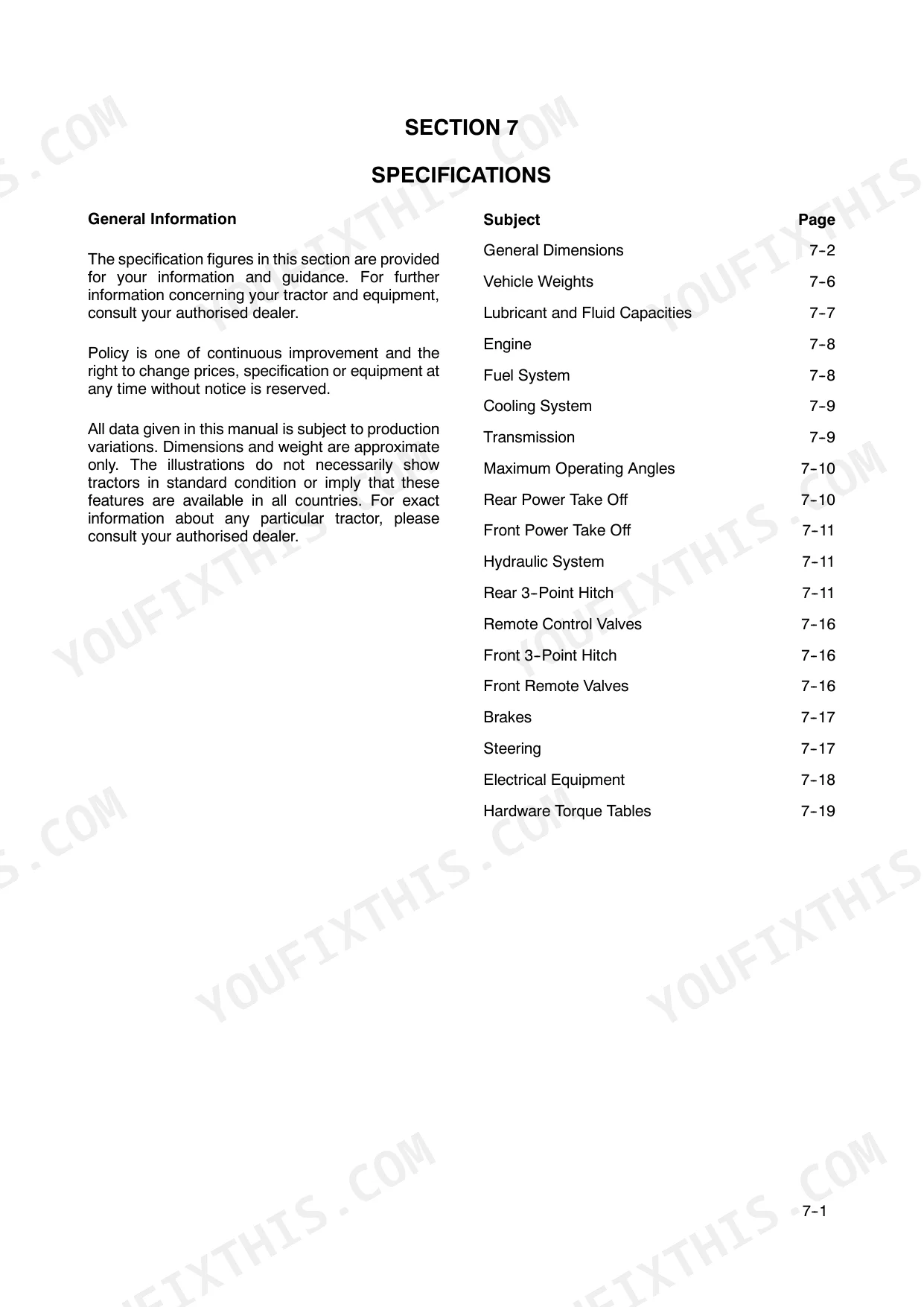

| Specifications | 448-467 | Vehicle Weights, Lubricant and Fluid Capacities, Engine, Fuel System, Cooling System, Transmission, Maximum Operating Angle, Rear Power Take-Off |
| St 50 Hour Service Sheets | 468-471 | Engine Oil Level, Hydraulic Oil Filters, transmission/rear Axle Oil Level, Front Axle Differential and Hub Oil Levels, Parking Brake |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Fuel filter tightening torque | 15 Nm | p. 389 |
| Fuel filter replacement interval | Every 600 hours | p. 359 |
| Engine Oil Capacity (including filter) | 15.0 litres | p. 385 |
| Transmission/Rear Axle/Hydraulic System Oil Capacity | 82.0 litres | p. 454 |
| Front P.T.O. Gearbox Oil Capacity | 3.05 litres | p. 454 |
| 4WD Front Hubs Oil Capacity (w/o brakes, per hub) | 2.3 litres | p. 454 |
| 4WD Front Hubs Oil Capacity (with brakes, per hub) | 3.8 litres | p. 454 |
| 4WD Front Axle Differential Oil Capacity (All axles) | 11.0 litres | p. 454 |
| Cooling System Capacity | 22.5 litres | p. 454 |
| Radiator Pressure Cap | 1.0 bar | p. 456 |
| Engine Rated Speed | 2200 rev/min | p. 455 |
| Engine Idle Speed | 850 +/- 50 e.r.p.m. | p. 455 |
Case IH PUMA 165, PUMA 180, PUMA 195, PUMA 210 Common Problems This Manual Covers
Case IH Puma 165 engine cranks for 15 to 25 seconds in cold weather but will not start p. 433
Check the error code reference on page 431 for code E01. Purge the fuel system air lock. When replacing the fuel filter every 600 hours as shown on page 359, torque the new filter to 15 Nm according to page 389 to prevent air leaks.
Manual Section: Engine TroubleshootingHydraulic oil leaking into the cab area and instrument console showing error code E02 p. 439
Inspect the cab hydraulic connections for loose fittings. Check the fluid capacities on page 454 and ensure the transmission and hydraulic system oil level is full at 82.0 litres. Clean the area and verify the low pressure warning turns off after topping off the fluid.
Manual Section: Cab TroubleshootingCoolant temperature gauge spikes into the red zone when operating under heavy draft loads p. 433
Verify the radiator pressure cap on page 456 is holding 1.0 bar. Inspect the reversible engine fan for debris. Drain and refill the cooling system with 22.5 litres of approved coolant as listed on page 454. Ensure the engine idle speed is 850 +/- 50 e.r.p.m.
Manual Section: Engine TroubleshootingTractor does not drive in any gear and hydraulic remote valves lack lifting power p. 436
Measure the transmission and rear axle oil level on the dipstick. Fill the system to the full 82.0 litres capacity as specified on page 454. Run the engine at the rated speed of 2200 rev/min on page 455 and recheck the fluid level after cycling the remote valves.
Manual Section: Transmission TroubleshootingFrequently Asked Questions
How to reset hydraulic pressure on Case IH PUMA 165 after servicing
To relieve hydraulic pressure after servicing, start the engine and move the control levers fully forward to the “float” position. Then, stop the engine. This ensures that oil contained within the remote cylinders is clean and of the correct grade.
Torque specs for cylinder head bolts on CNH 6-cylinder turbo diesel in PUMA 165
The manual provides general minimum hardware tightening torques for various bolt sizes and grades (e.g., M16 bolts at 196 Nm (266 ft-lb) for Class 10.9 plated). However, specific torque specifications for cylinder head bolts on the CNH 6-cylinder turbo diesel engine are not listed in the provided hardware torque tables.
What does error code E047 mean on Case IH PUMA 165 CVT transmission
The manual does not list an error code E047 in its "FAULT CODES and SYMBOLS" section. The error codes provided are typically four or five digits, starting with a category number (e.g., 1--, 2--, 140--).
How to reset traction control module after PUMA 165 engine replacement
The manual does not provide a specific procedure for resetting the traction control module after an engine replacement. However, for any changes made to memorized electronic settings during tractor operation, it is recommended to pause for five seconds between key-off and key-on to allow data transfer to the main memory.
Torque specs for flywheel bolts on PUMA 165 MFWD tractor
The manual provides general minimum hardware tightening torques for various bolt sizes and grades (e.g., M16 bolts at 196 Nm (266 ft-lb) for Class 10.9 plated). However, specific torque specifications for flywheel bolts on the PUMA 165 MFWD tractor are not listed in the provided hardware torque tables.
