All 615 pages of this Case IH D25, DX25, D29, DX29, D33, and DX33 Repair Manual put factory-level rebuild procedures for the entire compact tractor lineup in your hands. Inside, you get full hydraulic schematics with pressure testing procedures for the hydrostatic transmission and power steering system, individual circuit schematics covering every electrical circuit from battery and fuses through alternator overhaul, plus a complete troubleshooting section for engine, clutch, transmission, 4WD front axle, and hydraulic systems. Torque the cylinder head bolts to 88-94 N·m (65.1-68.7 ft. lbs.) and set front agricultural tire inflation to 1.7-2.8 bar (24-40 PSI) — both specs verified straight from the factory pages. No more hunting forum threads when your DX33 hydrostatic starts slipping or your D29 electrical circuit goes dark mid-season. Bookmarked and keyword-searchable; open it on any device, jump straight to the system giving you grief, and get wrench-in-hand within seconds.
What's Inside This Case IH D25–DX33 Repair Manual
| System | Pages | Key Topics |
|---|---|---|

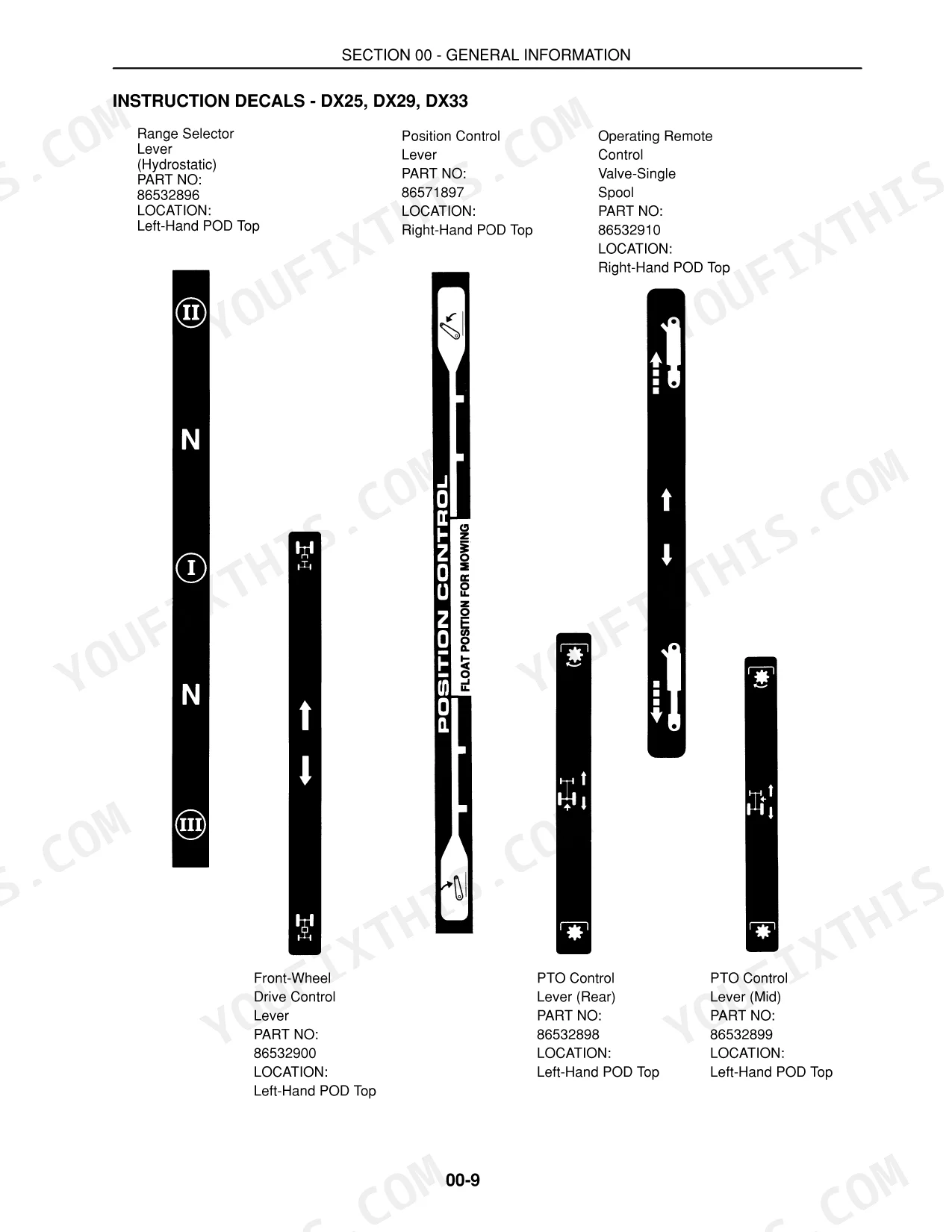

| General Information | 2-41 | Introduction, Precautionary Statements, Technical Information, Safety Precautions, Safety Decals - DX25, DX29, DX33, Instruction Decals - DX25 |
| Engine | 42-161 | Metric Bolt Torque Specifications, Engine Overhaul, Disassembly, Inspection, Fits, Clearances, And Assembly of Component Assemblies, Engine Reassembly |
| Clutch | 162-187 | Adjustment, Servicing Clutch-Related Components, Overhaul, Special Tools, Troubleshooting |
| Transmission | 188-219 | Overhaul, Special Tools, Troubleshooting |
| Wd Front Axle | 220-247 | Front Wheel Drive, Front Wheel Drive Overhaul, Special Tools, Troubleshooting |
| Differential and Rear Axle | 248-273 | Differential Overhaul, Rear Axle Overhaul, Brakes and Final Pinion Overhaul |
| Hydrostatic Transmission | 274-331 | Pressure Tests, Hydrostatic Transmission Gearbox, Adjustments, Overhaul, Special Tools, Troubleshooting |
| Power Take-Off Systems | 332-357 | Power Take-Off Overhaul, Mid-Mount Power Take-Off, Mid-Mount Power Take-Off Overhaul |
| Brakes | 358-367 | Brakes and Final Pinion Overhaul |
| Hydraulic System | 368-417 | Hydraulic Pump and Filter, Remote Valves, Pressure Testing, Adjustments, Overhaul, Special Tools, Troubleshooting |
| Steering | 418-461 | Power Steering System Overhaul, Pressure Testing, Special Tools, Troubleshooting |
| Wd Front Axle | 462-479 | Two-Wheel Drive, Two-Wheel Drive Overhaul, Wheels and Tires, Rear Wheel Weight Installation, Liquid Ballast, Tire Inflation Pressure Chart, Wheel Nut Torque Specification |
| Electrical | 480-615 | Battery and Fuses, Electrical System Components - Description and Testing, Individual Circuit Schematics, Individual Electrical Circuits |
Every system also includes operation, specifications, and bolt torque specifications.
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Head Bolts | 88 - 94 N·m (65.1 - 68.7 ft. lbs.) | p. 50 |
| Tire Inflation Pressure (Agricultural Front 2WD) | 1.7 - 2.8 bar (24-40 PSI) | p. 38 |
Case IH D25–DX33 Common Problems This Manual Covers
Case IH D25/DX25/D29/DX29/D33/DX33 engine won't start, no exhaust smoke visible
Check the starting circuit first using the troubleshooting chart (DX Series) or (D Series). Verify battery voltage is adequate and connections are clean and tight. Inspect fuses in the electrical panel before pulling any components. If the starter energizes but no smoke appears, confirm fuel shutoff is open and bleed the injection system of air. Fluid capacities for the fuel system are listed on page 16.
Manual Section: ElectricalHydraulic lift arms cycle up and down repeatedly, implement won't hold position
Inspect the hydraulic system using the troubleshooting index on . Check hydraulic fluid level first per the capacities table on page 16. Test system pressure against the hydraulic schematic on page 35. If the relief valve is operating prematurely or the implement settles too fast, remove and inspect the control valve for wear or contamination. Clean or replace the filter before reassembling.
Manual Section: Hydraulic SystemSteering wheel requires excessive force, hard to turn in both directions
Start with the steering troubleshooting chart on . Check power steering fluid level and inspect all hoses for kinks or leaks. Connect a pressure gauge and compare readings to specs in the hydraulic schematic on page 35. If pressure is low, remove the steering pump and inspect for wear. Verify there is no air in the system by bleeding at the cylinder fittings.
Manual Section: SteeringClutch slips under load or fails to engage smoothly after pedal adjustment
Reference the clutch troubleshooting chart. Measure pedal free-play and adjust to spec per the Clutch section starting on page 162. If slipping persists after correct adjustment, the friction disc is likely worn and needs replacement. With the clutch cover removed, inspect the pressure plate contact surface for scoring or heat discoloration before ordering parts.
Manual Section: ClutchHydrostatic transmission operates erratically or tractor won't stop at neutral p. 424
Check the hydrostatic troubleshooting guide on page 424. Perform a pressure test as described in the Hydrostatic Transmission section starting on page 274 before disassembly. Verify the neutral adjustment is within spec and the linkage has no loose pivot pins. If fluid leakage is present, identify the source before adding fluid; check capacity against the fluid capacities table on page 16.
Manual Section: Hydrostatic Transmissionp. 165
Frequently Asked Questions
Torque specs for engine bolts on Case IH DX29 tractor
The manual provides specific torque values for various engine bolts on Case IH DX29 tractors. For example, connecting rod caps should be torqued to 49.0 - 53.9 N·m (36.2 - 39.8 ft. lbs.), and head bolts to 88 - 94 N·m (65.1 - 68.7 ft. lbs.). A detailed metric bolt torque specification table is also available for different bolt sizes and grades.
How to reset hydraulic pressure Case IH D33
To adjust the hydraulic pressure on a Case IH D33, you can adjust the main system relief valve. This involves adding or removing shims, where one 0.2 mm (0.008") shim changes the pressure by approximately 7.0 bar (100 PSI). The relief valve can also be adjusted by loosening the locknut and turning the screw clockwise to increase pressure or counterclockwise to decrease it.
How do you fix case IH D25/DX25/D29/DX29/D33/DX33 engine won't start, no exhaust smoke visible?
Check the starting circuit first using the troubleshooting chart (DX Series) or (D Series). Verify battery voltage is adequate and connections are clean and tight. Inspect fuses in the electrical panel before pulling any components. If the starter energizes but no smoke appears, confirm fuel shutoff is open and bleed the injection system of air. Fluid capacities for the fuel system are listed on page 16.
How do you fix hydraulic lift arms cycle up and down repeatedly, implement won't hold position?
Inspect the hydraulic system using the troubleshooting index on . Check hydraulic fluid level first per the capacities table on page 16. Test system pressure against the hydraulic schematic on page 35. If the relief valve is operating prematurely or the implement settles too fast, remove and inspect the control valve for wear or contamination. Clean or replace the filter before reassembling.
How quickly can I access this manual after buying?
You get a 615-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print this manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Are electrical wiring diagrams included in this Case IH D25 & variants manual?
Yes. You'll find full electrical schematics with wire routing diagrams, connector identification, and circuit descriptions.
