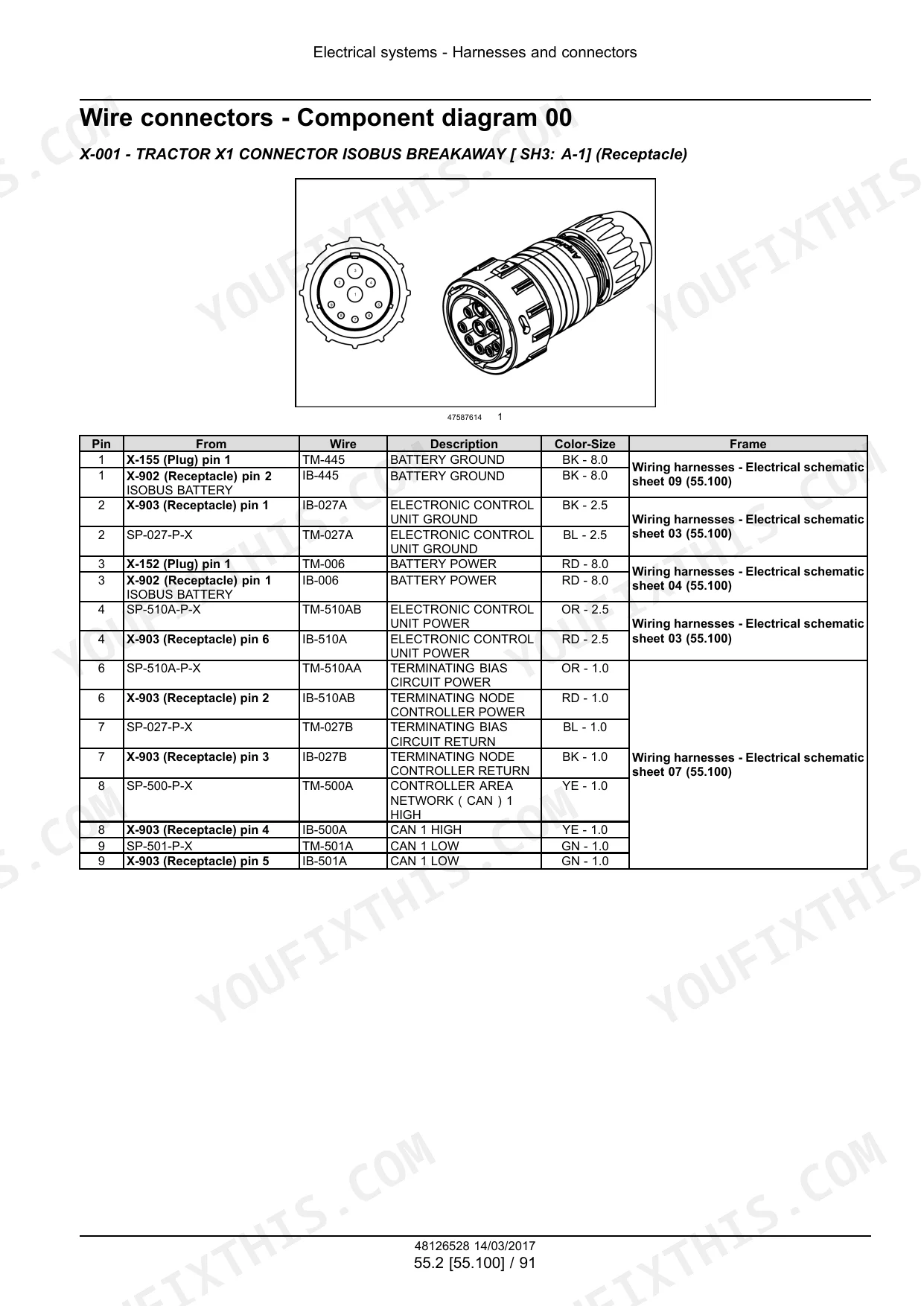

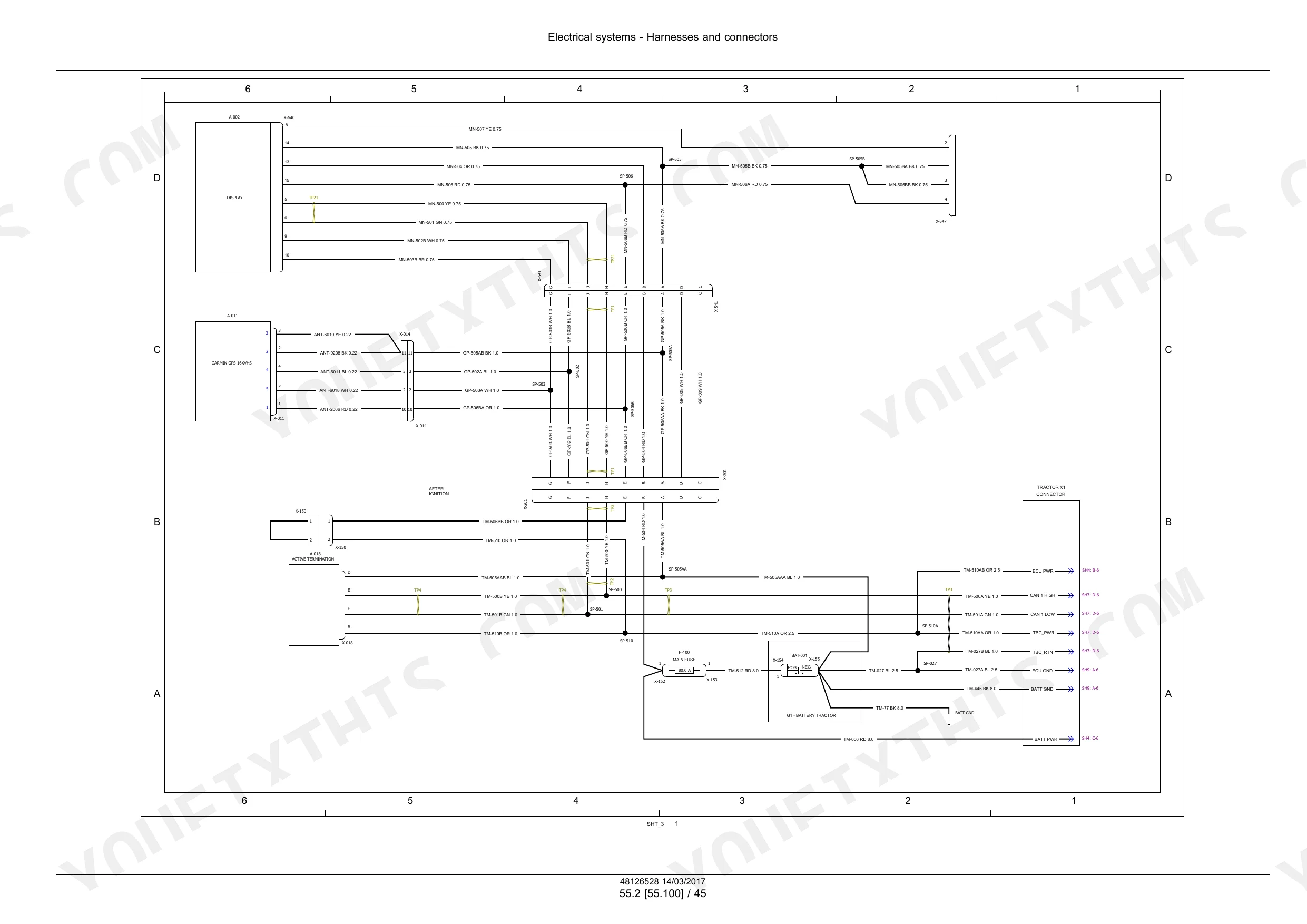

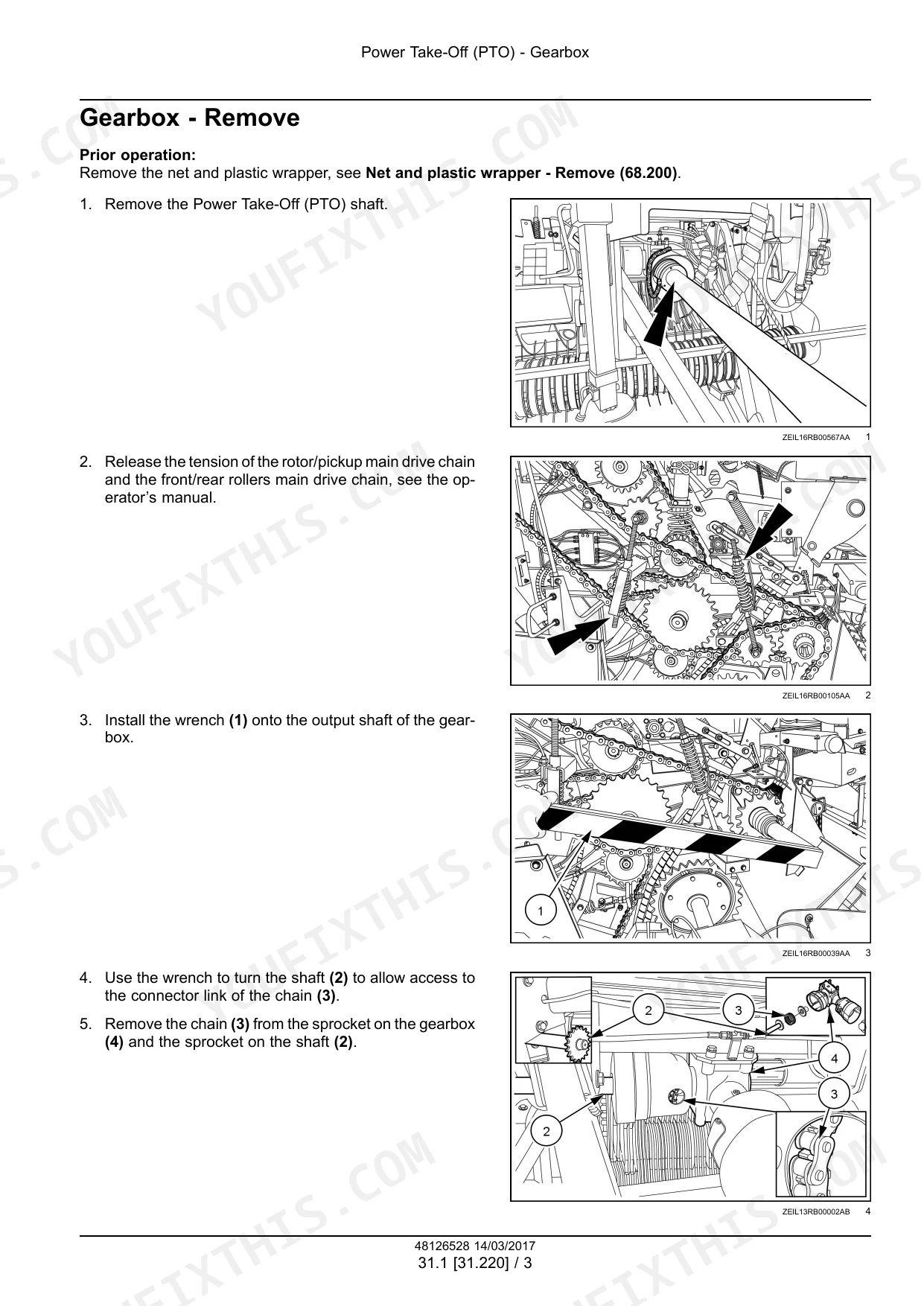

Pull up the Case IH RB545 Silage Pack service manual PDF (OEM #48126528) and you're working with 821 pages of factory-level documentation covering every system on both the Silage Pack and SP Silage Pack round balers. Inside: hydraulic schematics for the tailgate circuit and Combi system, wiring diagrams covering harnesses, connectors, and electronic modules, plus a fault codes section covering every fault in the electrical system. From PTO gearbox teardowns to pickup and rotor procedures, bale formation, net and plastic wrapper service, and bale ejector assembly: every system follows factory sequence. Set the cutting blade-to-counter bar clearance to exactly 1.00 mm and torque your M8 Class 10.9 hardware to 35.1 N·m; those are real numbers, not forum estimates. When your silage baler goes down at the wrong time of year, there's no room for guessing. Bookmarked and searchable, pull it up on any device and get to the machine.
What's Inside This Case IH RB545 Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 7-38 | Basic Instructions - How to Use and Navigate Through This Manual, Safety Rules, Basic Instructions - Shop and Assembly, Torque, Hydraulic Contamination, Product Identification |
| Power Take-Off (PTO) | 39-56 | Gearbox |
| Hydraulic Systems | 57-104 | Remote Control Valves, Tailgate Circuit, Combi Hydraulic System |
| Frames and Ballasting | 105-124 | Frame |
| Electrical Systems | 125-678 | Electrical System, Harnesses and Connectors, Electronic Modules, Fault Codes |
| Product Feeding | 679-724 | Pickup, Rotor |
| Pressing - Bale Formation | 725-746 | Bale Formation |
| Tying/Wrapping/Twisting | 747-768 | Net and Plastic Wrapper |
| Ejection | 769-796 | Bale Ejector Components, Combi Frame and Main Parts |
| Platform, Cab, Bodywork, and Decals | 797-819 | Machine Shields and Guards |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Clearance between cutting blade and counter bar | 1.00 mm (0.04 in) | p. 764 |

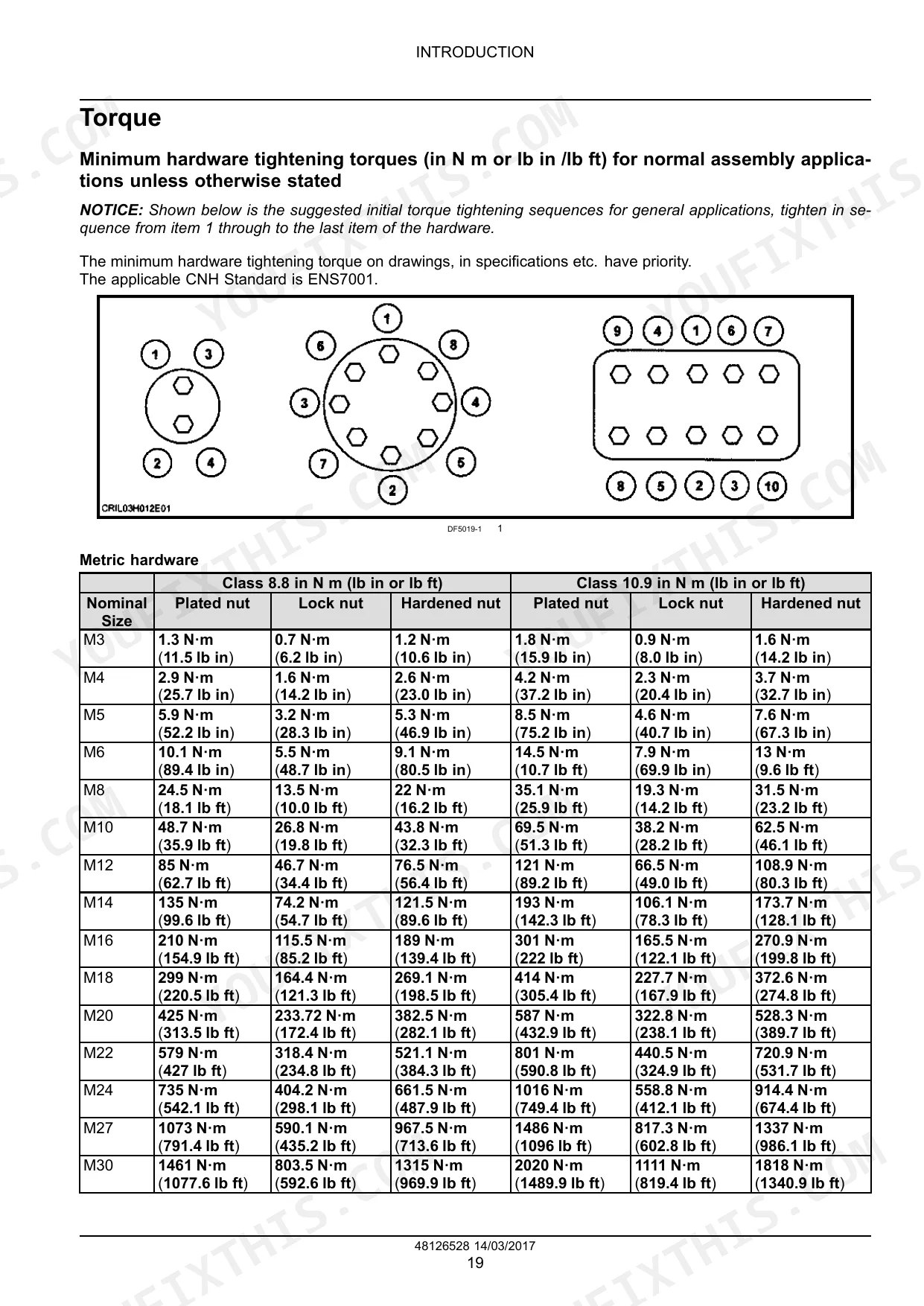

| M3 Plated nut torque (Class 8.8) | 1.3 N·m (11.5 lb in) | p. 24 |
| M8 Plated nut torque (Class 8.8) | 24.5 N·m (18.1 lb ft) | p. 24 |
| M3 Hardened nut torque (Class 10.9) | 1.6 N·m (14.2 lb in) | p. 24 |
| M8 Hardened nut torque (Class 10.9) | 35.1 N·m (25.9 lb ft) | p. 24 |
| Max allowable roller chain wear elongation | 3% | p. 33 |
| Recommended roller chain wear limit (fixed center distances) | 1.5% | p. 33 |
| M8 x 1 ORB port connection torque (S-Series, Ferrous) | 10.5 N·m (7.7 lb ft) | p. 27 |
| M8 x 1 ORB port plug torque (Ferrous, Internal hex) | 8.5 N·m (6.3 lb ft) | p. 27 |
| M8 x 1.25 Banjo bolt torque (Copper washer style) | 13 N·m (9.6 lb ft) | p. 31 |
| M10 x 1.25 Banjo bolt torque (Copper washer style) | 16 N·m (11.8 lb ft) | p. 31 |
Case IH RB545 Common Problems This Manual Covers
Case IH RB545 PTO gearbox grinding noise or complete seizure after 150 hours of use p. 41
Remove the gearbox access cover and inspect internal gear teeth and bearings for wear or spalling. Check oil level and condition before any teardown — contaminated or low oil is the primary cause of early failure. Inspect the drive shaft for misalignment and verify all mounting bolts are torqued to 24.5 N·m (18.1 lb ft) for M8 Class 8.8 fasteners per page 24. Replace worn bearings and refill with manufacturer-specified gear oil to the correct level.
Manual Section: Power Take-Off (PTO) - 31Drive shaft chain breaks or split pins shear repeatedly during baling season p. 33
Measure roller chain elongation across a 30-link span. Replace immediately if elongation exceeds 3% — at fixed center distances, swap at 1.5% to stay ahead of failure, per page 33. Inspect split pins on the drive shaft after every 50 hours and replace any that show deformation or rotation. Verify chain tension is within spec and that chain guards are seated correctly to prevent debris ingestion.
Manual Section: Power Take-Off (PTO) - 31Netwrap film rollers jam every 8-10 bales when using plastic film p. 764
Disengage the PTO, lower the tailgate, and clear the jam manually with the machine stopped. Inspect the film rollers for debris buildup or flat spots and clean all contact surfaces. For SP Silage Pack models, verify the clearance between the cutting blade and counter bar is exactly 1.00 mm (0.04 in) per page 764 — excessive clearance prevents clean film cuts and causes downstream jams. Check the netwrap system fault codes starting if jams persist after mechanical clearance is correct.
Manual Section: Tying/Wrapping/Twisting - 68Oil leaking from PTO gearbox housing around mounting bolts and seals p. 24
Clean the gearbox exterior before pinpointing the leak source. Inspect shaft seals first — a weeping input seal often looks like a bolt leak. Torque all M8 gearbox mounting bolts to 24.5 N·m (18.1 lb ft) for Class 8.8 or 35.1 N·m (25.9 lb ft) for Class 10.9 fasteners per page 24. If the seal is the source, remove the shaft, press in a new seal, and verify the housing bore is clean and undamaged before reassembly.
Manual Section: Power Take-Off (PTO) - 31Baler loses hydraulic pressure suddenly and stops forming bales mid-cycle p. 62

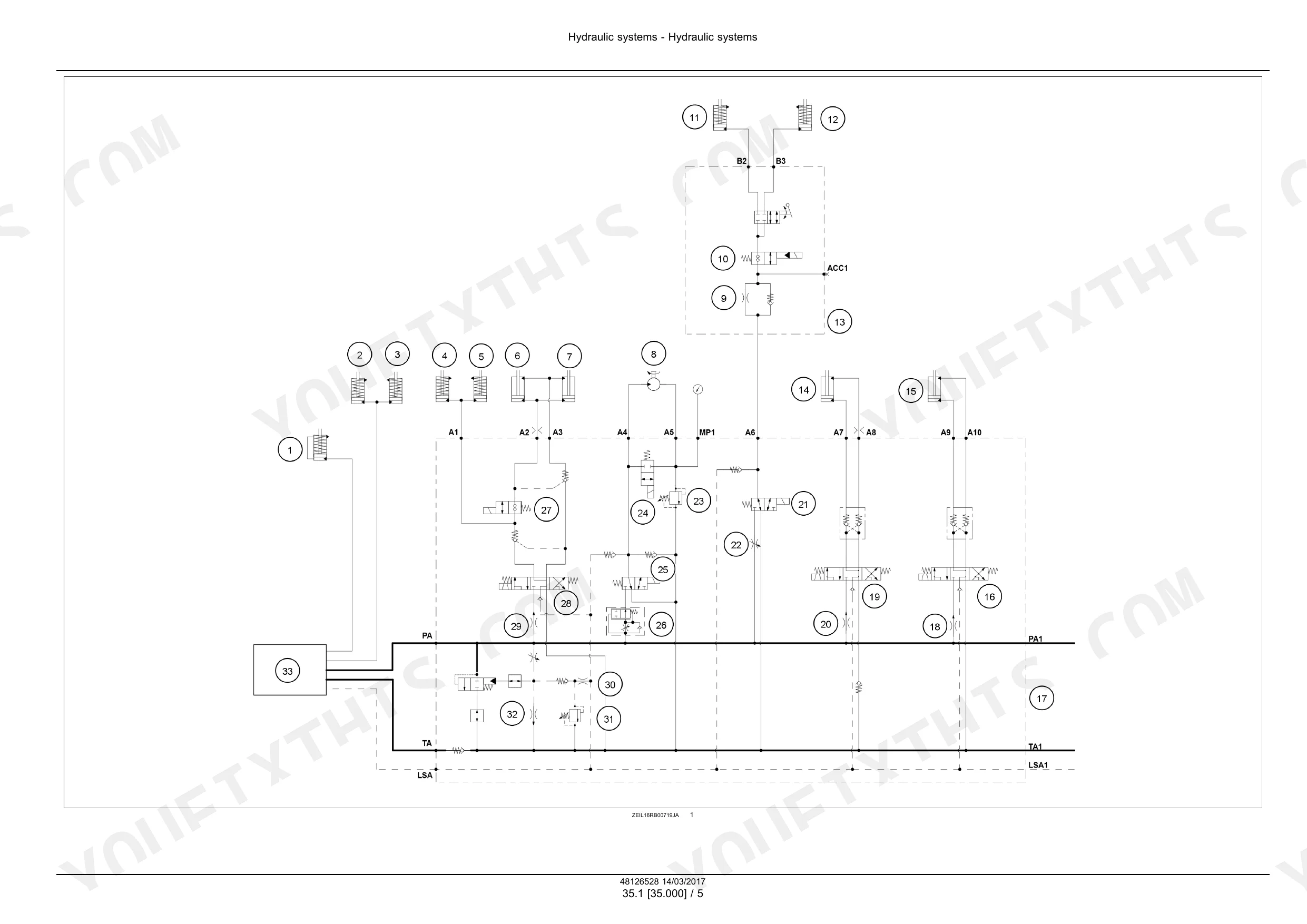

Check the hydraulic schematic on page 62 to identify the tailgate and bale formation circuit layout before tracing pressure loss.
Frequently Asked Questions
How to reset error codes on Case IH RB545 Silage Pack

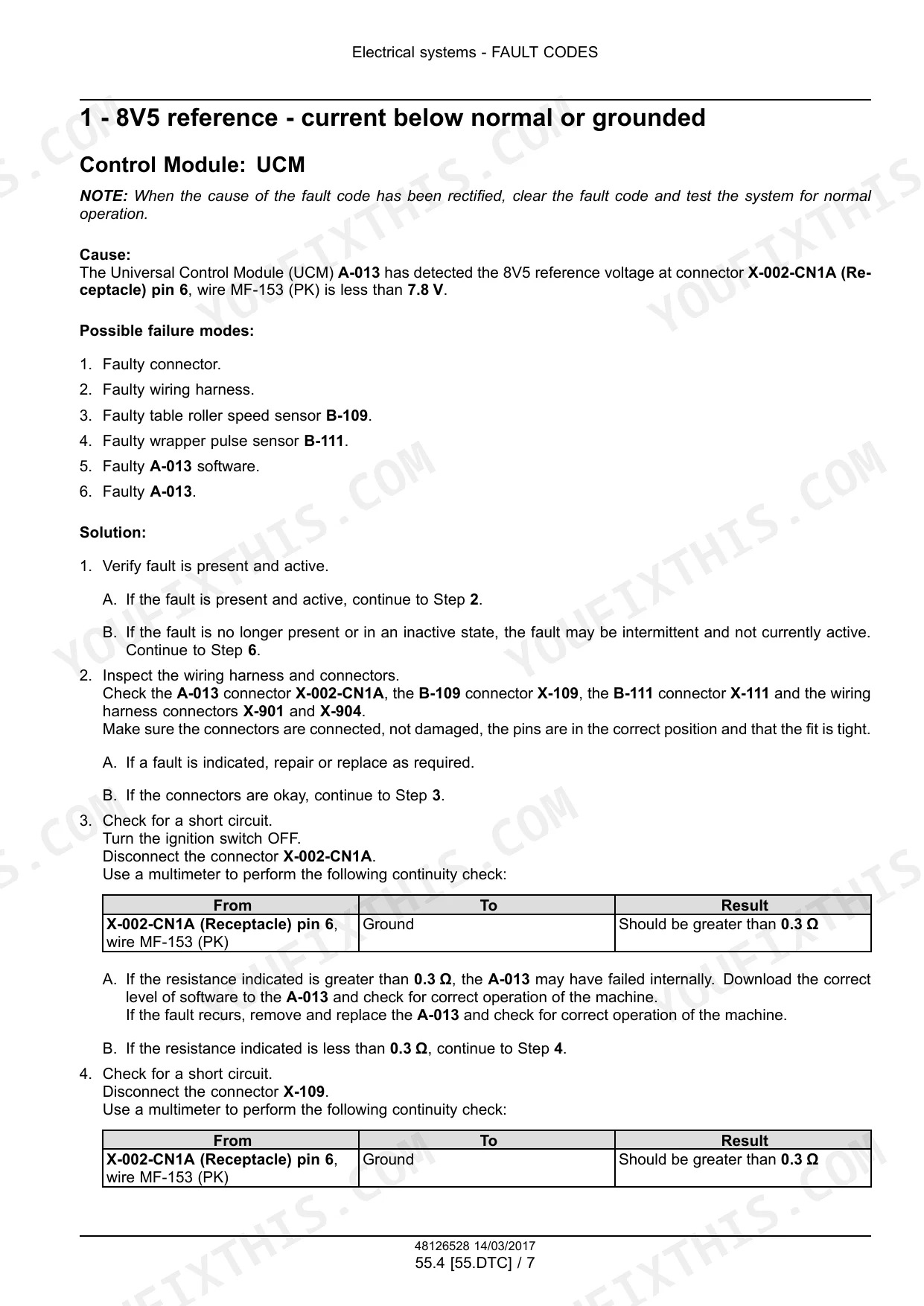

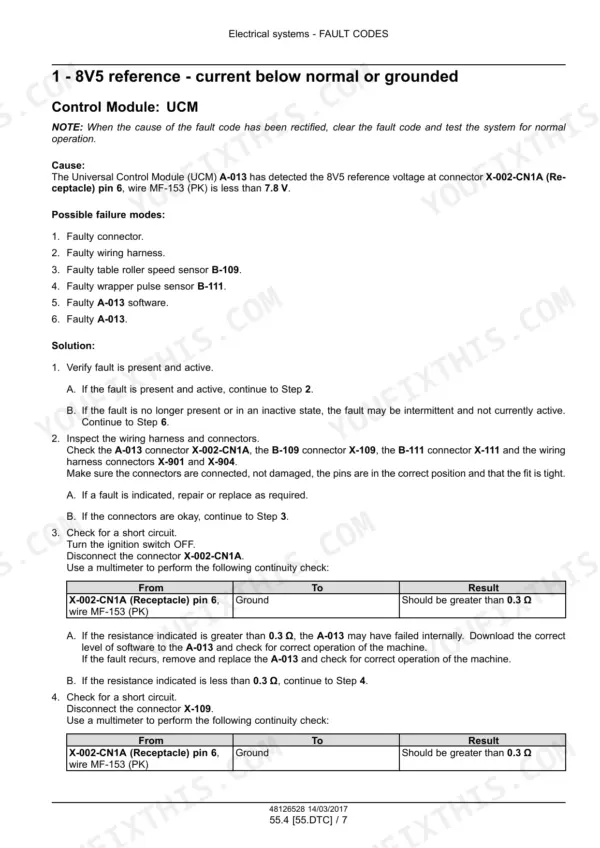

After troubleshooting and ensuring no damage is detected and the display indicates only normal readings, you can erase the fault code to reset error codes. This is a general procedure applicable to various fault codes within the Universal Control Module (UCM).
