All 40 pages of this Case IH Farmall Cub Tractor Service Manual (OEM #GSS-1007) zero in on one job: pulling the engine, rebuilding every assembly by the book, and getting your Cub back in the field. Inside you get system diagrams showing engine architecture from the ignition drive and governor through the full lubrication path, exploded views of every major assembly, and a complete set of step-by-step procedures spanning cylinder head removal, piston ring service, valve inspection, crankshaft bearing checks, and full bottom-up engine reassembly. A dedicated troubleshooting section is in there too. Cylinder head capscrew torque values, connecting rod bearing clearances, and crankshaft end clearance specs are all laid out in exact factory figures. Your machine has been down long enough. Built-in bookmarks let you jump straight to any section; pull it up on any device and start wrenching.
What's Inside This Case IH Farmall Cub Tractor Manual
| System | Pages | Key Topics |
|---|---|---|
| General Description | 5-6 | Engine Specifications, Dust Protection, Ignition System, Engine Governor, Carburetor, Crankshaft Bearings, Lubrication System |

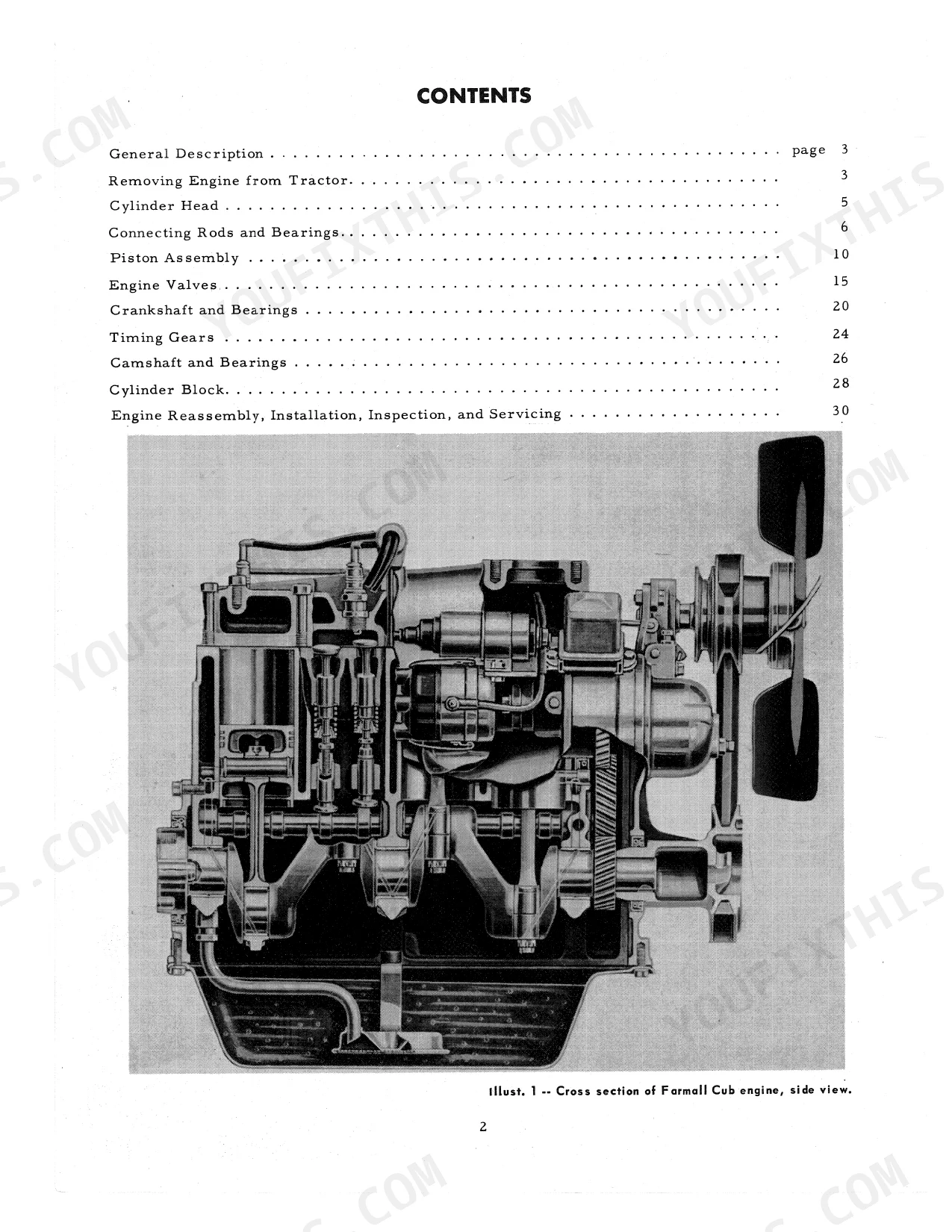

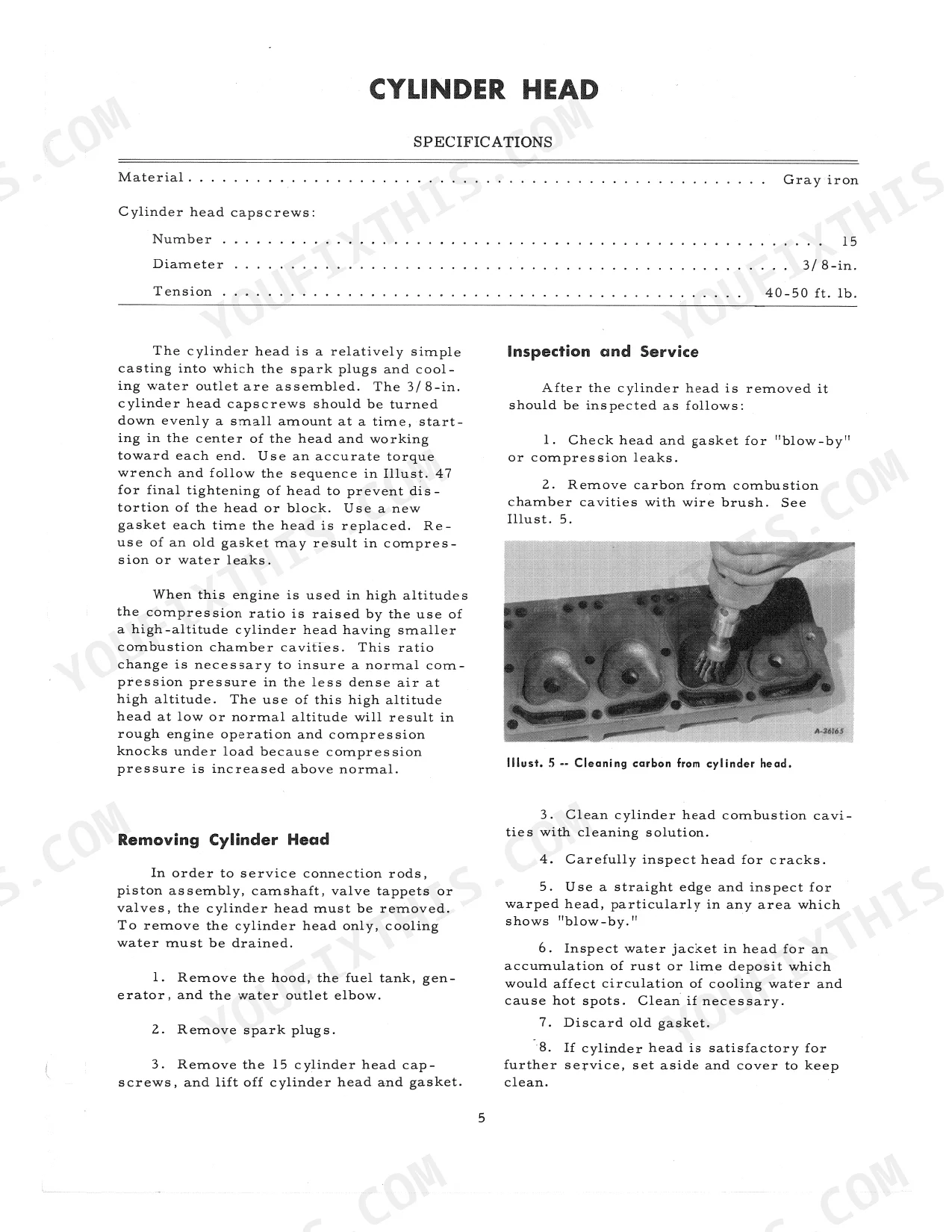

| Cylinder Head | 7 | Specifications, Inspection and Service, Removing Cylinder Head, Combustion Chamber Cavities, Water Jacket, Cylinder Head Capscrews |

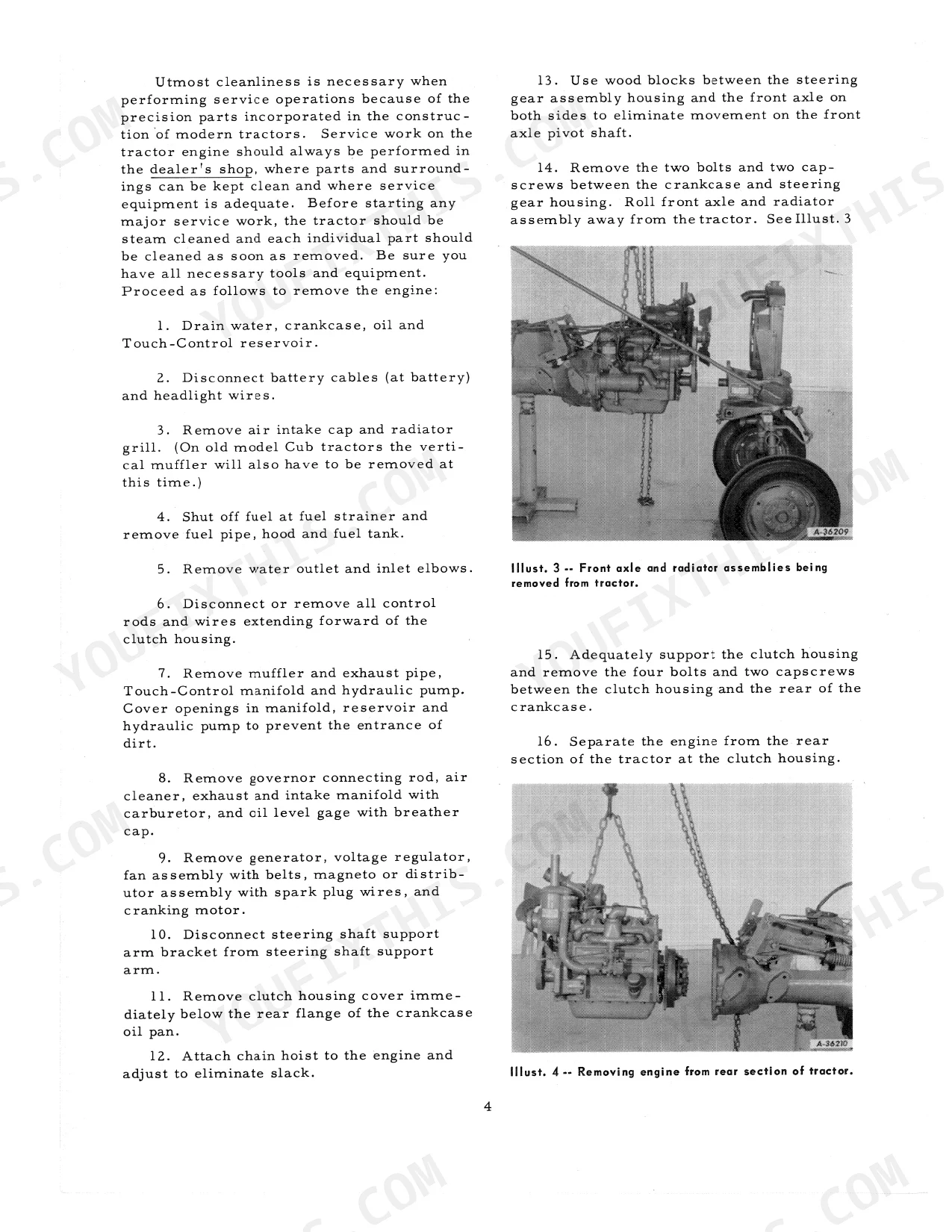

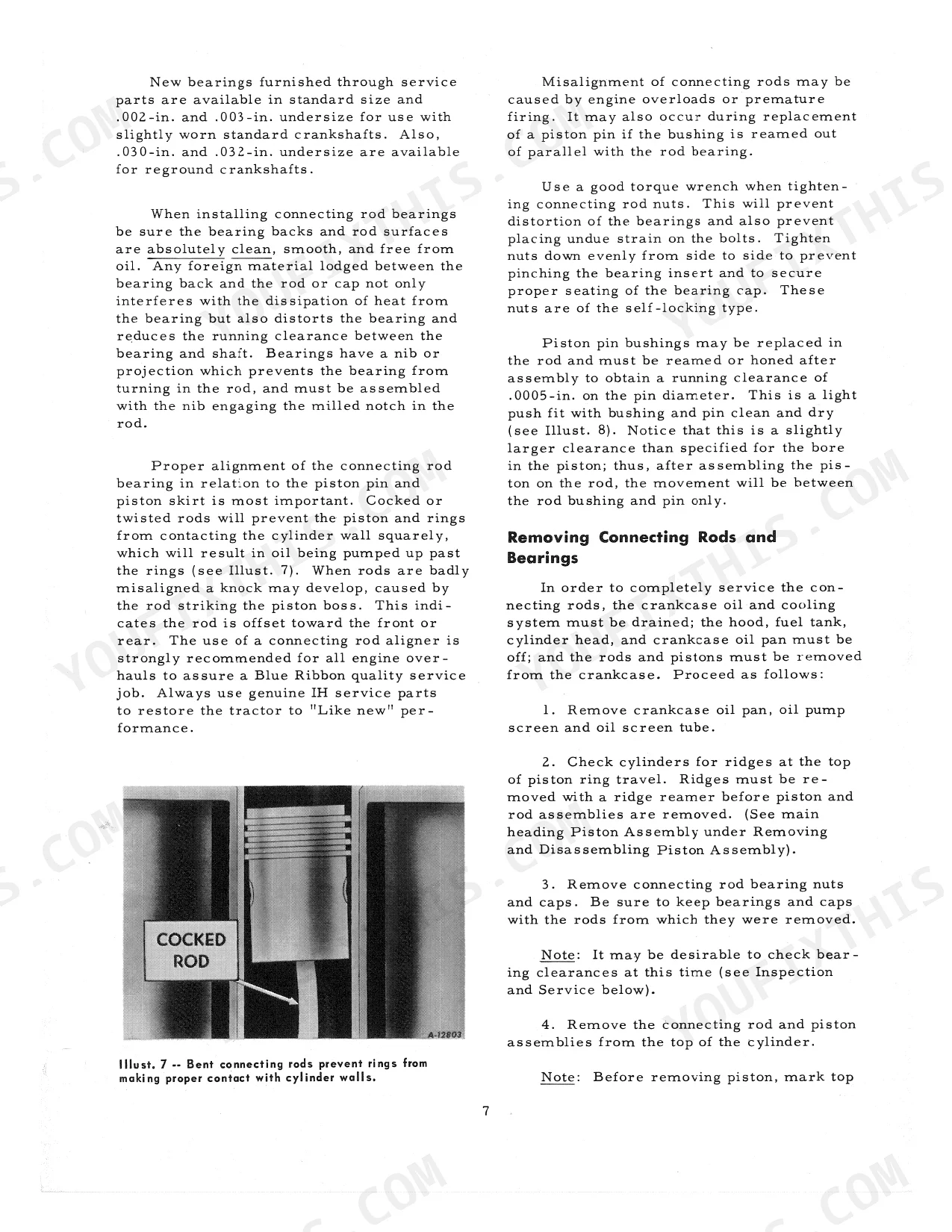

| Connecting Rods and Bearings | 8-11 | Specifications, Piston Pin Bushing, Removing Connecting Rods and Bearings, Inspection and Service, Checking Piston Pin Fit, Connecting Rod Alignment |
| Piston Assembly | 12-16 | Inspection and Service |
| Engine Valves | 17-21 | Valve Clearance Adjustment, Valve Grinding, Valve Guides, Valve Springs, Tappet Clearance, Valve Seat Angle |
| Crankshaft and Bearings | 22-25 | Specifications, Oil Seals, Flywheel, Fan Drive Pulley, Removing Crankshaft and Bearings, Inspection and Service, Crankshaft End Clearance |
| Timing Gears | 26-27 | Specifications, Timing Gear Train, Ignition Drive Seal |
| Camshaft and Bearings | 28-29 | - |
| Cylinder Block | 30-31 | - |
| Engine Reassembly, Installation, Inspection, and Servicing | 32-40 | - |
Case IH Farmall Cub Tractor Common Problems This Manual Covers
Case IH Farmall Cub Tractor turns over but has no spark and fails to start. p. 5
Check the ignition system for a burned or broken distributor rotor with a damaged tab. Remove the battery cable to prevent arcing. Test the coil resistance with an ohm meter. Wash the air cleaner in kerosene every 150 hours to ensure proper air flow.
Manual Section: General DescriptionHydraulic pump loses prime overnight and lift system fails to operate in cold weather. p. 6
Inspect the internal hydraulic pump seal for failure or air ingress. Replace the flexible rubber hose between the carburetor and air cleaner every 150 hours to prevent vacuum leaks. Verify fluid viscosity is rated for cold weather operation to maintain steady pump prime.
Manual Section: General DescriptionEngine lacks compression and coolant bubbles appear around the upper block during operation. p. 7
Inspect the cylinder head gasket on page 7 for leaks, carbon buildup, or cracks. Remove the cylinder head capscrews and check the combustion chamber cavities. Clean the water jacket thoroughly. Always wash the air cleaner in kerosene after 150 hours of operation.
Manual Section: Cylinder HeadDeep knocking noise from the lower engine block under heavy load at high RPM. p. 22
Check the main bearing clearance and crankshaft end play on page 22. Remove the connecting rods and bearings to inspect the journals for wear. Verify the piston pin fit and ensure the air cleaner is serviced every 150 hours to prevent grit ingestion.
Manual Section: Crankshaft and BearingsFrequently Asked Questions
How do you time the ignition drive gears on a Farmall Cub?
To set the ignition drive gears, first mark the top surfaces of the two teeth on each side of the single punch mark on the idler gear with chalk. Then mark the top surface of the tooth having a single punch mark on the ignition drive gear. With the engine on top dead center of No. 1 firing stroke, mesh the marked tooth of the ignition drive gear with the two marked teeth on the idler gear, referring to Illustration 50 for visual guidance.
What ignition system does the Farmall Cub use, and what needs inspection during engine service?
The Farmall Cub uses a J-4 waterproof high-tension magneto with automatic impulse coupling as standard equipment, providing a hot spark for easy starting while retarding timing at cranking speed. Tractors with starting and lighting attachments may use a battery-type ignition system with distributor instead. During engine service, inspect the magneto or distributor assembly; after reassembly, lubricate the magneto or distributor and tune the engine completely per the Tractor Final Inspection checklist.
What are the valve tappet clearance and spring specifications for the Farmall Cub engine?
The Farmall Cub engine requires valve tappet clearance of .013-in. measured cold, for both intake and exhaust valves. Valve springs must test at 23 lb. at 1-1/4-in. and valve stem-to-guide clearance should be .0015 to .0025-in. Intake valves are SAE 3140 steel and exhaust valves are Silchrome XCR alloy, with a specified valve lift of .222-in.
What are the key clearance and torque specifications when rebuilding a Farmall Cub engine?
When rebuilding the Farmall Cub engine, piston clearance in the cylinder bore should be .0016 to .0024-in. and compression ring end gap should be .007 to .017-in. Crankshaft main bearing running clearance is .002 to .0035-in. with end clearance of .004 to .008-in. Cylinder head capscrews torque to 40-50 ft. lb. and connecting rod bolts to 16-20 ft. lb.
