Every page of this 227-page Case IH 9110, 9130 operator manual (OEM #9-15290) is built around one job: keeping both tractors running right, from first startup to long-term storage. Inside you get a full transmission operation section covering the Forward/Reverse Mode Lever, Gear Selector Pulser, and Skip Shift sequences, plus a complete digital instrument cluster walkthrough with diagnostic code interpretation. Open to the field operation chapters for drawbar prep, three-point hitch coupling, and remote hydraulics, or flip to the tire and wheel section for inflation specs, load capacity charts, and tread position adjustments for your exact configuration. Engine oil pressure at rated speed runs 43-54 PSI (296-372 kPa); set rated engine speed between 1700 and 2100 RPM. Your machine won't wait. Bookmarked and keyword-searchable, this PDF gets you to the right page fast, whether you're on a laptop in the shop or your phone in the cab.
What's Inside This Case IH 9110, 9130, 9110-9130 Operator Manual
| System | Pages | Key Topics |
|---|---|---|

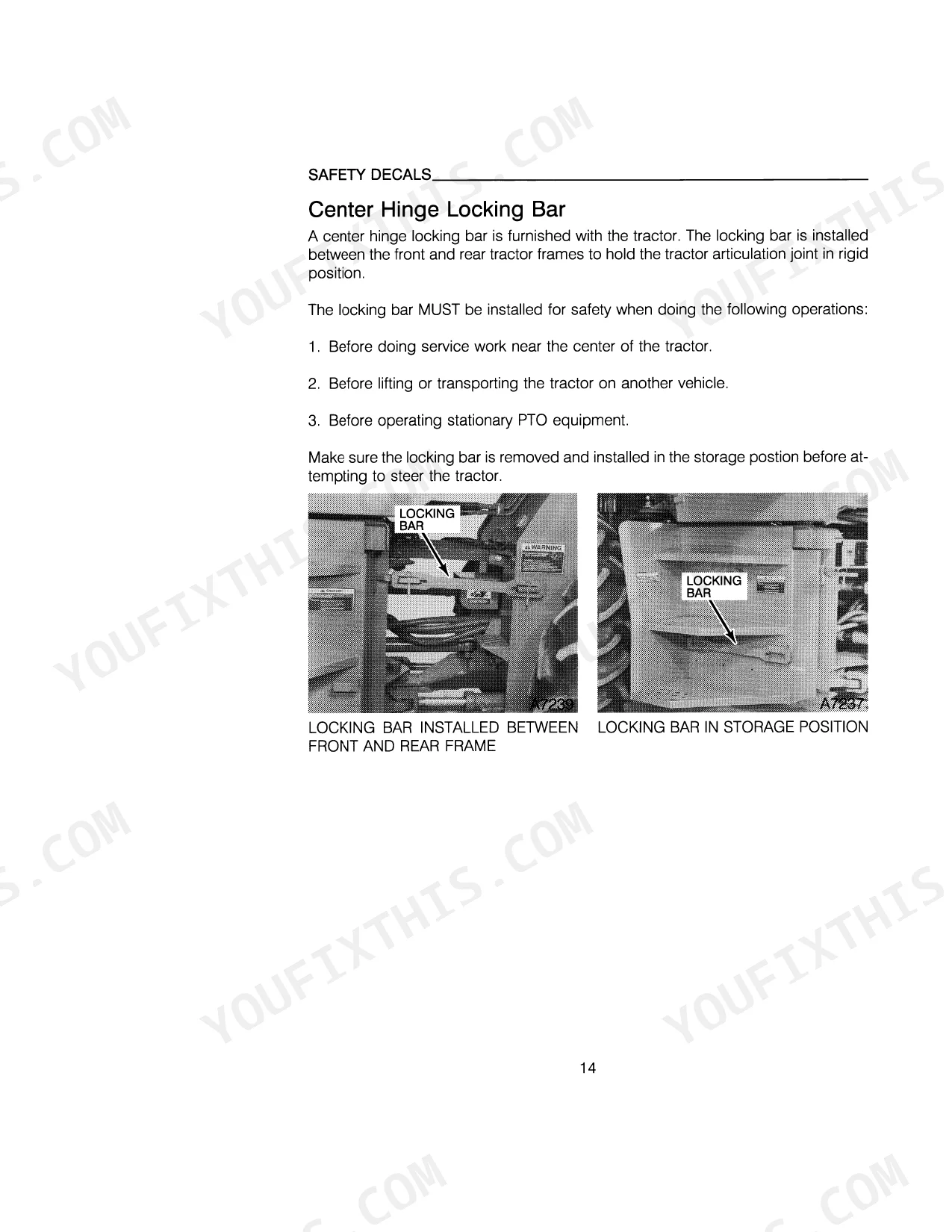

| Safety/ Decals | 10-20 | Center Hinge Locking Bar, Decals, Roll Over Protective Structure (ROPS), Safety Rules, Tractor Roll Over |

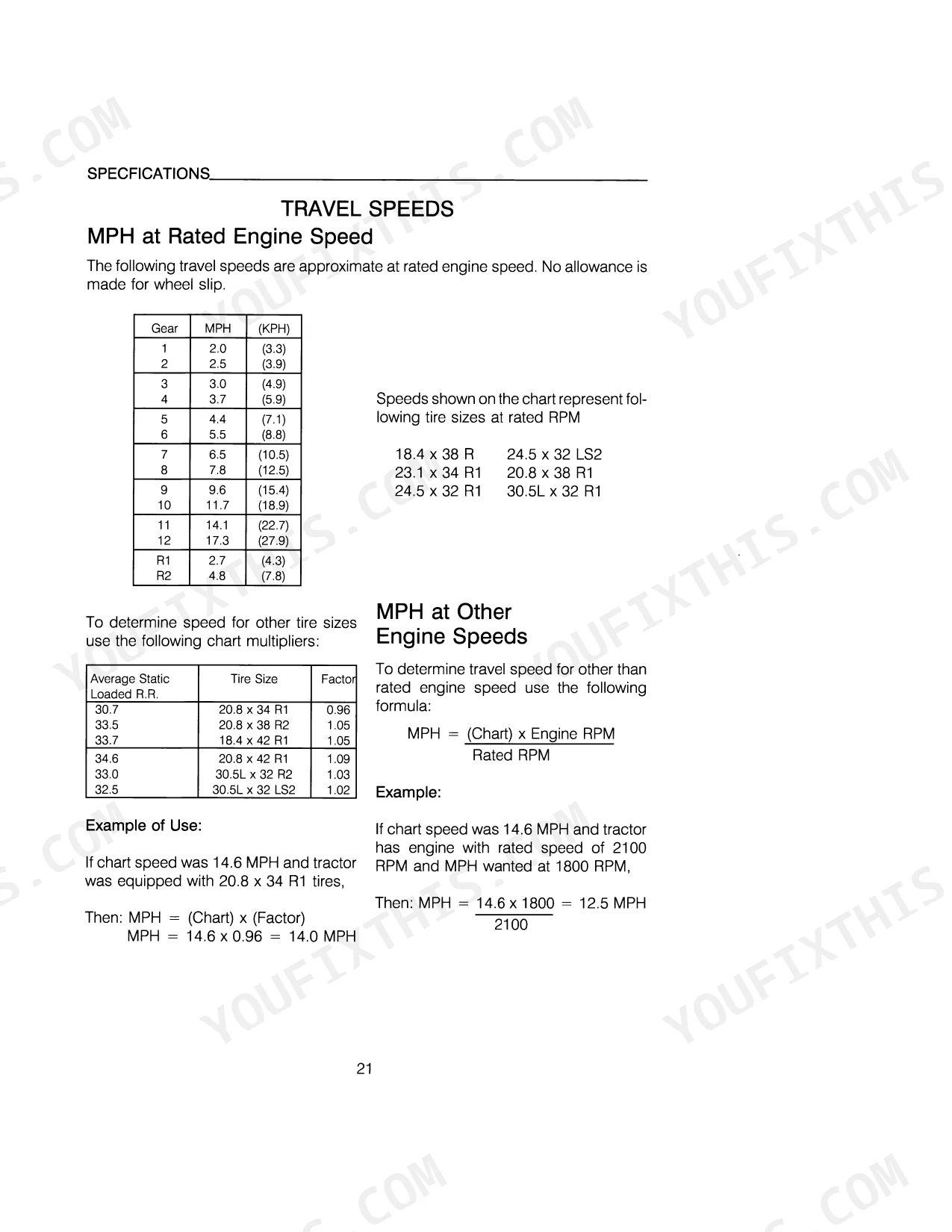

| Specifications | 21-26 | Travel Speeds, Mph at Other Engine Speeds, Mph at Rated Engine Speed |

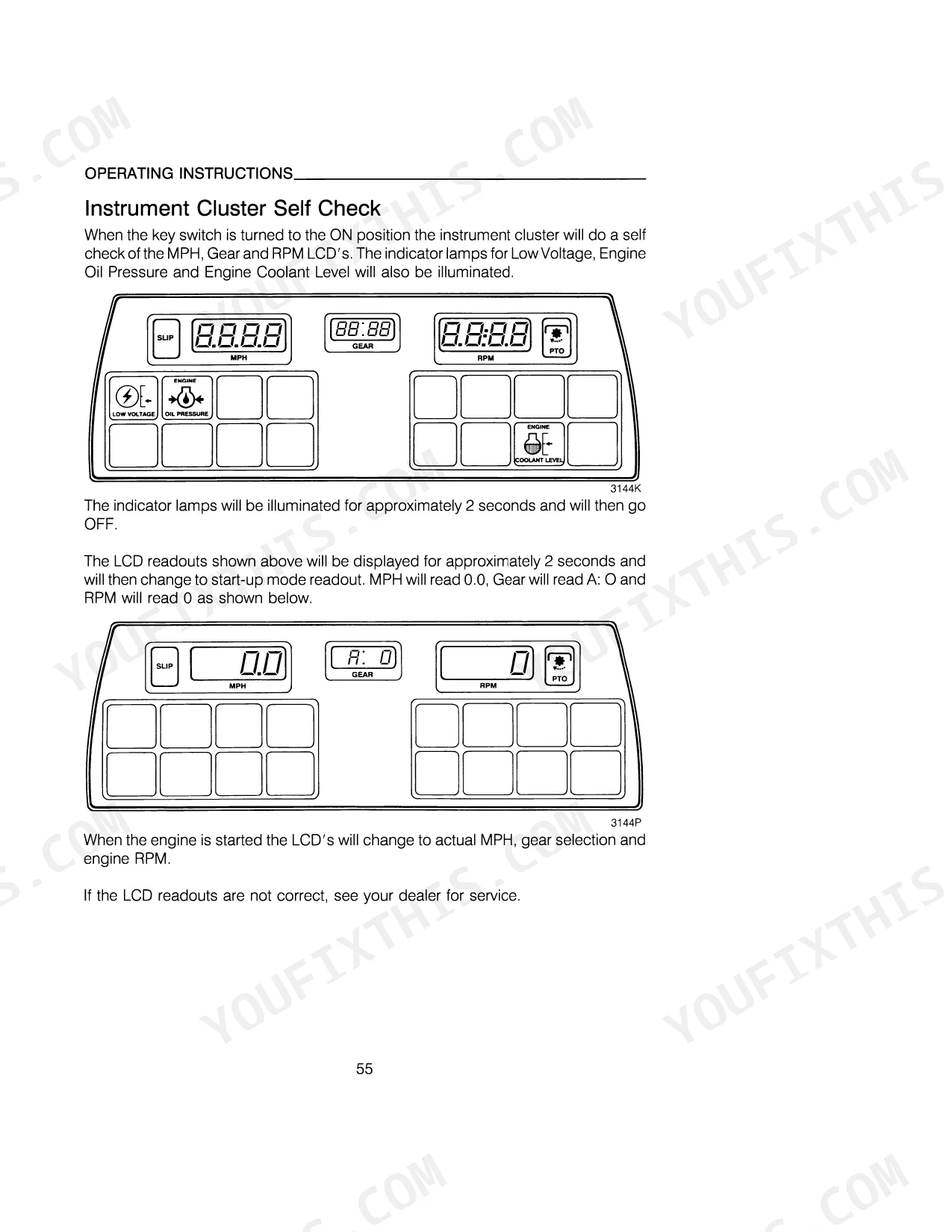

| Instruments/ Controls | 27-56 | Digital Instrument Cluster, Diagnostic Codes, Indicator Lamps, Differential Lock, Remote Hydraulics, Operators Seat |
| Operating Instructions | 57-90 | Transmission Operation (Forward/Reverse Lever, Gear Selector Lever, Skip Shift, Speeds) |
| Field Operation | 91-124 | Drawbar Preparation, Connecting the Implement, Hitch Coupler, Remote Hydraulics Operation, Three Point Hitch Operation, Instrument Cluster Calibration |
| Tires/ Wheels/ Spacing/ Ballast | 125-144 | Tire Inflation Specifications, Tire Pressure and Load Capacity Chart, Tractor Ballast, Measuring Wheel Slip, Tread Positions, Wheel Adjustment |

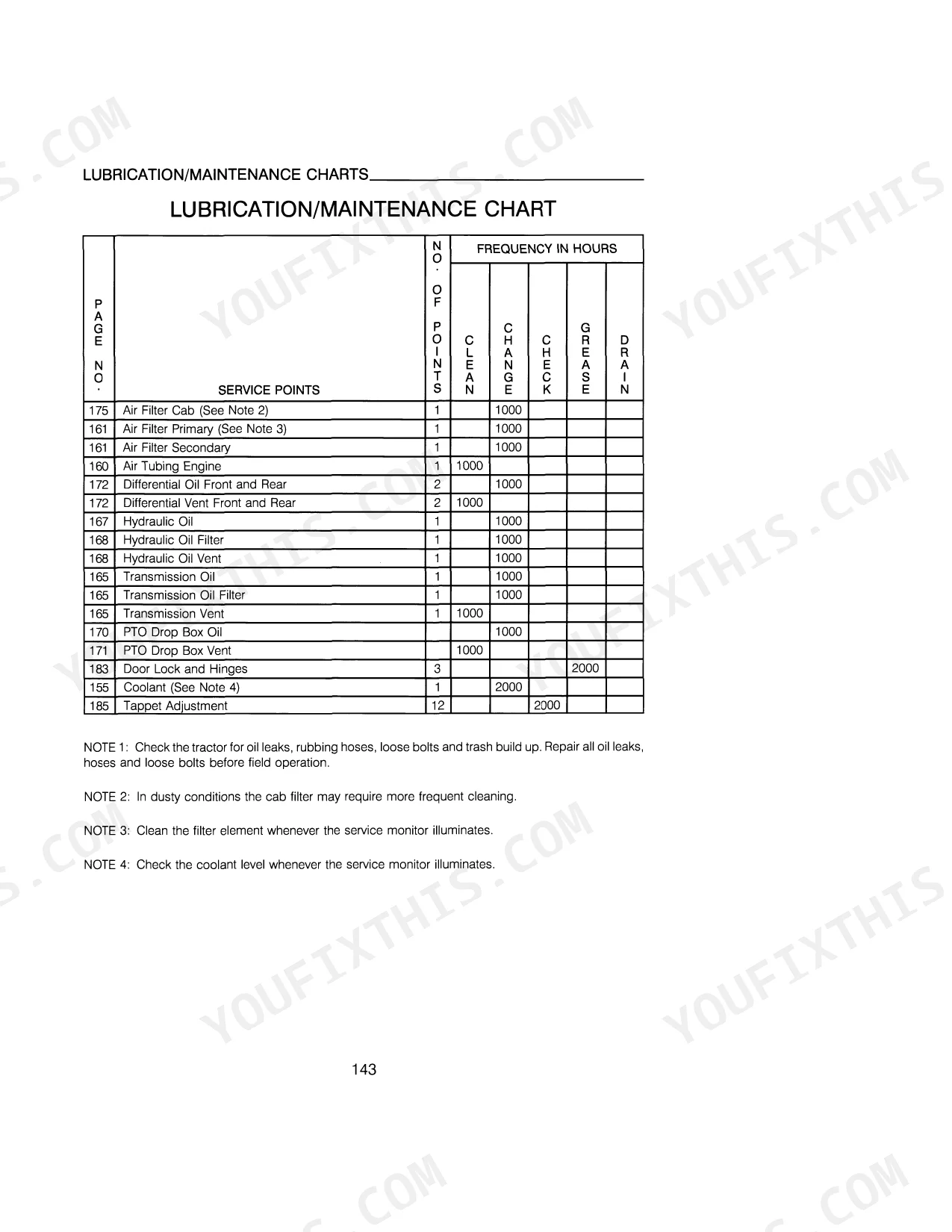

| Lubrication/ Maintenance Charts | 145-148 | Engine Hour Meter, Lubrication Maintenance Chart, System Lubrication Analysis Program |
| Lubrication/ Filters/Fluids | 149-180 | System Capacities, Grease Fittings, Fluid Levels and Filters, Engine Lubrication, Fuel System, Cooling System |
| Maintenance/ Adjustments | 181-193 | Grille Screen and Radiator, Fan Belt and Air Conditioner Belt, Seat Belts, Operators Cab, Valve Tappet Adjustment, Tractor Diagnostic Codes |
| Electrical System | 194-206 | Monitor Power Supply and Mounting |
| Storage | 207-213 | - |
| Instruments/Controls | 217-220 | Digital Instrument Cluster (Digital Displays, Control System Code, Diagnostic Code, Transmission Gear) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Wheel Disc Bolts to Split Bushing torque | 600 lb ft (813 Nm) wet | p. 128 |
| Engine Oil Pressure (Rated Speed) | 43 to 54 PSI (296 to 372 kPa) | p. 22 |
| Rated Engine Speed | 1700 to 2100 RPM | p. 22 |
Case IH 9110, 9130, 9110-9130 Common Problems This Manual Covers
Case IH 9130 tractor does not move and digital instrument cluster display is completely blank p. 187
Check the detailed diagnostic codes starting on page 187. Verify transmission power shift relay connections. Inspect the battery system wiring for loose grounds. Test engine oil pressure to ensure it holds 43 to 54 PSI (296 to 372 kPa) at 1700 to 2100 RPM before engaging the transmission override.
Manual Section: Maintenance/ AdjustmentsPower shift relay clicks repeatedly when shuttling the forward reverse lever with no movement p. 187
Inspect the transmission controller diagnostic LED pattern. Review the error code reference on page 187 to decode the specific transmission fault. Verify the electrical system supply voltage holds steady above 12V while testing the relay. Check the engine oil pressure reads 43 to 54 PSI (296 to 372 kPa).
Manual Section: Maintenance/ AdjustmentsPopping noise from rear axles when turning sharply under heavy draft load p. 128
Verify wheel disc bolts to split bushing hardware tightness. Torque the bolts to 600 lb ft (813 Nm) wet as specified on page 128. Inspect the dual rim clamp housings for cracks or fretting. Re-check torque after 10 hours of field operation to prevent loosening.
Manual Section: Tires/ Wheels/ Spacing/ BallastEngine oil pressure warning indicator lamp flashes on the dashboard during field operation p. 22
Stop the tractor immediately. Check the engine oil pressure on page 22 to confirm it remains between 43 to 54 PSI (296 to 372 kPa) at rated engine speed. If pressure drops below specification, inspect the oil level on the dipstick and look for external leaks near the filter.
Manual Section: SpecificationsFrequently Asked Questions
How to reset error codes on Case IH 9110?
To reset the transmission control system, which may clear some error codes, turn the key switch OFF. Then, put the transmission forward/reverse mode lever in NEUTRAL and start the tractor engine in the normal manner. For a complete listing and description of all diagnostic codes, refer to page 187.
Torque specs for dual bolts on Case IH 9130 rim style duals?
For hub mounted duals, the wheel disc bolts must be tightened to a torque of 600 lb ft (813 Nm) wet. These bolts should be tightened after the first 3 hours and every 10 hours until they maintain the correct torque. The Split Bushing Hub Bolts require 266 to 294 lb ft (361 to 399 Nm) of torque.
What are the error codes for Case IH 9130 power shift?
The manual lists several diagnostic codes related to the transmission, which include various transmission shift solenoid issues. For example, E20 indicates a transmission shift solenoid 'Z' has an open circuit, E21 indicates a transmission shift solenoid 'Y' has an open circuit, and E41 indicates an incorrect forward or reverse command. A complete list of codes and their descriptions can be found on page 187.
