All 172 pages of this Case IH Farmall 30B and 35B Operator Manual (OEM #84275461) cover one thing: keeping your compact tractor running safely and in the field. Inside, you get a full safety section with ROPS guidelines and signal word definitions, a complete controls walkthrough from the instrument panel to the Hydraulic Power Lift, and step-by-step procedures for PTO engagement, engine break-in, and transport. Your maintenance schedule is all here too: lubrication, air intake service, and every service interval on the chart, plus a troubleshooting guide covering the hydrostatic transmission, clutch, hydraulic lift, and steering. Fill the engine to 4.7 l (5.0 US qt), the transmission/rear axle/hydraulic system to 32.0 l (8.5 US gal), and the front axle to 5.5 l (5.8 US qt). No more digging through forums for fluid specs. Bookmarked and searchable; pull it up on your tablet, walk to the tractor, and start the job right.
What's Inside This Case IH Farmall 30B, Farmall 35B Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 7-12 | Note to the Owner, Foreword Ecology and the Environment, Proposition 65, Advice, Product Identification |
| Safety Information | 13-40 | Precautionary Statements and Signal Word Definitions, Personal Safety, Safety Rules, ROPS - Personal Safety - Roll-Over Protective Structure, Safety Decals, International Symbols |

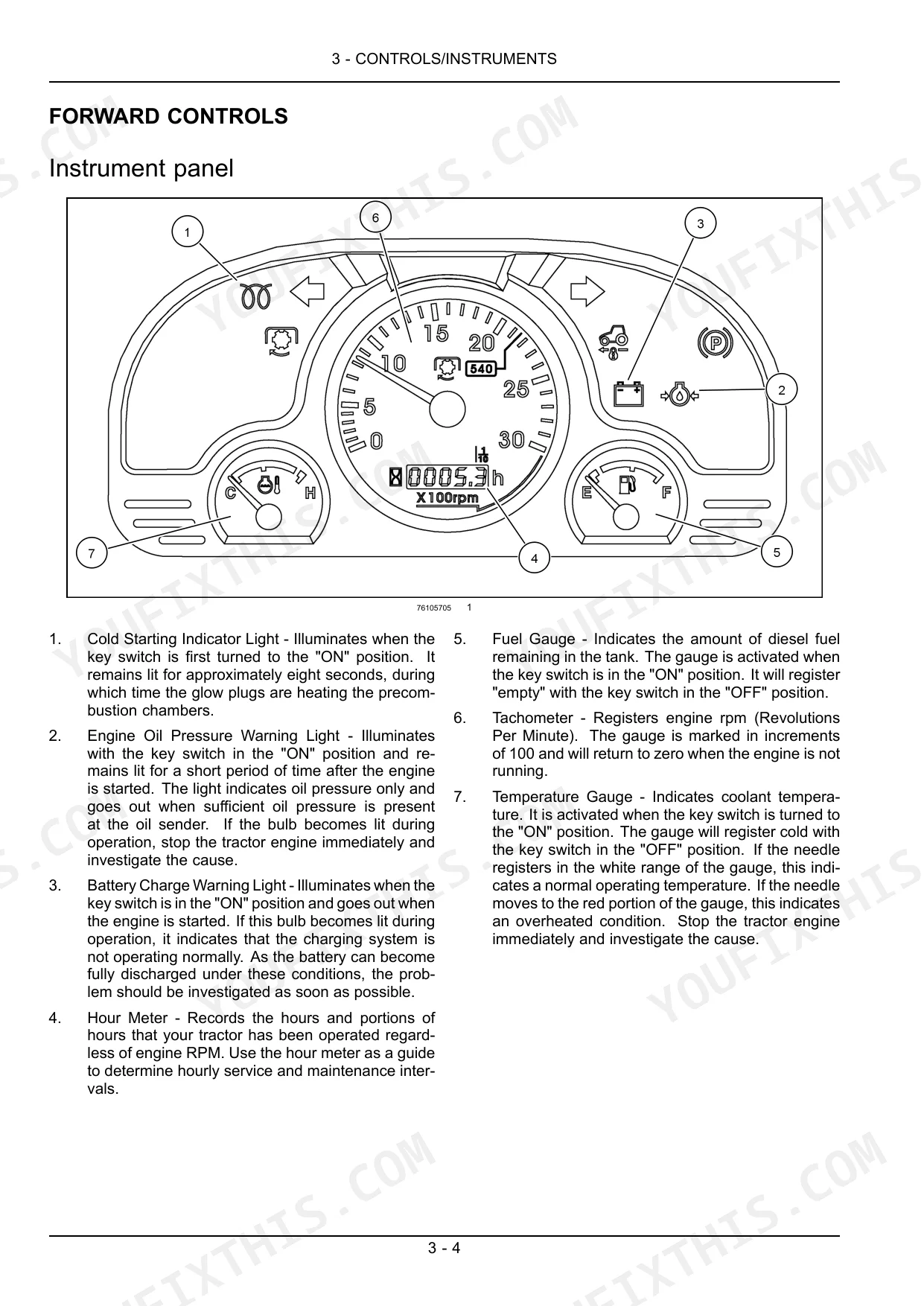

| Controls/Instruments | 41-62 | Instrument Panel, Seat Controls, Clutch Pedal, Brake Pedals, PTO Switch, Hydraulic Power Lift (Hpl) |
| Operating Instructions | 63-90 | Engine Break-In Procedure, Power Take-Off (PTO) Operation, Starting the Engine, Stopping the Engine, Moving the Unit, Parking the Tractor |
| Transport Operations | 91-96 | Lighting System, Hazard Warning Light Operation, Driving the Vehicle, Carrying the Tractor on a Transporter, Towing |
| Working Operations | 97-100 | Tractor Ballasting, Tractor Ballasting Weights, Liquid Ballast |

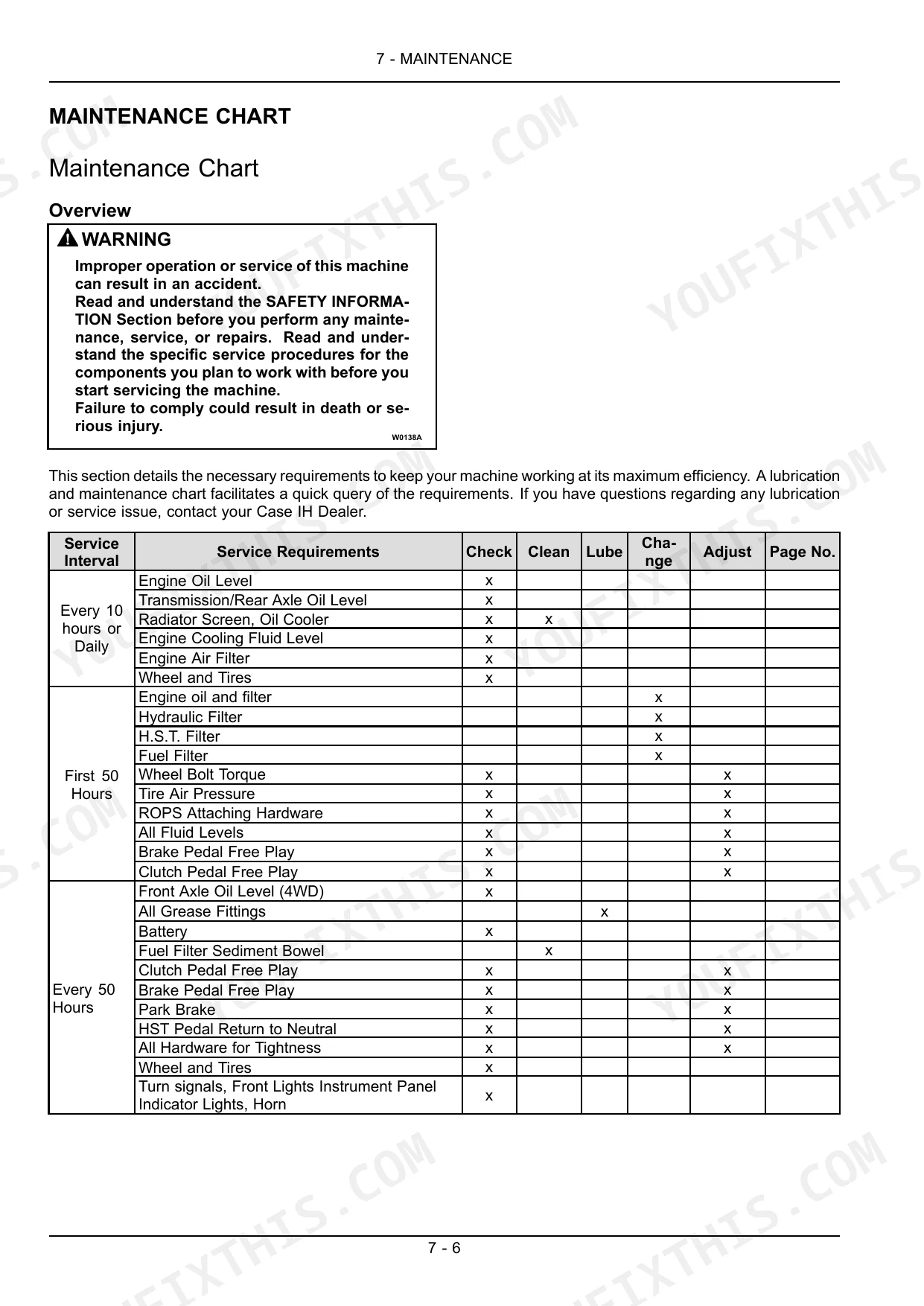

| Maintenance | 101-146 | General Information, Maintenance Chart, Lubrication System, Engine, Fuel and Injection System, Air Intake System |
| Troubleshooting | 147-150 | Engine - Troubleshooting, Clutch - Troubleshooting, Hydraulic Lift System - Troubleshooting, Steering - Troubleshooting, Transmission Hydrostatic - Troubleshooting |

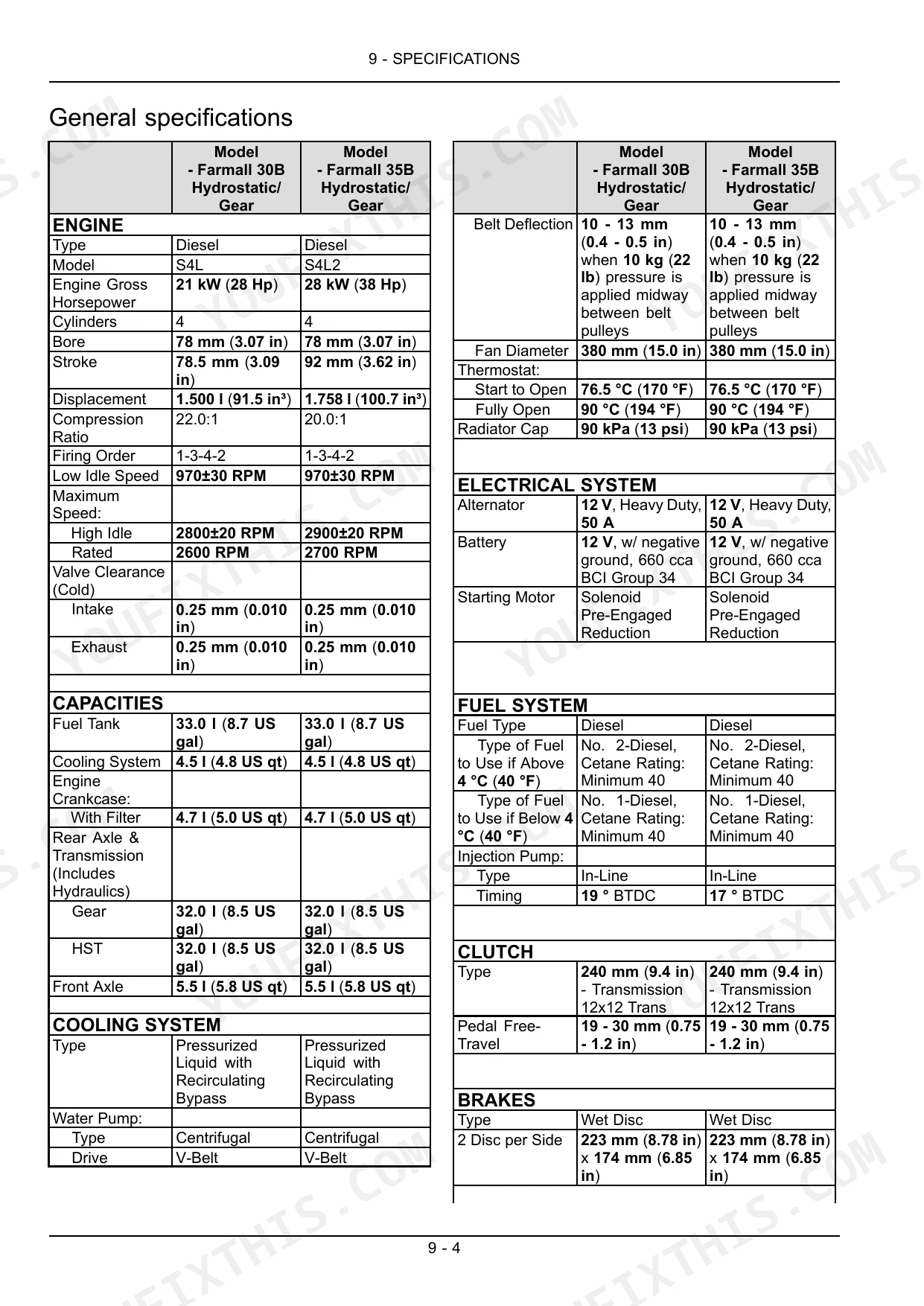

| Specifications | 151-158 | Wheels and Tracks - Tire Ratios - Wheel Tread Settings, Wheels and Tracks - Tire Pressure, Liquid Ballast, General Specifications, Tractor Dimensions |
| Accessories | 159-160 | Optional Equipment, Grille Guard, Tool Box, Trailer Electrical Socket |
| Forms and Declarations | 161-164 | Delivery Report - Owner Copy, Delivery Report - Dealer Copy, Inoperative Service Checks, Safety Items Check, Operative Service Checks |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Fuel injector line fittings torque | 24 - 29 N·m (18 - 21 lb ft) | p. 115 |
| Engine Oil Capacity (with filter) | 4.7 l (5.0 US qt) | p. 111 |
| Transmission/Rear Axle/Hydraulic Oil Capacity | 32.0 l (8.5 US gal) | p. 120 |
| Front Axle Oil Capacity | 5.5 l (5.8 US qt) | p. 143 |
| Clutch Pedal Free Travel | 20 - 30 mm (0.79 - 1.18 in) | p. 123 |
| Front Wheel Torque | 176 - 196 N·m (130 - 145 lb ft) | p. 139 |
| Rear Wheel Torque | 176 - 196 N·m (130 - 145 lb ft) | p. 139 |
| ROPS bottom portion mounting bolts torque | 147 N·m (108 lb ft) | p. 128 |
| Seat Belt Bolt Torque | 54 N·m (40 lb ft) | p. 161 |
| Farmall 30B | ||
| Injection pump timing | 19 ° BTDC | p. 154 |
| Engine High Idle Speed | 2800±20 RPM | p. 154 |
| Farmall 35B | ||
| Engine High Idle Speed | 2900±20 RPM | p. 154 |
Case IH Farmall 30B, Farmall 35B Common Problems This Manual Covers

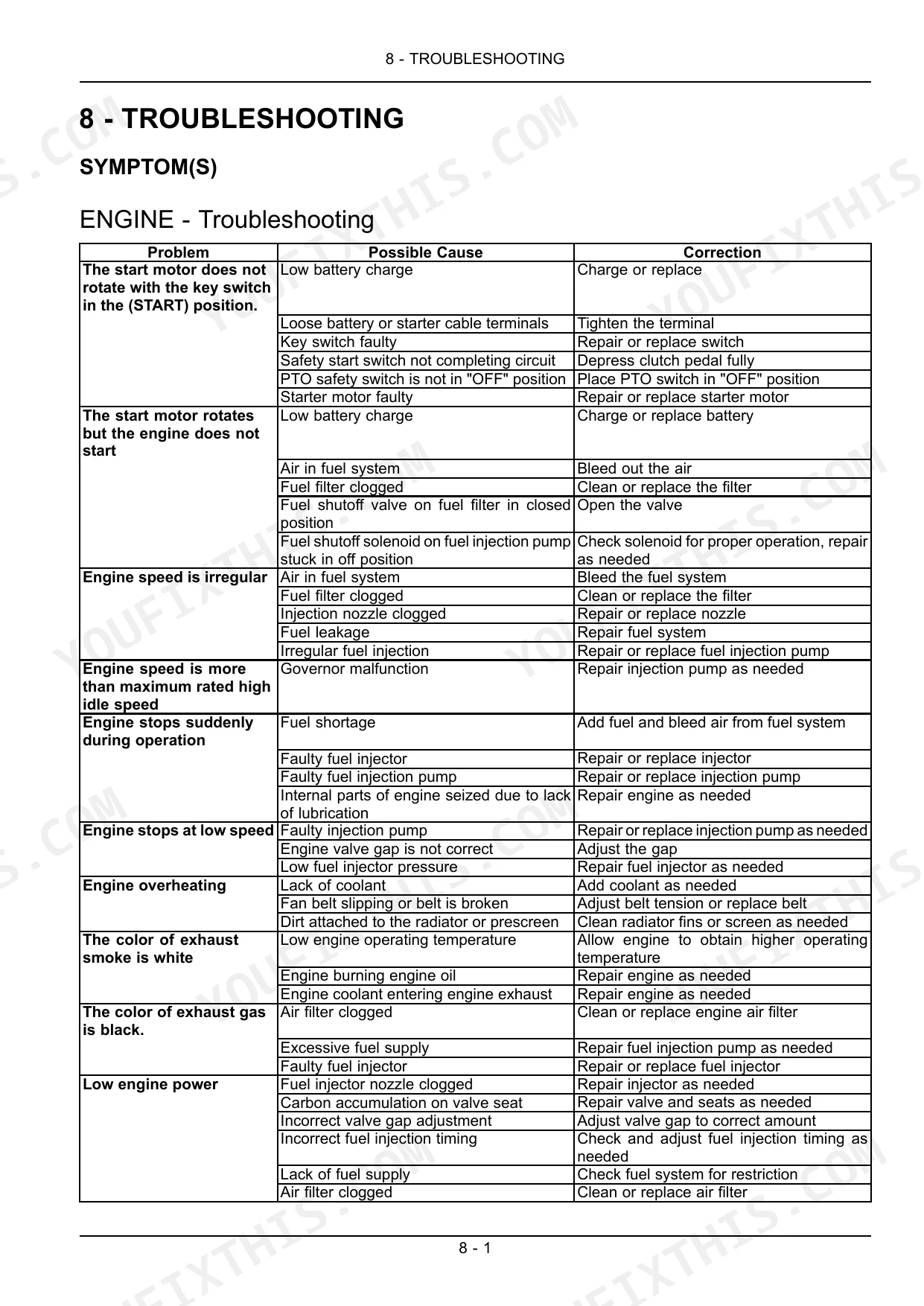

Case IH Farmall engine temperature gauge climbing into red during loader work in summer heat p. 147
Stop work immediately and let the engine idle for two minutes before shutdown. Check coolant level in the overflow reservoir and radiator when cold. Inspect all coolant hoses for soft spots, cracks, or seeping at clamps. Verify the radiator cap holds 90 kPa (13 psi) and the fins are clear of chaff and debris. The overheating troubleshooting steps on page 147 cover the full diagnostic sequence.
Manual Section: ENGINE - TroubleshootingThree-point linkage won't raise implement or raises too slowly with full hydraulic oil level p. 148
Check the Hydraulic Lift System troubleshooting chart on page 148. Verify the hydraulic control lever is fully advanced and not binding in the quadrant. Confirm transmission and hydraulic oil level is correct; capacity is 32.0 l (8.5 US gal) as noted on page 120. Look for oil weeping from lift cylinder seals or hose connections at the rear of the tractor before assuming a pump issue.
Manual Section: Hydraulic Lift System - TroubleshootingEngine cranks but won't fire on first several attempts after sitting overnight in cold weather p. 150
Verify the cold start aid (glow plug or intake heater) is cycling before you crank: the instrument panel indicator should glow for several seconds after key-on. Check the troubleshooting steps on page 150 under cold start aid not working. Also confirm the fuel shutoff valve is open and the tank contains clean, non-gelled diesel. Drain any water from the fuel filter sediment bowl before attempting another start.
Manual Section: ELECTRICAL POWER SYSTEM - TroubleshootingHydrostatic tractor creeps or won't move when HST pedal is depressed in either direction p. 149
Check the HST troubleshooting sequence on page 149. Confirm the parking brake is fully released and the brake pedals are not locked together. Verify transmission and hydraulic oil is at the correct level: 32.0 l (8.5 US gal) per page 120. Allow the tractor to warm up at low idle for five minutes in cold conditions; hydrostatic units require oil at operating temperature before they deliver full drive response.
Manual Section: TRANSMISSION Hydrostatic - TroubleshootingClutch pedal goes nearly to floor before disengaging, making gear changes difficult p. 148
Check clutch pedal free travel: correct range is 20 - 30 mm (0.79 - 1.18 in) measured at the pedal pad before resistance builds, as specified on page 123. If free travel exceeds 30 mm, the clutch linkage needs adjustment. Refer to the maintenance schedule on page 106 for the clutch inspection interval and confirm this check has not been skipped.
Manual Section: Clutch - TroubleshootingBattery warning light stays on or headlights dim noticeably at low idle after running for an hour p. 150
Check the electrical troubleshooting chart on page 150 under battery not charging. Inspect the alternator belt for glazing, cracking, or slack. Clean both battery terminals and verify the ground cable connection at the chassis is tight and corrosion-free. Check that headlight and accessory loads are switched off when not needed at low idle, since charging output drops with engine speed.
Manual Section: ELECTRICAL POWER SYSTEM - TroubleshootingFrequently Asked Questions
What is the error code for low hydraulic pressure on Case IH Farmall 30B?
The manual does not provide specific error codes for low hydraulic pressure. However, if the 3-point linkage does not raise, possible causes include a lack of transmission/hydraulic oil, which requires adding oil, or a faulty hydraulic relief valve, which requires checking and repairing the hydraulic system for correct pressure setting.
How do you fix case IH Farmall engine temperature gauge climbing into red during loader work in summer heat?
Stop work immediately and let the engine idle for two minutes before shutdown. Check coolant level in the overflow reservoir and radiator when cold. Inspect all coolant hoses for soft spots, cracks, or seeping at clamps. Verify the radiator cap holds 90 kPa (13 psi) and the fins are clear of chaff and debris. The overheating troubleshooting steps on page 147 cover the full diagnostic sequence.
How do you fix three-point linkage won't raise implement or raises too slowly with full hydraulic oil level?
Check the Hydraulic Lift System troubleshooting chart on page 148. Verify the hydraulic control lever is fully advanced and not binding in the quadrant. Confirm transmission and hydraulic oil level is correct; capacity is 32.0 l (8.5 US gal) as noted on page 120. Look for oil weeping from lift cylinder seals or hose connections at the rear of the tractor before assuming a pump issue.
How do you fix engine cranks but won't fire on first several attempts after sitting overnight in cold weather?
Verify the cold start aid (glow plug or intake heater) is cycling before you crank: the instrument panel indicator should glow for several seconds after key-on. Check the troubleshooting steps on page 150 under cold start aid not working. Also confirm the fuel shutoff valve is open and the tank contains clean, non-gelled diesel. Drain any water from the fuel filter sediment bowl before attempting another start.
How will I receive this Case IH Farmall 30B, 35B Operator Manual?
This is a 172-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
