Part of the Case IH Operator Manuals.
All 105 pages of this Case IH 464 Tractor Operator Manual focus on one thing: keeping your International 464 running right, day after day. Inside, you get the full operating picture: instrument and controls walkthroughs, three-point hitch hydraulic settings with position and draft control procedures, PTO engagement steps for the 540 RPM shaft, plus auxiliary valve and remote cylinder hookup sequences. The preventive maintenance section maps every service interval precisely: replace the engine oil filter every 200 hours, hit the hydraulic fluid filter at 10, 100, and 250 tachometer hours, then every 250 hours after that. Cold weather precautions, lubrication guides, tire inflation specs, and a full specifications table round out the reference. Your machine is down and you need the right number, not a forum guess. Download it now, pull it up on your tablet, and get to work.
What's Inside This Case IH 464, International 464 Operator Manual
| System | Pages | Key Topics |
|---|---|---|

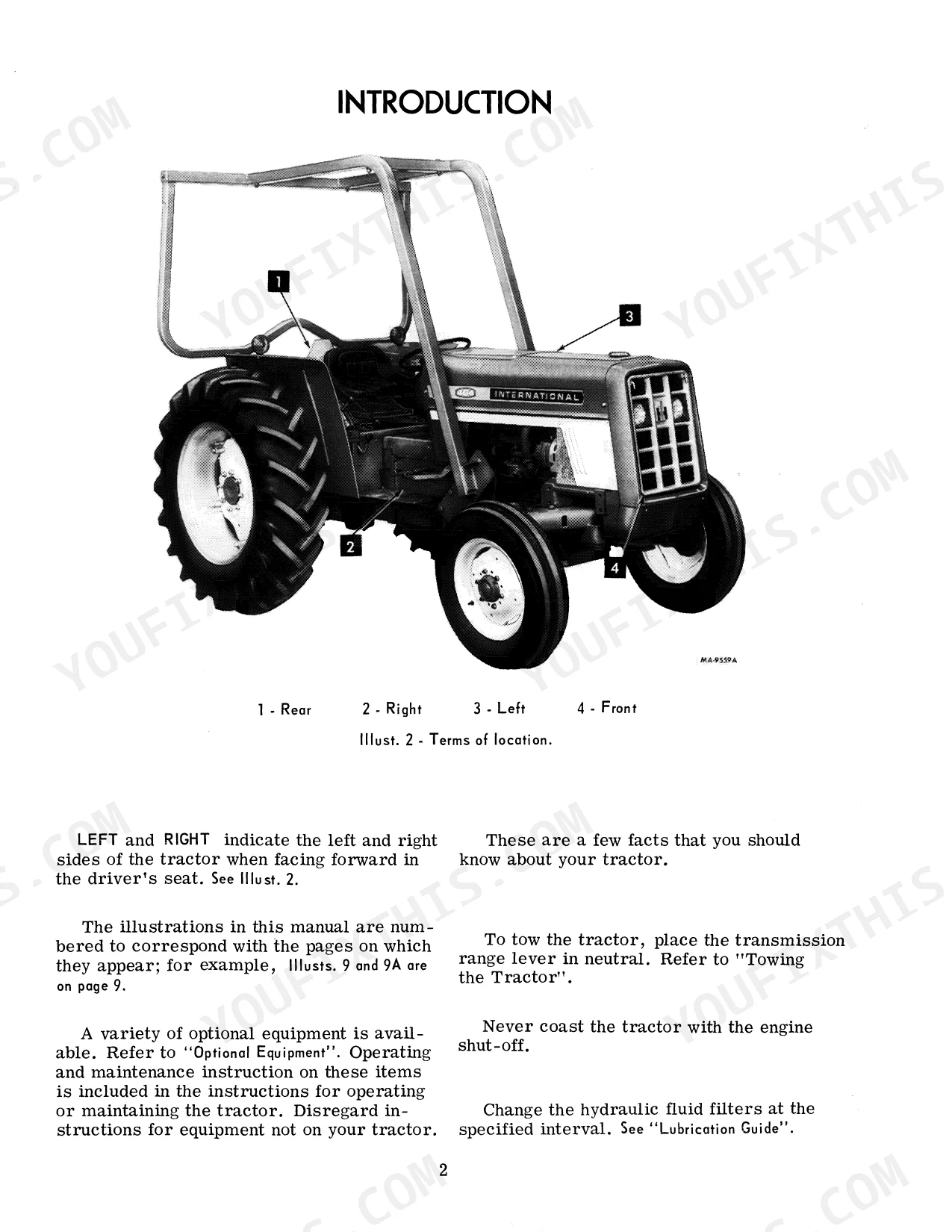

| Introduction | 10 | To Tow the Tractor, Place the Transmission Range Lever in Neutral, Never Coast the Tractor with the Engine Shut-Off, Change the Hydraulic Fluid Filters at the Specified Interval |
| Work Safely - Follow These Rules | 11-12 | Differential Lock Pedal, Differential Lock, Park Brake, Stopping the Tractor |

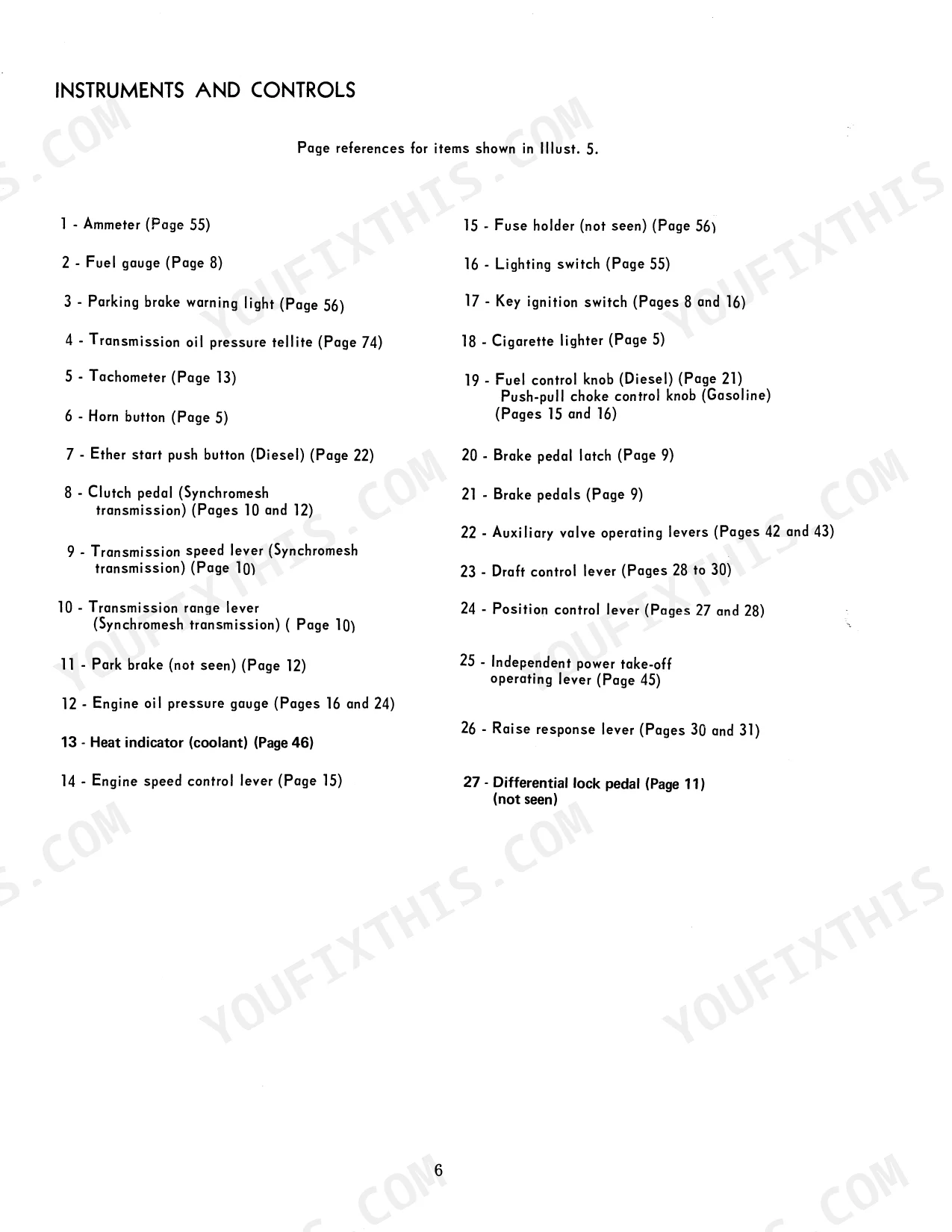

| Instruments and Controls | 13-14 | Tachometer, Towing the Tractor, Engine Speed Control Lever, Push-Pull Choke Control Knob |
| Before Operating Your New Tractor | 15 | Starting the Engine, Engine Oil Pressure Gauge |
| Driving the Tractor | 16-21 | Preparing the Tractor, For Each Day's Work, Fuel Gauge, Filling the Fuel Tank, Suspension Seat, Steering the Tractor, Using the Brakes, Safety Starting Switch |
| Gasoline Engine and Fuel System | 22-26 | After the Engine Is Running, Engine Oil Pressure Gauge, Stopping the Engine, Changing the Ether Fluid Container, Fuel Filters, Fuel Filter Water Drain Valves |
| Diesel Engine and Fuel System | 27-34 | Position Control Lever, Draft Control Lever, Adjustable Stop, Draft Control, Raise Response Lever, Raise Response, Drop Response, Lift Links and Leveling Cranks |
| Hydraulic Controls for Three-Point Hitch | 35-39 | Stabilizers, Coupling the Equipment, Example of Operating the Three-Point Hitch with Draft Control, Uncoupling the Equipment, Removing the Three-Point Hitch Linkage |
| Three-Point Hitch | 40-46 | Lift Links and Leveling Cranks, Hitch Upper Link, Hitch Lower Links, Restraining Chains, Stabilizers, Power Take-Off |
| Hitching Trailing Equipment to the Tractor | 47-48 | Checking the Coolant Level, Draining and Filling the Cooling System, Hoses and Clamps, Cleaning the Cooling System, Thermostat |
| Auxiliary Valves and Remote Cylinders | 49-51 | Dry-Type Air Cleaner, Removing the Filter Element, Automatic Dust |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine oil filter replacement interval | every 200 hours of operation | p. 81 |

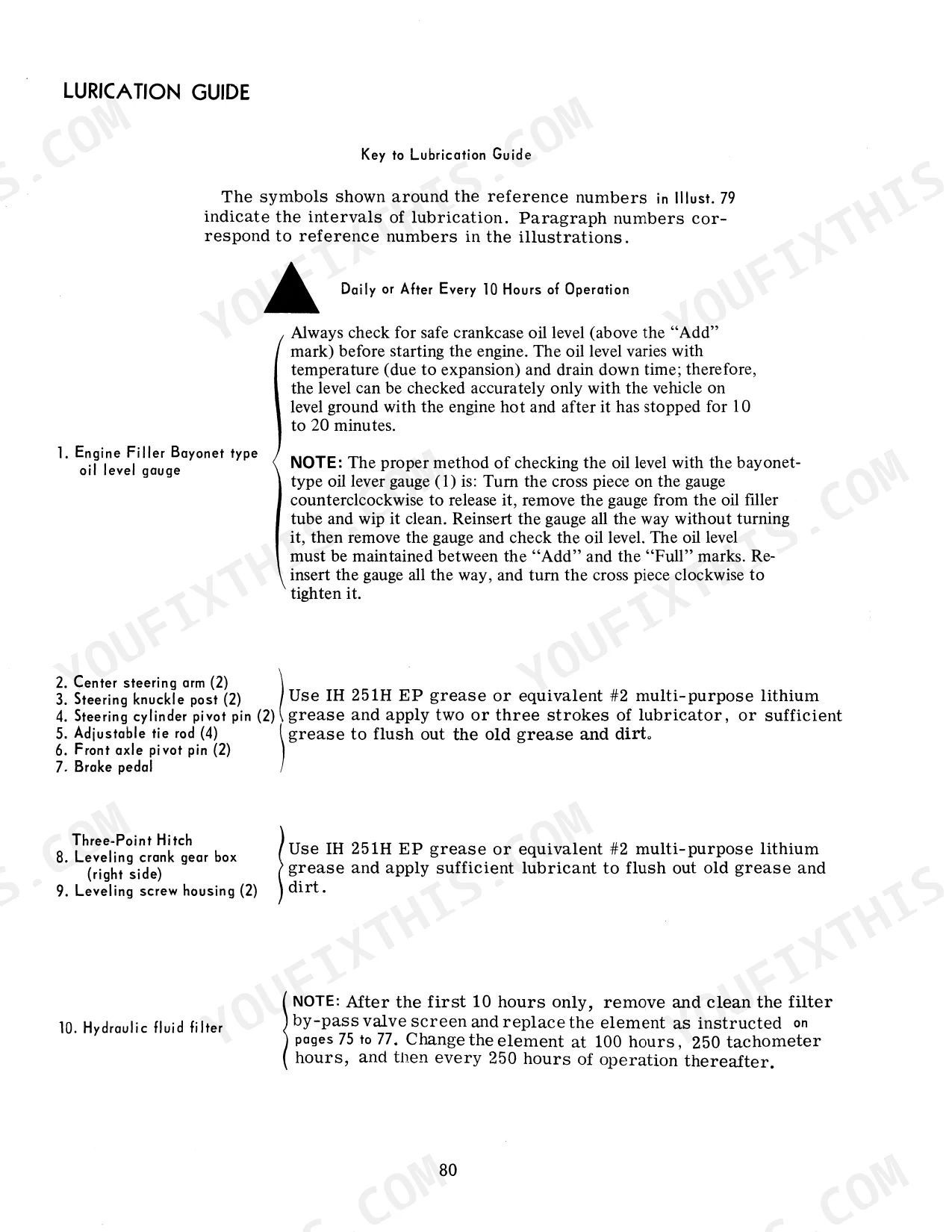

| Hydraulic fluid filter replacement interval | 100 hours, 250 tachometer hours, and then every 250 hours of operation thereafter | p. 81 |
Case IH 464, International 464 Common Problems This Manual Covers
Case IH 464 tractor hydraulic controls sluggish and filter bypass warning light illuminated p. 81

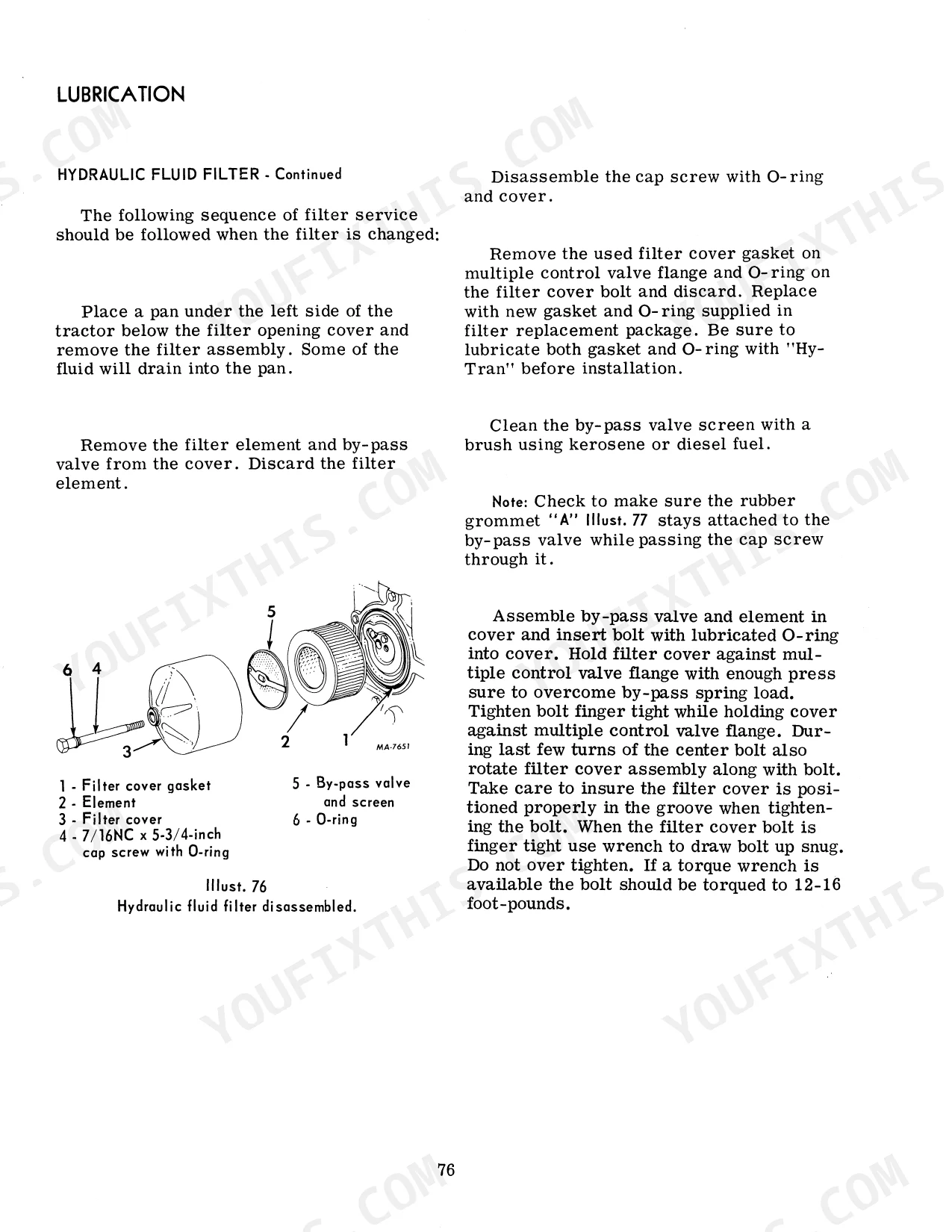

Check the fluid condition immediately and replace the hydraulic fluid filter. Install a fresh filter after the first 10, 100, and 250 tachometer hours of operation, and every 250 hours of operation thereafter as detailed on page 81. Clean the housing thoroughly before installing the new element.
Manual Section: LubricationEngine oil pressure gauge reads low and oil warning indicator stays on after startup p. 81
Verify the crankcase oil level on the dipstick before starting. Drain the old oil and install a new engine oil filter. Replace the filter every 200 hours of operation under normal conditions as shown on page 81. Fill with the recommended grade oil and recheck the gauge pressure.
Manual Section: LubricationThree-point hitch operates erratically and hydraulic pump whines during remote cylinder operation p. 52
Bleed trapped air from the hydraulic circuit. Cycle the remote cylinders fully several times. If using direct connected power take-off driven equipment, verify the shaft provides exactly 540 R.P.M. speed as noted on page 52. Top off the reservoir fluid level to prevent further cavitation.
Manual Section: Power Take-OffTransmission grinds during gear engagement and clutch pedal feels excessively loose under foot p. 101
Measure the clutch linkage clearance directly at the pedal assembly. Adjust the linkage to achieve exactly 6-Inches clutch pedal free height without isomounted platform. Verify the inch free pedal travel is correct as outlined on page 101 before test driving the tractor in neutral.
Manual Section: Engine ClutchFrequently Asked Questions
Why won't the 3-point hitch lift on my International 464 tractor?
If the 3-point hitch is not lifting, ensure the position control lever is moved to the rearmost position in the quadrant, as this is the correct operation for raising the equipment. Additionally, check the transmission fluid level, especially when using a large single-action cylinder, as low fluid can impede hydraulic function. Refer to the "Lubrication" section for proper fluid level checks.
What are the replacement specifications for Oil filters?
Engine oil filters for the International Harvester 464 tractor should be a spin-on type. It is recommended to replace the engine oil filter every 200 hours of operation under normal conditions. The manual illustrates the spin-on type oil filter for both gasoline and diesel engines.
How do you fix case IH 464 tractor hydraulic controls sluggish and filter bypass warning light illuminated?
Check the fluid condition immediately and replace the hydraulic fluid filter. Install a fresh filter after the first 10, 100, and 250 tachometer hours of operation, and every 250 hours of operation thereafter as detailed on page 81. Clean the housing thoroughly before installing the new element.
How do you fix engine oil pressure gauge reads low and oil warning indicator stays on after startup?
Verify the crankcase oil level on the dipstick before starting. Drain the old oil and install a new engine oil filter. Replace the filter every 200 hours of operation under normal conditions as shown on page 81. Fill with the recommended grade oil and recheck the gauge pressure.
What do I get after purchasing this Case IH 464 Tractor, International 464?
You get a 105-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print specific sections of this Case IH 464 Tractor, International 464?
The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
