All 341 pages of this Case IH DC102 Disc Mower Conditioner Service Manual (OEM #48068914) focus on one machine: the DC102, from PTO drive shaft and gearbox teardown to roll conditioning and flail conditioning rebuilds. Inside, you get hydraulic schematics for the header height, tilt, and frame-swing circuits, wiring diagrams for the external lighting system, and a full run of exploded views across the cutterbar, conditioning rolls, and PTO clutch assemblies. Troubleshooting charts cover the cutting mechanism, header drive, and conditioning systems so you can isolate a fault before pulling a single bolt. Pinion shaft end play runs 0.05–0.20 mm; torque the cutterbar mounting bolts to 271 N·m (200 lb ft). Your DC102 is down and the dealer wants a week. Bookmarked by system and keyword-searchable; download it, pull it up on your tablet in the shop, and start wrenching.
What's Inside This Case IH DC102, DC102 Disc Mower Conditioner, Disc Mower Conditioner Manual

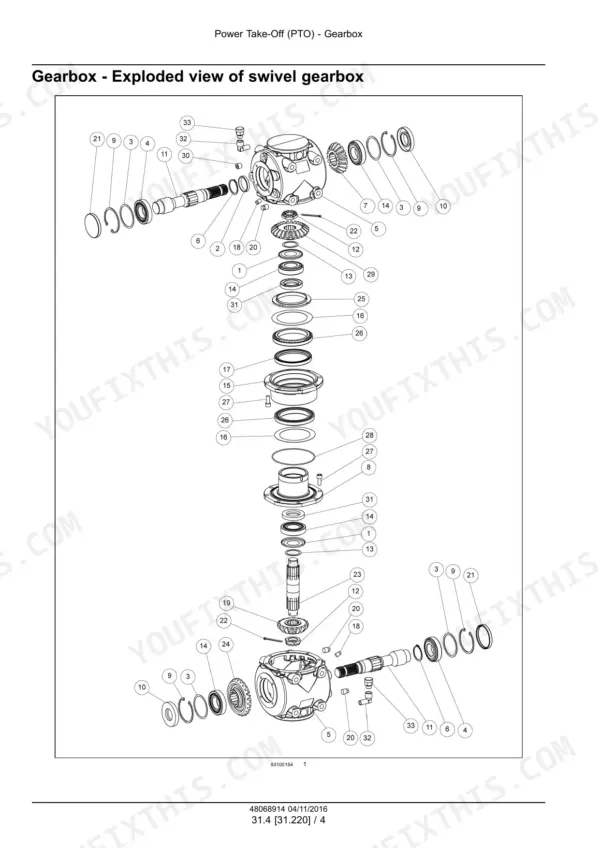

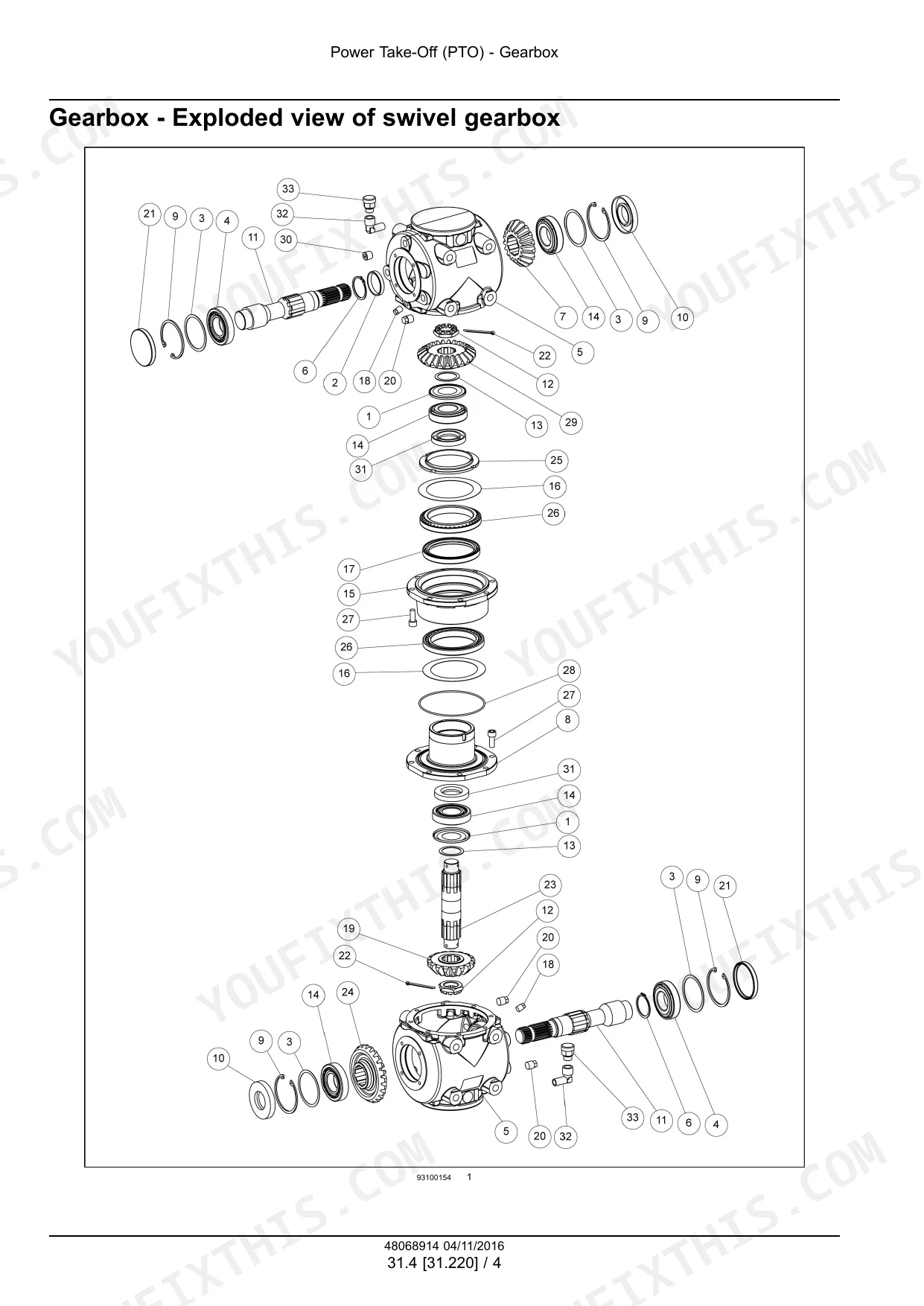

| System | Pages | Key Topics |
|---|---|---|
| Introduction | 5-28 | Foreword - Important Notice Regarding Equipment Servicing, Safety Rules (Personal Safety, Ecology and the Environment), Torque - Nominal Tightening Torques for Normal Assembly |
| Power Take-Off (PTO) - 31 | 29-120 | Power Take-Off Drive Shaft, Secondary Power Take-Off, Intermediate Power Take-Off, Gearbox, Clutches |
| Hydraulic Systems - 35 | 121-158 | Hydraulic Systems, Header or Attachment Height System, Header or Attachment Tilting System, Frame Positioning Swinging |
| Wheels - 44 | 159-166 | Carrying and Transport Wheels |
| Electrical Systems - 55 | 167-180 | External Lighting |
| Attachments/Headers - 58 | 181-244 | Attachment/Header Cutting Mechanism, Attachment/Header Frame |
| Product Feeding - 60 | 245-339 | Header Drive System, Roll Conditioning, Flail Conditioning |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Shaft seal installation | outer face of the seal is flush with the outer face of the housing | p. 307 |
| Pinion shaft end play | 0.05 - 0.20 mm (0.002 - 0.008 in) | p. 206 |
| Cutterbar mounting bolt torque | 271 N·m (200 lb ft) | p. 200 |
| Tie bolts clamping force | 15876 - 16783 kg (35000 - 37000 lb) | p. 211 |
| Tapered pin installation depth | within 6 mm (1/4 in) of the yoke | p. 73 |
| Tapered pin locknut torque | 142 N·m (105 lb ft) | p. 73 |
| Disc cutting diameter | 500 mm (19.7 in) | p. 22 |
| Disc speed | 3000 RPM | p. 22 |
| Tractor power requirement | 60 kW (80 Hp) Minimum | p. 21 |
| Lower swivel gearbox capacity | 1800 mL (61 US fl oz) | p. 25 |
| Roll conditioner units only | ||
| Roll conditioner rolls length | 2591 mm (102 in) | p. 22 |
| Flail conditioner units only | ||
| Flail conditioner rotor length | 2591 mm (102 in) | p. 22 |
Case IH DC102, DC102 Disc Mower Conditioner, Disc Mower Conditioner Common Problems This Manual Covers
Case IH DC102 cutterbar module oil level low, discs seize or turn with heavy resistance
Check each cutterbar module oil level before operation. Remove the fill plug and verify oil is present at the base of the fill port. Top up to capacity: 300 mL (10 US fl oz) per module. If a module ran dry, remove it and inspect the housing for cracked seals or worn bearings before refilling. Consult the troubleshooting chart for additional no-turn diagnosis.

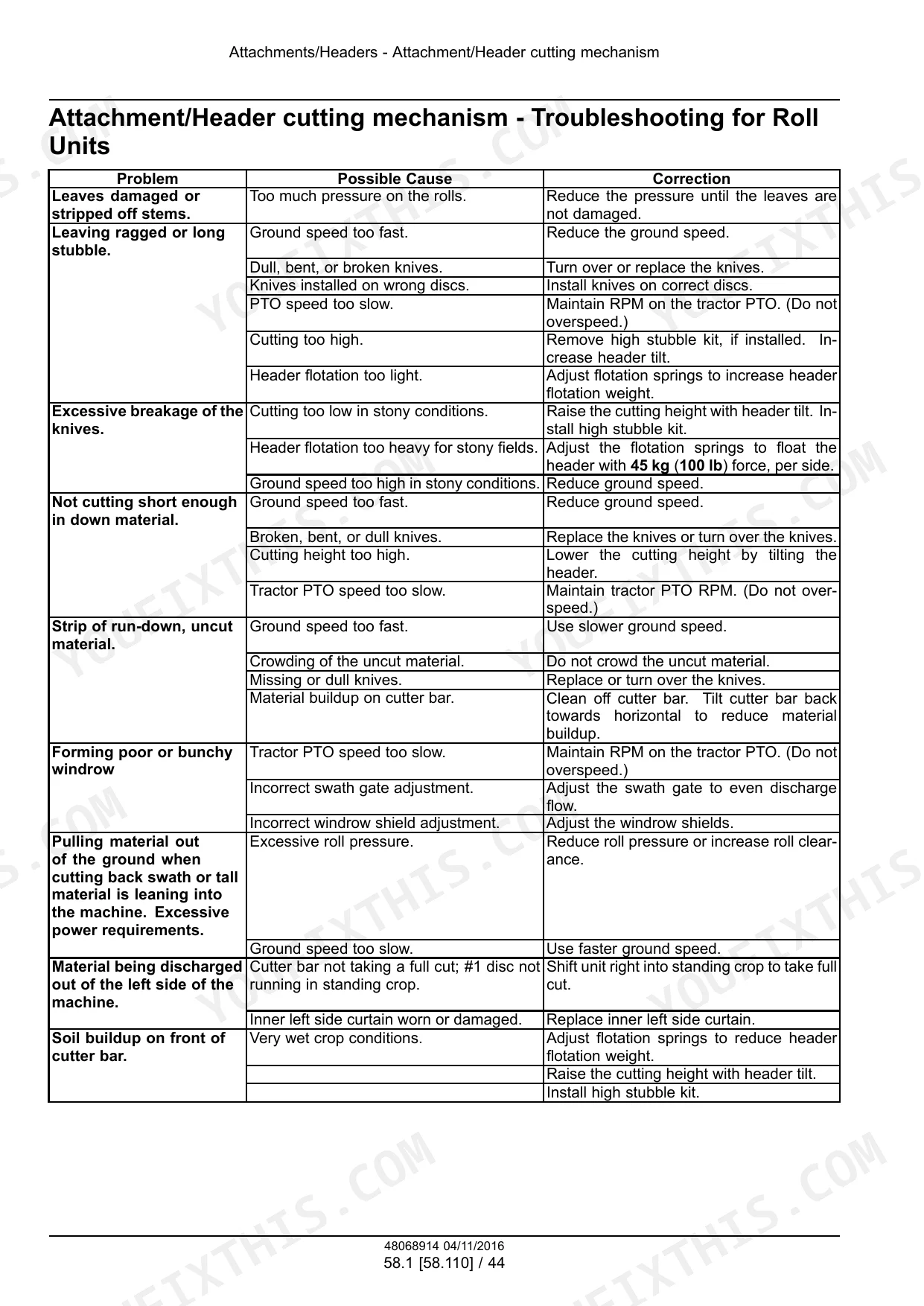

Manual Section: Attachment/Header cutting mechanism - Troubleshooting for Roll UnitsDisc retaining bolts back out after field hours, disc wobbles or cuts unevenly p. 219
Remove the disc assembly and inspect bolt seats and threads for fretting or galling. Clean mating surfaces, then reinstall and torque disc retaining bolts to 113 N·m (83 lb ft) per page 219. Check knife bolts as well: torque to 159 N·m (117 lb ft). Recheck torque after the first two hours of cutting — thermal cycling loosens fasteners on new installations.
Manual Section: Attachments/Headers - 58Main drive slip clutch slips continuously under normal load, power never reaches cutterbar p. 104
Remove the slip clutch assembly per and inspect friction disc surfaces for glazing, oil contamination, or heat scoring. Clean all surfaces before reassembly. After installation, verify static breakaway torque is set to 1450 N·m (1069 lb ft) as specified on page 104. A clutch that slips below this threshold must be burnished or the friction discs replaced — do not try to compensate by over-tightening the spring pack.
Manual Section: Main drive slip clutch - Service ProceduresHydraulic positioning cylinder leaks externally, header drifts down or won't hold position p. 128
Relieve all hydraulic pressure before starting. Remove the cylinder per the procedures starting on page 128 and disassemble it on a clean bench. Inspect piston seals, rod seals, and O-rings for cuts, extrusion, or compression set. Replace the full seal kit and reassemble. When installing the new shaft seal, press it in until the outer face sits flush with the outer face of the housing as specified on page 307. Pressure-test before returning to service.
Manual Section: Hydraulic systems - Positioning cylinder - Service ProceduresRoll conditioner not crimping stems, crop drying time excessive after mowing p. 271
Measure the gap between the rubber conditioning rolls at both ends and center of the 2591 mm roll length. Correct gap is 0.4 - 3 mm (1/64 - 1/8 in) per page 271. Adjust spring tension evenly side to side to bring the gap into spec. If rolls are glazed or grooved, remove and rotate or replace them. Inspect the hydraulic circuit supplying roll pressure for leaks before assuming a mechanical fault.

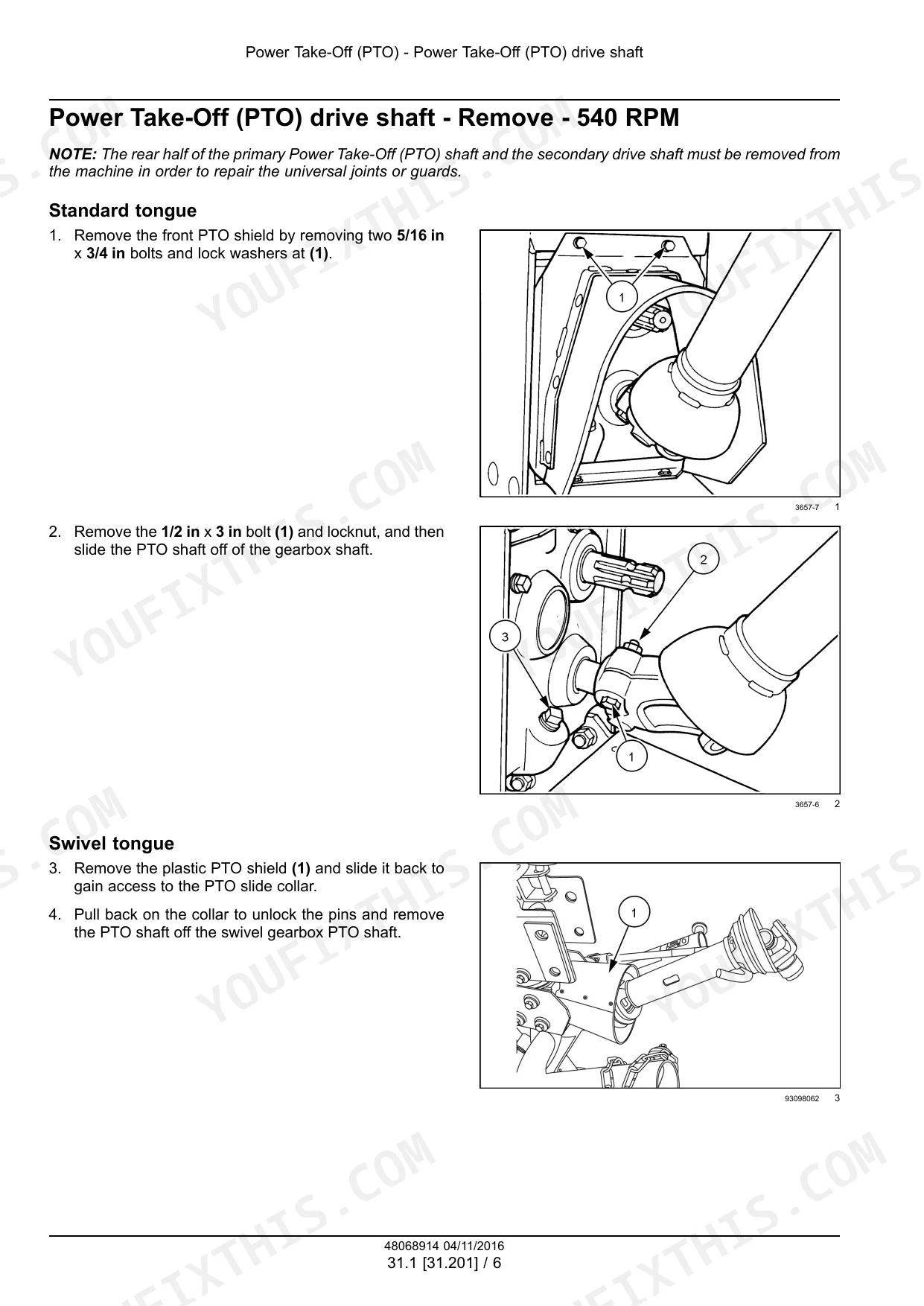

Manual Section: Roll ConditioningIntermediate PTO drive shaft binding, vibration or knocking through entire drivetrain p. 73
Disengage PTO and lower the header fully before inspecting. Check the intermediate PTO shaft for bent tubes, worn universal joints, and loose yoke hardware per . Verify that the tapered pin at the yoke seats within 6 mm (1/4 in) of the yoke face and that the locknut is torqued to 142 N·m (105 lb ft). A shaft with worn U-joints must be removed and rebuilt before further operation — running a damaged shaft will damage the step-up gearbox.
Manual Section: Intermediate Power Take-Off (PTO) drive shaft - Service ProceduresFrequently Asked Questions
What are the recommended service intervals?
The manual specifies several service intervals for different components. For instance, the slip clutch should be burnished "Prior to the start of each season and after long periods of non-use". Wheel bolt torque should be checked "before operating and also after the first two and ten hours of use" and rechecked "every 50 hours of operation". Additionally, the cutterbar should be inspected "daily for damaged components", and header drive belt tension checked "each day for the first few days" and "weekly thereafter".
What fluids and capacities does this machine require?
The machine requires CASE IH AKCELA 251H EP MULTI-PURPOSE GREASE for all grease fittings, as specified. For lubricating oils, TUTELA HYPOIDE EP GEAR LUBE SAE 80W-90 or CNH HYPOIDE SSL SYNTHETIC GEAR LUBE 75W-90 (synthetic) is used. Specific capacities include 1800 mL (61 US fl oz) for the lower swivel gearbox, 650 mL (22 US fl oz) for the upper swivel gearbox, 650 mL (22 US fl oz) for the step-up gearbox, 300 mL (10.5 US fl oz) for the conditioner drive gearbox, 1850 mL (62.6 US fl oz) for the bevel gearbox, and 300 mL (10 US fl oz) each for cutterbar modules.
What are the hydraulic system specifications?
The tractor power and hydraulic requirement for the machine is a minimum of 60 kW (80 Hp) with two remote circuits, and a minimum relief pressure of 10342 kPa (1500 psi). The hydraulic system also includes a 1.9939 mm (0.0785 in) orifice as a component of the swing cylinder.
What torque specifications are listed?

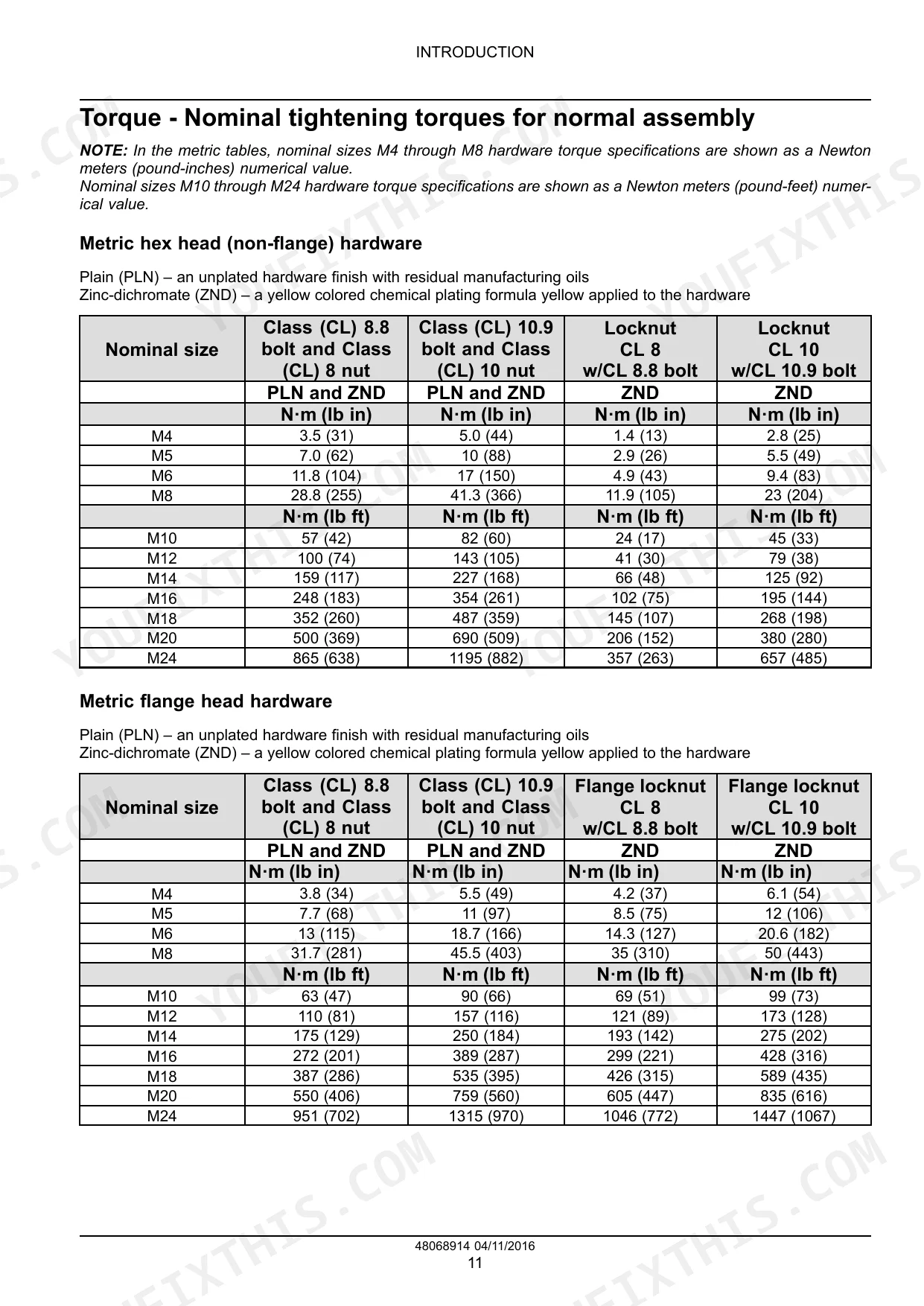

The manual provides nominal tightening torques for various hardware types. For example, a Metric M4 Class 8.8 bolt (PLN and ZND) requires 3.5 N·m (31 lb in), while a Metric M10 Class 8.8 bolt (PLN and ZND) requires 57 N·m (42 lb ft). For Inch hex head hardware, a 1/4 (0.25) in SAE Grade 5 bolt (PLN and ZND) requires 13 N·m (115 lb in), and a 3/8 (0.375) in SAE Grade 5 bolt (PLN and ZND) requires 47 N·m (35 lb ft).
Is this Case IH DC102, DC102 Disc Mower Conditioner, Disc Mower Conditioner?
Instant PDF download. You get the full 341-page searchable Service Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Am I able to print pages from this Case IH DC102, DC102 Disc Mower?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
