Running MXU115 or MXU130 iron and need the factory answer? This 276-page Case IH MXU115, MXU130 Operator Manual (OEM #82999218) puts every cab control, maintenance interval, and field operation procedure straight in your hands. Inside: complete analog/digital instrument console walkthroughs, transmission and PTO operation, three-point linkage setup, and a maintenance chapter that steps from every-10-hour daily checks through 1,800-hour milestones. You also get a full troubleshooting section with error codes spanning engine, transmission, hydraulics, and brakes. Fill your 254-liter fuel tank and top up exactly 15 liters of engine oil (filter included); the radiator pressure cap rates at 1.0 bar (14.5 psi). Every hour parked costs money. Bookmarked by section and searchable by keyword, so you find the right number before you even reach for a wrench.
What's Inside This Case IH MXU115, MXU130 Operator Manual

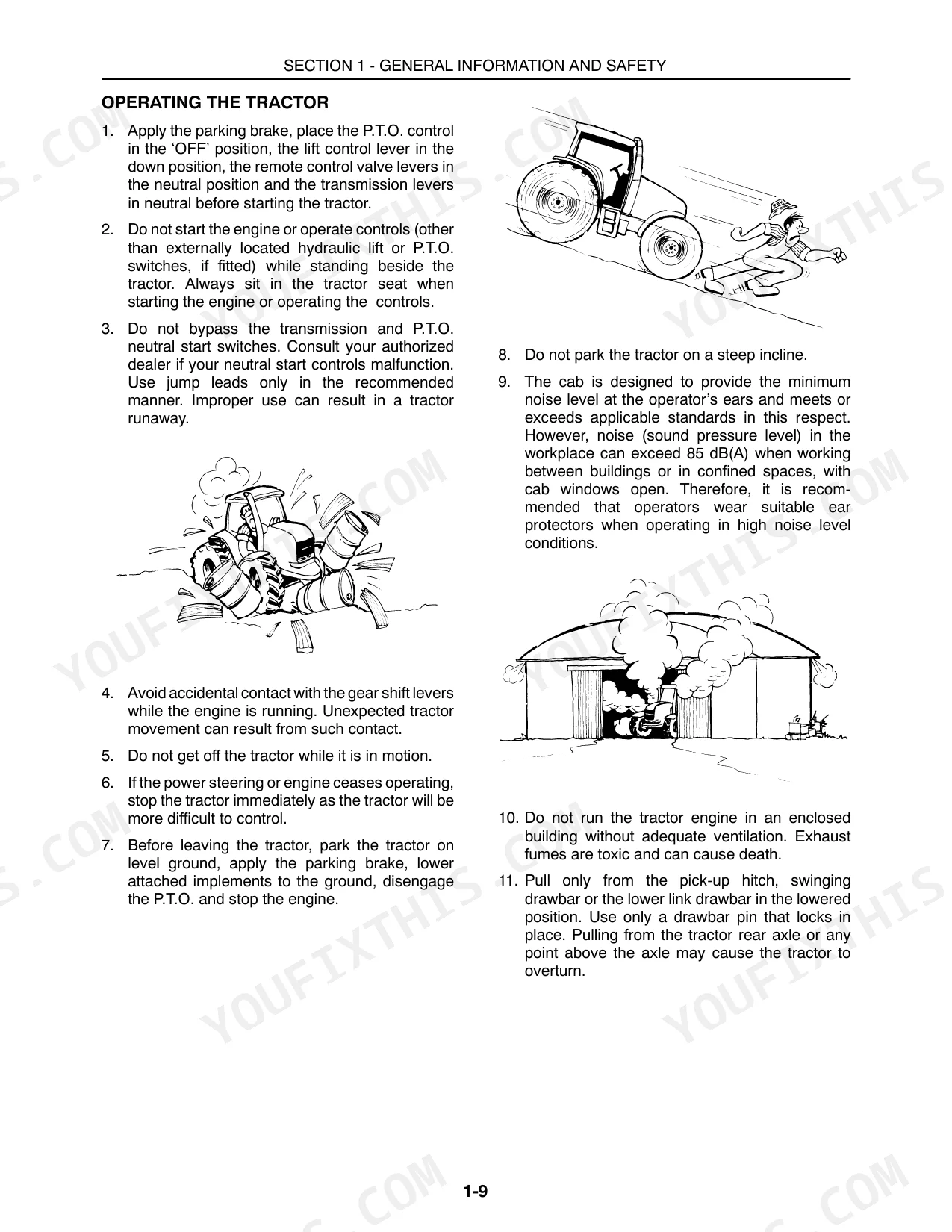

| System | Pages | Key Topics |
|---|---|---|
| General Information and Safety | 11-30 | Ecology and the Environment, Precautionary Statements, Personal Safety, Machine Safety, Information, Safety Precautions, Safety Decals, Airborne Noise Emission |

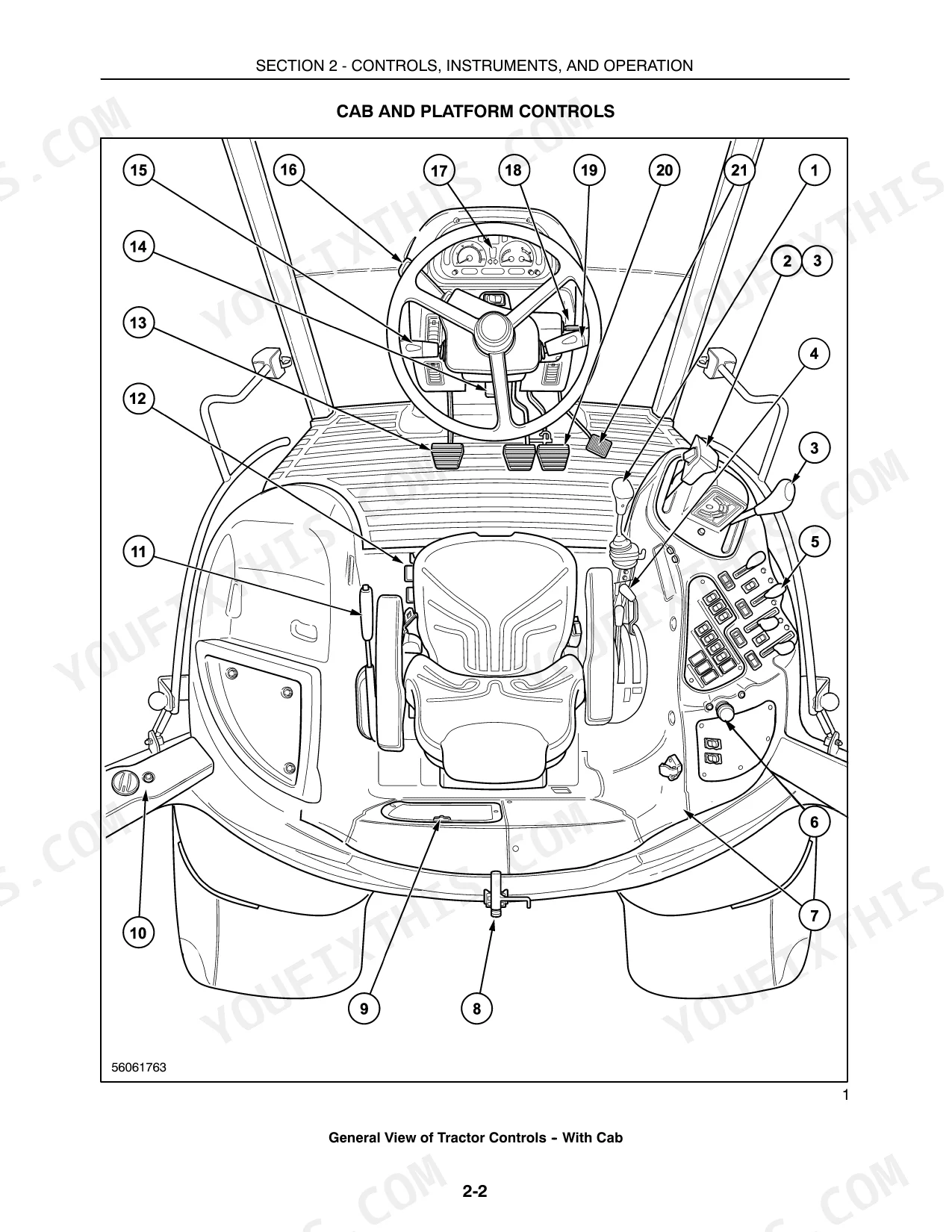

| Controls, Instruments and Operation | 31-100 | Cab and Platform Controls, Platform Controls, Seats, Hand Brake, Throttle and Foot Pedals, Instrument Console, Analog/Digital Instrumentation, Transmission Operation |
| Field Operation | 101-153 | Important Information, Starting the Engine, Rear Power Take-Off, Mechanical Lower Link Sensing Hydraulics, Hydraulic Remote Control Valves |
| Lubrication and Maintenance | 163-228 | Guards, Lubrication and Maintenance Chart, Lubricants and Coolants, When the Warning Lamp Lights, Every 10 Hours or Daily Maintenance, Every 50 Hours Maintenance |
| Troubleshooting | 229-240 | Error Codes, Engine Troubleshooting, Transmission Troubleshooting, Hydraulic Troubleshooting, Brake Troubleshooting, Electrical System Troubleshooting |
| Vehicle Storage | 241-242 | Tractor Storage Procedure, Preparation for Use After Storage |
| Accessories | 243-248 | Coolant Immersion Heater, Transmission Oil Heater, Auxiliary Headlights, Loader Subframe and Control Valve (Joystick) |
| Tractor Specification | 249-262 | Weight Specifications, Fluid Capacities Specifications, Engine Specifications, Fuel System Specifications, Cooling System Specifications, Transmission Specifications |
| Delivery Report | 263-269 | Owner's Copy, Dealer's Copy, First 50 Hour Service Checklist |
| Index | 271-274 | Alphabetical Listing of Topics, Page References |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Hydraulic oil filter change interval (Operation 7) | Every 50 hours | p. 169 |
| Hydraulic and transmission oil filters change interval (Operation 21) | Every 300 hours | p. 169 |
| Radiator pressure cap | 1.0 bar (14.5 psi) | p. 255 |
| Engine Oil Capacity (including filter) | 15 liters | p. 192 |
| Fuel Tank Capacity | 254 liters | p. 166 |
| Cooling System Capacity (with cab) | 25 liters | p. 253 |
| Front Disc to Hub Nuts Torque (2WD) | 133 N·m | p. 184 |
| Front Disc to Hub Nuts Torque (4WD Adjustable Front Wheels) | 294 N·m | p. 184 |
| Brake Pedal Latching/Unlatching Clevis Hole Distance | 137 mm | p. 211 |

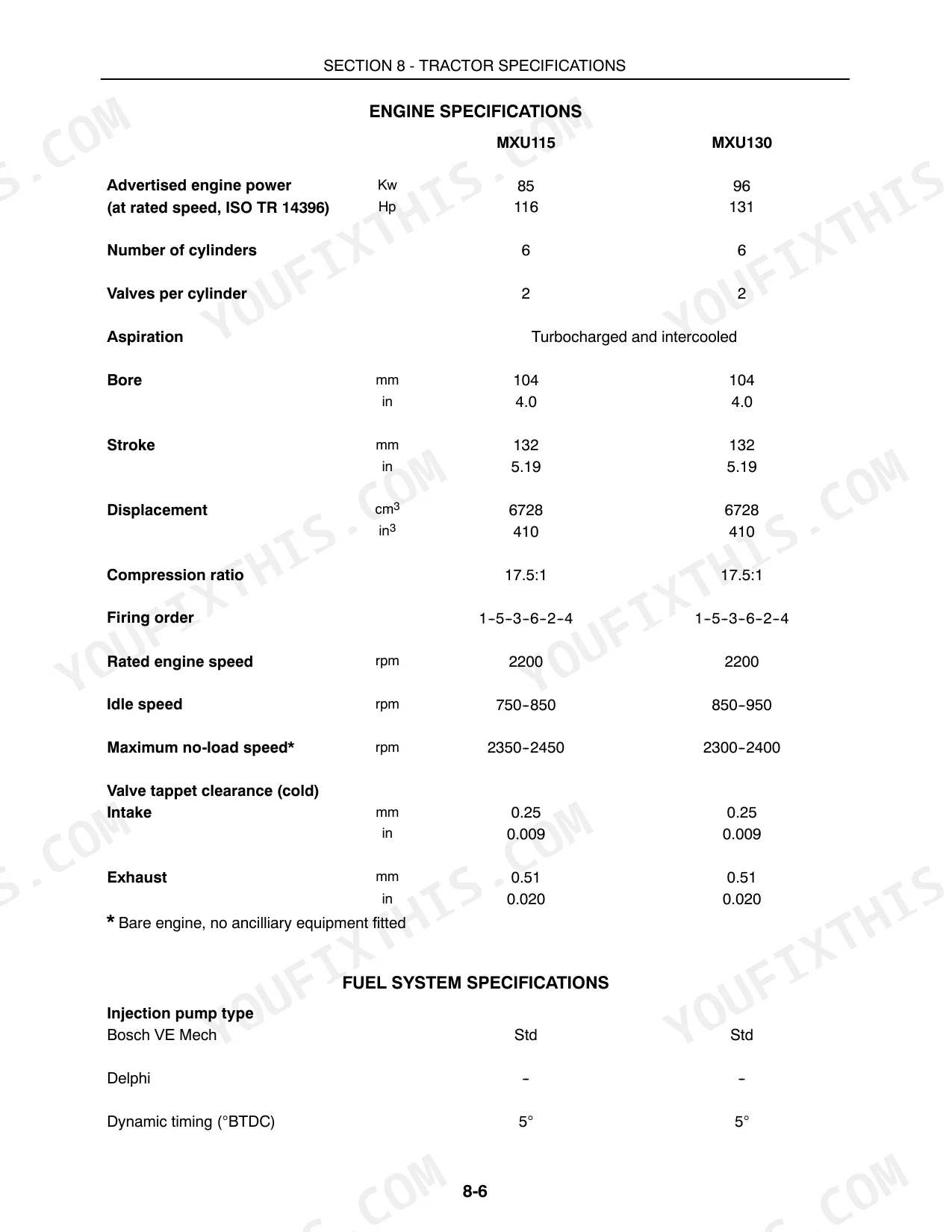

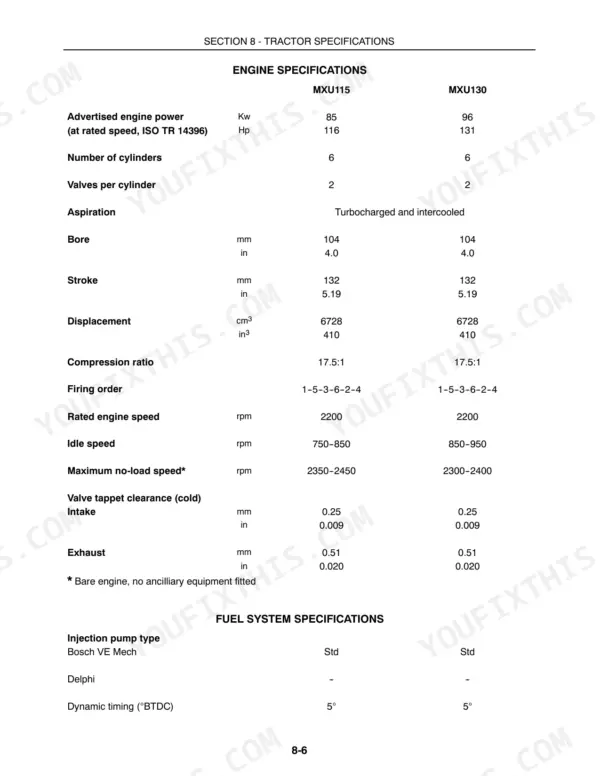

| Engine Valve Tappet Clearance (Intake) | 0.25 mm | p. 208 |
| MXU115 | ||
| Engine Idle Speed | 750 rpm | p. 212 |
| MXU130 | ||
| Engine Idle Speed | 850 rpm | p. 212 |
Case IH MXU115, MXU130 Common Problems This Manual Covers
Case IH MXU115 engine temperature warning light illuminates on the instrument console during field operation p. 255
Check coolant level in the overflow reservoir before each shift. The cooling system holds 25 liters; top up with the correct antifreeze mixture if low. Inspect radiator fins for mud or chaff blockage and clean with compressed air. If the light returns, verify the radiator cap is holding pressure to 1.0 bar (14.5 psi) as specified on page 255.
Manual Section: Lubrication and MaintenanceAuxiliary hydraulic service port delivers reduced or no flow during loader or implement operation p. 169
Check hydraulic oil level at the sight glass and top up before starting work. Replace the hydraulic oil filter every 50 hours per the maintenance schedule on page 169. If flow remains weak after servicing, consult the hydraulics troubleshooting chart on page 230 to work through the remote equipment no-operate checklist.
Manual Section: TroubleshootingTransmission slips or jumps out of gear during field work or road travel p. 230
Verify transmission oil level is at the correct mark on the dipstick before each operating day. Replace hydraulic and transmission oil filters every 300 hours per the maintenance schedule on page 169. If jumping out of gear continues, work through the transmission troubleshooting chart on page 230 and check that the inching pedal moves freely.
Manual Section: TroubleshootingWarning lamp on instrument console lights and stays on after engine reaches operating temperature p. 163
Check the instrument console and note which warning symbol is active. Turn to the warning lamp reference starting on page 163 to identify the system triggering the alert. Verify engine oil level is within the 15-liter system capacity. If the display shows a four or five-digit fault code, match it to the error code guide on page 229.

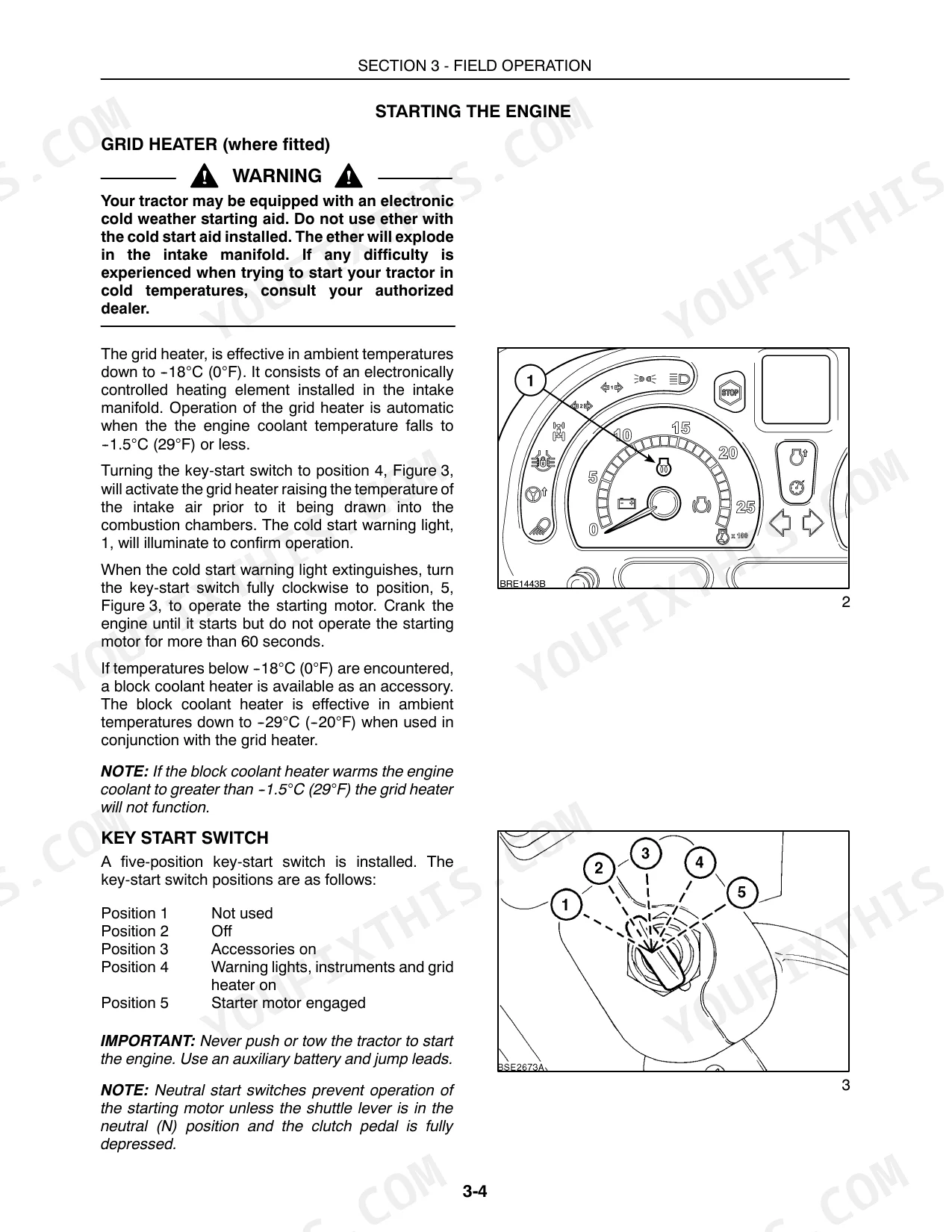

Manual Section: Lubrication and MaintenanceEngine cranks slowly or will not start on cold mornings before the first operating shift p. 230

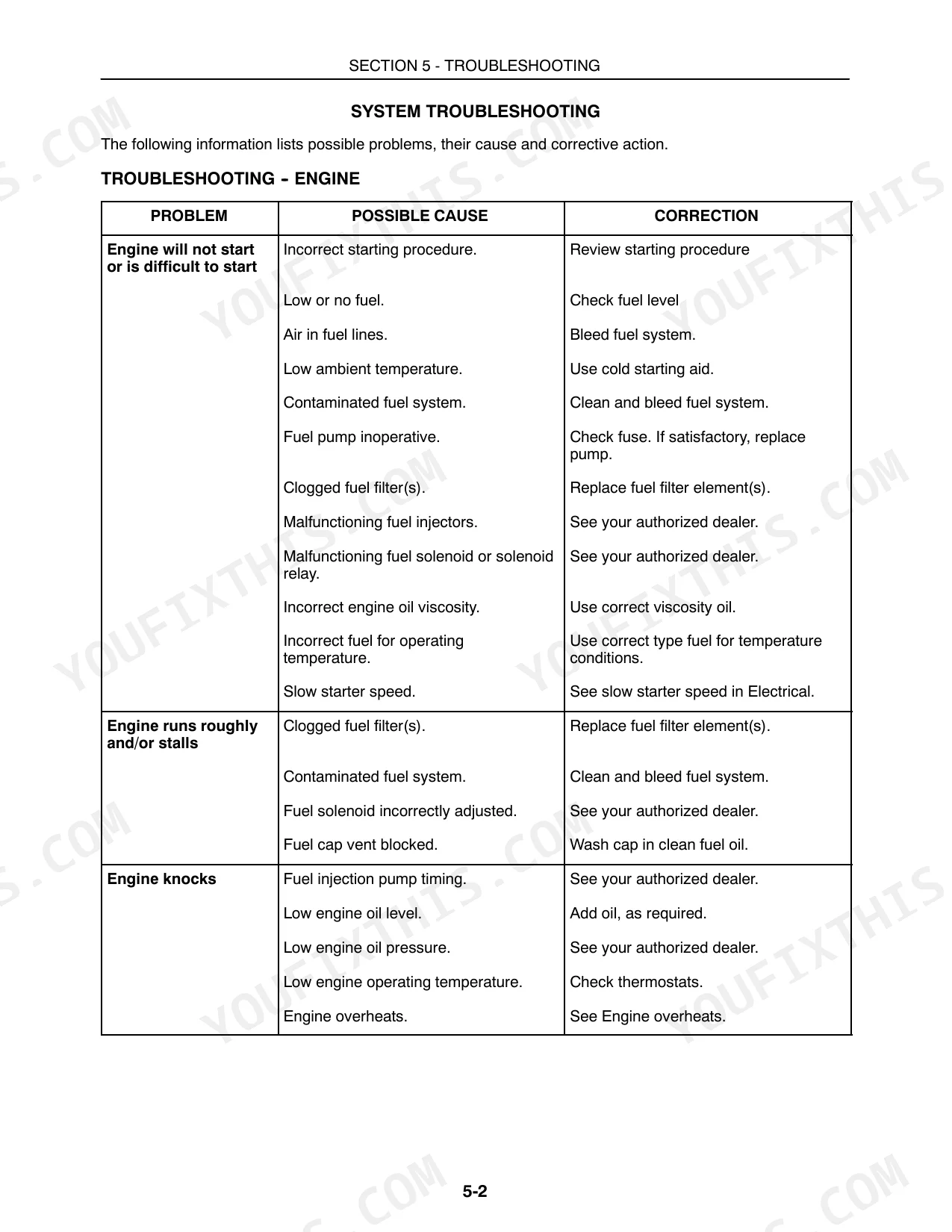

Check battery terminals for corrosion and verify fuel level in the 254-liter tank. Confirm the cold-start aid is activating before cranking. If the engine cranks slowly or not at all, work through the engine troubleshooting chart on page 230 under difficult to start, covering fuel supply, air filter restriction, and battery charge.
Manual Section: TroubleshootingBrake pedal feels spongy or requires excessive travel to stop the tractor during field work p. 211
Inspect brake pedal adjustment and verify the clevis hole distance measures 137 mm per the specification on page 211. Check that both brake pedals latch together correctly before road travel. If pedal feel remains spongy or requires excessive travel, follow the brakes troubleshooting chart on page 230 to check for air in the hydraulic brake circuit.
Manual Section: TroubleshootingFrequently Asked Questions
What are the common error codes for Case IH MXU130 and how to clear them?
The manual lists various error codes for transmission faults, such as 2001 (Shuttle too fast error) or 2011 (Clutch pedal potentiometer signal too low). For most error codes, the operator is advised to contact an authorized dealer. However, for error codes 'N' (Place the shuttle lever in neutral) or 'CP' (Press clutch pedal to enable transmission), the error can be cleared by moving the shuttle lever to neutral or cycling the clutch pedal, respectively.
How to reset transmission fault on Case IH MXU115?
For most transmission fault codes, such as 2001 (Shuttle too fast error) or 2011 (Clutch pedal potentiometer signal too low), the manual advises contacting an authorized dealer. However, if error codes 'N' or 'CP' flash in the Dot Matrix display, the fault can be cleared by moving the shuttle lever to neutral (N) or cycling the clutch pedal (CP).
What are the replacement specifications for Hydraulic spool valve?
The remote control valves (spool valves) have a maximum pressure at rated engine speed of 190+/-5 bar (2755+/-72 psi) and a maximum flow through one valve at rated engine speed of 63.0 Liters/min (16.6 US gal/min). The manual does not provide specific replacement part numbers or models for these valves.
How do you fix case IH MXU115 engine temperature warning light illuminates on the instrument console during field operation?
Check coolant level in the overflow reservoir before each shift. The cooling system holds 25 liters; top up with the correct antifreeze mixture if low. Inspect radiator fins for mud or chaff blockage and clean with compressed air. If the light returns, verify the radiator cap is holding pressure to 1.0 bar (14.5 psi) as specified on page 255.
What do I get after purchasing this Case IH MXU115, MXU130 manual?
A 276-page Operator Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Is this Case IH MXU115, MXU130 Operator Manual printable?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
