All 390 pages of this Case IH Maxxum Tractors Operator Manual (OEM #6–36212) focus on one thing: keeping your MXU100, MXU110, MXU115, MXU125, or MXU135 running right, from first startup to long-term storage. You get a full safety precautions section with decal locations and international symbols, complete cab and instrument console walkthroughs covering analogue and digital displays, and step-by-step field operation for all three transmission options: 12x12 Synchroshift, 24x24 Two-Speed Powershift, and 16x16 Semi-Powershift. The lubrication and maintenance chapter runs from 10-hour daily checks through 1,200-hour intervals, plus a fault-finding section covering engine, all three transmissions, hydraulics, brakes, cab, and electrical. Fill the MXU100/110 to exactly 10 litres of engine oil; the MXU115, MXU125, and MXU135 take 15 litres. Replace the air cleaner outer element every 600 hours. Your machine is down. Get the factory answer on the first try. Bookmarked and searchable: jump to any section or pull up any spec by keyword.
What's Inside This Case IH MXU100–MXU135 (Maxxum) Operator Manual
| System | Pages | Key Topics |
|---|---|---|

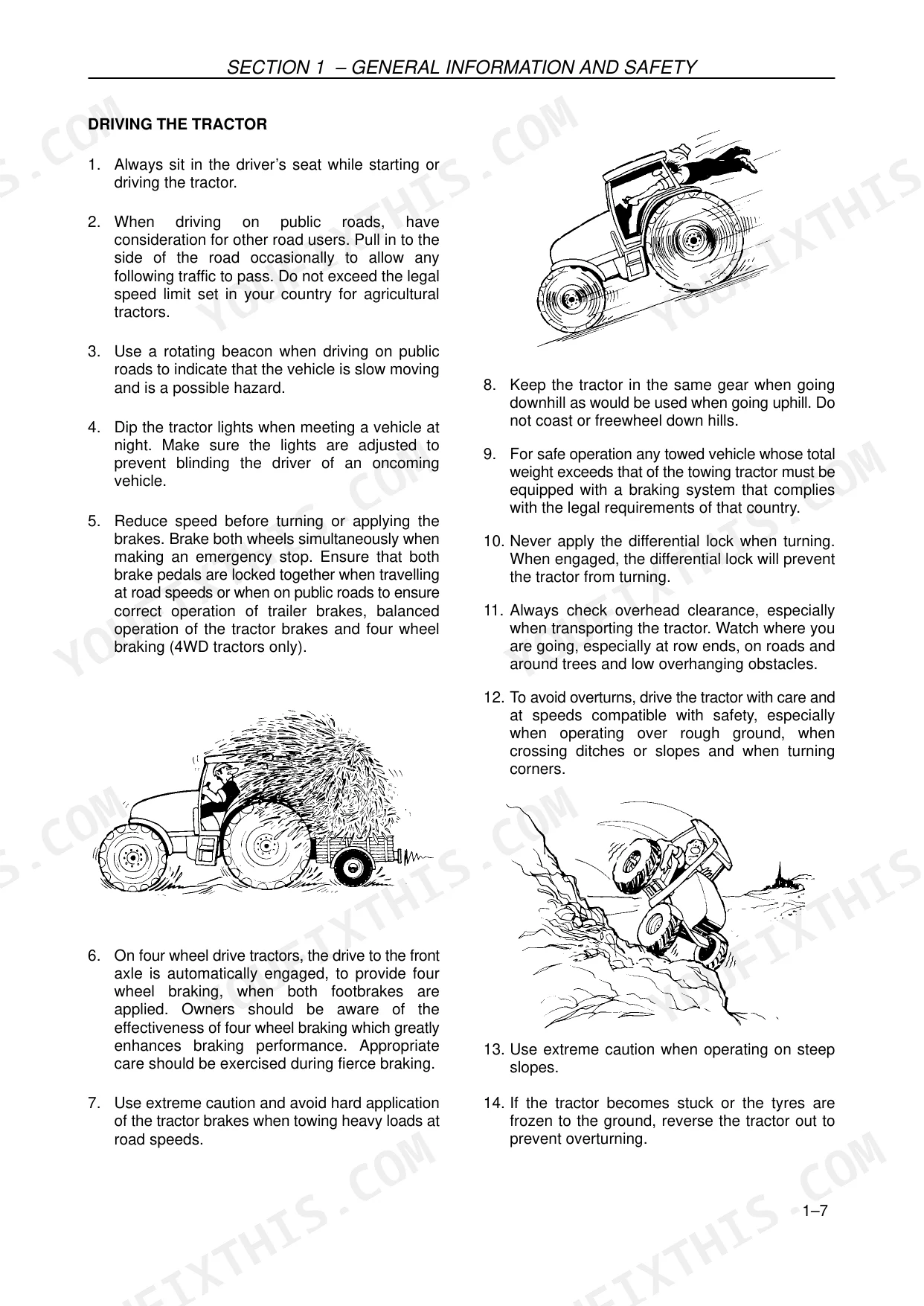

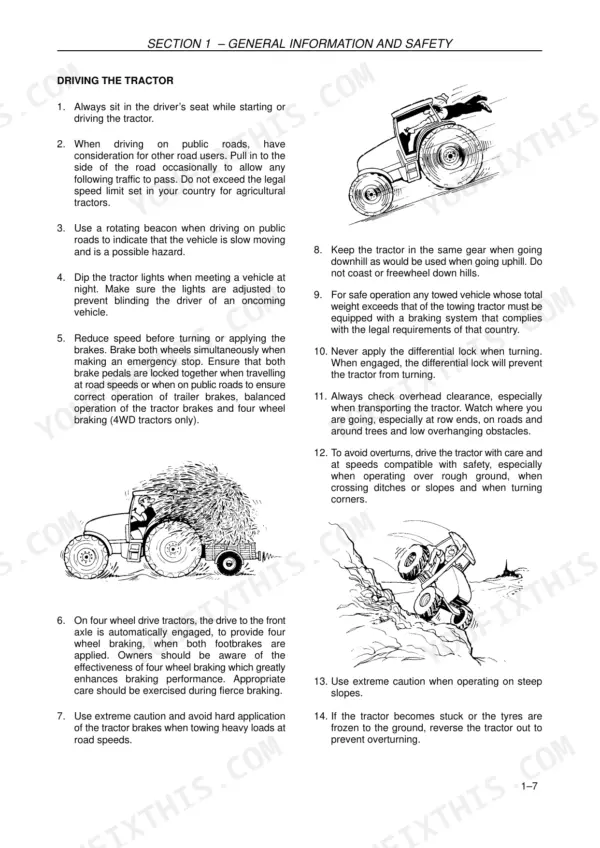

| General Information and Safety | 9-28 | To the Owner, Product Identification, Ecology and the Environment, Safety Precautions, Safety Decals, International Symbols, Airborne Noise Emission |

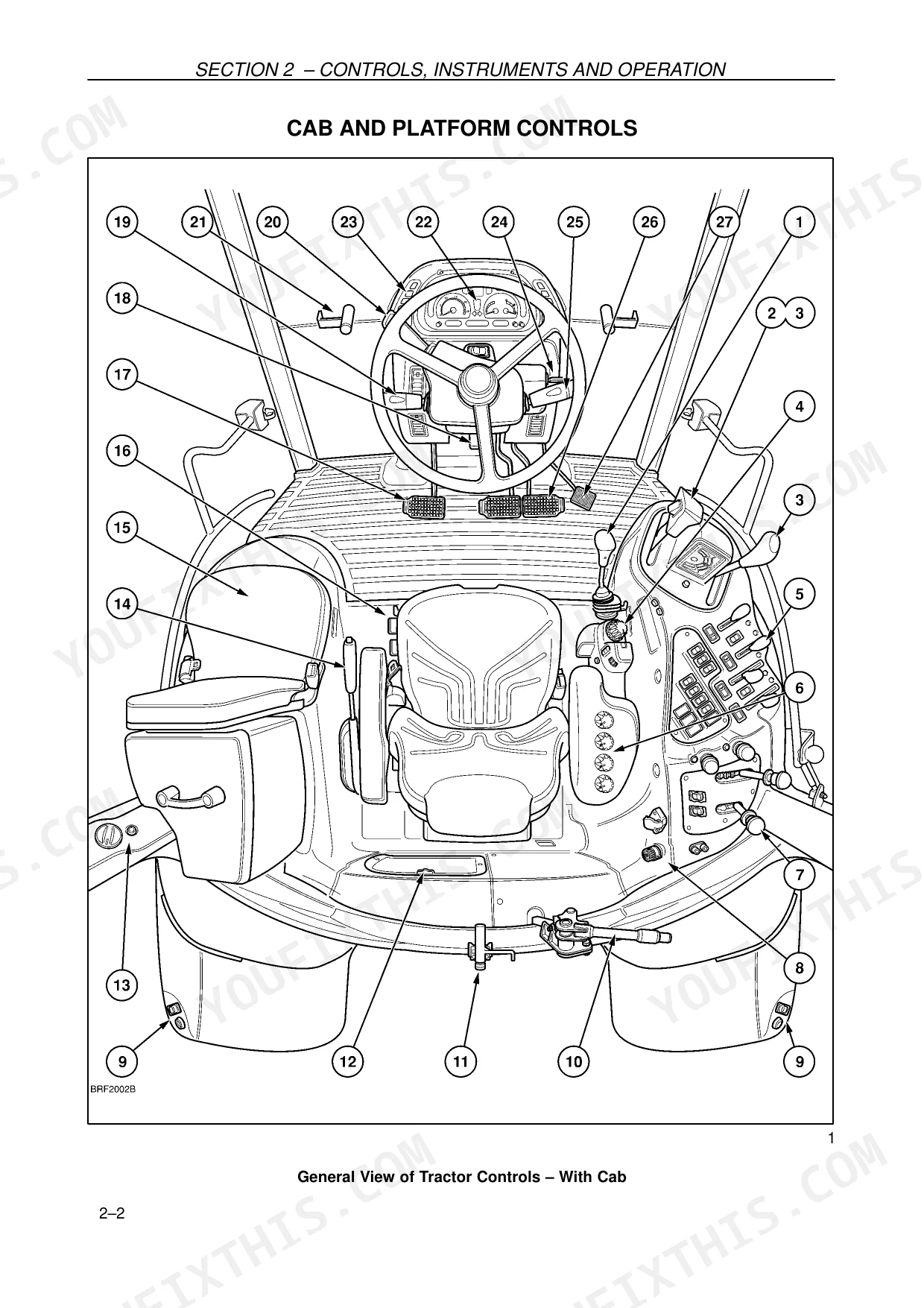

| Controls, Instruments and Operation | 29-126 | Cab, Seats, Handbrake, Throttle and Foot Controls, Instrument Console, Analogue/Digital Instruments, Synchroshift Transmission, Two-Speed Powershift Transmission |
| Field Operation | 127-266 | Important Information, Using Jump Leads, Starting and Stopping the Engine, Engine Power Management, Fast Steer, Rear Power Take-Off, Front Power Take-Off and Hydraulic Lift |
| Lubrication and Maintenance | 267-332 | Guard Removal, Lubrication and Maintenance Chart, Servicing: When Warning Lights Illuminate, 10-Hour/Daily Service, 50-Hour Service, 100-Hour Service, 300-Hour Service |

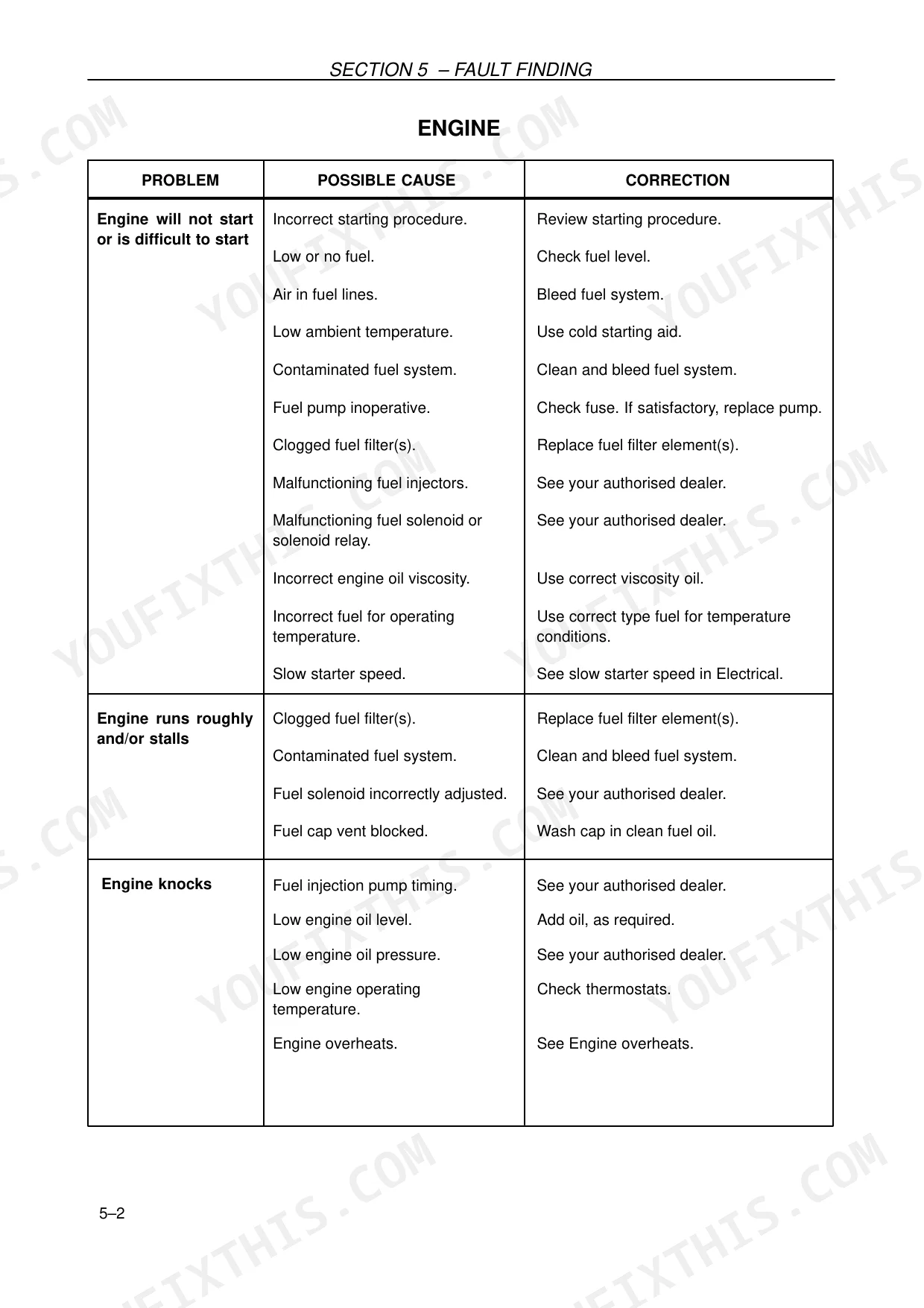

| Fault Finding | 333-344 | Introduction, Engine, Transmission - 12 X 12 Synchroshift, Transmission – 24 X 24 Two-Speed Powershift, Transmission – 16 X 16 Semi-Powershift, Hydraulics, Three-Point Lift, Brakes |
| Vehicle Storage | 345-346 | Drain Engine and transmission/rear Axle, Radiator Coolant Level, Grease Fittings, Lift Linkage, Hydraulic Piston Rods, Batteries |
| Accessories | 347-354 | Rotating Beacon, Engine Coolant Immersion Heater, Transmission Oil Heater, Amp Socket and Cable, Auxiliary Headlights, Battery Isolator Switch, Loader Subframe and Control Valve |

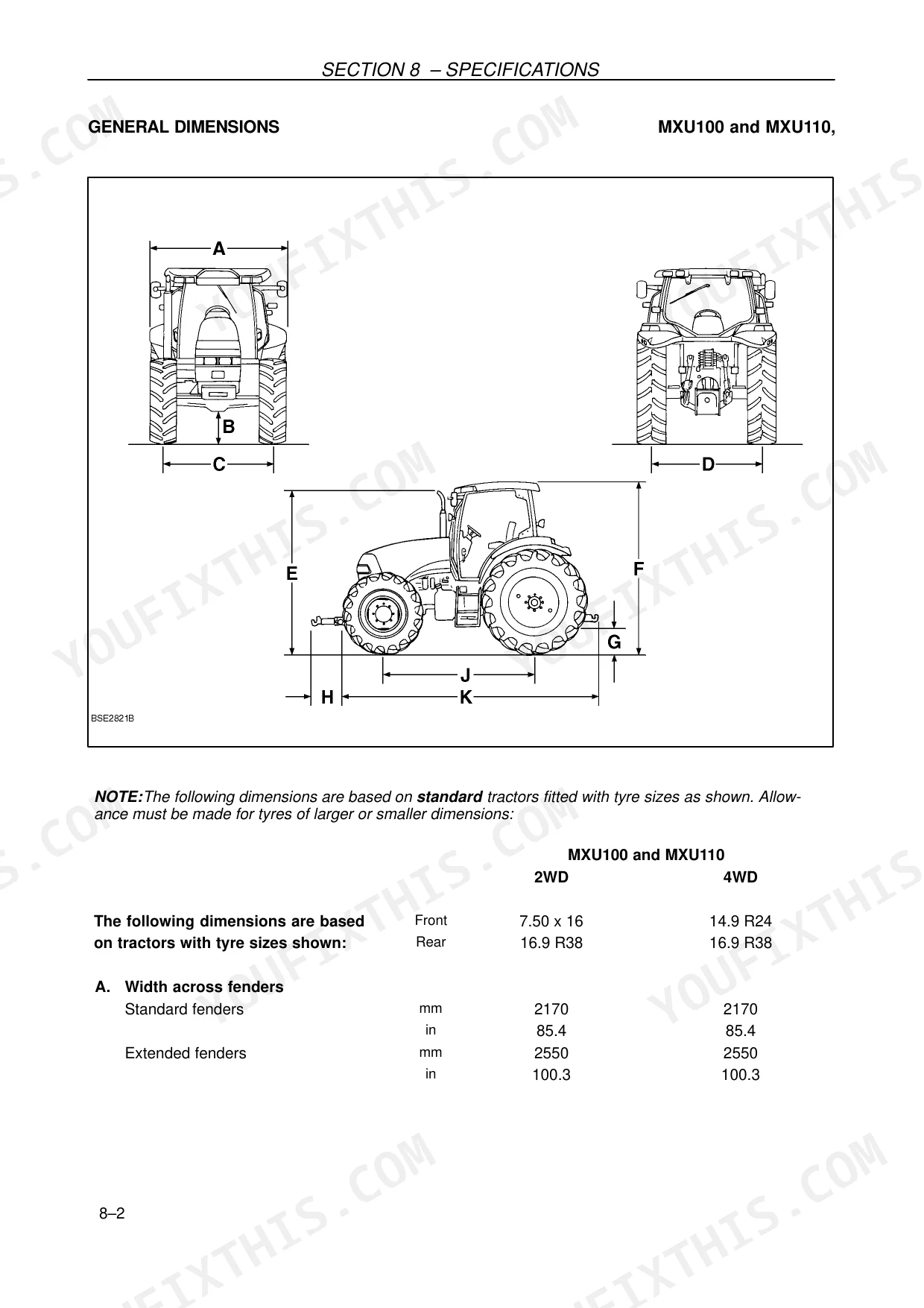

| Tractor Specification | 355-376 | Vehicle Weights, Lubricant and Fluid Capacities, Engine, Fuel System, Cooling System, Transmission Options, Brakes, Maximum Operating Angle |
| St 50 Hour Service Sheets | 377-380 | - |
| Lubricants and Coolants | 389-390 | Engine Oil, Transmission, Rear Axle and Hydraulic System Oil, Front Wheel Drive Oil, Engine Radiator Coolant, Brake Oil, Grease Fittings and Bearings |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Engine air cleaner outer element replacement interval | every 600 hours | p. 273 |
| Engine Rated Speed | 2200 rev/min | p. 363 |
| Engine Idle Speed | 650 rev/min | p. 363 |
| Radiator Pressure Cap | 1.0 bar | p. 364 |
| Maximum Operating Angle - Front end up | 35° | p. 365 |
| Rear Disc to Hub Nuts Torque (Flange type axle) | 250 Nm | p. 290 |
| Front Disc to Hub Nuts Torque (four wheel drive) | 294 Nm | p. 290 |
| MXU100, MXU110 | ||
| Engine Oil Capacity (including filter) | 10 litres | p. 362 |
| Fuel Tank Capacity | 177 litres | p. 362 |
| MXU115, MXU125, MXU135 | ||
| Engine Oil Capacity (including filter) | 15 litres | p. 362 |
| Fuel Tank Capacity | 220 litres | p. 362 |
Case IH MXU100–MXU135 (Maxxum) Common Problems This Manual Covers
Case IH Maxxum warning light illuminates on the instrument console during field operation
Check the error code and record the fault number before clearing it. Verify engine oil, coolant, and hydraulic oil levels are within the MIN/MAX range on their respective dipsticks and sight glass. If the light returns after startup, let the engine cool at 650 rev/min for two minutes, then review page 334.
Manual Section: Controls, Instruments and OperationTractor stalls or loses power when working in heavy or wet soil conditions p. 334
Check the fuel level; MXU100 and MXU110 tanks hold 177 litres, while MXU115, MXU125, and MXU135 tanks hold 220 litres. Inspect the in-cab fuel pre-filter bowl for water separation or sediment buildup. Verify the air intake restriction warning is not active on the instrument panel, then work through the engine fault list on page 334.
Manual Section: Engine TroubleshootingExcessive black smoke from exhaust during hard acceleration, engine feels flat and unresponsive p. 334
Inspect the air intake restriction indicator on the instrument panel first; a red-zone reading means the outer filter element needs replacement. The maintenance schedule on page 273 sets that interval at every 600 hours. Also confirm engine speed reaches rated 2200 rev/min under load. If smoke continues with a clean air system, review engine troubleshooting on page 334.
Manual Section: Engine TroubleshootingHydraulic system loses pressure gradually after two or three hours of continuous operation p. 340
Check the hydraulic oil level in the sight glass at every 10-hour daily service interval (page 267). If the level is correct and the oil temperature warning activates on the console, stop work immediately and let the system cool before continuing. Then review the hydraulics troubleshooting chart on page 340 to identify whether a control valve or circuit fault is present.
Manual Section: Hydraulics TroubleshootingEngine coolant temperature gauge rises rapidly during extended fieldwork, warning light illuminates p. 334
Stop field work and let the engine idle at 650 rev/min for two minutes before shutdown. Check coolant level in the expansion tank only when the engine is completely cold. The radiator cap is rated at 1.0 bar (page 364) and must never be opened on a hot engine. Work through the overheating checklist starting on page 334.
Manual Section: Engine TroubleshootingAir intake restriction warning active on dashboard, engine sluggish and down on power p. 273
Inspect the air cleaner service indicator in the cab and compare its reading against the red service zone. Replace the outer air filter element every 600 hours per the maintenance chart on page 273, or sooner if the warning activates mid-shift. Empty the pre-cleaner dust bowl if your machine is fitted with one. Never tap or blow out a paper element with compressed air.
Manual Section: Lubrication and MaintenanceFrequently Asked Questions
What error codes indicate hydraulic failure on Case IH MXU series tractors?
The manual indicates that error codes starting with '1' relate to "Electronic draft control" and codes starting with '5' relate to "Rear PTO", both of which involve hydraulic systems. For any malfunction or error, a four-digit error code will appear in the Dot Matrix Display, and you should consult your authorised dealer.
How do you fix case IH Maxxum warning light illuminates on the instrument console during field operation?
Check the error code and record the fault number before clearing it. Verify engine oil, coolant, and hydraulic oil levels are within the MIN/MAX range on their respective dipsticks and sight glass. If the light returns after startup, let the engine cool at 650 rev/min for two minutes, then review page 334.
How do you fix tractor stalls or loses power when working in heavy or wet soil conditions?
Check the fuel level; MXU100 and MXU110 tanks hold 177 litres, while MXU115, MXU125, and MXU135 tanks hold 220 litres. Inspect the in-cab fuel pre-filter bowl for water separation or sediment buildup. Verify the air intake restriction warning is not active on the instrument panel, then work through the engine fault list on page 334.
How do you fix excessive black smoke from exhaust during hard acceleration, engine feels flat and unresponsive?
Inspect the air intake restriction indicator on the instrument panel first; a red-zone reading means the outer filter element needs replacement. The maintenance schedule on page 273 sets that interval at every 600 hours. Also confirm engine speed reaches rated 2200 rev/min under load. If smoke continues with a clean air system, review engine troubleshooting on page 334.
How will I receive this Case IH MXU100 & variants Operator Manual?
A 390-page Operator Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Are there any print restrictions on this manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
