Need the factory guide for your Case IH DX18E, DX22E, or DX25E? This 146-page Operator Manual covers the full compact tractor lineup plus the MWX154S and MWX160S mower decks. Inside: a complete safety section with ROPS guidance and emission warranty statements, followed by detailed operating procedures for the Automatic FWD system, Hydraulic Power Lift 3-point hitch, PTO lever, and two-spool control valve. You get wiring diagrams, a full lubrication and maintenance schedule, mower deck leveling and blade service, and a troubleshooting section covering both tractor and deck. Fill the engine to 3.3 L (3.5 US qt.) after a filter change, and the fuel tank holds 29.5 L (7.8 US gal.) when full. Your machine shouldn't sit because you couldn't find the right spec. Bookmarked and searchable; open it on any device and get the answer fast.
What's Inside This Case IH DX18E–DX25E, MWX154S/160S Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety | 8-21 | - |
| General Information | 22-25 | Identification Numbers, Minimum Hardware Tightening Torques |
| Operation | 26-55 | Automatic FWD System, Brake Controls, Differential Control, Hydraulic Power Lift (H.P.L.) (3 Pt), PTO Lever Control, Two-Spool Control Valve |
| Lubrication and Maintenance | 56-93 | Air Cleaner, Engine Oil Level, Fuel Filter, Hydraulic System Oil Filter, Transmission, Rear Axle, And Hydraulic System Oil Level, Wheel Bolt Torque |
| MWX154S, MWX160S Mower Deck | 94-131 | Belt Replacement, Cutting Height Adjustment, Mower Blade Removal and Installation, Mower Blade Sharpening, Mower Deck Leveling, Troubleshooting |
| Specification | 132-139 | Engine, Capacities, Cooling System, Electrical System, Fuel System, Transmission Speeds |
| Predelivery Service | 142-146 | Inoperative Service Checks, Safety Items Checks, Operative Service Checks |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| MWX154S, MWX160S | ||
| Universal joint replacement instruction | Rebuild driveline as necessary | p. 125 |
| Bevel input gear replacement instruction | Run-in gears, or rebuild gearbox | p. 125 |
| Bearing replacement instruction | Replace bearings | p. 125 |
| DX18E, DX22E, DX25E | ||
| Engine Oil Capacity (With Filter) | 3.3 L (3.5 US Qt.) | p. 62 |
| Fuel Tank Capacity | 29.5 L (7.8 US gal.) | p. 60 |
| Cooling System Capacity | 3.5 L (3.7 US qts.) | p. 73 |
| Rear Axle & Transmission Oil Capacity | 13 L (13.8 US qts.) | p. 70 |
| Front Axle Differential/Final Reduction Gear Case Oil Capacity | 2.0 L (2.12 US qts.) | p. 87 |
| Fan Belt Deflection | 10 - 15 mm (7/16 - 9/16 in) | p. 74 |
| Radiator Cap Pressure | 0.9 bar (13.1 PSI) | p. 133 |
| Front Wheel Torque | 88 N⋅m (65 ft-lb) | p. 84 |
| Rear Wheel Torque | 122 N⋅m (90 ft-lb) | p. 84 |
Case IH DX18E–DX25E, MWX154S/160S Common Problems This Manual Covers
Case IH DX18E with MWX154S mower deck exhibits heavy vibration and sudden loss of blade drive. p. 125

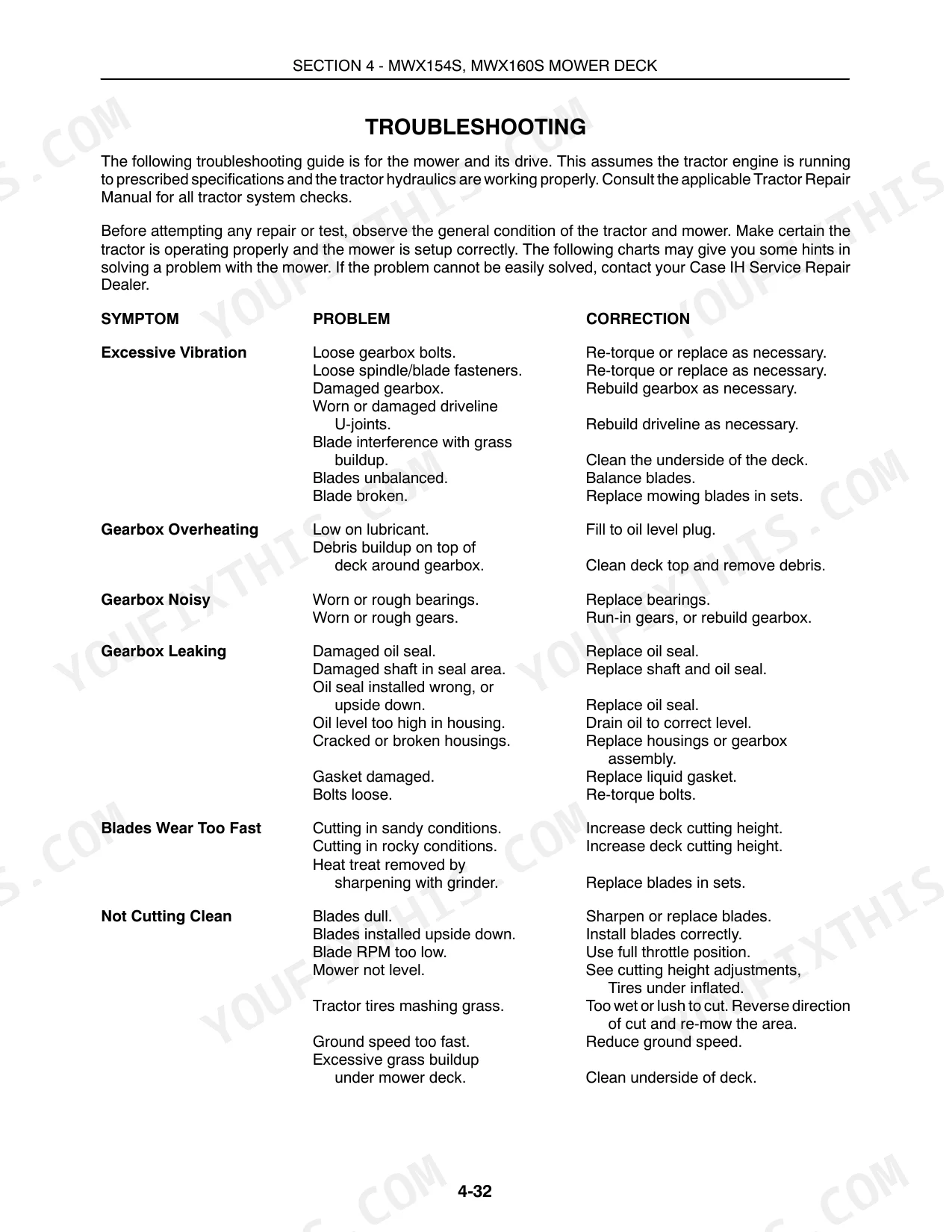

Inspect the driveline universal joints for wear or seizing. Rebuild the driveline as necessary according to the troubleshooting procedures on page 125. Check the mower blades for interference with grass buildup and verify the deck cutting width matches the 1372 mm (54 in) specification.
Manual Section: MWX154S, MWX160S Mower DeckEngine RPM drops significantly and mower deck heavily loads the tractor when engaging the PTO. p. 74
Inspect the fan belt tension midway between the pulleys. Adjust the alternator position until the belt deflection measures 10 - 15 mm (7/16 - 9/16 in) as shown on page 74. Clear any excessive grass buildup from under the deck and verify ground speed is appropriate.
Manual Section: Lubrication and MaintenanceTractor hydraulic and engine systems overheating during continuous mowing sessions and triggering the safety shutdown. p. 133
Drain and flush the cooling system, then refill with exactly 3.5 L (3.7 US qts.) of approved coolant mixture. Inspect the radiator cap and verify it holds 0.9 bar (13.1 PSI) of pressure as listed on page 133. Clean all debris from the hydraulic cooler.
Manual Section: SpecificationHydraulic power lift operates slowly and transmission slips under load while operating the mower deck. p. 70
Check the rear axle and transmission oil dipstick. Drain the old fluid and fill the system with 13 L (13.8 US qts.) of clean hydraulic oil as specified on page 70. Replace the hydraulic system oil filter and verify the two-spool control valve operates smoothly.
Manual Section: Lubrication and MaintenanceFrequently Asked Questions
What are the torque specs for the main bolt on Case IH MWX160S mower deck?
For the MWX160S mower deck, the blade retaining bolt should be torqued to 98 – 118 N⋅m (72 – 87 ft-lb) during installation. It is important to recheck and re-torque these fasteners after the first hour of mower operation, and daily thereafter, to ensure proper security and prevent damage.
How do you fix case IH DX18E with MWX154S mower deck exhibits heavy vibration and sudden loss of blade drive?
Inspect the driveline universal joints for wear or seizing. Rebuild the driveline as necessary according to the troubleshooting procedures on page 125. Check the mower blades for interference with grass buildup and verify the deck cutting width matches the 1372 mm (54 in) specification.
How do you fix engine RPM drops significantly and mower deck heavily loads the tractor when engaging the PTO?
Inspect the fan belt tension midway between the pulleys. Adjust the alternator position until the belt deflection measures 10 - 15 mm (7/16 - 9/16 in) as shown on page 74. Clear any excessive grass buildup from under the deck and verify ground speed is appropriate.
How do you fix tractor hydraulic and engine systems overheating during continuous mowing sessions and triggering the safety shutdown?
Drain and flush the cooling system, then refill with exactly 3.5 L (3.7 US qts.) of approved coolant mixture. Inspect the radiator cap and verify it holds 0.9 bar (13.1 PSI) of pressure as listed on page 133. Clean all debris from the hydraulic cooler.
How will I receive this Case IH DX18E & variants Operator Manual?
This is a 146-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print this manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Can I find wiring schematics in this Case IH DX18E & variants manual?

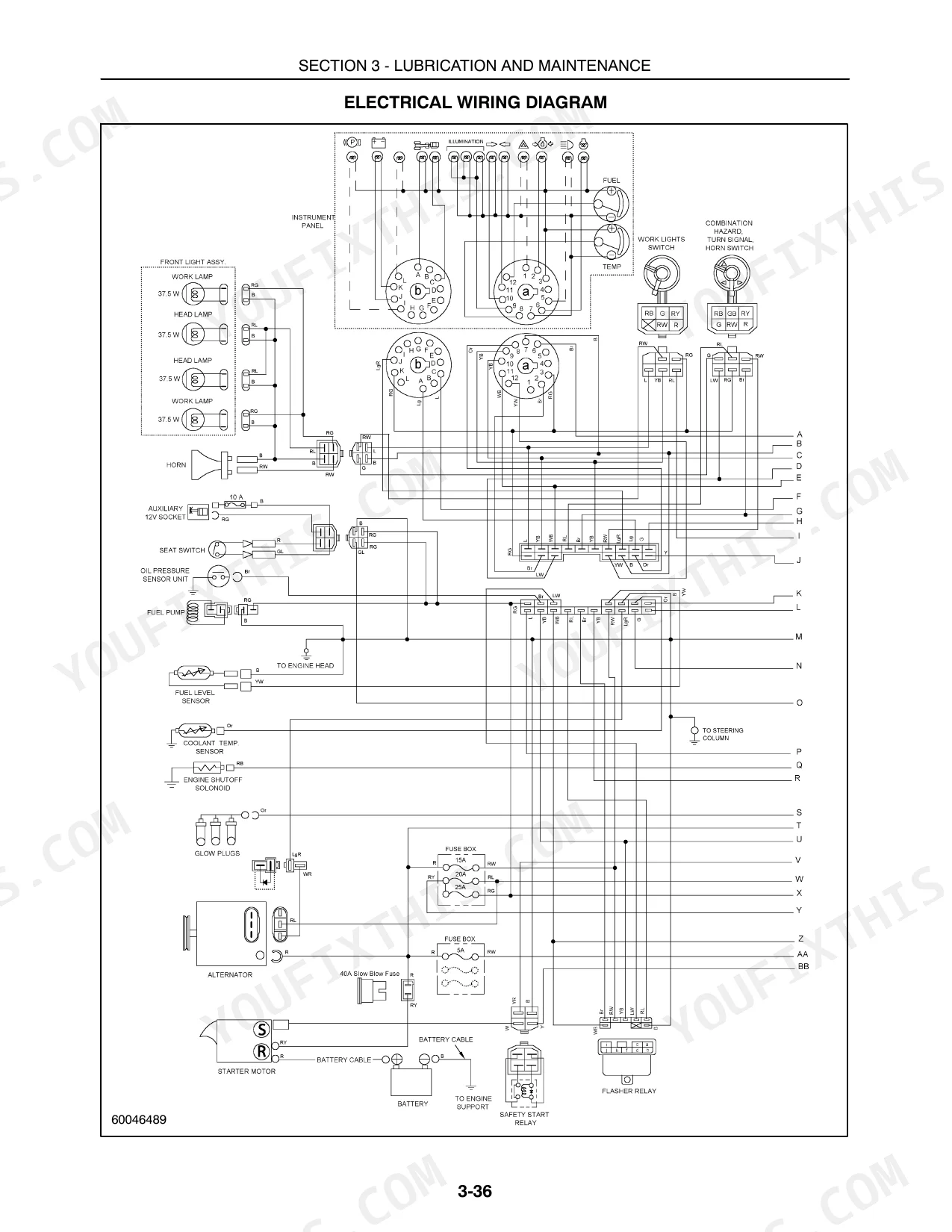

Included. The Case IH DX18E & variants Operator Manual provides a wiring diagram for the electrical system.
