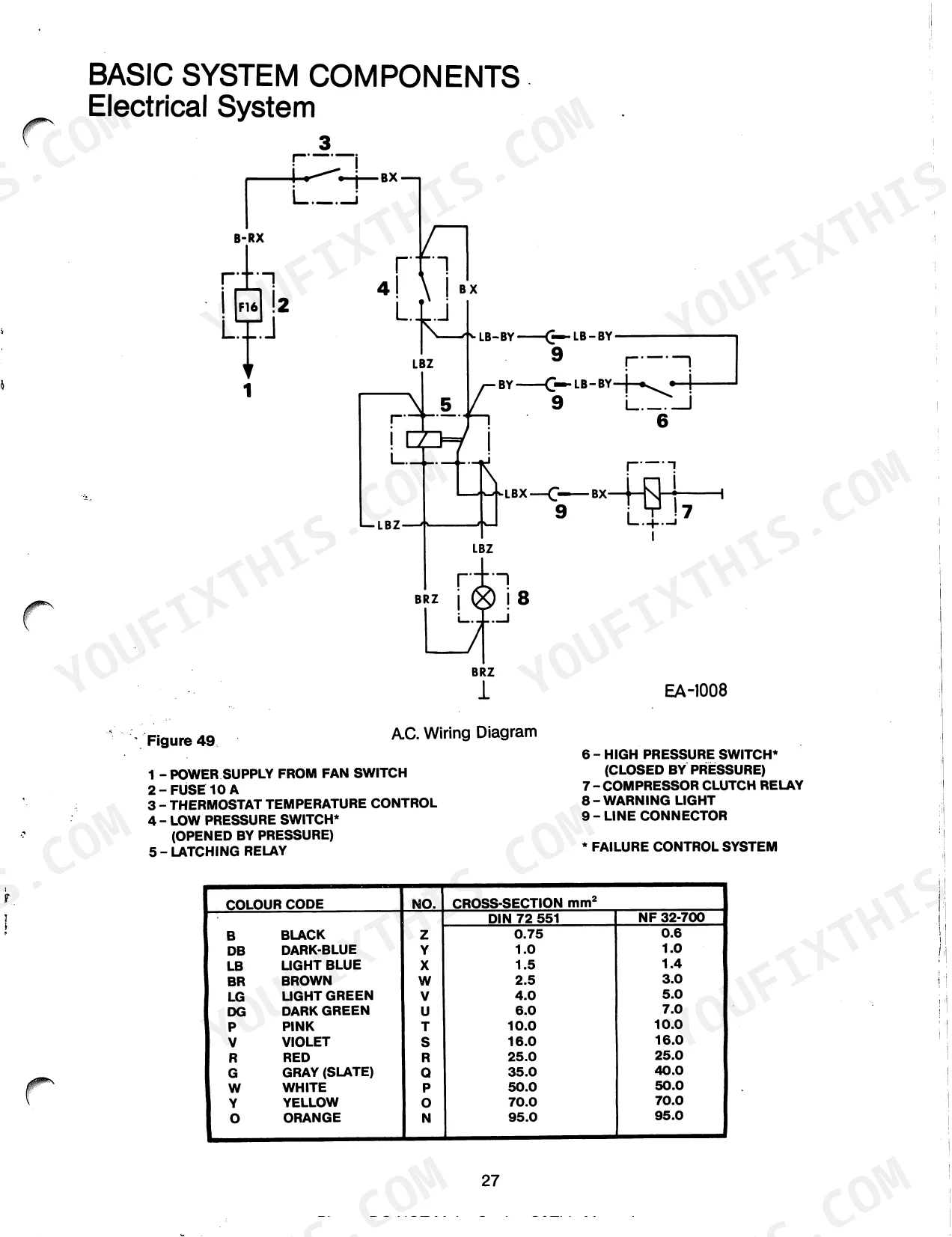

This 886-page Case International Workshop Manual covers the full B and C family lineup: 743, 745, 844, 845, 856XL, 955, 956, 1055, 1056, 1255XL, 1455XL, plus the D-155 through DT402 engine variants. Open it up and you get the basic engine teardown, fuel system and turbocharger work, MFWD final drives, and a full hydraulics section for the 955/1055/56XL machines. Inside you'll find wiring diagrams for the electrical and MFWD control circuits, hydraulic schematics for the lift and auxiliary valve systems, plus a dedicated air conditioning troubleshooting section for the 956, 1056, 1255, and 1455XL. Check nozzle opening pressure at 20-21 MPa and confirm commutator out-of-round stays under 0.03 mm before you reassemble the alternator. No more flipping between three dog-eared manuals trying to match your serial number to the right procedure. Bookmarked by section, so you jump straight to your system, pull it up next to the tractor, and get back under the hood.
What's Inside This Case 956, 1056 Manual
| System | Pages | Key Topics |
|---|---|---|

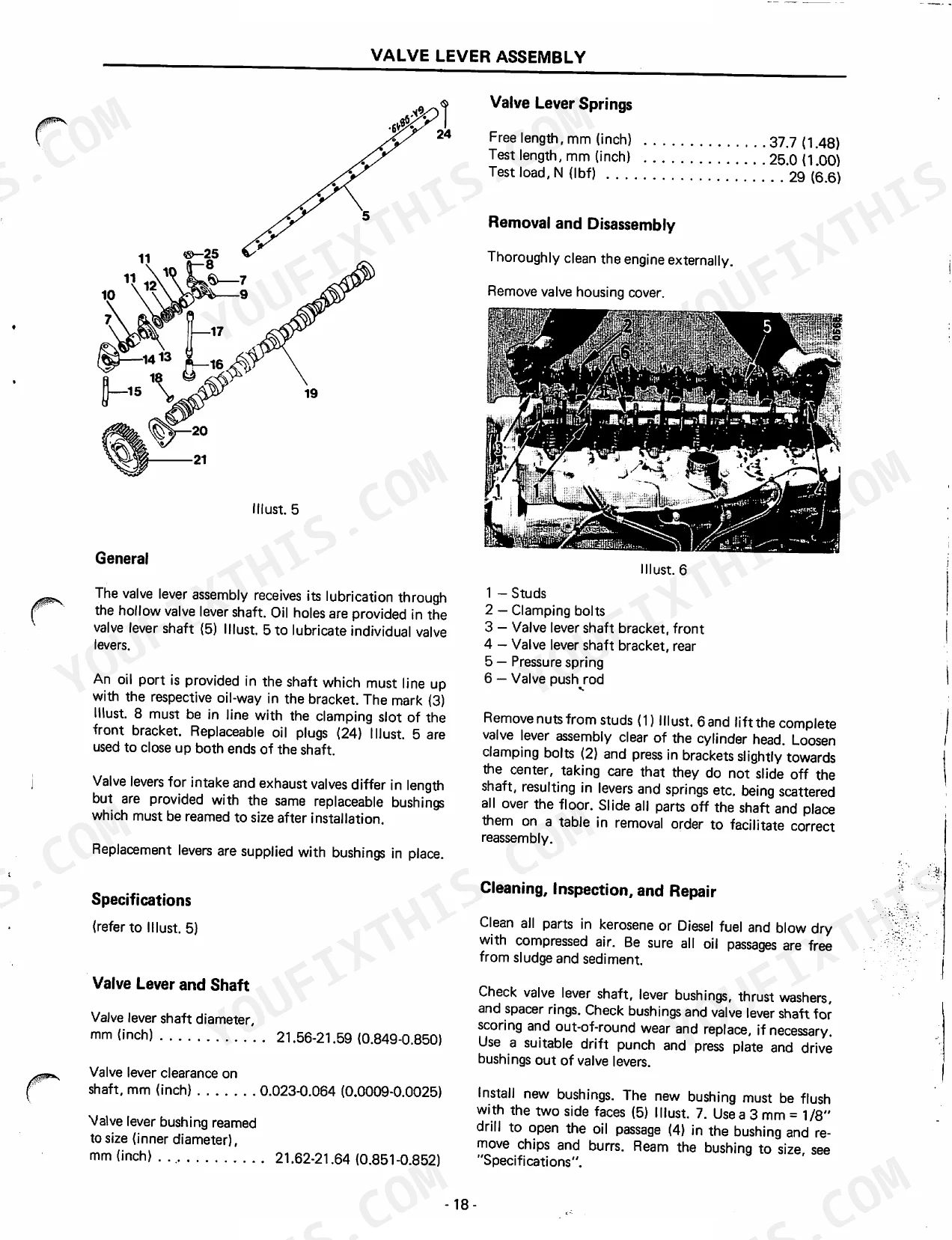

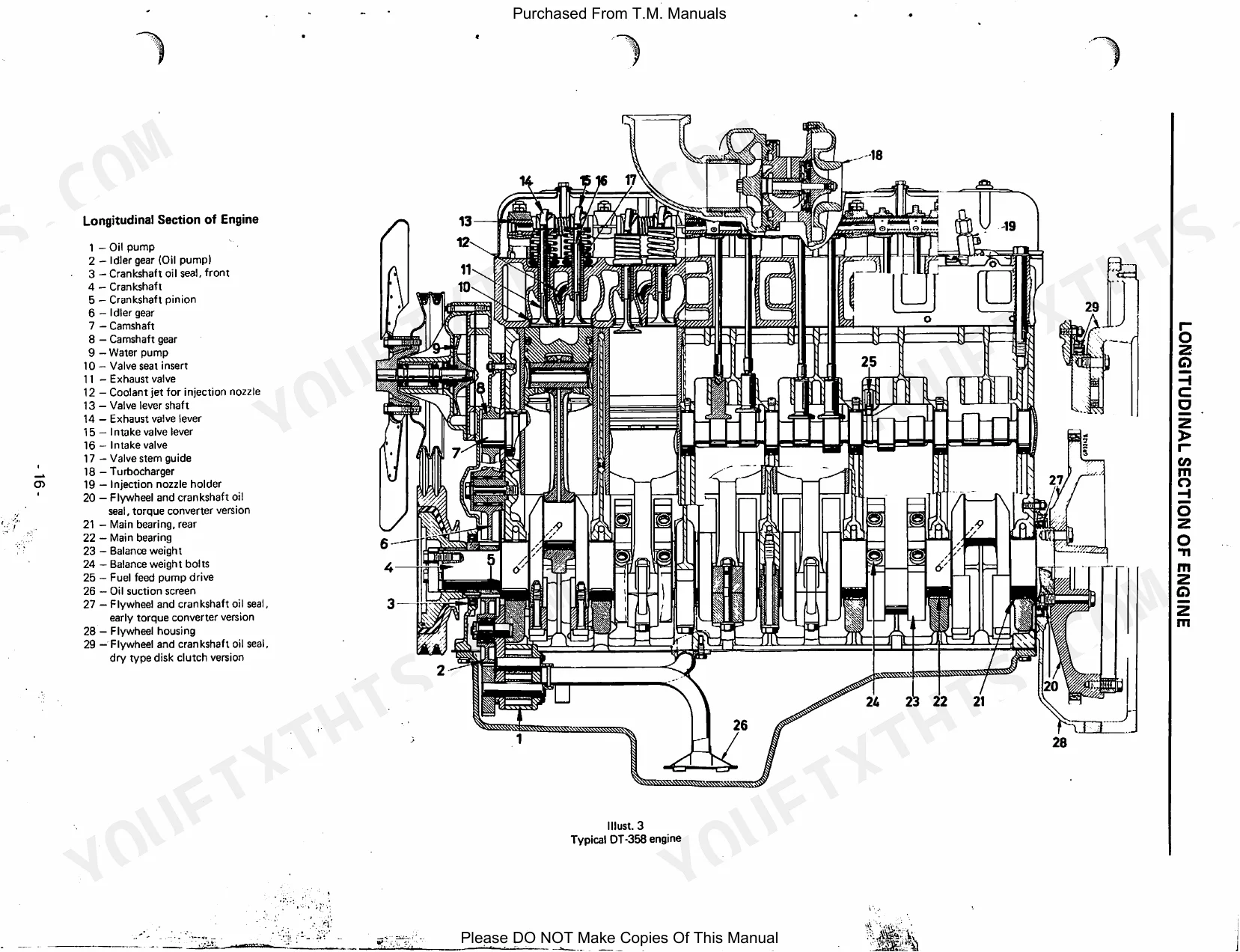

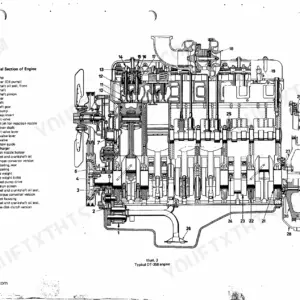

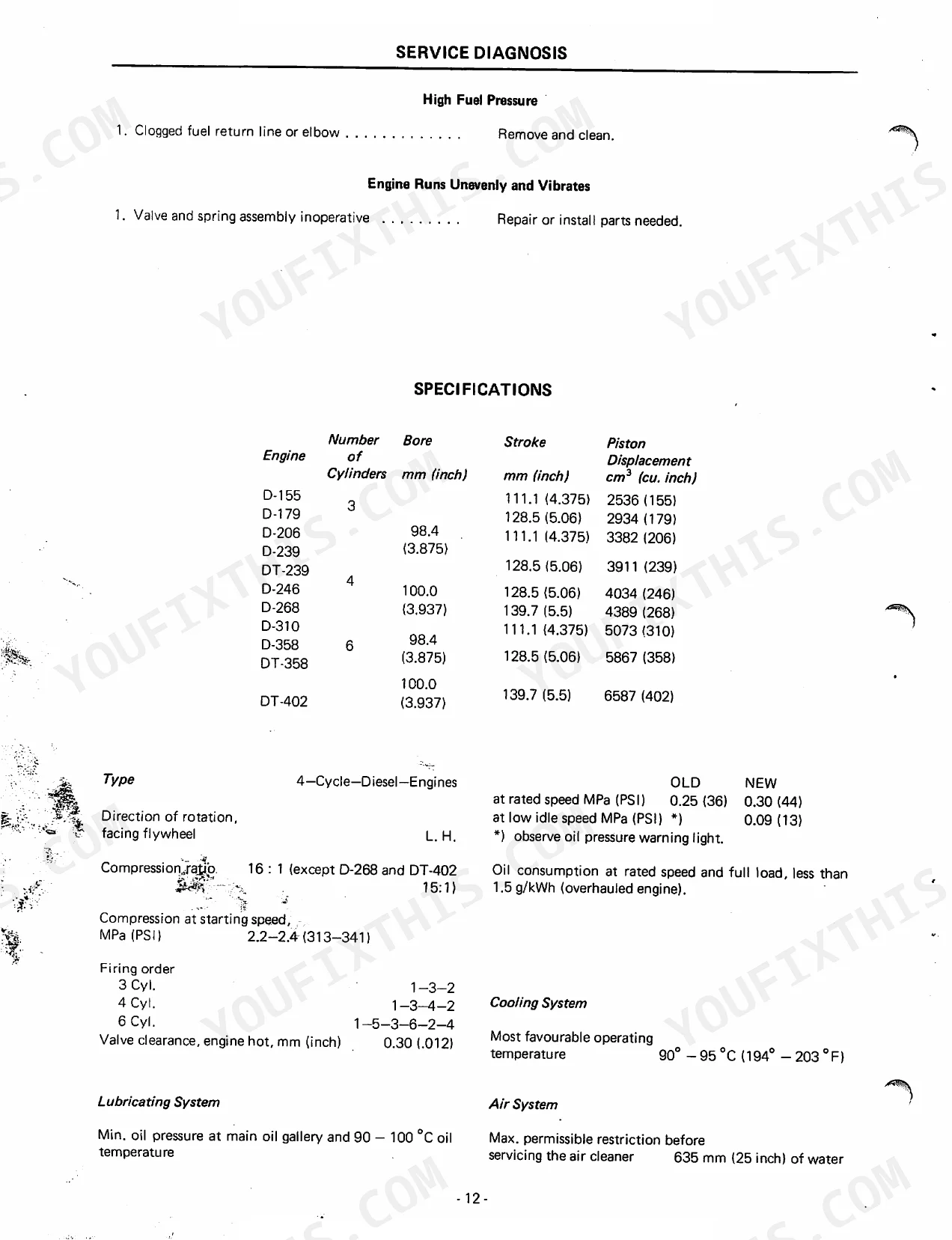

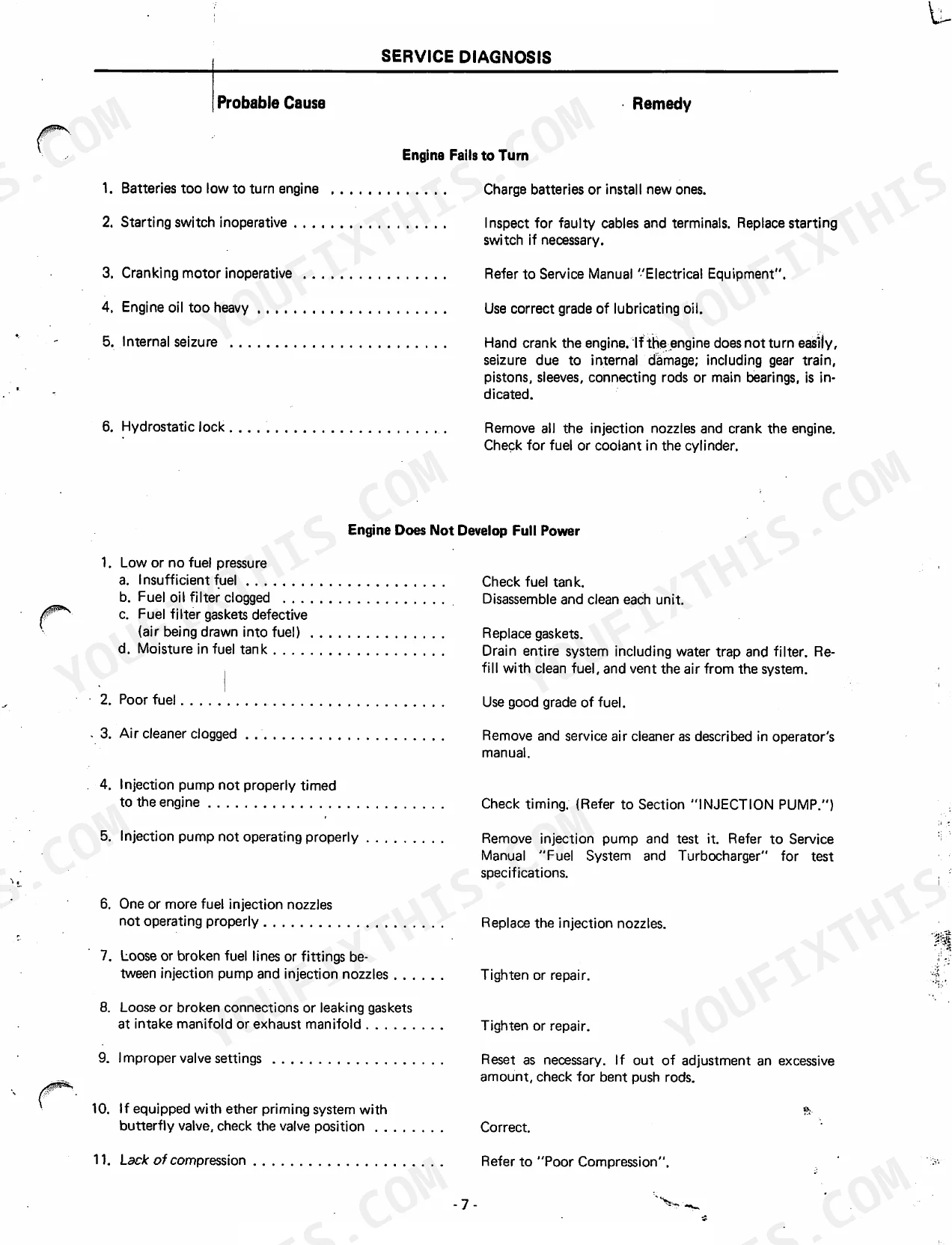

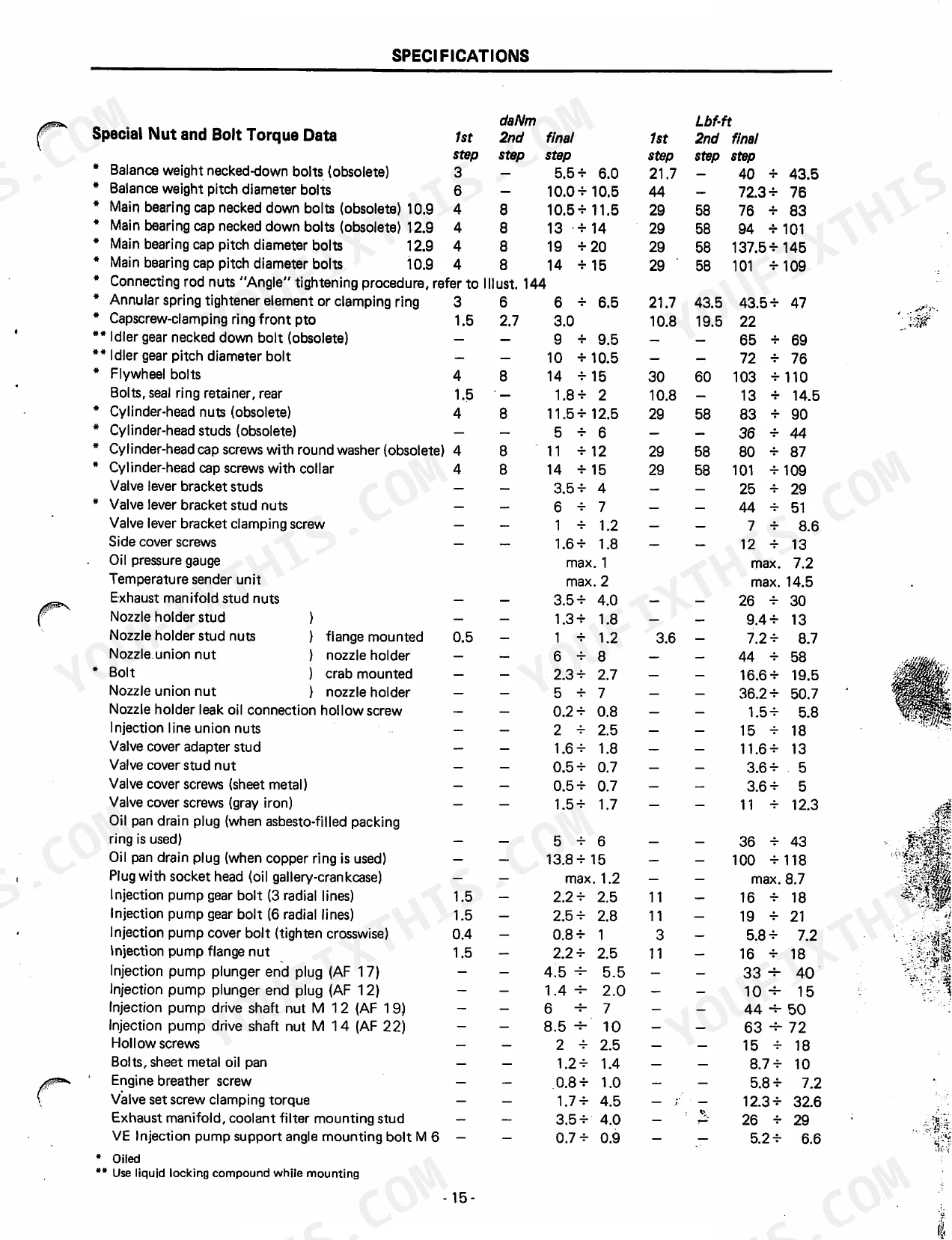

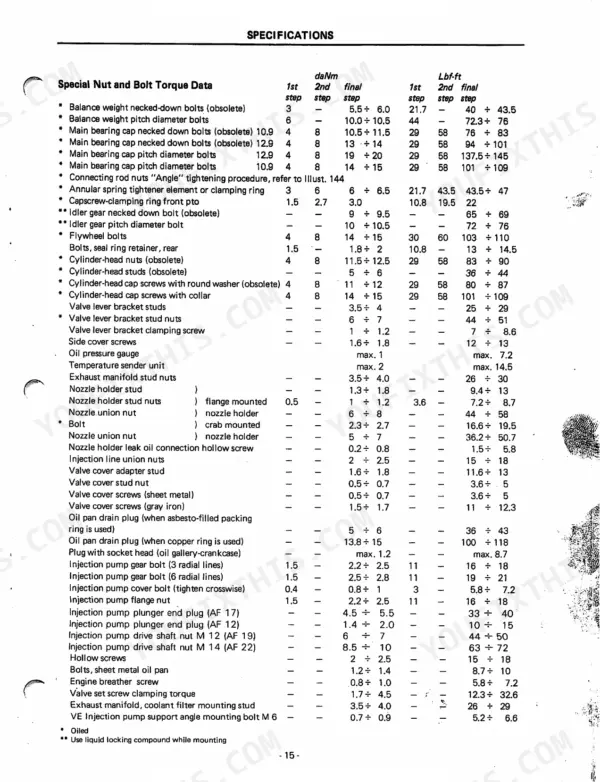

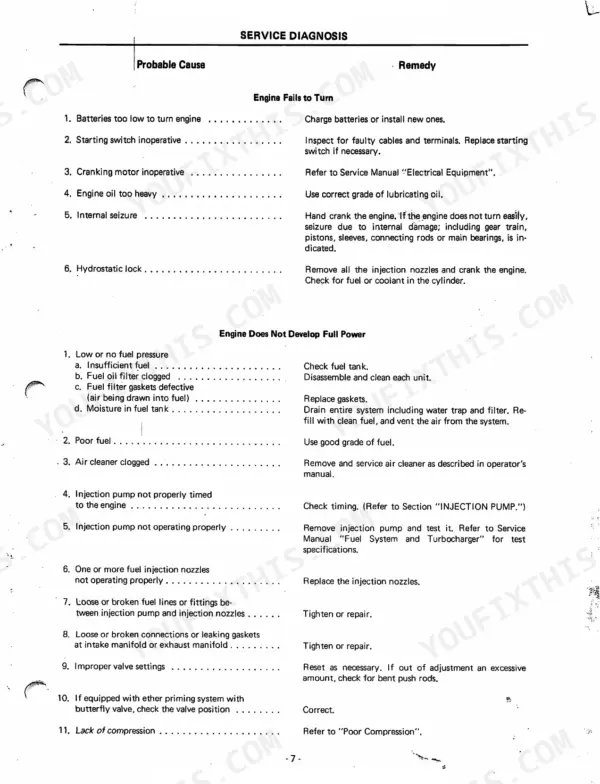

| Basic Engine | Valve Gear and Camshaft, Cylinder Head and Valves, Pistons and Liners, Crankshaft and Bearings, And Engine Specifications for the D-179 and D-206 Diesel Engines | |
| Fuel System & Turbocharger | Injection Pump, Injection Nozzles, Turbocharger, Fuel Lift Pump, And Fuel-Pump Test Specifications | |
| Electrical Equipment | DC Generators and Alternators, Starting Motor, MFWD Relays and Switches, And Brake-Light Switches | |
| Transmission | Gearshift Transmission, Speed-Range Transmission, Differential and Differential Lock for the 955, 1055, 956 and 1056 Xl and non-XL Tractors | |
| MFWD Front Axle & Drive (B & C Family) | Steering Cylinder, MFWD Axle Removal and Installation, Front-Wheel Drive Shaft, Transfer Gearbox, 40k Accumulator, Filter and Shift Solenoid, Differential and Drive Pinion, Final Drives, And Standard Torque Data | |

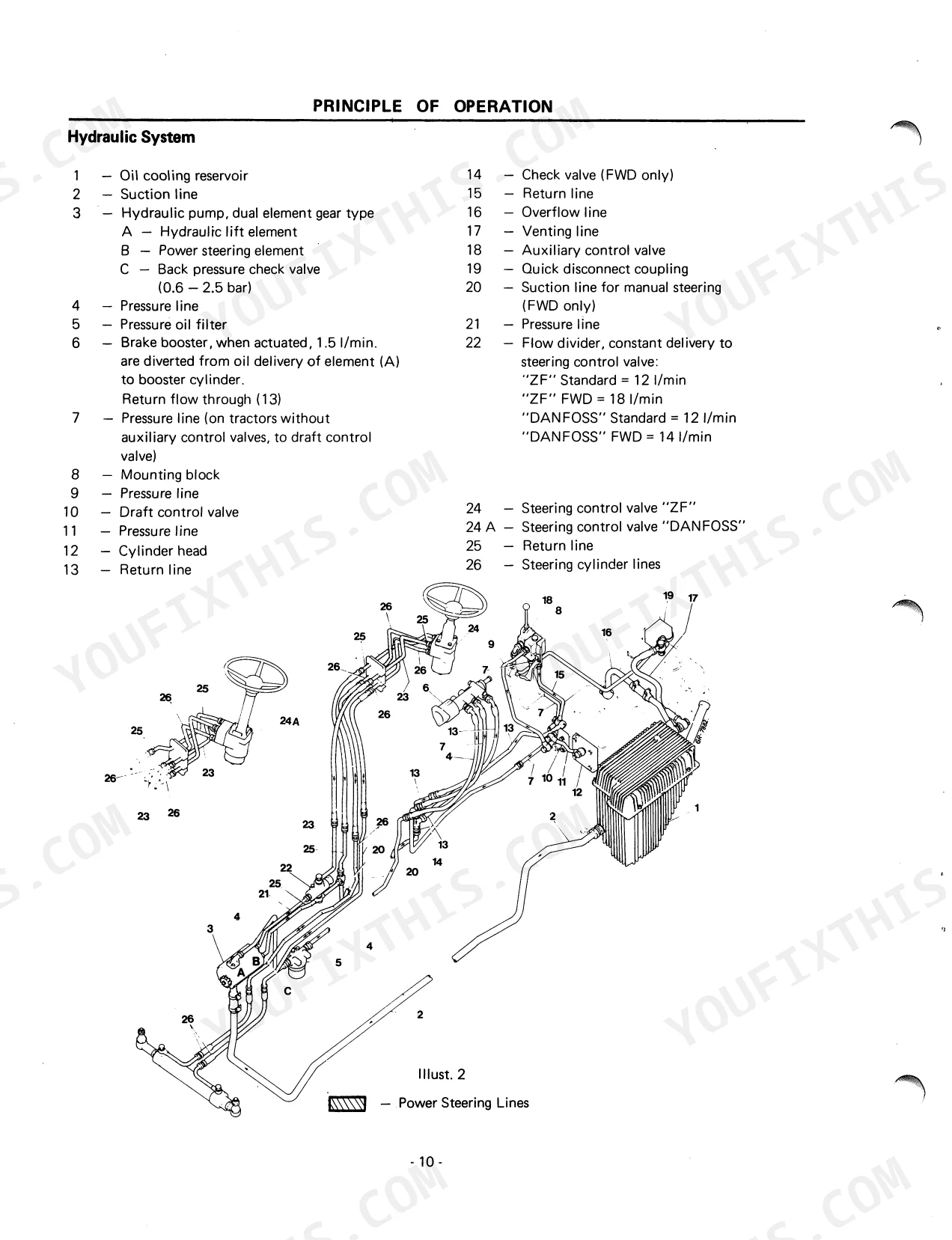

| Hydraulics | Hydraulic Specifications, Principles of Operation, Troubleshooting, Pressure Test Procedures, And Draft Control for the 955, 1055, 956 and 1056 Xl and non-XL Tractors | |
| Xl Control Centre | Cab Removal and Installation, Range- and Speed-Selection Controls, Instruments, And Electronic Control Centre Service | |
| Air Conditioning | Refrigeration Principles, Basic System Components, Tools and Test Equipment, And A/C Service for the 956, 1056, 1255 and 1455 Xl |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Commutator, Permissible out-of-round | 0.03 mm (.0012 inches) | p. 438 |
| Commutator, Permissible diameter after rework | 32 mm (1.26 inches) | p. 438 |
| Nozzle opening pressure | 20-21 MPa | p. 180 |
| Nozzle Holder Combination, Nozzle Type DLLA 150 S 836, Opening Pressure | 22.5 - 23.3 MPa | p. 184 |
| Shaft wheel end play, running clearance | 0.15 mm | p. 187 |
| Boost pressure | max. 6.2 kPa | p. 187 |
| Hydraulic Pump, Max. permissible operating speed | 4100/min | p. 730 |
| Hydraulic Pump, Max. permissible pressure (hydraulic lift element) | 18.5 MPa | p. 730 |
| Max. System Pressure (Hydraulics) | 16.0-17.0 MPa | p. 713 |
| Refrigerant Filling Capacity (Air Conditioning) | 1.8 kg | p. 883 |
| Compressor Cylinder Bore (Air Conditioning) | 35 mm | p. 884 |
| Compressor Cylinder Head Bolts Torque (Air Conditioning) | 3 - 3.5 daNm | p. 884 |
