This is the factory Case service manual for the 85XT, 90XT, and 95XT skid steer loaders, the 196-page "How It Works, Troubleshooting and Schematic Set" (publication 7-52240). It is a searchable PDF you download and can print, covering all three XT models in one book.The manual walks through fluids and lubricants, the electrical system and interlock circuits, the hydrostatic drive, the loader hydraulics, and the pedal and lever adjustments. You get diagnostic procedures, specifications, and full hydraulic and electrical schematics, so you can trace a fault instead of guessing.Owners and independent mechanics use it to check charge and relief pressures, read fuse and circuit layouts, set control linkage, and confirm torque and capacity values before a repair. If you service one of these machines yourself, it gives you the same reference the dealer technician works from.
What's Inside This Case 85XT, 90XT, 95XT Manual

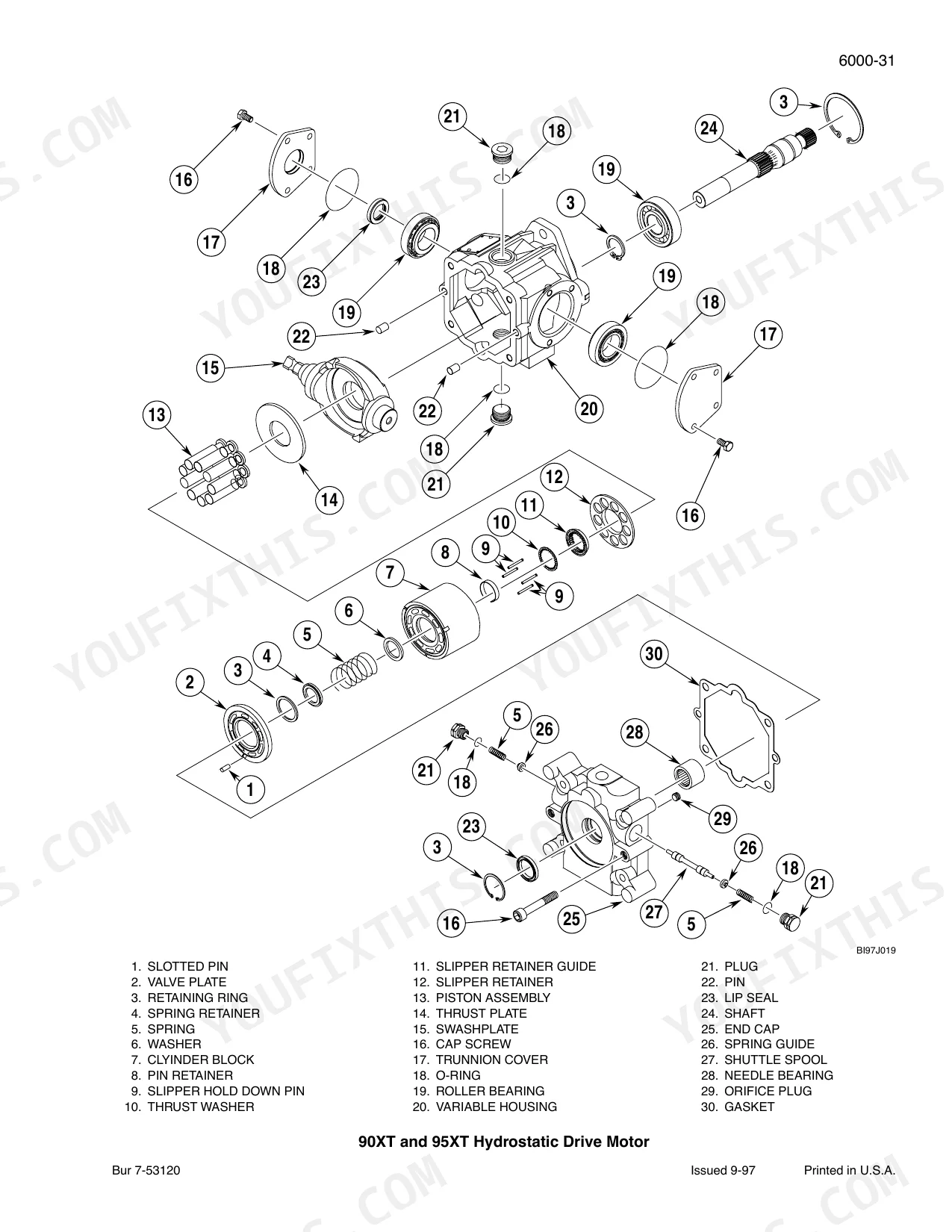

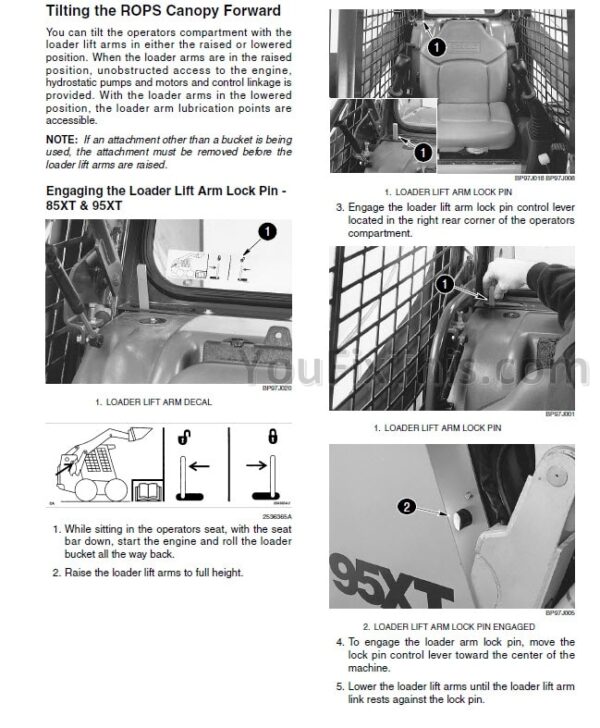

| System | Pages | Key Topics |
|---|---|---|
| Fluids and Lubricants | 5-10 | Capacities and Lubricants, Environment, Engine Lubrication (Engine Oil Selection, Oil Viscosity/Temperature Ranges) |
| Electrical How It Works | 11-14 | Interlock System, Components, Circuits |
| Electrical Specifications, Troubleshooting, and Schematics | 15-76 | Fuses, Left Hand Instrument Panel, Right Hand Instrument Panel, Control Levers, Right Hand Control Lever, Troubleshooting Example, Troubleshooting, Starter Relay |
| Hydrostatic System How It Works and Troubleshooting | 77-126 | Notes, Hydrostatic System Overview, Contd., Hydraulic Pump / Constant Pressure Priority Valve, Constant Pressure Priority Valve |
| How It Works | 127-178 | Notes, 95XT Hydraulic Components (Components Defined, Reservoir, Hydraulic Pump/Priority Valve, Constant Pressure Priority Valve) |
| Hydraulic Specifications | 179-182 | Specifications, Equipment Pump Flow Total (Charge, Loader) |
| Pedals and Levers | 183-192 | Throttle Control Linkage Adjustment, Loader Control Linkage Adjustment (Fore/Aft Adjustment, Loader and Bucket Adjustment) |

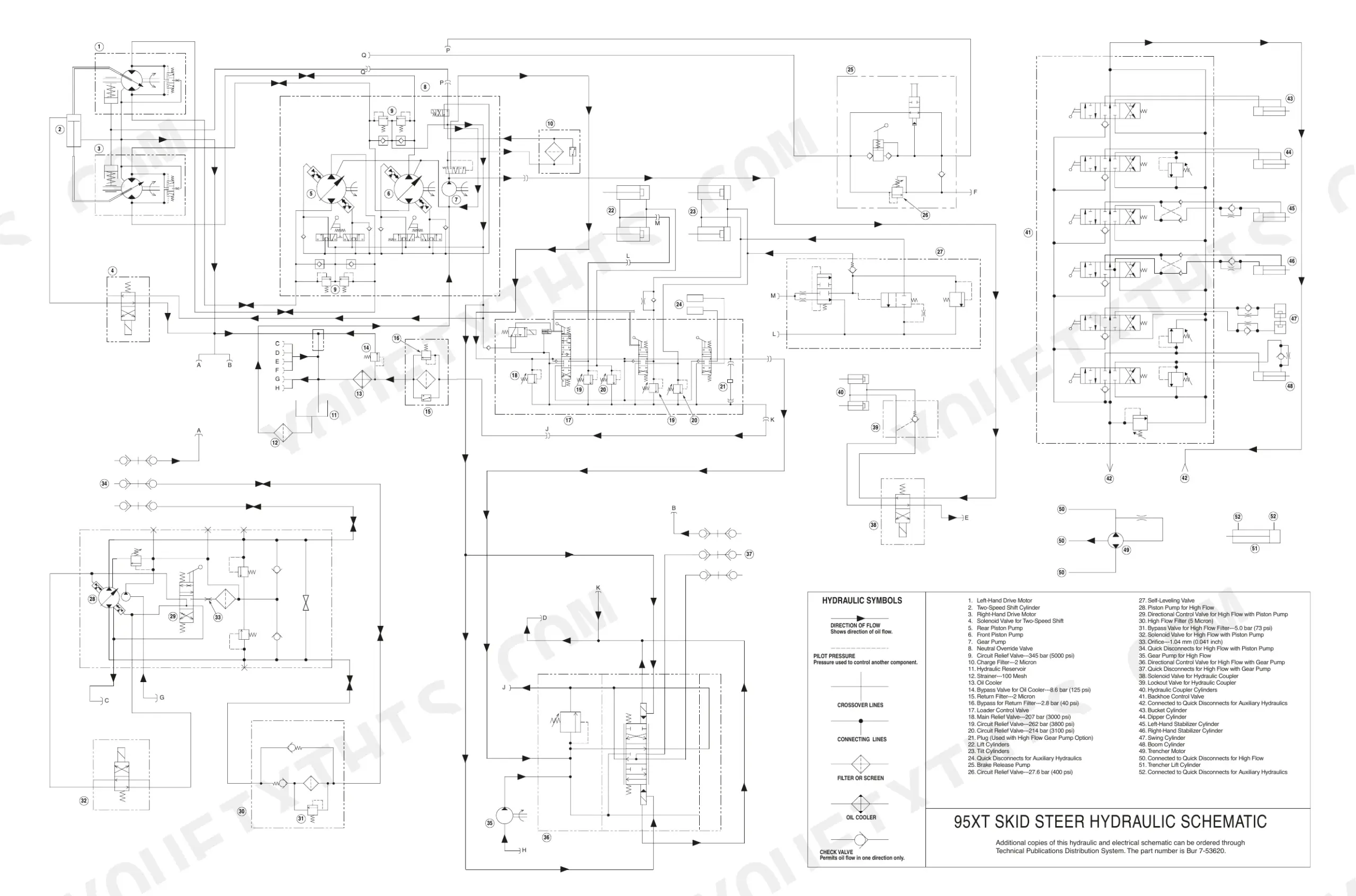

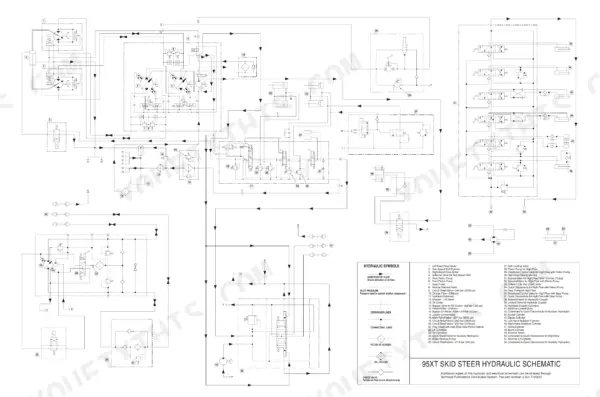

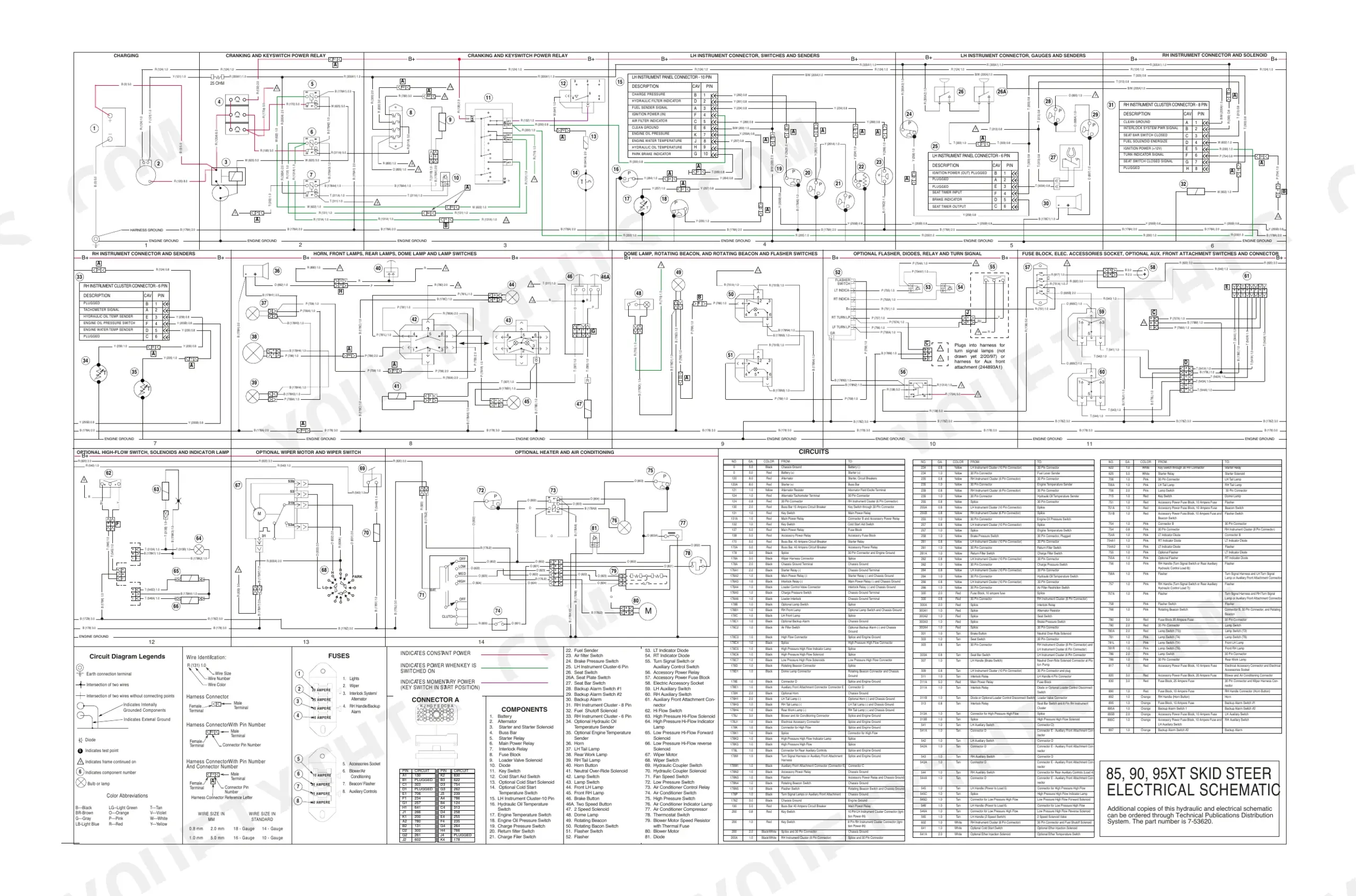

| Hydraulic and Electrical Schematic Foldout | 193-196 | 95XT Skid Steer Hydraulic Schematic, Hydraulic Symbols, Direction of Flow, Pilot Pressure, Crossover Lines, Connecting Lines, Filter or Screen, Oil Cooler |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||

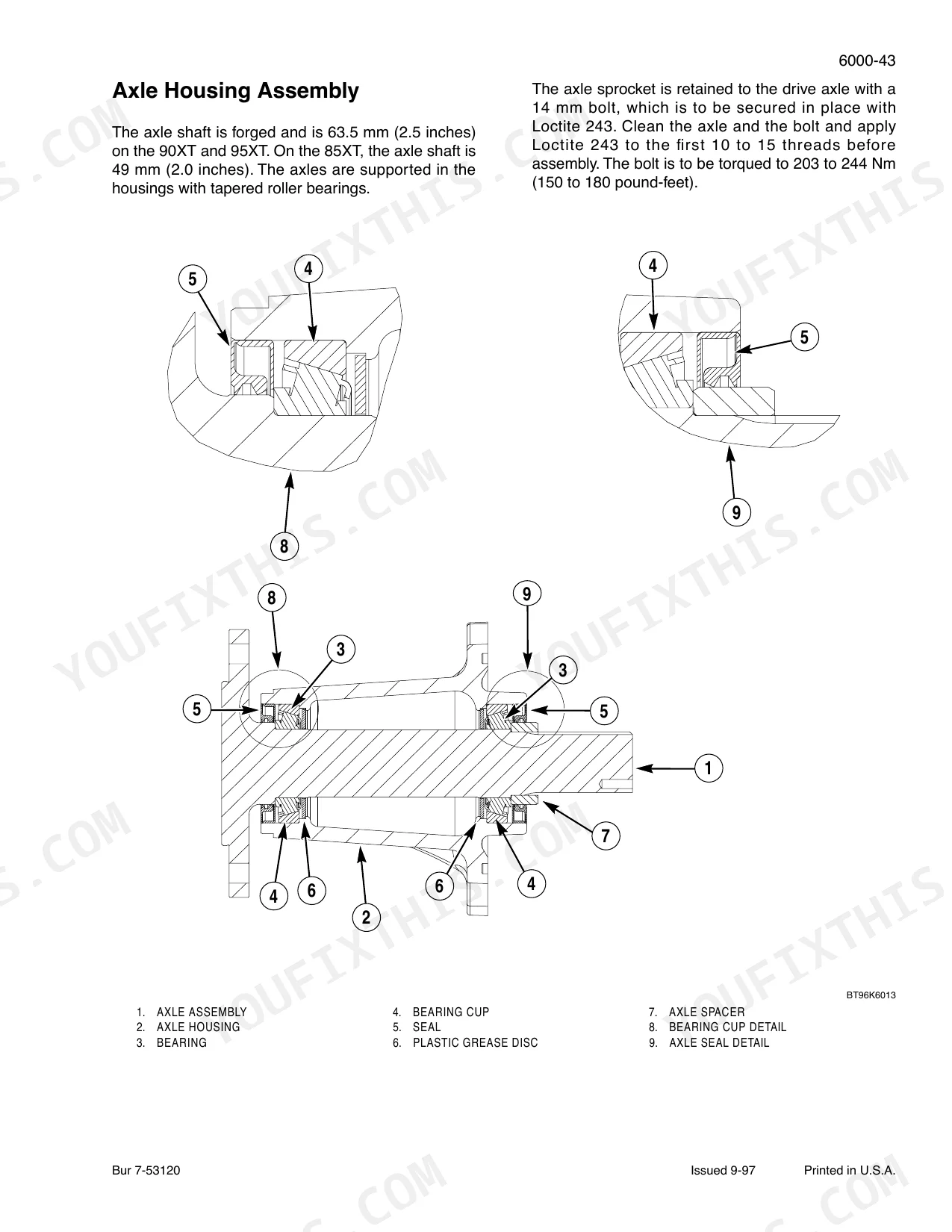

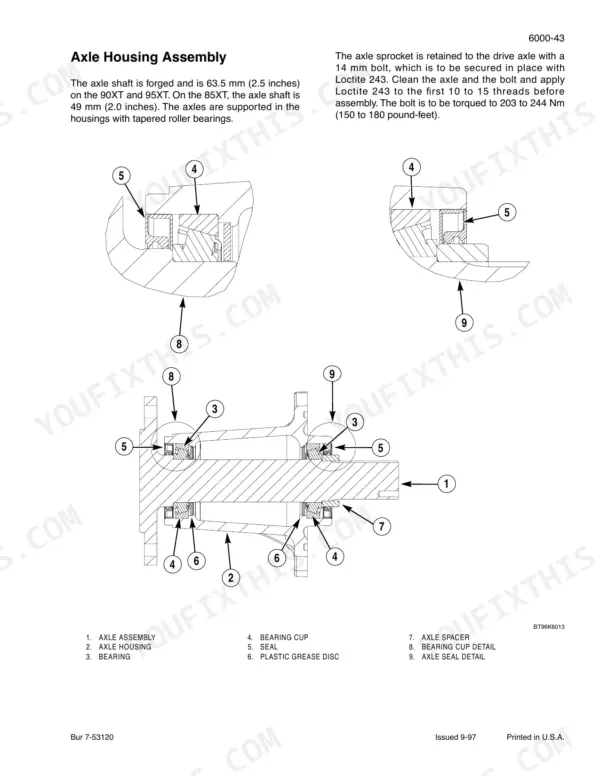

| Axle sprocket retaining bolt torque | 203 to 244 Nm (150 to 180 pound-feet) | p. 119 |
| Axle housing mounting nuts torque (final) | 223 to 265 Nm (165 to 190 pound-feet) | p. 121 |
| Return filter filtration rating | 2 Micron | p. 130 |
| Charge filter filtration rating | 2 Micron | p. 130 |
| Lights fuse rating | 20 AMPERE | p. 17 |
| Wiper fuse rating | 10 AMPERE | p. 17 |

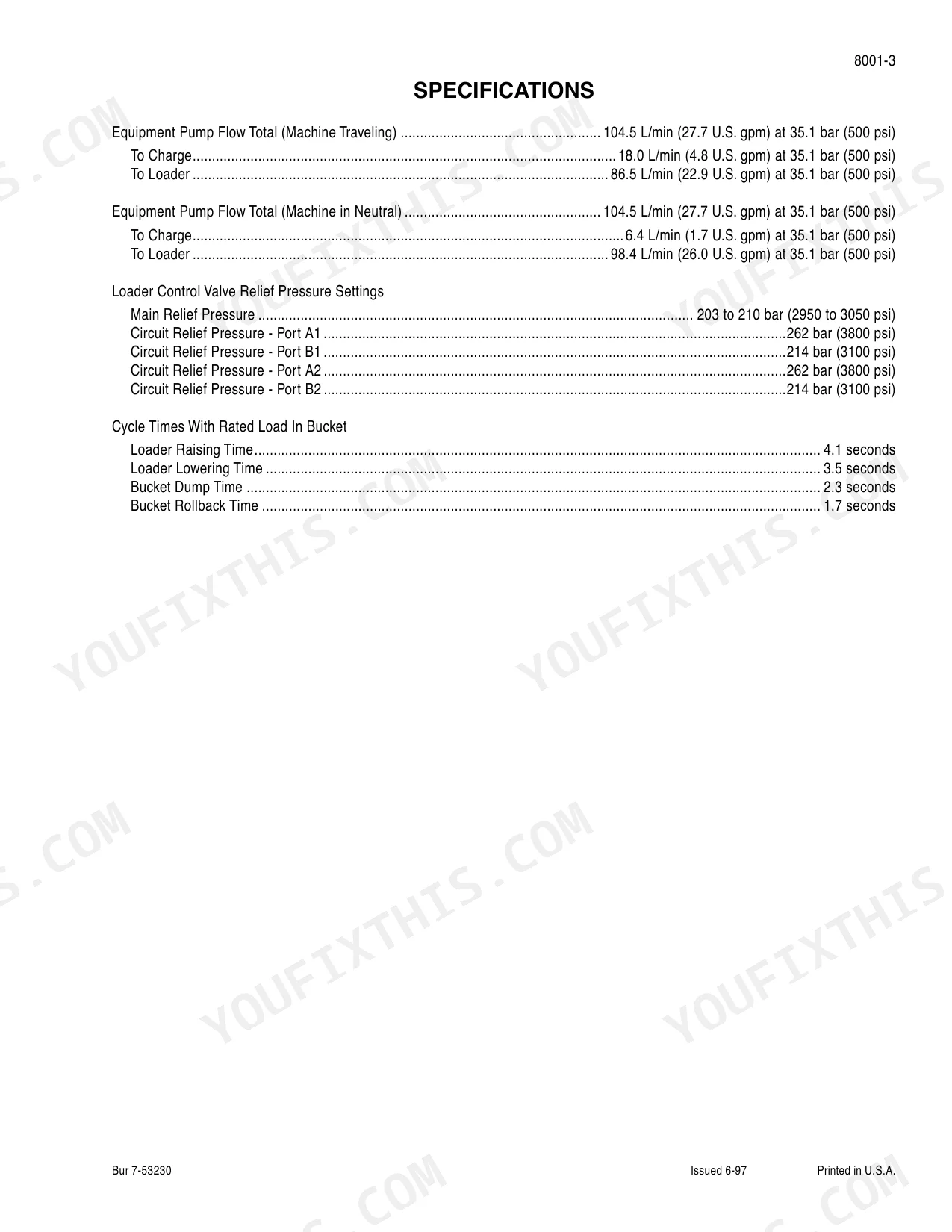

| Hydraulic pump flow total (machine traveling) | 104.5 L/min (27.7 U.S. gpm) at 35.1 bar (500 psi) | p. 181 |
| Hydraulic pump flow to charge (machine traveling) | 18.0 L/min (4.8 U.S. gpm) at 35.1 bar (500 psi) | p. 181 |
| Fuel Tank Capacity | 76.4 litres (20.2 U.S. gallons) | p. 7 |
| Engine Crankcase Oil Capacity (with filter change) | 10.4 litres (11.0 quarts) | p. 7 |
| 90XT and 95XT | ||
| Drive chain size | 120 size | p. 118 |
| 85XT | ||
| Drive chain size | 100 size | p. 118 |

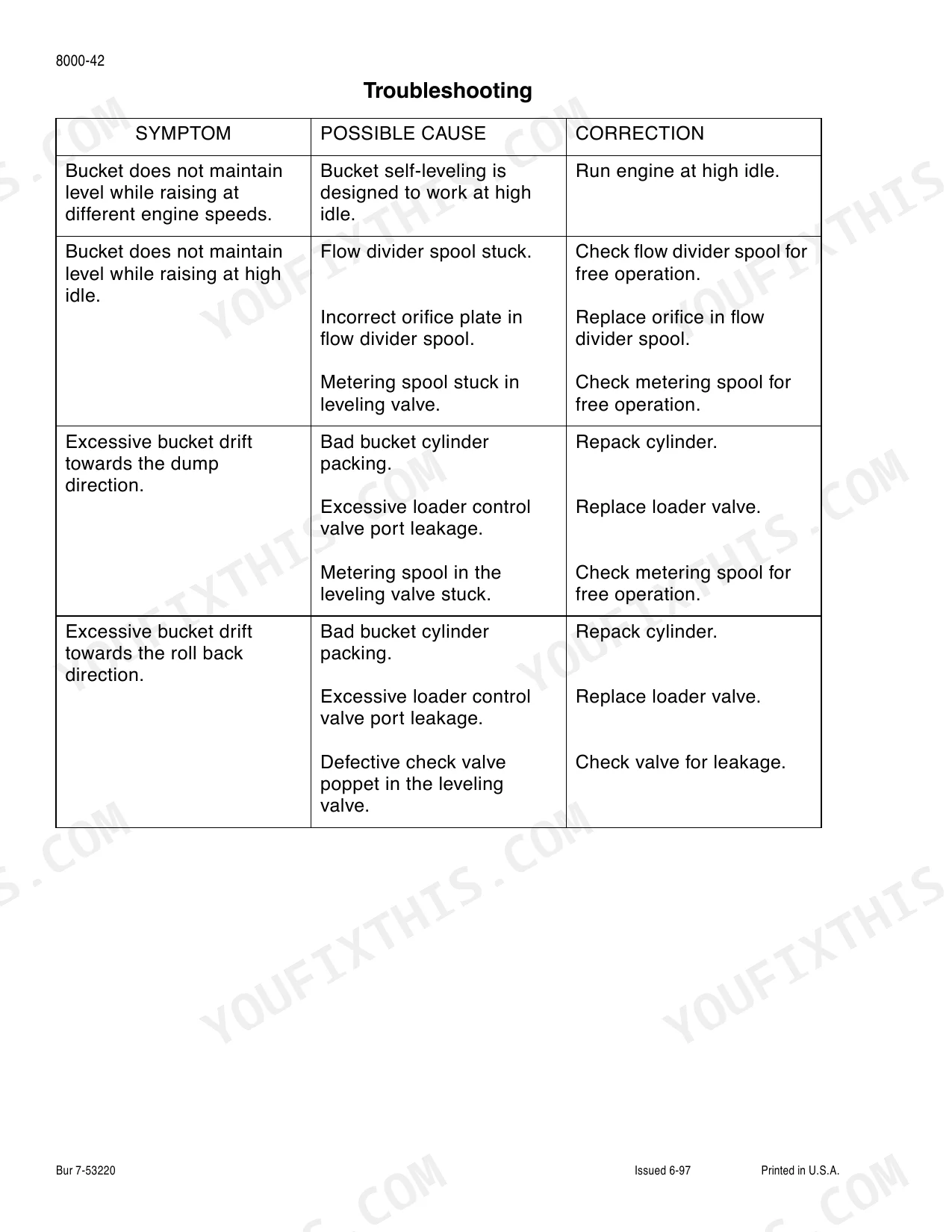

Case 85XT, 90XT, 95XT Common Problems This Manual Covers
Loss of drive or weak travel
The skid steer will not move, creeps, or loses power under load. This usually points to the hydrostatic drive, where charge pressure and flow checks isolate the pump or circuit fault.
Manual Section: Hydrostatic System How It Works and Troubleshooting p. 77Slow or weak loader hydraulics
Loader arms and bucket respond slowly or lift poorly. The hydraulic components coverage explains the reservoir, pump, and priority valve so you can find the source of low flow or pressure.
Manual Section: How It Works p. 127Low main relief pressure
Lift and tilt functions feel underpowered even with good fluid. The hydraulic specifications give the loader control valve relief pressure so you can gauge the system and confirm it is in range.
Manual Section: Hydraulic Specifications p. 179Intermittent no-start or dead gauges
The machine will not crank or the instrument panels behave erratically. The electrical troubleshooting section covers the instrument panels, control levers, and starter relay to trace the break.
Manual Section: Electrical Specifications, Troubleshooting, and Schematics p. 15Interlock blocks operation
The loader or drive will not engage because the operator interlock is not satisfied. The electrical how it works section explains the interlock system, its components, and circuits.
Manual Section: Electrical How It Works p. 11Loader controls out of adjustment
Throttle or loader response drifts or the bucket does not return level. The pedals and levers section gives the throttle and loader control linkage adjustment steps, including fore and aft settings.
Manual Section: Pedals and Levers p. 183Wrong fluid causes poor response
Sluggish hydraulics after a service can come from the wrong oil or low capacity. The fluids and lubricants section lists the hydraulic system capacity and the correct oil selection.
Manual Section: Fluids and Lubricants p. 5Frequently Asked Questions
Which machines does this manual cover?
It covers the Case 85XT, 90XT, and 95XT skid steer loaders in a single service manual, publication 7-52240.
Does it give the hydraulic relief pressure specs?
Yes. The Hydraulic Specifications section lists the main relief pressure for the loader control valve along with pump flow figures you can check the machine against. p. 179
Can I troubleshoot the hydrostatic drive with it?

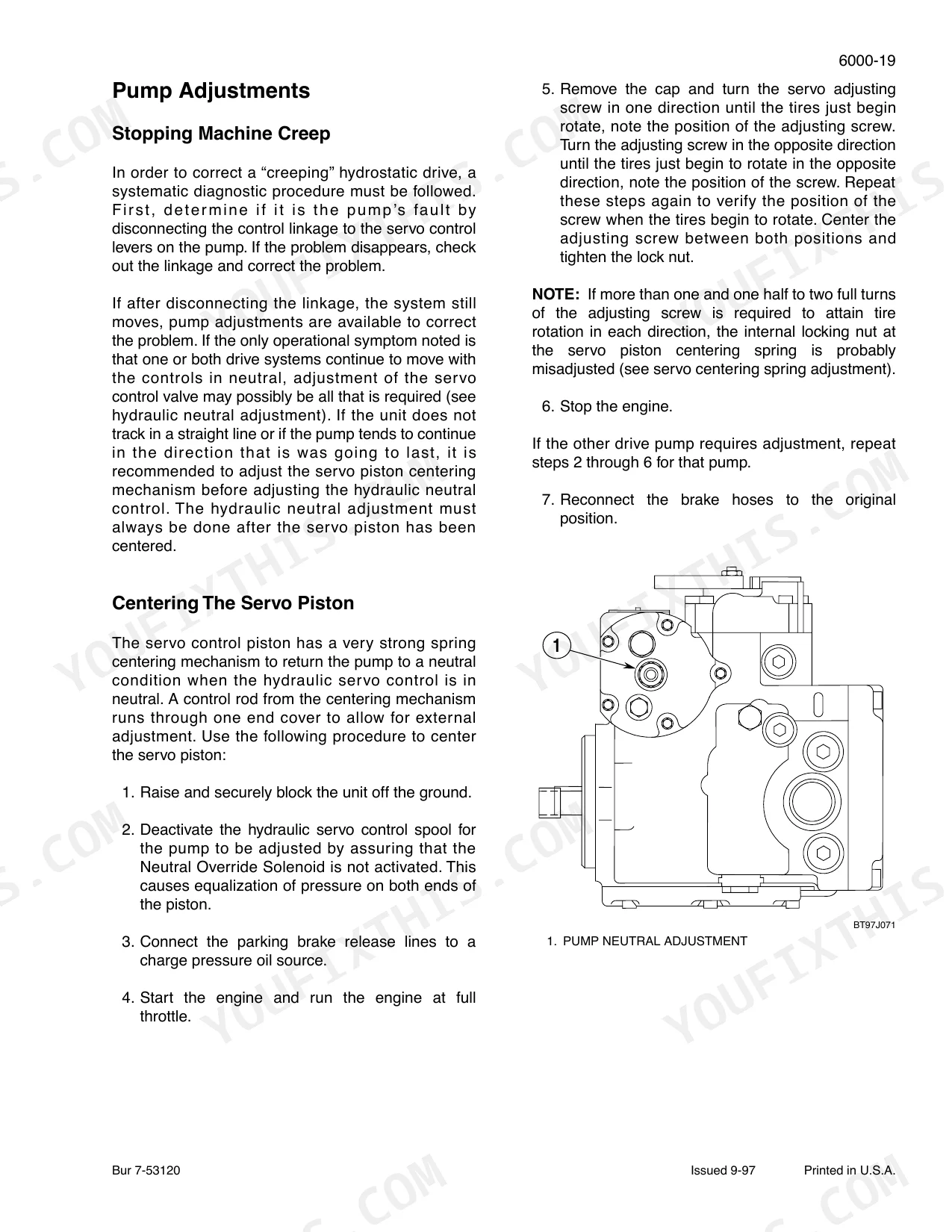

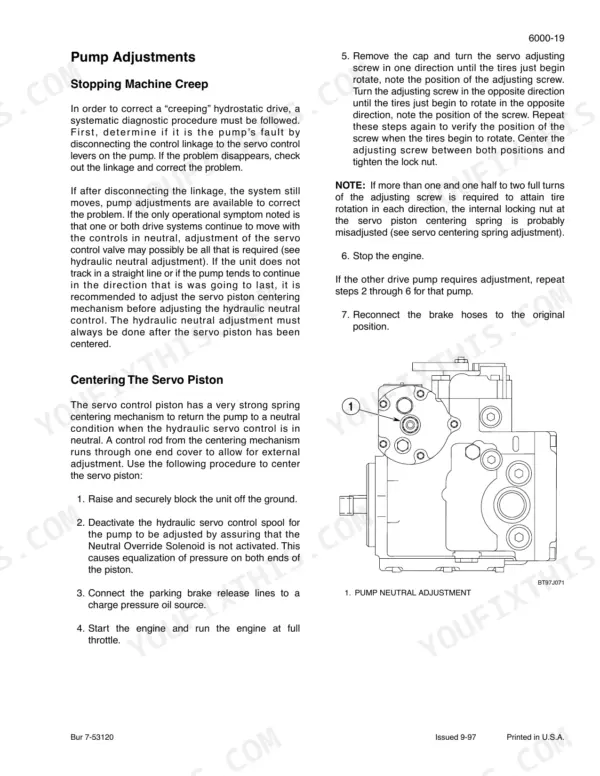

Yes. The Hydrostatic System How It Works and Troubleshooting section walks through system overview, pump adjustments, and charge and circuit relief pressure checks for drive faults. p. 77
Does it cover the electrical system and fuses?

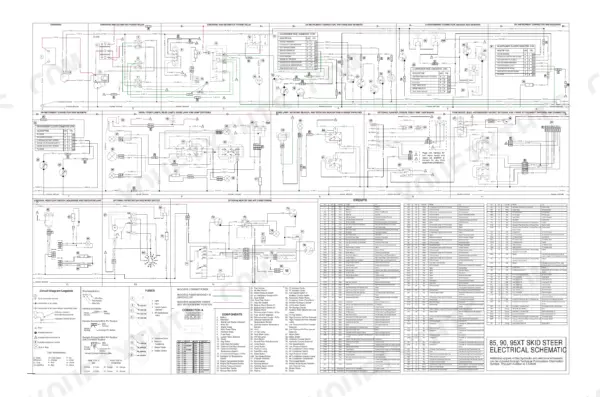

Yes. The Electrical Specifications, Troubleshooting, and Schematics section covers fuses, the left and right instrument panels, control levers, and step by step troubleshooting. p. 15
What format is this manual in?
You get a 196-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, bring it right to the shop floor.
Is this Case 85XT, 90XT, 95XT Service Manual printable?
the PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
Are hydraulic system diagrams in this Case 85XT, 90XT, 95XT Service Manual?
Full hydraulic system diagrams are included, covering circuits, valve locations, and hydraulic component specs for the Case 85XT, 90XT, 95XT.
