Looking for the factory specs to rebuild your crawler excavator? This 971-page Case Corporation 1088 Service Manual PDF (OEM #DON 8-86380) breaks down the complete engine, powertrain, and hydraulic systems for the 1088 machine. You get complete electrical schematics for the control panel, detailed hydraulic layouts mapping the high-pressure pump and attachment valve bank, and dedicated troubleshooting charts for the drive motor. Open up the torque tables to find exact tightening sequences for the turntable bearing and final drive transmission. Verify your cold exhaust valve tappet clearance at exactly 0.508 mm, and confirm the new injector assembly opening pressure hits between 231 and 253 Bar before buttoning up the engine block. A dead excavator means lost revenue on the job site. Grab this digital download, navigate instantly using the built-in bookmarks, and get your machine digging again.

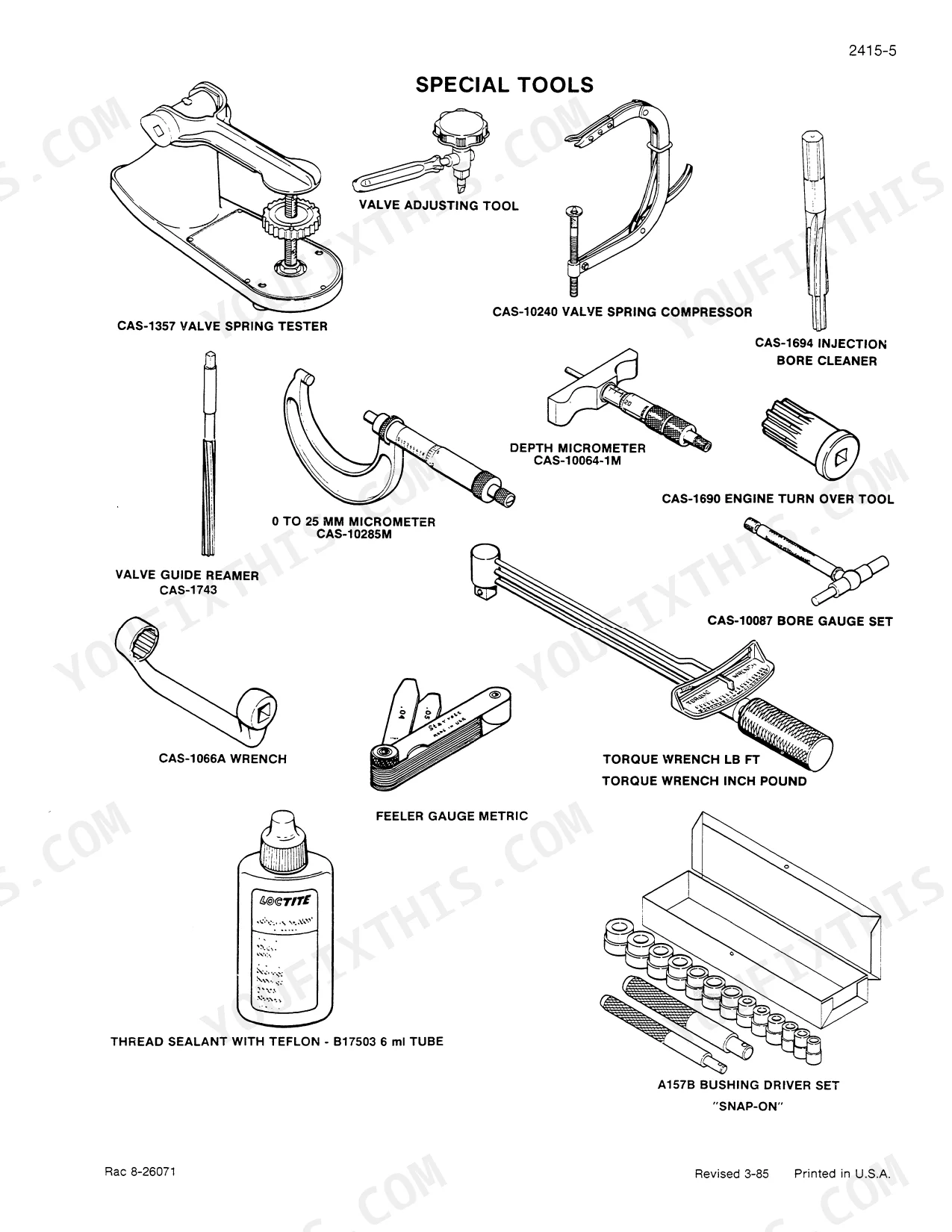

What's Inside This Case Corporation 1088 Manual

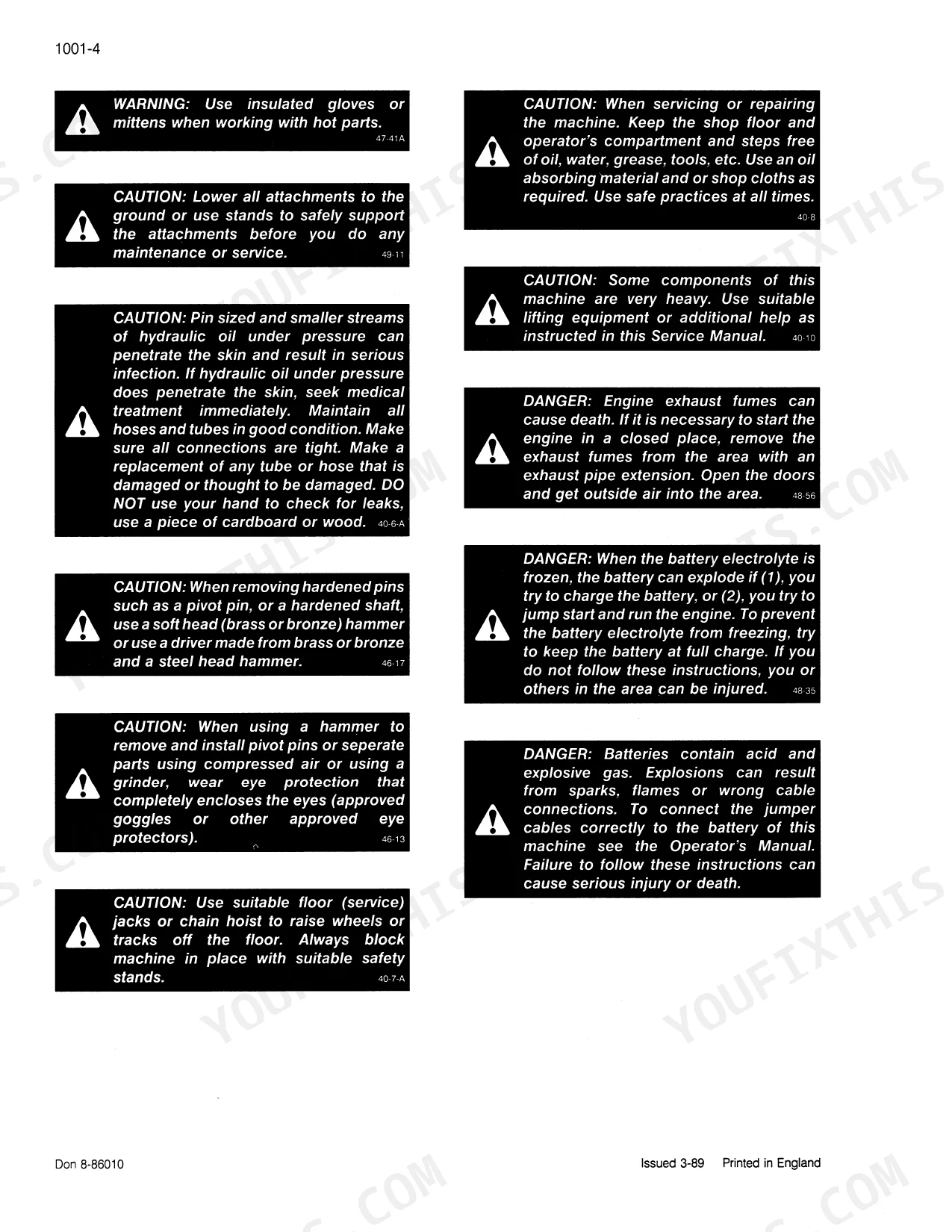

| System | Pages | Key Topics |
|---|---|---|
| General | 5-36 | Sectional Index, Safety, General Information and Torque Specifications, Specifications |
| Engine | 37-280 | Sectional Index, Engine Removal and Installation, Radiator and Oil Cooler |
| Fuel System | 281-346 | Fuel Filters, Fuel Injection Pump, Fuel Injectors, Primer Pump, Fuel Shutoff Solenoid, Timing Lock Pin |
| Electrical | 347-439 | Alternator, Battery, Starter Motor, Electrical Schematics, Printed Circuit Board, Control Panel |
| Track | 440-459 | Tracks, Rollers, Idlers, Sprocket, Spring |
| Power Train | 460-531 | Drive Motor, Final Drive Transmission, Swing Motor, Reduction Gears, Brake |
| Hydraulics | 532-909 | High Pressure Pump, Low Pressure Pump, Regulator, Attachment Valve Bank, Drive Control Valve, Hydraulic Swivel |
| Mounted Equipment | 910-971 | Upperstructure, Turntable Bearing, Boom, Dipper, Bucket, Cab |

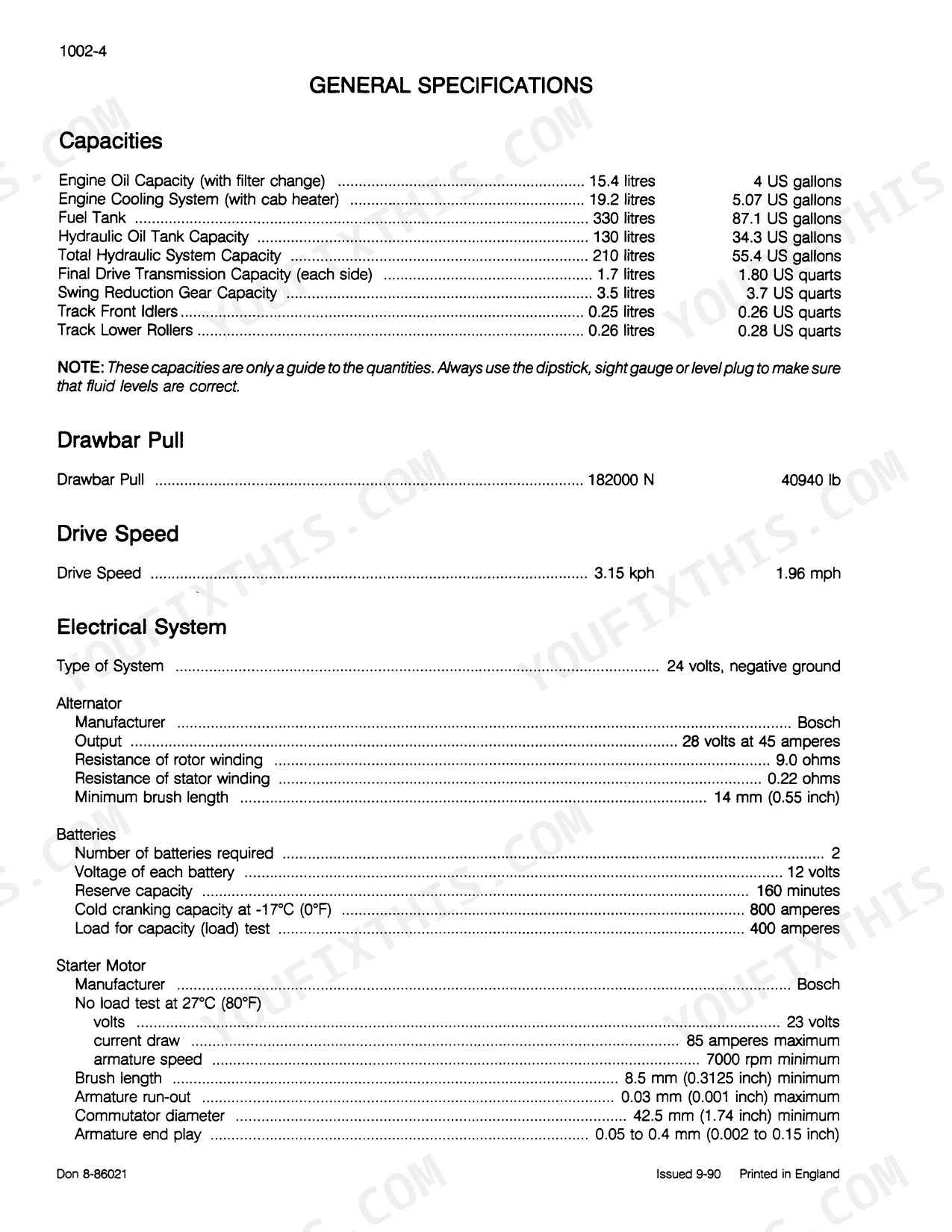

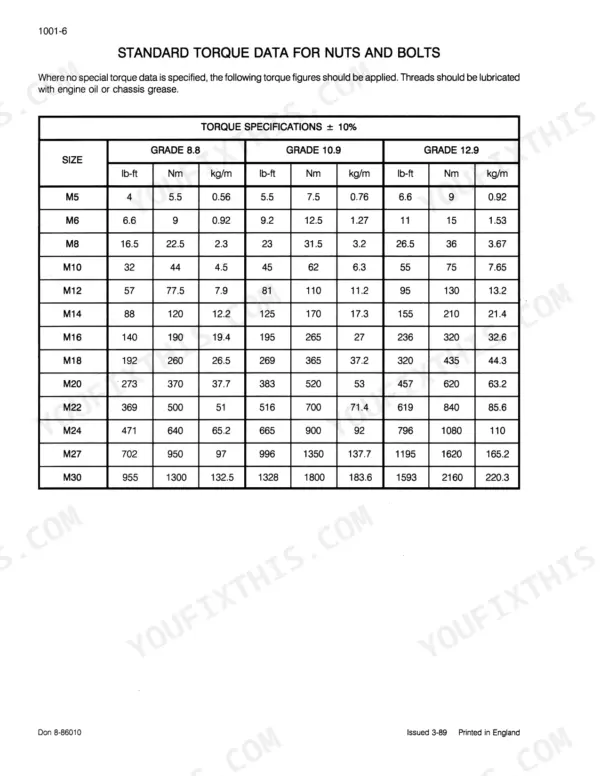

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Injector Assembly Opening Pressure (New) | 231 to 253 Bar (3350 to 3670 psi) | p. 25 |
| Injector Assembly Opening Pressure (Used) | 221 to 250 Bar (3200 to 3625 psi) | p. 25 |
| Fuel Line Fitting (High Pressure) Torque | 24 Nm (18 lb ft) | p. 32 |
| Fuel Line Fitting (Low Pressure) Torque | 24 Nm (18 lb ft) | p. 32 |
| Exhaust Valve Tappet Clearance (Cold) | 0.508 mm | p. 30 |
| Exhaust Valve Head Edge Thickness, Minimum | 1.50 mm | p. 30 |
| Fuel Shutoff Solenoid Torque | 15 Nm (11 lb ft) | p. 32 |
| Fuel Shutoff Solenoid, 6T-590 and 6TA-590 Engine Torque | 32 lb ft (43 Nm) (4.3 kgm) | p. 31 |
| Engine Oil Capacity (with filter change) | 15.4 litres | p. 18 |
| Fuel Tank Capacity | 330 litres | p. 18 |
| Total Hydraulic System Capacity | 210 litres | p. 18 |
| Drawbar Pull | 182000 N | p. 18 |
Case Corporation 1088 Common Problems This Manual Covers
Fuel leaking from the injector assembly or high pressure line fittings (error E02)
Remove the suspect injector and inspect the sealing washer and nozzle body for cracking, this is the usual source of repeat leakage complaints. Torque the high pressure fuel line fittings to 24 Nm (18 lb ft) as specified on page 32, don't overtighten trying to stop a leak from a damaged flare. If the fuel shutoff solenoid area is weeping, torque it to 15 Nm (11 lb ft) per the same page. Replace any hose showing swelling rather than re-seating it.

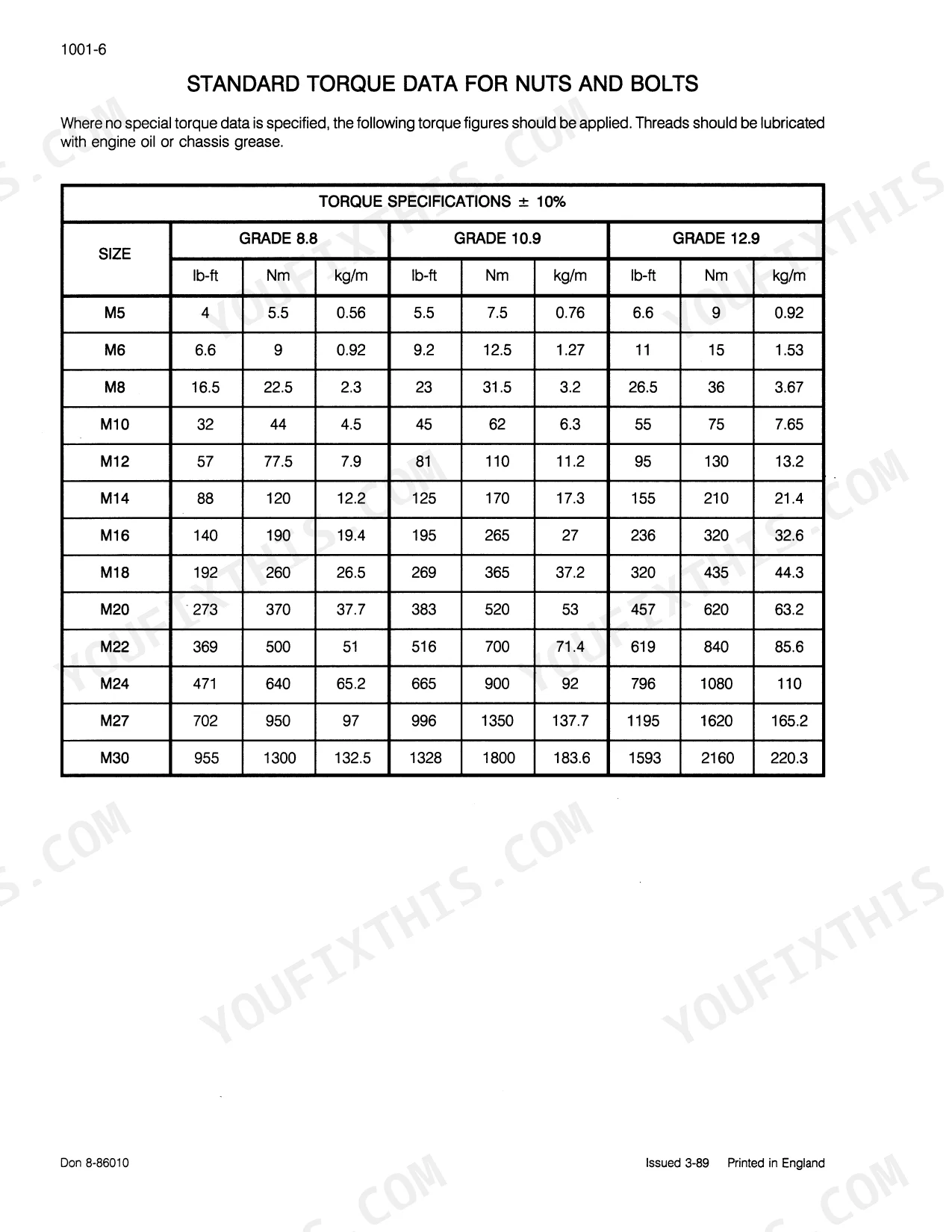

Manual Section: Fuel Injectors p. 32Fuel hose fittings weep or fail under pressure after reassembly
Inspect every fuel hose fitting for weeping at the flare nut before assuming a bad hose. Torque M16 x 1.5 fitting nuts to 20 Nm (14.5 lb ft) and M18 x 1.5 nuts to 35 Nm (26 lb ft) per the torque table on page 13, uneven torque is the most common cause of comeback leaks. Replace any hose with visible cracking or swelling instead of re-torquing a damaged flare. Confirm the 330 litre fuel tank is filled correctly before pressure testing the repair.
Manual Section: Nuts for Pipes and Hoses Torque Specifications p. 13Frequently Asked Questions

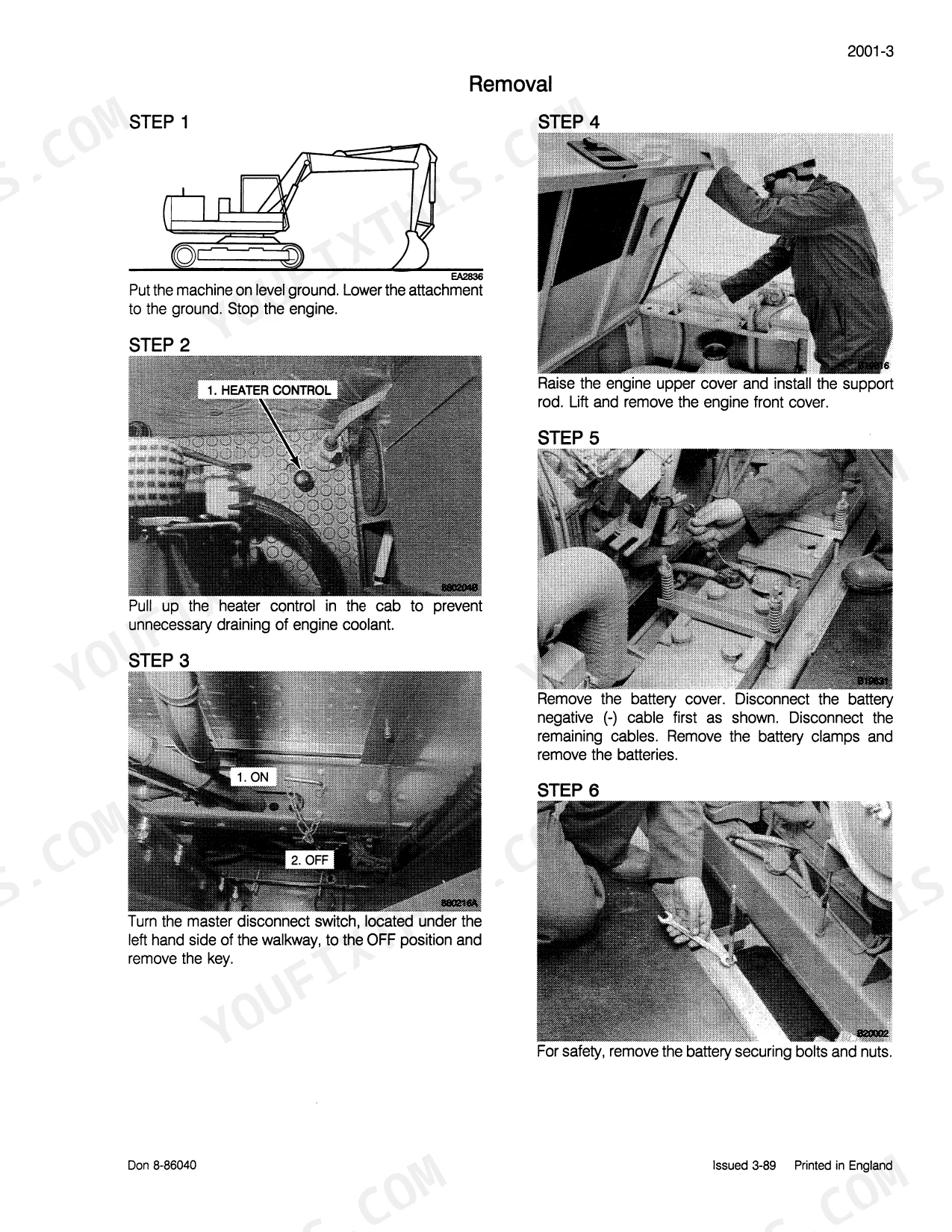

How do I reset the hydraulic system on the Case 1088 excavator after maintenance?
To reset the hydraulic system after maintenance, start the engine at LOW IDLE, fully extend all attachment cylinders, then stop the engine. Check the hydraulic oil tank level, ensuring it reaches level 2 on the indicator, and add specified hydraulic oil if needed. Remove the funnel, install and tighten the plug, then restart the engine and lower the attachment to the ground. p. 61

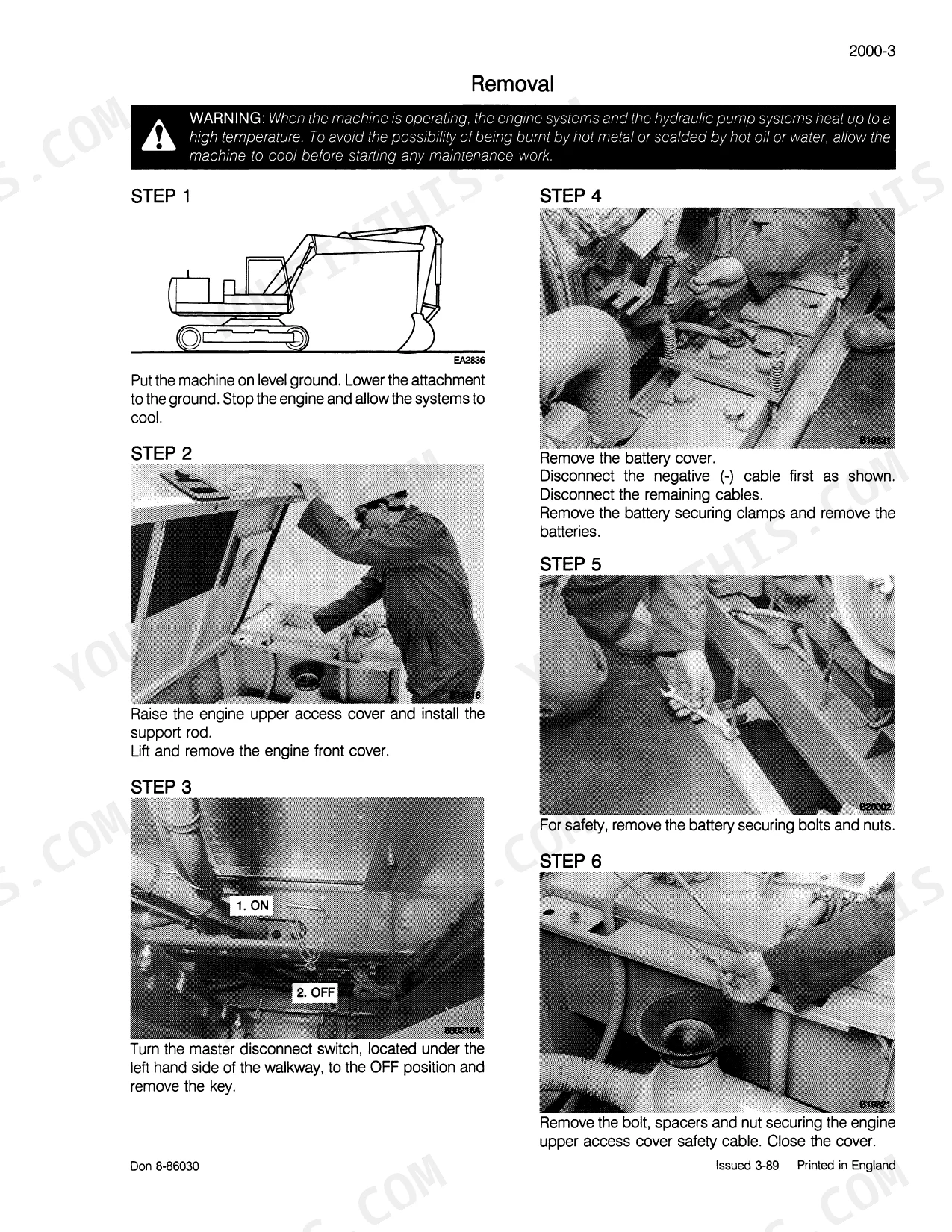

How do you fix case 1088 crawler excavator engine won't start or cranks weak after battery disconnection for service?
Check the troubleshooting procedures on page 12 for starting complaints before chasing the fuel system. Verify both batteries are seated and terminals are clean, this machine runs a 24 volt system across 2 batteries per the spec sheet on page 18. Measure open circuit voltage at each post and charge if the pair reads below 24 volts combined. Cross-check the wiring diagram on page 10 for any sensor connector left unplugged during the disconnect. p. 12
How do you fix engine overheats after removing access panels or side panels during routine service?
Check the troubleshooting procedures on page 12 first, overheating right after panel work usually traces to a disturbed hose or wiring run rather than the cooling system itself. Verify every coolant and air hose was reconnected per the wiring diagram on page 10. Inspect the exhaust manifold bolts, which torque to 43 Nm (32 lb ft) on page 31, for looseness that can restrict flow and trap heat. Confirm no shop rag or panel gasket is blocking airflow before restarting. p. 31
How do you fix injector spray pattern is uneven or inconsistent across cylinders (error E03)?
Pull the injector assembly and bench test opening pressure against page 25: new units should open at 231 to 253 Bar (3350 to 3670 psi), used units no lower than 221 to 250 Bar. Check all 4 orifices per nozzle, each sized at 0.29 mm; a ragged or off-axis spray past this spec means the tip is worn or coked and the injector needs replacing, not cleaning. Confirm pressure difference between injectors stays under 10.34 Bar (150 psi) or expect uneven cylinder loading. p. 25
How quickly can I access this Case Corporation 1088 manual after buying?
Instant PDF download. You get the full 971-page searchable Service Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Are there any print restrictions on this Case Corporation 1088 manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Does this Case Corporation 1088 Service Manual have electrical diagrams?
Complete wiring diagrams are included, covering all electrical circuits, harness routing, and connector pinouts for the Case Corporation 1088.
