Looking for the Case 721E service manual PDF? All 970 pages of this factory service manual (OEM #84243980) cover the 721E Wheel Loader, from the engine and power train down to brakes and ride control. You get pressure checks and troubleshooting for the steering, transmission, brake, and hydraulic circuits, plus stall test procedures, standard torque tables, and a full error code section. Inside: removal and installation steps for the transmission, front and rear axles, brake accumulators, hydraulic pump, and loader control valve, with HFC-134a air conditioning system checks on top. Set the steering cylinder supply hoses at 60 N-m (44 pound feet); Grade 5 half-inch hardware gets 80 to 96 pound feet. Your loader is down and the clock is running. Grab this bookmarked, keyword-searchable PDF, pull it up on your phone, and get back in the seat.
What's Inside This Case 721E Manual
| System | Pages | Key Topics |
|---|---|---|
| General | 6-24 | General Torque Specifications, Fluids and Lubricants, Metric Conversion, Standard Hardware Torque Values |
| Engines | 25-64 | Section Index - Engines, Engine and Radiator Removal and Installation, Stall Tests, After Cooler, For Engine Repair, See the Engine Service Manual |
| Electrical | 65-299 | Section Index - Electrical, Removal and Installation of Starter and Alternator, Electrical Specifications and Troubleshooting, Batteries, Instrument Cluster |
| Steering | 300-455 | Removal and Installation of Steering Components, Steering Specifications, Pressure Checks, And Troubleshooting, Steering Cylinders, Center Pivot, Auxiliary Steering Motor and Pump |
| Power Train | 456-700 | Removal and Installation of Power Train Components, Transmission Specifications, Pressure Checks, And Troubleshooting, Transmission, Front Axle, Rear Axle, Drive Shafts |
| Brakes | 701-738 | Section Index - Brakes, Removal and Installation of Brake Components, Hydraulic Brake Troubleshooting, Brake Pump, Brake Accumulators, Parking Brake |
| Hydraulics | 739-871 | Removal and Installation of Hydraulic Components, Hydraulic Specifications, Troubleshooting, And Pressure Checks, Cleaning the Hydraulic System, Hydraulic Pump |
| Mounted Equipment | 872-965 | Air Conditioning Troubleshooting and System Checks, Cab and Cab Glass, Roll Over Protective Structure, Loader Attachment |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Grade 5 Bolts, Nuts, and Studs (1/4 inch) | 108 to 132 Pound Inches | p. 8 |
| Grade 5 Bolts, Nuts, and Studs (1/2 inch) | 80 to 96 Pound Feet | p. 8 |
| Stem side steering cylinder supply hose torque | 60 N m (44 pound feet) | p. 434 |
| Bottom side steering cylinder hose torque | 60 N m (44 pound feet) | p. 434 |
| Steering valve Pvfc mounting nuts torque | 110 Nm | p. 433 |
| Steering valve PVG32 mounting screws torque | 30 N m (22 pound feet) | p. 433 |
| Filter head screws | 25 Nm (221 pound inches) | p. 499 |
| Oil distribution cover screws | 25 Nm (221 pound inches) | p. 499 |
| Engine Oil Capacity with Filter Change | 14.2 liters | p. 14 |
| Engine Cooling System Capacity | 36.9 liters | p. 14 |
| Fuel Tank Capacity | 246 liters | p. 14 |
| Hydraulic System Total Capacity | 176.0 liters | p. 14 |
Case 721E Common Problems This Manual Covers
Case 721E steering gets noisy and loses assist under load, wheel turns hard at idle
Check reservoir oil level first; the system holds 176.0 liters total, and low oil starves the steering circuit before anything else fails. Inspect steering cylinder rod seals and supply hoses for leaks, retorquing loose cylinder hoses to 60 Nm (44 pound feet). If assist stays weak, run the steering pressure checks starting page 139.
Manual Section: Steering p. 139Auxiliary steering pump flow below spec, motor drawing excessive amperage during test
Test auxiliary steering output with a flowmeter. If flow measures below 24.6 L/min or motor current exceeds 315 A, remove the auxiliary steering motor and pump for bench testing. Follow the removal procedure in the Steering section beginning on page 139, and inspect the pump drive coupling for wear before condemning the motor.
Manual Section: Steering p. 139Hydraulic oil temperature warning, codes 1312 or 1313 during normal loader work
Verify oil level in the reservoir; total hydraulic capacity is 176.0 liters and running low overheats the circuit fast. Clean debris from the cooler fins and confirm the fan drive engages at temperature. Look up codes 1312 and 1313 in the error code reference, then check for internal leakage loading the pump.
Manual Section: Hydraulics p. 434Loader bucket lifts slowly and loses power under load, cycle times getting worse
Check pump differential pressure and loader pump cutoff settings using the pressure check procedures in the Hydraulics section starting page 434. Replace clogged filter elements, torquing the filter head screws to 25 Nm (221 pound inches). If pressures test low after adjustment, flowmeter-test the main pump for internal wear before pulling cylinders.
Manual Section: Hydraulics p. 434Hydraulic hoses seeping at steering valve connections, oil film on frame after work
Clean the fittings and identify the leak source before wrenching on anything. Torque the PVFC steering valve mounting nuts to 110 Nm, the PVG32 mounting screws to 30 Nm (22 pound feet), and the LS lines to 14 Nm (10 pound feet), all listed on pages 433 and 435. Replace O-rings that have taken a set instead of overtightening.
Manual Section: Hydraulics p. 433Frequently Asked Questions

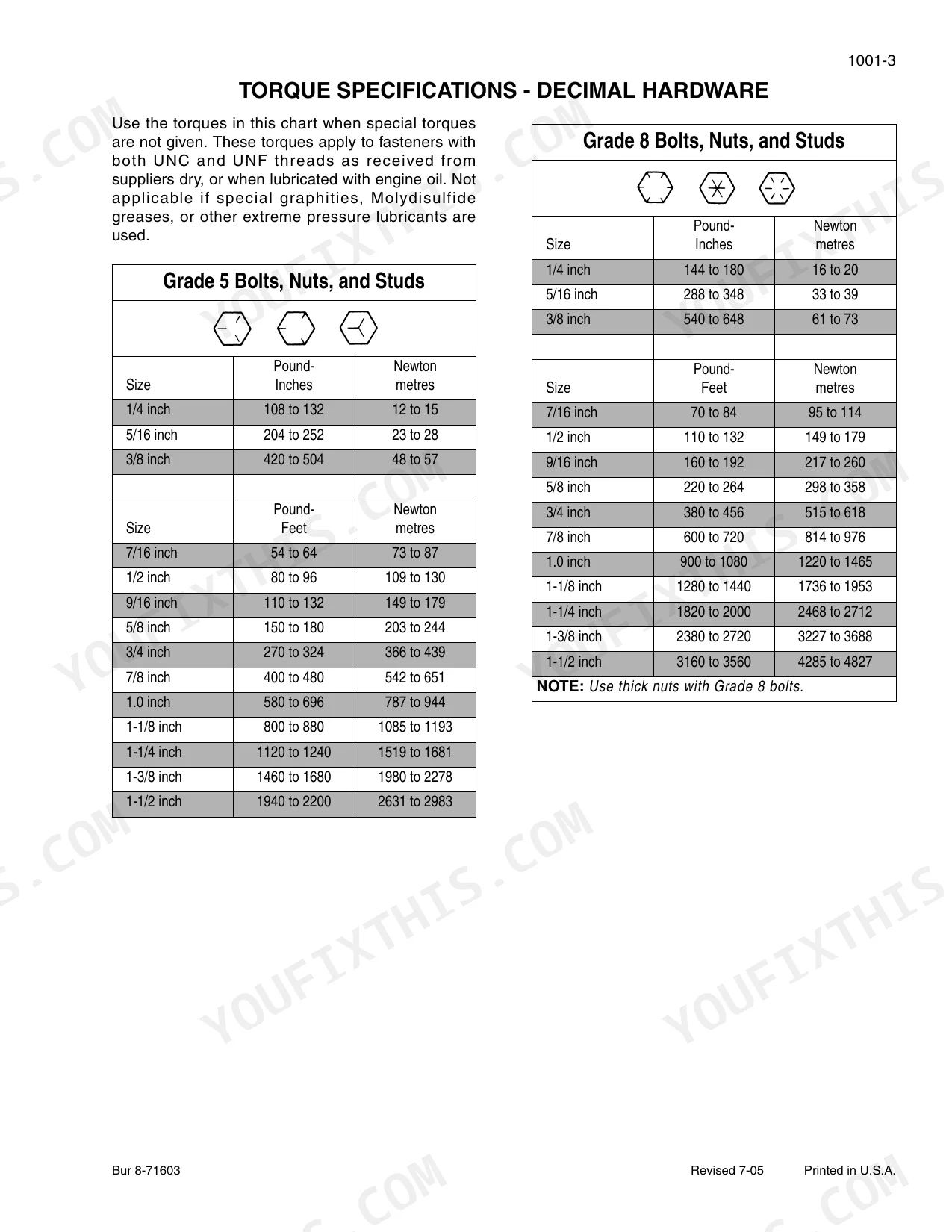

What are the torque specifications for Grade 8 bolts on the Case 721E?
For Grade 8 bolts, nuts, and studs, the torque specifications vary by size. For example, a 1/2 inch bolt requires 110 to 132 pound-feet (149 to 179 Newton metres), while a 1.0 inch bolt requires 900 to 1080 pound-feet (1220 to 1465 Newton metres). p. 8
What is the engine oil capacity for the Case 721E?
The engine oil capacity for the Case 721E, including the filter change, is 14.2 liters (15 U.S. quarts). p. 14
What does error code 3278 mean on a Case 721E?
Error code 3278 indicates a supply voltage CJ940 upper limit fault. This is caused by excessive voltage supply of a CJ940 component, such as high battery voltage, defective wiring, or an internal defect of the EDC. You should check the battery for correct voltage supply and check the wiring. p. 15

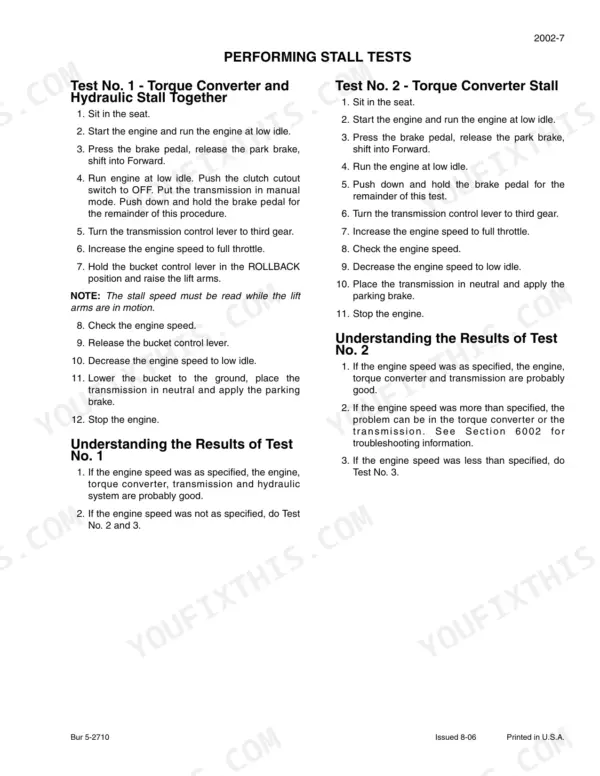

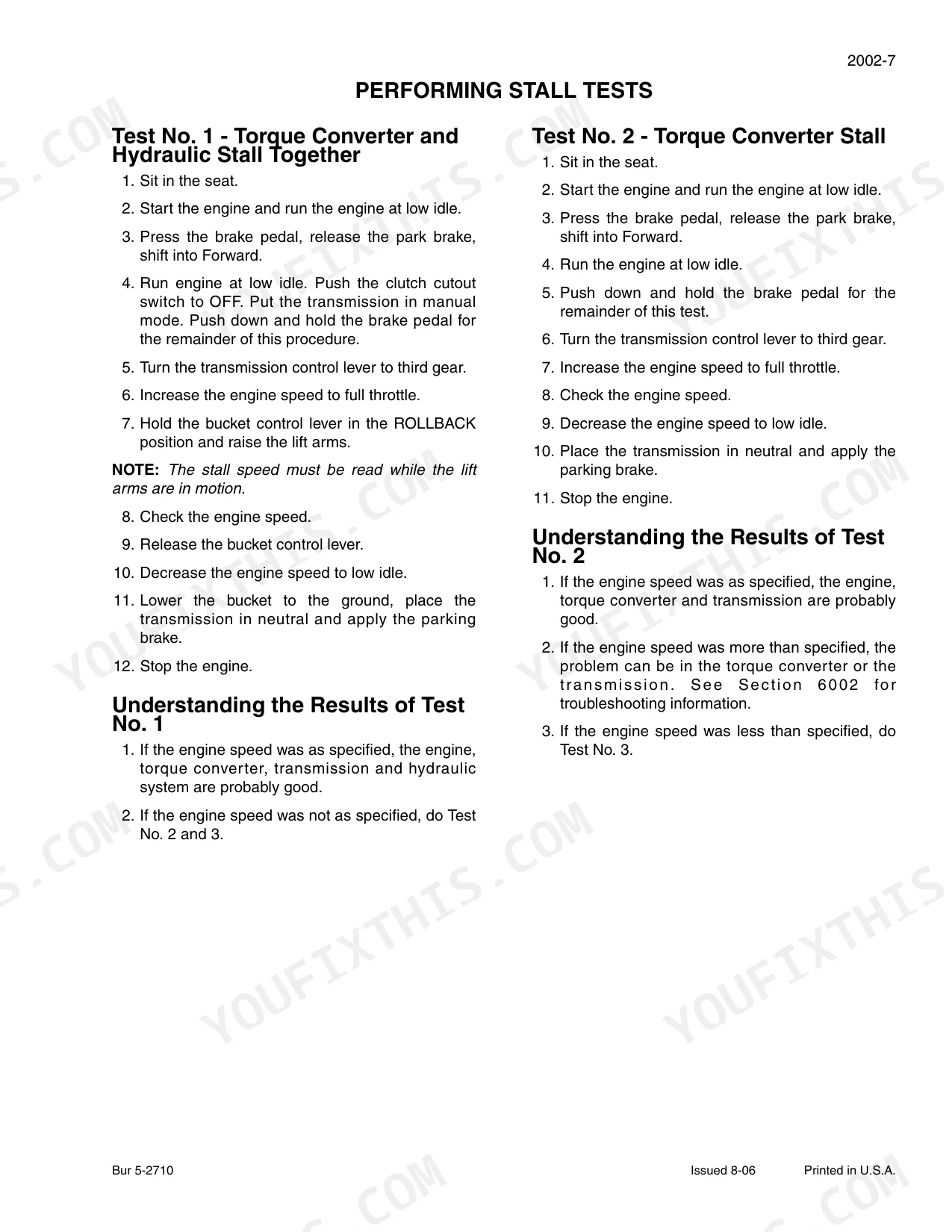

How do I perform a stall test on the Case 721E?
To perform a stall test, you must first heat the oil to operating temperature (82° to 104°C for torque converter oil). Then, with the engine at full throttle, work against the torque converter and/or hydraulic system. The stall speed for the torque converter and hydraulic system together should be 1600 to 1900 rpm. p. 49
What is the procedure for bleeding the brake system on the Case 721E?
After charging the accumulators, pump the brake pedal 20 times to discharge the system. Open all four wheel end bleed screws, start the engine at low idle, and depress the brake pedal until oil flows clear without bubbles. Close the bleed screws and repeat the process for each axle. p. 25
Is this Case 721E manual a download or a disc?
Instant PDF download. You get the full 970-page searchable Service Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Can I print this Case 721E manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
