This 205-page service manual is the factory reference for the Cruz Crane, covering the complete mechanical, air, electrical, and hydraulic systems. You get full hydraulic schematics tracing fluid paths through the main system, steering, outriggers, swing, hoist, and winch circuits, plus wiring diagrams for the charging circuit, control circuits, lights, and collector ring. A thorough troubleshooting section pairs with step-by-step procedures for the air brake system, transmission shift linkage, and turntable swing. Top off the engine crankcase to 32 liters; the back-of-book charts give you torque values for Grade 5, Grade 8, Special DMC, and JIC swivel nut fasteners to exact factory spec. Swing faults, brake failures, hydraulic drift: stop chasing symptoms without the right schematic. Bookmarked by system; open on any device and pull up the spec before you touch a wrench.
What's Inside This Drott 1500, 1800, 2000 Manual
| System | Pages | Key Topics |
|---|---|---|
| General | 4-7 | Safety Precautions, Nomenclature, Introduction, Directional Reference, Parts and Service |

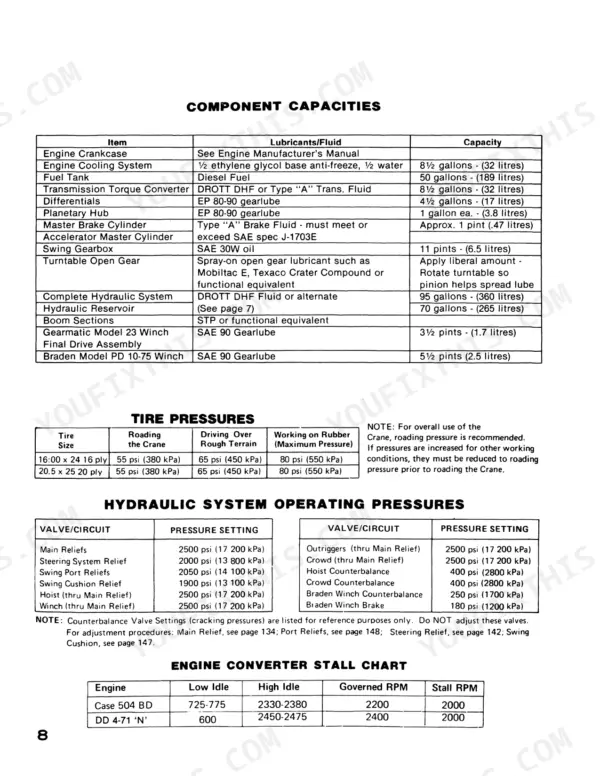

| Scheduled Preventive Maintenance | 8-15 | Lubricant and Fluid Recommendations, Component Capacities |

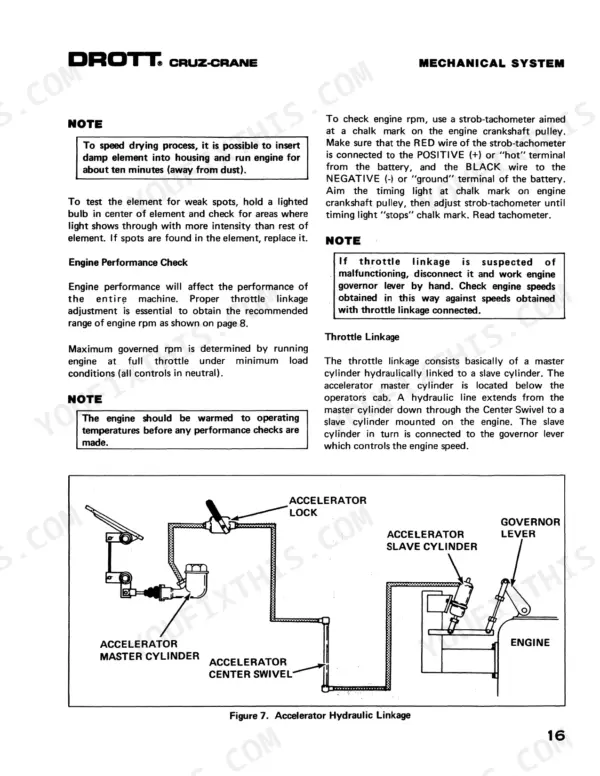

| The Mechanical System | 16-94 | Engine and Cooling System, Accelerator Linkage, Torque Converter, Transmission and Shift Linkage, Axles and Brakes, Turntable Swing, Boom |
| The Air System | 95-117 | Air Supply System, Service Brake System, Parking Brake System, High-Low Range Shift System, Air Compressor, Control Valves |
| The Electrical System | 118-133 | The Charging Circuit, Control Circuits, Lights and Instrumentation Circuits, Collector Ring, Wiring Harness |

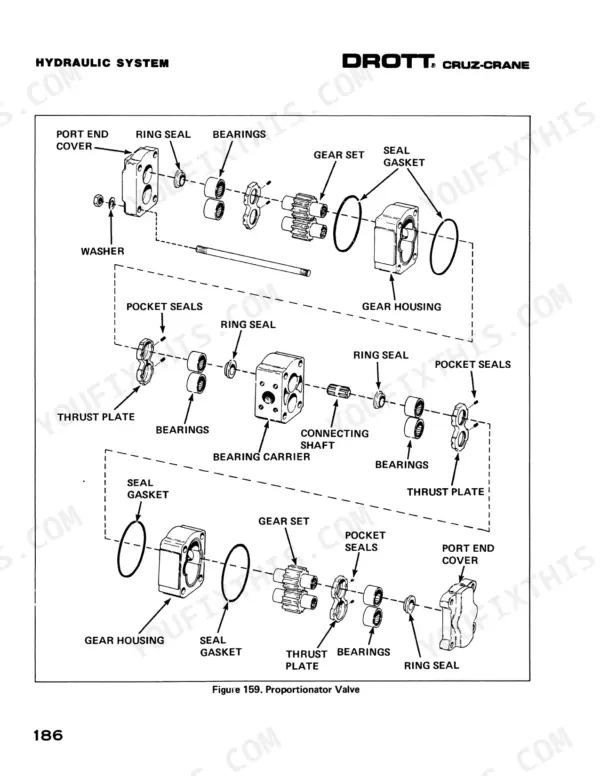

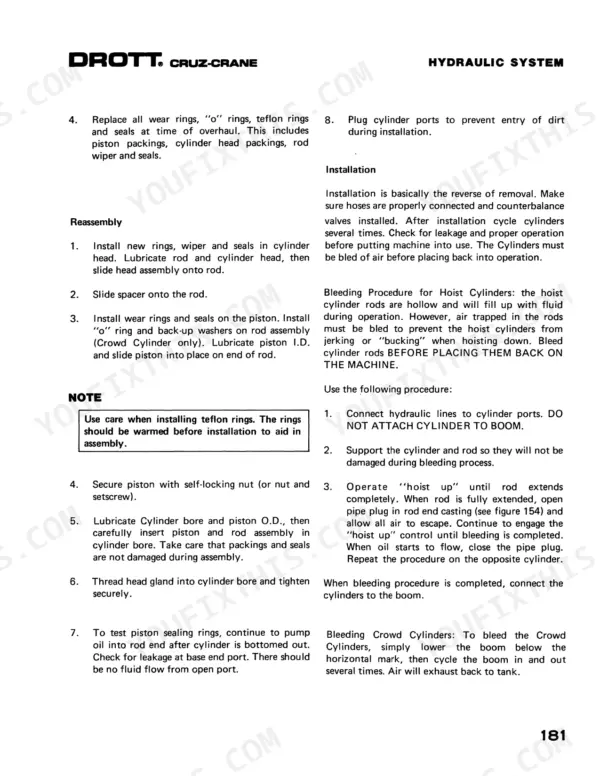

| The Hydraulic System | 134-194 | Main Hydraulic System, Steering System Hydraulics, Outrigger Hydraulics, Swing Hydraulics, Hoist Hydraulics, Winch Hydraulics |
| 195-205 |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine Crankcase Capacity | 32 L | p. 9 |
