Part of the Case Repair Manuals.
All 76 pages of this Farmall 460, 560, and International 560 Operators Manual cover every operating procedure, maintenance schedule, and system-by-system adjustment IH documented for these row-crop tractors. Inside: wiring diagrams, exploded wheel assembly views, and a Hydra-Touch section walking through pump, fluid filter, cylinders, and self-sealing coupling connections. Your lubrication guide breaks into four service intervals (10, 50, 100, and 150 hours) with exact fluid specs for the engine crankcase, transmission, rear axle housing, and steering gear. Torque the rear wheel hub clamp bolts to 390-460 foot-pounds on the Farmall 460 and 560; International 560 hub retainer cap screws go to 280-320 foot-pounds. Your tractor isn't going to fix itself. Search any keyword, grab the factory spec, and get back in the seat.
What's Inside This Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 9 | Tractor Serial Number, Location of the Tractor Serial Number, Terms of Location, Engine Serial Number |
| Description | 10-11 | Left Front View of the Farmall 460 Tractor, Right Front View of the Farmall 560 Tractor, Right Front View of the International 560 Tractor |

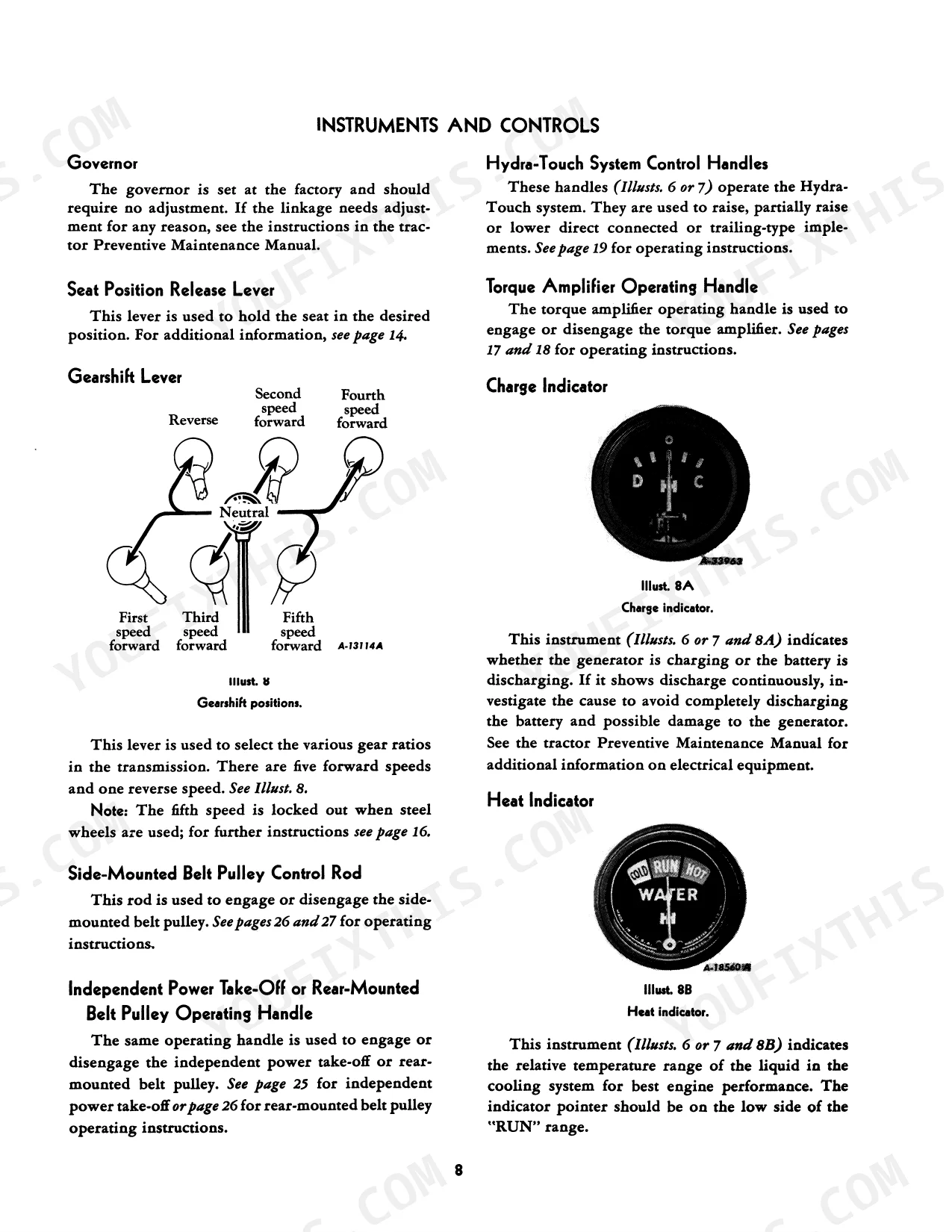

| Instruments and Controls | 12-15 | Brake Pedals, Clutch Pedal, Gearshift Lever, Ignition Switch, Engine Speed Control Lever, Oil Pressure Gauge |

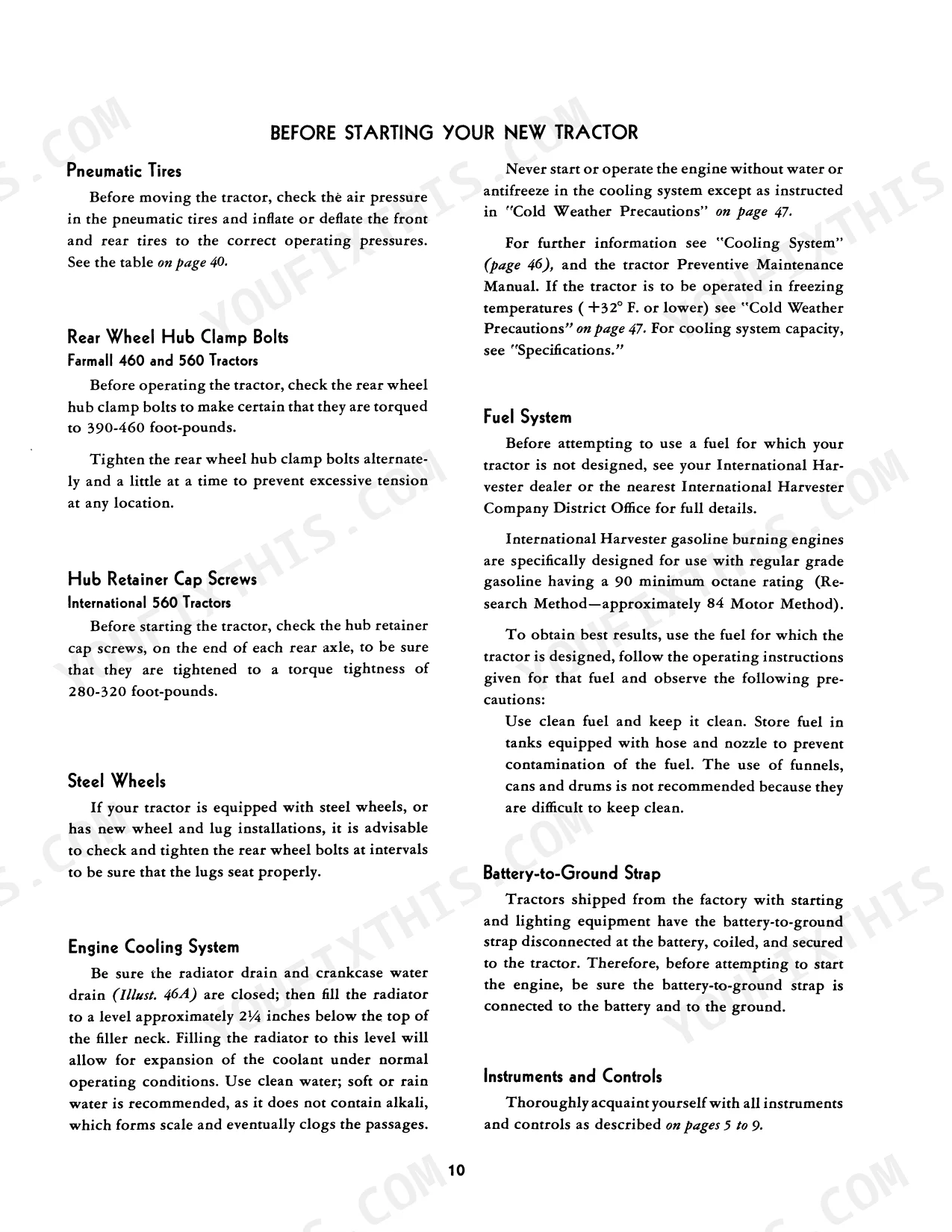

| Before Starting Your New Tractor | 16 | Lubrication, Pneumatic Tires, Rear Wheel Hub Clamp Bolts, Fuel System, Engine Cooling System, Battery-to-Ground Strap |
| Preparing Your Tractor for Each Day's Work | 17 | Air Cleaner Cap, Air Cleaner Oil Cup, Cooling System, Lubrication Points, Fuel System, Hydra-Touch System |

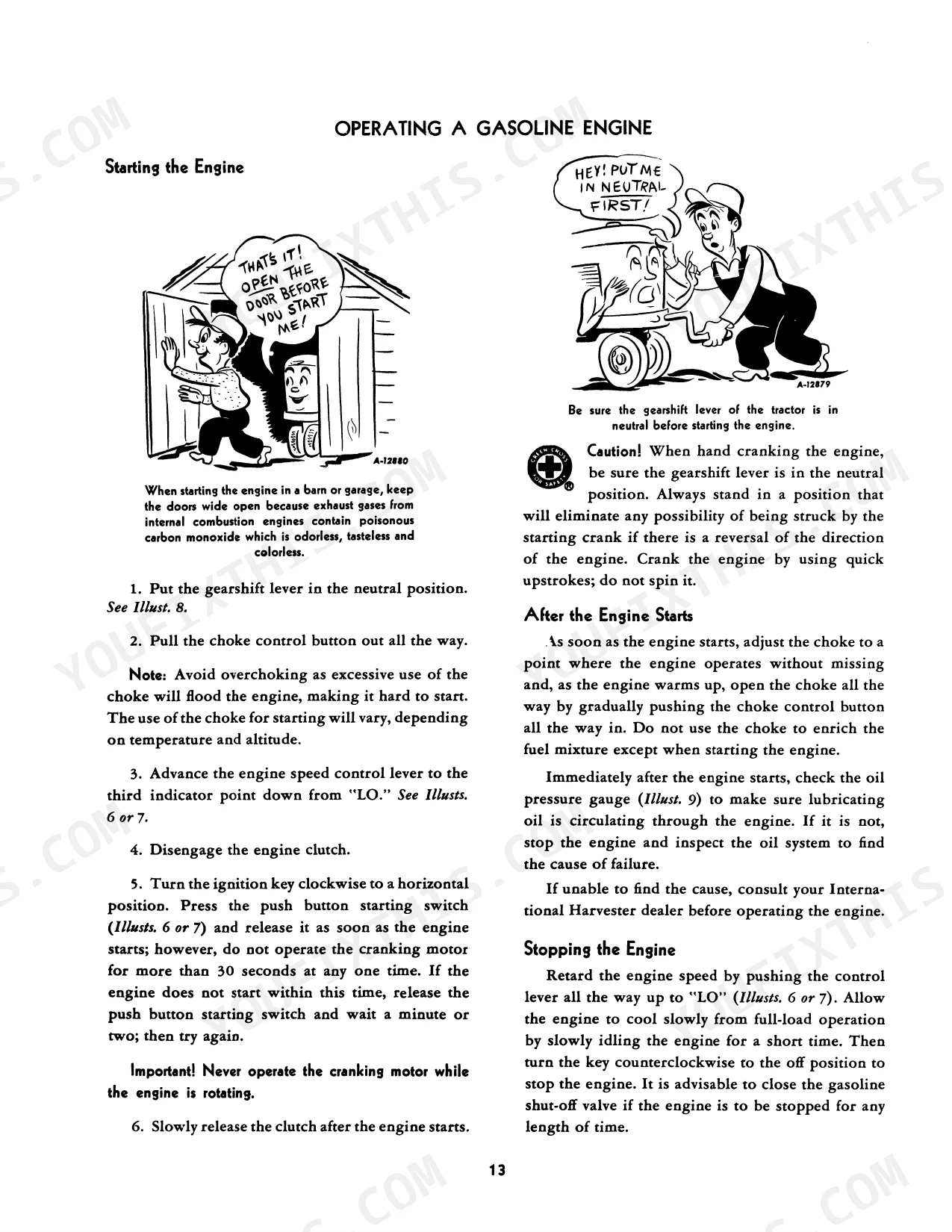

| Operation a Gasoline Engine | 18-19 | Fuel System, Radiator Shutter, Starting the Engine, After the Engine Starts, Stopping the Engine |
| Driving the Tractor | 20-22 | Adjusting the Seat, Starting the Tractor, Steering the Tractor, Stopping the Tractor, Towing the Tractor, Fifth Speed |
| Operating the Torque Amplifer | 23-24 | Engaging or Disengaging the Torque Amplifier, Torque Amplifier Operating Handle, Over-Center Engine Clutch |

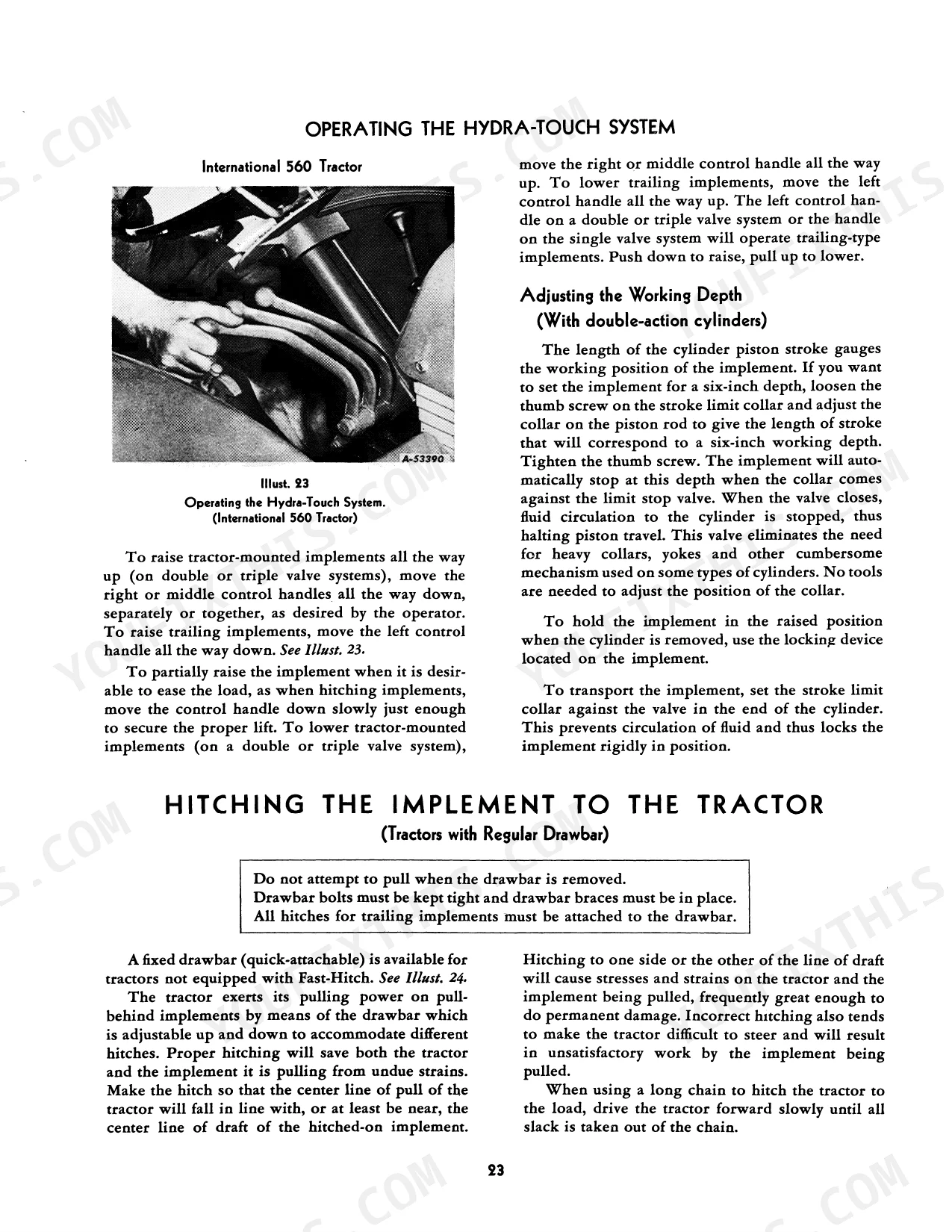

| Operating the Hydra-Touch System | 25-28 | Pump, Fluid Filter, Cylinders, Control Handles, Connecting Hydraulic Self-Sealing Couplings, Adjusting the Working Depth |
| Hitching the Implement to the Tractor | 29-30 | Drawbar Adjustment, Drawbar Adjustment on the Farmall 460 and 560 Tractors, Drawbar Adjustment on the International 560 Tractor |
| Operating the Independent Power Take-Off | 31 | Engaging or Disengaging the Independent Power Take-Off, Planetary-Type, Clutch-Type |
| Operating the Belt Pulley | 32-33 | Side-Mounted Belt Pulley, Rear-Mounted Belt Pulley, Changing the Belt Pulley to Right or Left, General Instructions |

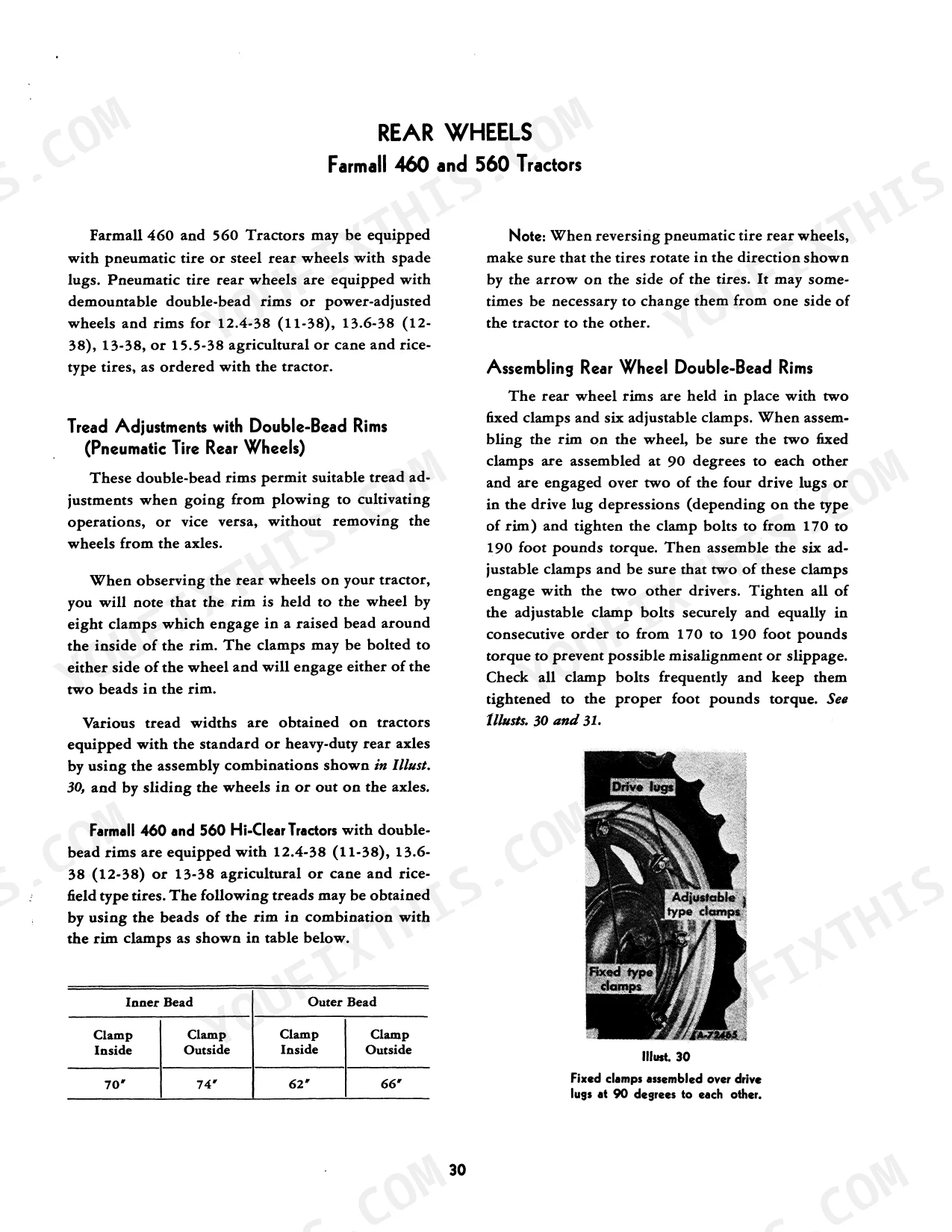

| Wheels | 34-41 | Front Wheels, Rear Wheels, Wheel Treads, Adjusting the Toe-In, Adjustable Wide Tread Front Axle, Power-Adjusted Rear Wheels |
| Weights | 42-44 | Front Bolster Weight, Front Wheel Weights, Rear Wheel Weights (Two-Piece), Rear Wheel Weights (One-Piece) |
| Pneumatic Tires | 45-47 | Inflation, Care of Tires, Mounting Tires on the Rims, Liquid Weight, Putting Liquid Into the Tube, Valve Stem Mounting Cones |

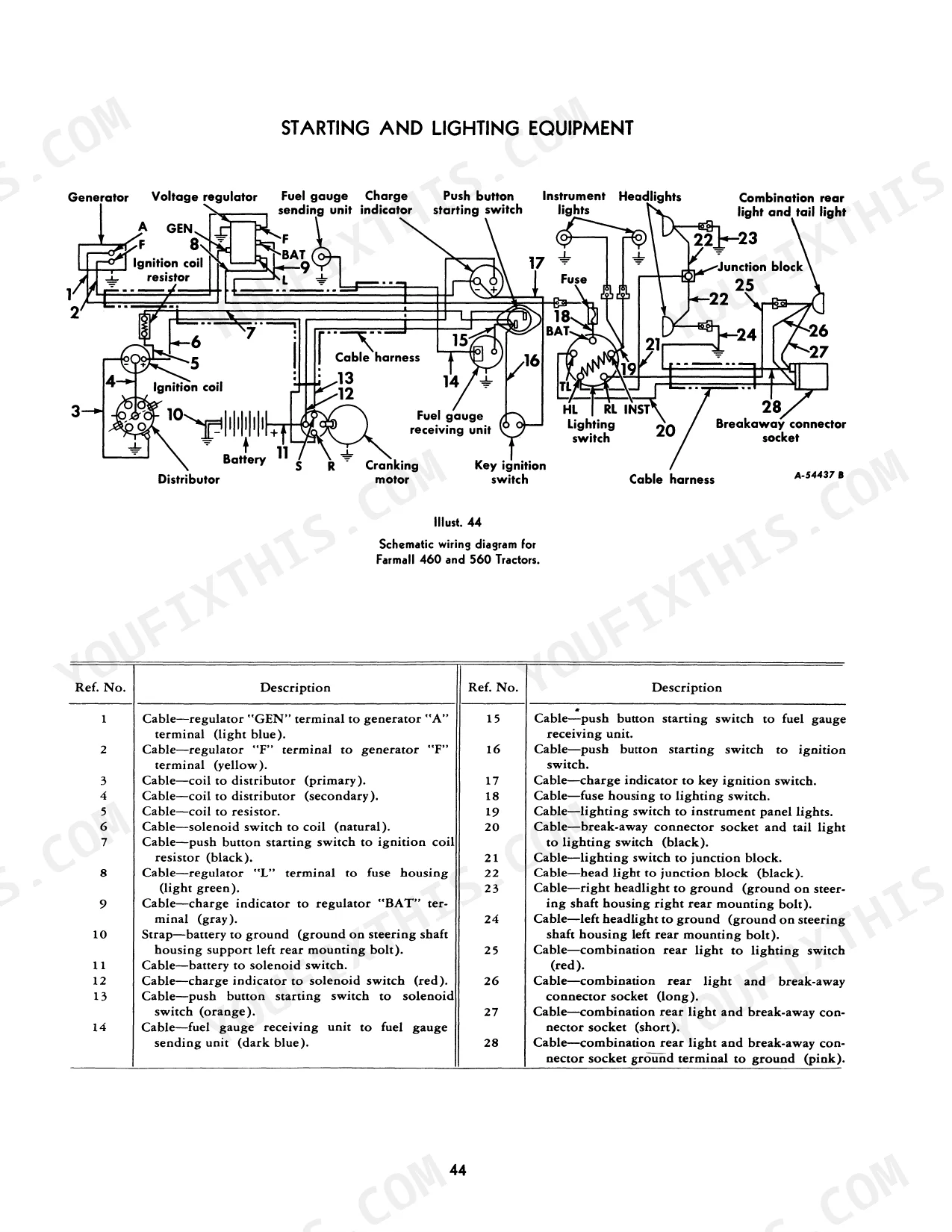

| Starting and Lighting Equipment | 48-51 | Generator and Regulator, Instrument Lamp, Headlights, Break-Away Connector Socket, Combination Rear Light and Taillight, Fuse |
| Cooling System | 52 | Radiator Cap, Filler Neck, Overflow Pipe, Radiator Drain, Crankcase Water Drain Cock, Thermostat |
| Cold Weather Precautions | 53 | Fuel System, Lubrication, Storage Battery, Cooling System, Antifreeze Solutions, Radiator Drain Cock |
| General Engine Lubrication | 53 | Pressure-Feed Lubrication System, Gear-Type Oil Pump, Full-Flow Oil Filter, Oil Filler Cap, Oil Level Gauge, Oil Pressure Gauge |
| Lubricating Oil and Grease Specifications | 54 | Engine Oil, Gear Lubricant, Lubrication Fitting Grease, Pressure-Gun Grease, Chassis Lubricant, Viscosity |
| Lubrication Table | 55-56 | Engine Crankcase, Air Cleaner Oil Cup, Transmission and Differential Case, Rear Axle Housing, Steering Gear Housing, Lubrication Fittings |
| Lubrication Guide | 57-60 | Daily or After Every 10 Hours of Operation, After Every 50 Hours of Operation, After Every 100 Hours of Operation, After Every 150 Hours of Operation |

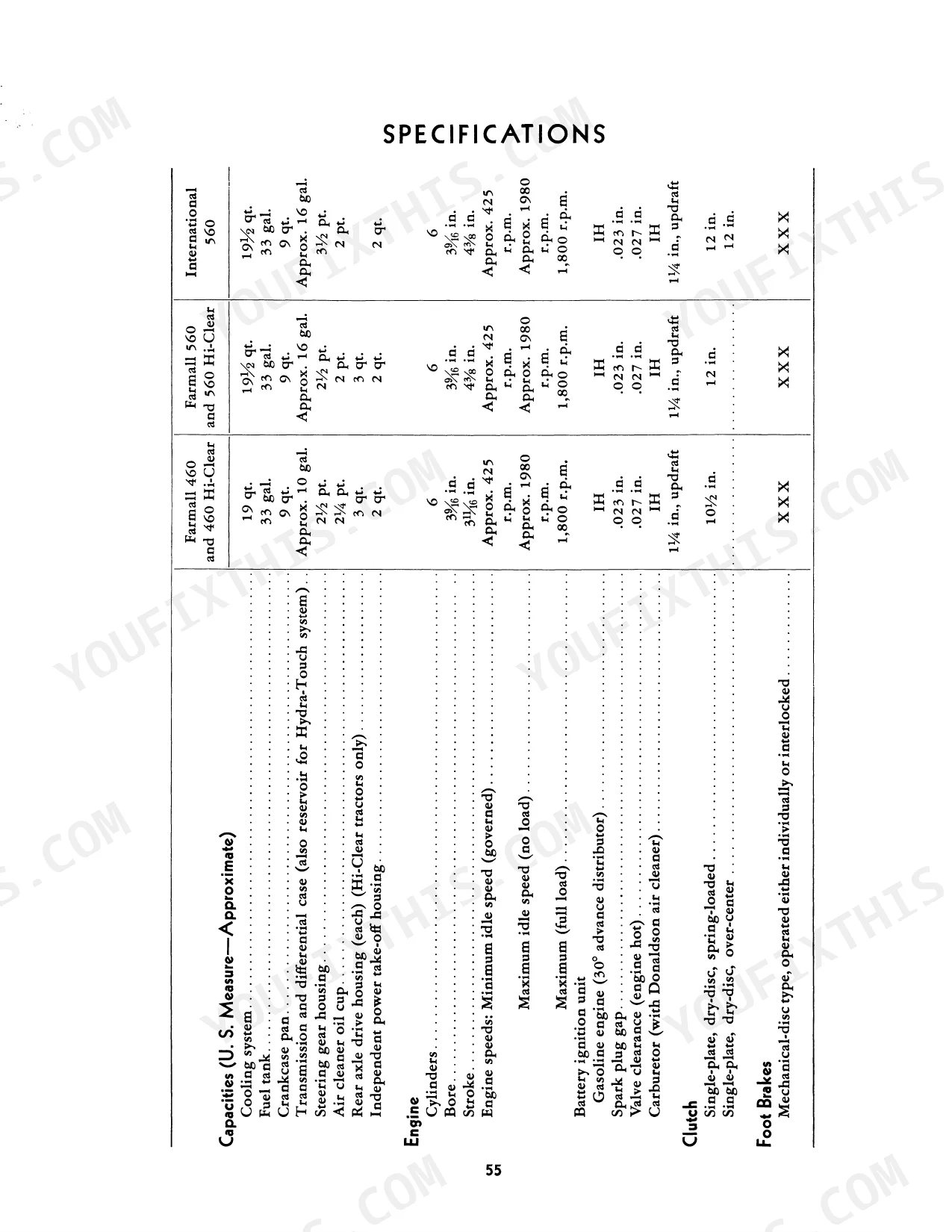

| Specifications | 61-67 | Capacities, Engine, Clutch, Foot Brakes, Belt Pulley, Ground Speeds |
| Extra Equipment and Accessories | 68 | Air Pipe Extension, Belt Pulley, Drawbar, Hydraulic Power Steering, Rear Wheel Hubs, Weights |

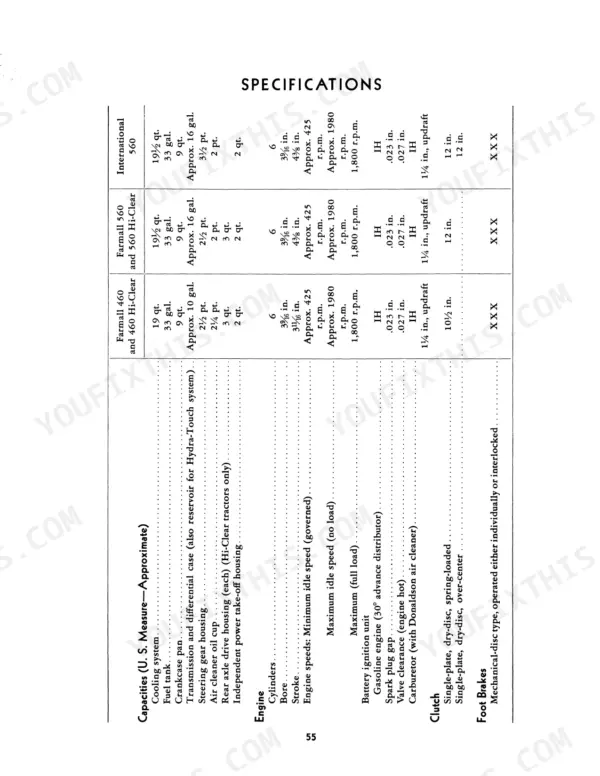

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Farmall 460, Farmall 560 | ||
| Rear wheel hub clamp bolts torque | 390-460 foot-pounds | p. 16 |
| International 560 | ||
| Hub retainer cap screws torque | 280-320 foot-pounds | p. 16 |
| All Models | ||
| Engine crankcase capacity | 9 qt. | p. 55 |
| Farmall 460 | ||
| Air cleaner oil cup capacity, Farmall 460 | 2 1/4 pt. | p. 55 |
| Transmission & differential case capacity (with Hydra-Touch/Torque Amplifier), Farmall 460 | Approx. 10 gal. | p. 55 |
| Farmall 560, International 560 | ||
| Air cleaner oil cup capacity (Farmall 560, International 560) | 2 pt. | p. 55 |
| Transmission & differential case capacity (with Hydra-Touch/Torque Amplifier) (Farmall 560, International 560) | Approx. 16 gal. | p. 55 |
