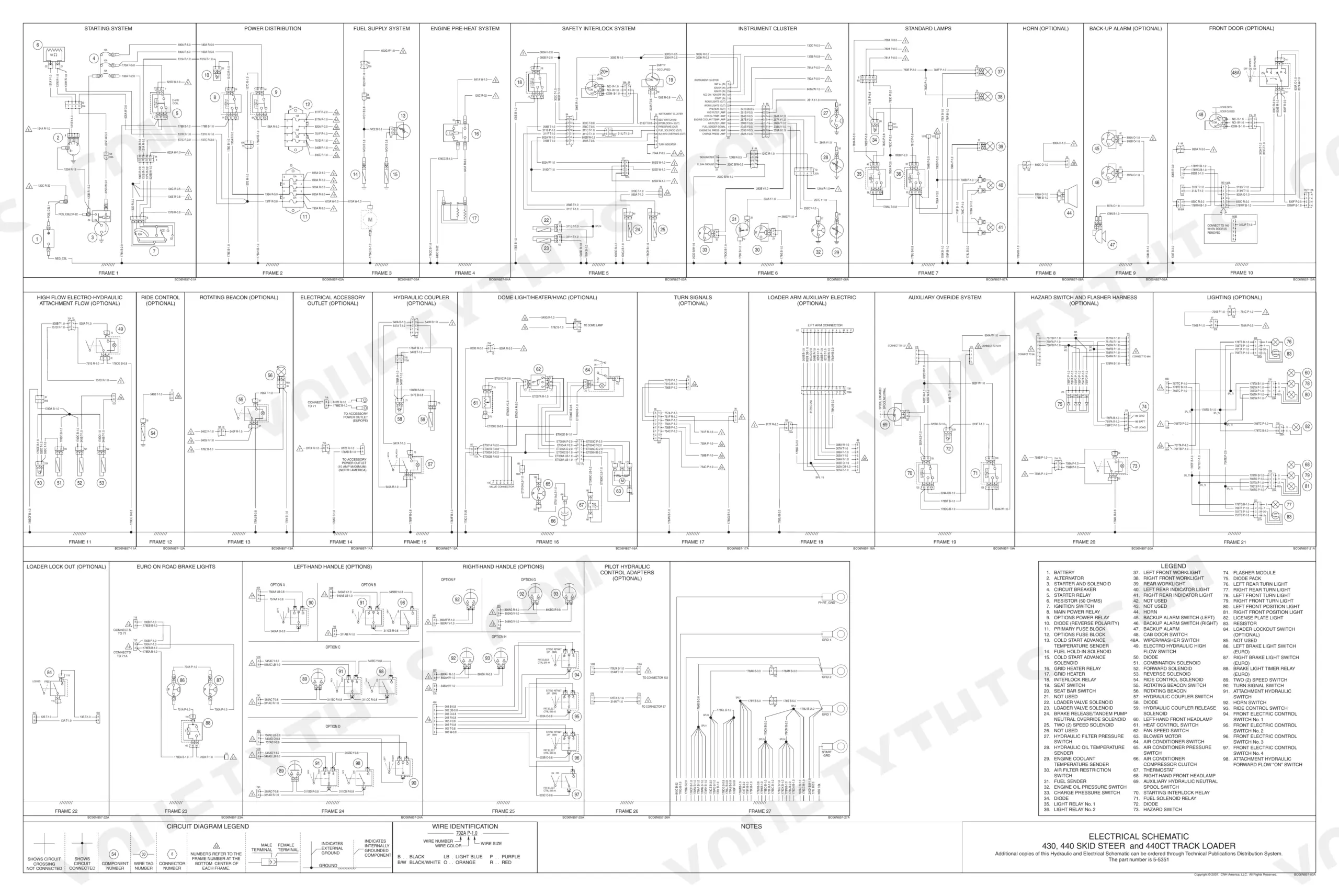

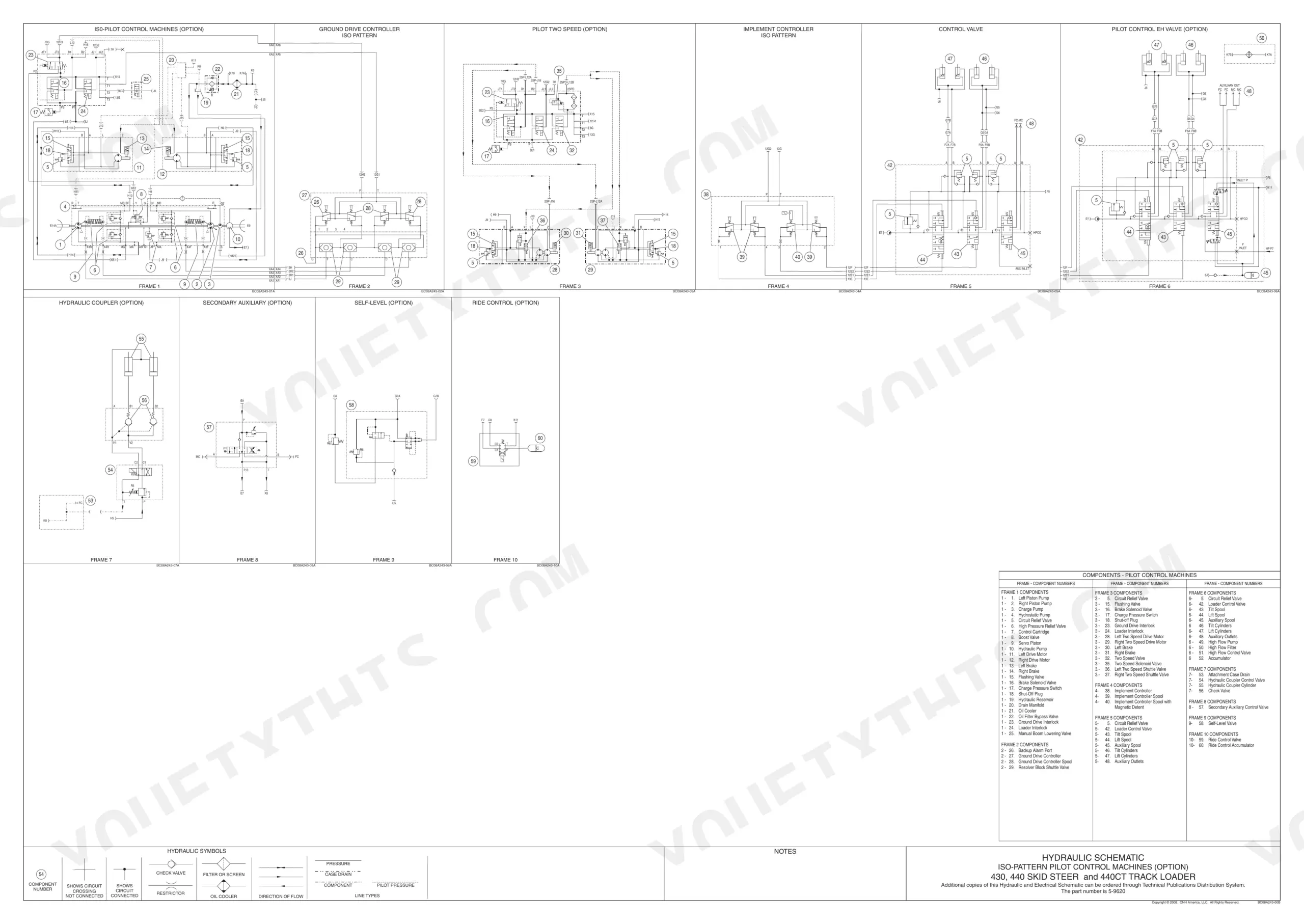

Stop searching for a reliable Case 430 repair manual pdf because this 976-page Case Skid Steer and Compact Track Loader service guide (OEM Bur 87634767) completely maps out the 430, 440, and 440CT machines. Inside, you get full hydraulic schematics detailing the gear pump and loader control valve, plus factory wiring diagrams to trace down stubborn electrical faults. Open the power train section for a massive breakdown of the drive motors, piston pumps, and hydrostatic system troubleshooting steps. Lock down the loader lift cylinder piston bolt to 365-460 Nm, and verify your high-pressure relief valve is torqued to 160 Nm before running the system air removal procedure. Every hour your machine sits broken costs you money. Grab this bookmarked digital download, pull it up on your tablet right in the shop, and get your loader moving again.
What's Inside This Case 430–440 Repair Manual

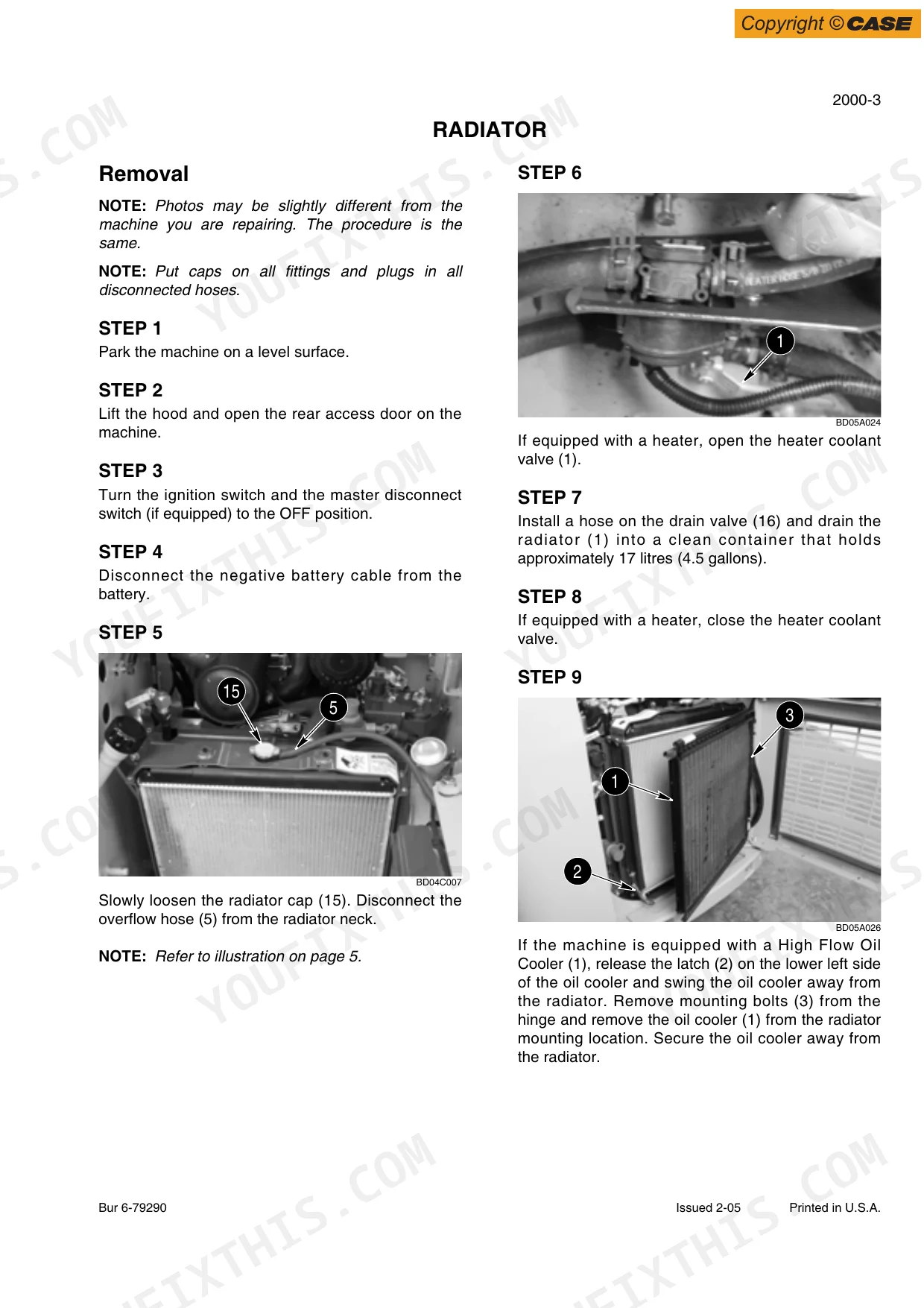

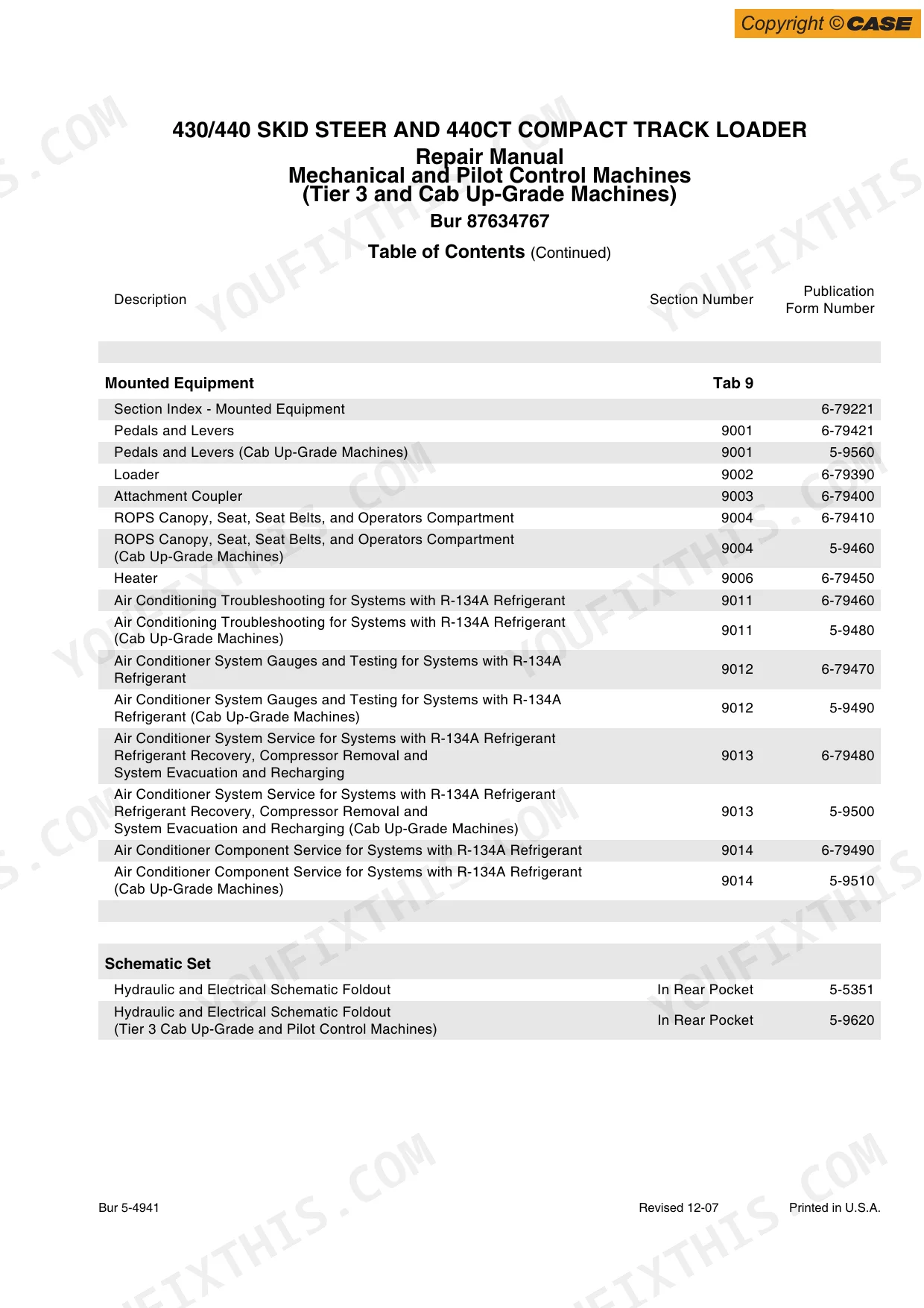

| System | Pages | Key Topics |
|---|---|---|
| General | 5-30 | Section Index - General, Fluids and Lubricants (Capacities and Lubricants, Environment, Engine Lubrication, Engine Oil Selection, Oil Viscosity/Temperature Ranges) |
| Engine | 31-84 | Radiator, Fan Assembly, Muffler Assembly, Air Filter Assembly, Engine Mounts, Engine Electrical Components |
| Fuel System | 85-86 | - |
| Electrical System | 87-330 | - |
| Tracks | 331-352 | Drive Sprocket, Idler Wheels, Rollers, Track Tensioning Mechanism |
| Power Train | 353-570 | Hydrostatic System, Drive Coupling, Piston Pump, Drive Motors, Sprockets, Chains, And Axle Assemblies, Wheels and Tires |
| Brakes | 571-582 | Specifications, Park Brakes, Brake Solenoid Valve |
| Hydraulics | 583-706 | Hydraulic System Troubleshooting and Schematics, Cleaning the Hydraulic System and Hydrostatic System, Gear Pump, Loader Control Valve, Cylinders, Flat Faced Couplers |
| Mounted Equipment | 707-976 | - |

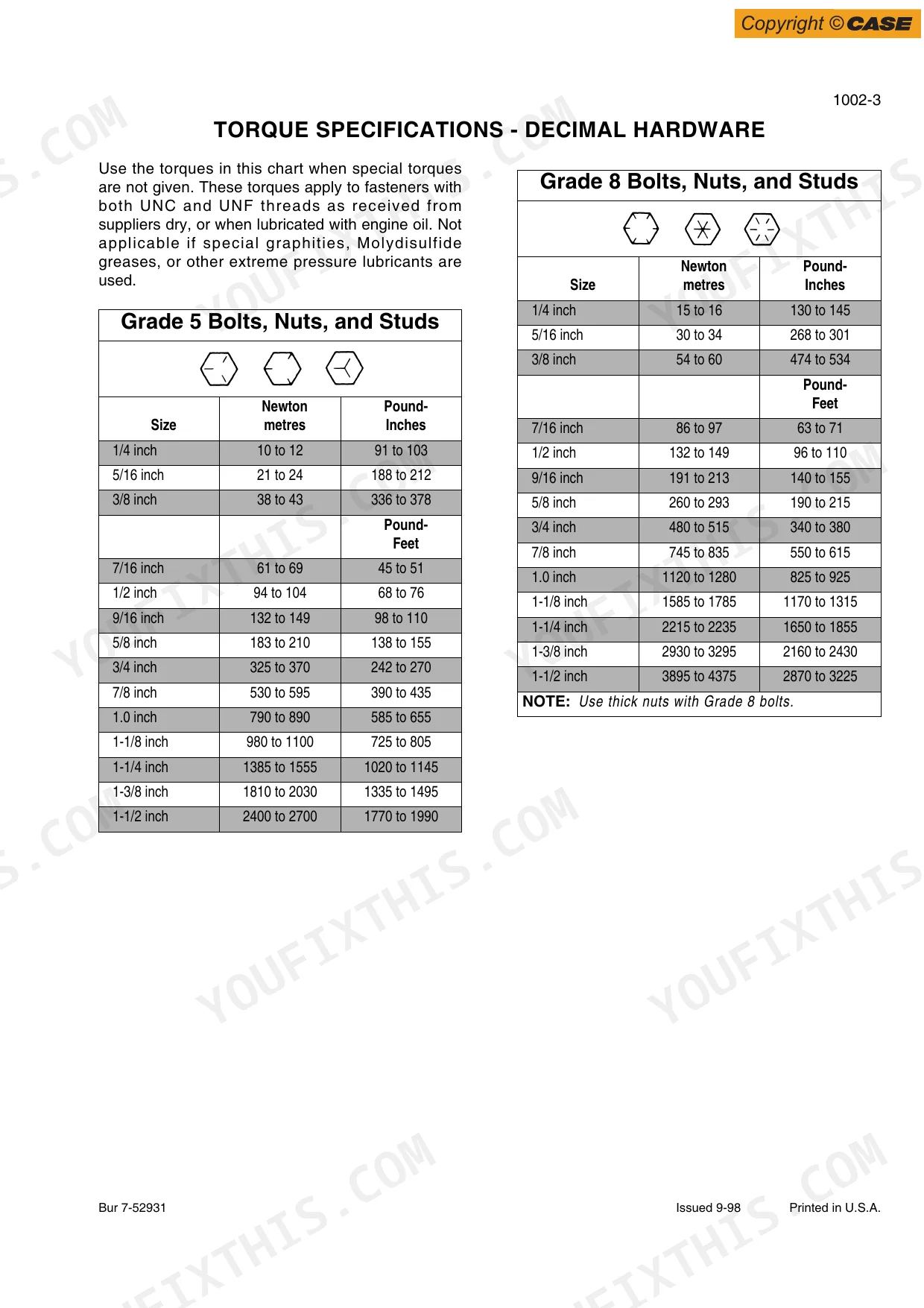

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| 430 (North American and European Machines), 440/440CT (North American and European Machines) | ||
| High Pressure Relief Valve torque | 160 ± 10 Nm (110-125 pound-feet) | p. 487 |
| Low Pressure Relief Valve torque | 70 Nm (52 pound-feet) | p. 487 |
| All Models | ||
| Loader Lift Cylinder Piston Bolt Torque | 365 to 460 Nm (270 to 340 pound-feet) | p. 683 |
| Loader Bucket Cylinder Piston Bolt Torque | 585 to 720 Nm (432 to 531 pound-feet) | p. 683 |
| Hydraulic System - Total System Capacity | 50.2 litres | p. 15 |
| Tier 3 Engines | ||
| Fuel Tank Capacity | 88.2 litres | p. 15 |
| 430/440/440CT Tier 3 Engines | ||
| Cooling System Capacity | 11.4 litres | p. 15 |
| 430 Tier 3 Machines | ||
| Engine Crankcase Oil (430 Machines) Capacity with filter change | 8.5 litres | p. 15 |
Case 430–440 Common Problems This Manual Covers
Case 430 skid steer lift arms drooping about one inch per fifteen minutes when the machine is off
Inspect loader lift cylinder piston seals. Torque the piston bolt to 365 to 460 Nm (270 to 340 pound-feet) as instructed on page 683. If seals leak, replace them and bleed the system. Operate the controls to completely extend and retract the cylinders to remove trapped air.
Manual Section: Hydraulic System Troubleshooting p. 683Machine completely immobile and will not move forward or reverse when drive controls are fully engaged
Inspect the hydrostatic drive motor mounting bolts and torque them to 122 Nm plus an additional 60 degrees. Disengage the park brake and move the machine to remove any air from the hydrostatic system as shown on page 430. Verify the brake solenoid wiring harness is fully connected.
Manual Section: Hydrostatic System Troubleshooting p. 430Intermittent electrical failure with starter motor clicking or failing to turn over in cold weather

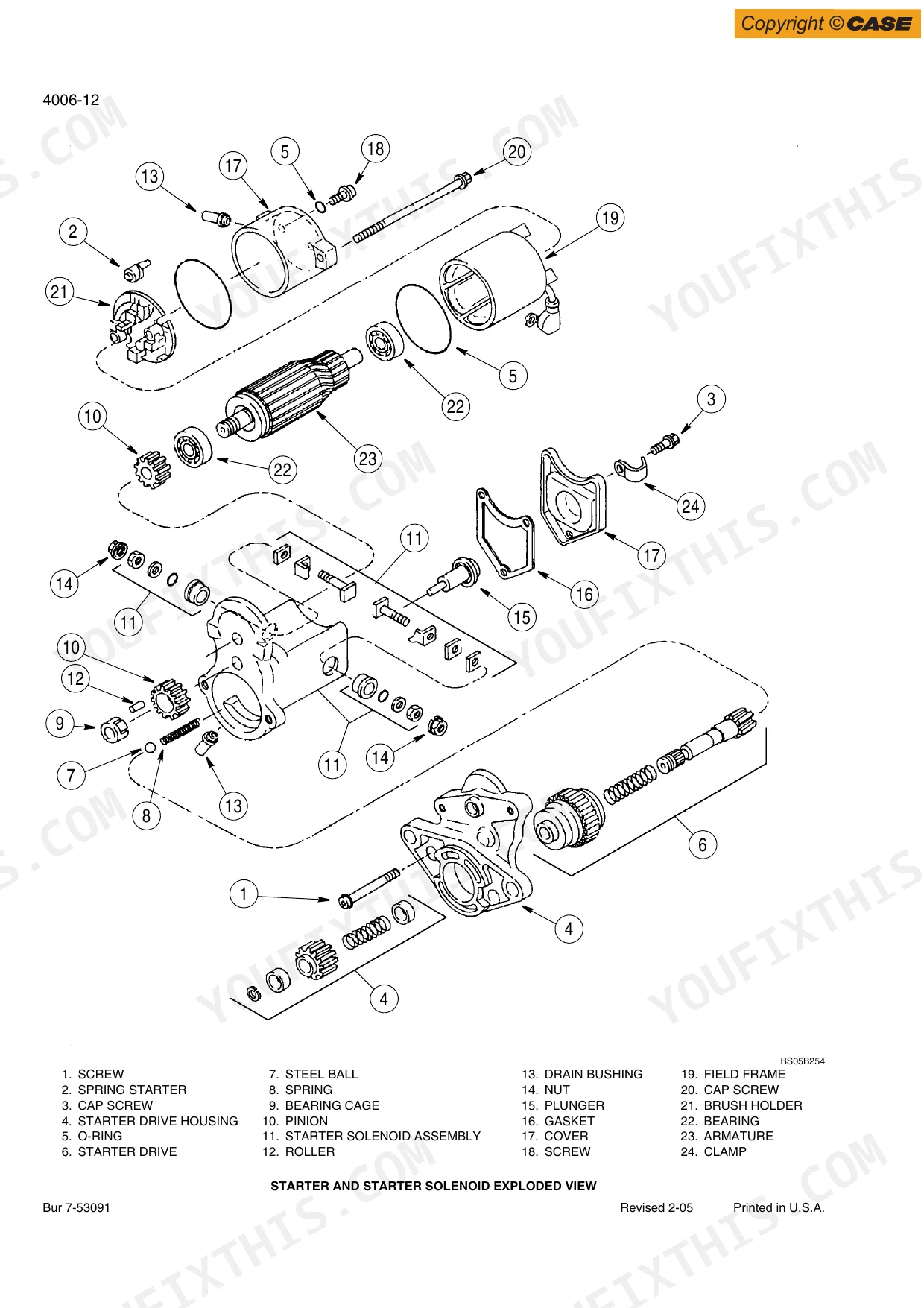

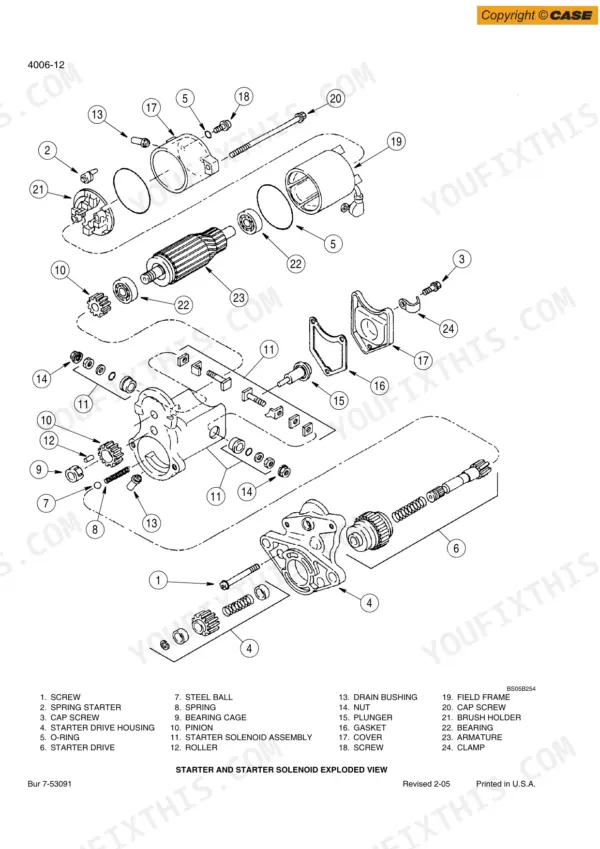

Test the main power and start interlock relays. Replace the main power relay if defective, referencing page 99. Bench test the starter motor and verify the no-load test rating meets the 2.7 KW specification found on page 315. Clean all instrument cluster pin connections to prevent voltage drops.
Manual Section: Electrical System Troubleshooting p. 315Loader functions feeling weak or completely failing to lift heavy loads during normal daily operation
Measure the loader control valve main relief pressure. Verify the pressure reads 20,700 ± 345 kPa as listed on page 587. If the circuit relief valves fail to meet this specification, replace them immediately. These valves are not adjustable and require full replacement if the indication is incorrect.
Manual Section: Hydraulic System Troubleshooting p. 587Frequently Asked Questions
How can I modify the engine hours on a Case 430?
You can modify the engine hours through the Electronic Instrument Cluster (EIC) setup menu. This requires a coded entry. To do so, press and release the work light push button four times until "HOUR" is displayed, then push and release the park brake button. The word "UNLOCK" will appear for two seconds, prompting for a four-digit code. After entering the code, you can enter the desired engine hour value using the road light and work light buttons, then save it with the park brake button. You must contact your CNH Technical Services Adviser to obtain the UNLOCK CODE before changing the Engine Hourmeter. p. 192
What are the torque specifications for the pump flange to flywheel cover bolts on machines equipped with pilot controls?
For machines equipped with pilot controls, the pump flange to flywheel cover bolts should be tightened to a torque of 217 to 240 Nm (160 to 170 pound-feet). p. 419
What is the engine oil capacity for Case 430 machines with a filter change?
For Case 430 machines, the engine crankcase oil capacity with a filter change is 8.5 litres (9 quarts). The recommended oil is Case Akcela No. 1 Engine Oil SAE 15W-40 (API service CH-4). p. 15
What is the fuel tank capacity for the 430/440 SKID STEER and 440CT COMPACT TRACK LOADER?
The fuel tank capacity for the 430/440 SKID STEER and 440CT COMPACT TRACK LOADER is 88.2 litres (23.3 U.S. gallons). Refer to page 5 for diesel fuel specifications. p. 15
What do I get after purchasing this Case 430 & variants manual?
You get a 976-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print this Case 430 & variants manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.

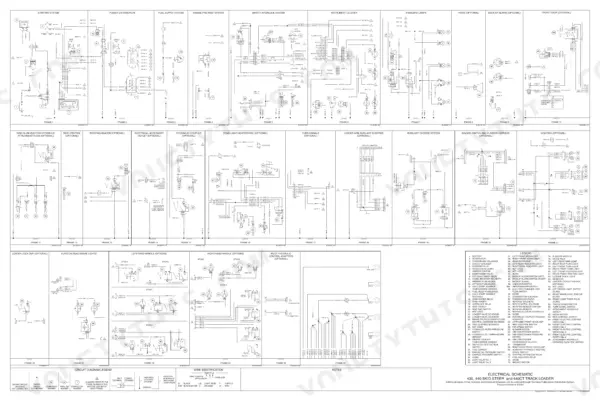

Are electrical wiring diagrams included in this Case 430 & variants manual?
Yes, this Case 430 & variants Repair Manual includes complete electrical wiring diagrams, wire routing, and connector pinouts.
