All 869 pages of this Case 75XT Service Manual (OEM #7-11463) exist for one reason: getting your Skid Steer back to factory spec without the guesswork. You get full electrical "How It Works" sections paired with wiring diagrams, a hydrostatic and hydraulic troubleshooting walkthrough, and exploded views covering everything from the gear pump to the loader control valve. Set hydrostatic pump relief pressure between forward and reverse at 34,500 kPa (5004 psi), and confirm the hydraulic system holds 62.4 litres before you button it back up. No more chasing a hydrostatic fault with a test gauge and a guess. This is a bookmarked, searchable PDF, jump straight to brakes, power train, or mounted equipment, pull it up on your phone in the bay, and get your 75XT moving again.
What's Inside This Case 75XT Manual
| System | Pages | Key Topics |
|---|---|---|

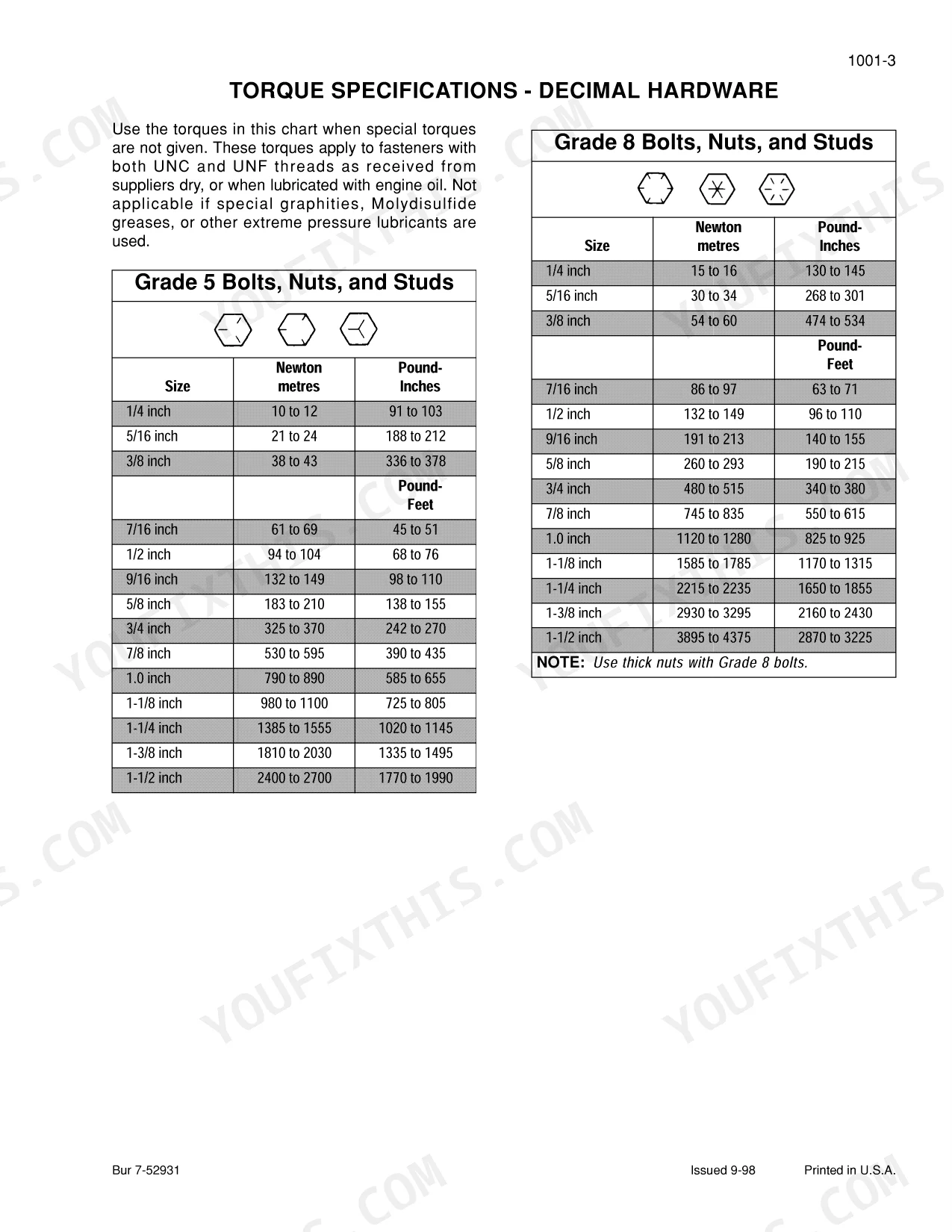

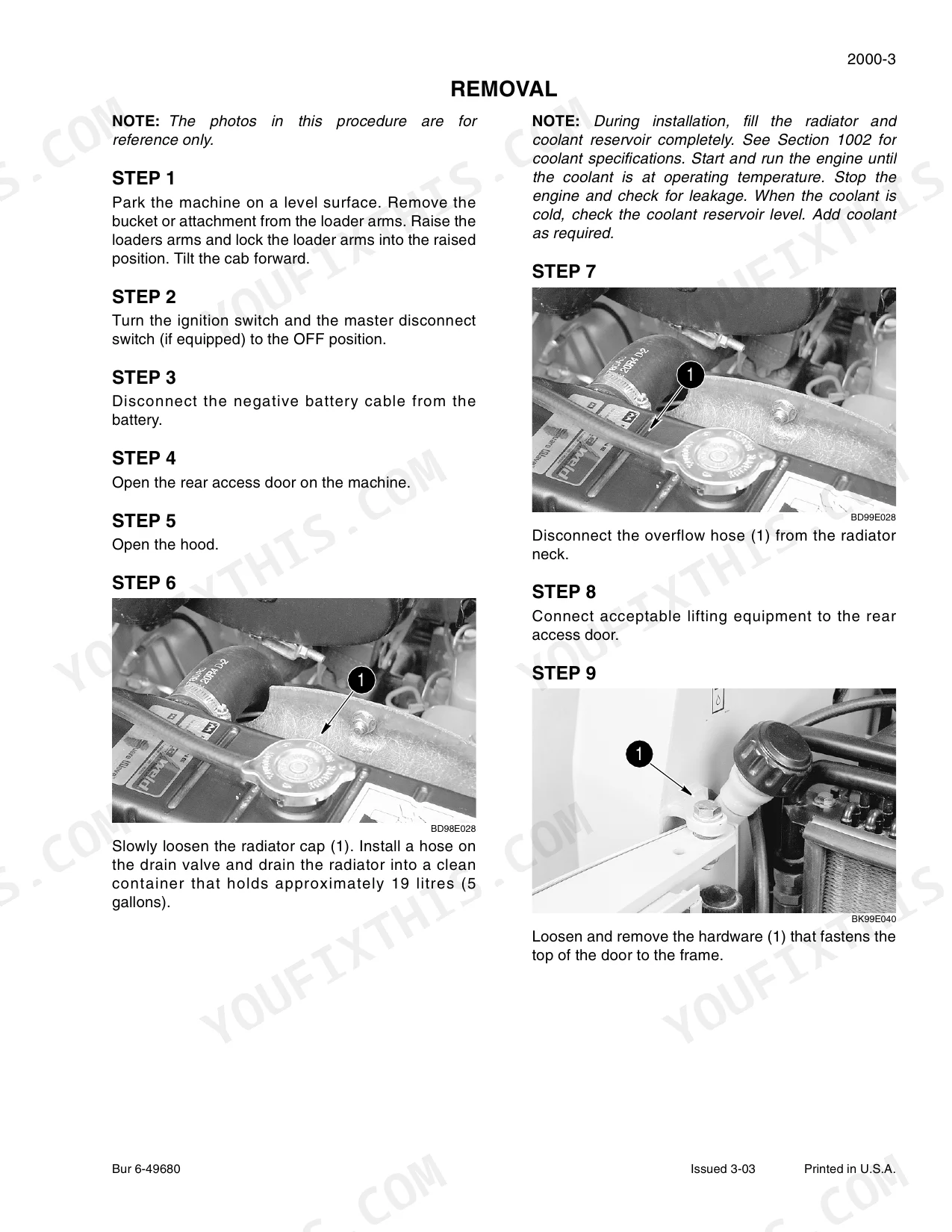

| General | 5-26 | Section Index - General, Standard Torque Specifications, Fluids and Lubricants, Metric Conversion Chart, Loctite Product Chart |
| Engine | 27-40 | Section Index - Engine |
| Fuel Systems | 41-42 | - |

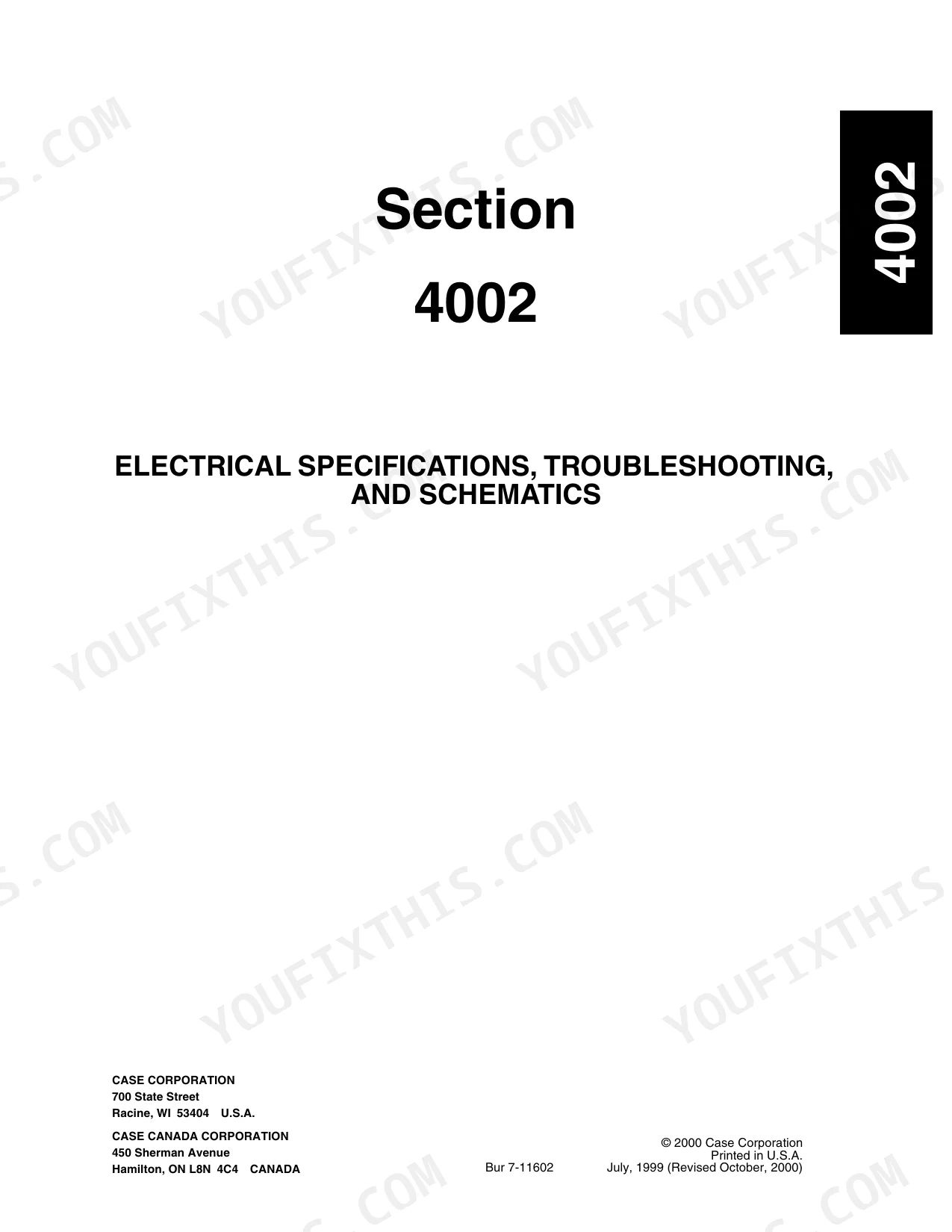

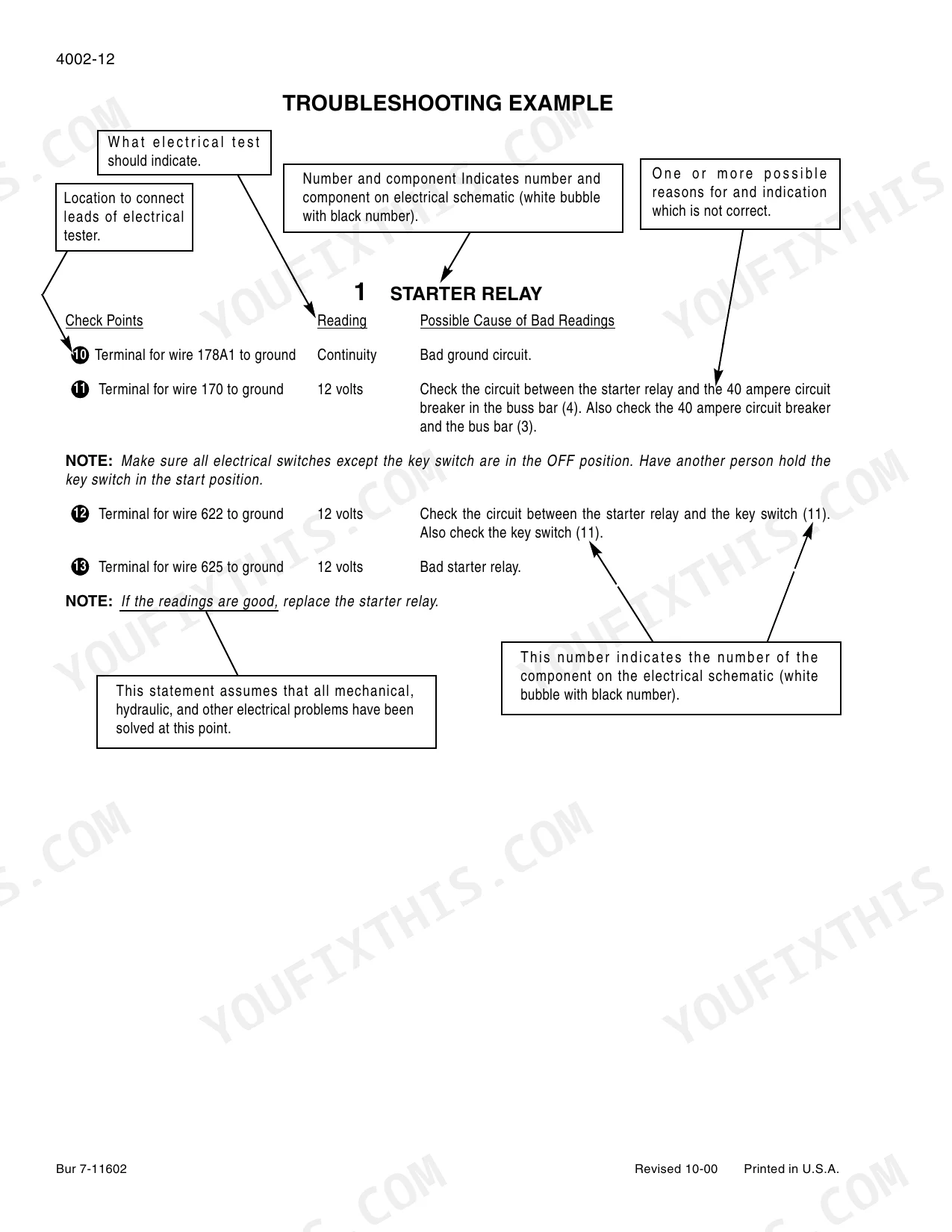

| Electrical | 43-218 | Electrical “How It Works”, Electrical Specifications and Troubleshooting and Schematics, Battery, Starter and Starter Solenoid, Alternator |
| Power Train | 219-404 | Hydrostatic System “How It Works”, Hydrostatic System Troubleshooting, Removal and Installation of Hydrostatic Components, Drive Coupling, Piston Pump, Drive Motors |
| Brakes | 405-482 | Brake System “How It Works”, Brake System Troubleshooting, Removal and Installation of 75XT Skid Steer Park Brakes, Brake Solenoid Valve, Brake Pump |
| Hydraulics | 483-778 | Hydraulic System “How It Works”, Hydraulic System Troubleshooting, Cleaning the Hydraulic System and Hydrostatic System, Gear (Equipment) Pump, Loader Control Valve, Cylinders |
| Mounted Equipment | 779-866 | Pedals and Levers, Loader, Attachment Coupler, ROPS Canopy, Seat, Seat Belts, And Operators Compartment, Heater |

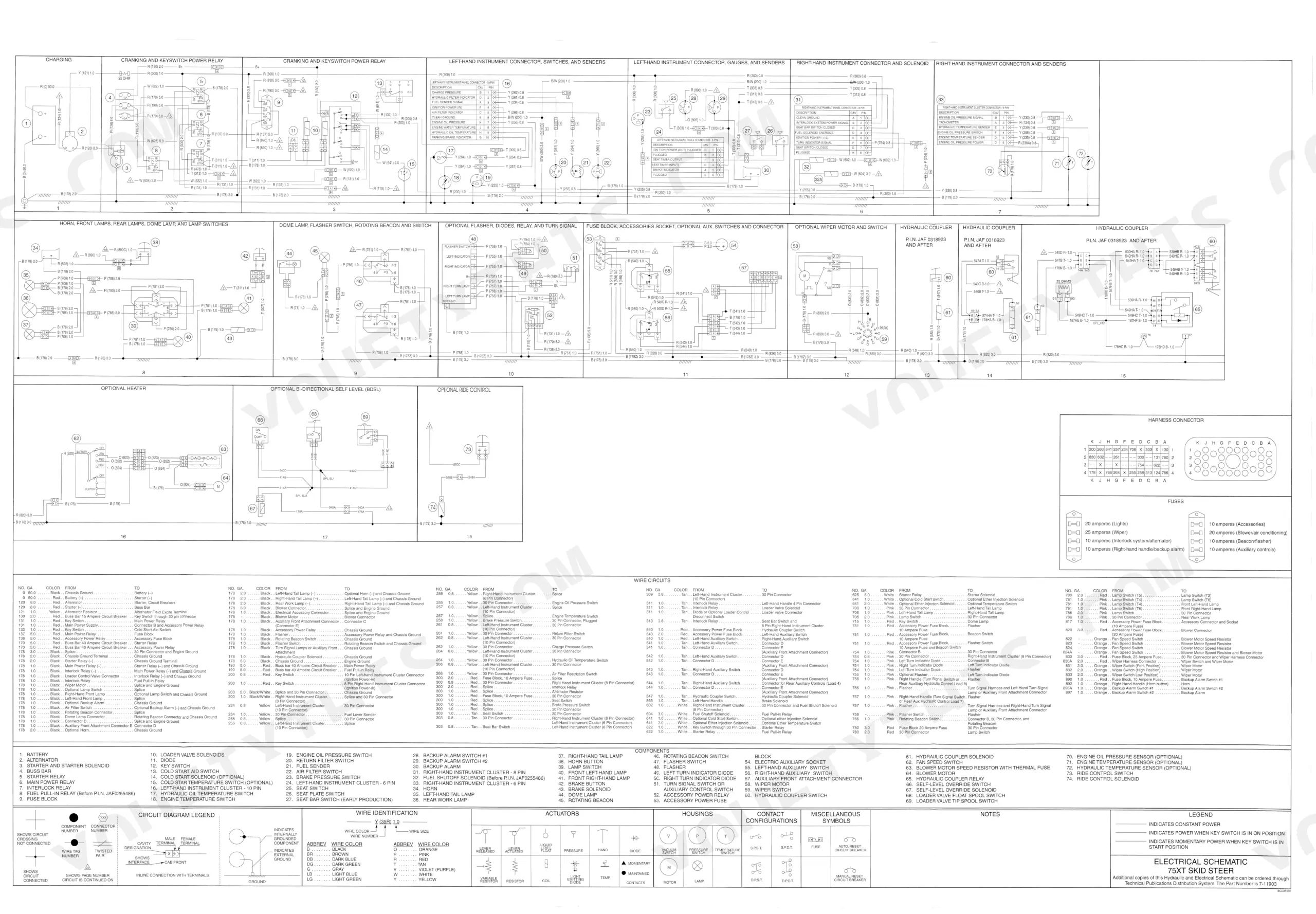

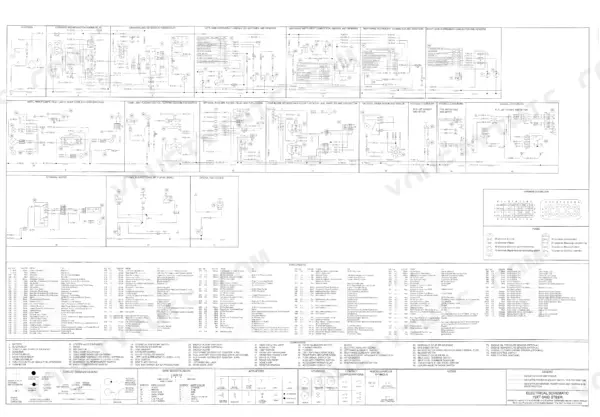

| Hydraulic and Electrical Schematic | 867-869 | - |
Quick Reference Specifications

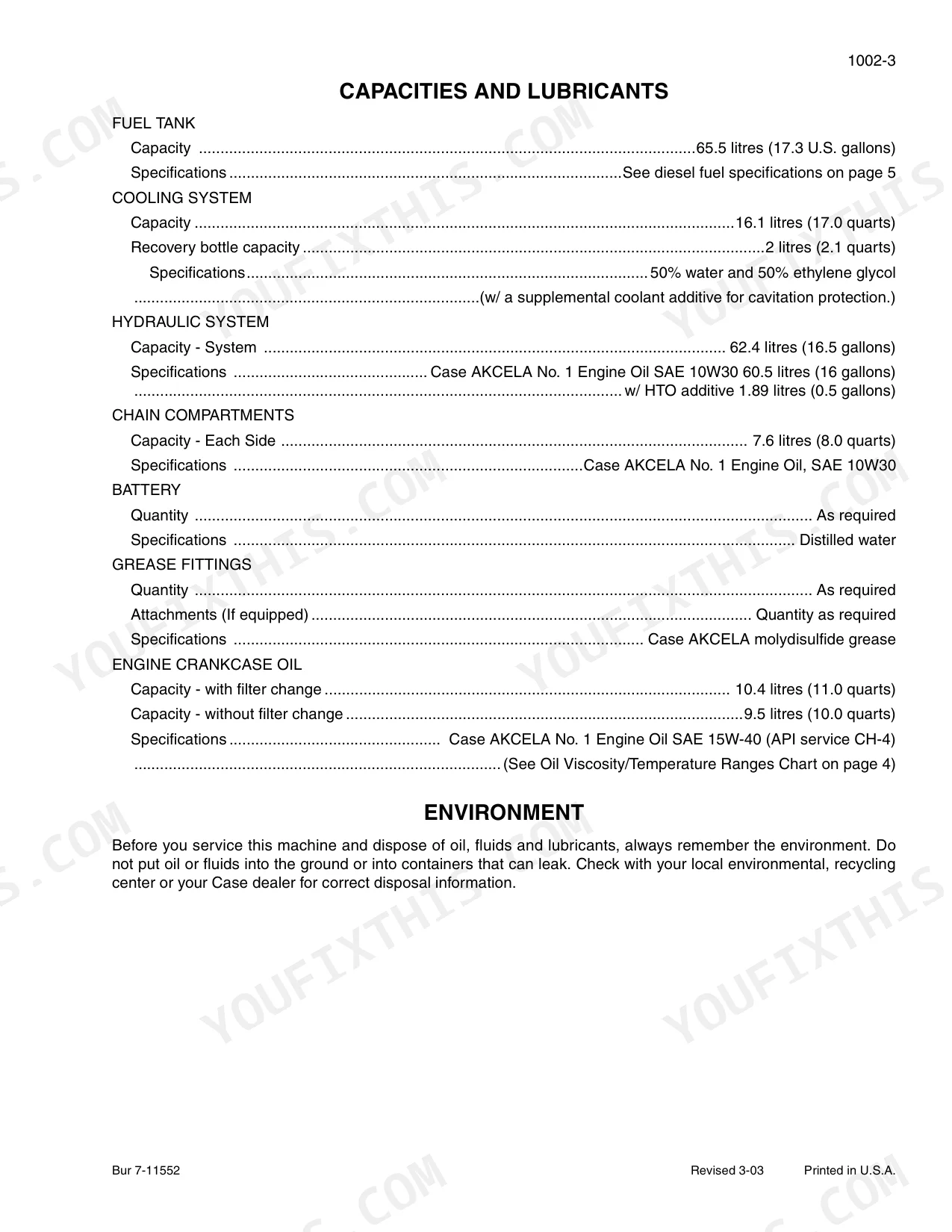

| Specification | Value | Page |
|---|---|---|
| Fuel Tank Capacity | 65.5 litres | p. 17 |
| Hydraulic System Capacity | 62.4 litres | p. 17 |
| Engine Crankcase Oil Capacity (with filter change) | 10.4 litres | p. 17 |
| Alternator No-Load Test Current Draw | 180 amperes maximum | p. 187 |
| Hydrostatic Pump System Relief Pressure (forward and reverse) | 34,500 kPa (5004 psi) | p. 278 |
| Hydrostatic Drive Motors Maximum Displacement | 492 cc (30 in3) | p. 278 |
| Wheels Lug Nut Torque (stamped center wheels) | 135 to 163 Nm | p. 403 |
| Brake System Release Pressure (Early Production) | 2,758 kPa (27.6 bar) | p. 417 |
| Hydraulic Pump Flow at 2200 RPM | 72.4 litres/min (21 gpm) | p. 589 |
| Seat Belt Mounting Bolts Torque | 52 to 61 Nm (38 to 45 pound-feet) | p. 809 |
Case 75XT Common Problems This Manual Covers
Case 75XT skid steer shuts down immediately after hitting a hard bump or sudden impact. p. 187
Inspect the wiring harness and fuel hose connections between the tank and injection pump. Test the alternator no-load current draw on page 187 to ensure it stays below 180 amperes maximum. Replace any damaged wires or loose hoses to restore uninterrupted fuel delivery and electrical power.
Manual Section: Electrical System Troubleshooting (General, Wiring, Components, Sensors, Instrument Panel)Hydraulic system completely loses pressure or fails to lift heavy loads during normal operation. p. 589
Run a flowmeter test on the gear pump as outlined on page 589. Verify the hydraulic pump flow reads 72.4 litres/min (21 gpm) at 2200 RPM. If the flow drops below specifications, drain the 62.4 litres of hydraulic fluid and inspect the pump internals for severe wear.
Manual Section: Hydraulic System Troubleshooting (General, Pressure Checks, Flowmeter Tests)Engine fails to start or runs extremely rough after only minimal operation in cold weather. p. 17
Check the engine components for internal compression loss. Drain the 10.4 litres of crankcase oil on page 17 and inspect for metal shavings. Inspect the Cummins pistons, rings, and sleeves for premature wear. Replace worn internal parts to restore proper cylinder compression and ensure smooth starting.
Manual Section: Engine System TroubleshootingMachine refuses to move forward or reverse because the parking brakes will not disengage. p. 417
Test the brake solenoid valve and pump pressure. Verify the brake system release pressure reaches exactly 2,758 kPa (27.6 bar) as specified on page 417. If pressure falls short, inspect the lines for leaks and rebuild or replace the faulty brake pump to release the parking brakes.
Manual Section: Brake System TroubleshootingFrequently Asked Questions
How to reset the hydraulic system on a Case 75XT?
To start up the hydrostatic system, fill the reservoir with recommended clean hydraulic oil and install a 40 bar (600 PSI) pressure gauge into the charge pressure test port. Crank the engine until pressure builds on the gauge, then connect the fuel injection pump wire, start the engine at low idle, and run until the 40 bar (600 PSI) pressure gauge stabilizes. After proper charge pressure is reached, increase engine to full throttle and operate the system to its fullest travel in all directions to remove air.
How do you fix case 75XT skid steer shuts down immediately after hitting a hard bump or sudden impact?
Inspect the wiring harness and fuel hose connections between the tank and injection pump. Test the alternator no-load current draw on page 187 to ensure it stays below 180 amperes maximum. Replace any damaged wires or loose hoses to restore uninterrupted fuel delivery and electrical power.
How do you fix hydraulic system completely loses pressure or fails to lift heavy loads during normal operation?
Run a flowmeter test on the gear pump as outlined on page 589. Verify the hydraulic pump flow reads 72.4 litres/min (21 gpm) at 2200 RPM. If the flow drops below specifications, drain the 62.4 litres of hydraulic fluid and inspect the pump internals for severe wear.
How do you fix engine fails to start or runs extremely rough after only minimal operation in cold weather?
Check the engine components for internal compression loss. Drain the 10.4 litres of crankcase oil on page 17 and inspect for metal shavings. Inspect the Cummins pistons, rings, and sleeves for premature wear. Replace worn internal parts to restore proper cylinder compression and ensure smooth starting.
What do I get after purchasing this Case 75XT manual?
Immediate download of the complete 869-page searchable Service Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Are there any print restrictions on this manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Does this Case 75XT manual include wiring diagrams?
Complete wiring diagrams are included, covering all electrical circuits, harness routing, and connector pinouts for the Case 75XT.
