Part of the John Deere Repair Manuals.
This 326-page John Deere Sabre Garden Tractor Technical Manual (OEM #TM1741) covers the 2048HV, 2254HV, and 2554HV lineup, from Briggs & Stratton and Kohler engine variants down to the hydrostatic drive. Open it up and you get full electrical schematics with wiring harness legends, hydrostatic power train diagnosis charts, and a troubleshooting section that walks you through steering, brake, and mower deck faults instead of leaving you guessing. Torque that blade cap screw to 68 N-m (50 lb-ft) and set pinion gear-to-shaft clearance at 0.50 mm on a new install; these are the same numbers the dealer techs use. Your F1 fuse should read 15 A, not whatever's melted in there now. No more swapping parts hoping one fixes the fault. It's bookmarked by system, so you jump straight to Electrical or Power Train, pull it up on your phone, and get back under the hood.
What's Inside This John Deere 2048HV, 2254HV, 2554HV Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 3 | - |
| Safety | 4-8 | Recognize Safety Information, Handle Fluids Safely-Avoid Fires, Replace Safety Signs, Use Care in Handling and Servicing Batteries, Avoid Harmful Asbestos Dust |

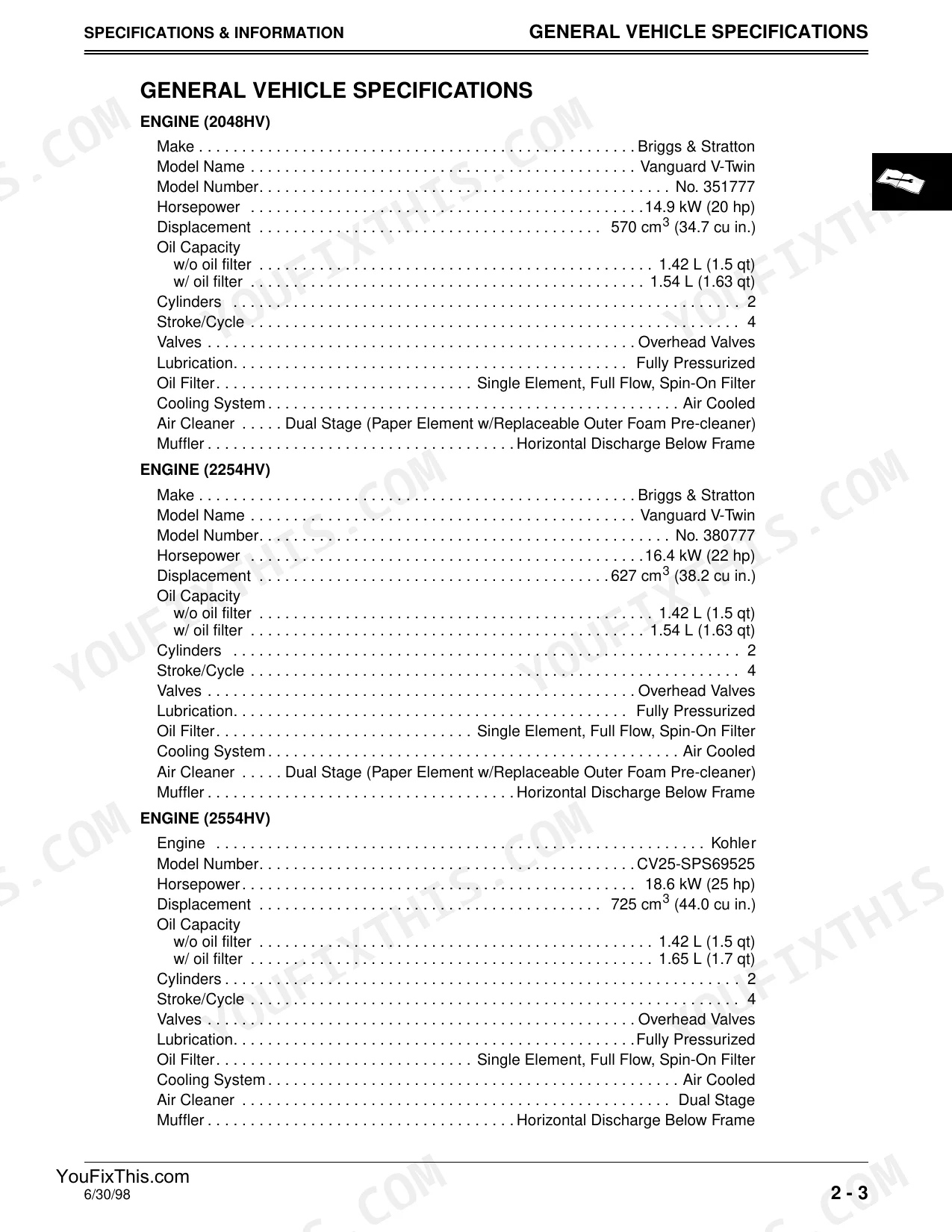

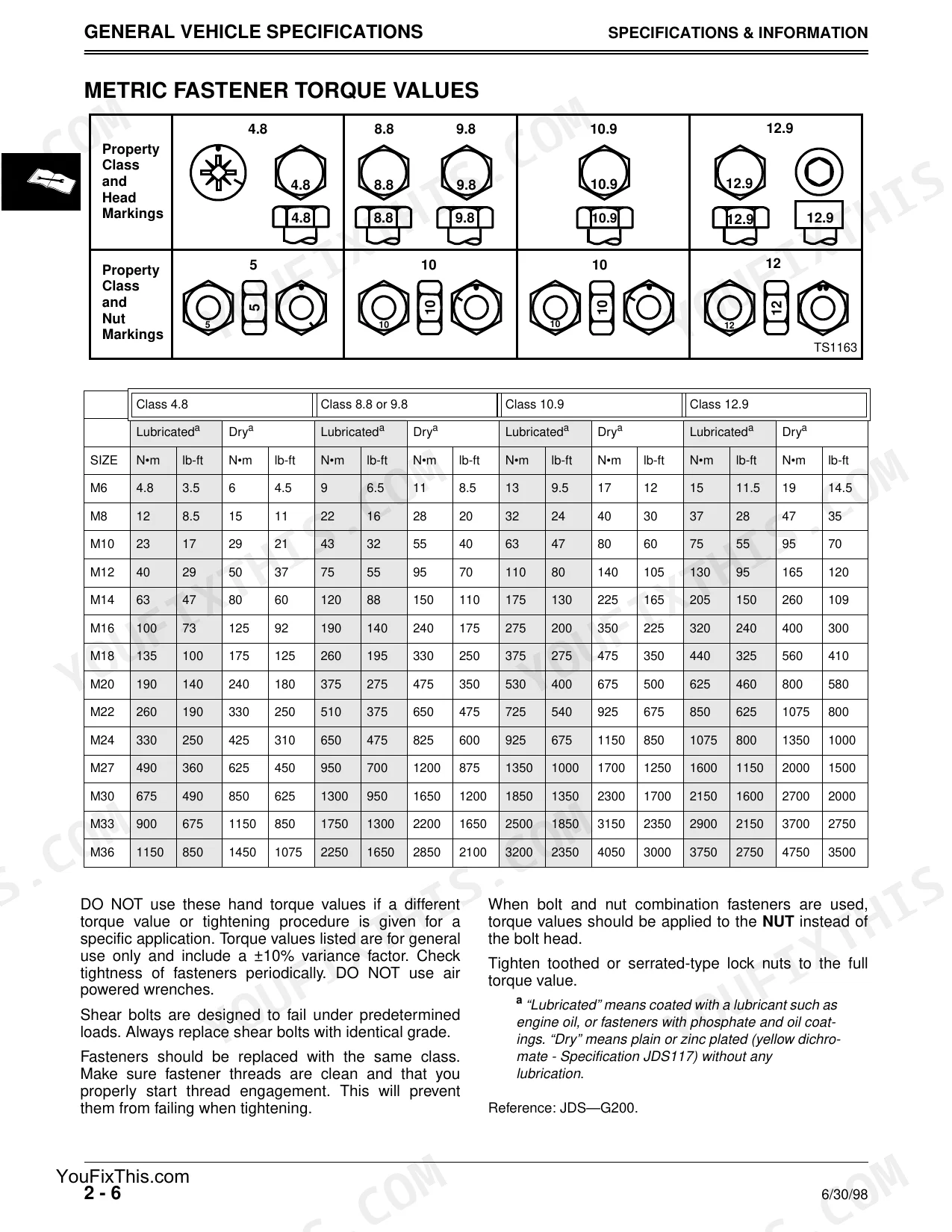

| Specifications & Information | 9-24 | General Vehicle Specifications, Metric Fastener Torque Values, Inch Fastener Torque Values, Gasoline, Engine Oil, Product Identification Locations |

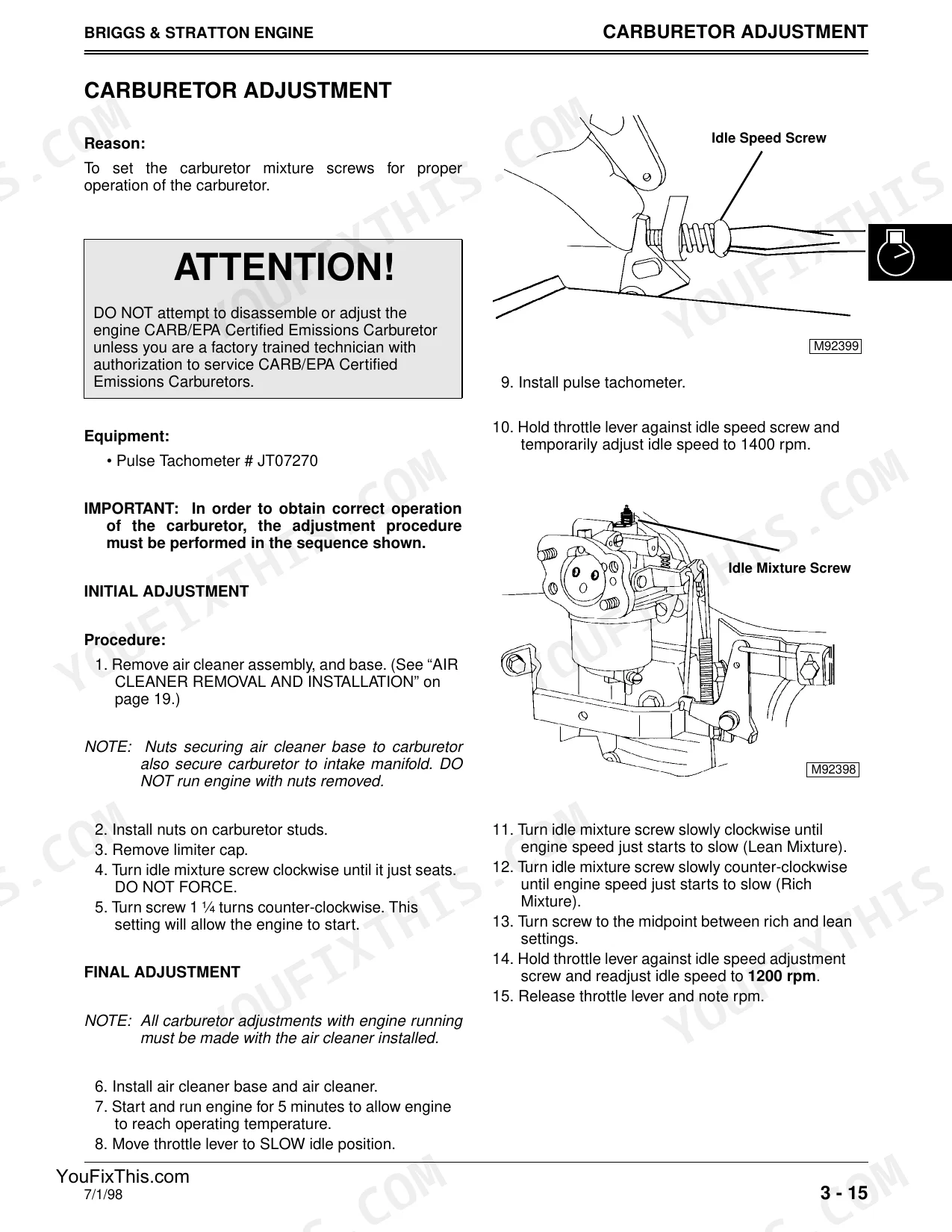

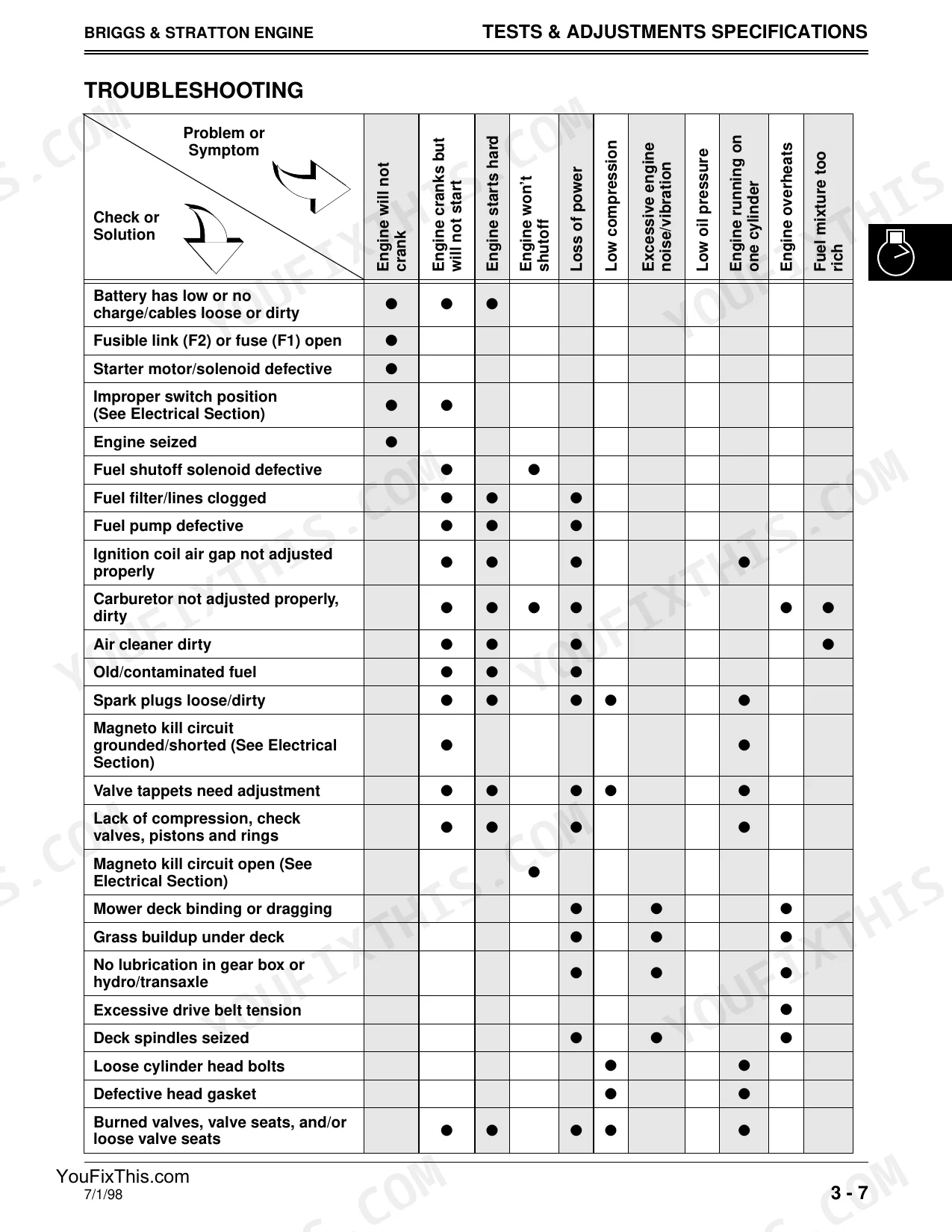

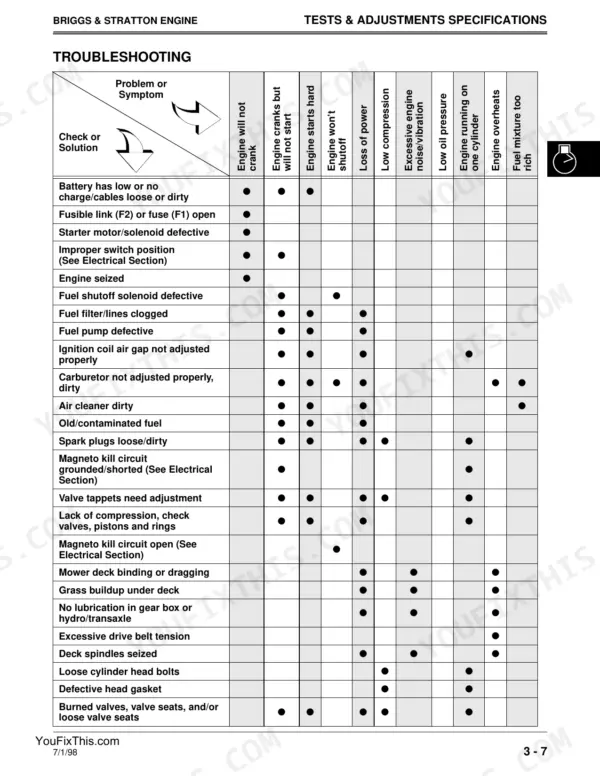

| Engine (Briggs & Stratton) | 25-76 | General Specifications, Repair Specifications, Torque Specifications, Engine Troubleshooting Guide, Tests & Adjustments, Repair |
| Engine (Kohler) | 77-130 | General Specifications, Repair Specifications, Torque Specifications, Theory of Operation, Engine Troubleshooting Guide, Tests and Adjustments |

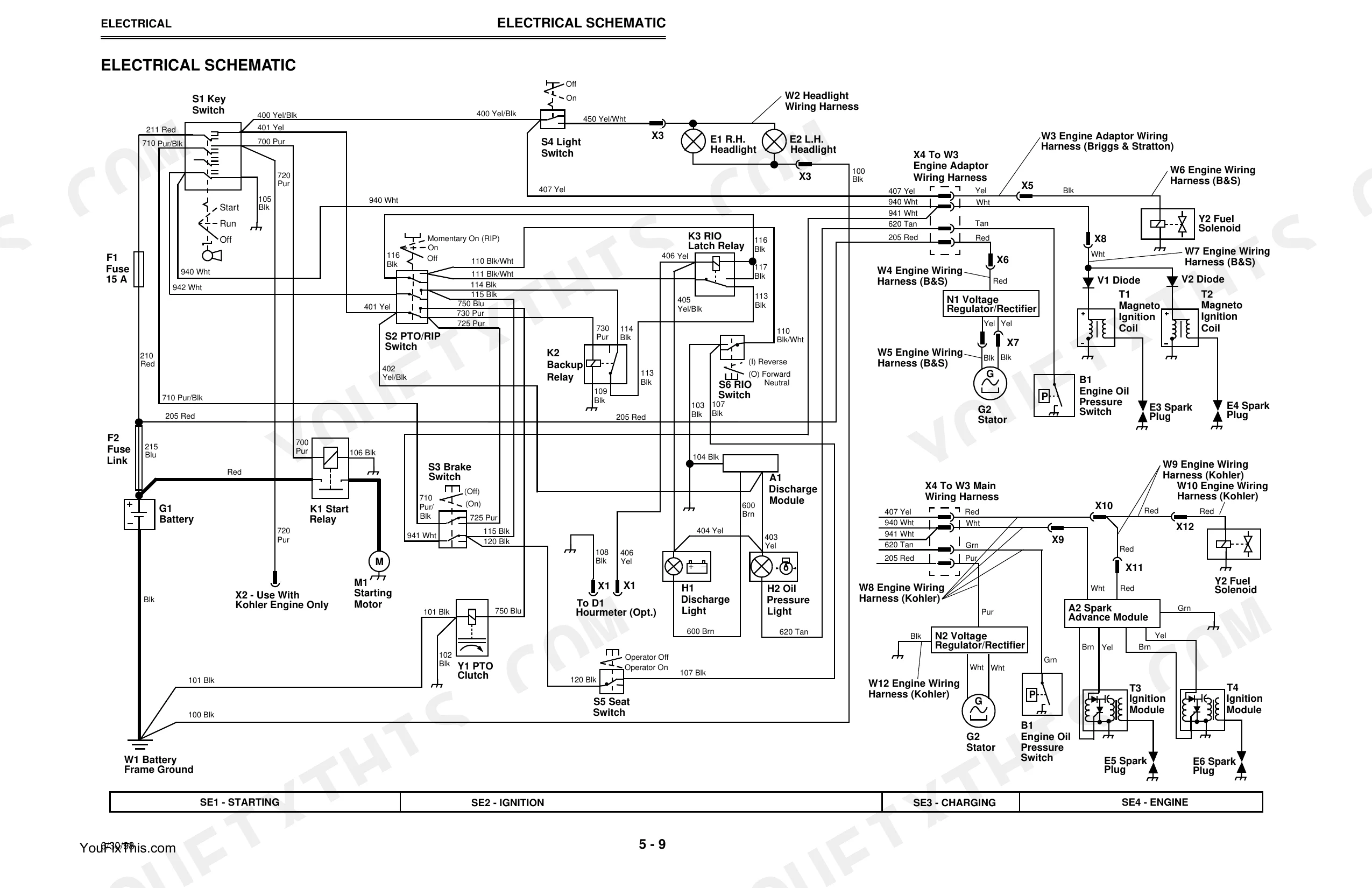

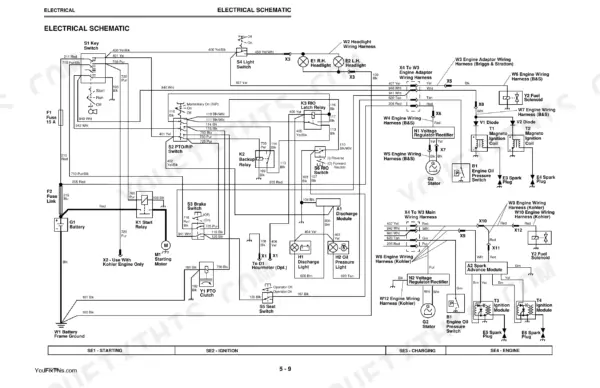

| Electrical | 131-204 | Theory of Operation Information, Specifications, Component Location, Electrical Schematic and Wiring Harness Legend, Troubleshooting, Theory and Diagnosis |

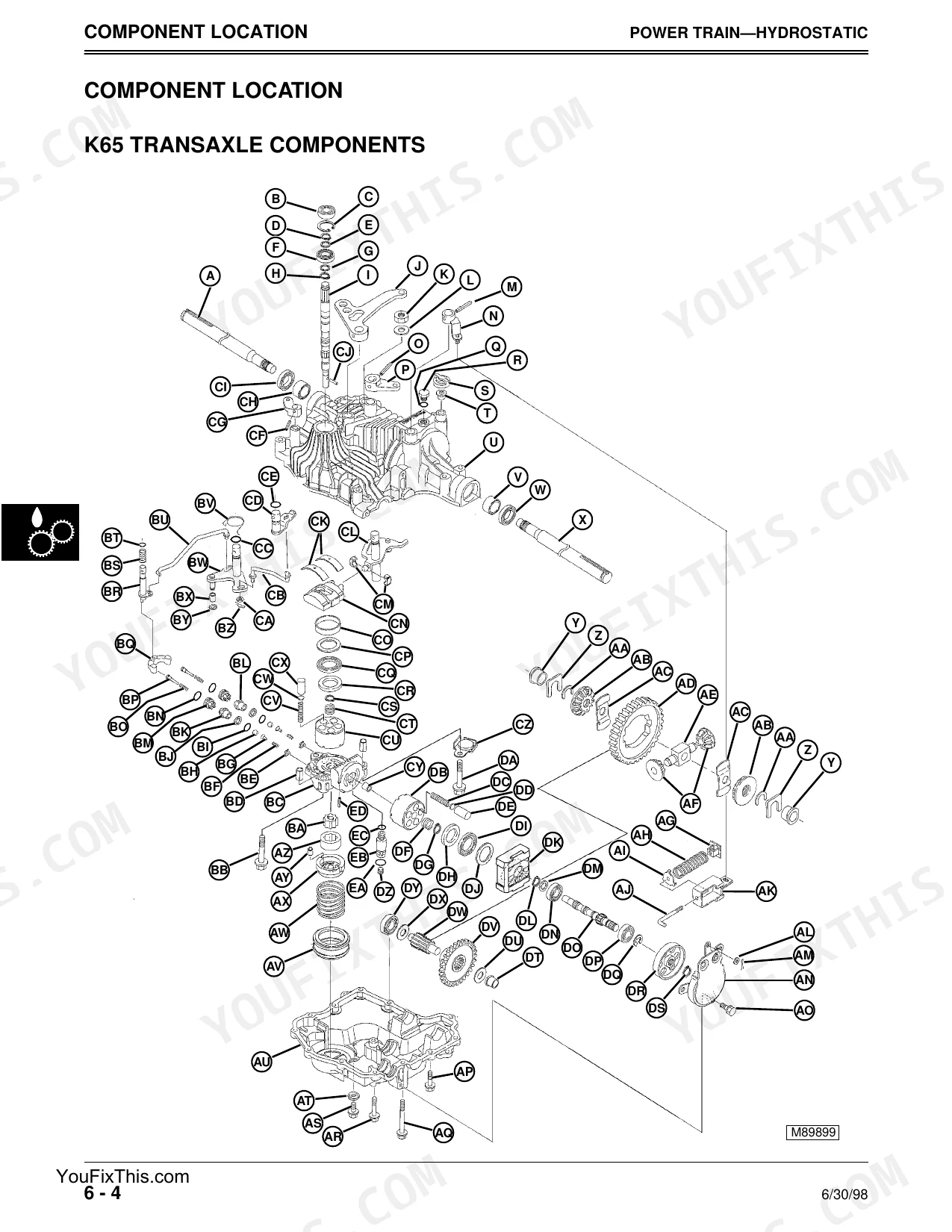

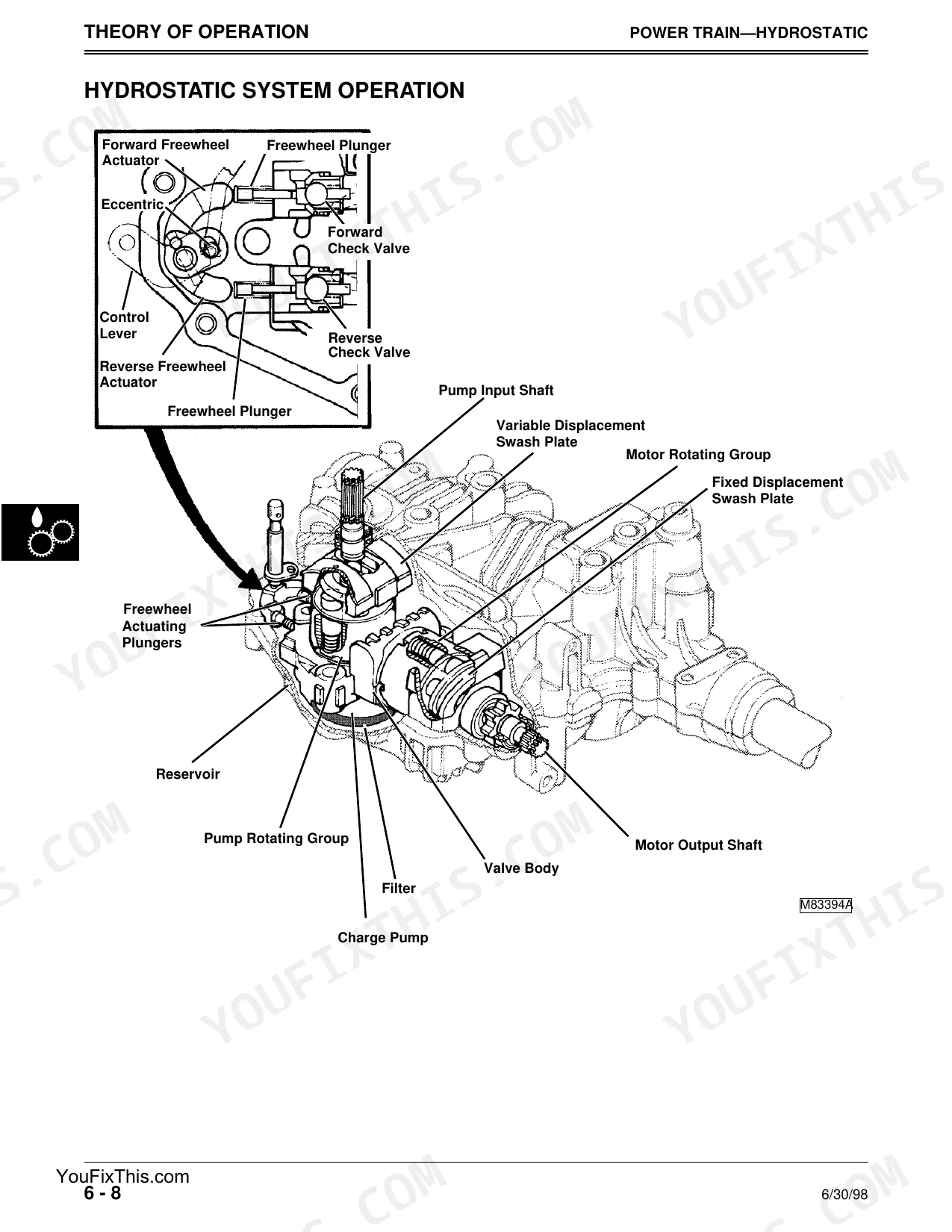

| Power Train, Hydrostatic | 205-264 | Specifications, Component Location, Theory of Operation, Troubleshooting, Diagnosis, Adjustments |
| Steering | 265-274 | Specifications, Theory of Operation, Troubleshooting, Repair, Steering System Diagnosis, Drag Link Adjustment |
| Brakes | 275-286 | Adjustment Specifications, Repair Specifications, Brake System Operation, Hydrostatic Internal Brake Linkage Operation, Brake Adjustment, Brake Linkage |
| Attachments | 287-308 | Mower Gage Wheels Adjust, Mower Level Front-to-Rear, Mower Level Side-to-Side |
| Miscellaneous | 309-320 | Torque Specifications, Other Materials, Front Axle and Tires Component Location, Lift Assist and Depth Stop Operation, Front Axle Removal and Installation |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Blade Cap Screw Torque | 68 N•m (50 lb-ft) | p. 289 |
| Pinion Gear/Shaft Clearance (New) | 0.50 mm (0.020 in.) | p. 207 |
| F1 Fuse Amperage | 15 A | p. 139 |
| Brake Pad Clearance | 0.13 mm (0.005 in.) | p. 277 |
| Brake Holder Cap Screw Torque | 10 N•m (95 lb-in.) | p. 277 |
| Engine Oil Capacity (w/o oil filter) | 1.42 L (1.5 qt) | p. 11 |
| Fuel Tank Capacity | 11 L (3 U.S. gal) | p. 12 |
| Battery Voltage | 12 VDC | p. 12 |
| 2048HV, 2254HV | ||
| Engine Oil Capacity (w/ oil filter) for 2048HV & 2254HV | 1.54 L (1.63 qt) | p. 11 |
| 2554HV | ||
| Engine Oil Capacity (w/ oil filter) for 2554HV | 1.65 L (1.7 qt) | p. 11 |
| Briggs & Stratton Engines | ||
| Briggs & Stratton Engine Spark Plug Gap | 0.76 mm (0.030 in.) | p. 27 |
| Kohler Engines | ||
| Kohler Engine Spark Plug Gap | 0.76 mm (0.030 in.) | p. 79 |
John Deere 2048HV, 2254HV, 2554HV Common Problems This Manual Covers
John Deere Sabre 2554HV input bevel gear drive cracks under load, transmission stops transferring power to wheels
Pull the transaxle cover and measure pinion gear shaft clearance; new spec is 0.50 mm (0.020 in.) on page 207. If the bevel gear shows cracks or excessive backlash beyond that clearance, replace it and refill the transaxle with 3.4 L (7.2 U.S. pt) of hydrostatic fluid.
Manual Section: Power Train, Hydrostatic Troubleshooting p. 207Engine will not crank when the key is turned, no click at the starter solenoid
Check that the operator is seated with the brake pedal fully depressed and the PTO knob pushed to OFF; these safety interlocks block the starter circuit. Inspect the F1 fuse on the wiring diagram, page 139; it is rated 15 A. Clean and tighten any loose or corroded connector before retesting.
Manual Section: Electrical Troubleshooting p. 139Hydrostatic transaxle grinds and whines, machine creeps forward while shift lever sits in neutral
Drain the transaxle and check the fluid level; capacity is 3.4 L (7.2 U.S. pt) on page 207. Low or contaminated fluid causes grinding and creep. Refill with the specified hydrostatic fluid, bleed the system by running the tractor at low speed, and recheck for creep with the engine at idle.
Manual Section: Power Train, Hydrostatic Troubleshooting p. 207Park brake will not hold tractor on a slope, lever engages but the machine still rolls
Measure brake pad clearance and adjust it to 0.13 mm (0.005 in.) on page 277. Torque the brake holder cap screw to 10 N•m (95 lb-in.) once adjustment is set. Inspect the linkage for stretched cable or worn pads, and replace any component outside spec before road testing.
Manual Section: Brakes Troubleshooting p. 27742-inch mower deck cuts grass unevenly and the blade mounting bolt keeps working loose
Torque the blade cap screw to 68 N•m (50 lb-ft) on page 289; an under-torqued bolt lets the blade shift and cut unevenly. Check deck level front-to-rear and side-to-side, and inspect the spindle for play before reinstalling the blade with the correct hardware.
Manual Section: Mower Deck Troubleshooting p. 289Frequently Asked Questions
What are the torque specs for the blade bolts on John Deere 2048HV 2254HV 2554HV?
The blade cap screw torque for the 48/54-inch mower deck is 68 N•m (50 lb-ft). This specification is crucial for proper blade operation and safety. p. 289
What are the torque requirements for the engine mounting bolts on John Deere 2048HV 2254HV 2554HV?
The engine mounting bolts for both Briggs & Stratton and Kohler engines should be tightened to 32 N•m (24 lb-ft). This ensures the engine is securely fastened to the frame. p. 103
How to reset the PTO after an error on John Deere 2048HV 2254HV 2554HV?
To reset the PTO after an error that has caused the engine to kill, the PTO switch must be placed in the OFF position (disengaged). This action is necessary before the cranking circuit can be engaged to restart the engine. p. 176
What are the replacement specifications for Electrical fuse?
The electrical fuses F1 and F2 in the system are specified as 15 Amps. These fuses are part of the main wiring harness and fusible link circuits. p. 139
What do I get after purchasing this John Deere 2048HV, 2254HV, 2554HV, Sabre?
You get a 326-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Am I able to print pages from this John Deere 2048HV, 2254HV, 2554HV, Sabre?
None at all. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
Are there hydraulic schematics in this John Deere 2048HV, 2254HV, 2554HV?
Yes, a hydraulic system diagram is included showing the main circuit layout.
