Part of the John Deere Repair Manuals.

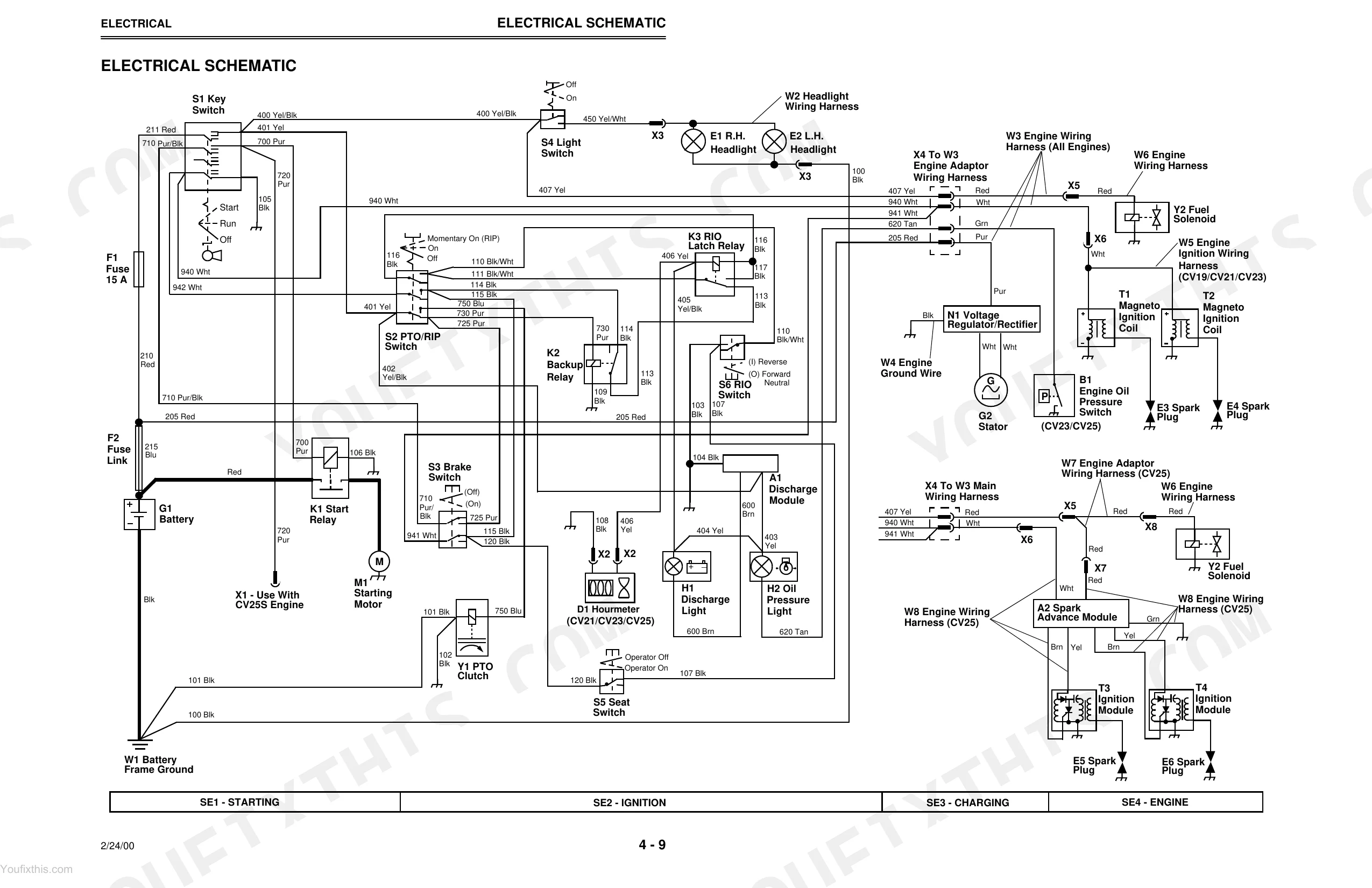

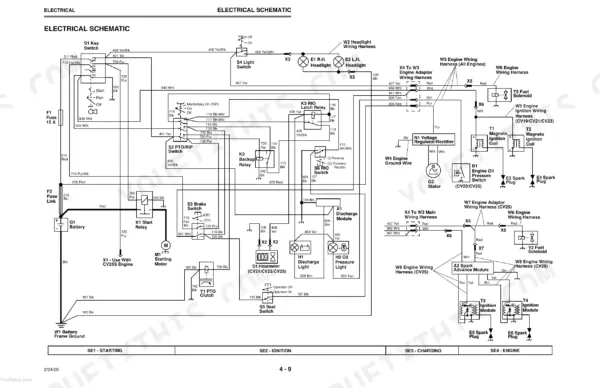

This 324-page John Deere Technical Manual covers the 1948GV/HV, 2148HV, 2354HV, and 2554HV Sabre Yard and Garden Tractors, and it puts every Kohler engine, electrical, and hydrostatic drive procedure in your hands. Inside you get full wiring diagrams for chasing electrical gremlins, hydraulic schematics for the power train, and a dedicated troubleshooting section that walks you through diagnosis before you start pulling parts. Open to steering, brakes, and attachment sections too, all built around theory of operation so you understand why a system fails, not just how to swap it. Torque the cylinder head fasteners to 20 N-m initial, then 40.7 N-m final, and set your spark plug gap at 0.76 mm before you button up the engine. Stop guessing at spark plug torque specs off a forum post. Bookmarked and searchable, so you jump straight to the hydrostatic or electrical section, pull it up on your phone, and get your tractor running right the first time.
What's Inside This John Deere 1948GV/HV, 2148HV, 2354HV, 2554HV Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 3 | Table of Contents, Tests & Adjustments, Troubleshooting Chart, Component Location, Theory of Operation |
| Safety | 4-8 | Recognize Safety Information, Handle Fluids Safely-Avoid Fires, Use Care in Handling and Servicing Batteries, Use Safe Service Procedures, Park Machine Safely |

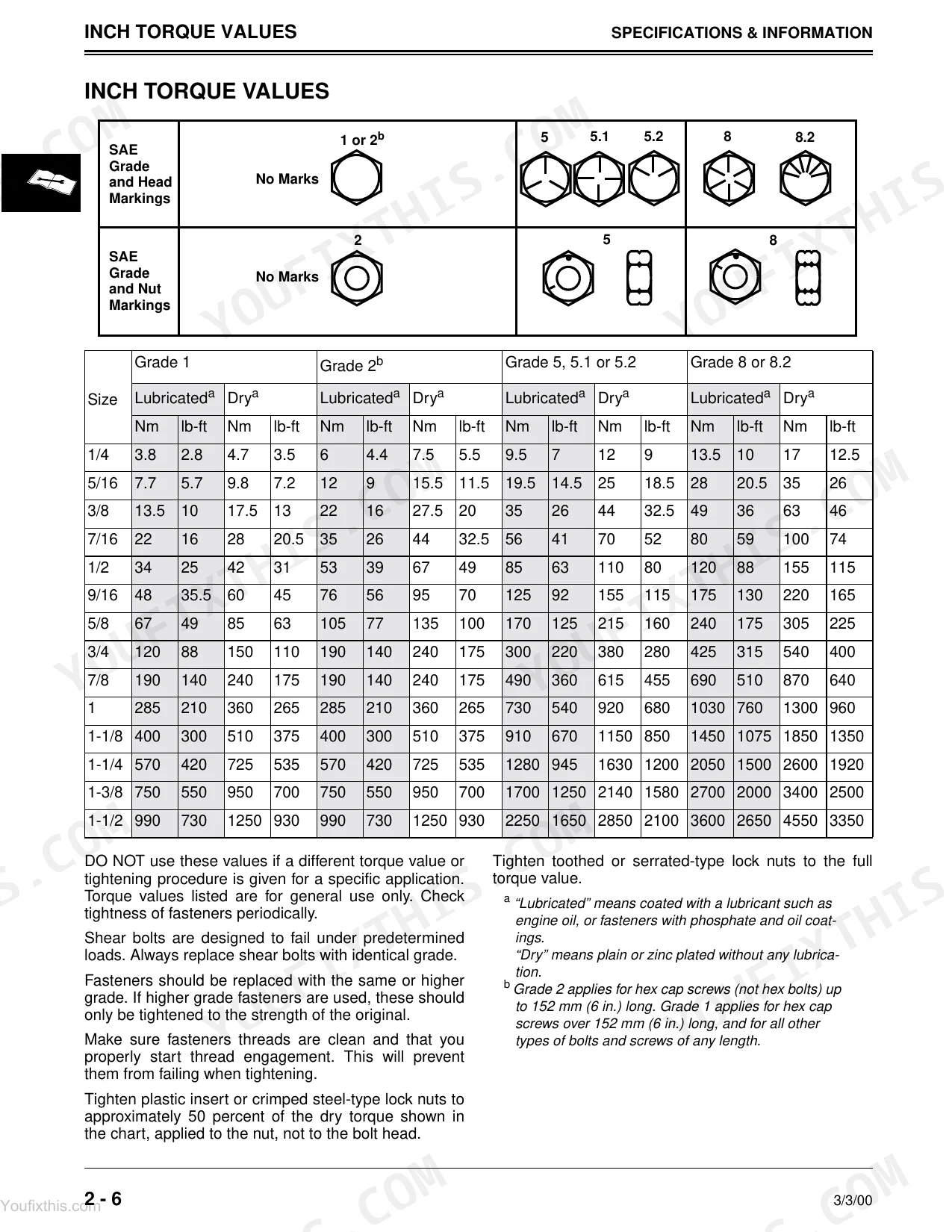

| Specifications and Information | 9-18 | Inch Torque Values, Metric Torque Values, Gasoline Specifications, Lubricant Specifications, Serial Number Locations |

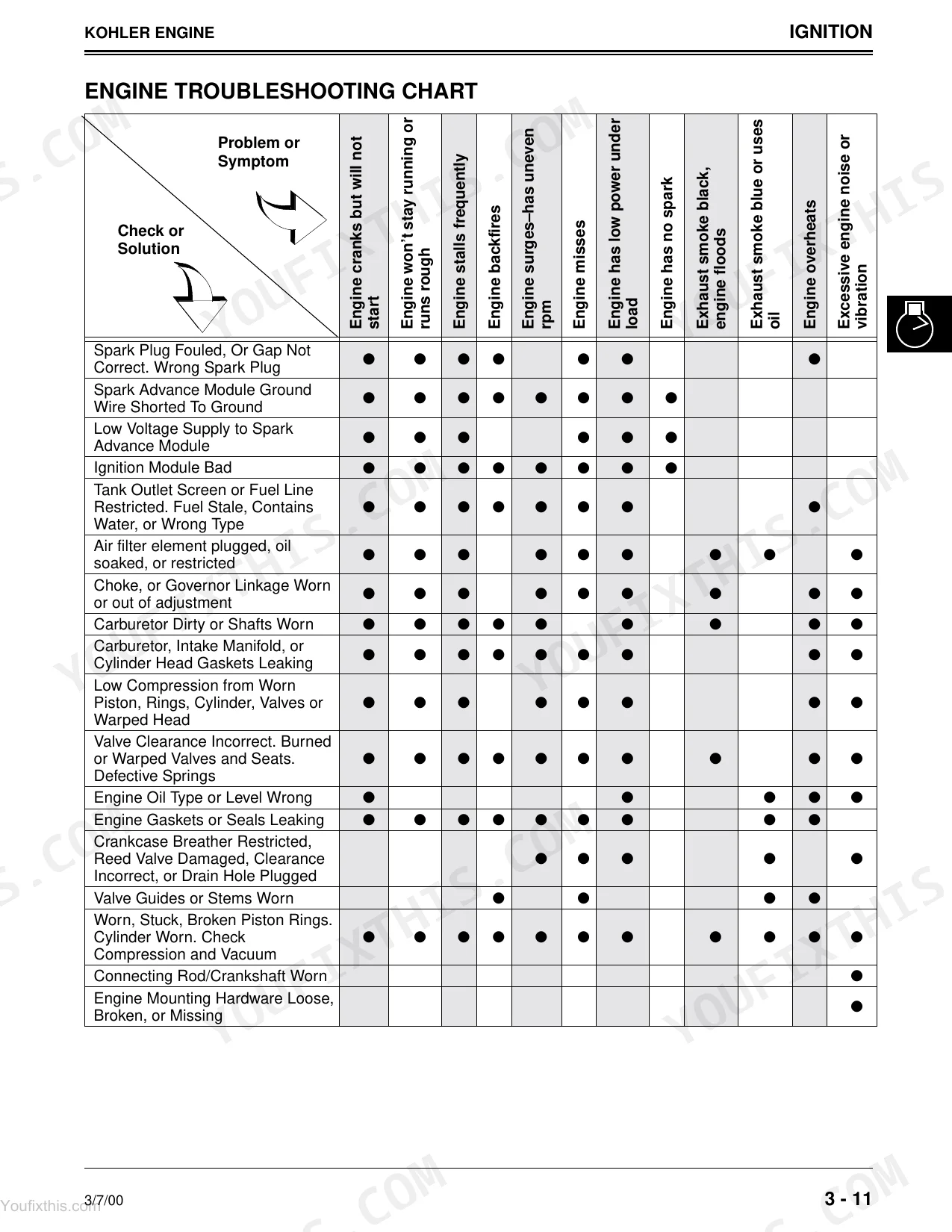

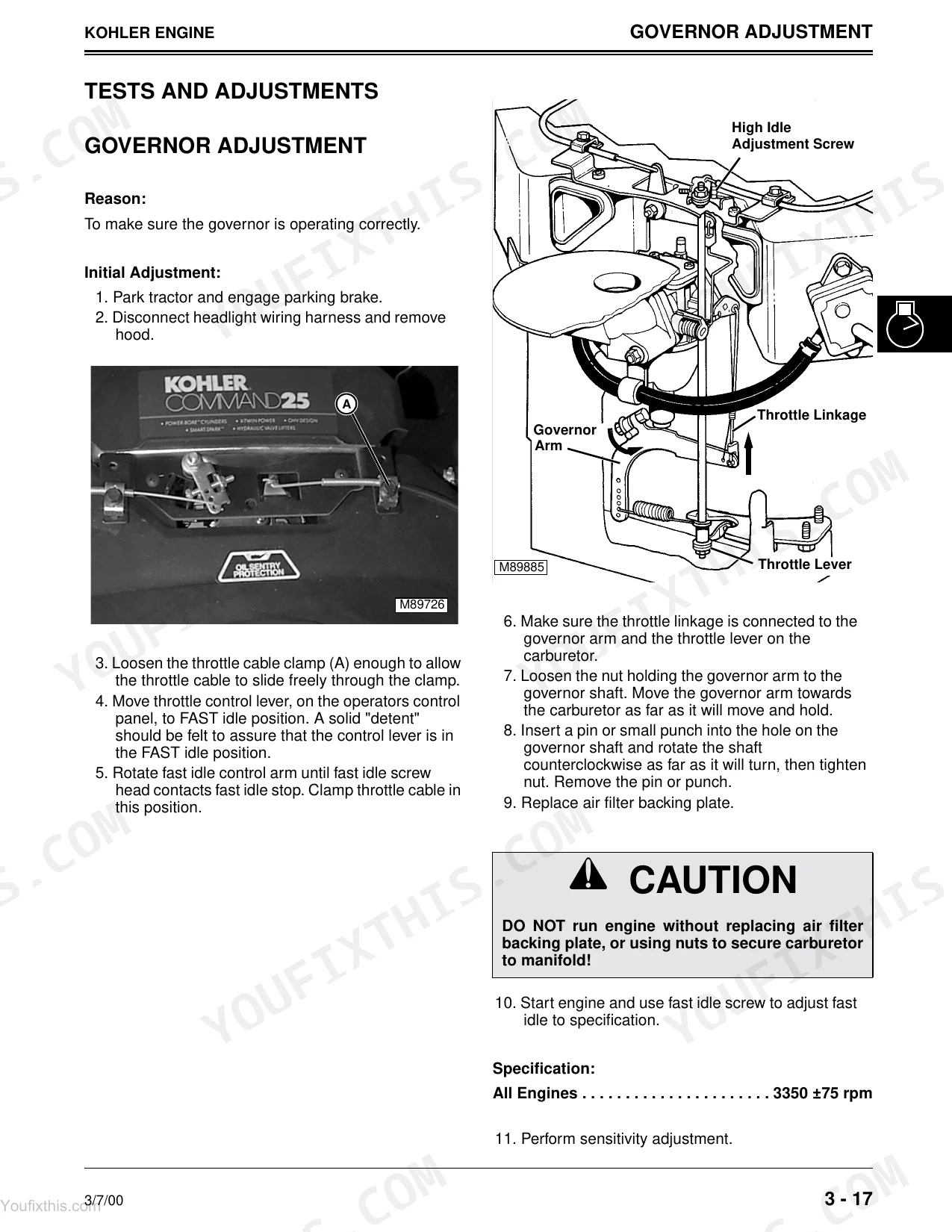

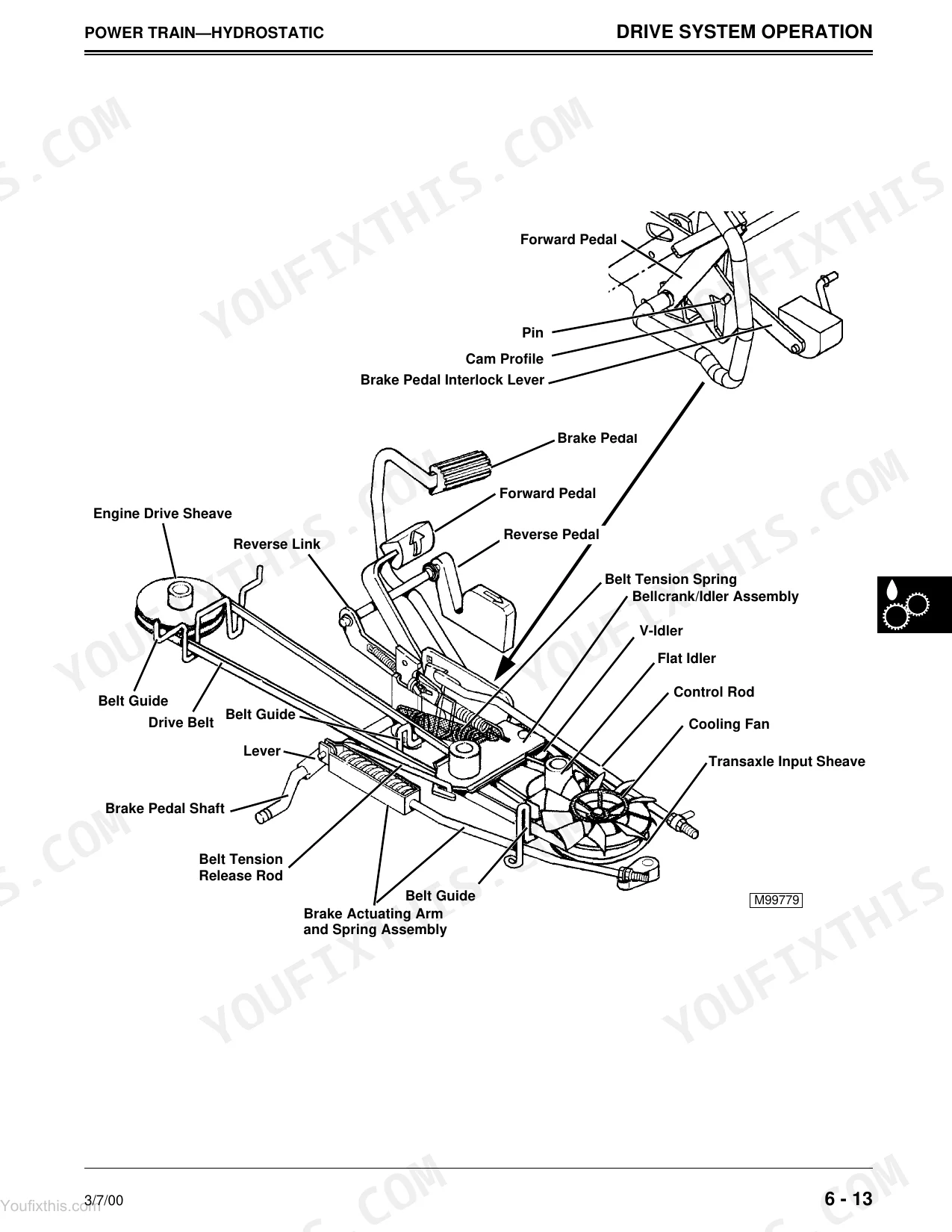

| Kohler Engine | 19-72 | Engine Troubleshooting Chart, Engine Troubleshooting Guide, Tests and Adjustments, Repair, Theory of Operation |
| Electrical | 73-148 | Theory of Operation Information, Theory and Diagnosis, Tests and Adjustments, Component Location, Troubleshooting |
| Power Train, Gear | 149-190 | Troubleshooting Chart, Diagnosis, Adjustments, Repair, Theory of Operation |
| Power Train, Hydrostatic | 191-260 | Diagnosis, Adjustments, Component Location, Troubleshooting, Theory of Operation |
| Steering | 261-270 | Steering System, Drag Link Adjustment, Troubleshooting, Repair, Theory of Operation |
| Brakes | 271-286 | - |
| Attachments | 287-308 | - |
| Miscellaneous | 309-318 | - |
Every system also includes specifications.

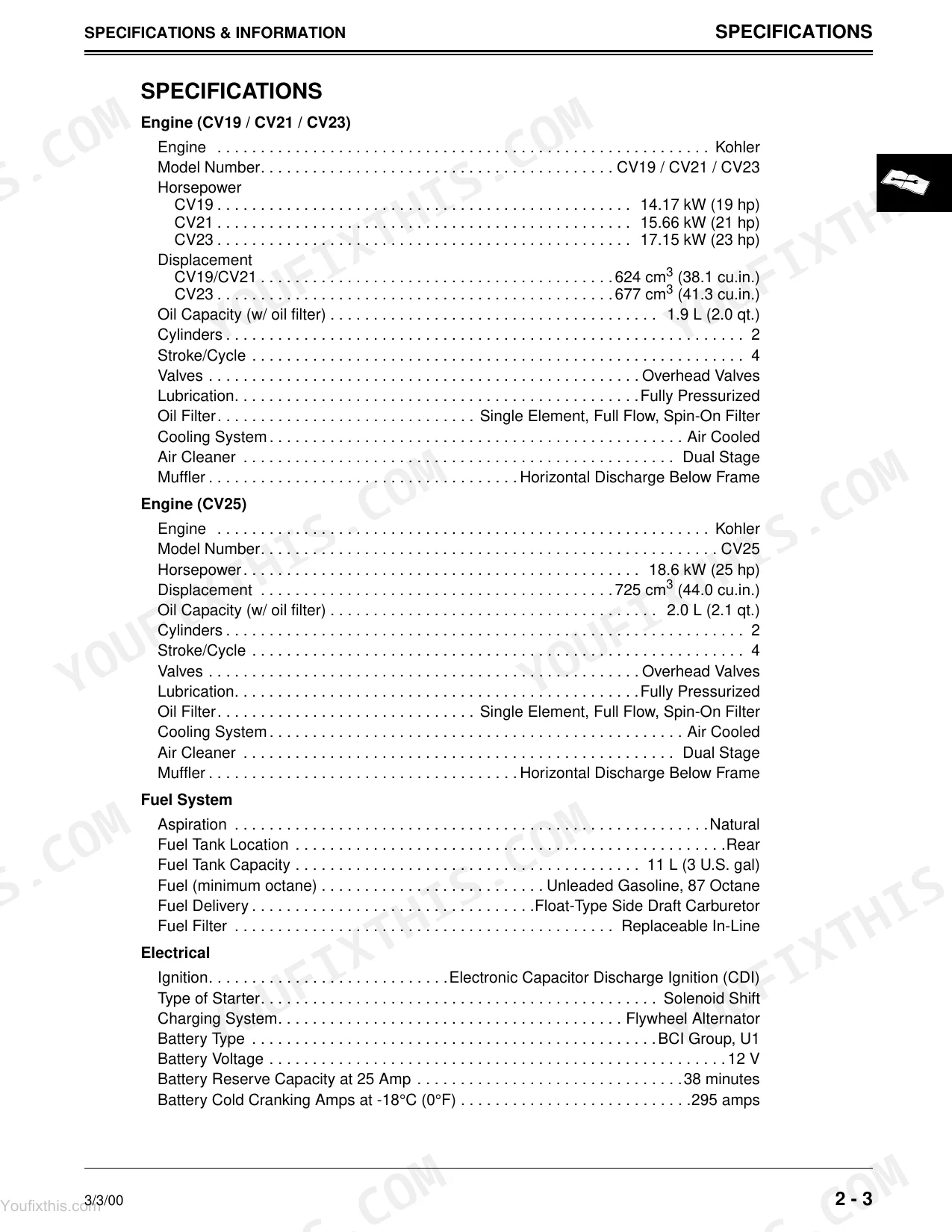

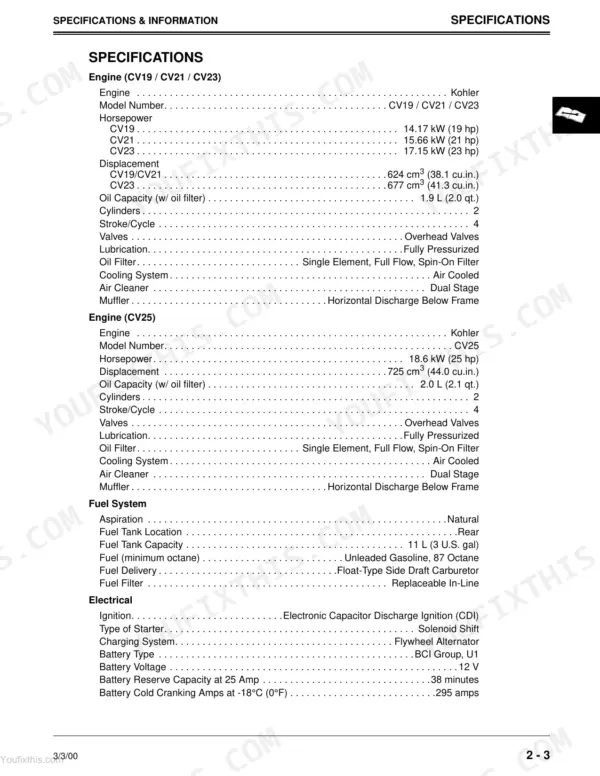

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Cylinder Head Fastener—initial torque, in sequence | 20 N•m (180 lb-in.) | p. 25 |
| Cylinder Head Fastener—final torque, in sequence | 40.7 N•m (30 lb-ft) | p. 25 |
| Spark Plug Gap (All Engines) | 0.76 mm (0.030 in.) | p. 22 |
| Spark Plug Torque | 24.4–29.8 N•m (216–264 lb-in.) | p. 22 |
| Air Cleaner Nuts | 9.9 N•m (88 lb-in.) | p. 25 |
| Air Cleaner Mounting Nuts | 9.9 N•m (88 lb-in.) | p. 50 |
| Fuel Tank Capacity | 11 L (3 U.S. gal) | p. 11 |
| Battery Voltage | 12 V | p. 11 |
| Spark Plug Gap | 0.76 mm (0.030 in.) | p. 22 |
| CV19/CV21/CV23 | ||
| Engine Oil Capacity (w/ oil filter) | 1.9 L (2.0 qt.) | p. 11 |
| CV25 | ||
| Engine Oil Capacity (w/ oil filter) | 2.0 L (2.1 qt.) | p. 11 |
John Deere 1948GV/HV, 2148HV, 2354HV, 2554HV Common Problems This Manual Covers
John Deere Sabre 2354HV tractor will not move at all with engine running and idling smooth
Check the hydrostatic power train troubleshooting chart for no-movement conditions. Verify transaxle oil level and top off to the 2.5 L (2.7 qt) capacity if low. Confirm the park brake is fully released, then inspect linkage adjustment before condemning the transaxle.
Manual Section: Hydrostatic Power Train TroubleshootingTransmission drive pulley sheave stripped out on the transmission shaft after normal use

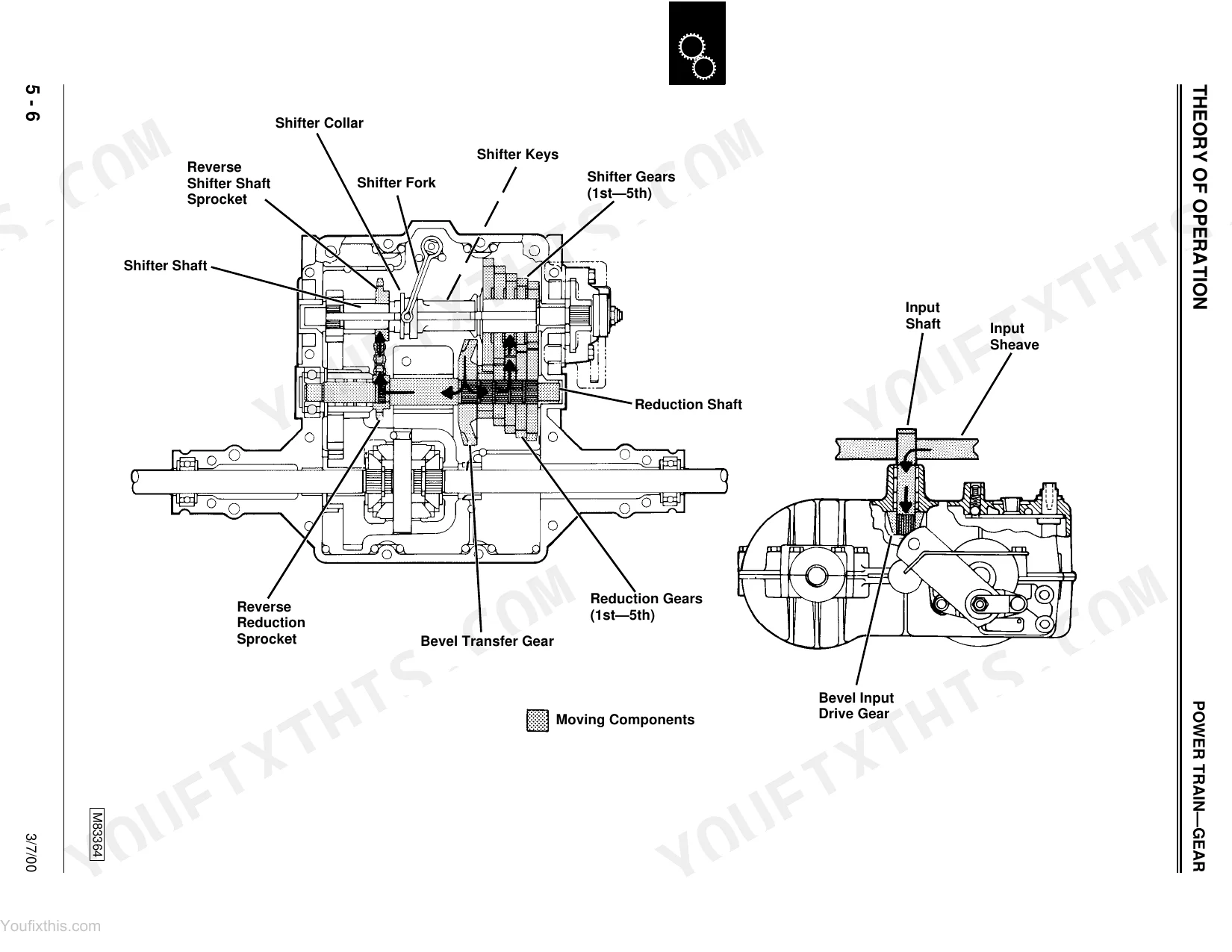

Remove the drive belt and inspect the sheave splines on the transmission input shaft for rounded or sheared teeth. Reference the exploded parts view on page 154 to confirm correct sheave orientation and retaining hardware before reassembly. Replace the sheave rather than attempting a weld repair, and torque the retaining fastener to spec.
Manual Section: Power Train, Gear p. 154Engine will not crank when key is turned even with a fully charged battery
Check the electrical troubleshooting chart for cranking circuit faults. Confirm the operator is seated and the brake pedal is fully depressed, since the safety interlock blocks cranking otherwise. Verify battery voltage reads 12 V and inspect cable terminals for corrosion; check for a blown fuse before testing the starter solenoid.
Manual Section: Electrical Troubleshooting (General)Tractor creeps forward or backward with hydrostatic control lever set in neutral
Check the hydrostatic troubleshooting chart for creep conditions. With the engine off, verify the neutral return linkage is not bent or binding, then start the engine and adjust the neutral linkage per the procedure referenced in this section. Recheck for creep at idle and at full throttle before returning the tractor to service.
Manual Section: Hydrostatic Power Train TroubleshootingEngine knocks under load while mowing on hills or with attachment engaged
Check the engine troubleshooting chart for knock conditions tied to low speed or overload. Reduce ground speed on inclines and verify the operator is not lugging the engine below rated RPM. Torque engine mounting screws to 32 N•m (24 lb-ft) if knock is accompanied by vibration, since loose mounts can mimic internal knock.
Manual Section: Kohler Engine: Troubleshooting ProceduresEngine runs unevenly and misses at idle after sitting over winter
Check the carburetor troubleshooting chart for erratic idle and hesitation symptoms. Clean cooling fins and service or replace a dirty air cleaner element, torquing the air cleaner mounting nuts to 9.9 N•m (88 lb-in.) on reassembly. Pull the spark plug and reset the gap to 0.76 mm (0.030 in.), torquing it to 24.4–29.8 N•m (216–264 lb-in.).
Manual Section: Carburetor Troubleshooting ChartFrequently Asked Questions
What are the torque specifications for the cylinder head fasteners on a John Deere Sabre 1948GV engine?
The cylinder head fasteners require an initial torque of 20 N•m (180 lb-in.) in sequence, followed by a final torque of 40.7 N•m (30 lb-ft) in sequence. These specifications ensure proper sealing and operation of the engine. p. 25
What is the torque specification for the engine mounting screws on a John Deere Sabre tractor?
The engine mounting screws should be tightened to a torque of 32 N•m (24 lb-ft). This ensures the engine is securely fastened to the tractor frame. p. 25
What are the replacement specifications for the spark plug on a John Deere Sabre tractor?
The recommended spark plug type is Champion® RC12YC, with a gap of 0.76 mm (0.030 in.) for all engines. When installing, the spark plug should be torqued to 24.4 – 29.8 N•m (216 – 264 lb-in.). p. 22
What is the engine oil capacity for the John Deere Sabre with an oil filter?
The engine oil capacity with an oil filter is 1.9 L (2.0 qt.) for CV19, CV21, and CV23 engines. For CV25 engines, the capacity is 2.0 L (2.1 qt.). p. 11
What do I get after purchasing this John Deere 1948GV/HV & variants manual?
This is a 324-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Are there any print restrictions on this John Deere 1948GV/HV & variants manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Does this John Deere 1948GV/HV & variants manual cover the hydraulic system?

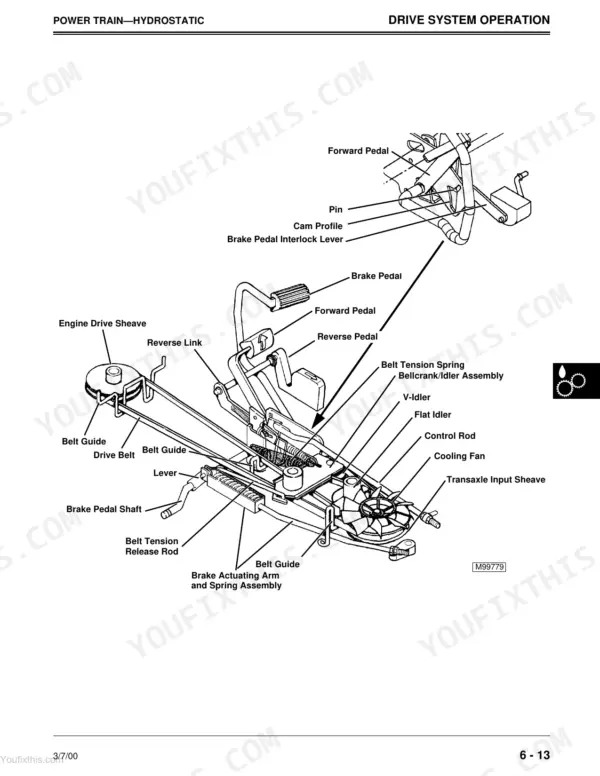

Yes, this John Deere 1948GV/HV & variants Technical Manual includes a hydraulic system diagram.
