Part of the John Deere Repair Manuals.
All 574 pages of this John Deere Agriculture 6100D, 6110D, 6115D, 6125D, 6130D Repair Manual PDF (OEM #TM608819) target one job: getting your tractor back to factory spec. Inside you get step-by-step rebuild procedures running from engine cooling and fuel systems through the complete electrical circuit (connectors, charging, starting) and into an extensive hydraulics section covering pump teardown, hitch valve service, and rear selective control valve repair. Flip to exploded views of every major drivetrain and cab assembly, backed by torque tables and factory fluid capacity schedules. Torque the SCV hydraulic line fittings to 102 N·m (75 lb.-ft.) and pressure-test your A/C condenser at 689 kPa (100 psi): straight from John Deere engineering, not a forum post. No more hunting for specs that may not even apply to your machine. Bookmarked by section; search any keyword, jump straight to the procedure, and get back to work.
What's Inside This John Deere Agriculture 6100D, 6110D, 6115D, 6125D, 6130D Repair Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 7-72 | Group 05 - Safety, Group 10 - General Information, Group 15 - Fuels, Lubricants and Coolant |
| Engine Repair | 73-106 | Group 05 - Engine, Group 10 - Cooling System |
| Fuel, Air Intake, and Exhaust Systems | 107-125 | Group 05 - Fuel System, Group 10 - Air Intake System, Group 15 - Exhaust System |
| Electrical System | 126-220 | Group 05 - Connectors, Group 10 - Charging Circuit, Group 15 - Starting Circuit, Group 20 - Electrical System Components |
| Drive Systems and Transmission | 221-254 | Group 00 - Towing, Group 05 - Component Removal, Group 10 - PTO, Group 15 - Clutch |
| Steering and Brakes | 255-303 | Group 05 - Steering Repair, Group 10 - Front Axle, 2WD, Group 15 - Front Axle, MFWD, Group 20 - Brake Repair |
| Hydraulics | 304-446 | Group 05 - Hydraulic Pump, Group 10 - Hydraulic Oil Cooler, Group 15 - Hitch Valve, Group 20 - Hydraulic Rear Selective Control Valve |
| Miscellaneous | 447-474 | Group 05 - Hood and Fenders, Group 10 - Hitch and Drawbar, Group 15 - Front Support |
| Open Operator Station Repair | 475-495 | Group 05 - Seat and Support, Group 10 - ROPS, Group 15 - Operator Platform, Group 20 - Cowl Repair |
| Cab, Operator Station Repair | 496-571 | Group 00 - Removal and Installation of Components, Group 10 - Air Conditioning System, Group 15 - Heating System, Group 20 - Seat |
| Special Tools | 572-574 | Group 05 - Dealer Fabricated Tools, Group 10 - Service Tools |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| SCV Hydraulic Lines Torque | 102 N·m (75 lb.-ft.) | p. 368 |
| Engine Oil Filter Replacement | Always change filters regularly as specified in this manual. Use filters meeting John Deere performance specifications. | p. 62 |
| Air Cleaner Mounting Cap Screws Torque | 30 N·m (265 lb.-in.) | p. 116 |
| Fuel Cooler Mounting Cap Screws Torque | 30 N·m (265 lb.-in.) | p. 113 |
| Air Conditioning Condenser Pressure Test | 689 kPa (68.9 bar) (100 psi) | p. 543 |
| Thread Lock and Sealer (High Strength) Use | Apply to threads of SCV cable before tightening retaining nut | p. 367 |

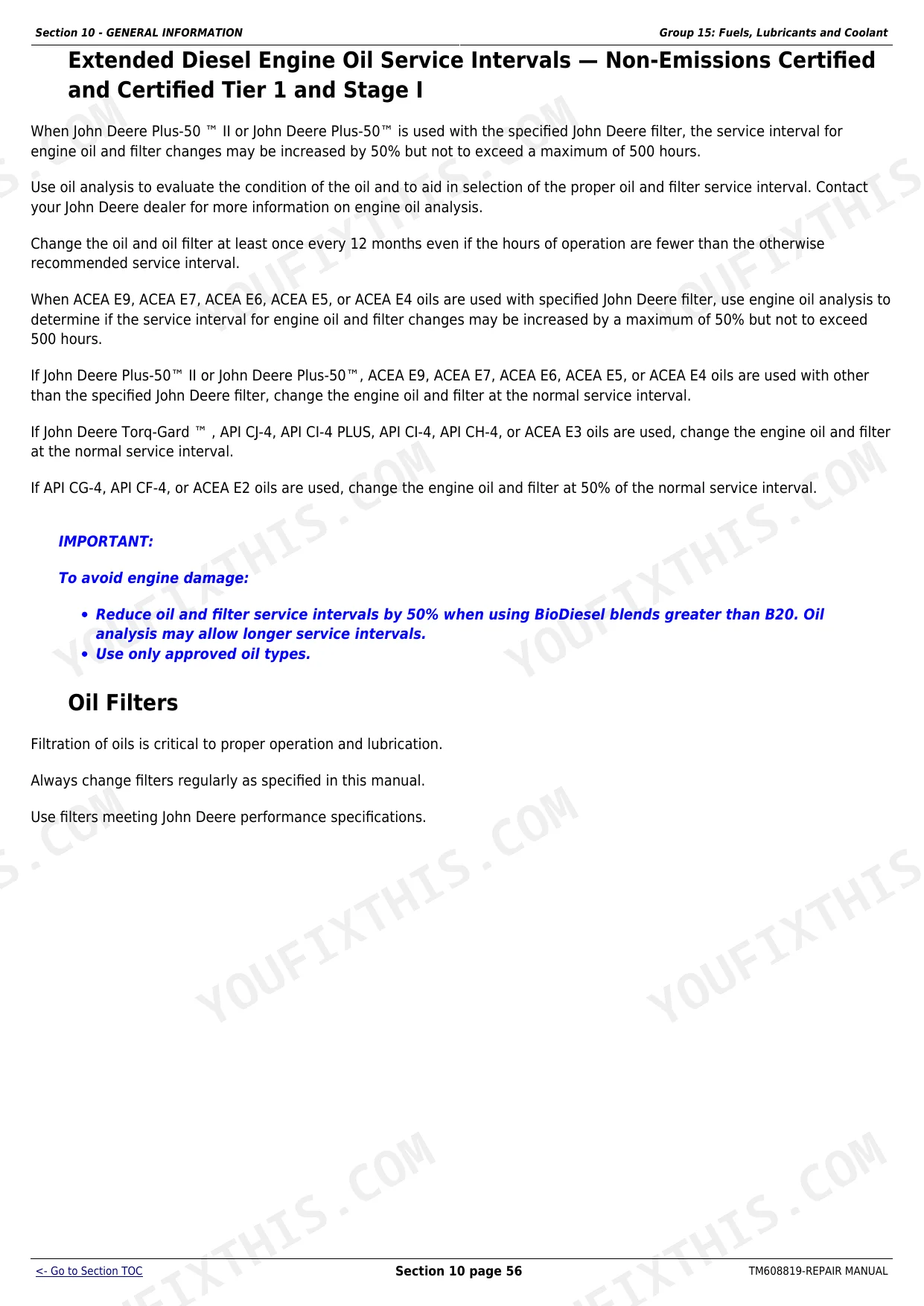

| Engine Oil Service Interval Reduction (BioDiesel > B20) | Reduce oil and filter service intervals by 50% | p. 62 |
| Engine-to-Mid-frame Mounting Cap Screws Torque | 530 N·m | p. 73 |

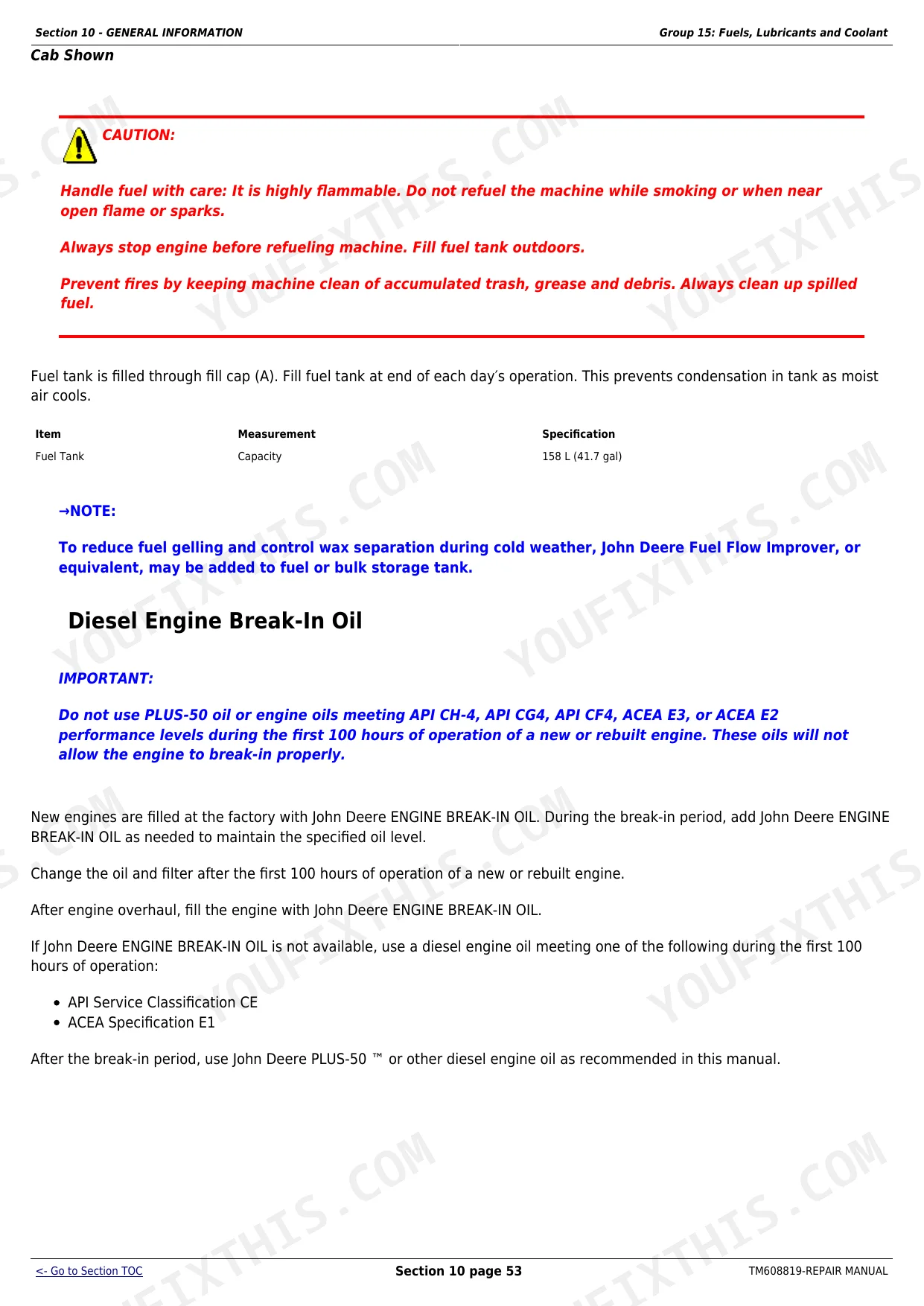

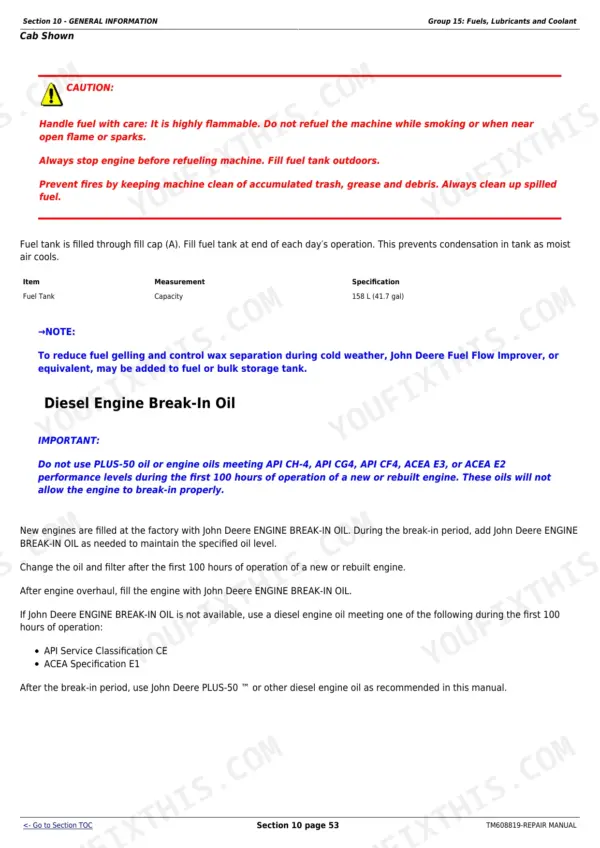

| Fuel Tank Capacity | 158 L | p. 59 |
| Radiator Pressure Test | 103 kPa | p. 93 |
| Cooling System Capacity | 16.5 L | p. 93 |
| Alternator Mounting Cap Screws Torque | 55 N·m | p. 188 |
John Deere Agriculture 6100D, 6110D, 6115D, 6125D, 6130D Common Problems This Manual Covers
John Deere 6100D hydraulic hose shows exposed wire braid or weeping at fittings, bucket won't lift p. 368
Inspect all hydraulic hoses for cracks, kinks, exposed wire braid, and seepage at every fitting. Replace any hose showing wire braid. On reinstallation, torque SCV hydraulic line fittings to 102 N·m (75 lb.-ft.) per page 368. Check the full hose routing against the Hydraulics section diagram starting page 304.
Manual Section: Hydraulic Rear Selective Control ValveEngine oil overdue for change, power falls off and oil pressure light comes on p. 62
Change engine oil and filter at least annually or every 500 hours, whichever comes first. Page 62 interval tables confirm biodiesel blends above B20 require a 50% reduction in service interval. Use only PLUS-50, ACEA E5, or E4 compliant oil. Fit a new filter meeting John Deere performance specifications at every service.
Manual Section: General InformationAir filter clogged faster than expected in dusty conditions, engine overheats and power drops p. 116
Remove and inspect the air filter every 50 hours, or immediately after heavy dust work. Tap the element gently to dislodge loose dirt; never wash with water or blow inward. Reinstall and torque air cleaner mounting cap screws to 30 N·m (265 lb.-in.) per page 116. Replace the element at the first sign of damage or collapse.
Manual Section: Air Intake SystemCooler blocked with debris before 500-hour service interval, coolant temperature climbs into red p. 93
Test the radiator at 103 kPa (page 93); a pressure drop indicates a leak before cleaning begins. Inspect cooler fins for packed debris and blow clear from the engine side outward. Flush and refill the cooling system to 16.5 L with approved coolant. Repeat this service every 500 hours regardless of field conditions.
Manual Section: Cooling SystemHydraulic pump grinding or whining at full stroke, implement response goes sluggish p. 305
Check hydraulic oil level and condition first; contaminated or aerated fluid often mimics pump wear. Remove and inspect pump internals per the Hydraulic Pump procedures in the Hydraulics section (page 304). On reinstallation, torque pump-to-top-cover socket head screws to 95 N·m (page 305), then purge the system before returning to work.
Manual Section: Hydraulic PumpFrequently Asked Questions
How do you fix john Deere 6100D hydraulic hose shows exposed wire braid or weeping at fittings, bucket won't lift?
Inspect all hydraulic hoses for cracks, kinks, exposed wire braid, and seepage at every fitting. Replace any hose showing wire braid. On reinstallation, torque SCV hydraulic line fittings to 102 N·m (75 lb.-ft.) per page 368. Check the full hose routing against the Hydraulics section diagram starting page 304.
How do you fix engine oil overdue for change, power falls off and oil pressure light comes on?
Change engine oil and filter at least annually or every 500 hours, whichever comes first. Page 62 interval tables confirm biodiesel blends above B20 require a 50% reduction in service interval. Use only PLUS-50, ACEA E5, or E4 compliant oil. Fit a new filter meeting John Deere performance specifications at every service.
How do you fix air filter clogged faster than expected in dusty conditions, engine overheats and power drops?
Remove and inspect the air filter every 50 hours, or immediately after heavy dust work. Tap the element gently to dislodge loose dirt; never wash with water or blow inward. Reinstall and torque air cleaner mounting cap screws to 30 N·m (265 lb.-in.) per page 116. Replace the element at the first sign of damage or collapse.
How do you fix cooler blocked with debris before 500-hour service interval, coolant temperature climbs into red?
Test the radiator at 103 kPa (page 93); a pressure drop indicates a leak before cleaning begins. Inspect cooler fins for packed debris and blow clear from the engine side outward. Flush and refill the cooling system to 16.5 L with approved coolant. Repeat this service every 500 hours regardless of field conditions.
What format is this John Deere Agriculture 6100D & variants manual in?
Immediate download of the complete 574-page searchable Repair Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Are there any print restrictions on this John Deere Agriculture 6100D?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
