Part of the John Deere Repair Manuals.
This John Deere technical manual (TM1351) covers the 130, 160, 165, 175, 180, and 185 lawn tractors built between 1986 and 1990. It is the factory service reference for these machines and their FC290V, FB460V, FC420V, and FC540V engines, spanning 292 pages of repair and diagnostic procedures.The manual splits into repair sections that show how to rebuild components and diagnostic sections that help you find faults quickly. You get coverage of the engine, fuel and air system, electrical system with the electric PTO clutch, the power train including the Eaton and Sundstrand hydrostatic transmissions, plus steering, brakes, and the mower deck.Whether you are chasing a hard start, a weak hydrostatic drive, or a blade that will not engage, you can follow the same torque values, test procedures, and specifications a dealer technician uses.
What's Inside This John Deere 130–185 Manual
| System | Pages | Key Topics |
|---|---|---|

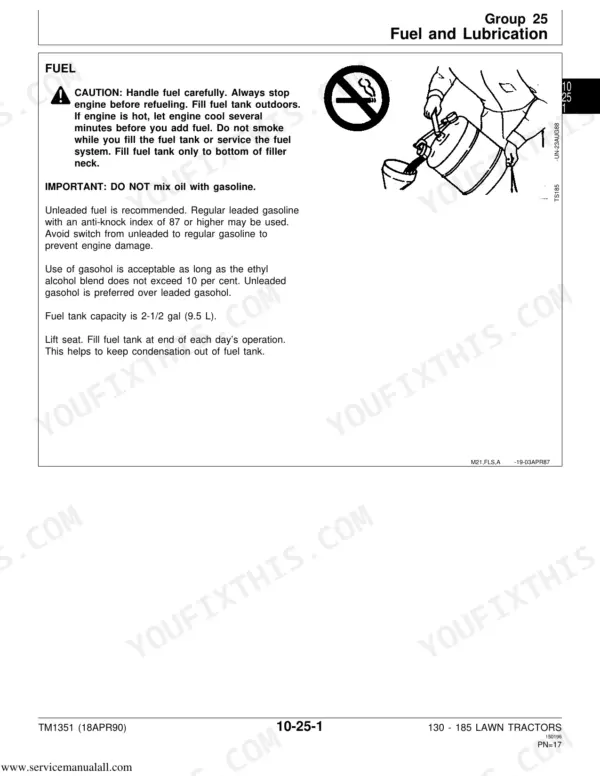

| General Information | 9-28 | Group 05 Safety, Group 10 General Specifications, Group 15 Cap Screw Torque, Group 20 Tune-Up, Group 25 Fuel and Lubrication, Group 30 Serial Numbers |

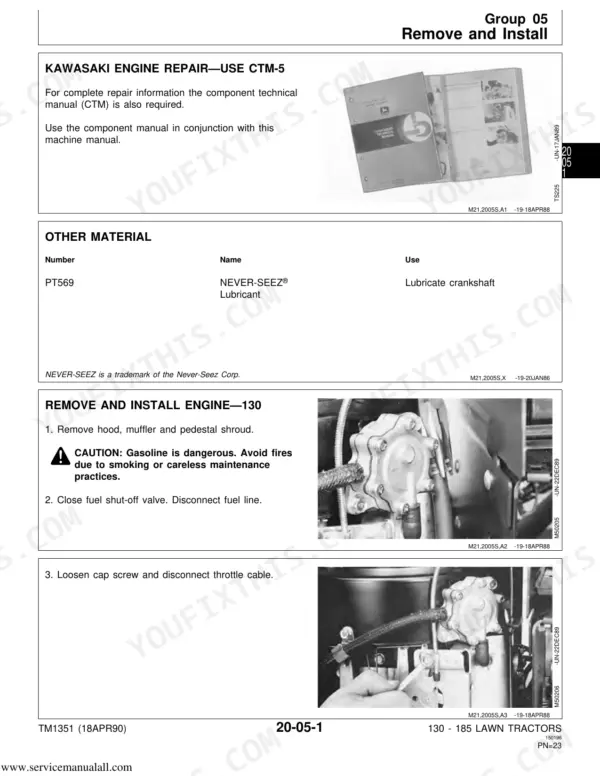

| Engine | 29-42 | Group 05 Remove and Install, Group 10 Muffler |
| Fuel and Air System | 43-50 | Group 05 Fuel Pump and Fuel Tank |
| Electrical | 51-62 | Group 05 Electric PTO Clutch |
| Power Train | 63-138 | Group 05 Powered Wheels, Group 10 Traction Drive Clutch, Group 15 5-Speed Transaxle, Group 20 Hydrostatic Transmission¯Eaton, Group 21 Hydrostatic Transmission¯Sundstrand |
| Steering and Brakes | 139-160 | Group 05 Steering System, Group 10 Front Axle, Group 15 Brakes and Linkages |
| Miscellaneous | 161-178 | Group 05 Mower Spindles, Group 10 Mower Lift Linkage |
| Specifications/Operational Checkout Procedure | 179-186 | Group 01 Test and Adjustment, Group 05 Machine Operational Checkout |
| Engine/Fuel Operation and Tests | 187-206 | Group 05 Engine System Checkout, Group 10 Engine System Diagnosis |
| Electrical Operation and Tests | 207-262 | Group 05 Electrical System Checkout, Group 10 Electrical System Diagnosis, Group 15 Electrical System Component Tests, Group 20 Theory of Operation |
| Power Train Operation and Tests | 263-290 | Group 05 Hydrostatic Power Train System Checkout, Group 06 Gear Power Train System Checkout, Group 10 Hydrostatic Power Train System Diagnosis |

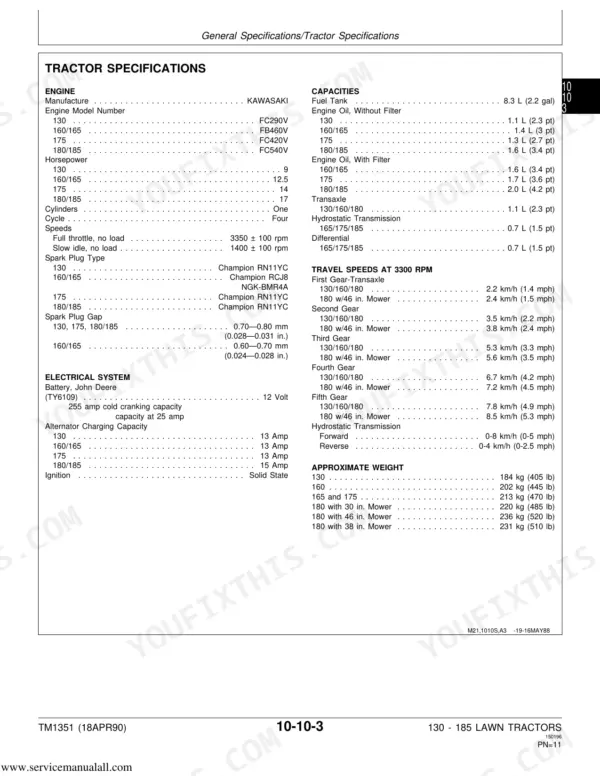

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Traction Drive Clutch Belt Clearance | 94 mm (3.70 in.) | p. 15 |
| Traction Drive Clutch Belt Guide Clearance | 5 mm (0.20 in.) | p. 15 |
| Battery Voltage | 12 Volt | p. 17 |
| Battery Cold Cranking Capacity | 255 amp | p. 17 |
| Starter Amp Draw-Maximum | 150 amps | p. 181 |
| PTO Mounting Cap Screw Torque | 56 N·m (45 lb-ft) | p. 15 |
| PTO Clutch Clearance | 0.41 mm (0.016 in.) | p. 15 |
| Fuel Tank Capacity | 8.3 L (2.2 gal) | p. 17 |
| 130 | ||
| Starter No-Load RPM-Minimum | 7000 rpm | p. 181 |
| 130, 175, 180/185 | ||
| Spark Plug Gap | 0.70–0.80 mm (0.028–0.031 in.) | p. 17 |
| 160/165 | ||
| Spark Plug Gap | 0.60–0.70 mm (0.024–0.028 in.) | p. 17 |
| 180/185 | ||
| Engine Oil, With Filter | 2.0 L (4.2 pt) | p. 17 |
John Deere 130–185 Common Problems This Manual Covers
Hard starting after sitting
These tractors often crank but will not fire after storage, usually from stale fuel, a fouled carburetor, or a clogged fuel filter. The fuel and air system coverage walks through the fuel pump and fuel tank service.
Manual Section: SECTION 30 Fuel and Air System p. 43Weak or slipping hydrostatic drive
Loss of drive, hesitation, or weak movement points to low transmission oil, a slipping traction drive belt, or internal transaxle wear. The Power Train section covers the Eaton and Sundstrand hydrostatic units and the traction drive clutch.
Manual Section: SECTION 50 Power Train p. 63Blades will not engage
A mower deck that will not turn under power often traces to a worn electric PTO clutch or its wiring. This section covers electric PTO clutch removal and clearance.
Manual Section: SECTION 40 Electrical p. 51No-crank or intermittent starting
A no-crank condition can come from a discharged battery, corroded terminals, a weak starter, or a tripped safety interlock. The electrical operation and tests section provides system checkout and component tests.
Manual Section: Section 240 Electrical Operation and Tests p. 207Loose or heavy steering
Play or uneven effort in the steering usually means wear in the steering gear, front axle, or spindles. This section covers the steering system, front axle, and brakes.
Manual Section: SECTION 60 Steering and Brakes p. 139Worn mower spindles and lift linkage
Deck vibration, noise, or poor cut height often comes from worn mower spindles or a sloppy lift linkage. This section covers mower spindle and lift linkage service.
Manual Section: Section 80 Miscellaneous p. 161Engine stalls under load

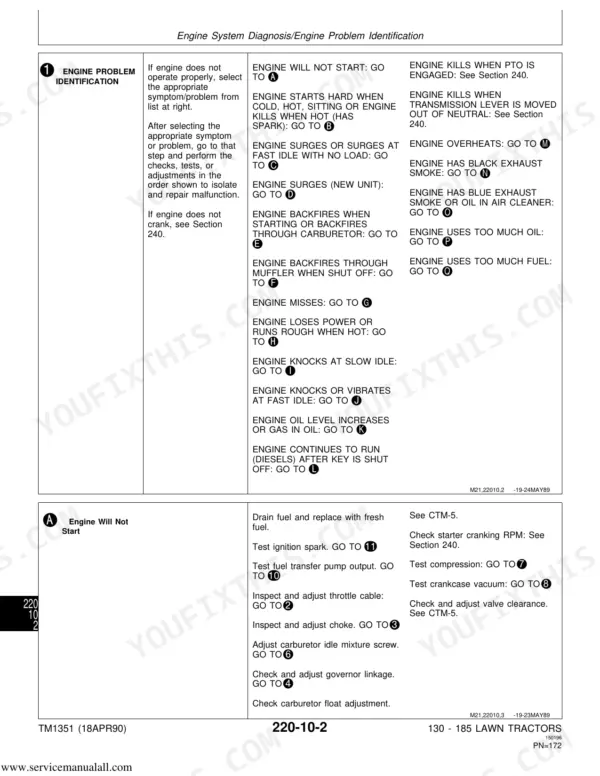

An engine that starts then dies or loses power under load can indicate fuel delivery restriction or an ignition fault. The engine and fuel operation and tests section provides symptom based diagnostic charts.
Manual Section: Section 220 Engine/Fuel Operation and Tests p. 187Frequently Asked Questions
Which tractors does this manual cover?
It covers the John Deere 130, 160, 165, 175, 180, and 185 lawn tractors built from 1986 to 1990, along with their FC290V, FB460V, FC420V, and FC540V engines. It is technical manual TM1351.
Does it include tune-up and torque specifications?
Yes. The General Information section lists general specifications, cap screw torque, tune-up data, and fuel and lubrication information for all six models. p. 9
Can I diagnose the hydrostatic transmission?
Yes. The Power Train Operation and Tests section provides hydrostatic and gear power train system checkout and diagnosis procedures to trace weak or lost drive. p. 263
Does it cover electrical troubleshooting and the safety interlocks?
Yes. The Electrical Operation and Tests section includes system checkout, diagnosis, component tests, and theory of operation, which covers cranking and interlock faults. p. 207
Is this John Deere 130 & variants Technical Manual a digital download?
A 292-page searchable PDF, ready for immediate download. It opens on any device, so you can pull it up on your phone while you're under the hood. No shipping, no waiting.
Am I able to print pages from this manual?
Yes. The PDF carries no DRM, so you can print any page or section you need for the shop. It works with any standard printer.
Can I find wiring schematics in this John Deere 130 & variants manual?
Yes. Full electrical wiring diagrams are included, with wire colors, connector locations, and circuit descriptions.
