Wrenching on a 410E? This John Deere 410E Technical Manual PDF (OEM TM1611) packs 792 pages of factory service data for the backhoe loader, from the PowerTech 4.5L engine to the 125 Series backhoe cylinders. You get full wiring diagrams for the charging system, lighting, and harness routing, plus hydraulic schematics covering the pump, load sense module, priority valve, and the loader and backhoe control valves. Inside: powershift clutch rebuilds, MFWD axle teardowns, brake bleeding, and steering valve service, all laid out step by step. Fill the cooling system to 16 L (17 qt) and torque the alternator B+ stud nut to 7.75 N·m. No more chasing electrical gremlins with a test light and a hunch. Bookmarked and keyword-searchable; jump straight to the spec you need and get your machine back on the dirt.
What's Inside This John Deere 410E Manual

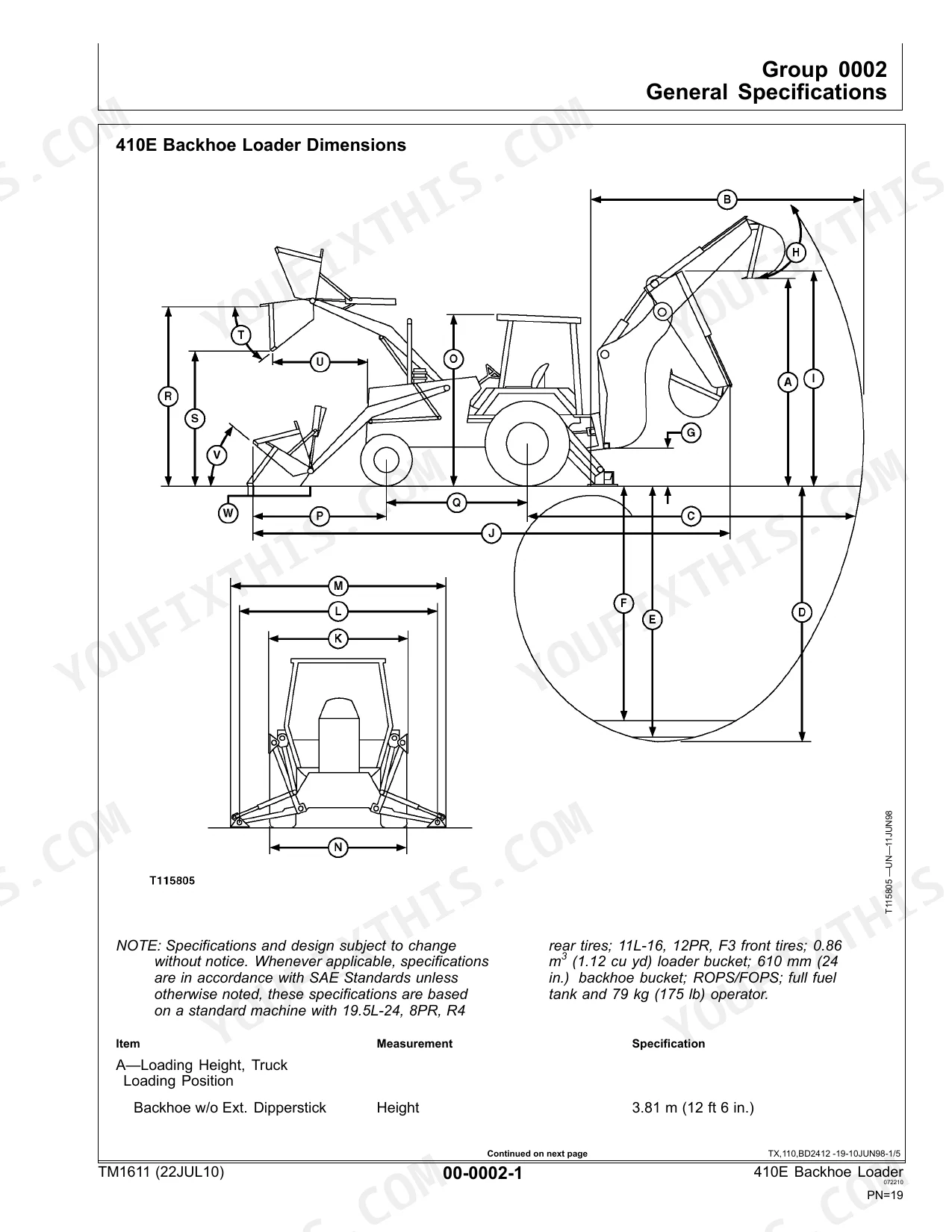

| System | Pages | Key Topics |
|---|---|---|
| General Information | 7-48 | Safety Information (Handle Fluids Safely, Avoid Fires, Prevent Battery Explosions, Prepare for Emergencies, Prevent Acid Burns, Handle Chemical Products Safely) |

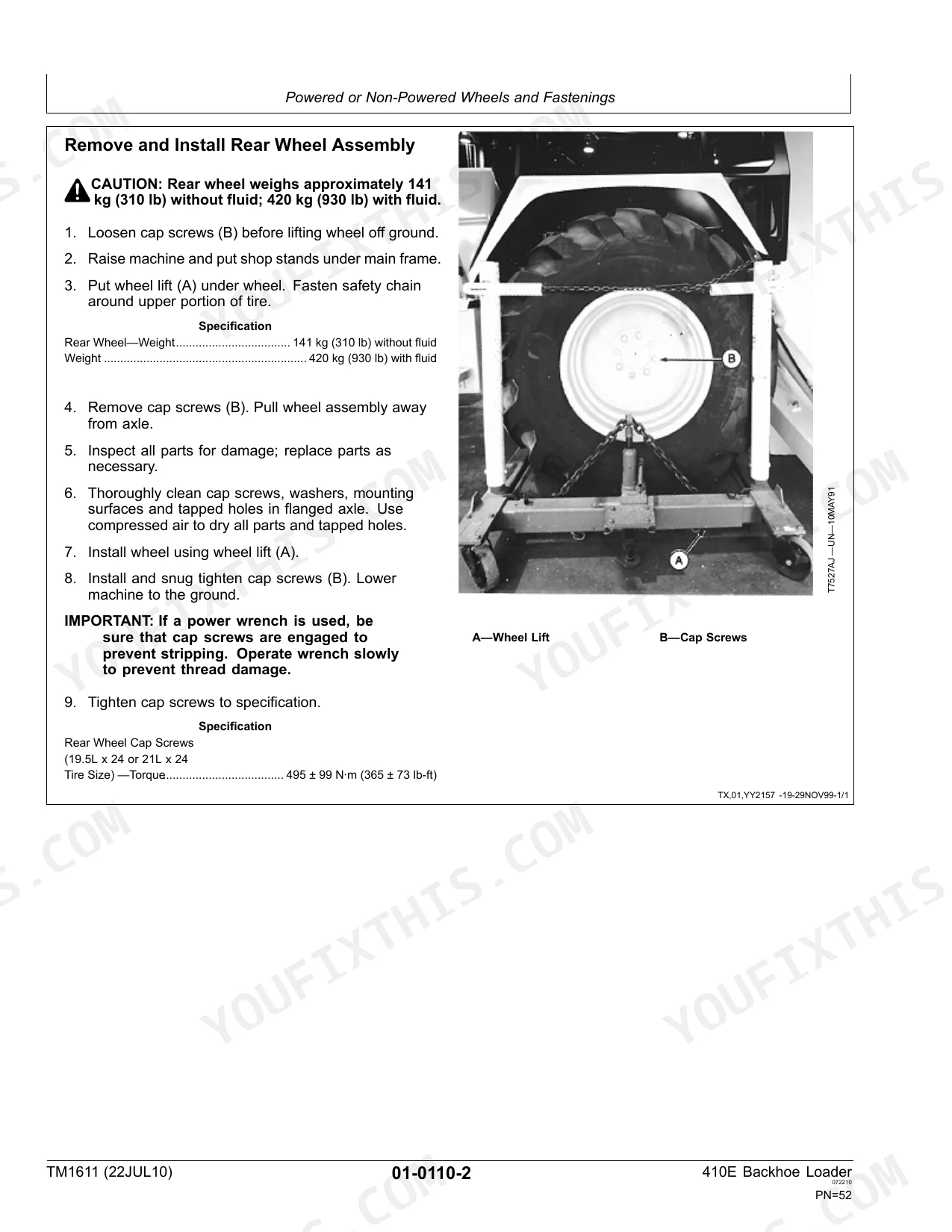

| Wheels | 49-56 | Service Equipment and Tools, Specifications, Rear Wheel Assembly, Front Wheel Assembly, Tire |

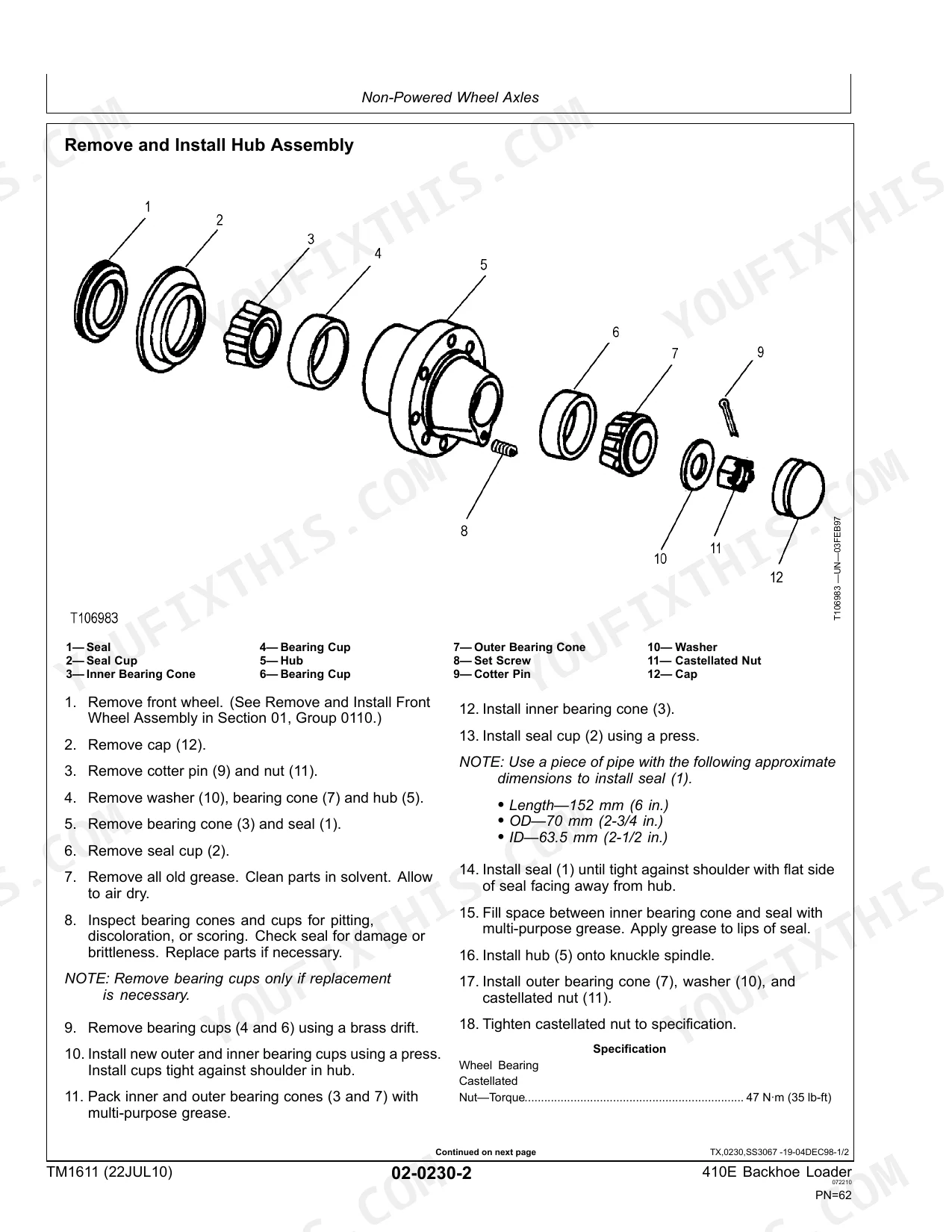

| Axles and Suspension Systems | 57-125 | Input Drive Shafts and U-Joints, Non-Powered Wheel Axles, Powered Wheel Axle (MFWD), Axle Shaft, Bearings and Reduction Gears, Dealer Fabricated Tools |
| Transmission | 126-290 | Removal and Installation, Controls Linkage, Input Drive Shafts and U-Joint, Gears, Shafts, Bearings, Powershift Clutches, Hydraulic System |
| Engine | 291-306 | Essential Tools, Specifications, PowerTech 4.5 L (4045) John Deere Engine, Engine Removal and Installation, Transmission Holding Bracket |
| Engine Auxiliary Systems | 307-330 | Cold Weather Starting Aid, Cooling Systems, Speed Controls, Intake System, Exhaust System, External Fuel Supply System |
| Torque Converter | 331-334 | Turbine, Gears and Shaft, Removal and Installation, Disassembly and Assembly |
| Steering System | 335-376 | Service Equipment and Tools, Specifications, Steering Column, Steering Valve, Non-Powered Axle Steering Cylinder, Priority Valve |
| Service Brakes | 377-396 | Active Elements, Hydraulic System, Service Brake Components, Brake Valve, Brake Pedals, Bleeding Brakes |
| Park Brake | 397-400 | Active Elements, Disassemble and Assemble Park Brake, Park Brake Solenoid |

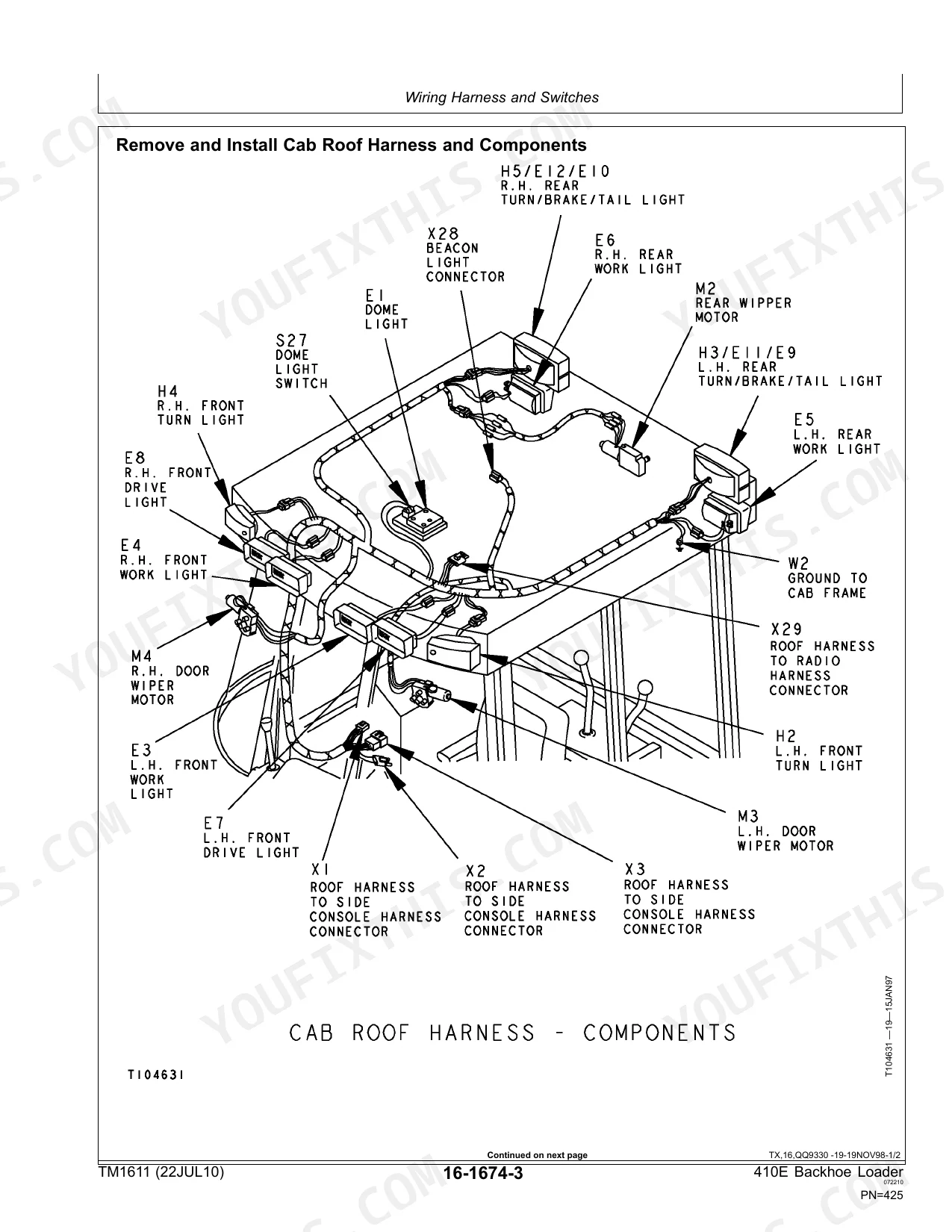

| Electrical Systems | 401-458 | Batteries, Alternator, Lighting System, Wiring Harness, System Controls, Motors and Actuators |
| Frames, Chassis or Supporting Structure | 459-468 | Frame Installation, Welding Repair of Major Structures, Rivnut Fasteners, Chassis Weights, Counterweight, Frame Bumper |
| Operator’s Station | 469-540 | Cab/ROPS, Operator Enclosure, Seat and Seat Belt, Heating and Air Conditioning, Dealer Fabricated Tools |
| Sheet Metal and Styling | 541-550 | Hood and Engine Enclosure, Miscellaneous Shields, Grille and Grille Housing, Fenders |
| Safety, Convenience and Miscellaneous | 551-558 | - |
| Main Hydraulic System | 559-604 | - |
| Loader | 605-677 | Loader Boom and Bucket, Loader Frame and Linkage, Lift and Bucket Cylinders, Loader Control Valve and Hydraulic Lines, Quick-Coupler |
| Backhoe | 678-792 | Backhoe Boom, Crowd Arm and Bucket, Swing Frame and Cylinders, Stabilizers, Backhoe Control Valve and Hydraulic Circuit, Extendable Dipperstick |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Alternators and Starting Motors | CTM77 | p. 1 |
| Cooling system capacity | 16 L (17 qt) | p. 314 |
| Clamp from Hose Air Cleaner Housing—Torque | 3.4 N·m (30 lb-in.) | p. 321 |
| Regulated Air—Pressure | 13.8—20.7 kPa (0.13—0.21 bar) (2—3 psi) | p. 323 |
| Nut to B+ Stud on Alternator Torque | 7.75 ± 0.8 N·m (5.7 ± 0.6 lb-ft) | p. 415 |
| F1 | 7.5 Amp | p. 443 |
| F2 | 15 Amp | p. 443 |
| Hydraulic Pump Weight | 37 kg (82 lb) Approximate | p. 562 |
| Load Sense-to-Pump 90° Elbow on Bottom of Pump Torque | 34 N-m (25 lb-ft) | p. 564 |
| Bucket | 45 kg (100 lb) Approximate | p. 623 |
| Relief Valve 27 mm (1-1/2 in.) Threads | 65 ± 7 N·m (48 ± 5 lb-ft) | p. 633 |
| Relief Valve w/out Locking Ring, 22.2 mm (7/8 in.) Threads | 45 ± 4 N·m (33 ± 3 lb-ft) | p. 633 |
John Deere 410E Common Problems This Manual Covers
John Deere 410E backhoe engine won't crank or turns over slowly after sitting overnight
Check battery terminals for corrosion and clean the posts with a wire brush. Verify ground cable connections are tight at the frame and engine block. Test the fuses in the panel on page 443; the F1 circuit carries 7.5 amps and F6 carries 30 amps. If the solenoid clicks but the starter won't spin, replace the starter.
Manual Section: Electrical Systems p. 443Hydraulic system loses pressure, boom and dipperstick cycle slowly, bucket curl feels weak

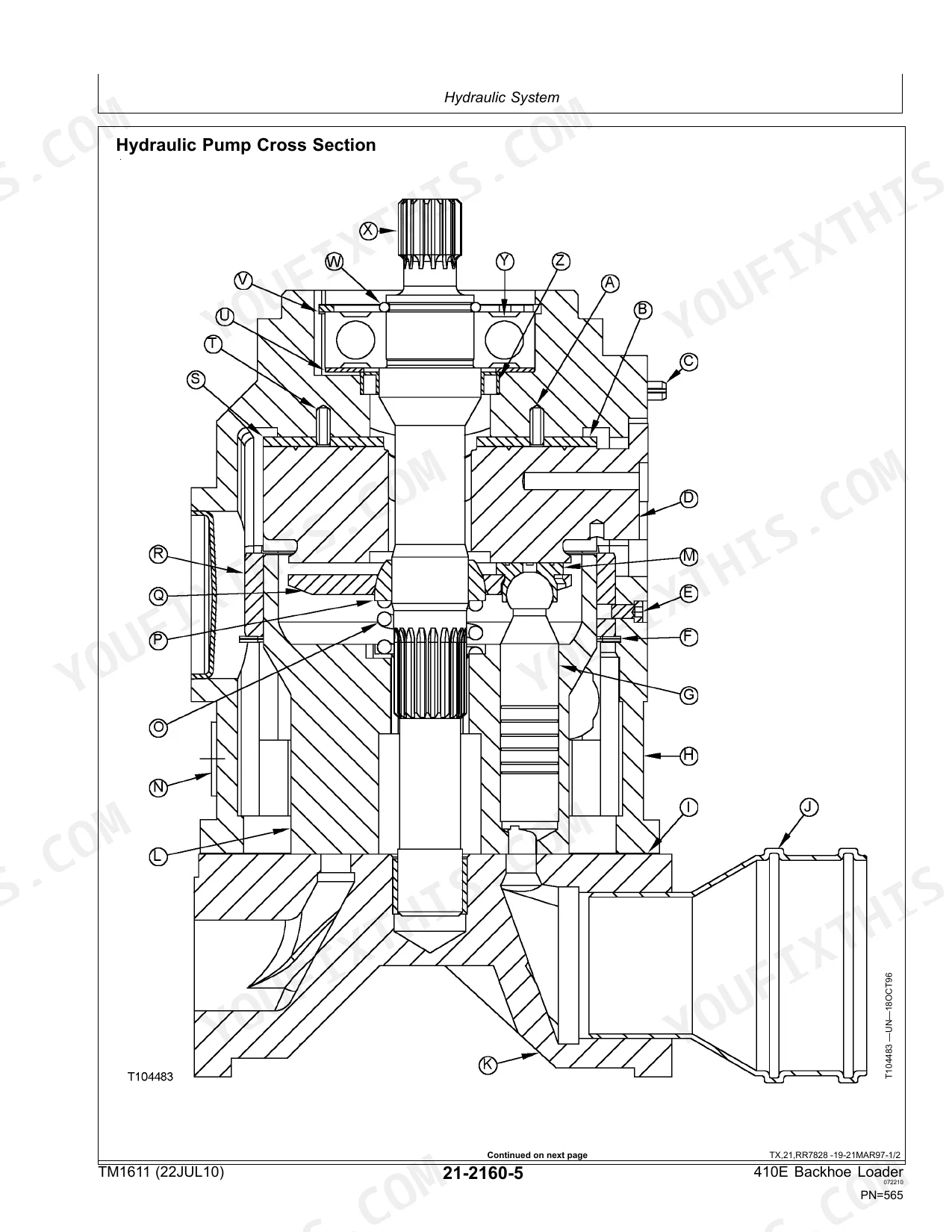

Check hydraulic oil level first; the reservoir holds 37 L (39 qt) per the capacities on page 27. Replace the hydraulic filter element if it is past its interval. Then test standby pressure against the main relief setting of 25 000 kPa (3625 psi) listed on page 25. If pressure still lags, inspect the pump in Section 21.
Manual Section: Main Hydraulic System p. 559Coolant temperature climbs under load and radiator boils over in hot weather
Clean packed debris from the radiator core with low pressure air, blowing from the fan side outward. Check coolant level with the engine cold and top off; the system holds 16 L (17 qt) per page 314. Inspect fan belt tension and the thermostat, then pressure test the cap before condemning the water pump.
Manual Section: Engine Auxiliary Systems p. 314Engine stalls, runs rough, or loses power, then restarts after bleeding the fuel system
Inspect every fuel line from the tank forward for weeping fittings; air gets in wherever fuel seeps out. Replace the fuel filter, then bleed the system until fuel runs clear of bubbles. Keep the tank above a quarter full; it holds 136 L (36 gal) per page 27. Check the tank breather filter for clogging too.
Manual Section: Engine Auxiliary Systems p. 27Black exhaust smoke and power loss with dust streaks inside the air intake tubing
Run the air intake leakage test on page 323, pressurizing the system to 13.8 to 20.7 kPa (2 to 3 psi) and brushing soapy water on every joint. Replace the air filter element if dust has bypassed the seal. Retorque the air cleaner hose clamps to 3.4 N·m (30 lb-in.) per the spec on page 321.
Manual Section: Engine Auxiliary Systems p. 323Frequently Asked Questions
What are the torque specifications for the John Deere 410E differential housing cap screws?
The differential housing cap screws on the John Deere 410E Backhoe Loader should be tightened to a torque of 185 N∙m (136 lb-ft). This specification is found under the Axle Shaft, Bearings and Reduction Gears section. p. 73
What is the specification for the hydraulic oil filter element in the John Deere 410E Backhoe Loader?
The hydraulic system of the John Deere 410E Backhoe Loader uses a 10 micron replaceable element return oil filter. This specification is listed under the General Information section. p. 26
What is the engine oil capacity for the John Deere 410E Backhoe Loader, including the filter?
The engine oil capacity for the John Deere 410E Backhoe Loader, including the filter, is 12.8 L (13.5 qt). This information is provided in the General Specifications section of the manual. p. 27
What is the hydraulic system reservoir capacity for the John Deere 410E Backhoe Loader?
The hydraulic system reservoir capacity for the John Deere 410E Backhoe Loader is 37 L (39 qt). This specification can be found in the General Specifications section. p. 27

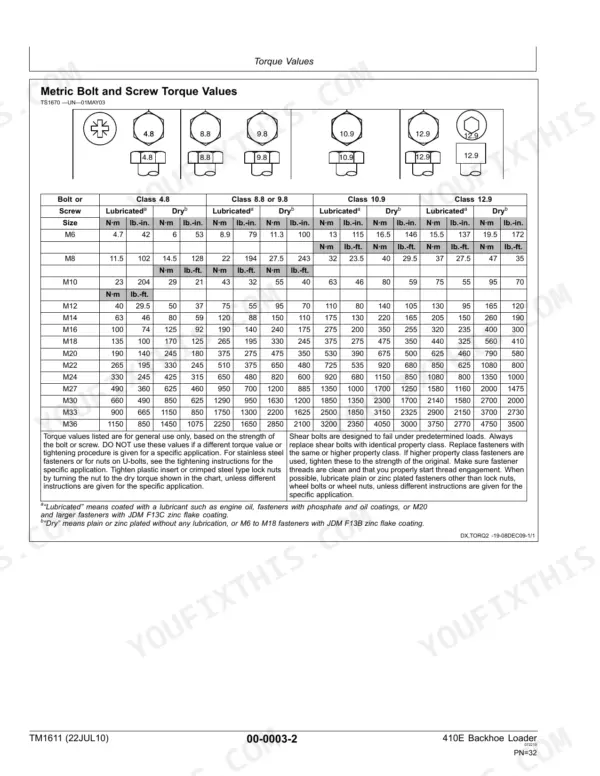

What is the torque specification for the ROPS mounting bolts on the John Deere 410E Backhoe Loader?

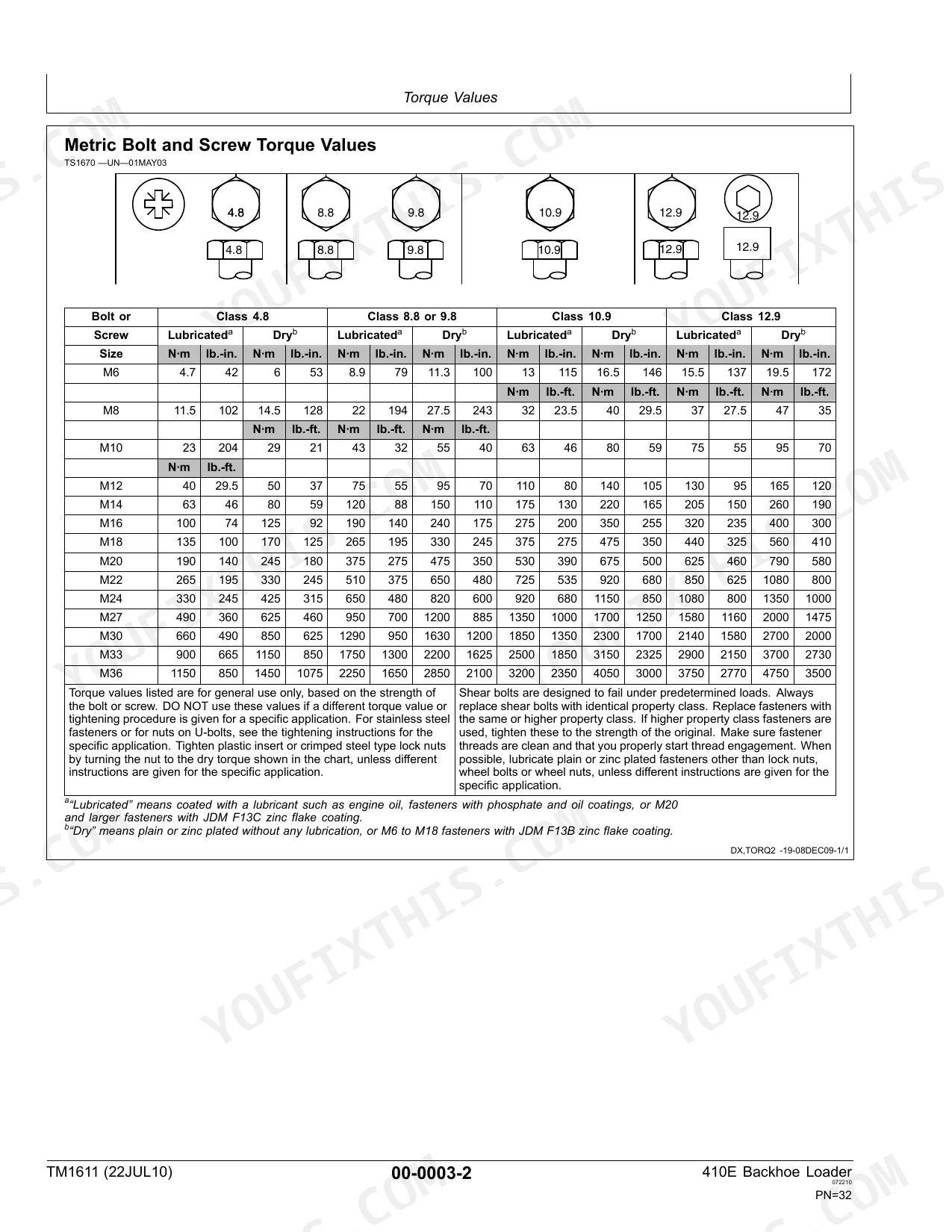

The ROPS mounting bolts on the John Deere 410E Backhoe Loader should be tightened to a torque of 420 ± 84 N∙m (310 ± 62 lb-ft). This is a critical safety specification found in the Torque Values section. p. 31
How quickly can I access this manual after buying?
A 792-page Technical Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Can I print this manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
